Description
Specification:
Brand: RCinpower

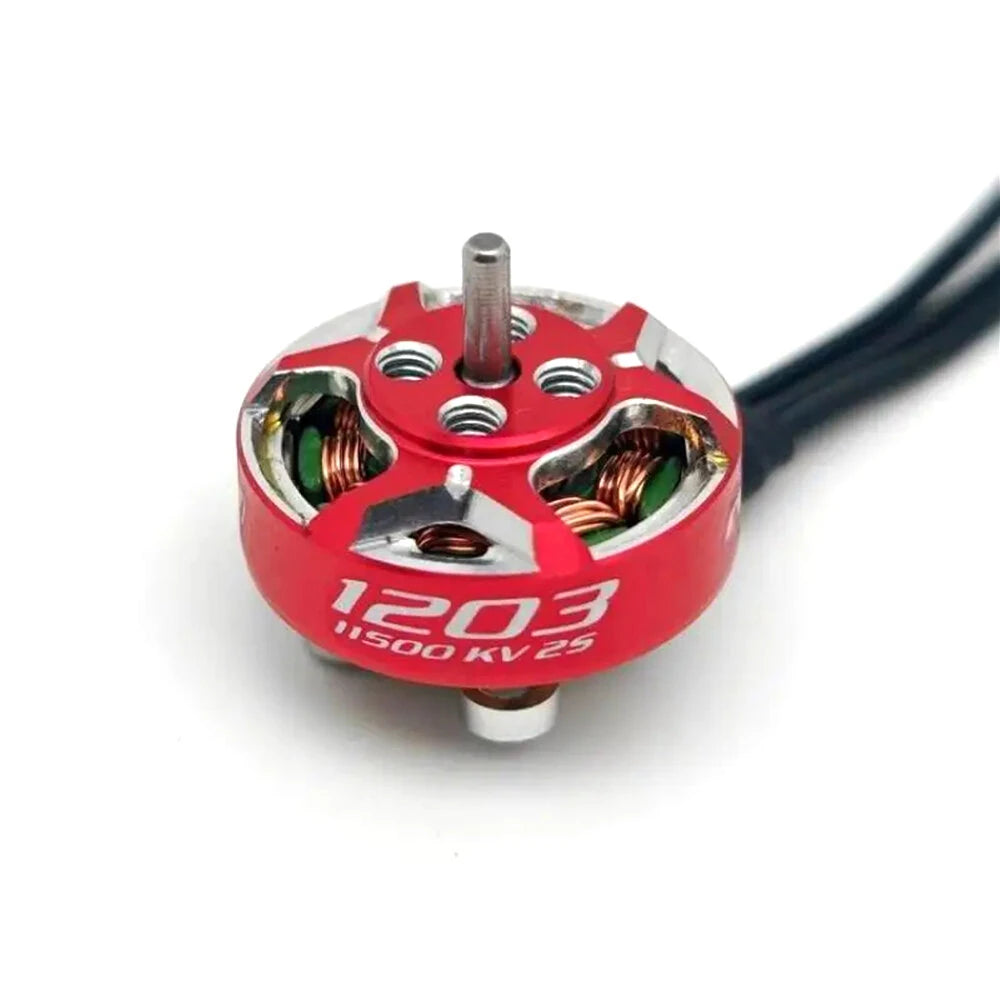

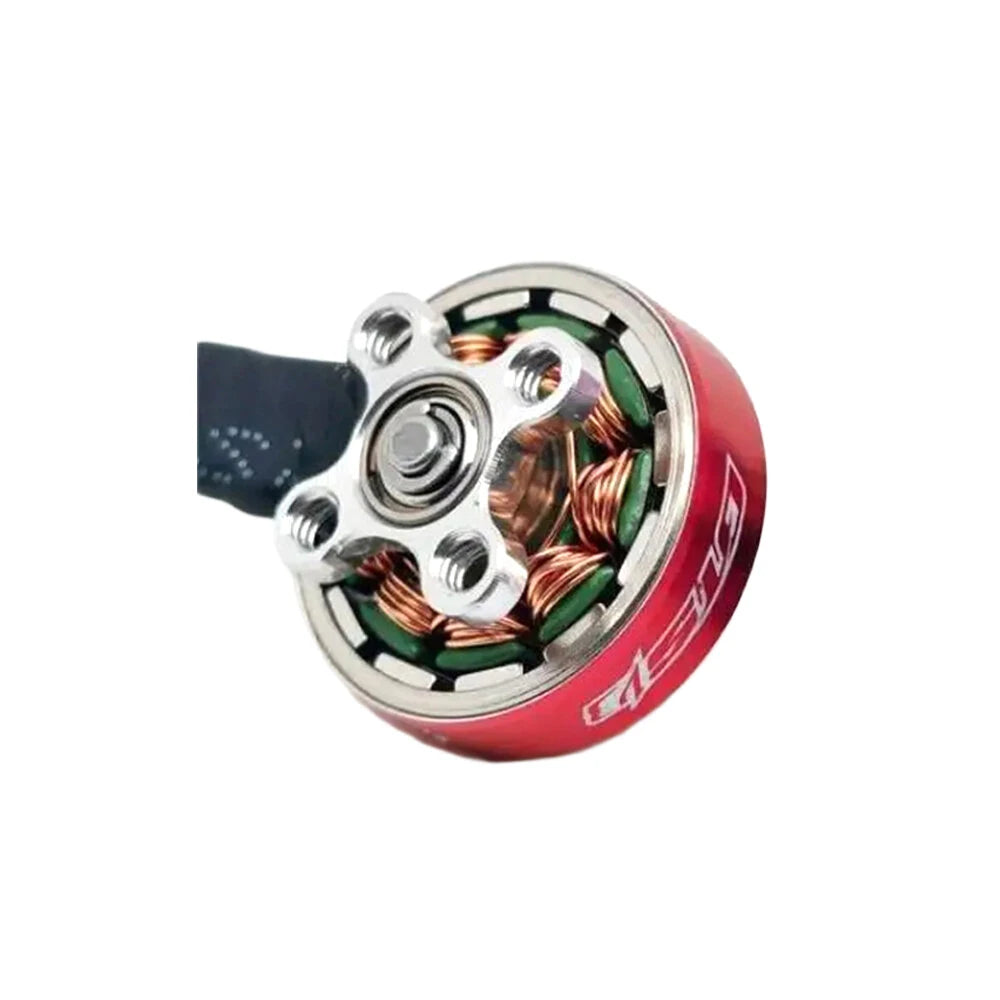

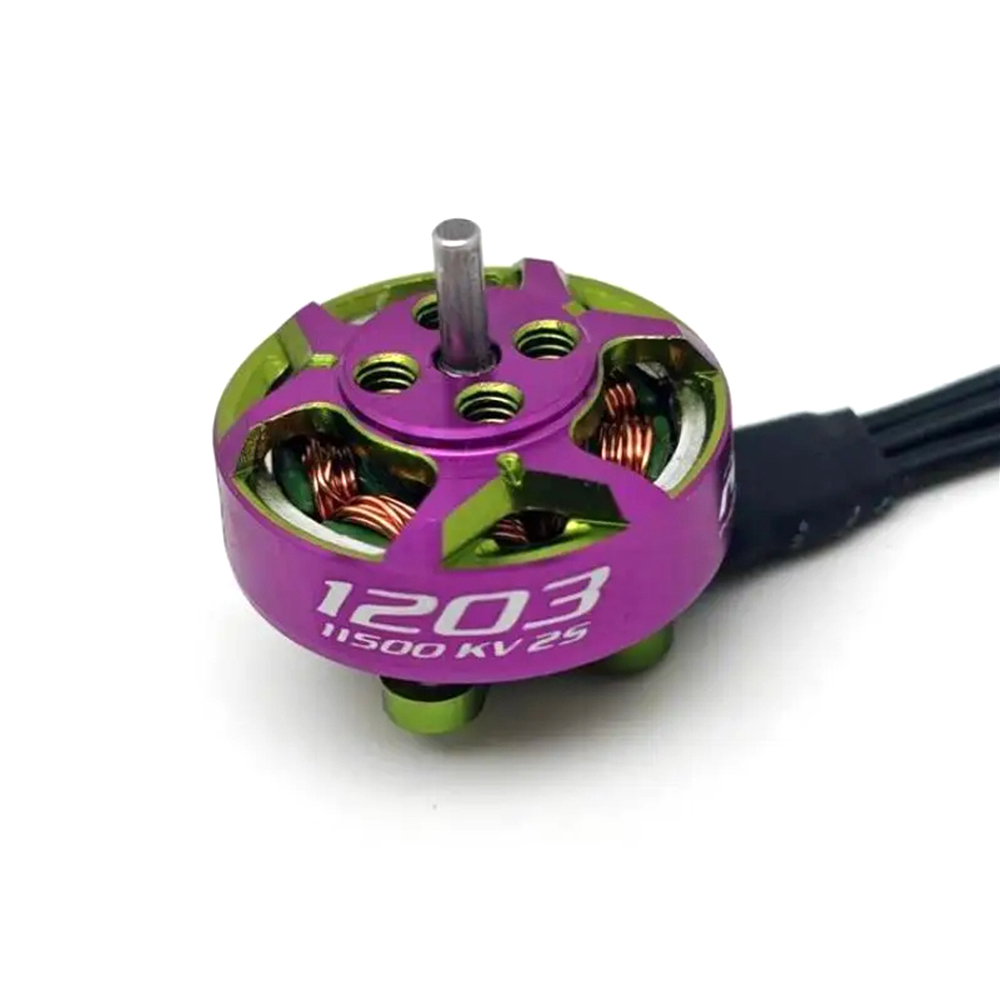

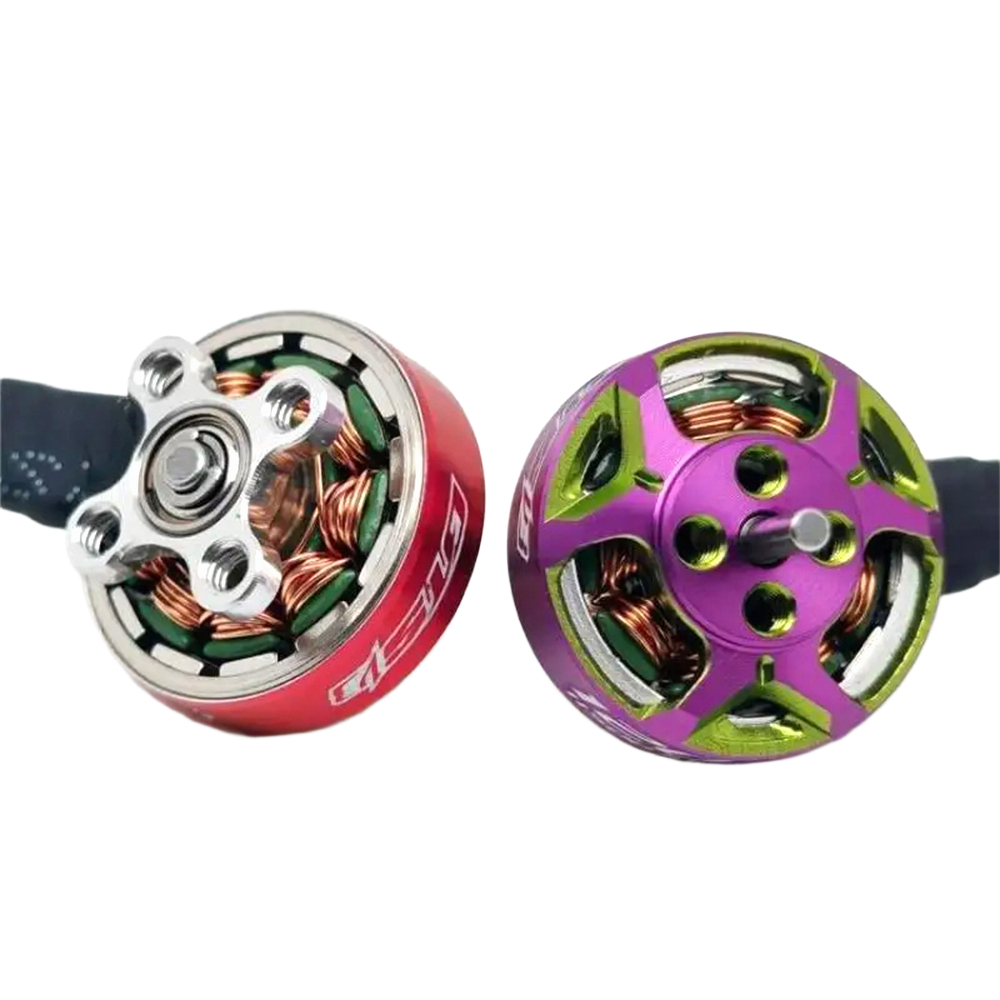

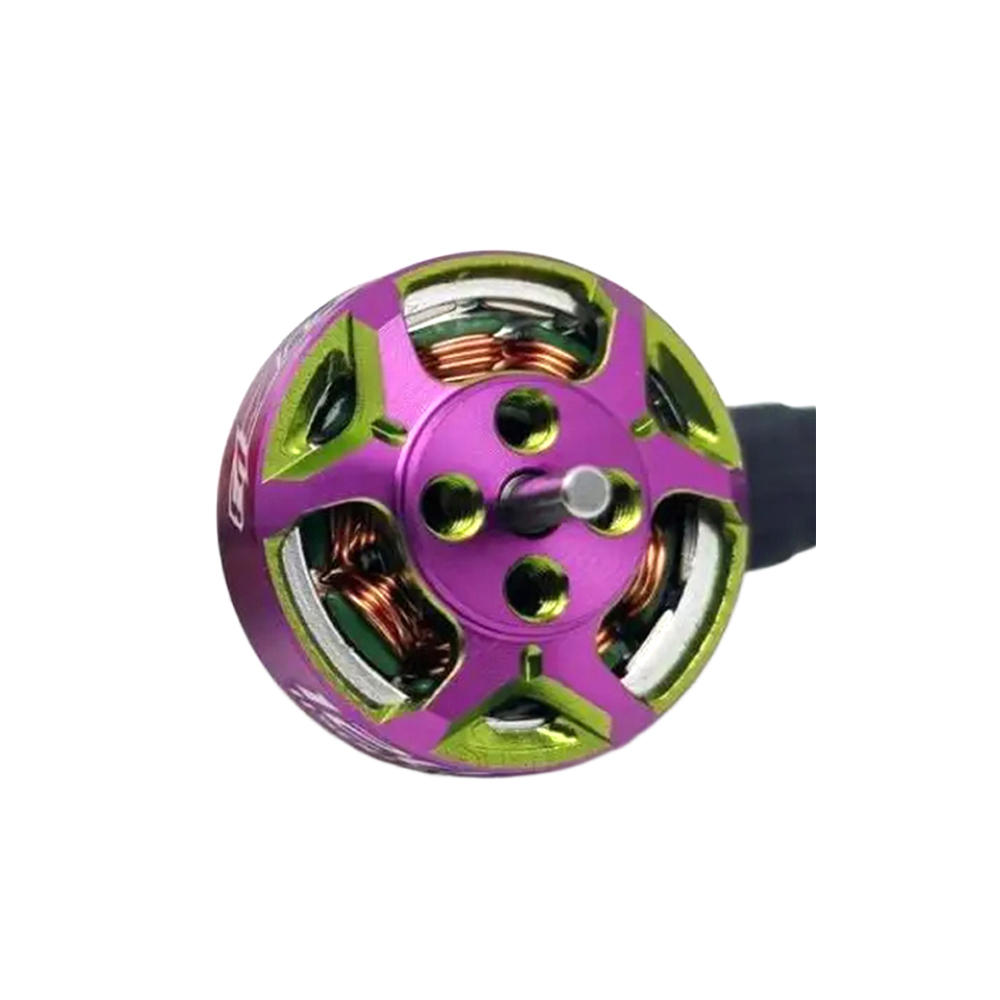

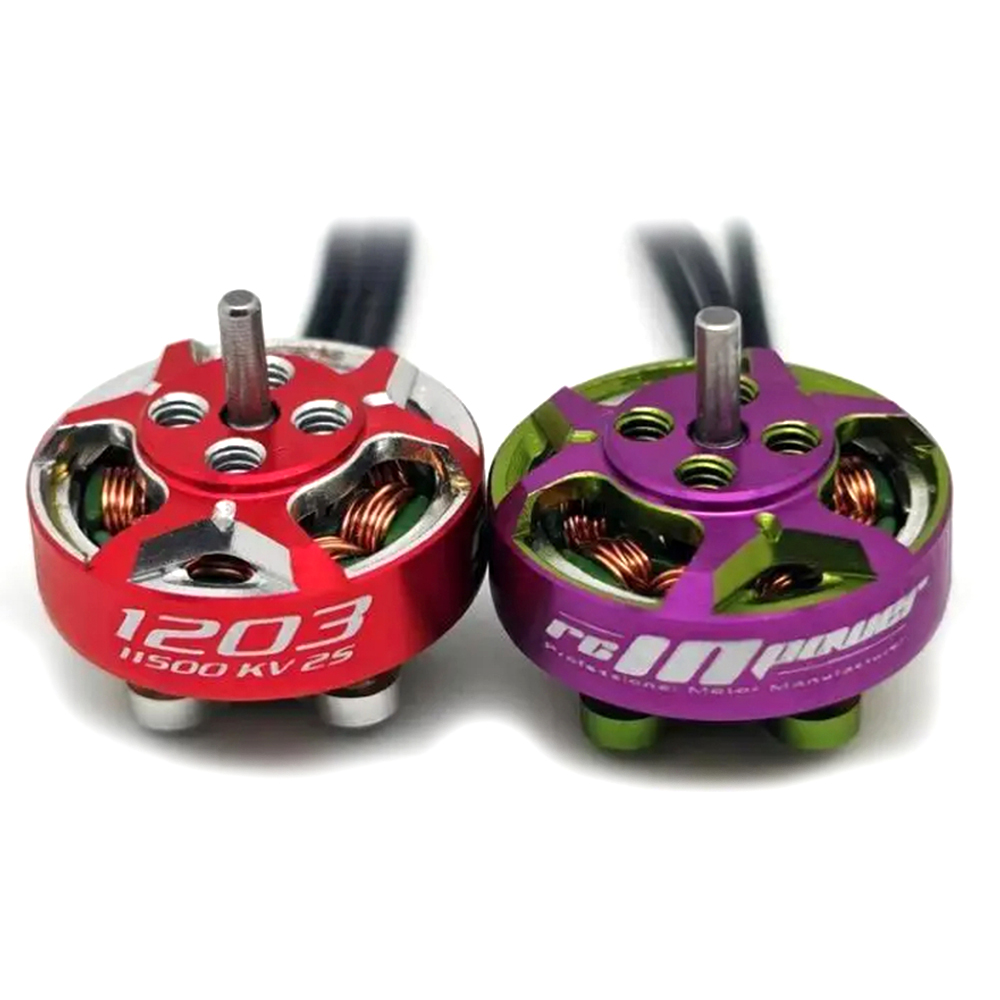

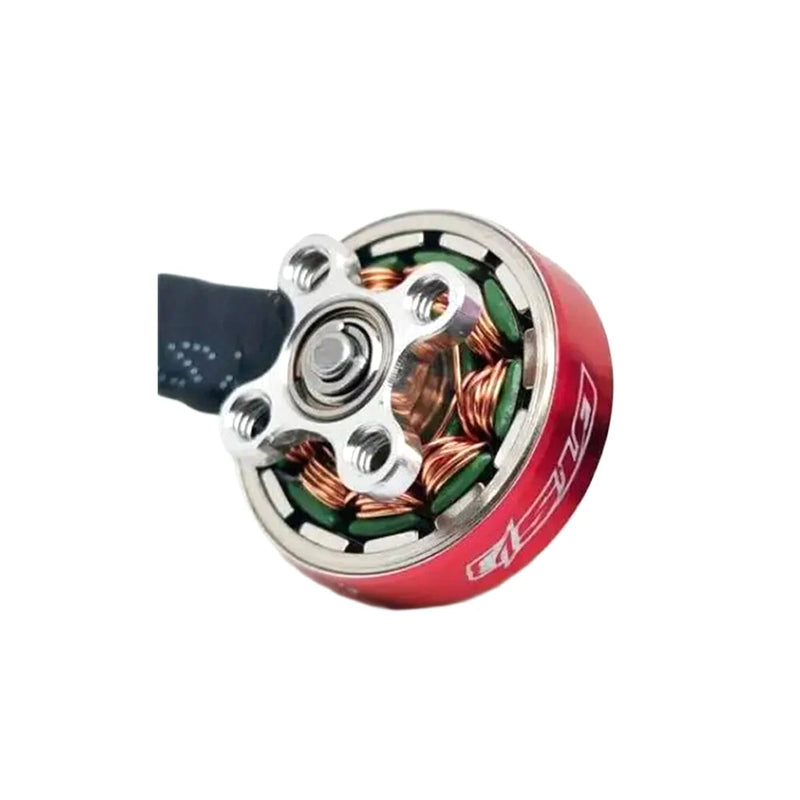

Item Name: GTS V3 1203 Brushless Motor
KV: 11500KV / 8000KV / 6000KV
Color: Purple & Green / Red & Silver
Model |
Parameter |
GTS V3 1203-6000KV Brushless Motor |
KV: 6000 Configuration: 9N12P Stator Diameter: 12mm Stator Length: 3mm Shaft Diameter: 2mm Motor Dimension(Dia.Len): Φ15.76*9.9mm Weight(g): 4.5(3cm wire) Idle current(10)@10V(A): 0.6 No.of Cells(Lipo): 3~4S Max Continuous Power(W)3S: 76.6 Internal Resistance: 320mΩ Max Current(3S): 6.9A Max.Efficiency Current(0.8~2A): >85% |

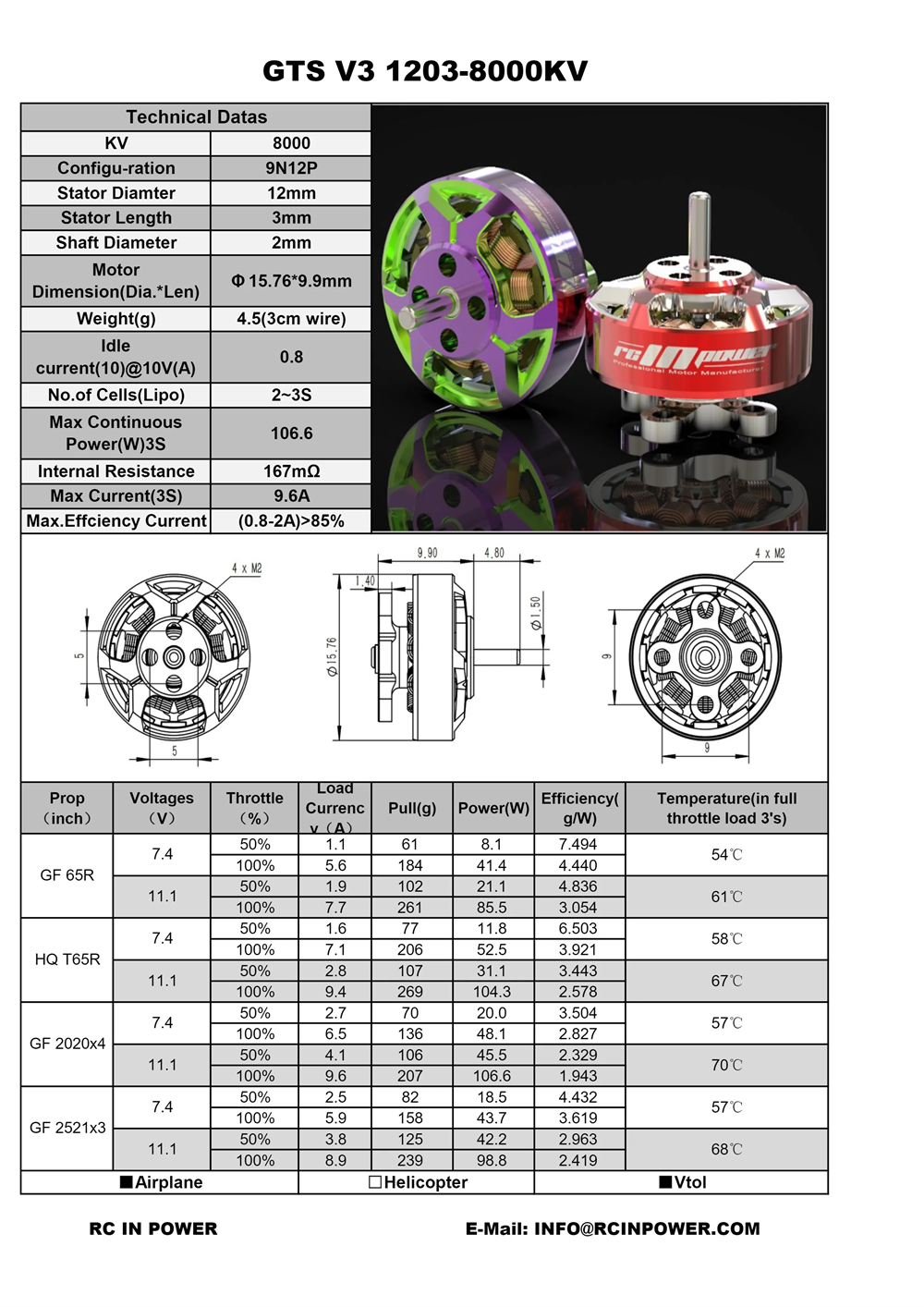

GTS V3 1203-8000KV Brushless Motor |
KV: 8000 Configuration: 9N12P Stator Diameter: 12mm Stator Length: 3mm Shaft Diameter: 2mm Motor Dimension(Dia.Len): Φ15.76*9.9mm Weight(g): 4.5(3cm wire) Idle current(10)@10V(A): 0.8 No.of Cells(Lipo): 2~3S Max Continuous Power(W)3S: 106.6 Internal Resistance: 167mΩ Max Current(3S): 9.6A Max.Efficiency Current(0.8~2A): >85% |

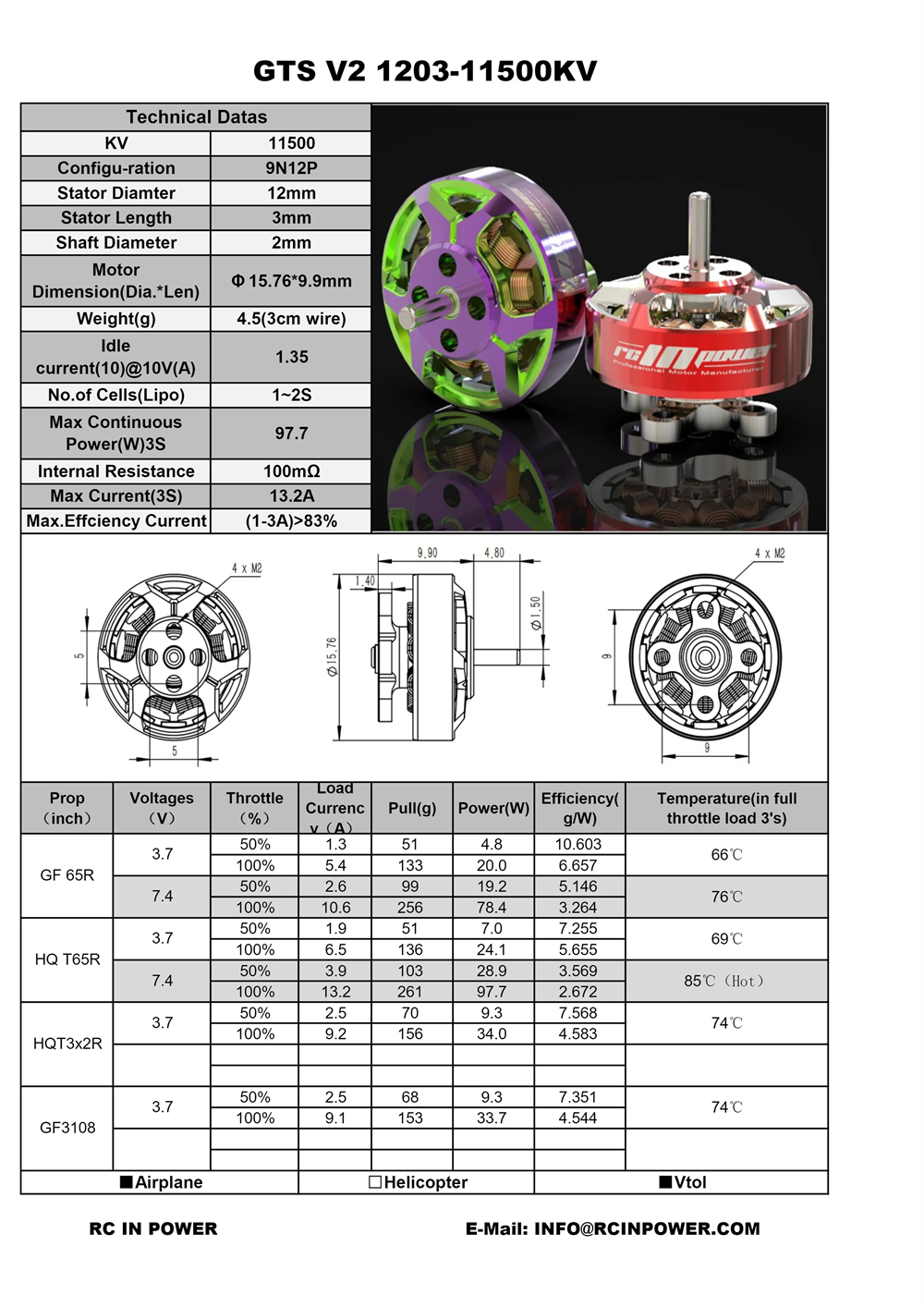

GTS V3 1203-11500KV Brushless Motor |
KV: 11500 Configuration: 9N12P Stator Diameter: 12mm Stator Length: 3mm Shaft Diameter: 2mm Motor Dimension(Dia.Len): Φ15.76*9.9mm Weight(g): 4.5(3cm wire) Idle current(10)@10V(A): 1.35 No.of Cells(Lipo): 1~2S Max Continuous Power(W)3S: 97.7 Internal Resistance: 100mΩ Max Current(3S): 13.2A Max.Efficiency Current(1~3A): >83% |
Package Included:
1 x Brushless Motor
