Description
Description:
Introduction:

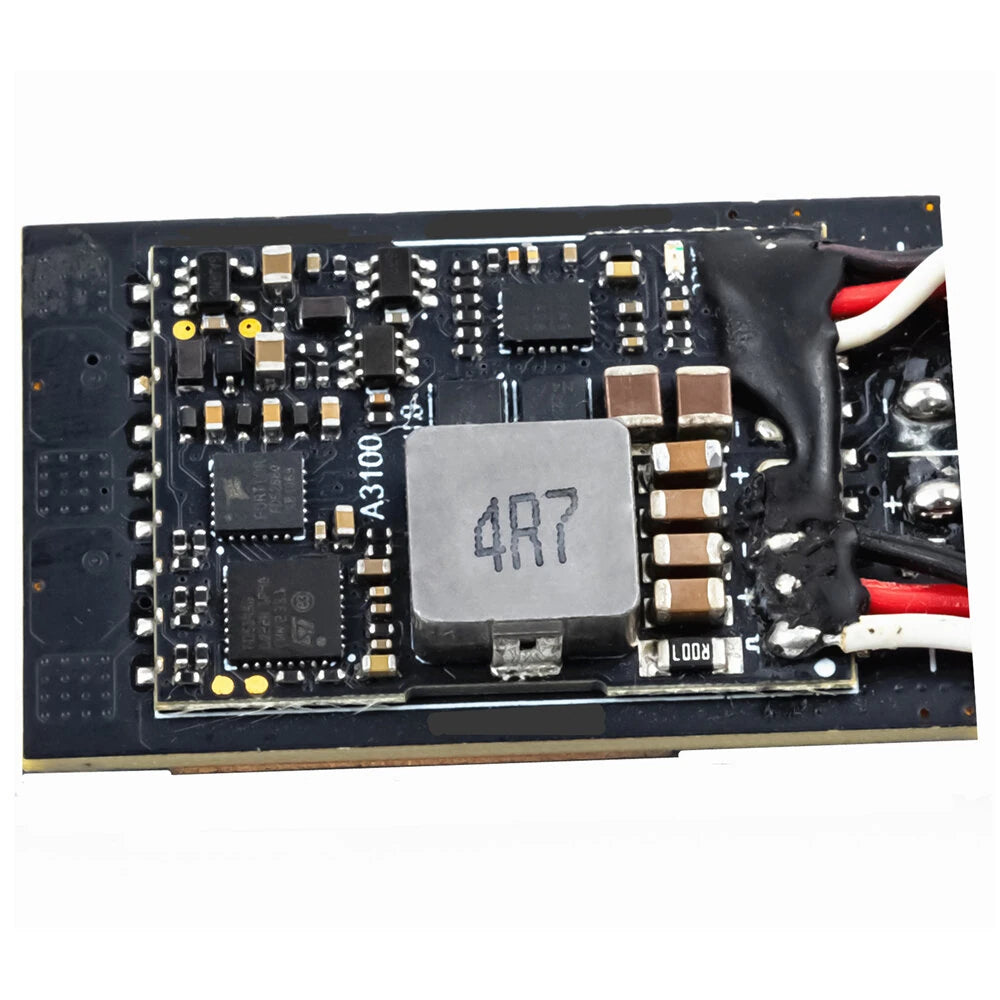

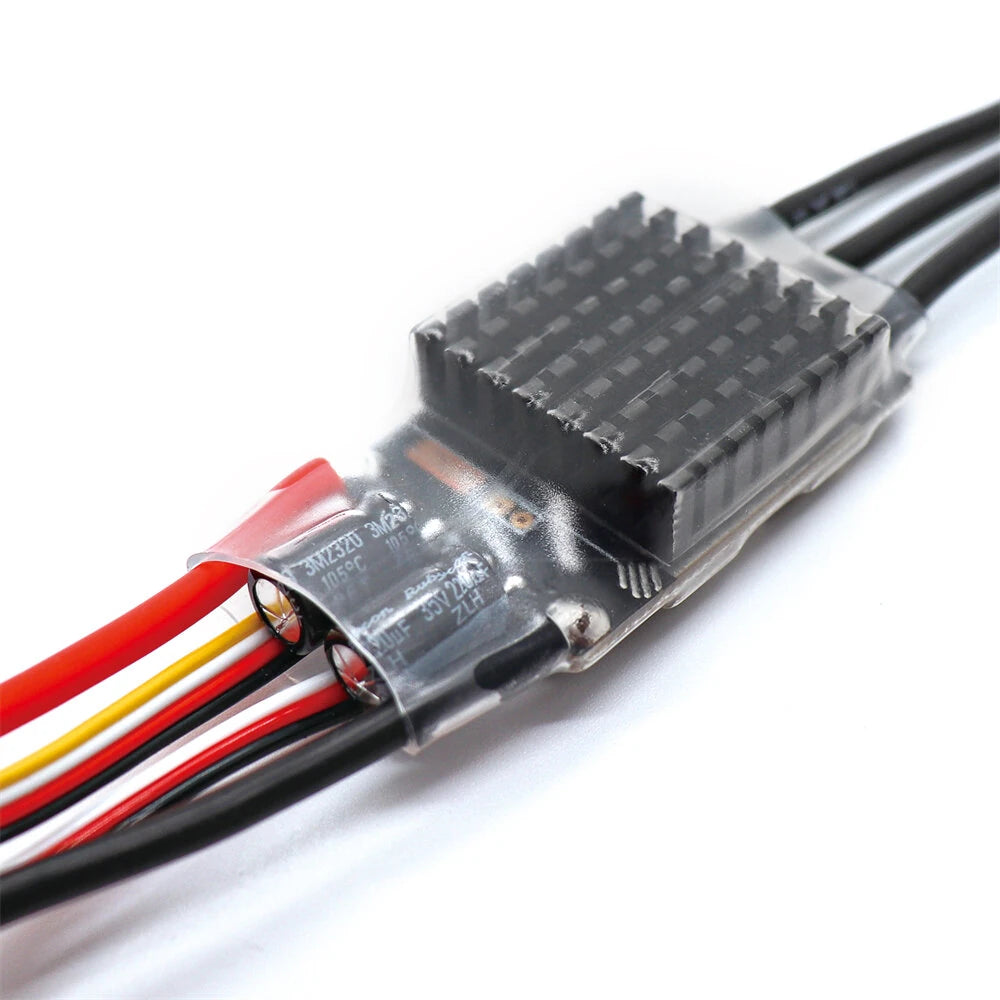

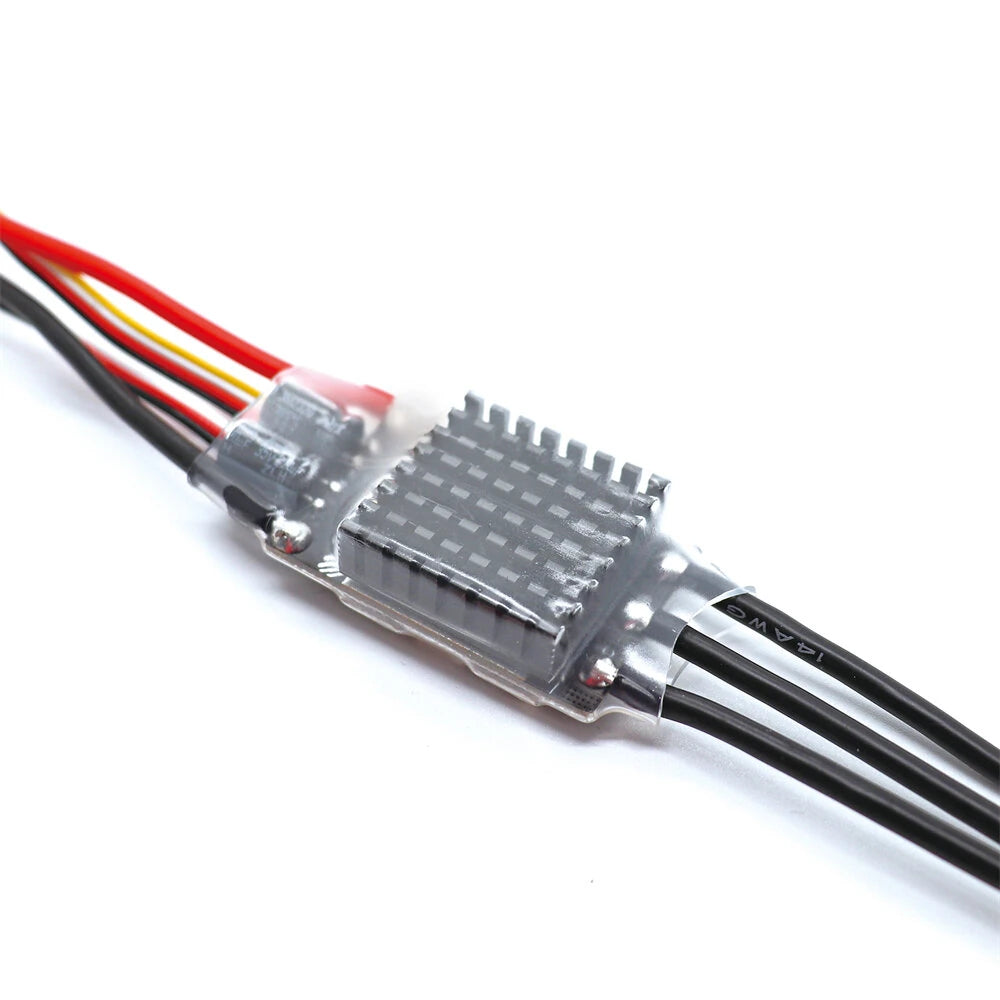

This ESC comes pre-installed with AM32 custom firmware. It is optimized for crawler vehicles, providing very smooth and quiet operation of your crawler, but it is also suitable for various 1/8 scale or smaller cars. It features a built-in adjustable quad-group voltage BEC, with a maximum current of 10A, for high-torque servo applications. Additionally, the included e-Switch helps avoid failures caused by harsh environments.
All wires are pre-soldered.
Specification:
Product Numer.:VE80A
Product Name:AM32 Crawler ESC 80A/USB Link
Battery:2~8S Lipo Current: 80A cont.
BEC:Max 10A, output
5.2~8.2V adjustable by DIP switch Waterproof:ESC not
Supported / e-switch supported
FAN:Not include,solder pads for power is reserved
Connectors:Not include

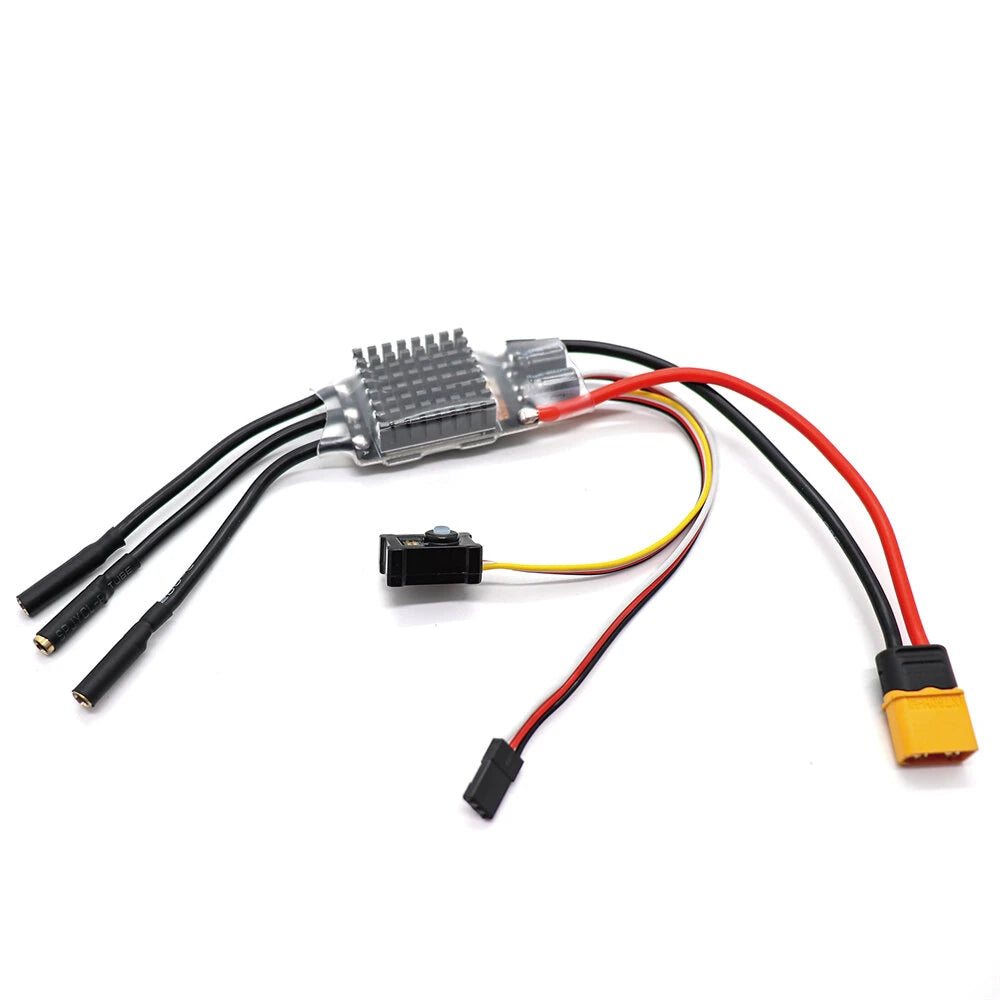

Wires:Battery 14AWGx150mm, output 14AWGx150mm, signal 250mm and e-switch 120mm
Dimensions:60x29x15mm (without wires)
Weight:58g
Features:
- AM32 custom firmware.
- Sine wave start allows the motor to operate smoothly at ultra-low speeds.
- Variable driving frequency.
- Low voltage, runaway, and rotor lock protection.
- High-performance 32-bit MCU.
- E-switch,enduring and waterproof.
Package included:
1x AM32 Crawler ESC 80A
or

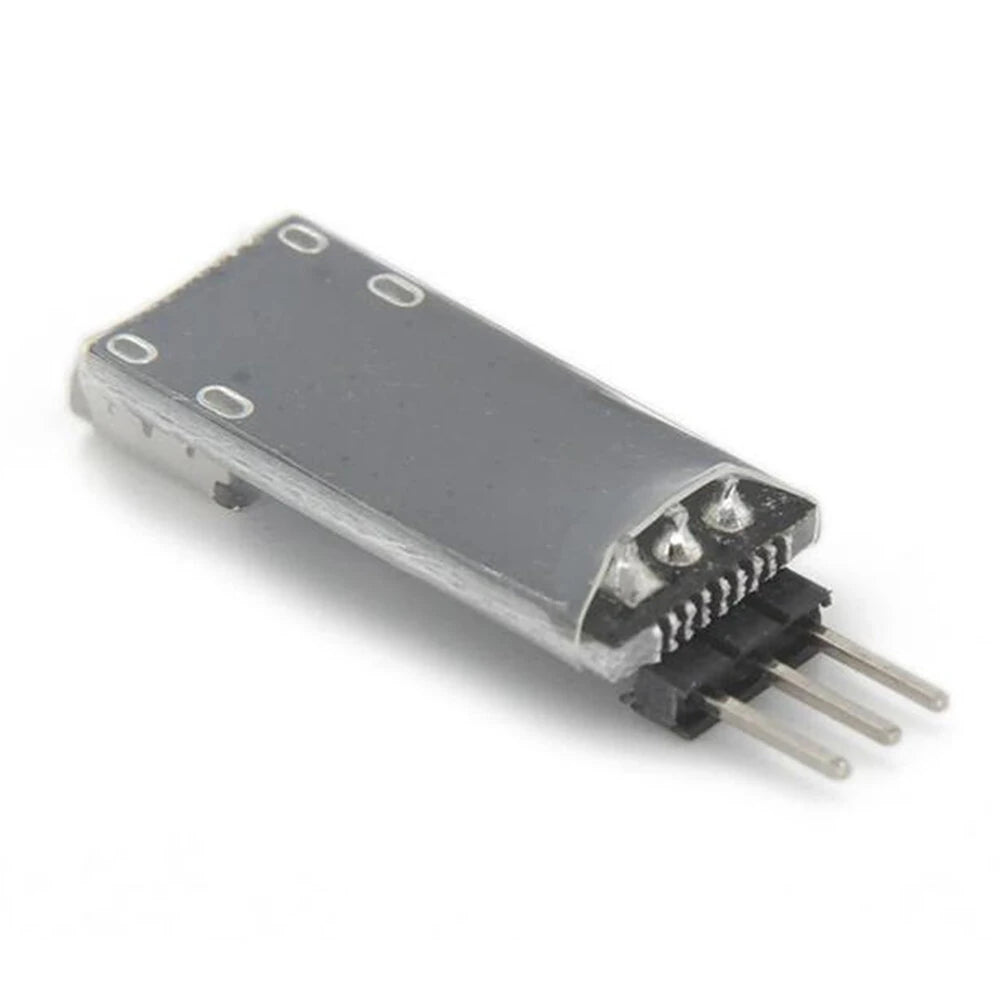

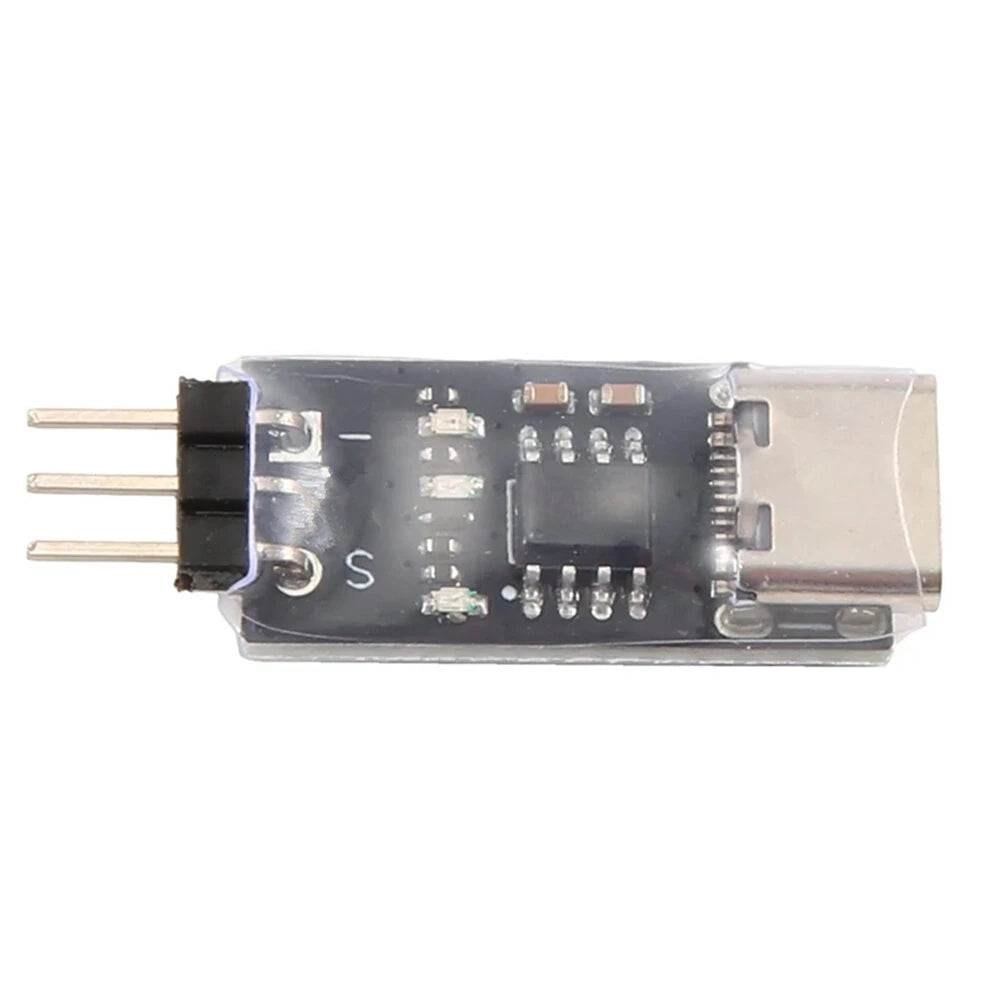

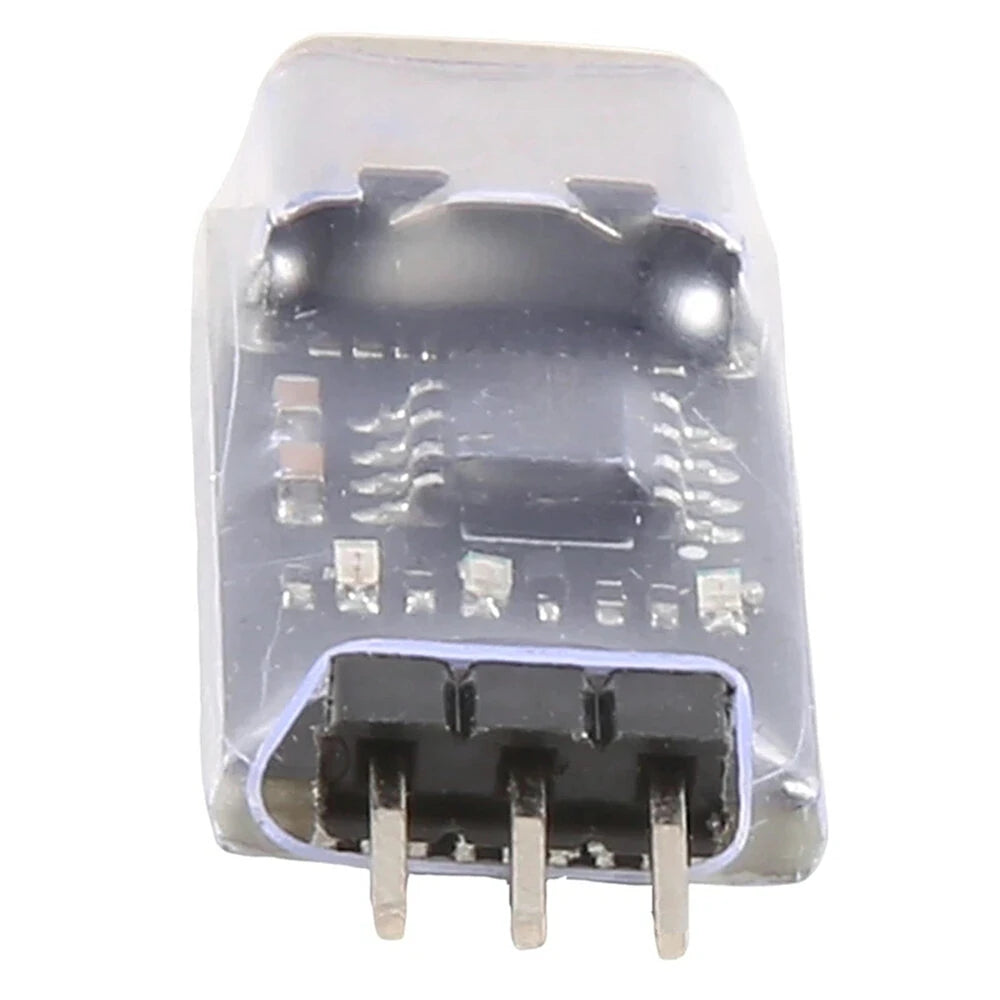

1x USB Link(optional chosen by yourself)
