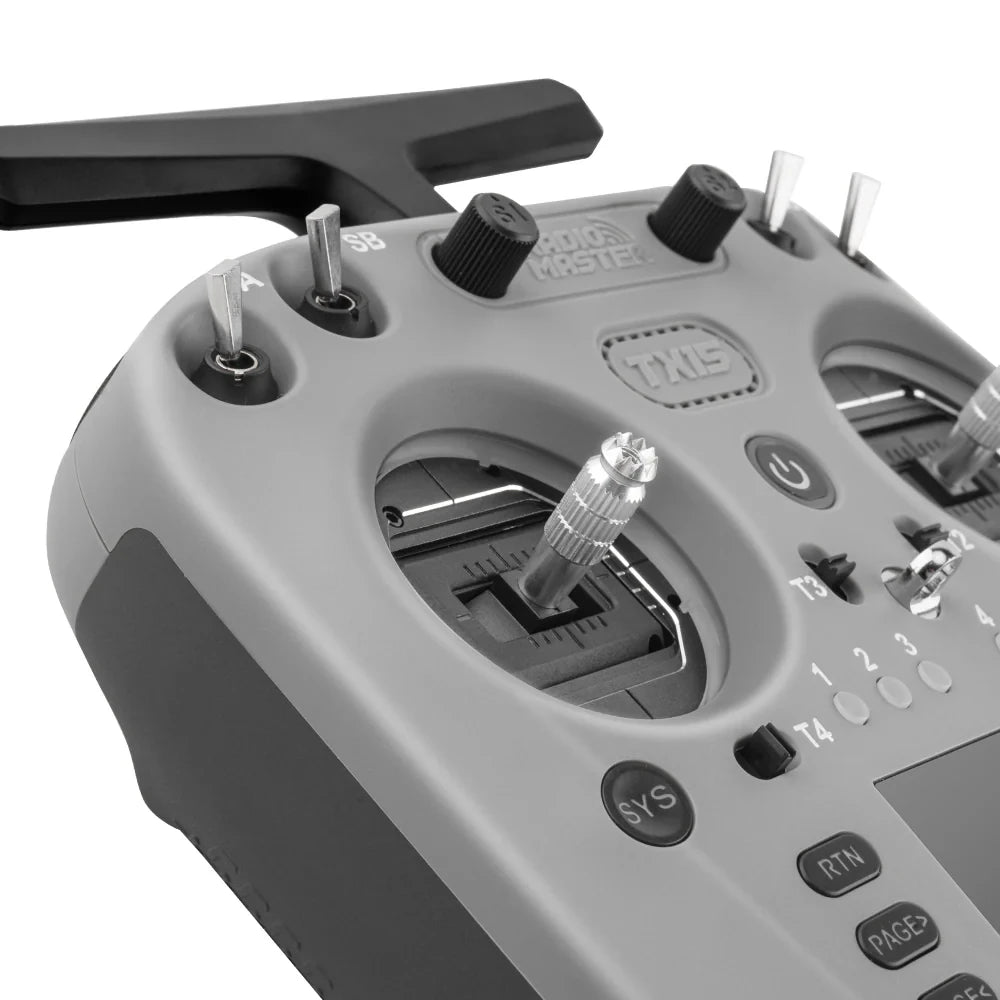

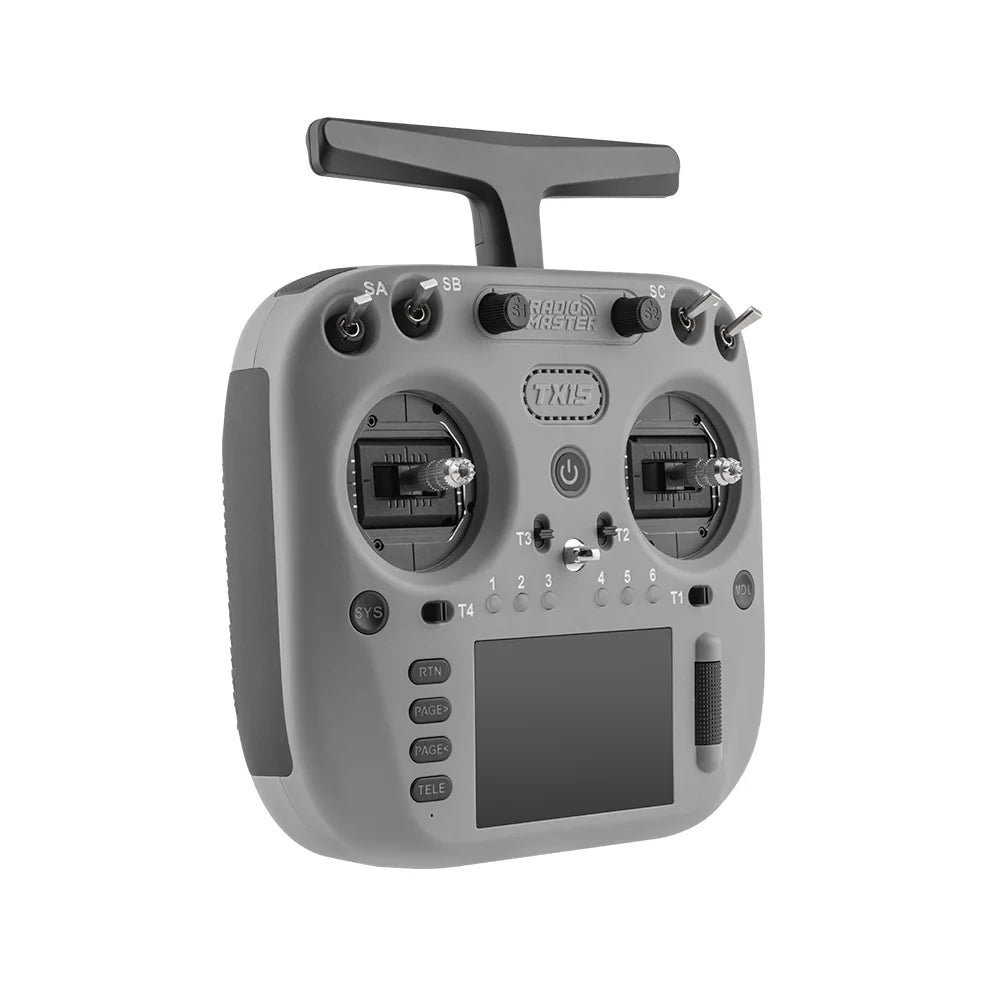

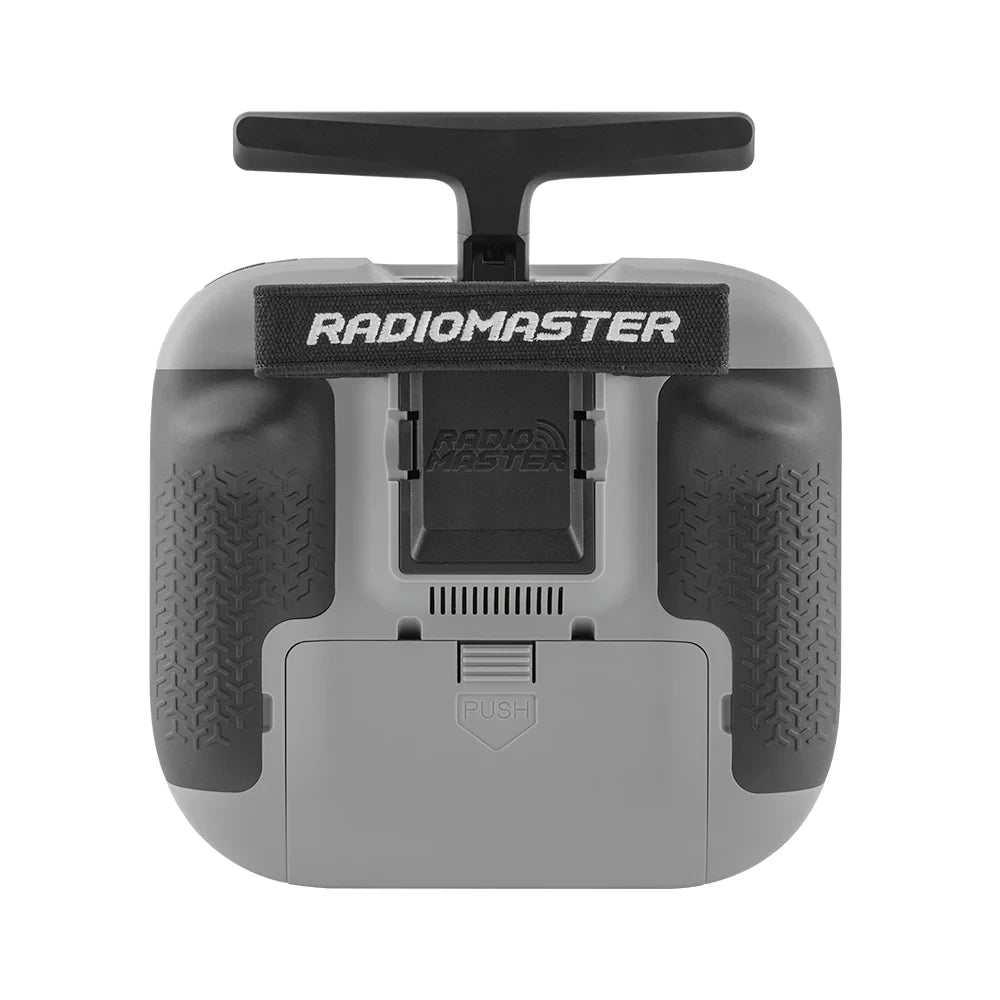

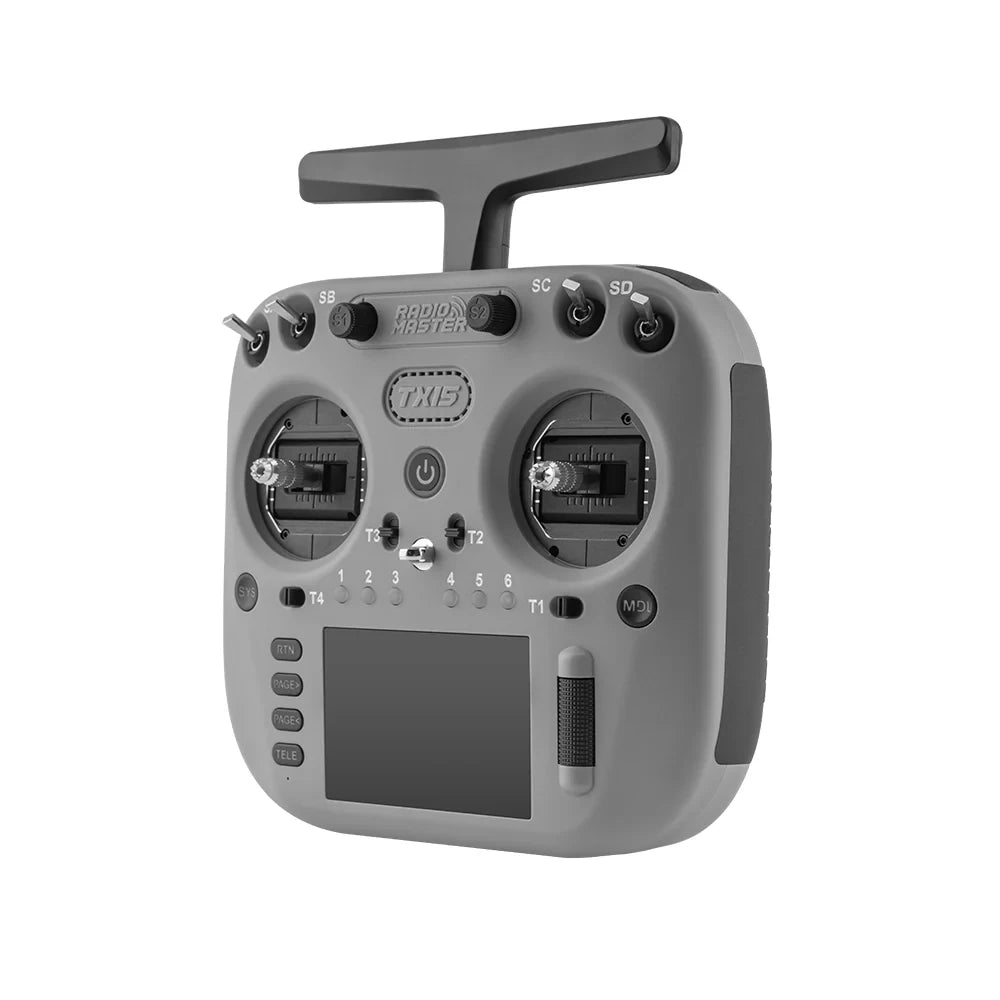

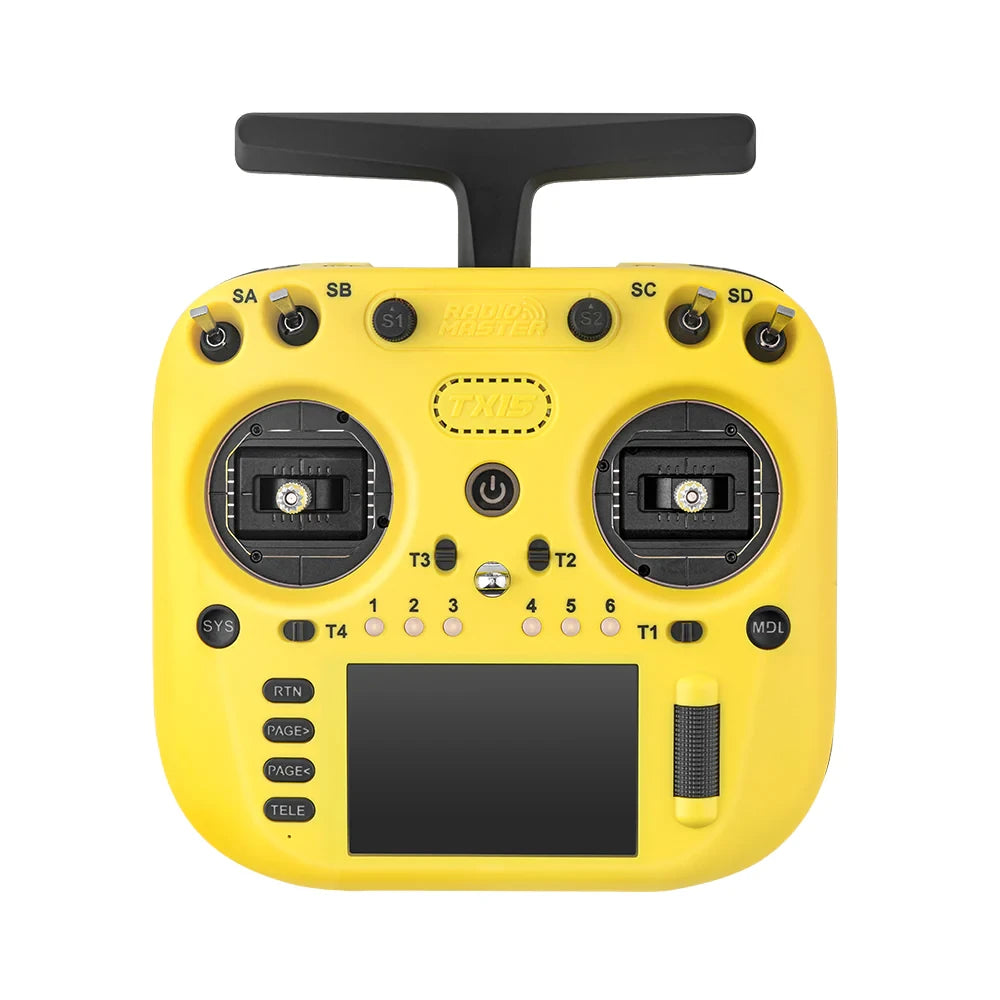

Radiomaster TX15 Built-in 2.4GHz/900MHz ELRS 16CH Radio Controller with V5.0 Hall Gimbals 3.5-Inch High-Visibility Color Touchscreen for FPV Racer Drones

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15. Driven by the high-performance STM32 H7 chip, it's the powerh0use behind our fastest radio ever — enabling u1tra-smooth EdgeTX control, instant model switching, and 1ightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you'll have virtually unlimited space for models, scripts, sounds, and themes. The TX15 features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.Experience clear visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, visible in sunlight. The TX15 Standard features V5.0 hall sensor gimbals in six vibrant colors. It's advanced cooling, a USB-C port for charging, SIM connectivity, firmware updates, and high-speed memory access ensure reliable performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Want a premium upgrade? Check out the TX15 MAX.

Features:

* Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.

* Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

* Precision Gimbals: V5.0 Hall sensor gimbals

* Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.

* Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.

* Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

* Foldable Antenna: Compact and easy to store without compromising signal strength.

* Built-in Microphone: For future feature expansion.

* Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

* Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

* Interchangeable Shoulder Switches: Customize your controls to match your flying style.

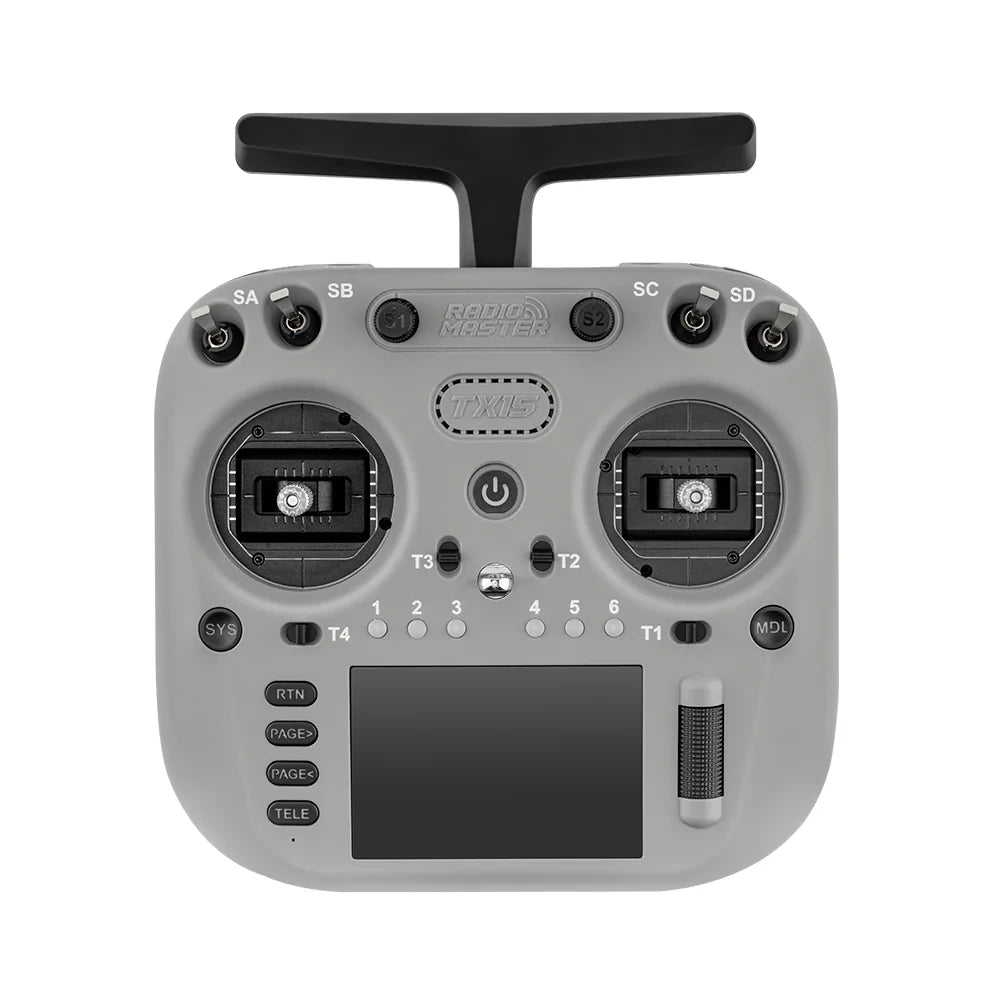

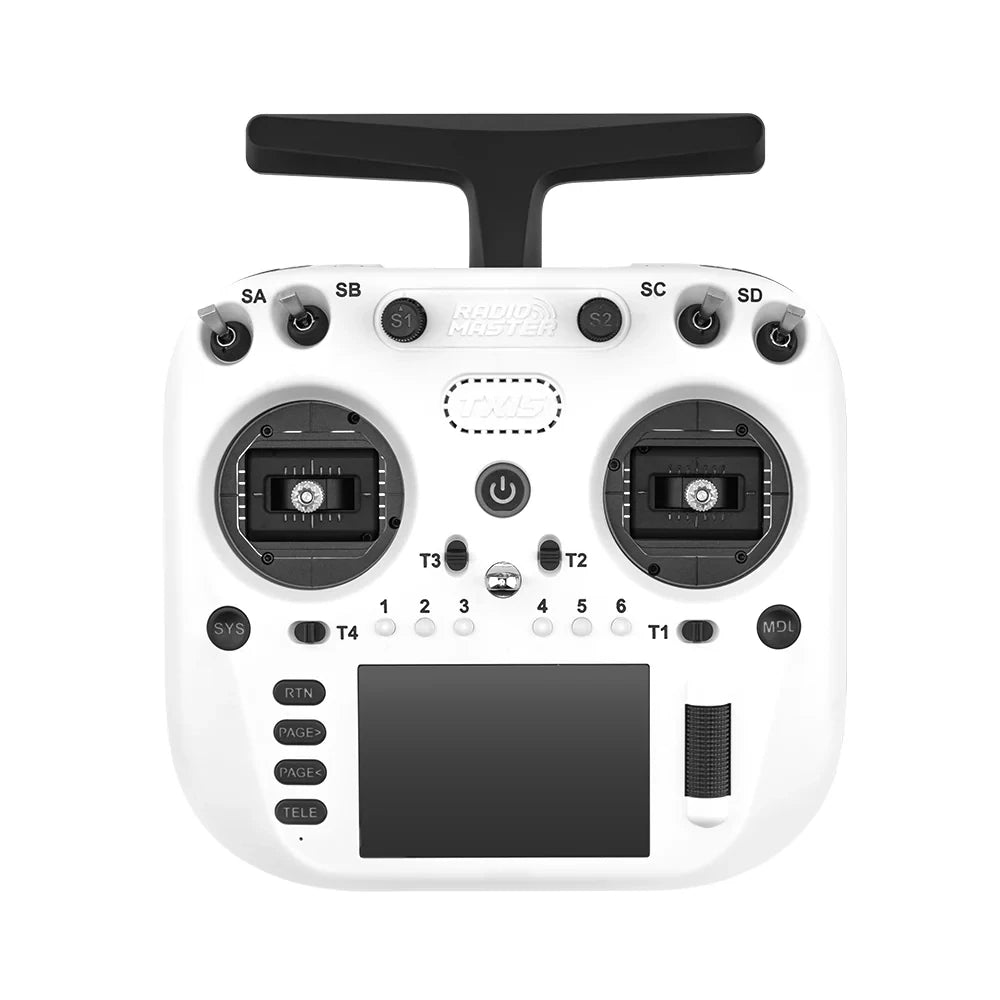

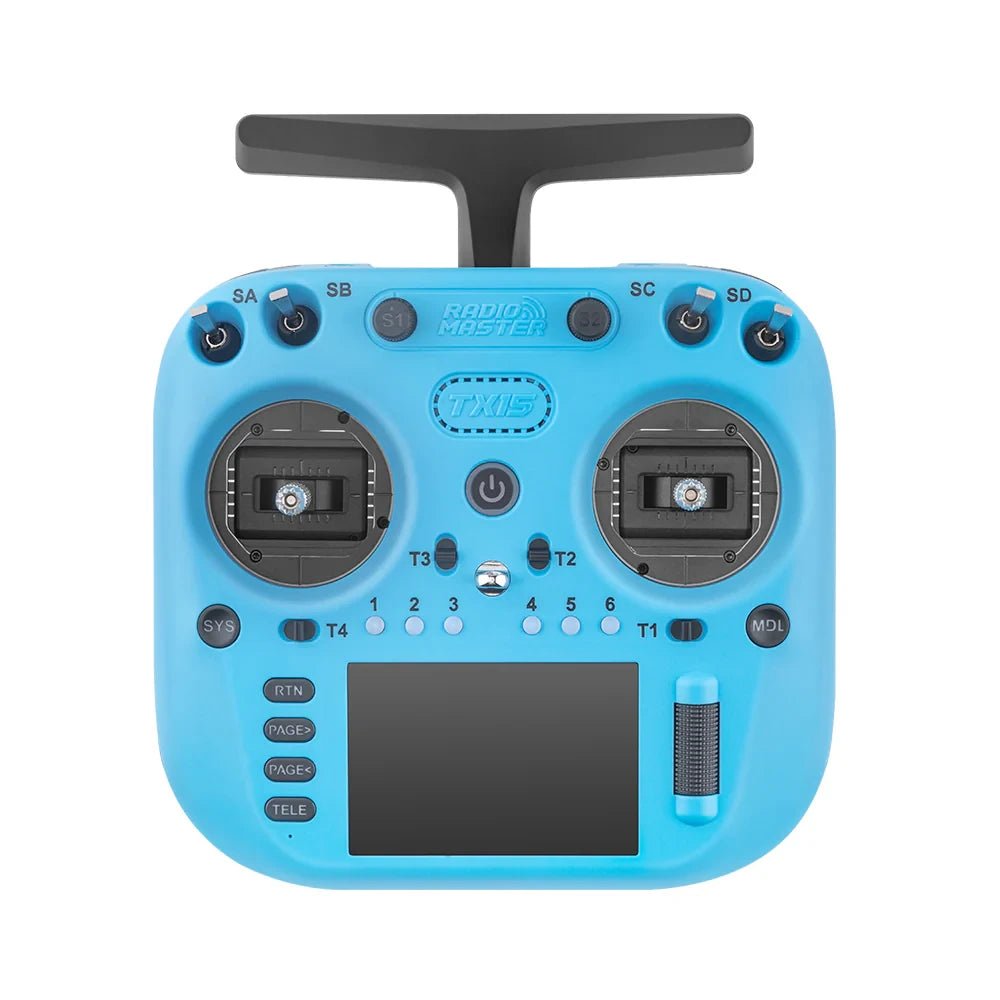

* Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist

Specifications:

Brand: Radiomaster

Item: TX15 Radio ControllerSize: 178*168*81mmWeight: 605g (without battery)Frequency: 2.400GHz OR Sub-G 900MHzInternal RF: ELRS 2.4GHz / Sub-G 900MHzSupported Protocols: Express-LRSCooling Fan: YesTransmitter Module: Built-in ELRSBuilt-in Flash Size: 4GBBuilt-in Microphone: Yes (Future expansion)Built-in Gyro: Yes (ICM-42607-C)MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)Antenna Gain: 2dB (transmit power adjustable)Current: 875mA at max power outputVoltage Range: 6.6 - 8.4V DCRadio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)Module Firmware: ExpressLRSChannels: Max 16 channels (Receiver dependent)Display: 3.5-inch IPS touchscreen (480 x 320 resolution)Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)Connectivity: USB-CGimbals: V5.0 Hall sensor gimbals (standard)Gimbal Sticks: M4Upgrade Method: USB-C (UF2)Module Bay: JR-compatible module bay for additional modules

Dimensions:

Radiomaster TX15 Radio Manaul, click here

Package Included:

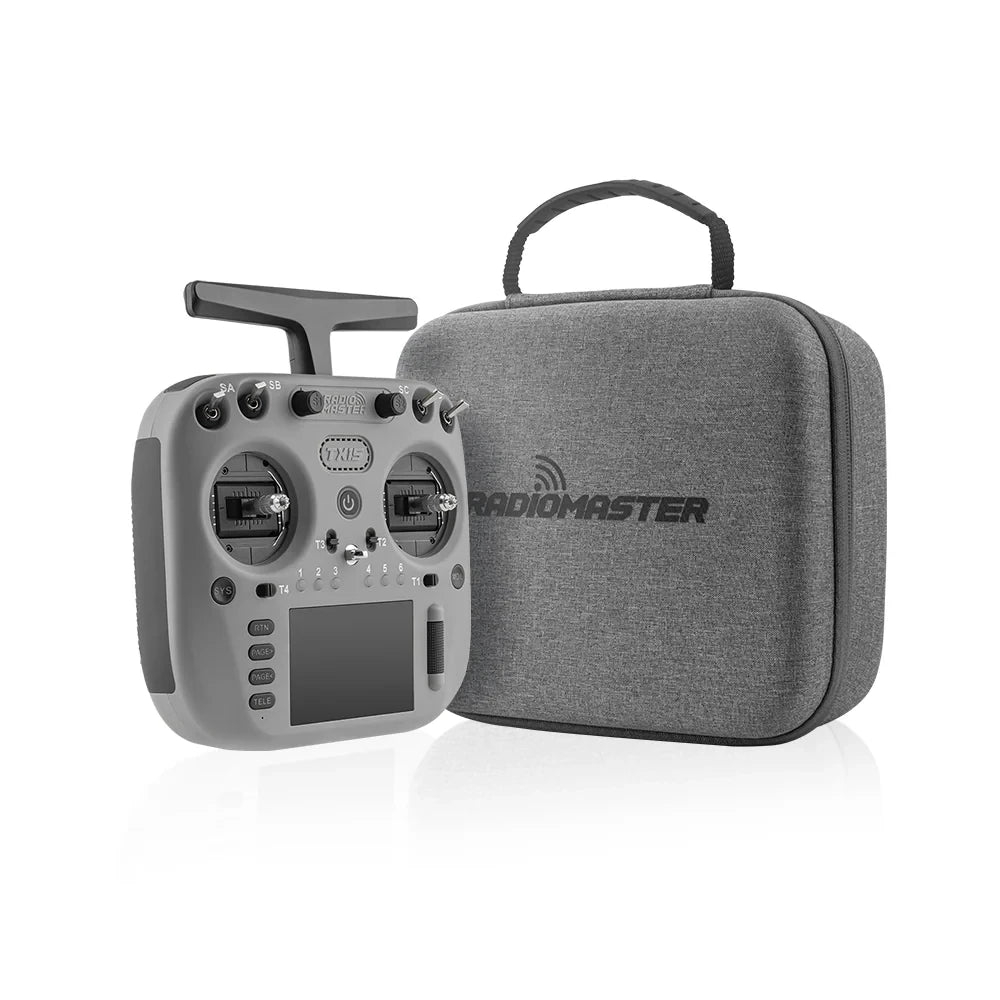

1 * Radiomaster TX15 Radio Controller1 * Signature Carry Case1 * Short 2-position Latching Shoulder Toggle Switch Assembly1 * Short 2-position Momentary Shoulder Toggle Switch Assembly1 * 18650 Battery Tray1 * USB-C Cable1 * Screen Protector1 * 1.5mm Hex Wrench4 * High Tension Gimbals Springs2 * Gimbal Stick Set Screw1 * Stickers Set1 * User Manual1 * Inventory Card
