Description

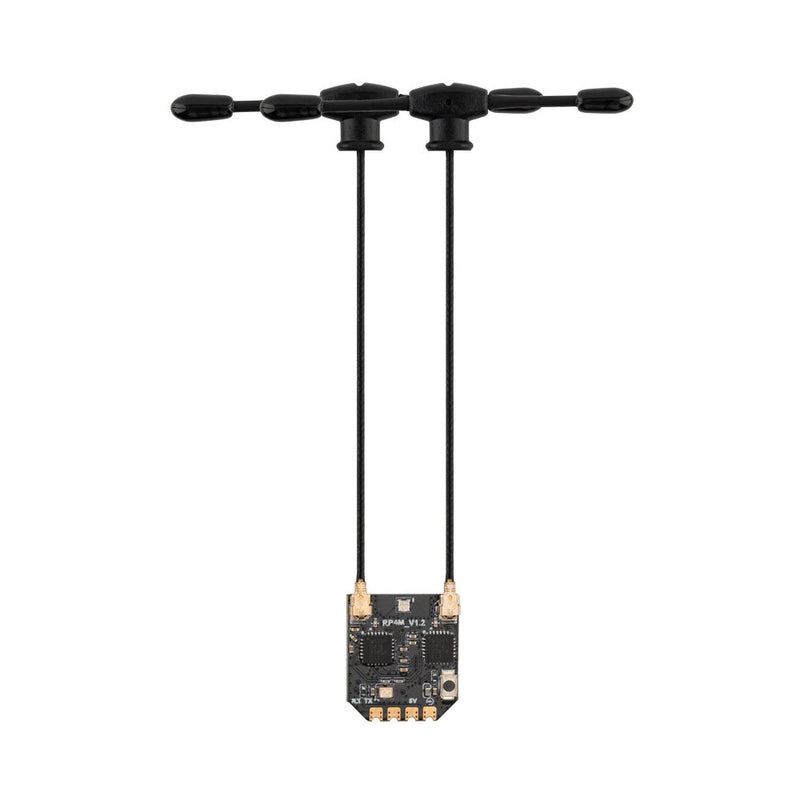

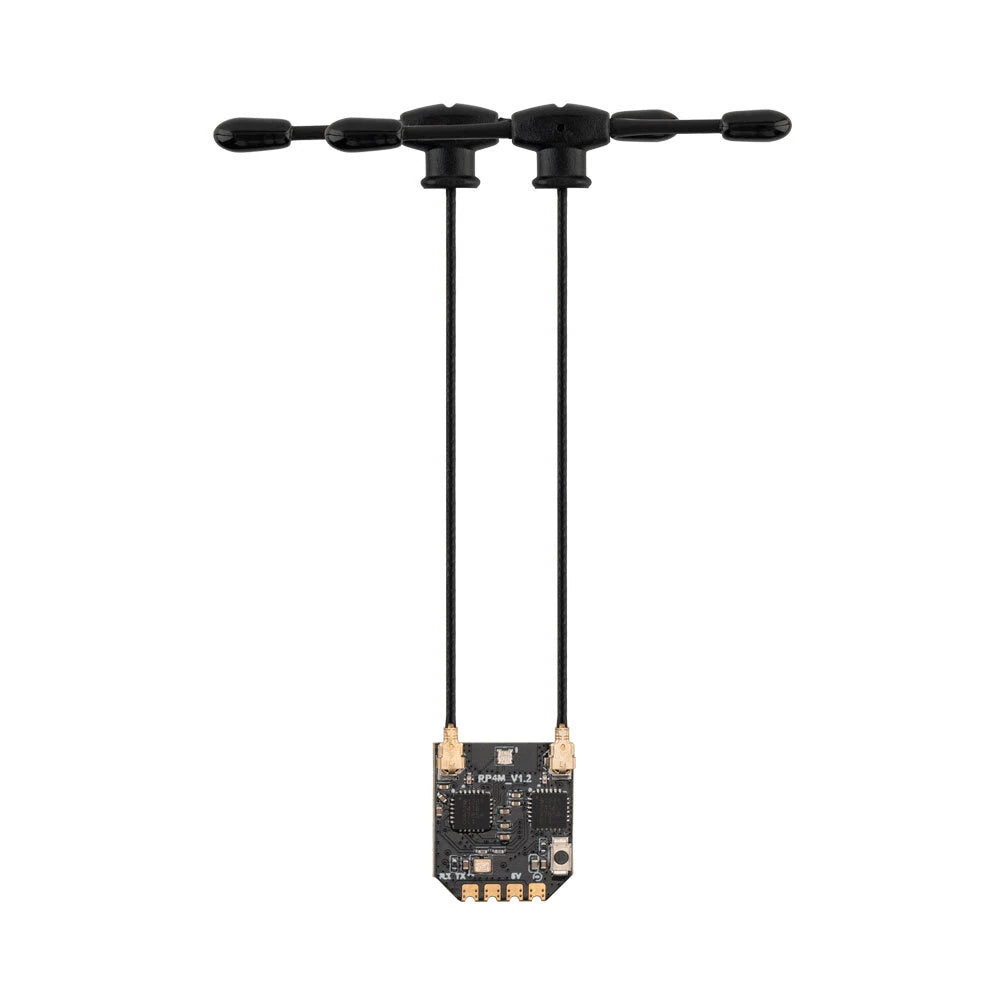

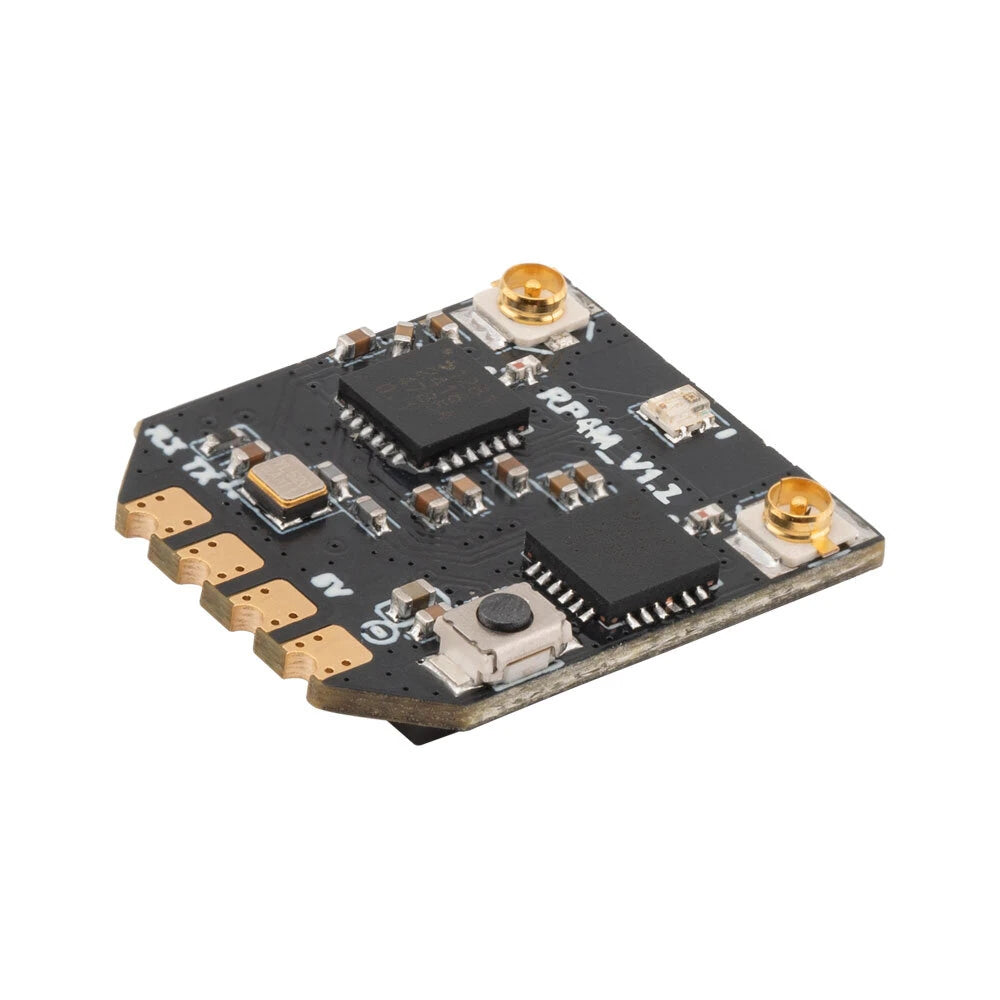

Radiomaster RP4TD-M ExpressLRS ELRS 2.4GHz Dual Antennas Ultra Light Mini True Diversity Receiver
Descriptions:
Introducing the Compact and Lightweight RP4TD-M! Weighing in at just 1 gram, this receiver is ideal for builds where minimizing weight is important, while still leveraging 'Gemini' technology for superior interference mitigation. Thanks to its optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios, delivering exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you're into racing drones or any application where every gram counts, the RP4TD-M stands out as a leader in its class.
Specifications:
Brand: Radiomaster
ltem: RP4TD-M ExpressLRS 2.4GHz Diversity Receiver
Type: ISM

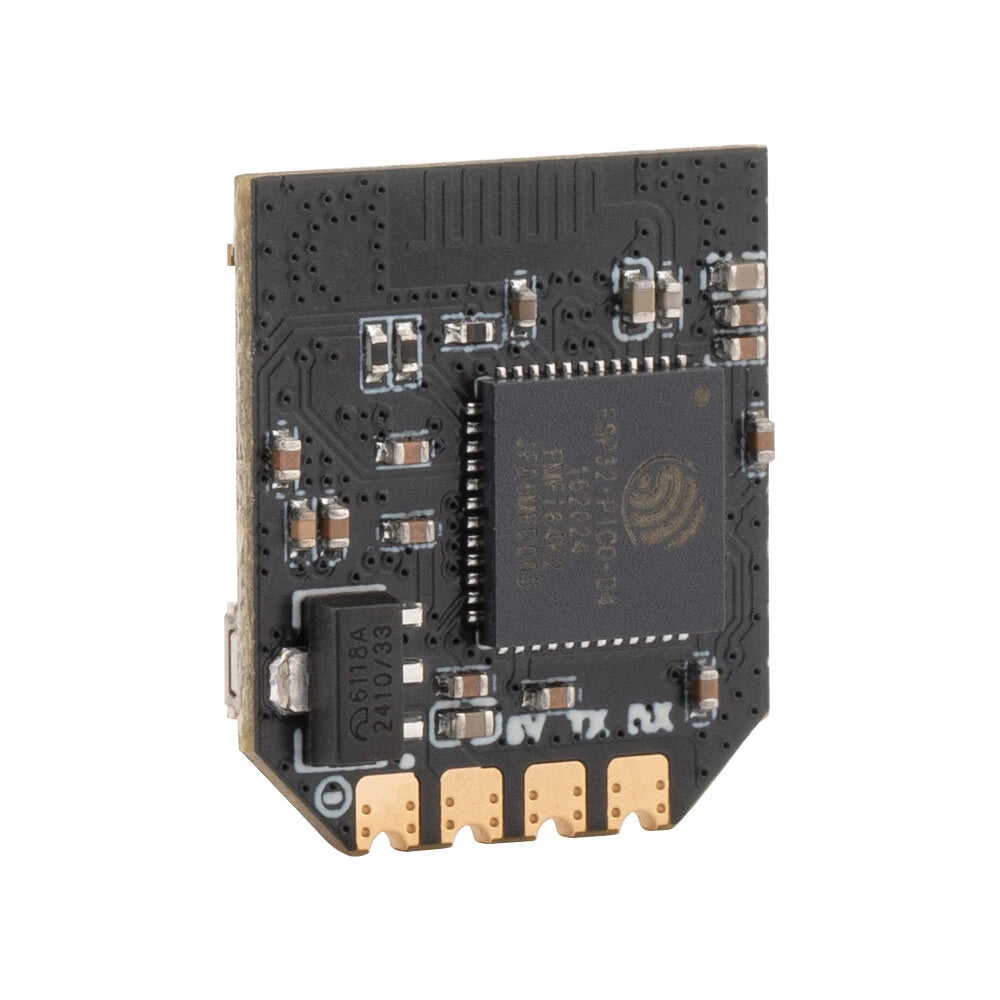

MCU: ESP32
RF Chip: SX1281x2

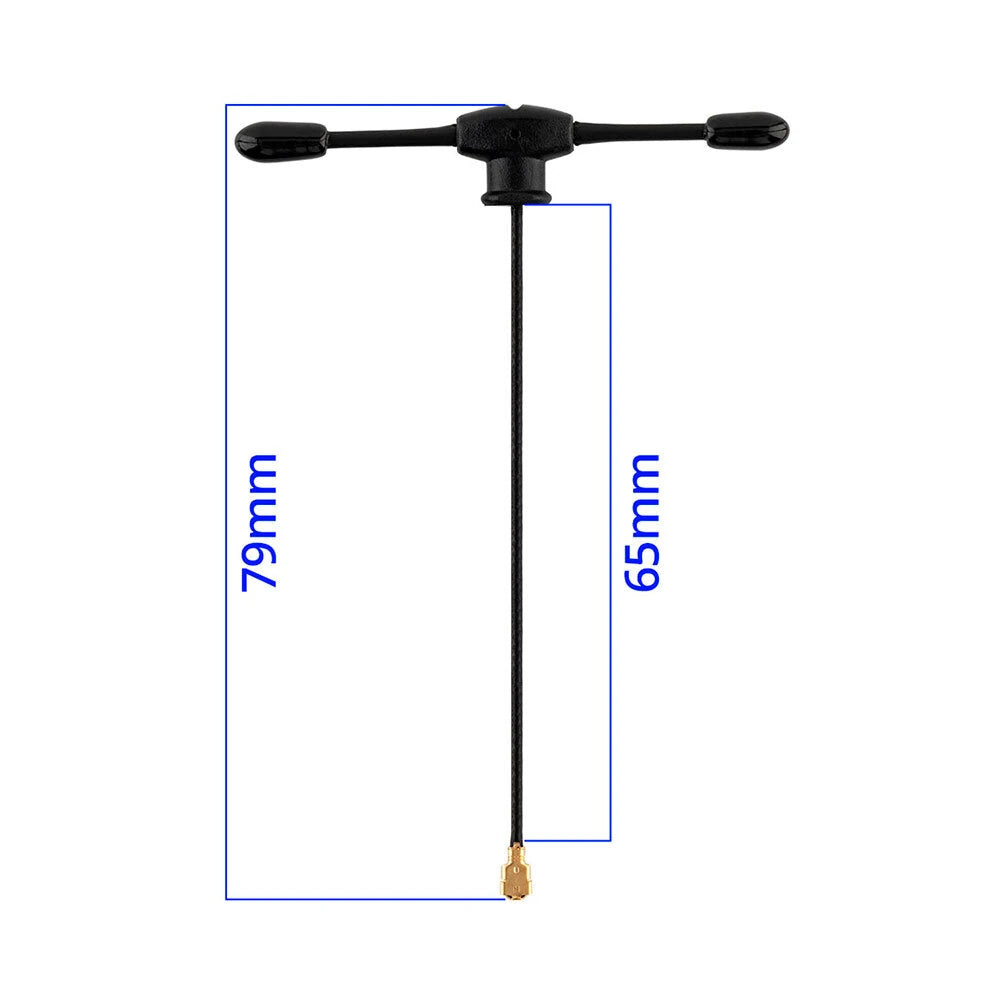

Antenna: 65mm 2.4GHz T Antenna x2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz/F1000Hz

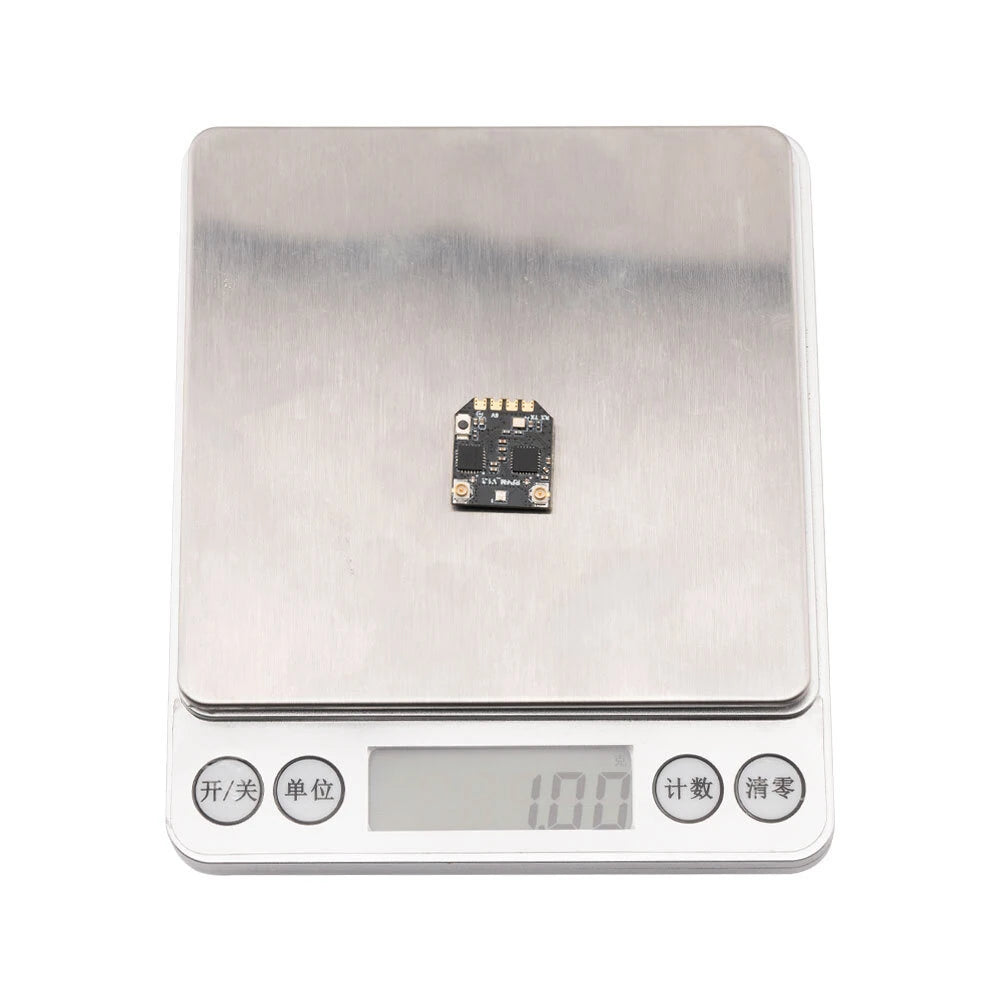

Weight: 1g (without antennas); 3.30g (with antennas)
Telemetry RF Power: Max 2 x 10mW
Working Voltage: DC 5.0V

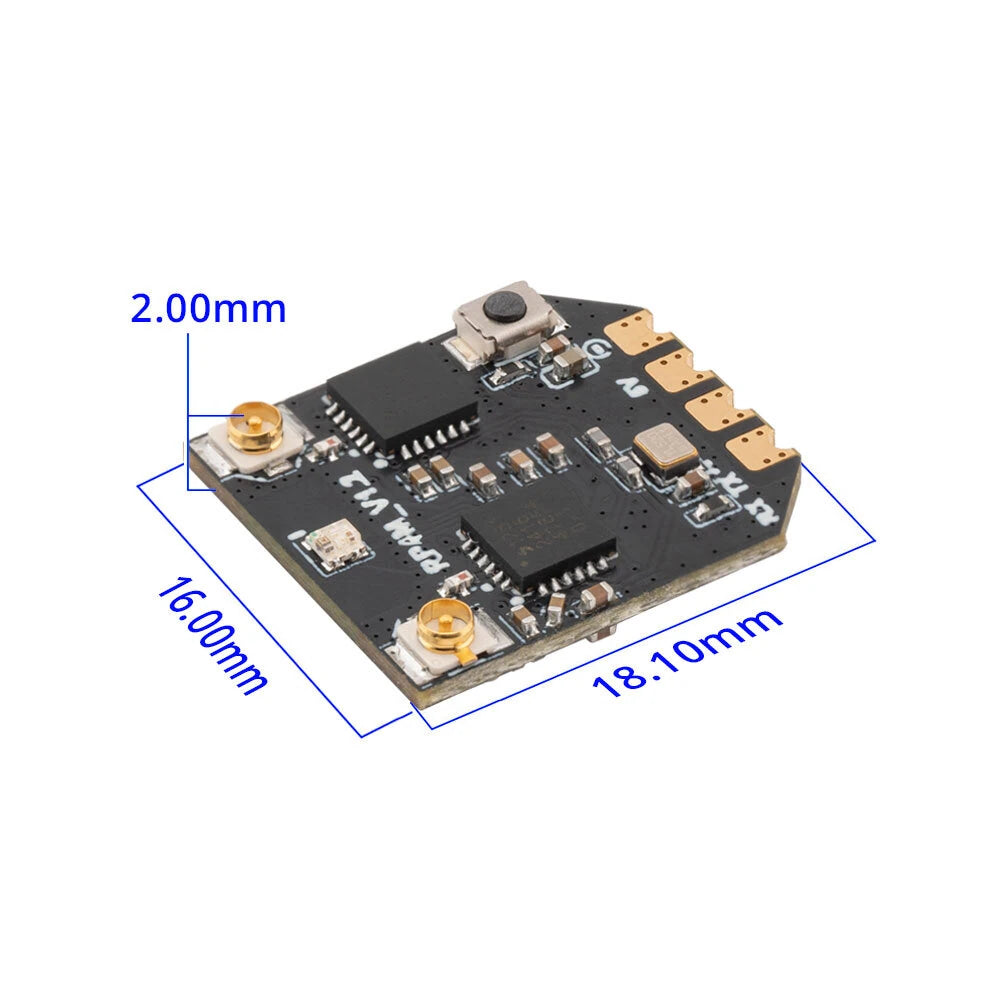

Dimension: 18.10x16.00mm
Firmware Version: ExpressLRS V3.4.3 Pre-installed
FW Target: RadioMaster RP4TD-M 2400 RX
Bus Interface: CRS
Features:

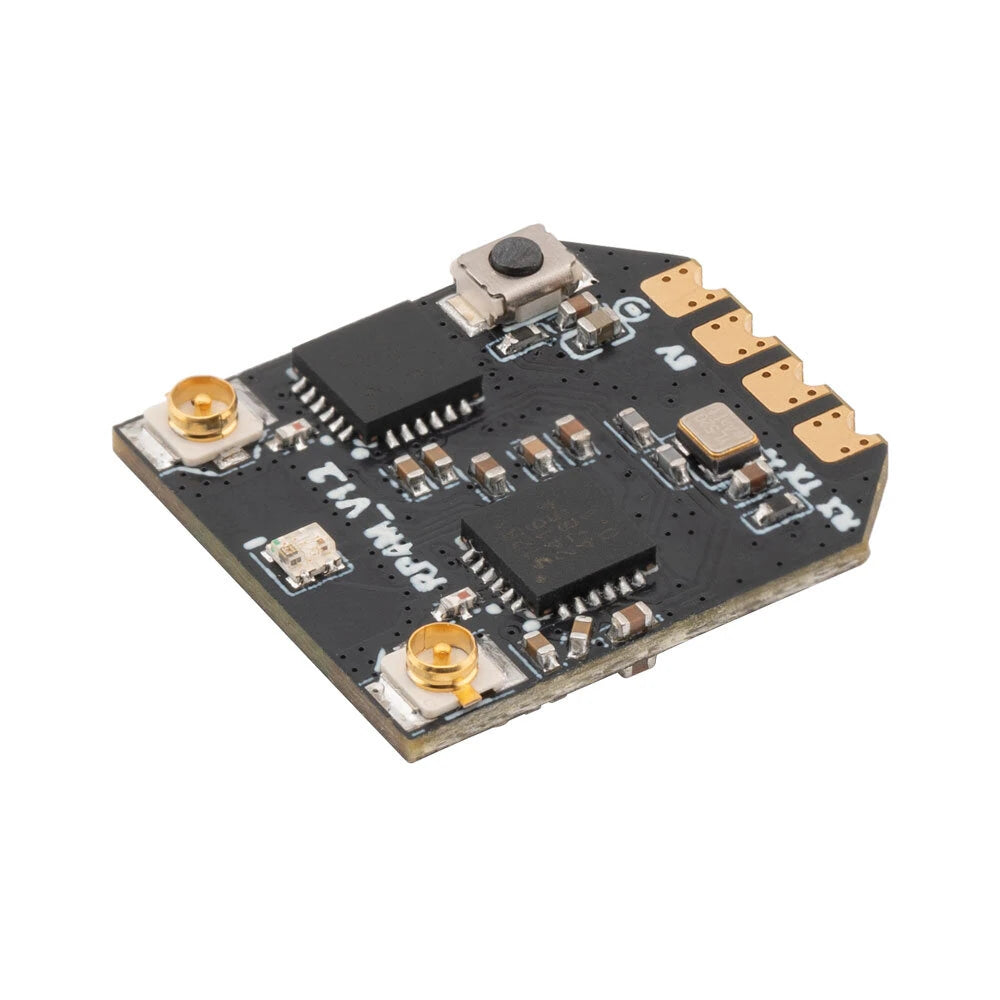

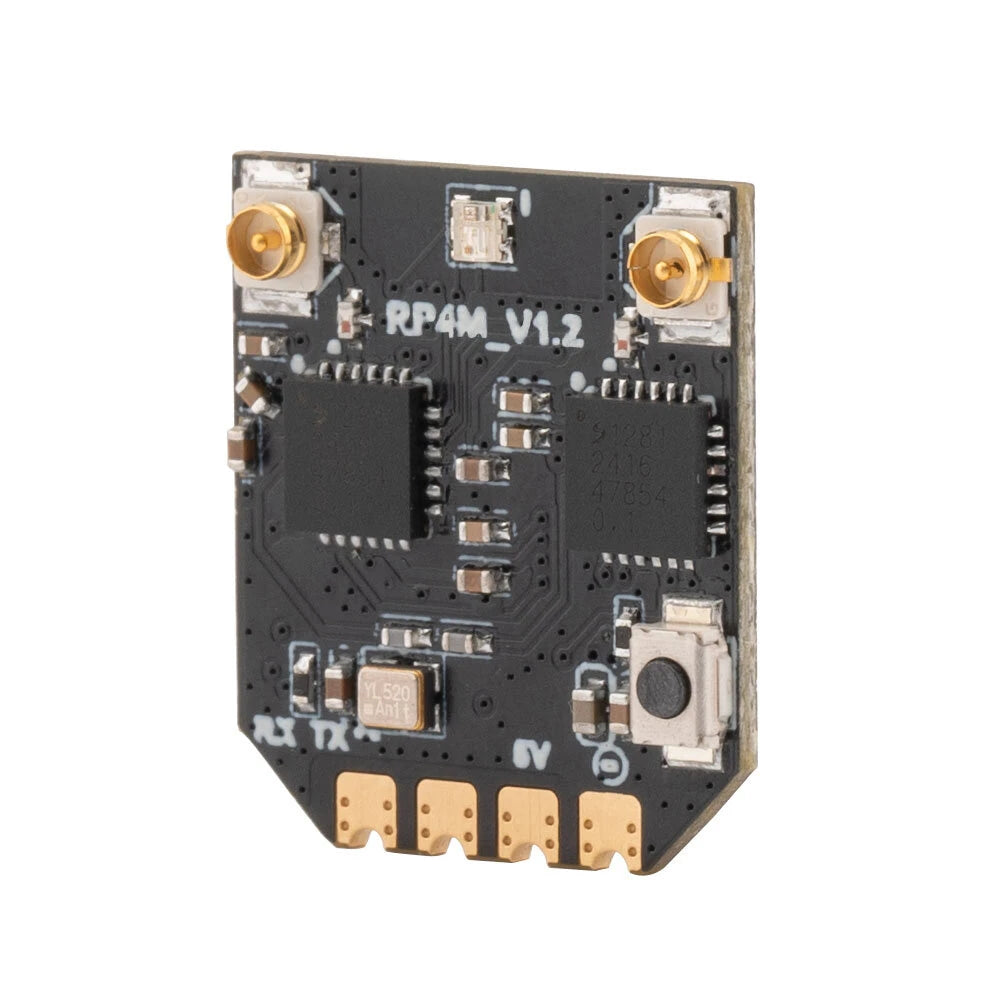

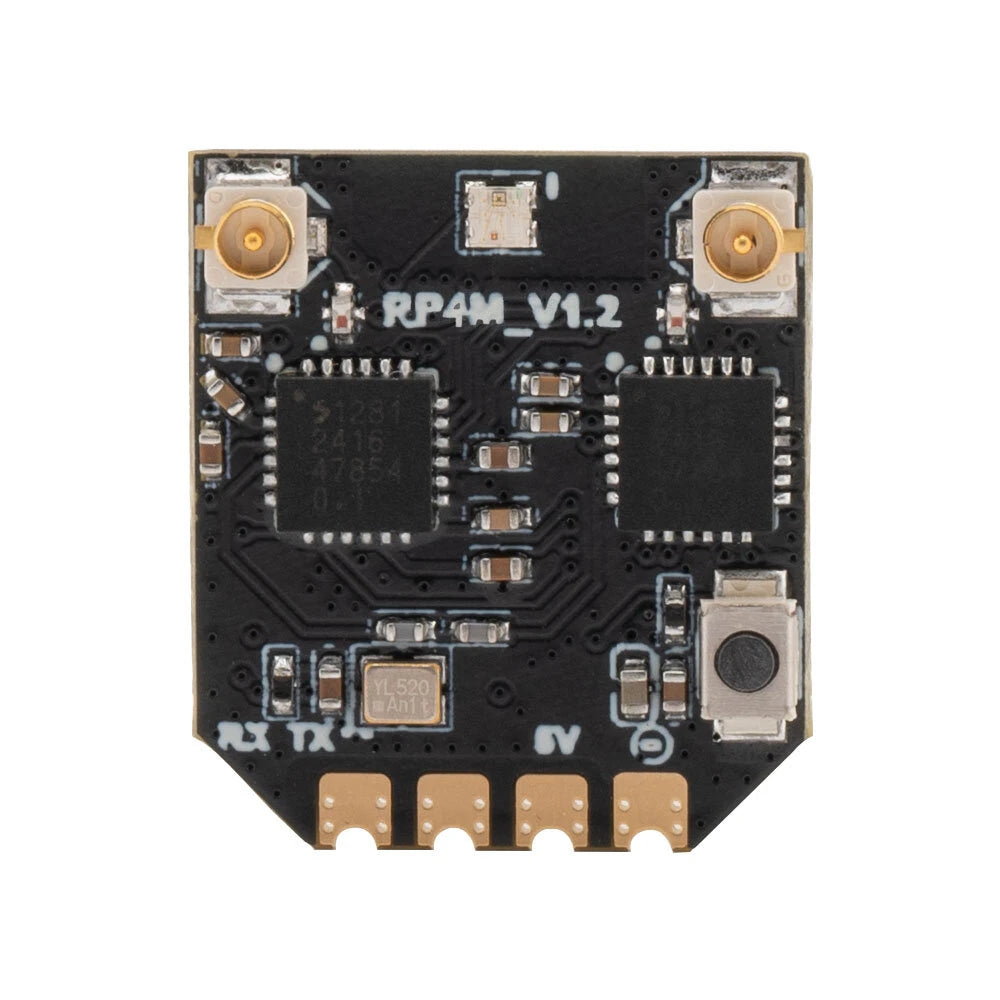

1. Dual SX1281 Transceiver: Integrated dual SX1281 transceivers for superior signal stability and range, ensuring seamless communication in diverse environments.
2. TCXO Oscillator: Built with TCXO oscillators as standard, providing exceptional accuracy and stability even in fluctuating temperatures and challenging conditions.
3. High Sensitivity: Engineered for high sensitivity, enhancing signal reception and data transmission reliability, ideal for precision-driven tasks.
4. Compact & Lightweight: Weighing only 1.00g (without antennas), the RP4TD-M is designed to be ultra-light and compact, perfect for applications where every gram matters.
5. Dual Rigid Antennas: Comes with upgraded rigid 65mm antennas, providing greater performance and durability, enhancing overall signaling capabilities.
Package included:
1 x RP4TD-M ExpressLRS 2.4GHz True Diversity Receiver
1 x CRSF wire
3 x Heat-Shrinkable Tube
2 x 65mm 2.4GHz T Antenna (Installed on receiver)
1 x User Manual
