Save R 464.41
Isaiah 55:8-9 John 3:16 Philippians 4:19

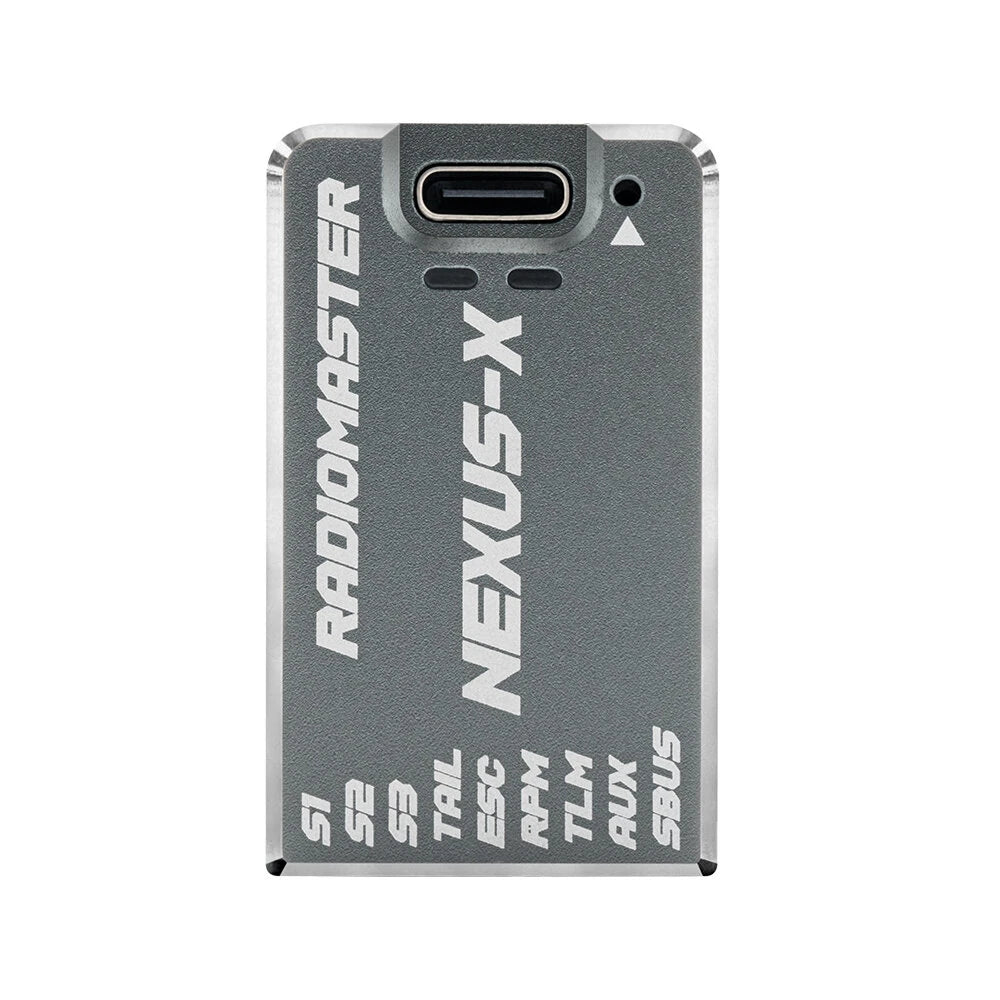

Color: Grey
Price:
R 1,514.70 R 1,979.11
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specification:
Brand: RadioMaster

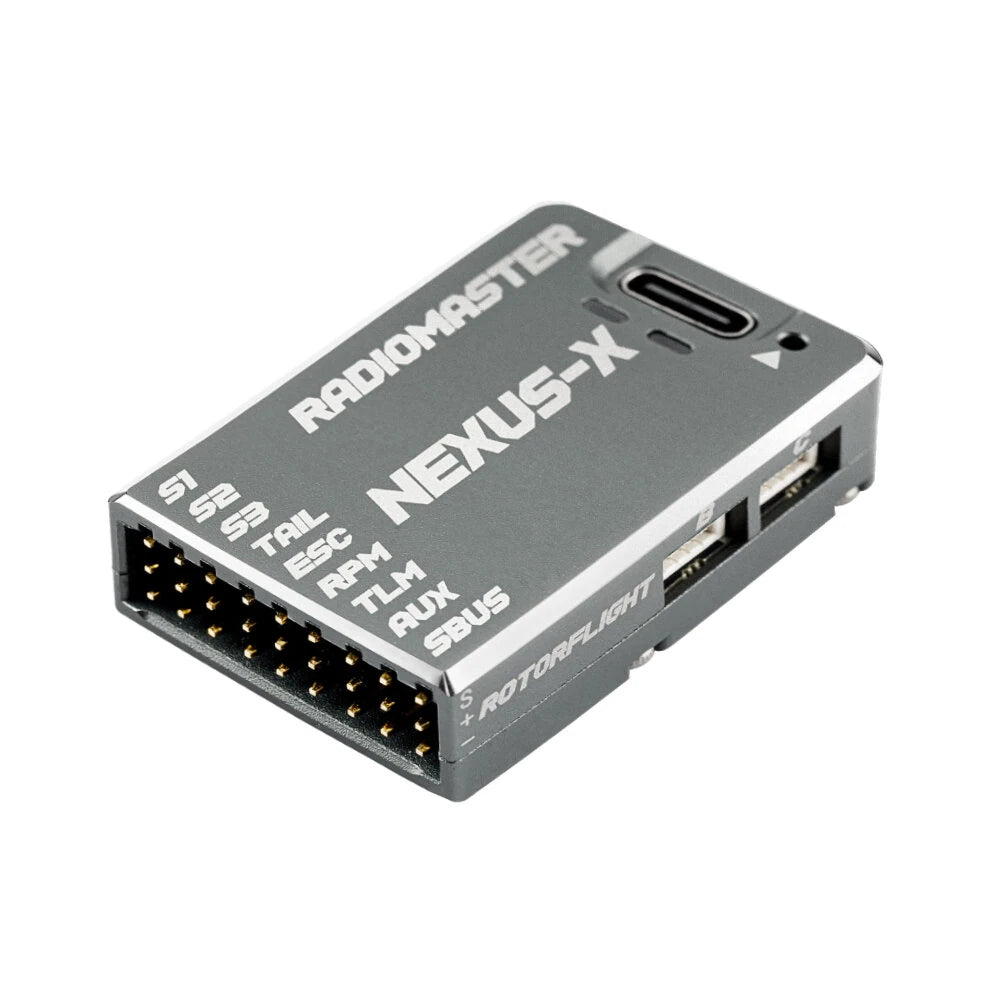

Product Name: Nexus-X Helicopter Flight Controller
Firmware: Rotorflight 2.2
MCU: STM32F722RET6
Gyro (IMU): ICM42688P
Flash Memory: 256MB (W25N02KVZEIR)
Built-In Barometer: SPL06-001

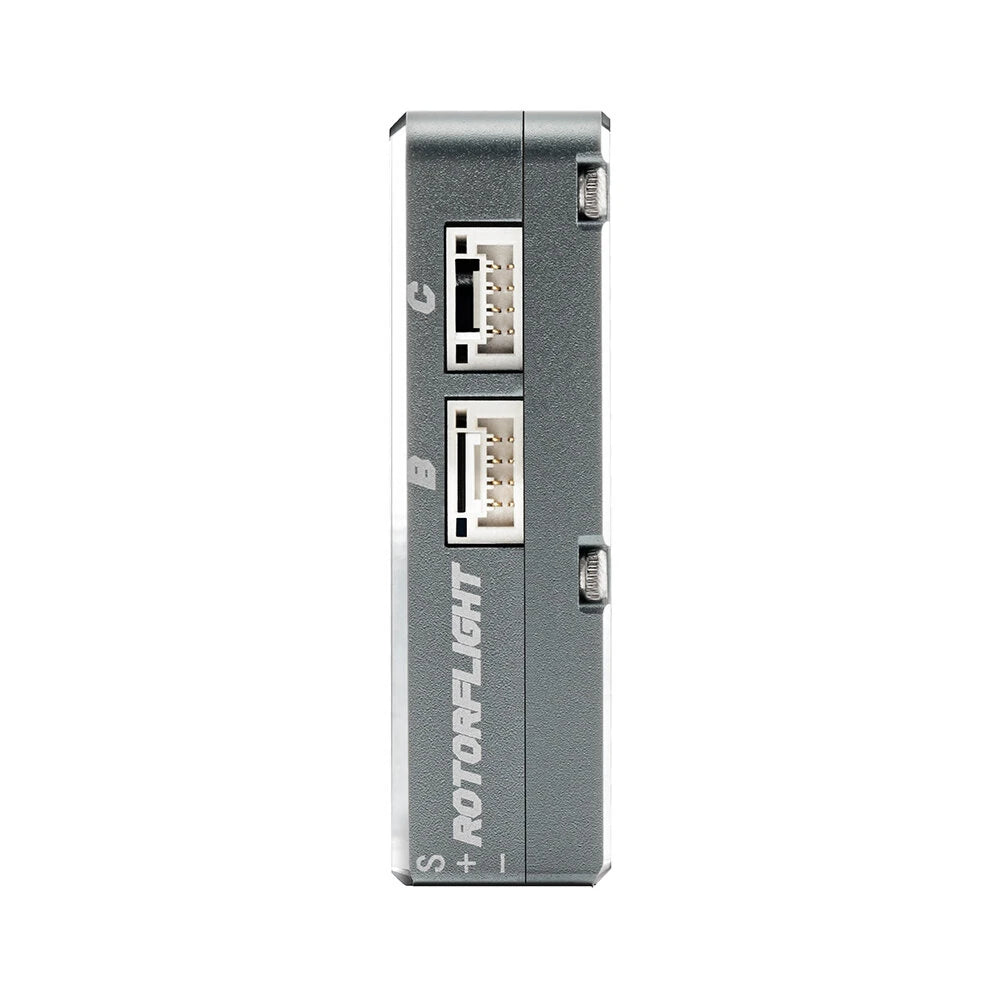

UART Ports: 5 (S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3])

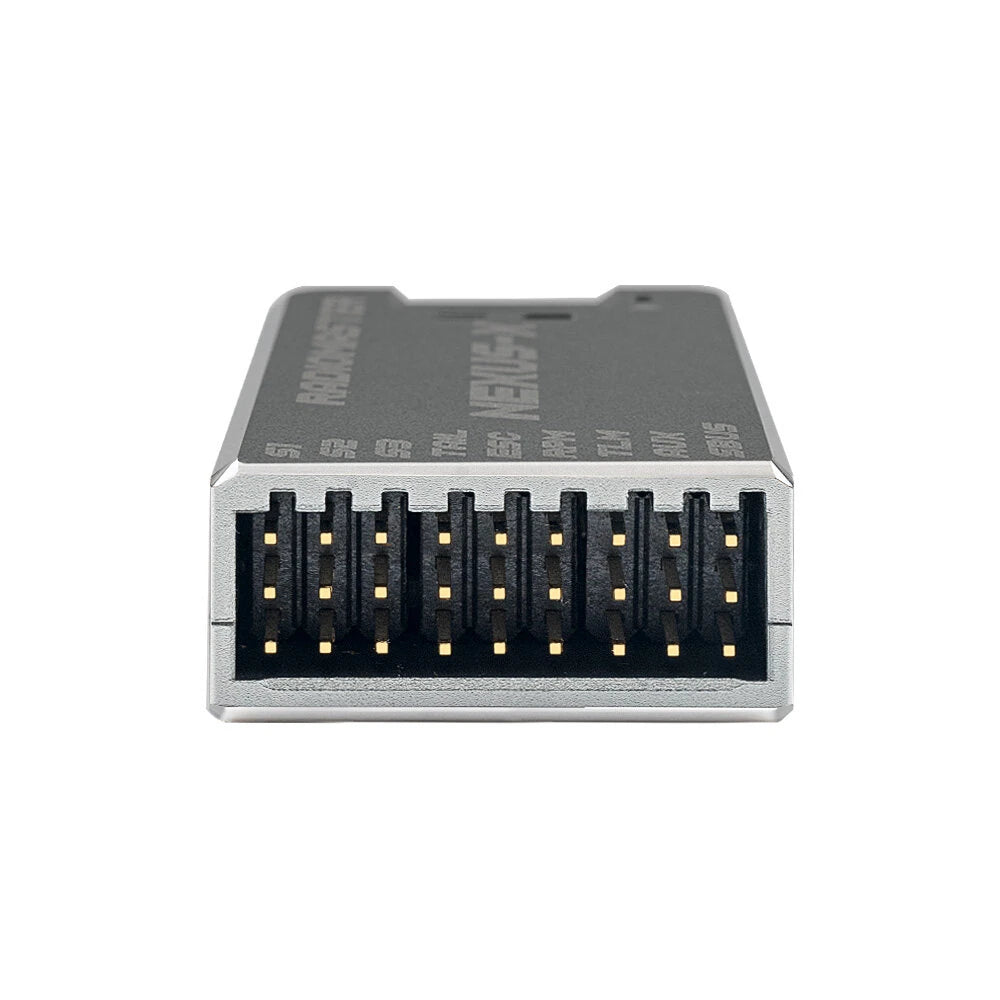

Servo Ports: S1, S2, S3, Tail (Supports up to 12V)
RPM Sensor: 1 (From ESC)
AUX Port: 1
External Voltage Input: 3.6-70V
Receiver Compatibility: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Power Supply Voltage (DC): 5-16V
Port Power Output (A-B-C): 5V - 1.5A
Telemetry Protocols: S.BUS, HoTT, S.Port, MSP, EdgeTX, ELRS
ESC-Compatible Protocols: PWM, Oneshot, Multishot, Dshot
Tail Servo Support: 760μs/1520μs Servo
Tail Motor Drive Support: Yes

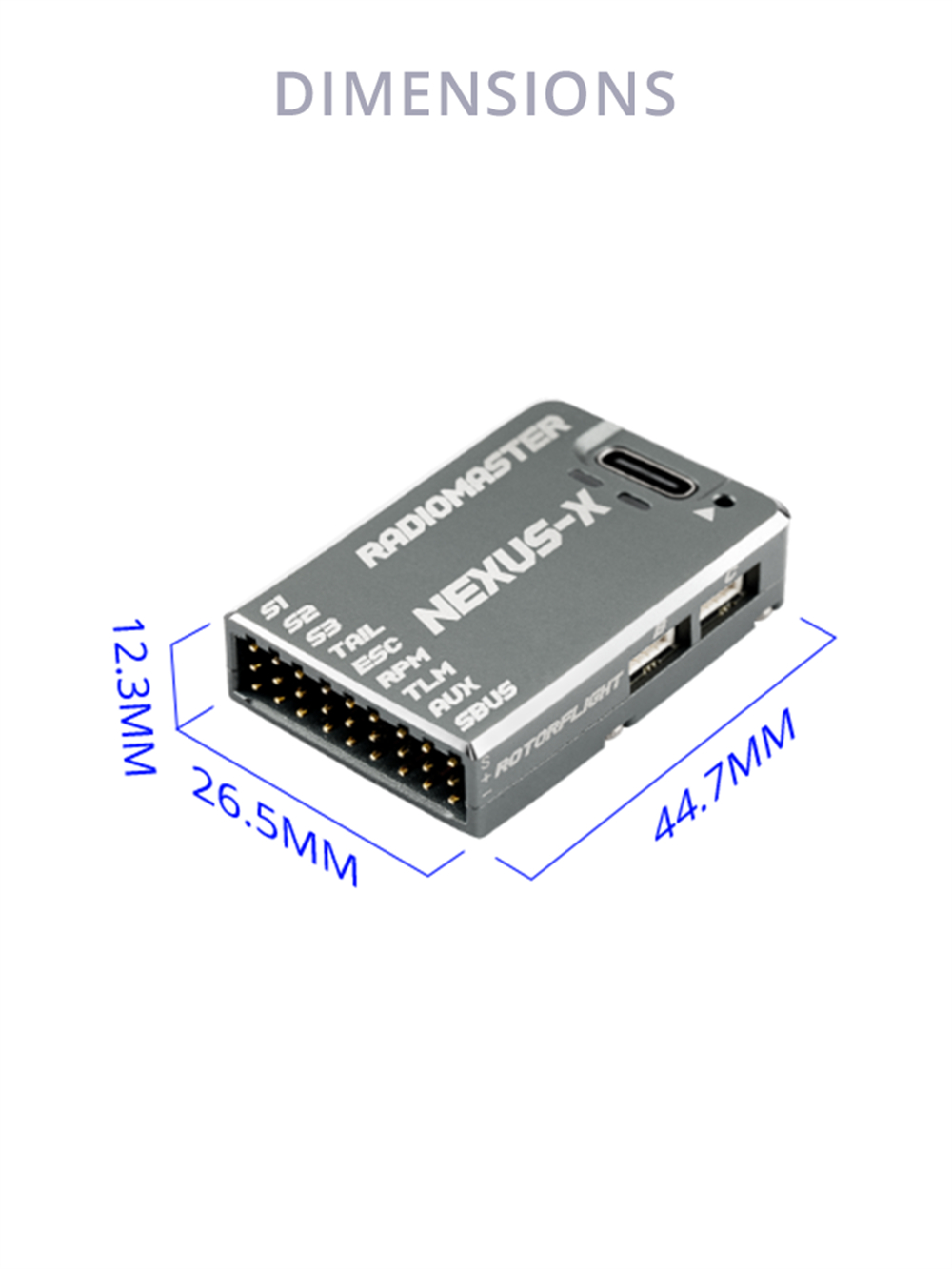

Dimensions: 44.70 x 26.50 x 12.30mm
Weight: 20.6g

Feature:
- Optimized for Rotorflight 2.2: Enjoy superior performance and seamless compatibility designed for advanced flight stabilization.
- Precise Motion Control: The STM32F722 MCU paired with the ICM42688P 6-axis motion sensor delivers outstanding flight dynamics and vibration resistance.
- 256MB Flash Memory: Expansive memory allows for more flight data recording and precise adjustments.
- Versatile Connectivity: Five UART ports and multi-protocol support for CRSF, ELRS, S.BUS, and more communication systems.
- Plug-and-Play ExpressLRS Receiver: No soldering required; compatible with RP3-H ExpressLRS receiver (sold separately).
- Expanded PWM Outputs: Additional pins ensure reliable control in complex setups.

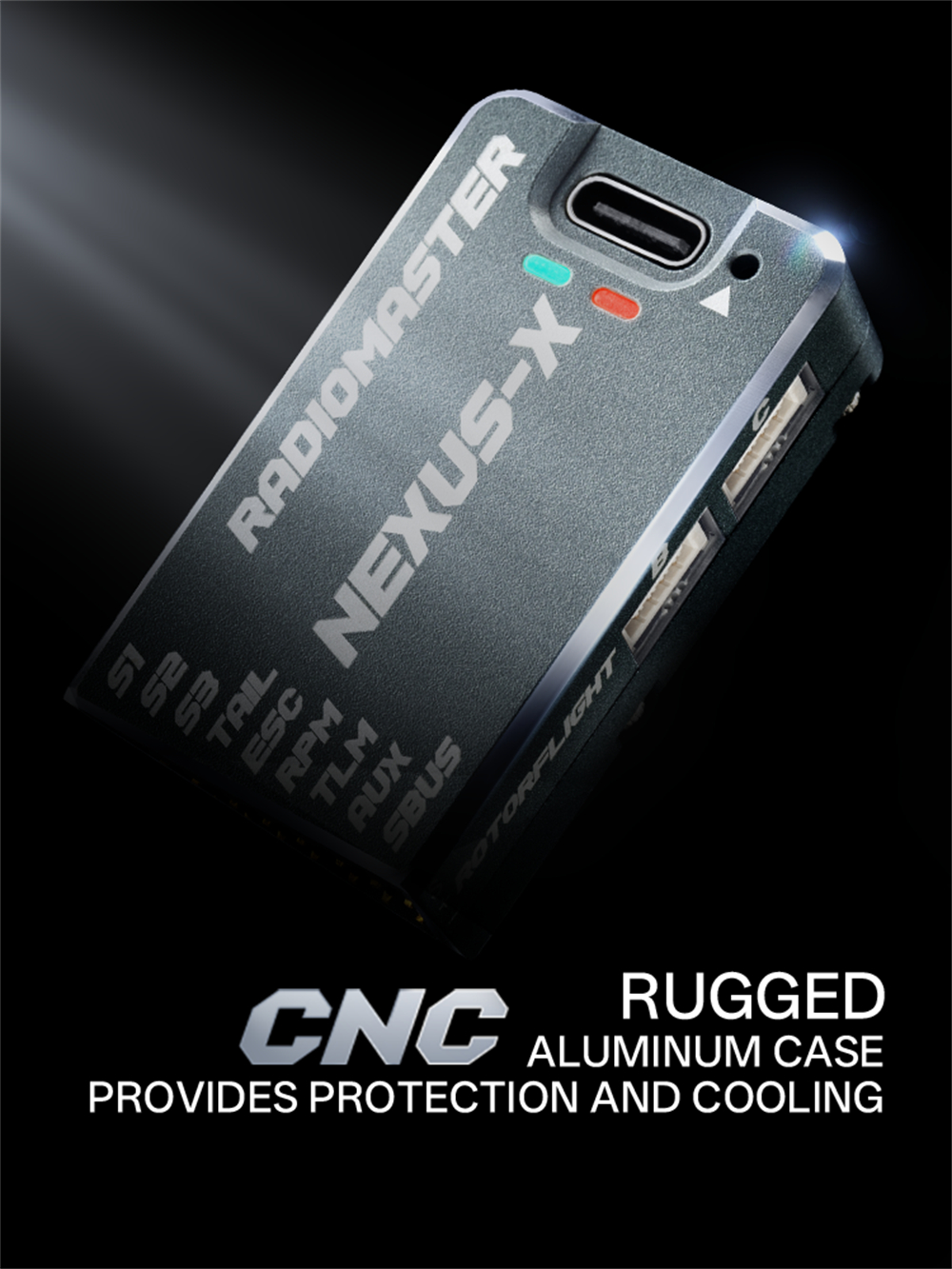

- CNC Aluminium Casing: Protects internal components and doubles as a heat sink for optimal cooling efficiency.

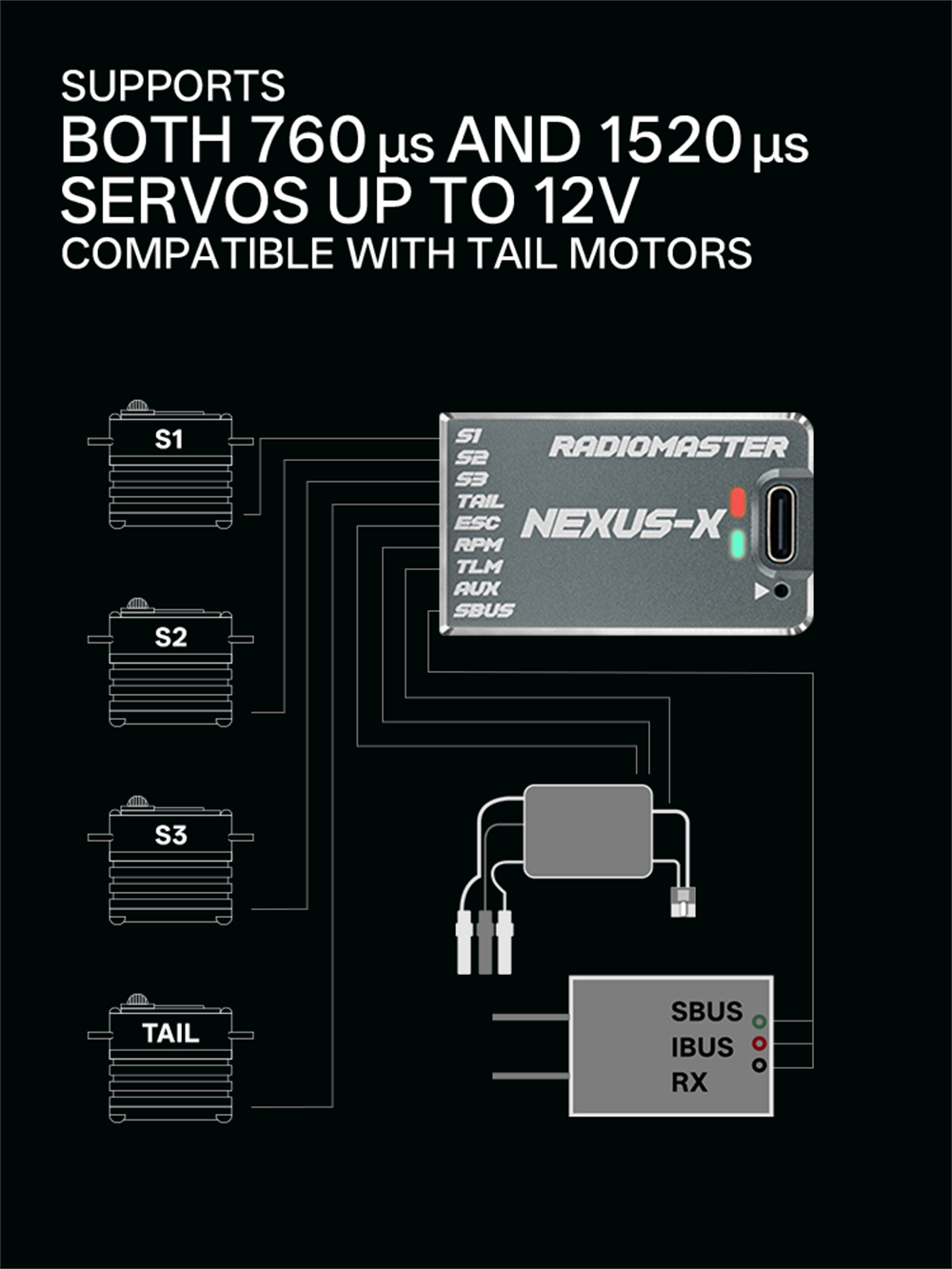

- Tail Servo and Motor Support: Compatible with 760μs and 1520μs high-voltage servos and multiple tail motor drive systems.
- 12V Servo Capability: Ideal for high-power servo applications across various scenarios.
- Wide Power Monitoring Range: Supports voltage input from 3.6V to 70V for compatibility with diverse power systems.
- Upgraded BEC System: Ensures stable and reliable power distribution for optimal flight performance.
- Independent Power Design: Gyro (1.8V), MCU (3.3V), and external interfaces (5.0V) operate independently to minimize interference.
- USB-C Connectivity: Includes ultra-light, flexible USB-C extension cables for better accessibility in tight configurations.
- Lightweight and Compact Design: Ideal for various helicopter models and setups.
- RotorFlight Rescue Mode: Built-in safety feature mitigates emergencies during flight.

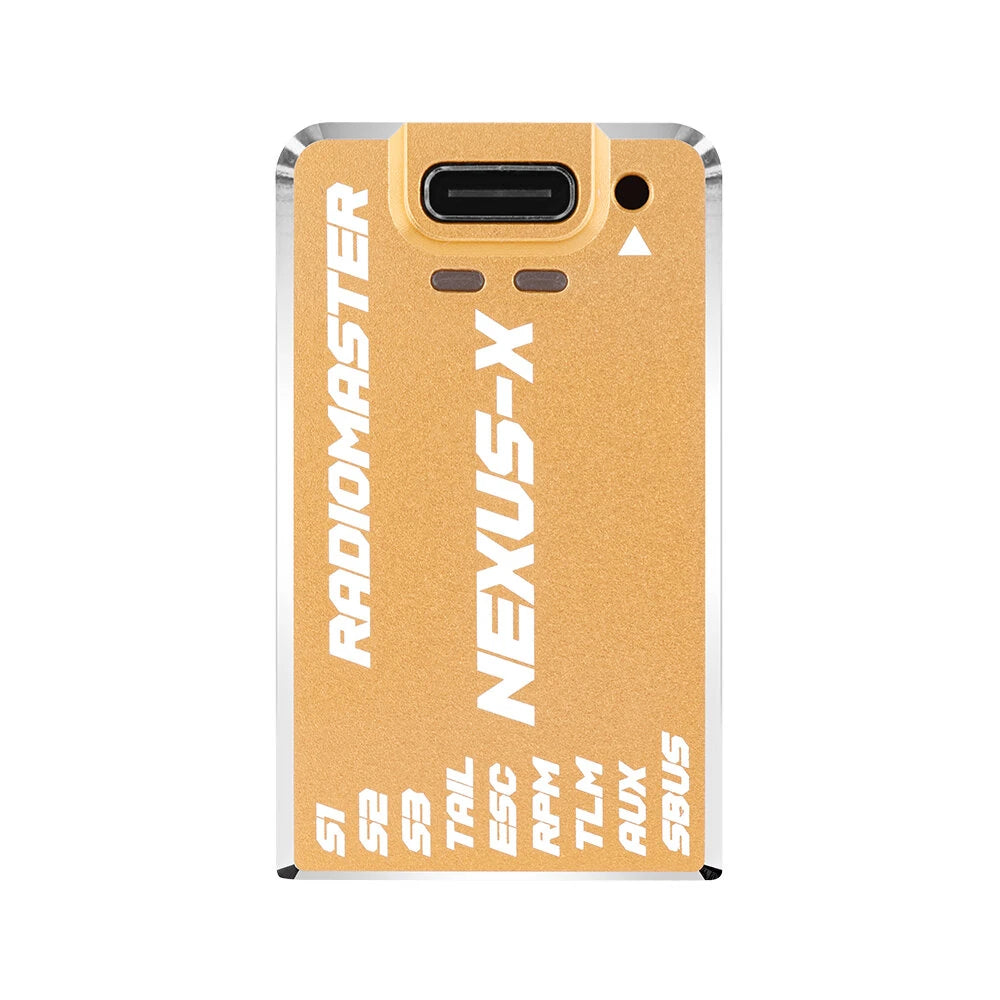

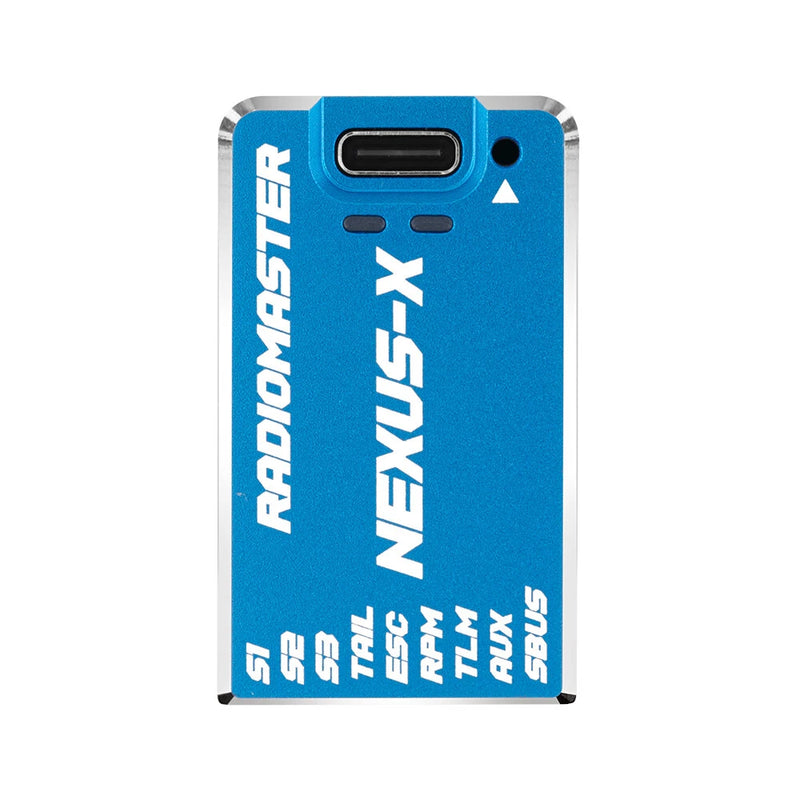

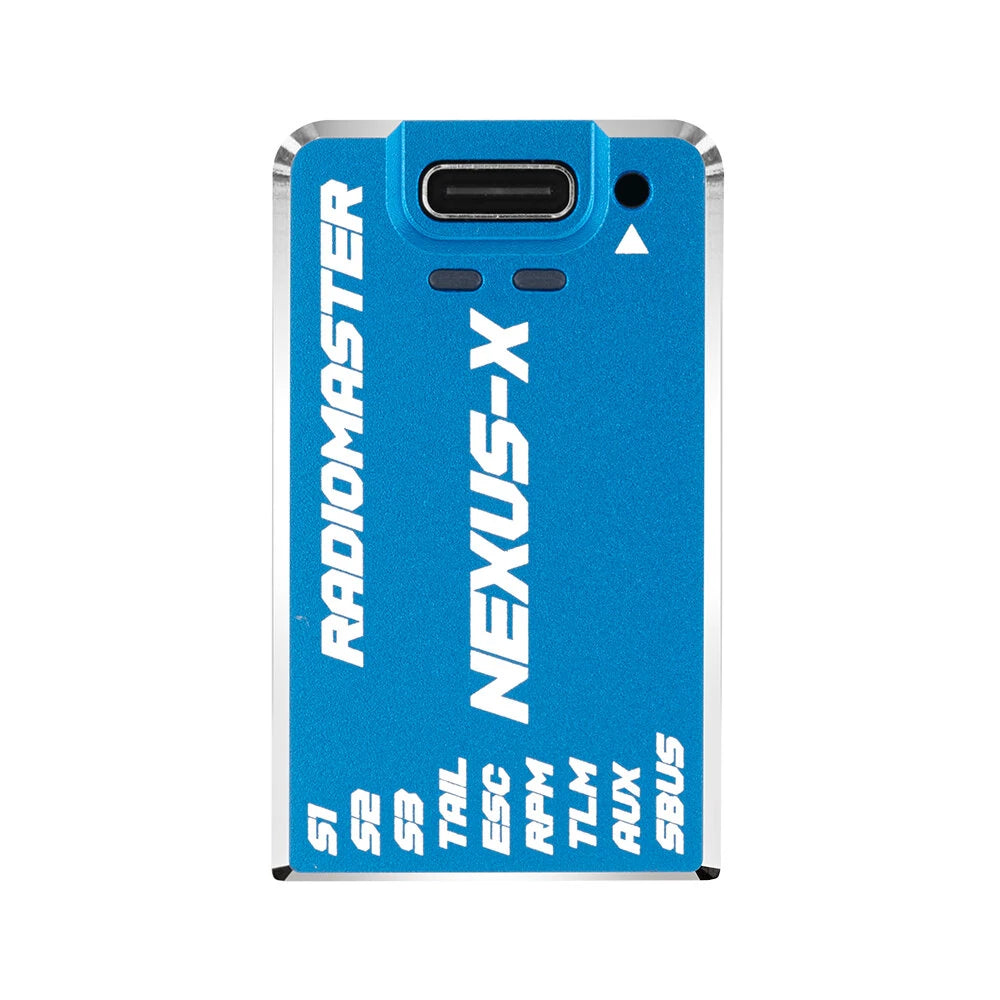

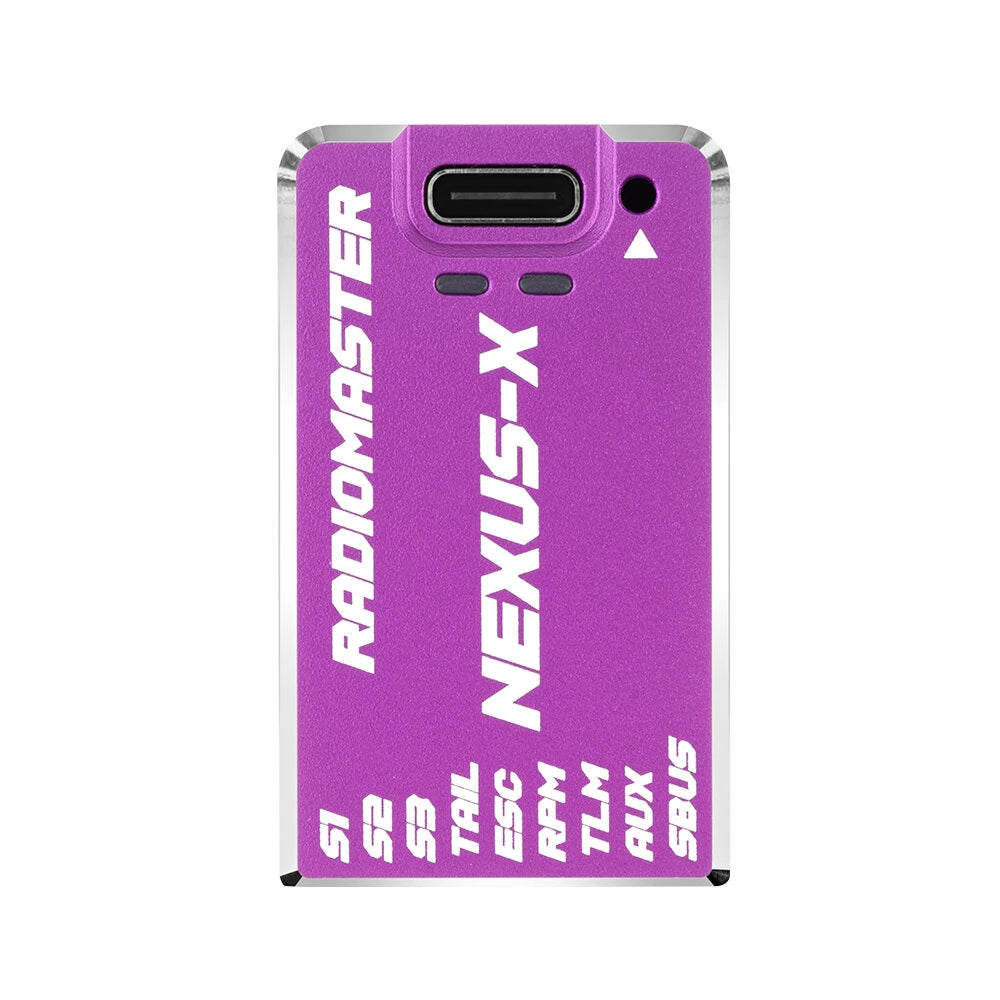

- Available in Five Colors: Select from gray, gold, red, blue, or purple for personalized style.

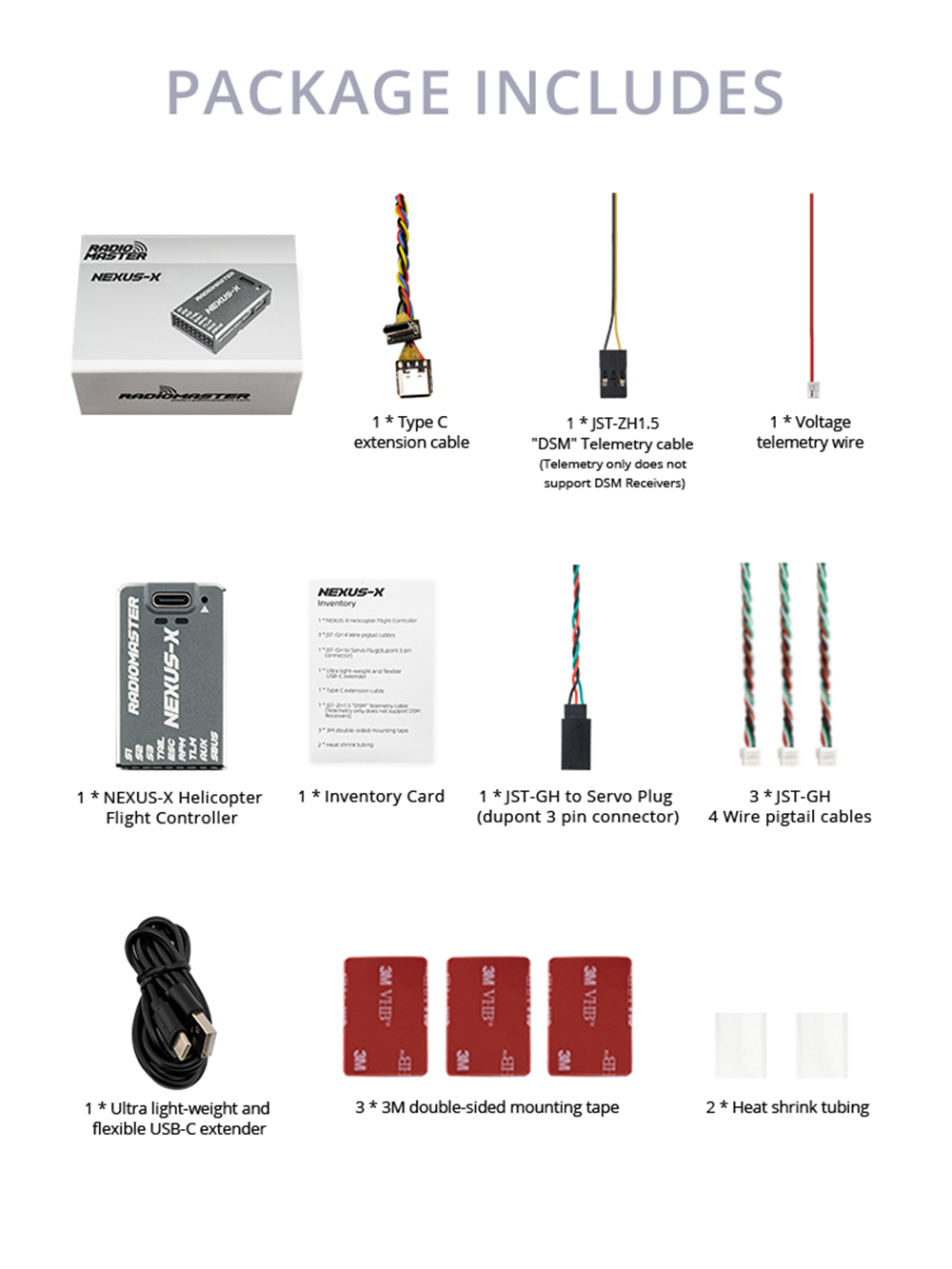

Package Included:
1 x Nexus-X Helicopter Flight Controller
3 x JST-GH 4P Connection Cables
1 x JST-GH 3P Servo Cable (3-pin Dupont Connector)
1 x Ultra-Light, Flexible USB-C Extension Cable
1 x Type-C Extension Cable
1 x JST-ZH 1.5' DSM Telemetry Cable (Supports ESC Telemetry Only)
1 x Voltage Telemetry Cable
3 x 3M Double-Sided Adhesive Tapes
2 x Heat Shrink Tubes
1 x Checklist Card
