Description
SPECIFICATIONS:

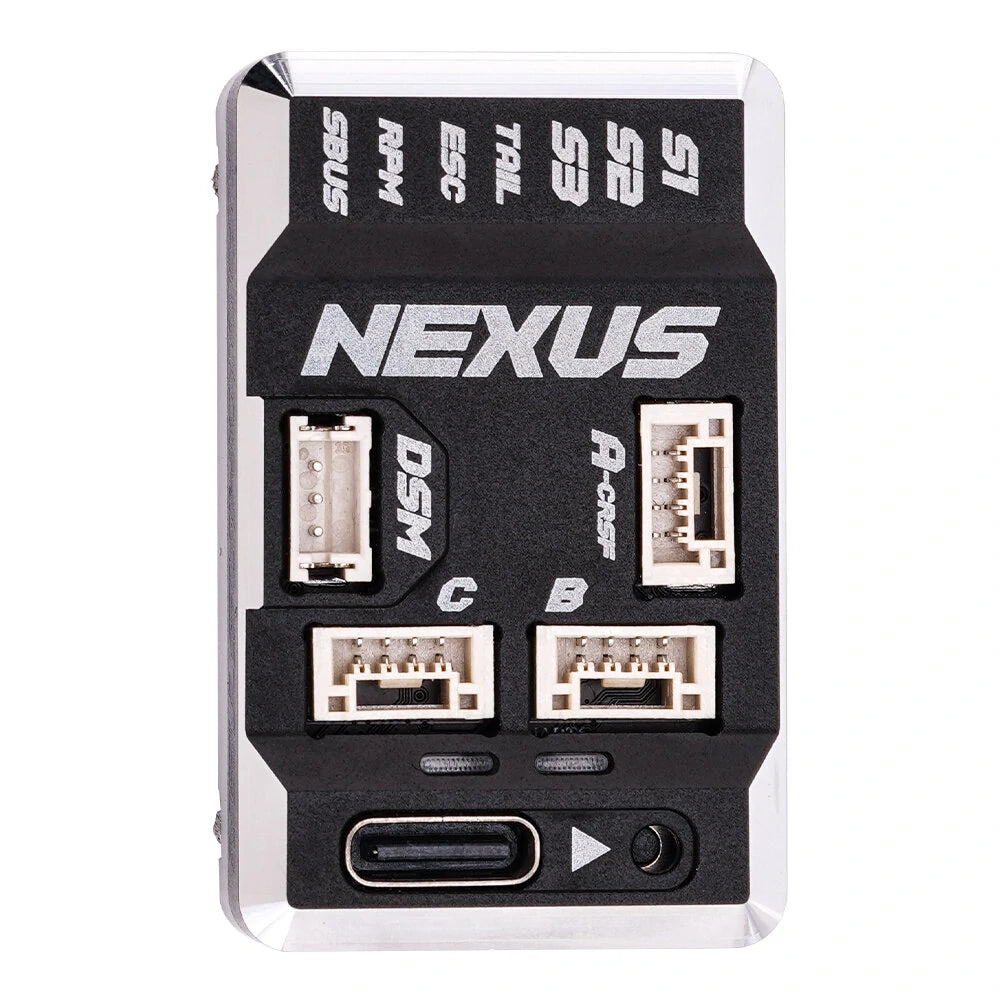

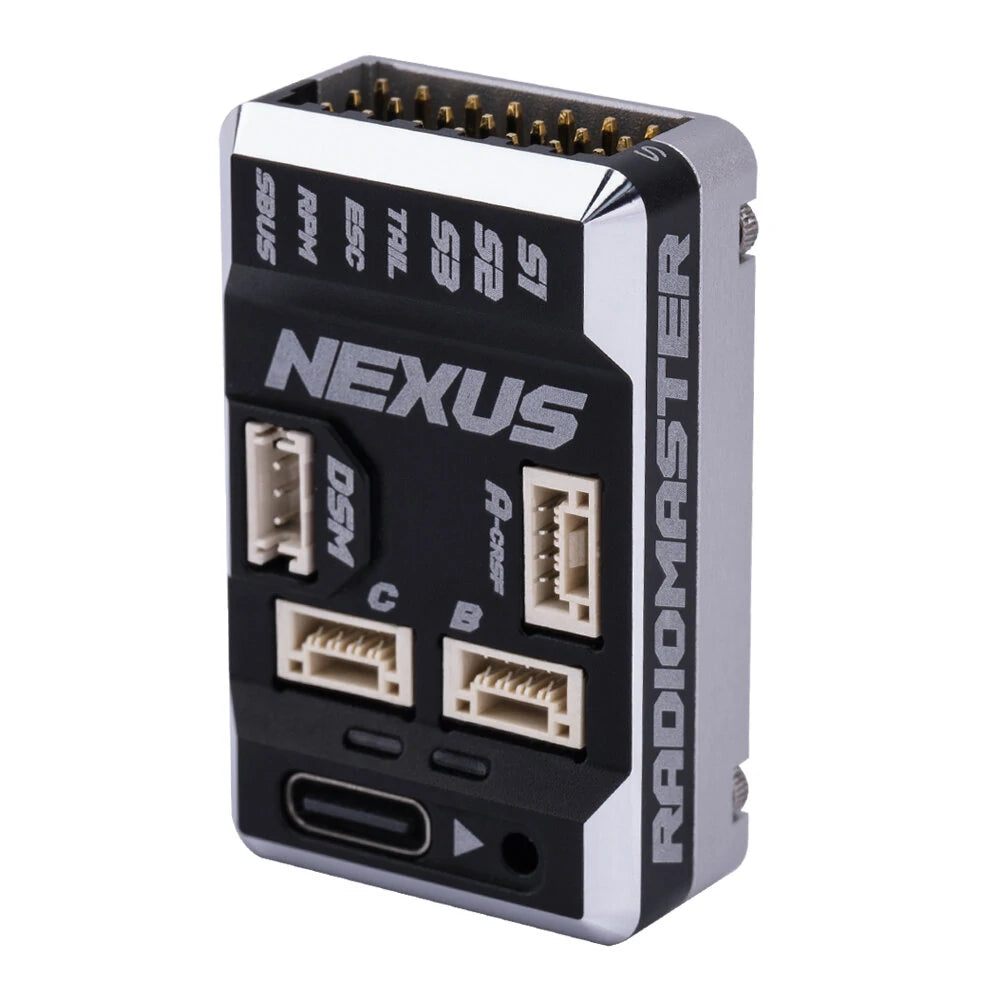

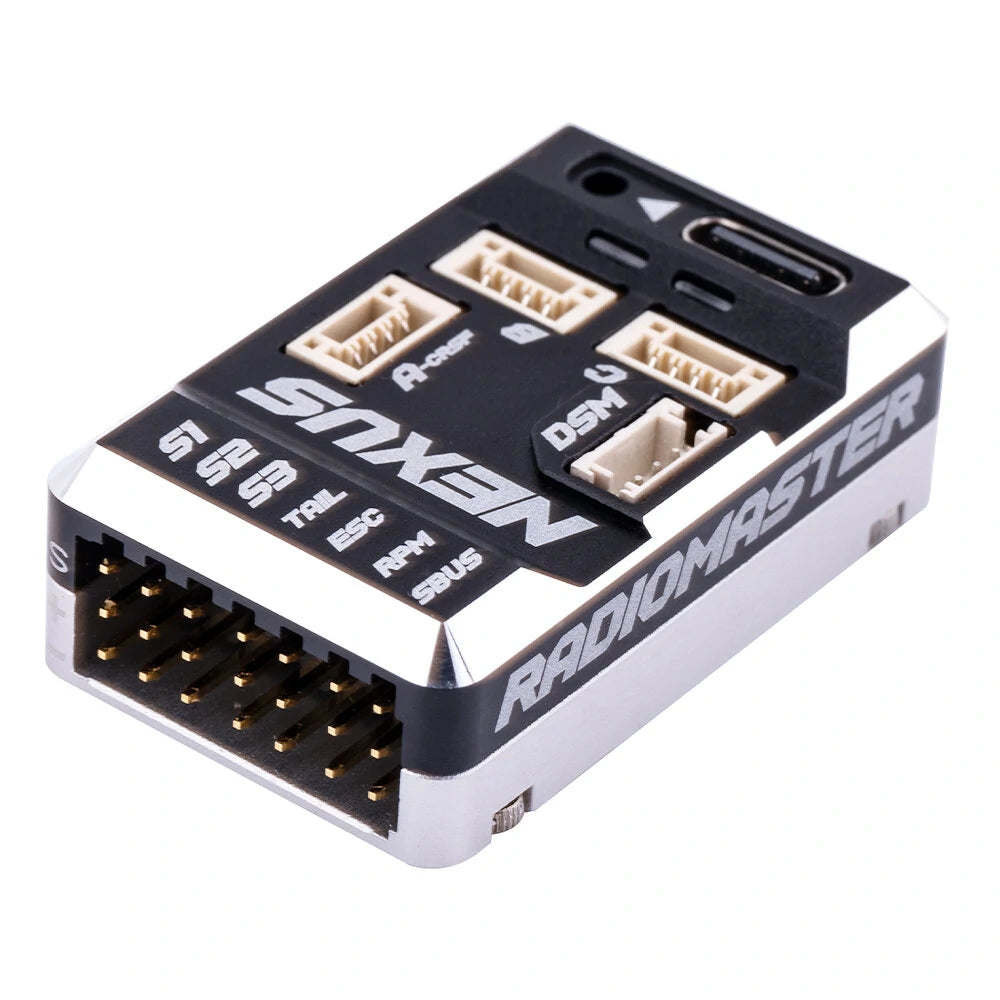

Item: Nexus Heli Flight Controller
Firmware: Rotorflight 2.0
MCU: STM32F722RET6
GYRO (IMU): ICM-42688-P
FLASH MEMORY (BLACK BOX. IC): 128Mb (W25N01GVZEIG)
BAROMETER: SPL06-001
UART:
6 - DSM[UART1]. S.BUS[UART2]. A-CRSF[UART4]
PORT-B[UART6]. PORT-C[UART3]
SERVO: 4 - S1, S2. S3. TAIL
RPM SENSOR: 1 - FROM ESC FREQUENCY SENSOR
RECEIVER SUPPORT: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUSEXBUS, PPM, MSP, DSM2, DSMX
VOLTAGE SUPPLY (DC): 5 - 12.6V
A-B-C SERIAL PORT POWER OUTPUT: 5V - 2.0A
DSM SERIAL PORT POWER OUTPUT: 3.3V - 0.5A
Telemetry: S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
ESC: Oneshot, Multishot, Dshot
Support Tail ESC: 760ps/1520ps Servo
Support Tail motor: Yes
DIMENSIONS: 41.3× 25.4×13.1mm

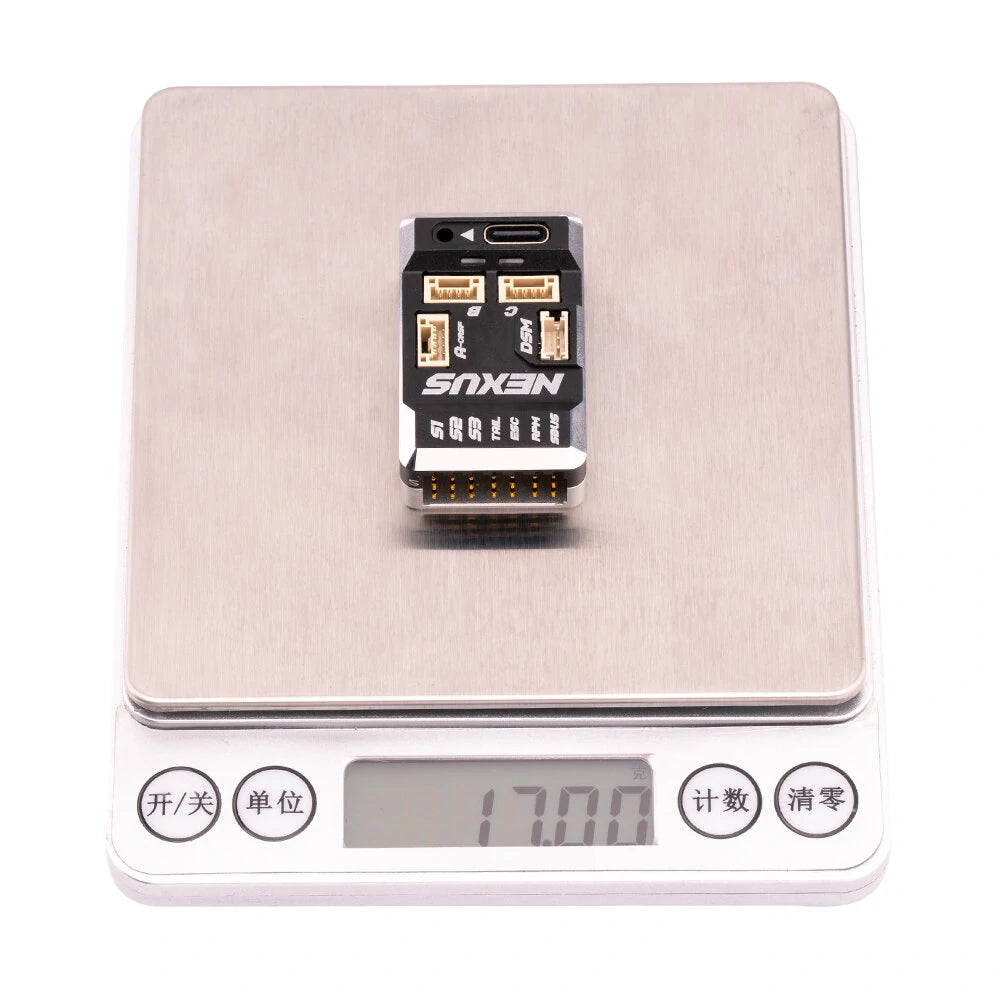

WEIGHT: 16.8g

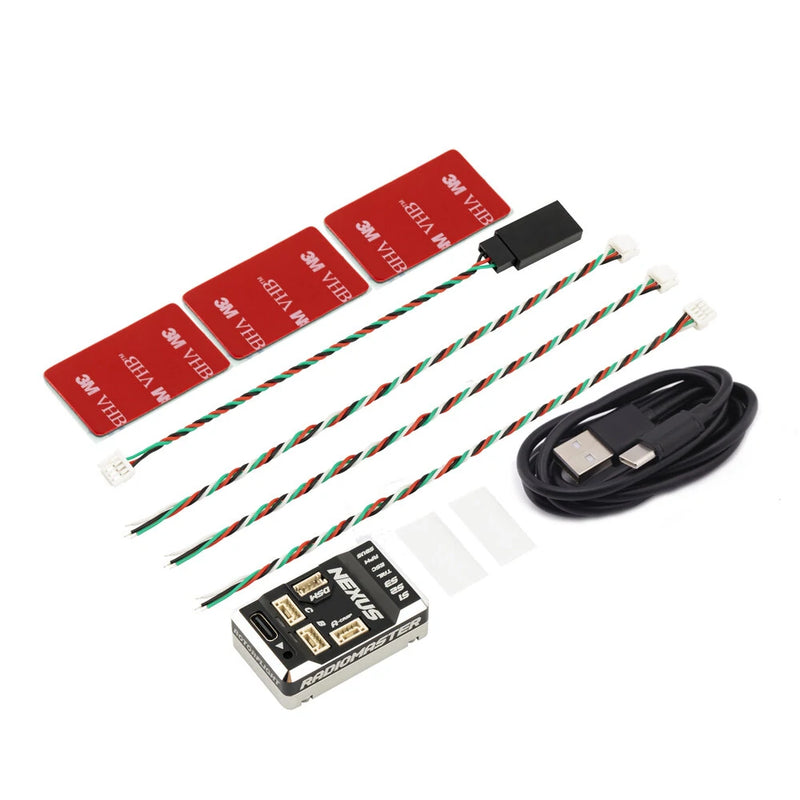

PACKAGE INCLUDES:
1x JST-GH to Servo Plug (dupont 3 pin connector)
1x Type C extension cable
4x JST-GH 4 Wire pigtall cables
1x Nexus Hell Flight Controlier
1x Uitra light weight and flexible USB-C exrender
2x Heat shrink tubing
3x 3M double-sided mounting tape
