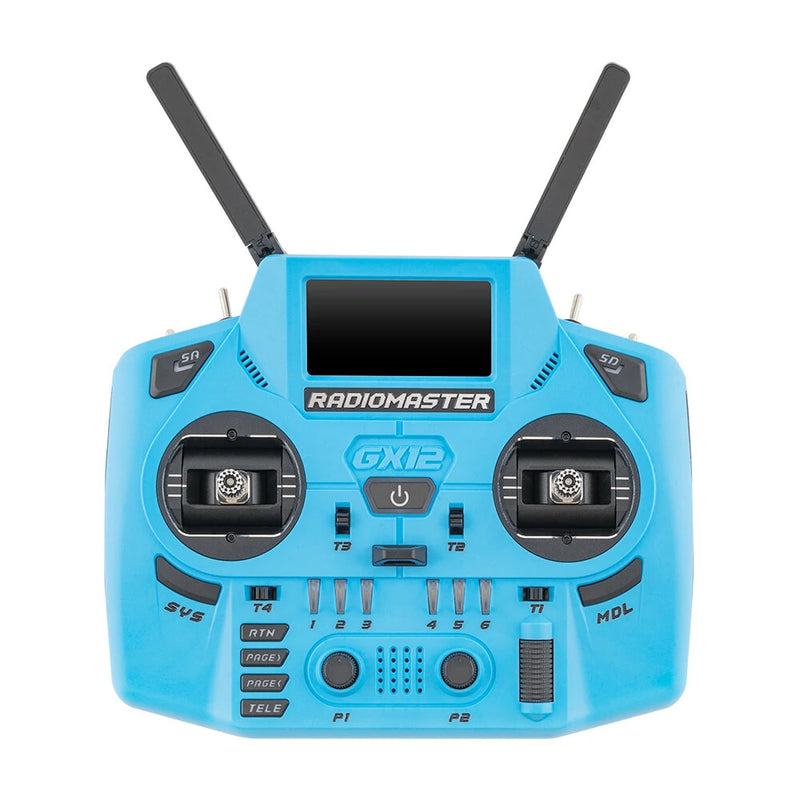

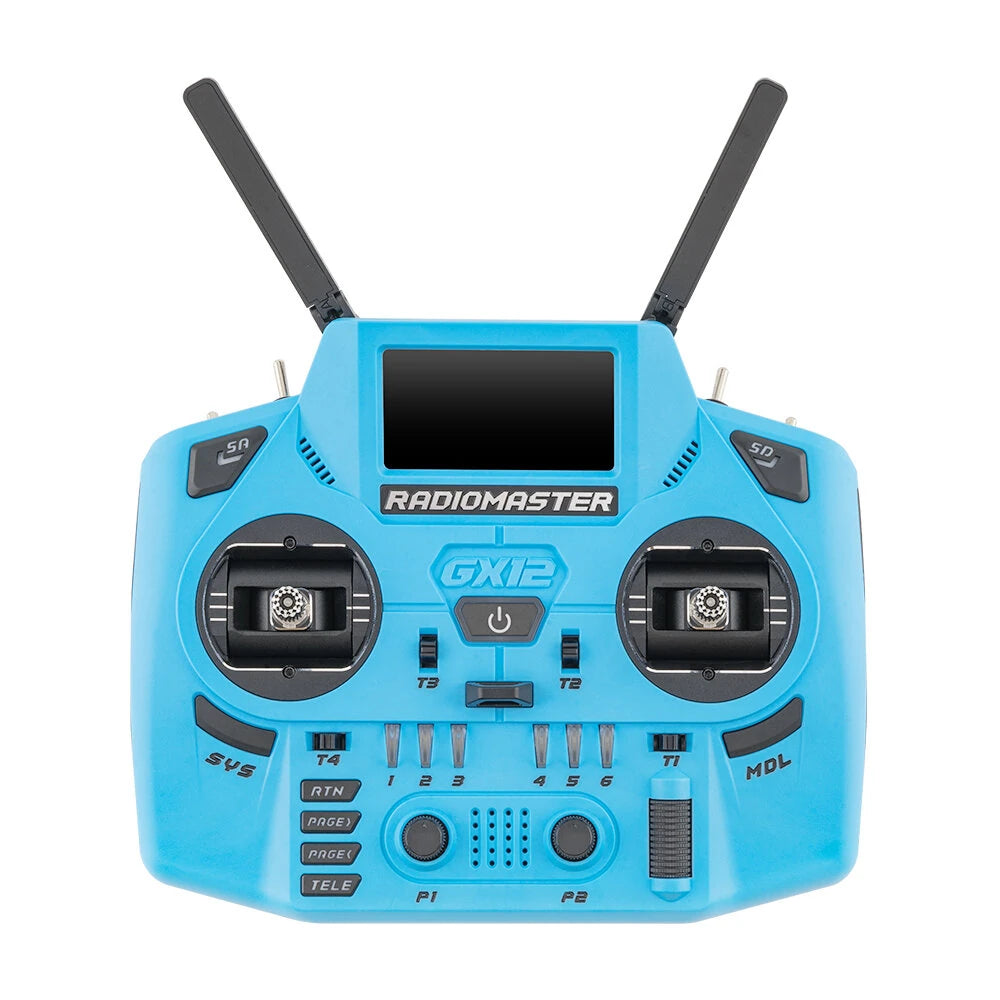

Radiomaster GX12 Crush Radio Controller Dual-Band Dual 1W Gemini Xrossband ExpressLRS OLED Display Screen GX01 3D Digital CNC Hall Gimbal for FPV Racing Drones

Description:
Introducing the GX12 Crush Edition – the same game-changing dual-band performance of the GX12, now with a bo1d new look.

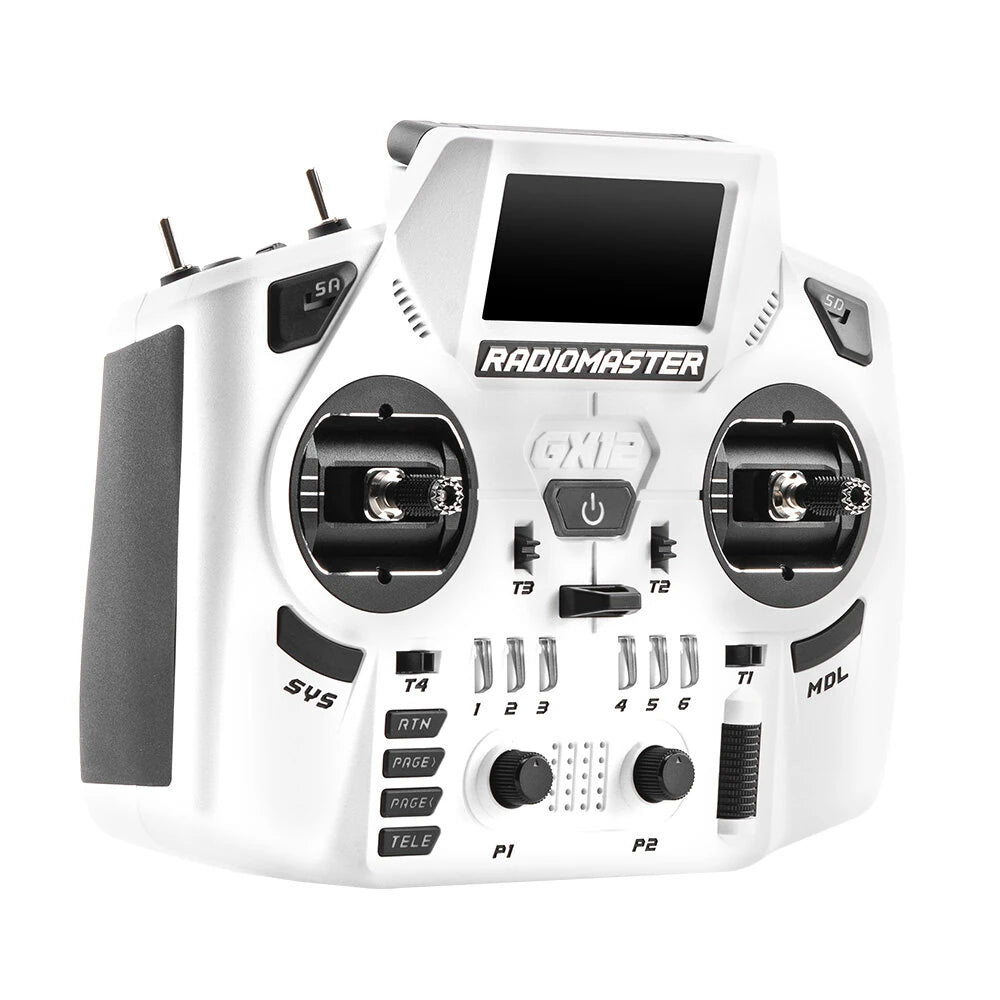

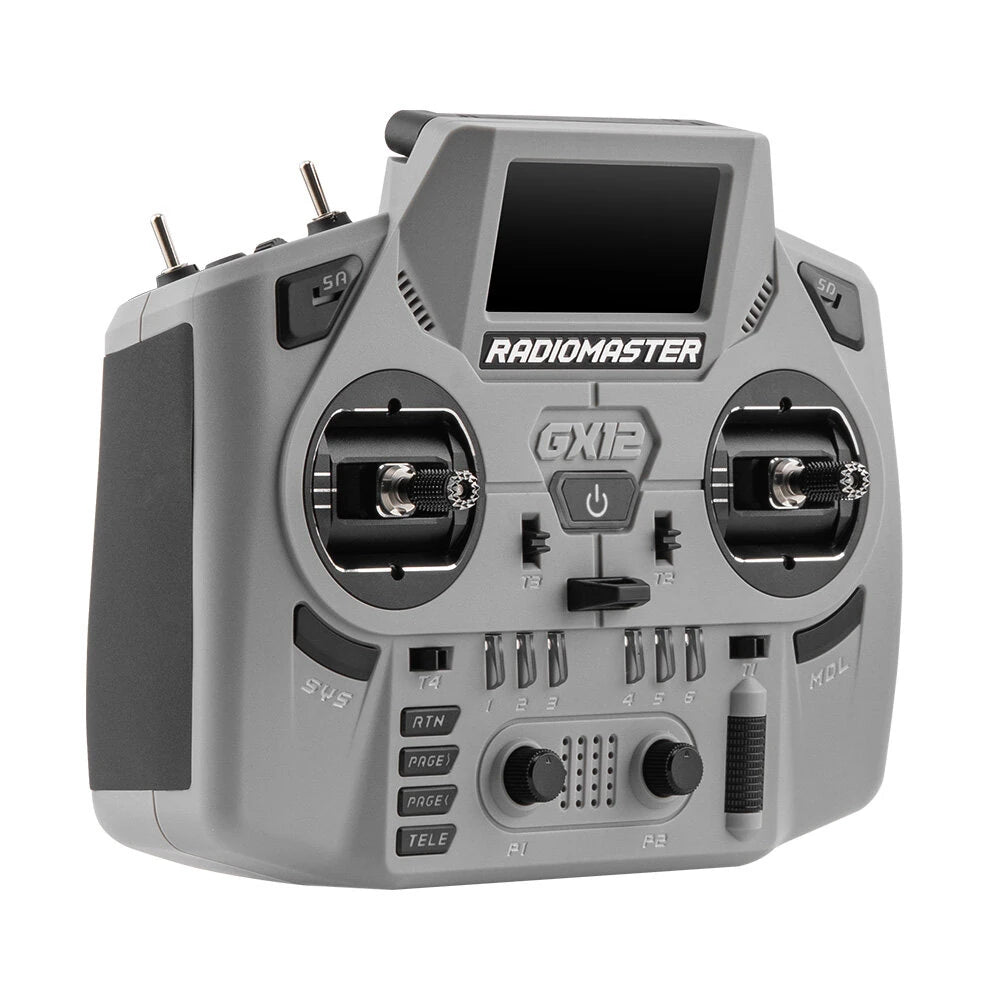

Choose from six stunning colors: Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow. Whether you want to match your build or just stand out on the flight line, the GX12 Crush lets you fly your way—in full color.
Built on the revolutionary Gemini-XROSSBAND ExpressLRS platform, the GX12 Crush delivers simultaneous dual-band transmission on 2.4GHz and 900MHz for unrivaled signal reliability. With CNC aluminum 1000Hz GX01 gimbals, folding dual-band antennas, modular switch panels, and USB-C charging and data, this radio is made f0r the most demanding pilots—now with extra flair.
Same performance. Same innovations. Now in colors.

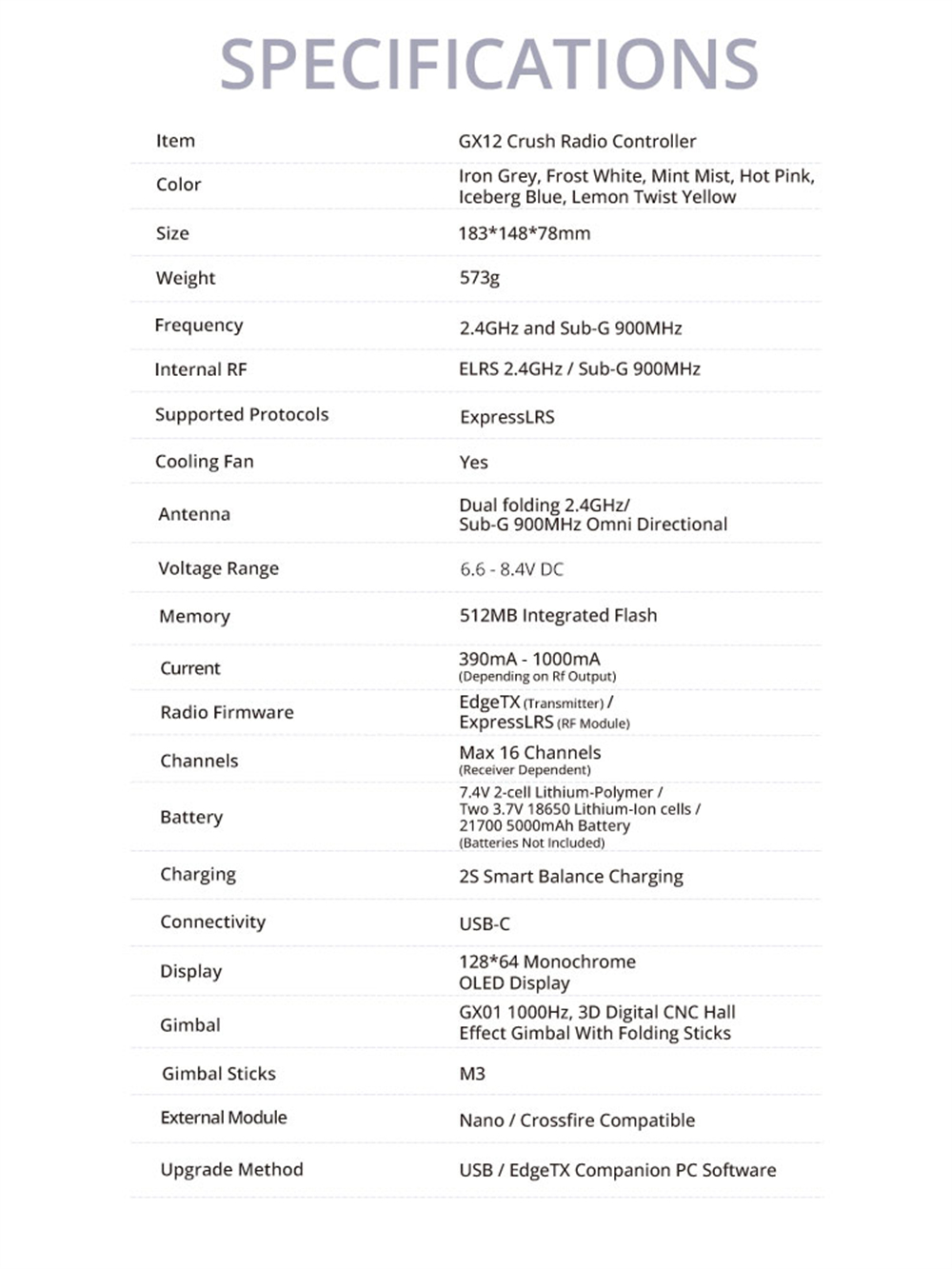

Specification:
Brand: Radiomaster
Item: GX12 Crush Radio Controller

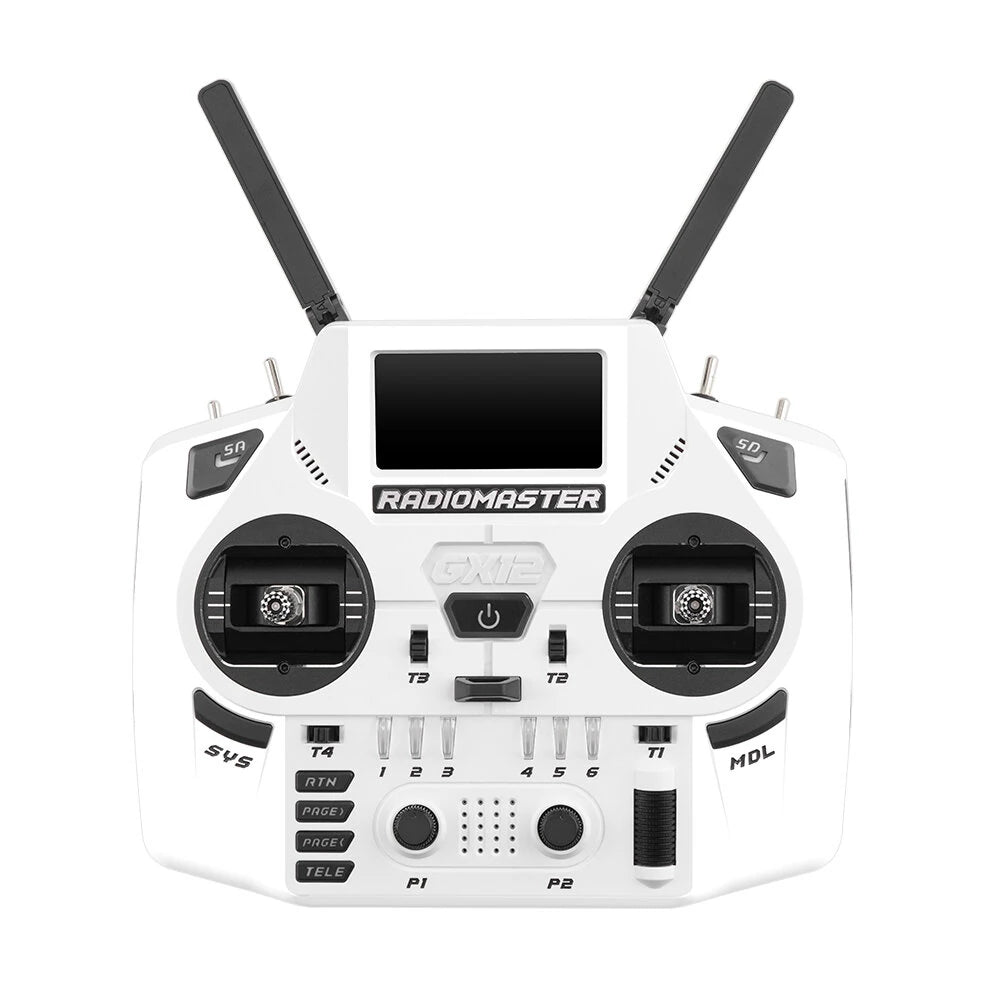

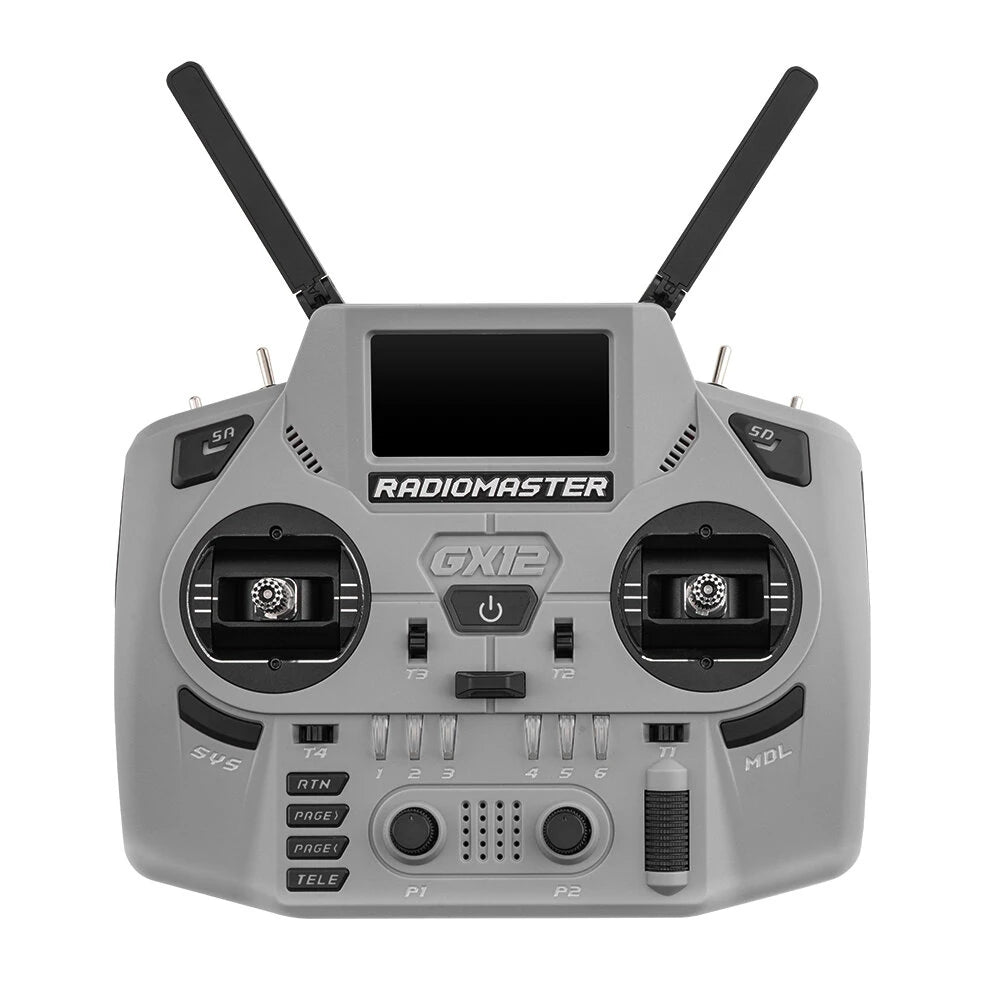

Color: Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow
Frequency: 2.400GHz and Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Antenna: Dual folding 2.4GHz/ Sub-G 900MHz omni directional
Voltage Range: 6.6 - 8.4V DC
Current: 390mA - 1000mA (Depending on Rf output)
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Charging: 2S Smart Balance Charging
Connectivity: USB-C
Display: 128*64 Monochrome OLED display
Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
Gimbal Sticks: M3
External Module: compatible for Crossfire / Nano

Upgrade Method: USB / EdgeTX Companion PC software
Memory: 512MB Integrated Flash

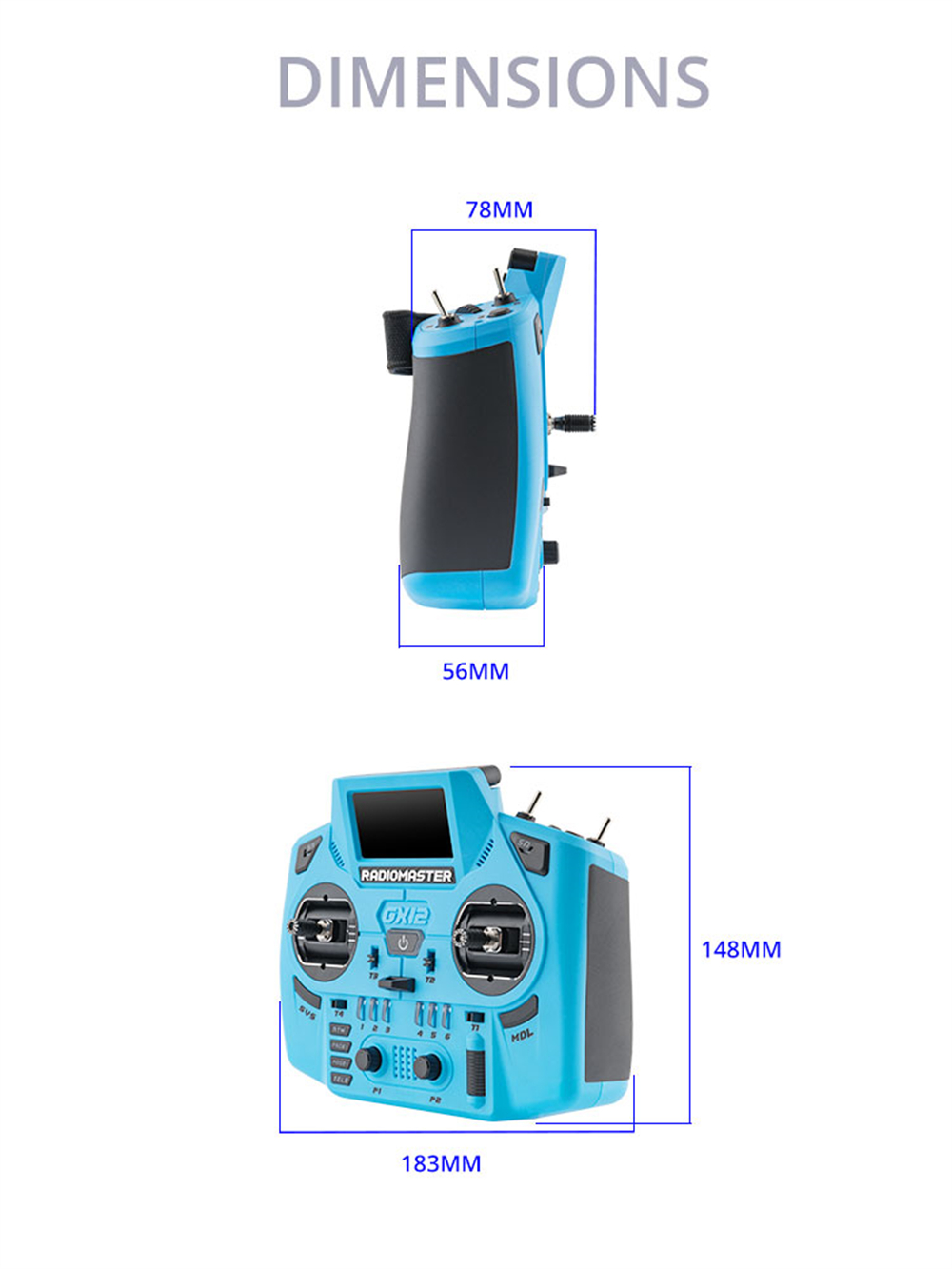

Size: 183*148*78mm
Weight: 573g

Feature:
- Available In Six Colors: 'Iron Grey, Frost White, Mint Mist, Hot Pink, Iceberg Blue, Lemon Twist Yellow'—each designed to spark excitement.
- Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters: Experience unmatched range and reliability with ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
- Integrated Folding Dual-Band Antennas: Sleek design with foldable antennas for easy transport and storage. Compatible with both 2.4GHz and Sub-G 900MHz frequencies.
- GX01 Gimbals -Fully CNC Aluminum 3D Digital Hall Sensor Gimbals: Precision-engineered aluminum gimbals with 3D Hall sensors for superior control and durability.
- 1000Hz Digital Gimbals with EdgeTX Sync: Achieve exceptional precision and responsiveness with high-frequency digital gimbals featuring EdgeTX sync.
- Folding Gimbal Sticks: Foldable gimbal sticks for convenient storage and transport.
- Removable Switch Panels: Customize your setup with our modular switch panels, allowing for easy switch changes to suit your preferences.
- DIY SMA Ports: Enjoy flexibility in antenna installation with SMA port integration.
- OLED Display: Crisp and clear OLED with high contrast display
- Internal Storage: 512MB of integrated high-speed flash storage—no need for TF cards!
- USB-C Connectivity: The GX12 features a single USB-C port that manages smart balance charging, SIM connectivity, firmware updates and direct access to the integrated high speed flash memory.
- Integration of programmable 6-Position Switch: Individually programmable 6-position switches offer versatile control options tailored to your unique setup.
- Programmable RGB Indicators on 6-Position and SA/SD Switches: Customizable RGB lights provide visual feedback on switch status.
- Powerful Efficient Cooling System: With dual 1-watt transmitters, the GX12 boasts serious power, featuring an advanced cooling system to keep your radio cool even on the hottest days.
- PCB Nano coating: Engineered for the Extremes! The GX12 is built to thrive in demanding environments. With thicker plastics and a hydrophobic PCB coating, this controller is designed to withstand hot, cold, dry, and humid conditions.

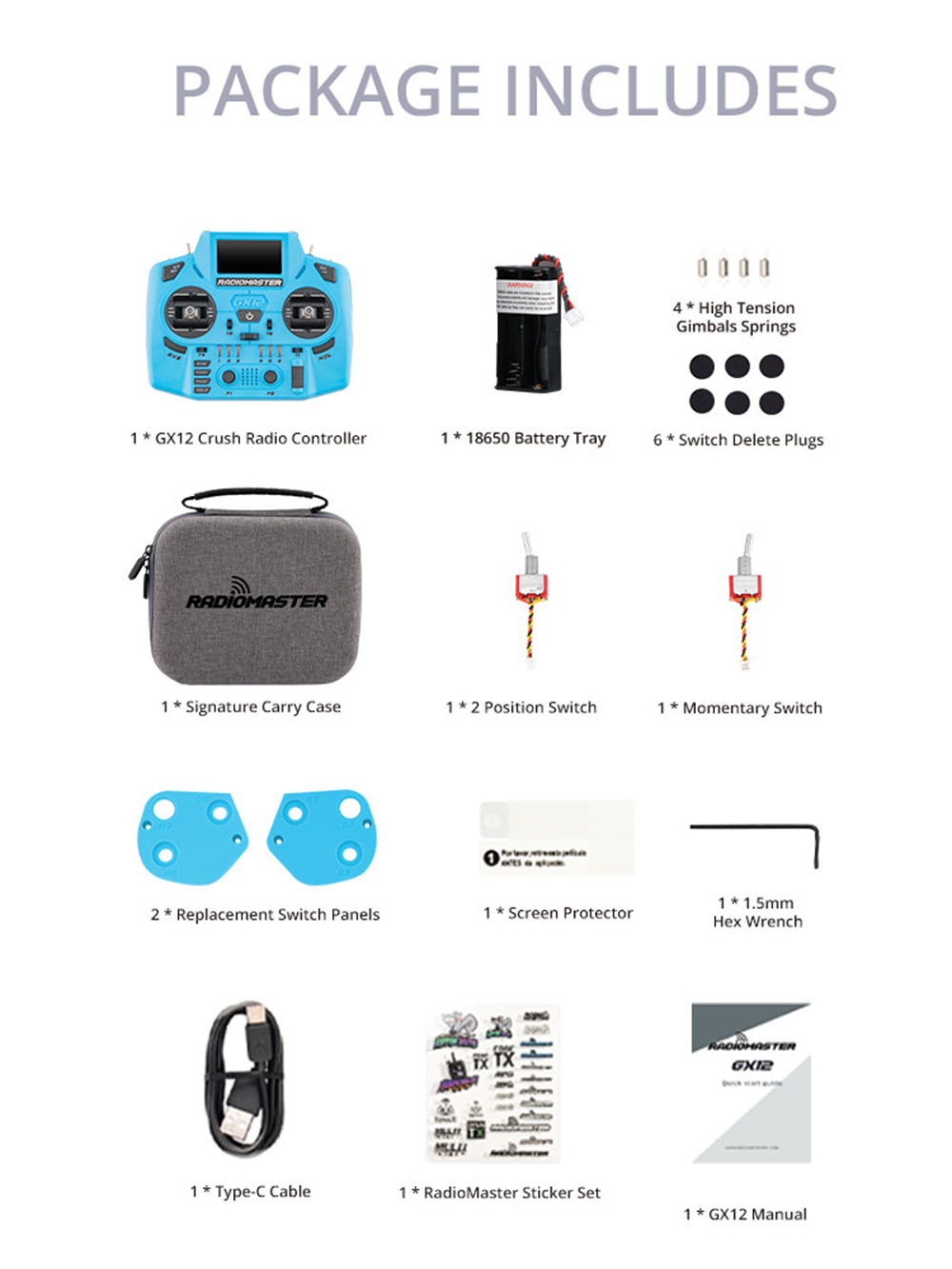

Package included:
1 * GX12 Crush Radio Controller
1 * 18650 Battery Tray
4 * High Tension Gimbals Springs
6 * Switch Delete Plugs
1 * Signature Carry Case
1 * 2 Position Switch
1 * Momentary Switch
2 * Replacement Switch Panels
1 * Screen Protector
1 * 1.5mm Hex Wrench
1 * Type-C Cable
1 * RadioMaster Sticker Set
1 * GX12 Manual
