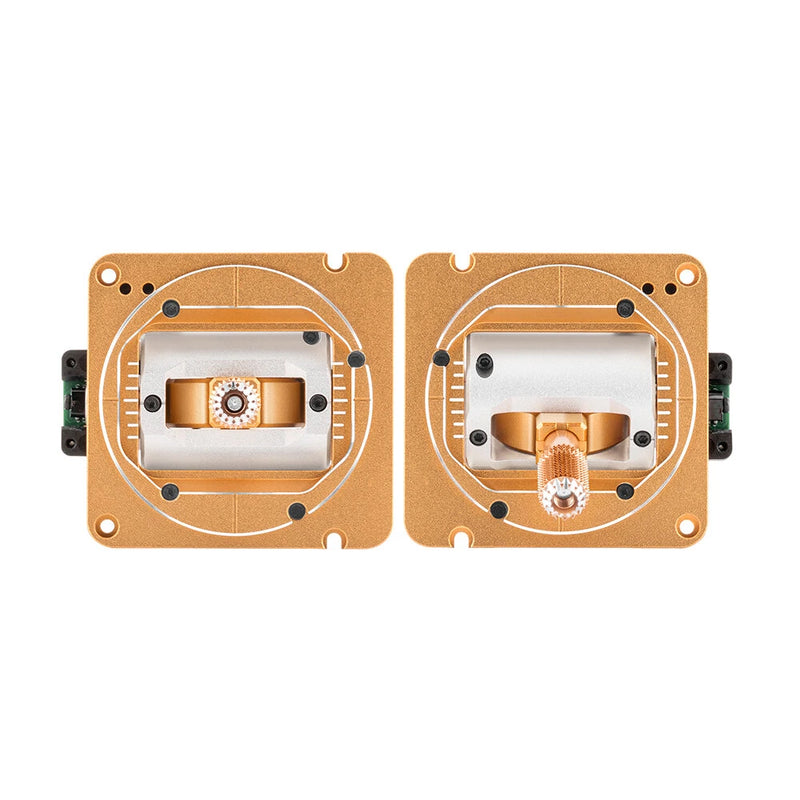

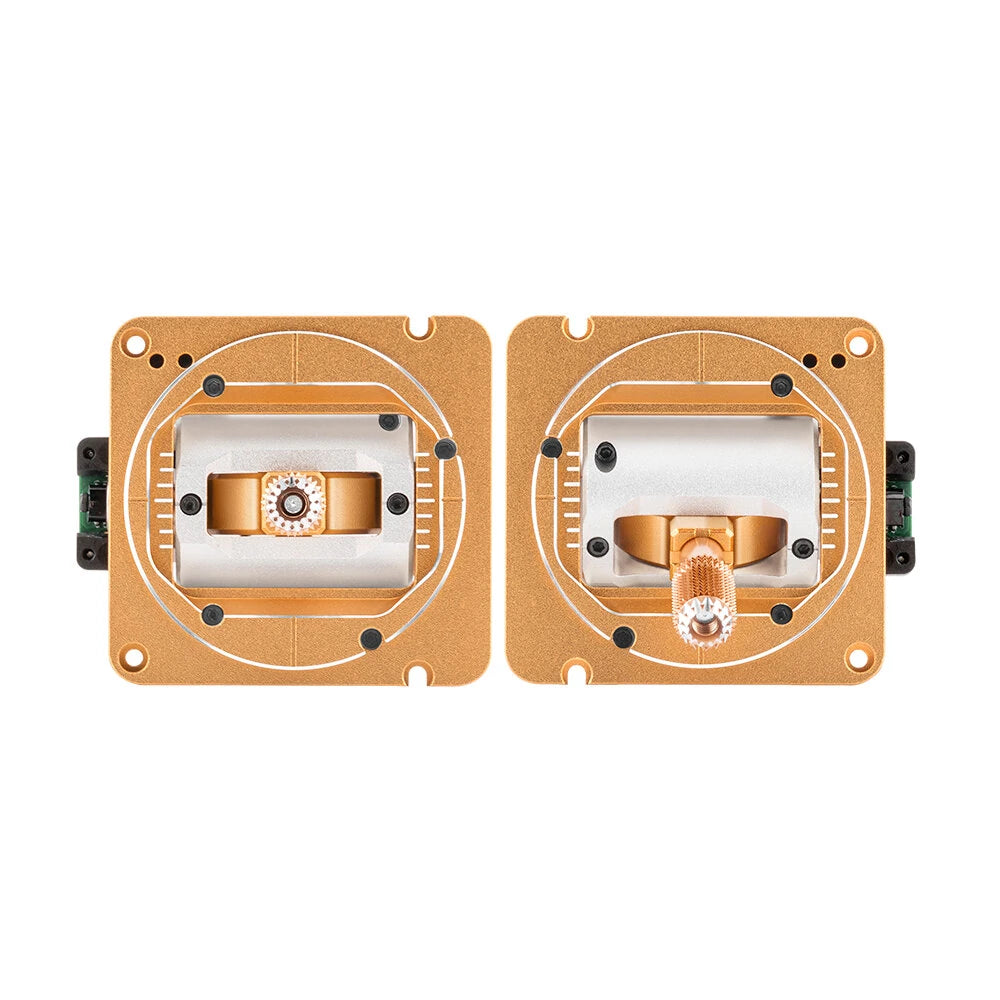

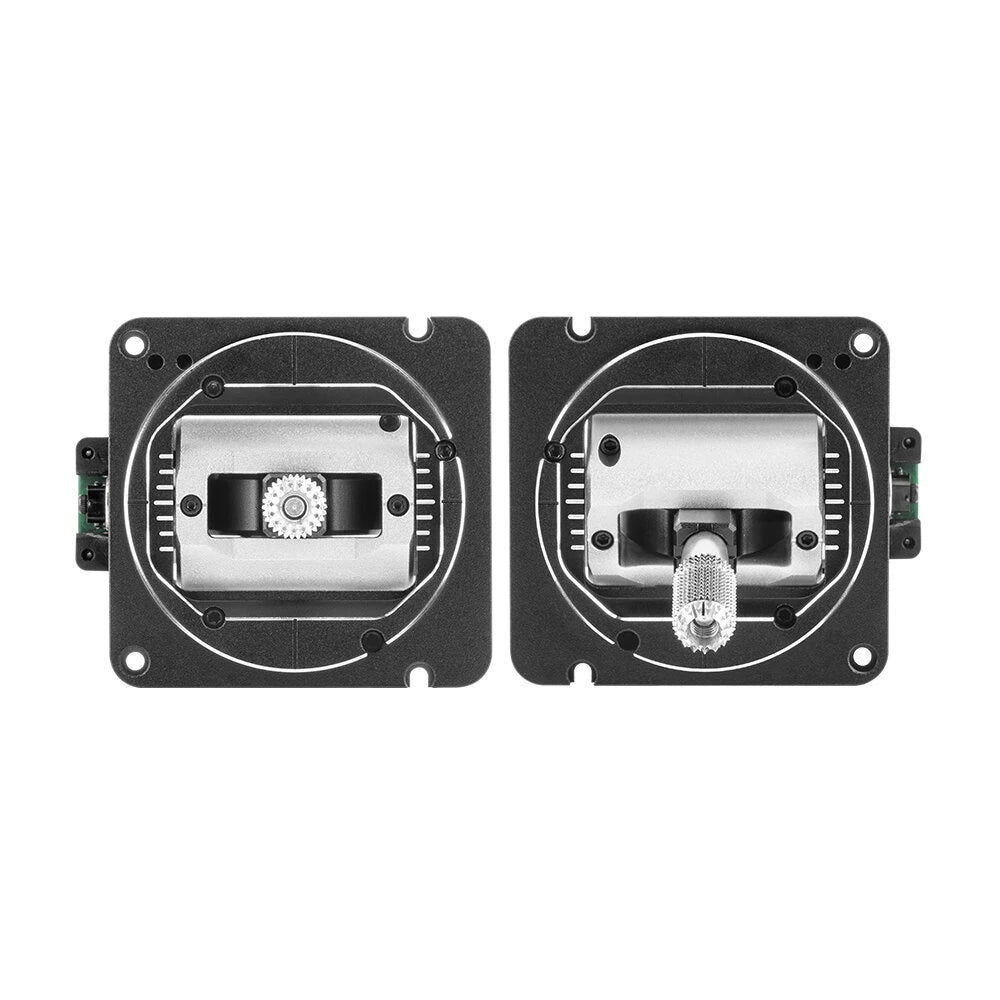

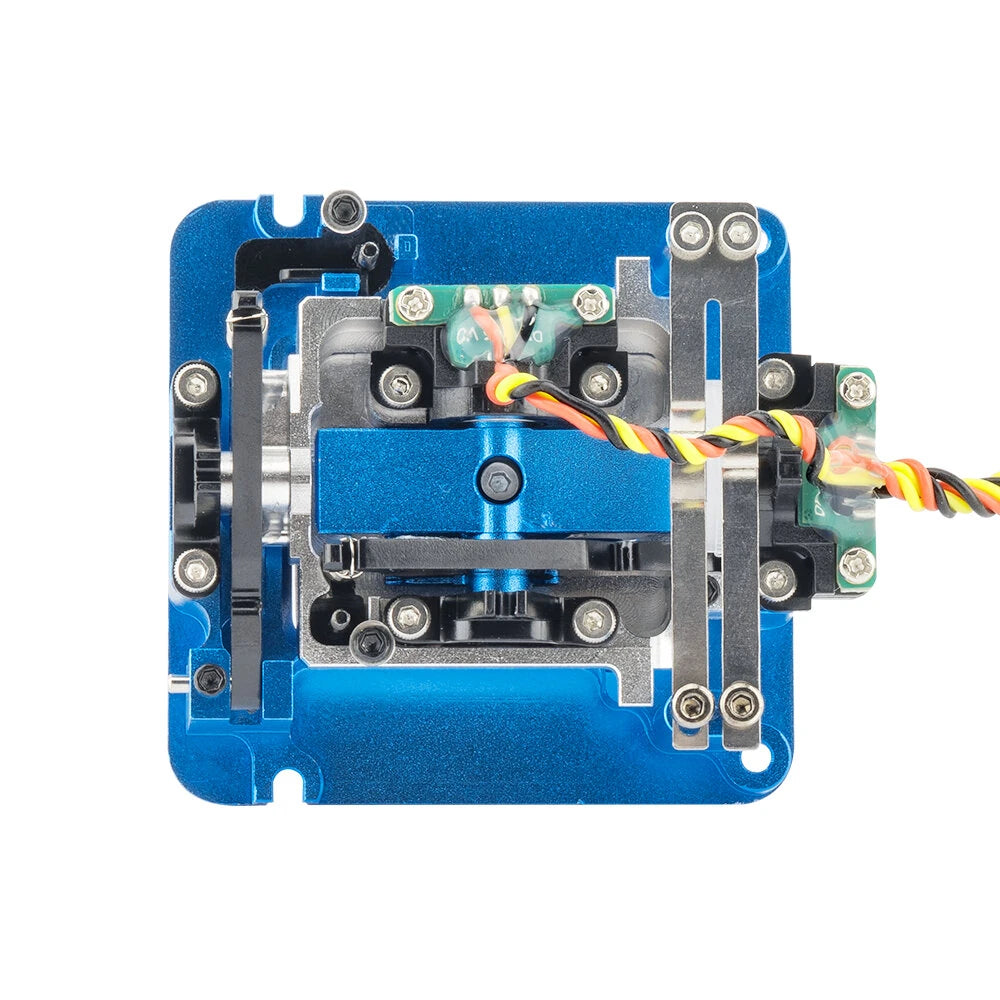

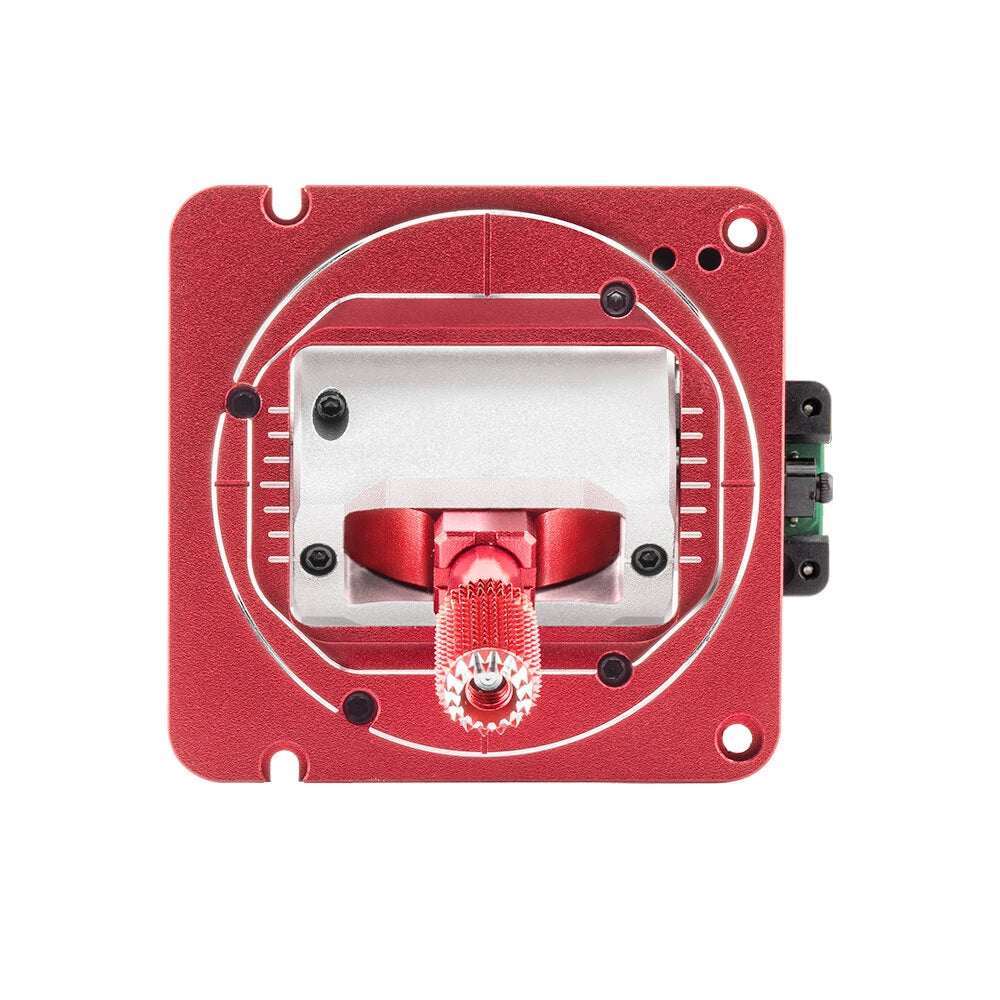

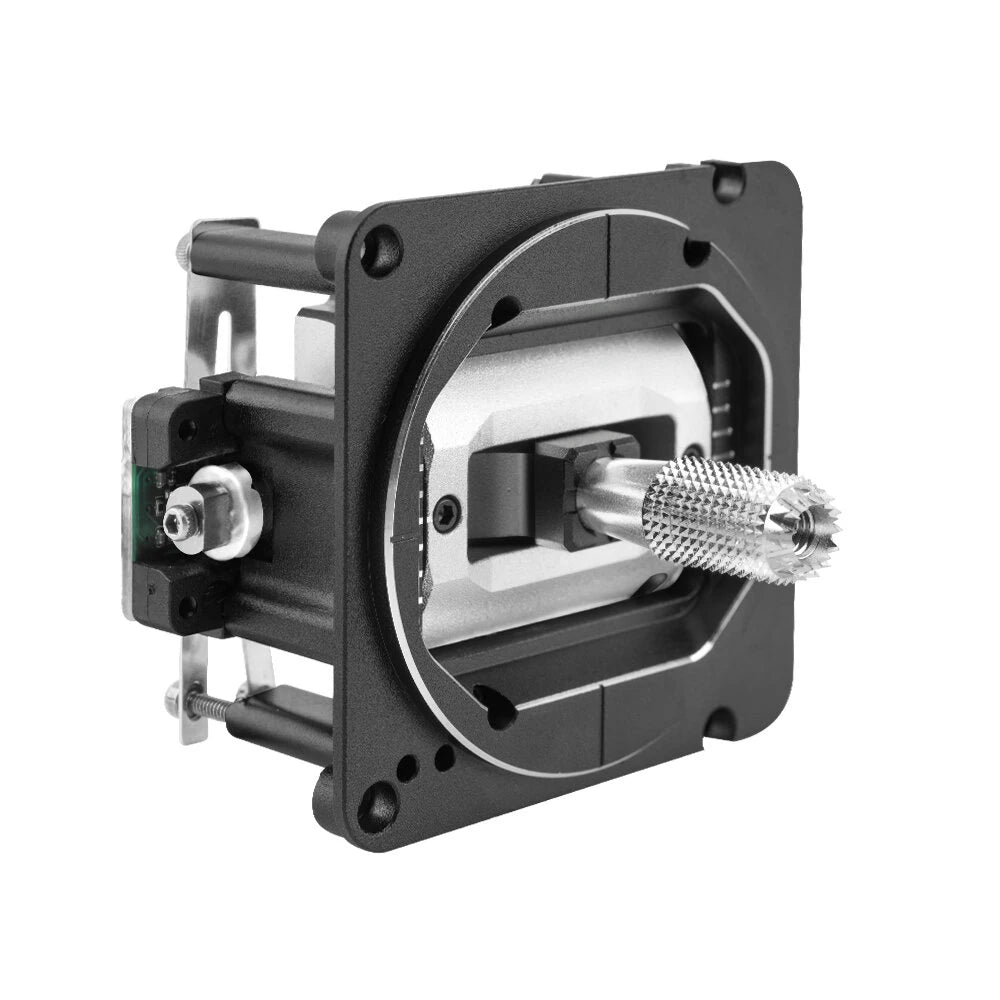

Radiomaster AG02 CNC Aluminum Hall Sensor Gimbal Throttle + Centering Set for TX15 TX16S Boxer Radio Controller
Description:

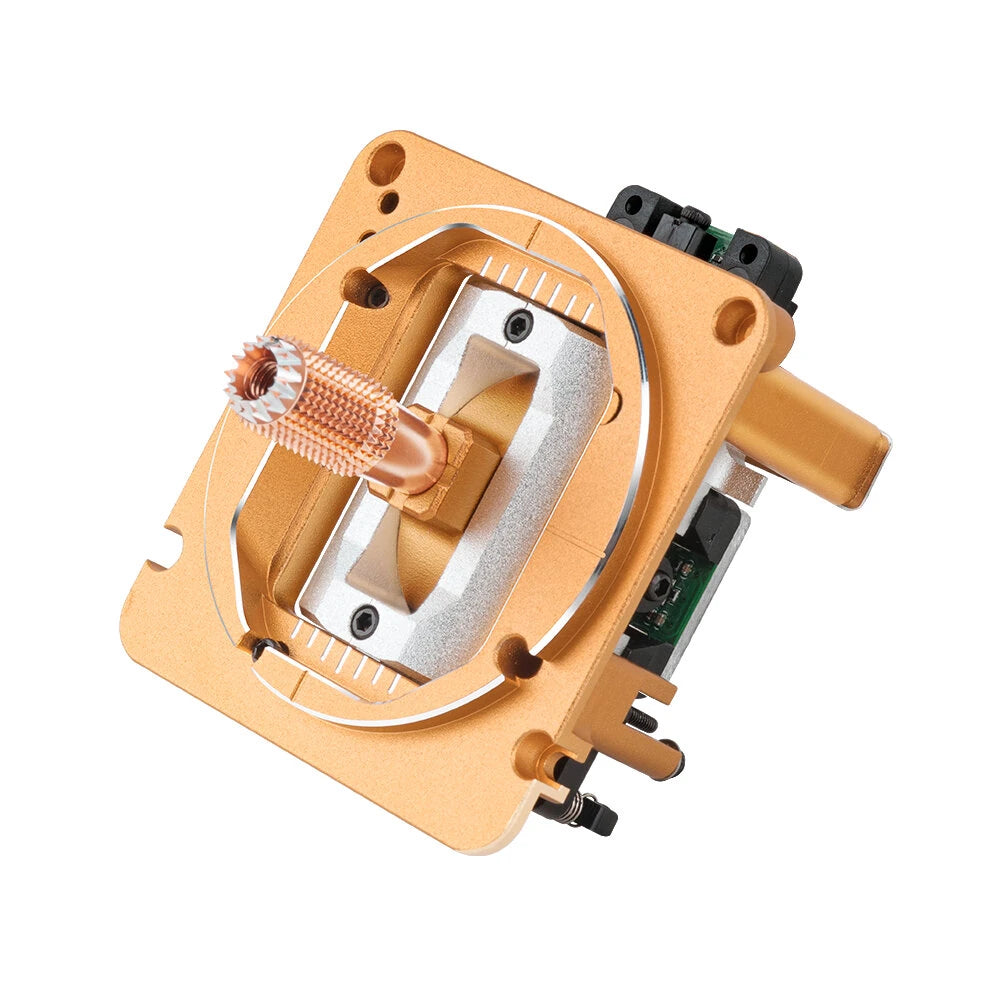

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control. A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

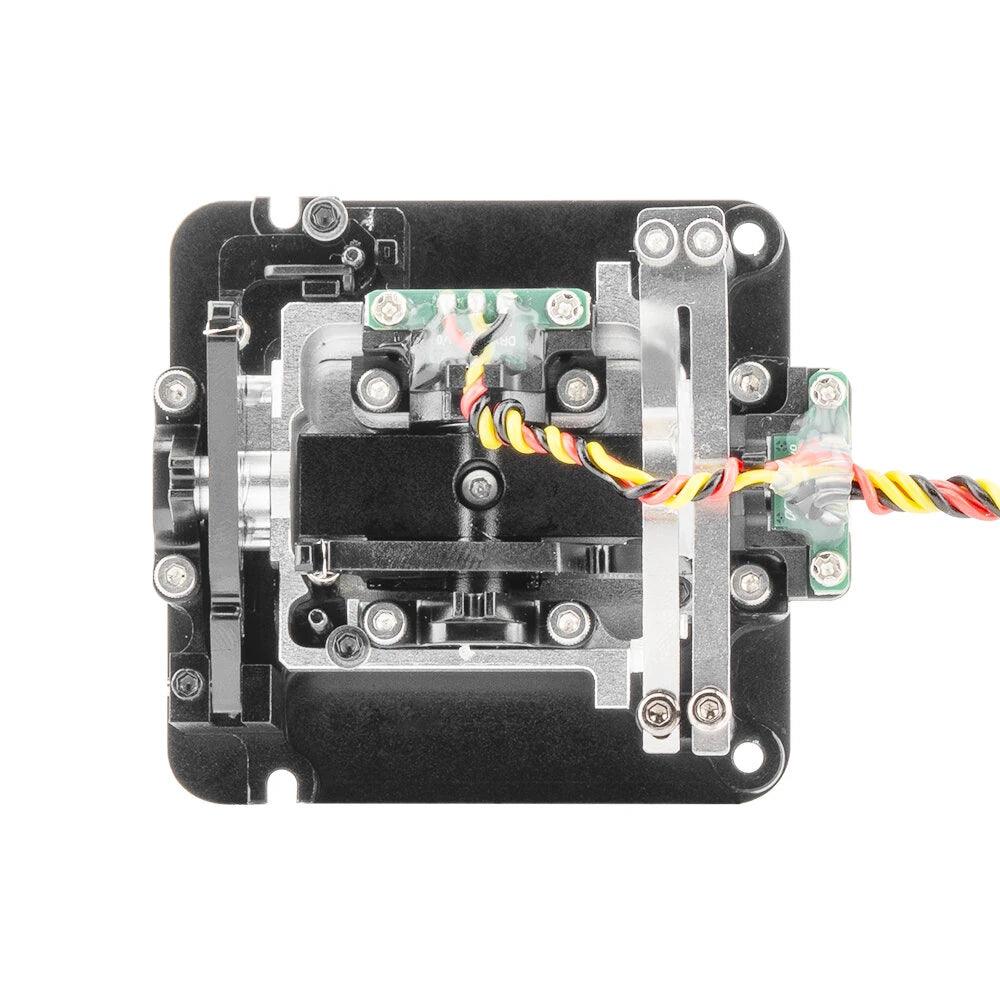

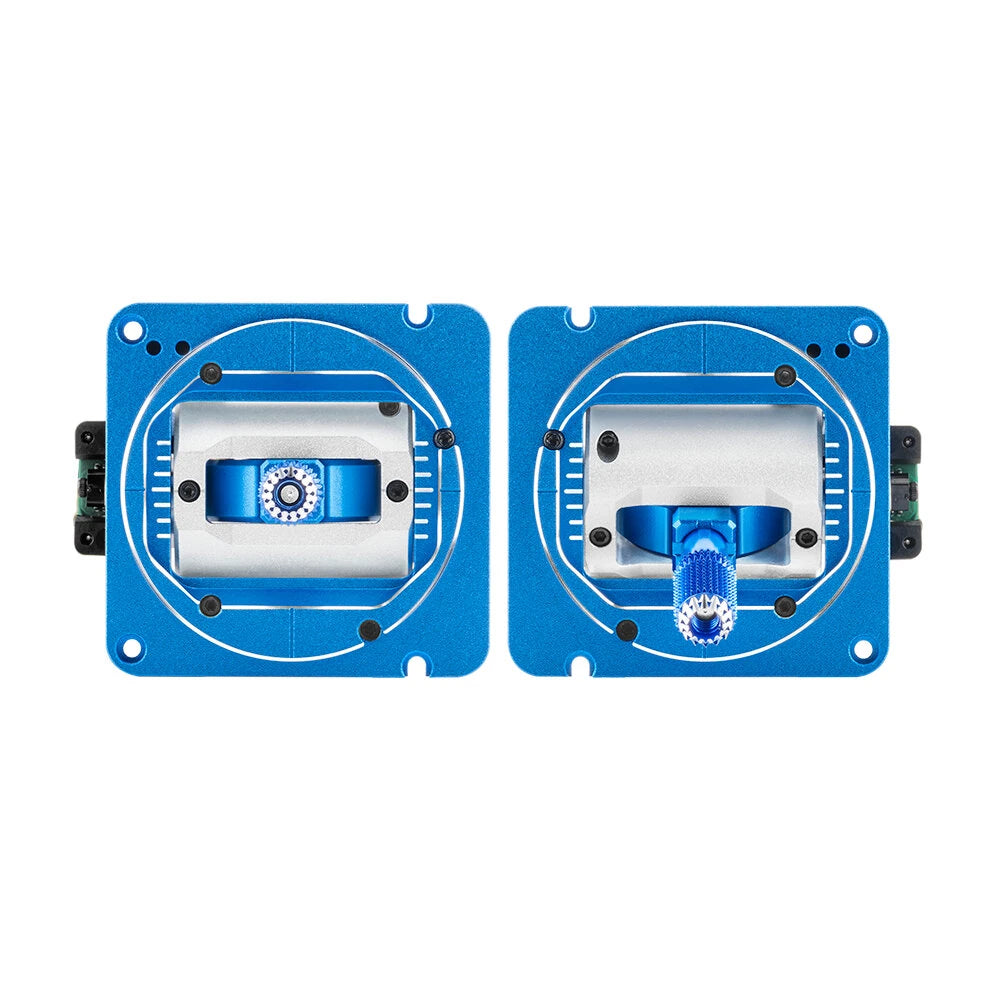

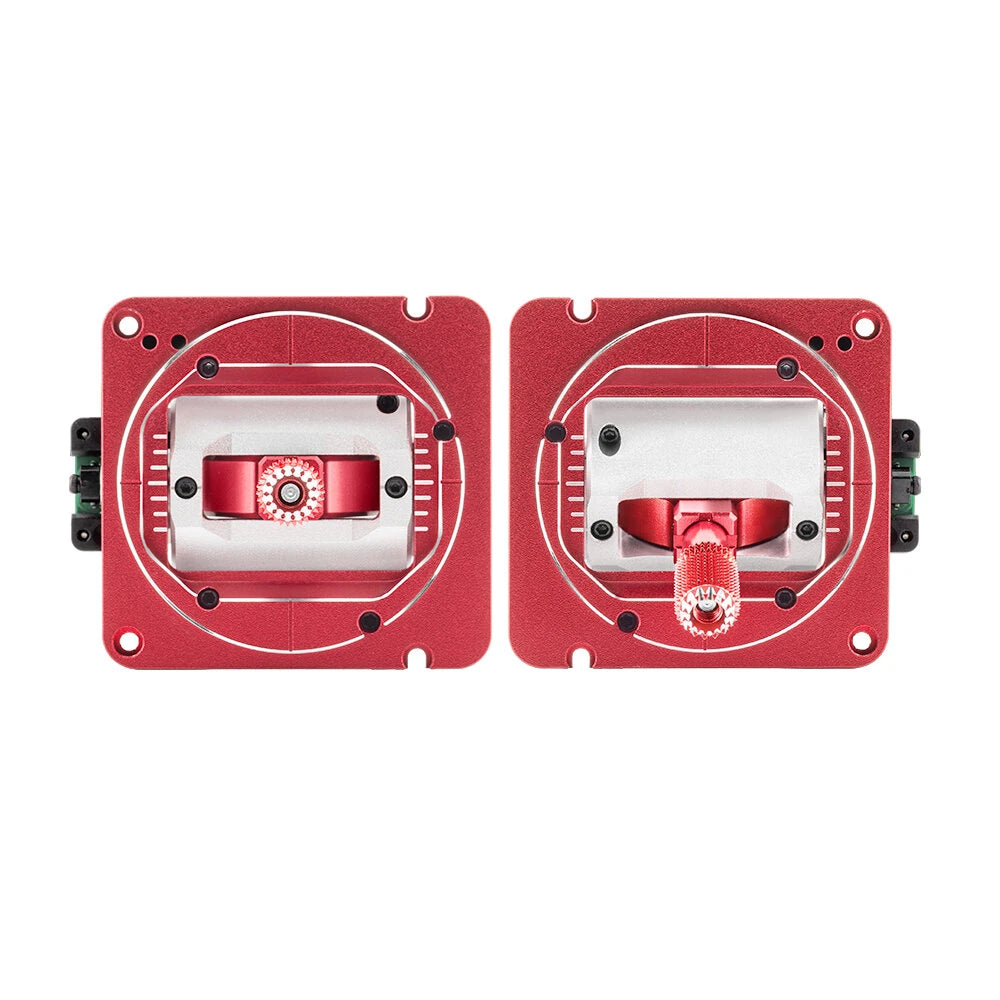

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy. The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look. Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.
Features:

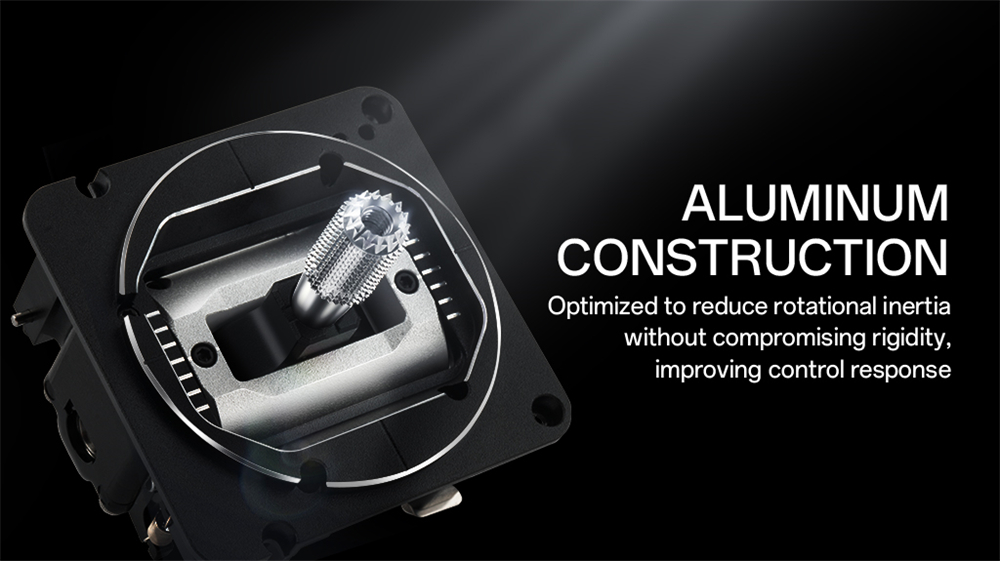

- Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.

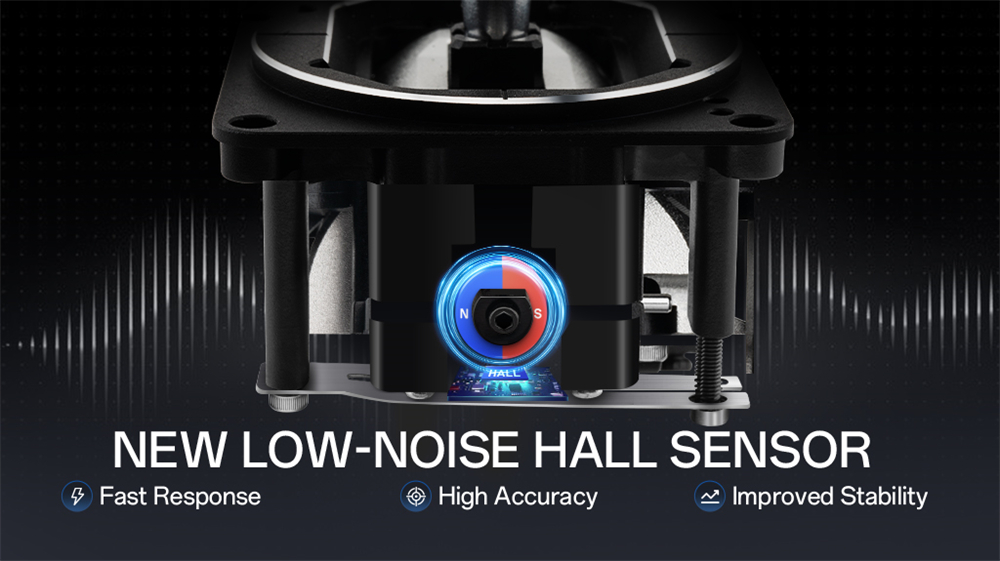

- Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.

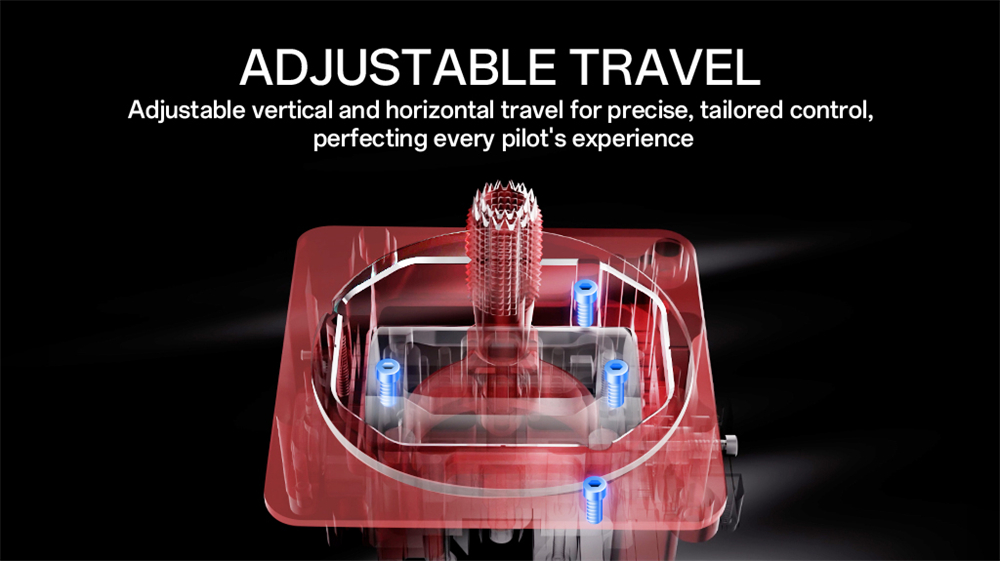

- Adjustable Travel: Vertical and horizontal Travel adjustment for the perfect feel for any pilot.

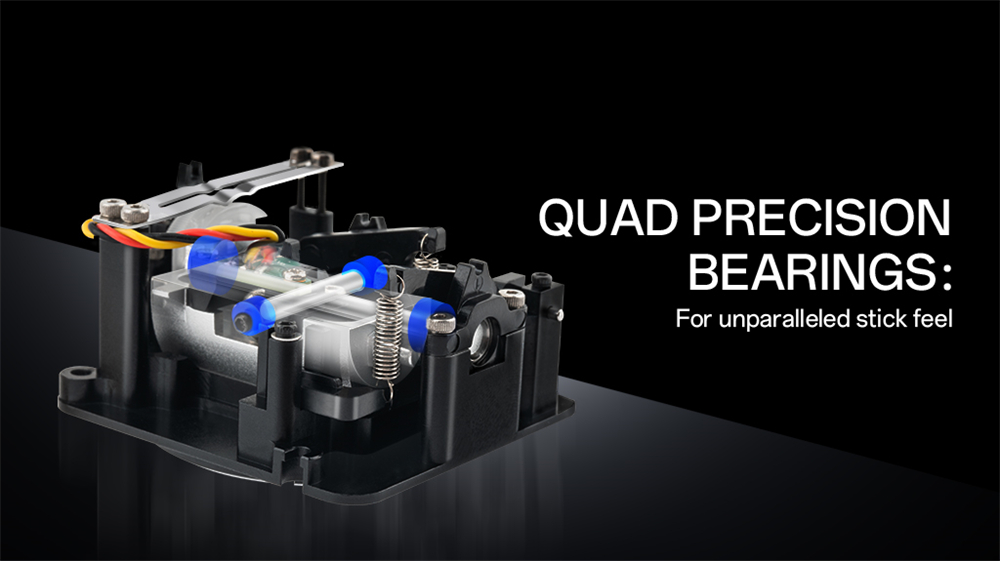

- Quad precision bearings: For unparalleled stick feel.
- 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.

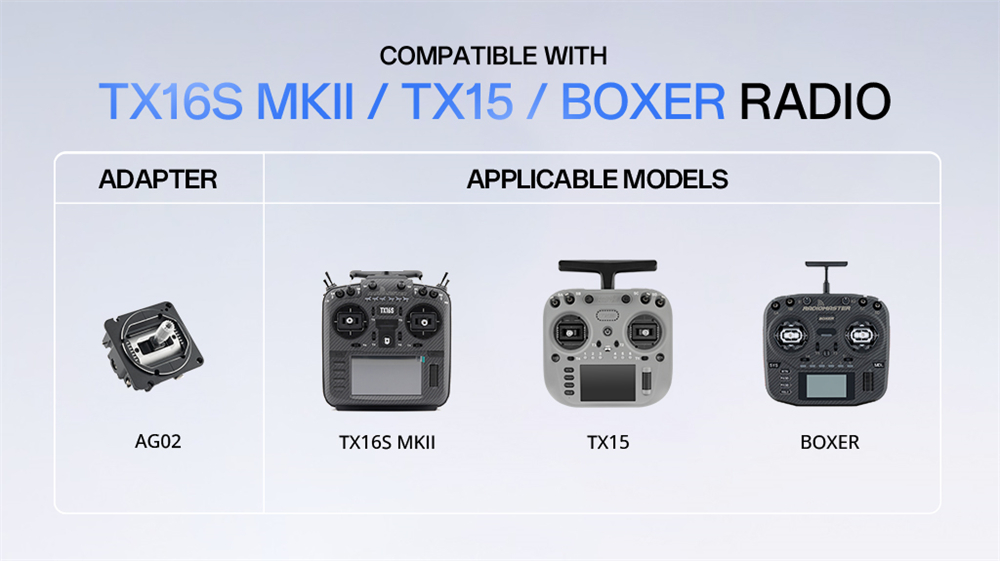

- Designed for RadioMaster TX16, TX15, Boxer Radio Controllers.

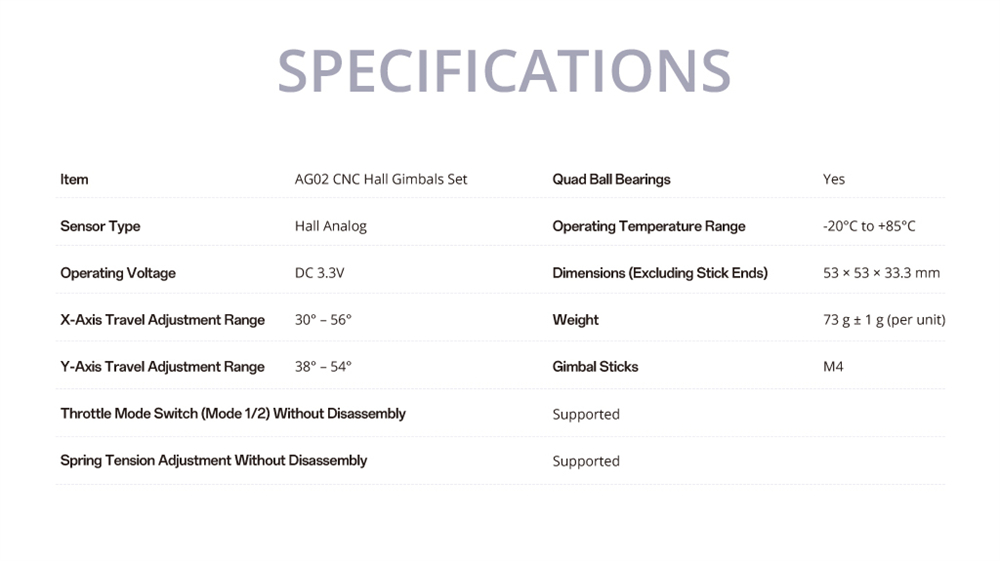

Specification:
Brand: Radiomaster
Item: AG02 CNC Hall Gimbals Set (Throttle + Centering)
Sensor Type: Hall Analog
Operating Voltage: DC 3.3V
X-Axis Travel Adjustment Range: 30° – 56°
Y-Axis Travel Adjustment Range: 38° – 54°
Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
Spring Tension Adjustment Without Disassembly: Supported
Quad Ball Bearings: Yes
Operating Temperature Range: -20°C to +85°C

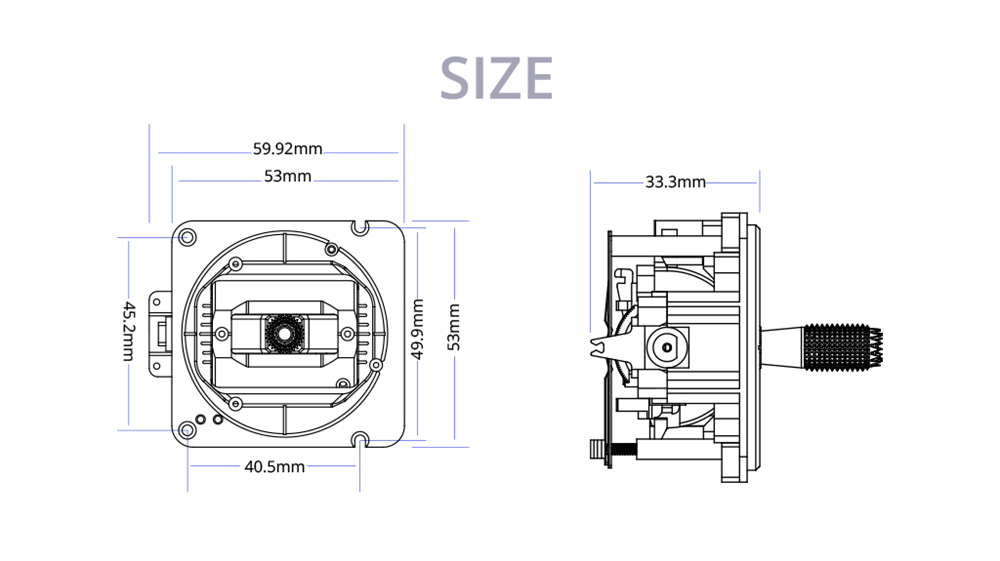

Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm
Weight: 73 g ± 1 g (per unit)
Gimbal Sticks: M4

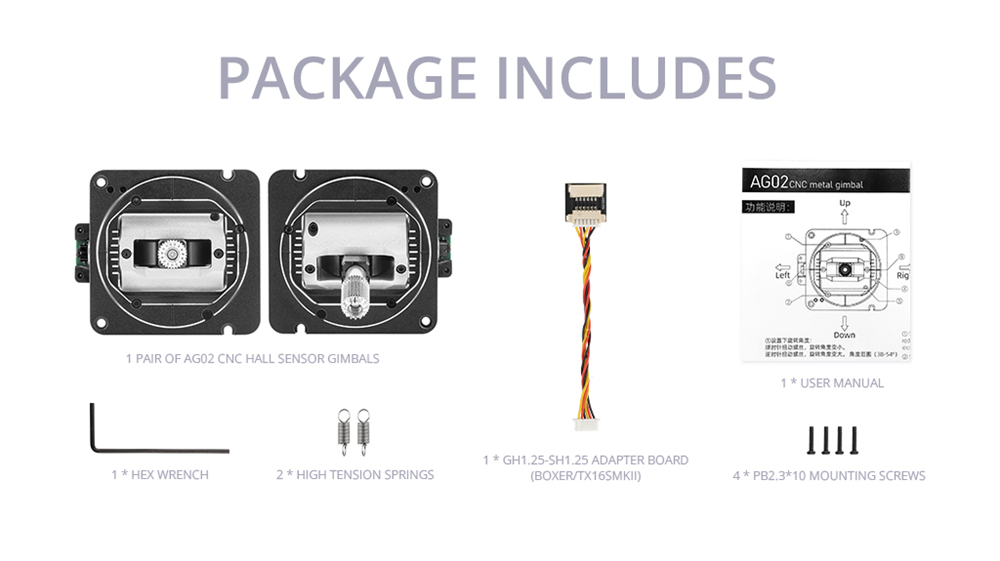

Package Include:
1 * R adiomaster AG02 CNC Hall Effect Joystick (pair)
1 * Return Spring (Firm feel)
1 * Hexagonal Wrench
1 * Instruction Manual
