Description
Radiolink R12DSE 2.4GHz 12CH SBUS/PPM DSSS & FHSS Real-time Built-In Telemetry Dual Antenna Mini RC Receiver SBUS Signal for FPV Racing Drone Quad Airplane Helicopter
Specifications:
Brand: Radiolink
Model: R12DSE

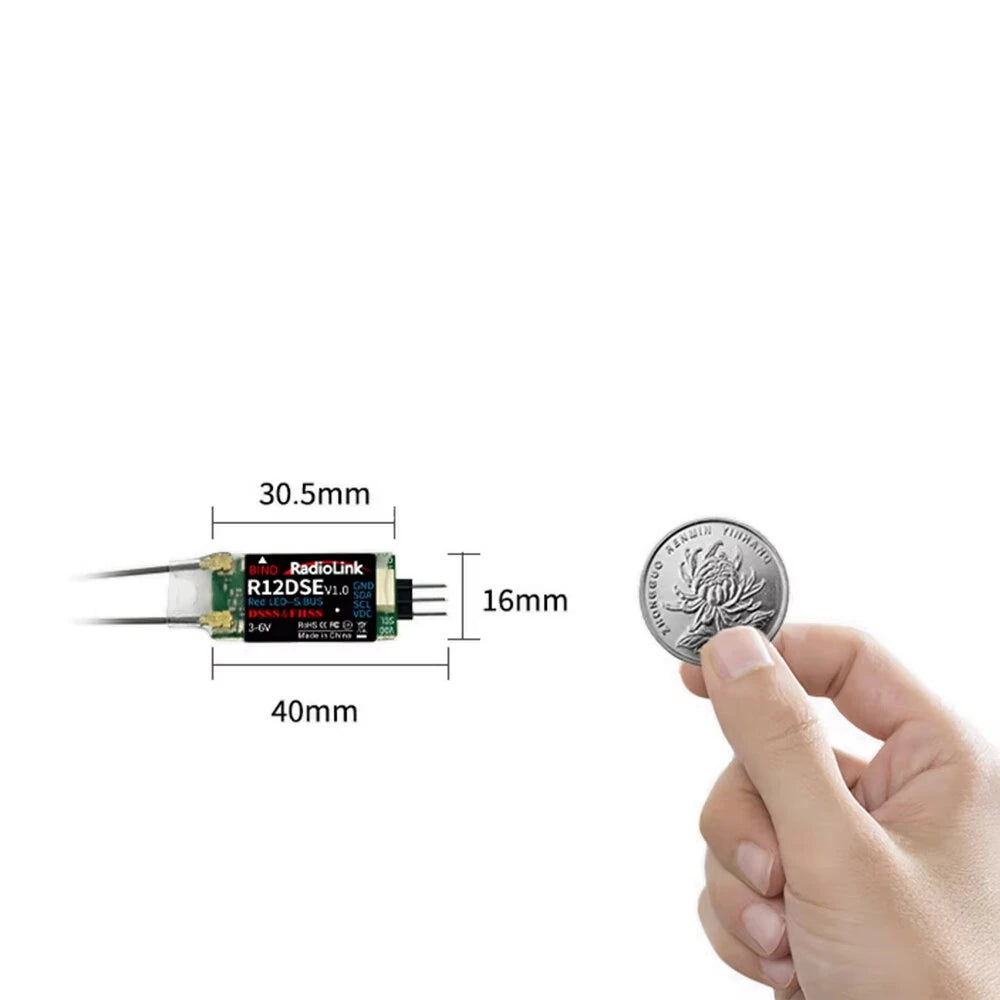

Dimensions: 30.5*16mm (1.2' * 0.63”)
Antenna Length: 90mm (3.54')
Weight: 2.5g(0.09oz)
Channel: 12 channels
Operating Voltage: 3-6V DC
Operating Current: 35mA@5V
Receiving Current: <32mA@5V
Telemetry Transmission Current: <125mA@5V
Signal: SBUS&PPM
Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum: DSSS&FHSS
Channel Resolution: 4096 with regular jitter of 0.25us
Reception Sensitivity: -97dBm
Power: 20dBm(100mW)
Control Range: 4KM (2.49 miles) in the air (Maximum range tested in unobstructed areas)

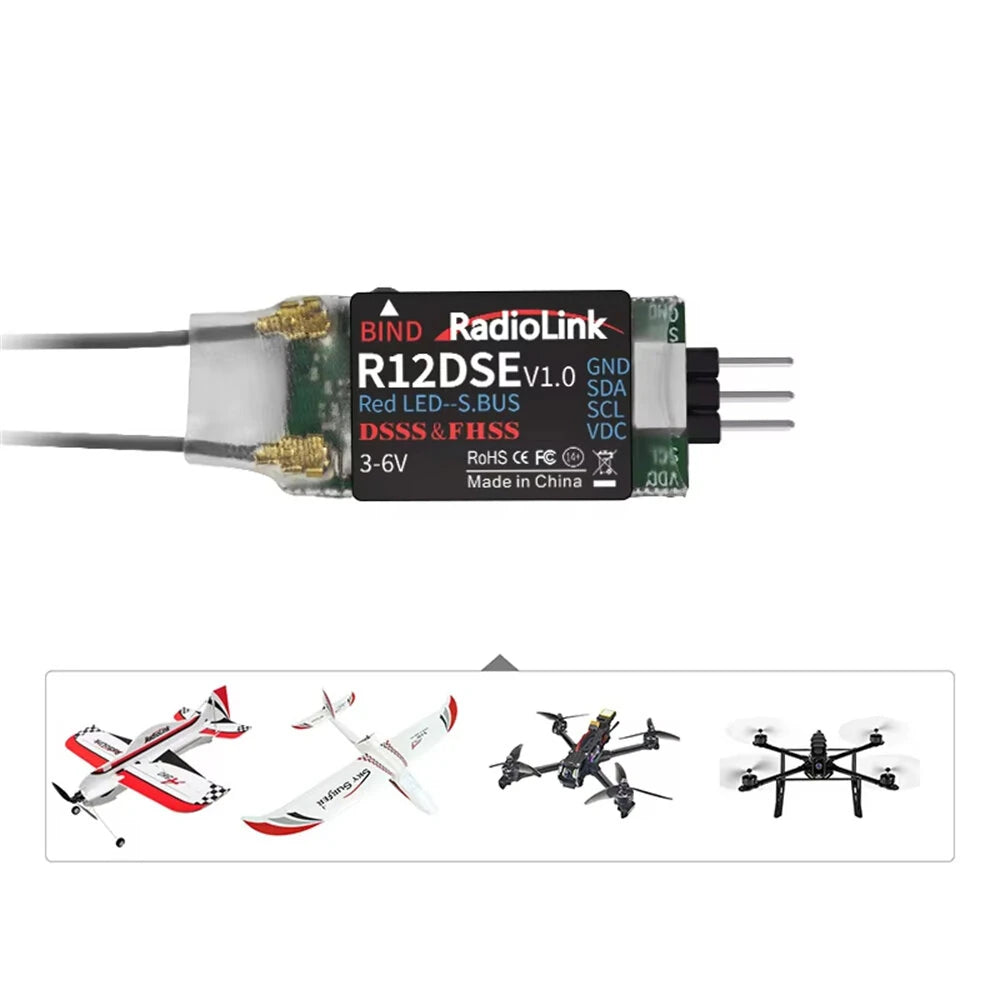

Compatible Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, and Robot work with a flight controller

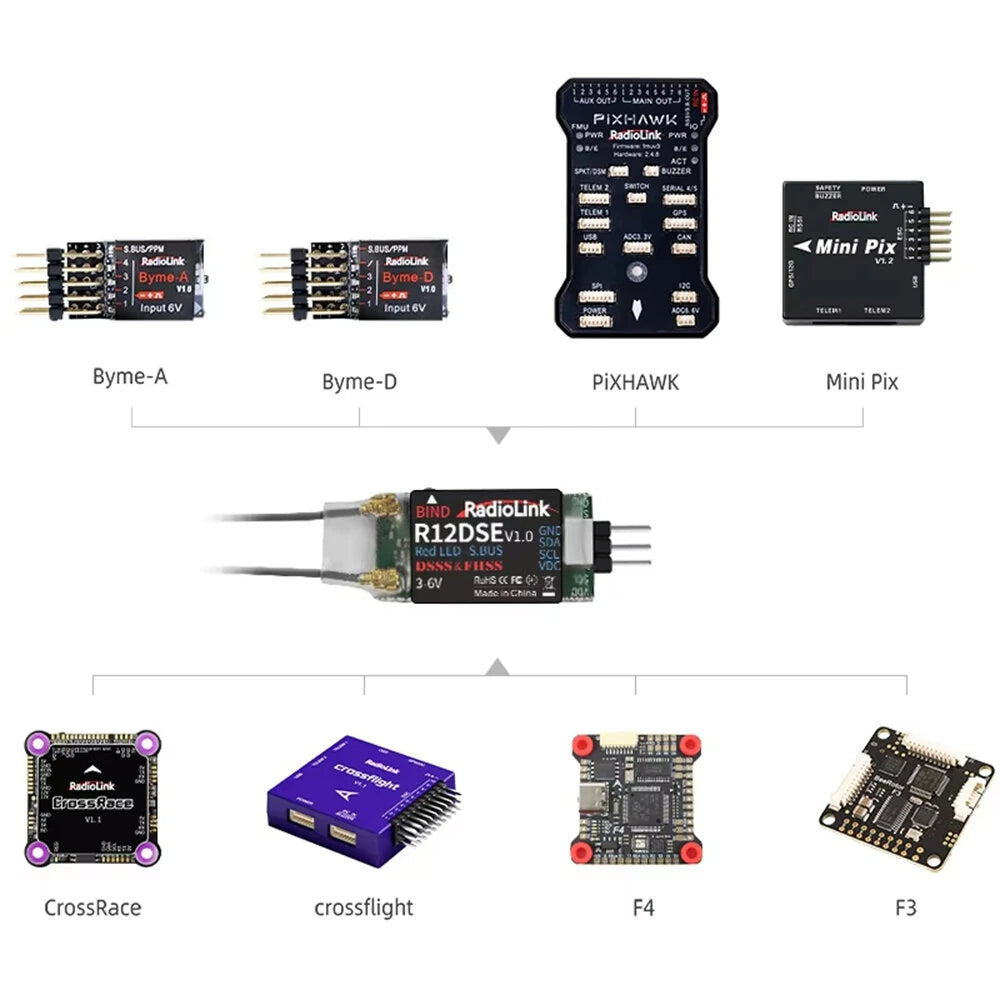

Real-time Telemetry: Real-time built-in telemetry of receiver voltage and RSSI value. Connect PRM-03 and flight controller PIX6, PIXHAWK, CrossFlight-CE, CrossFlight, CrossRace Pro, CrossRace, MiniPix, TURBOPiX, or APM for OSD information telemetry.
Hardware Interface: 3-pin 2.54mm Pin / 4pin 1.0mm Socket

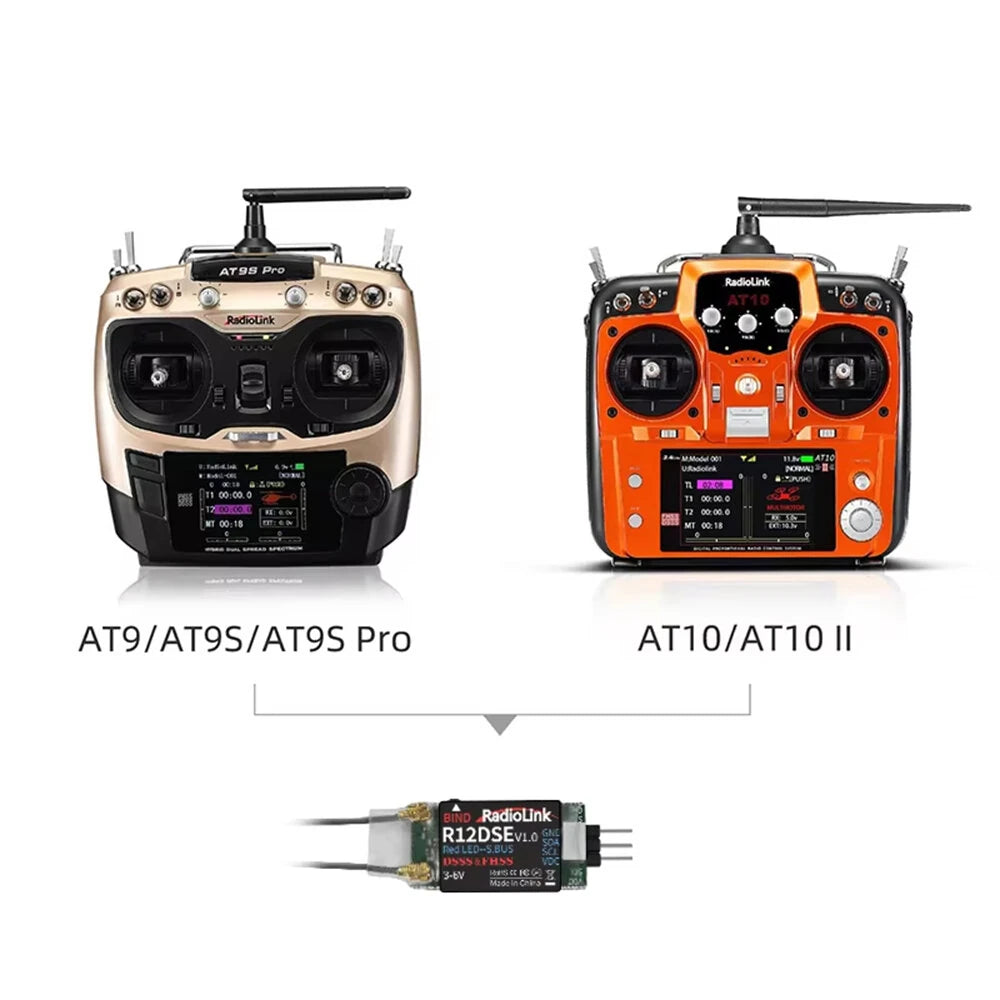

Compatible Transmitter: AT10II, AT10, AT9S Pro, AT9S, AT9
Package included:
1 x Radiolink R12DSE Reciever
1 x Telemetry Module PRM-03 Connect Cable
