Description
Description:
Item Brand:QX motor

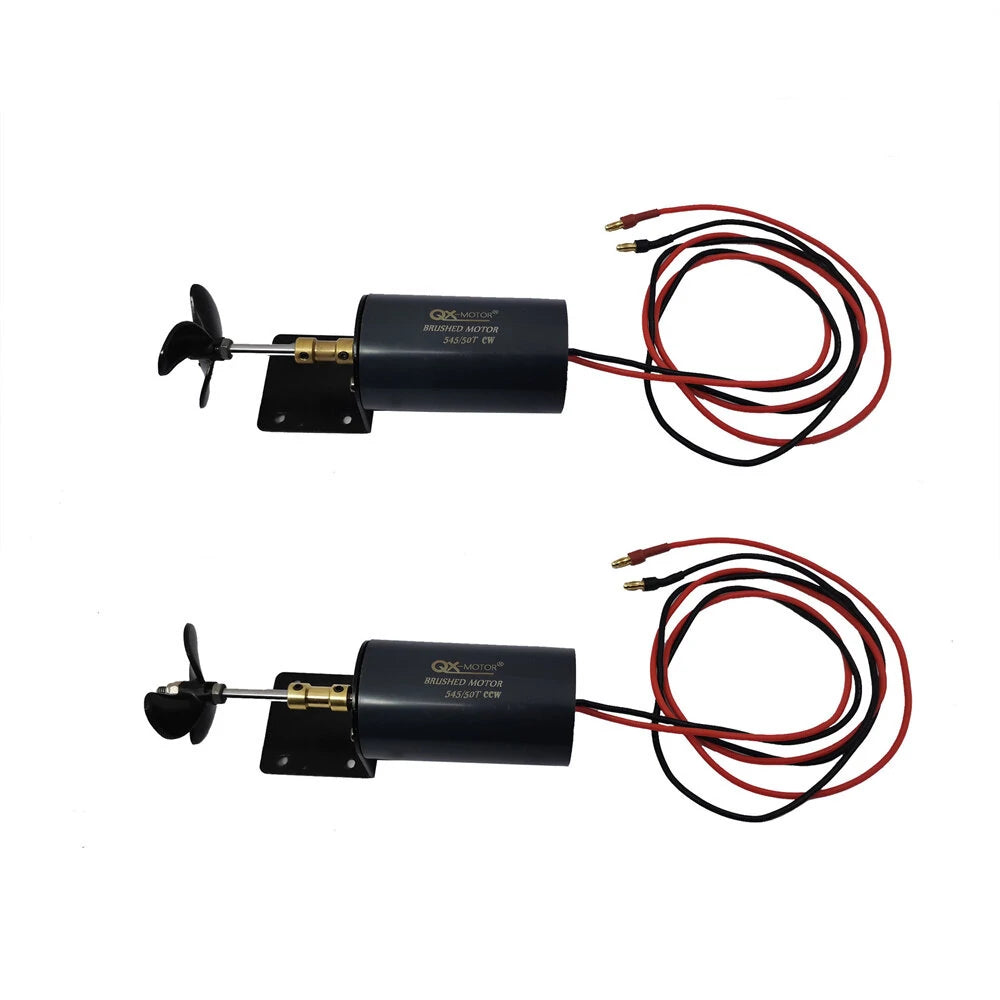

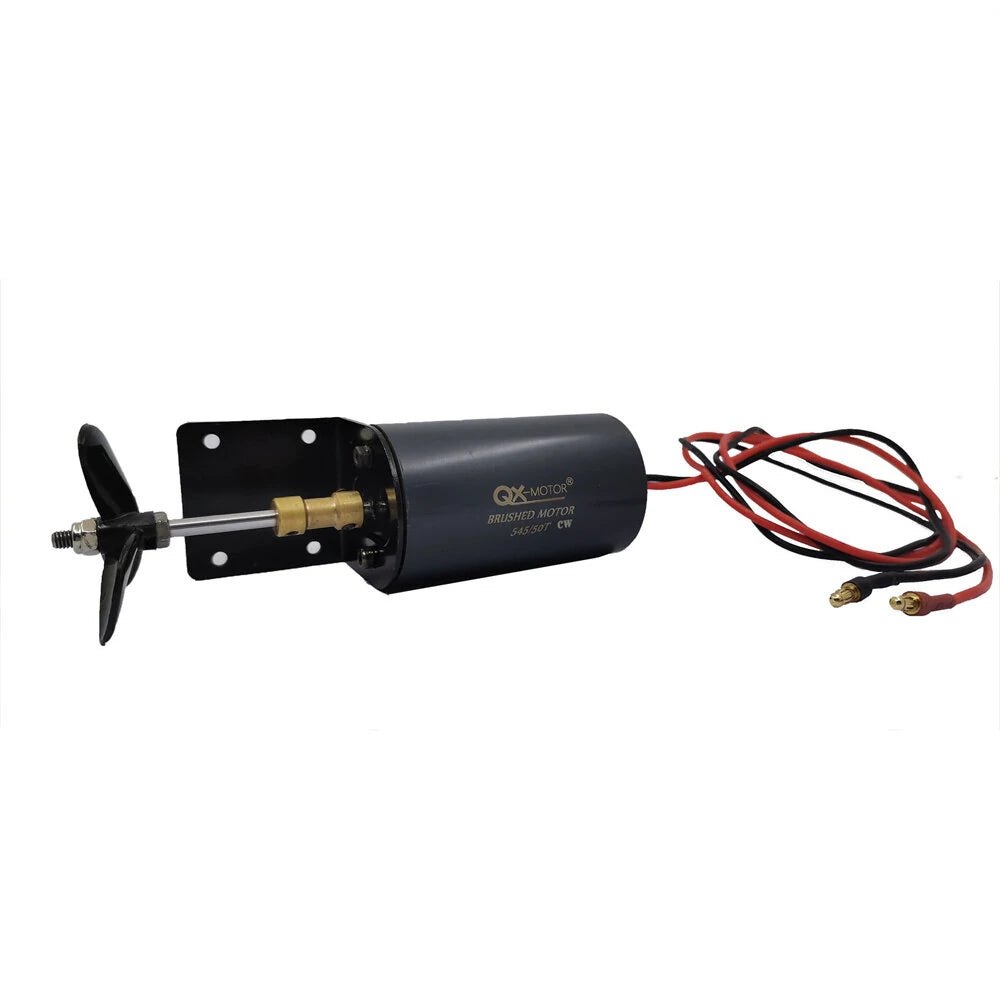

Item Name:Brushed motor
Material:Metal
Color:Black

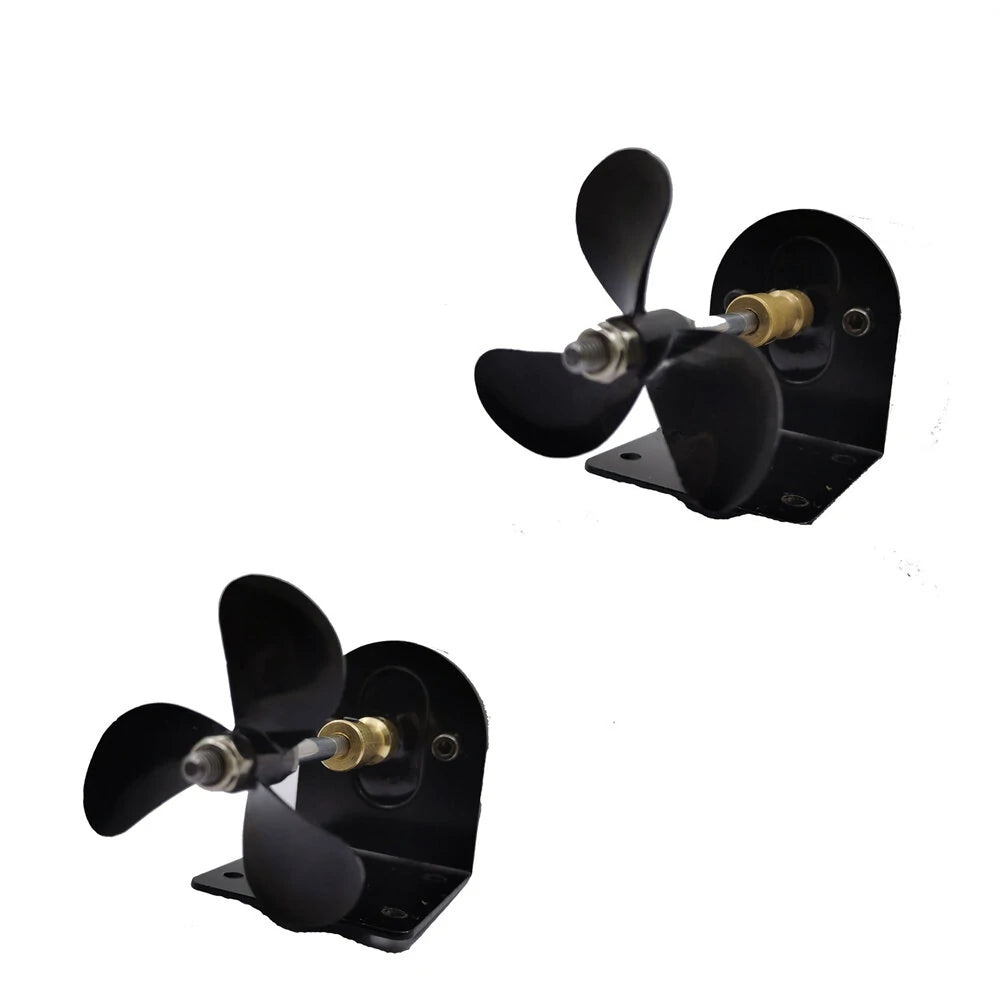

Product Size:About 40*68mm,blade diameter is 48mm,shaft diameter is 4mm
Product Weight:About 275g
Compatible Models:Nest boats, trawlers, unmanned boats, school model teams, DIY models

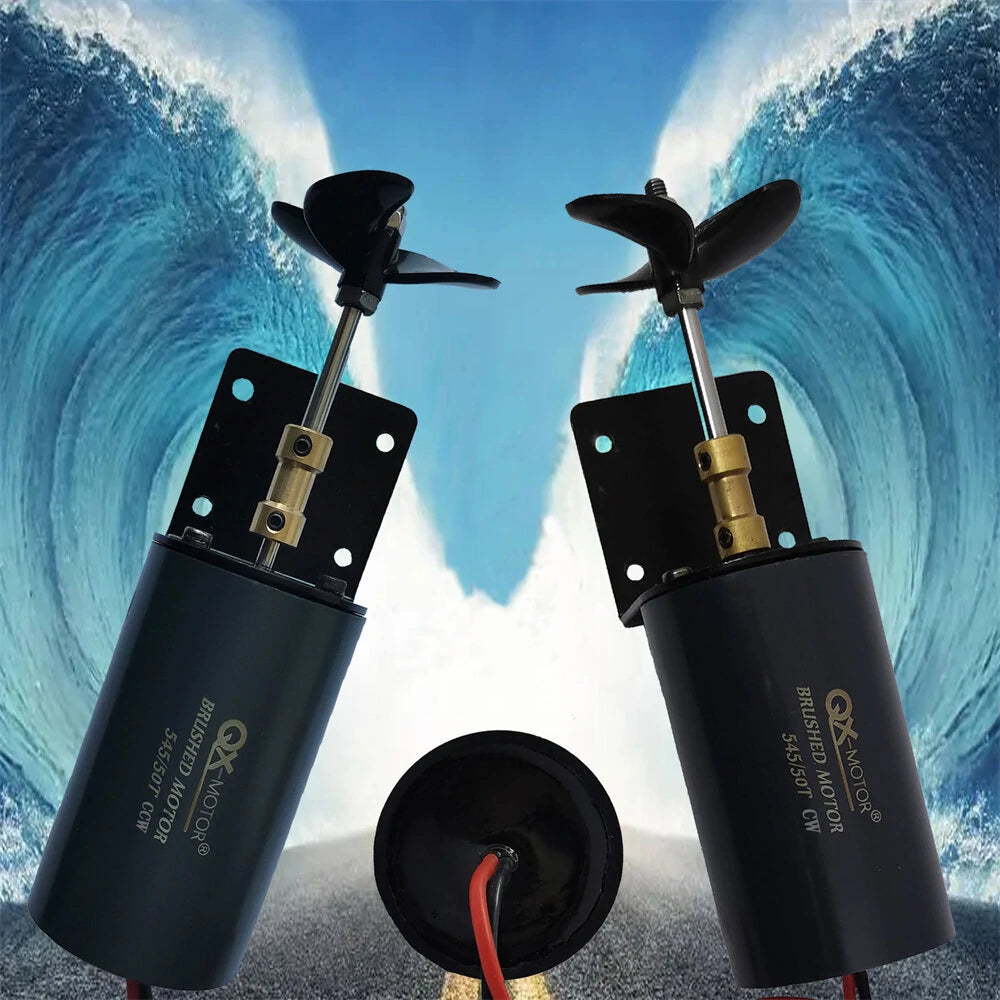

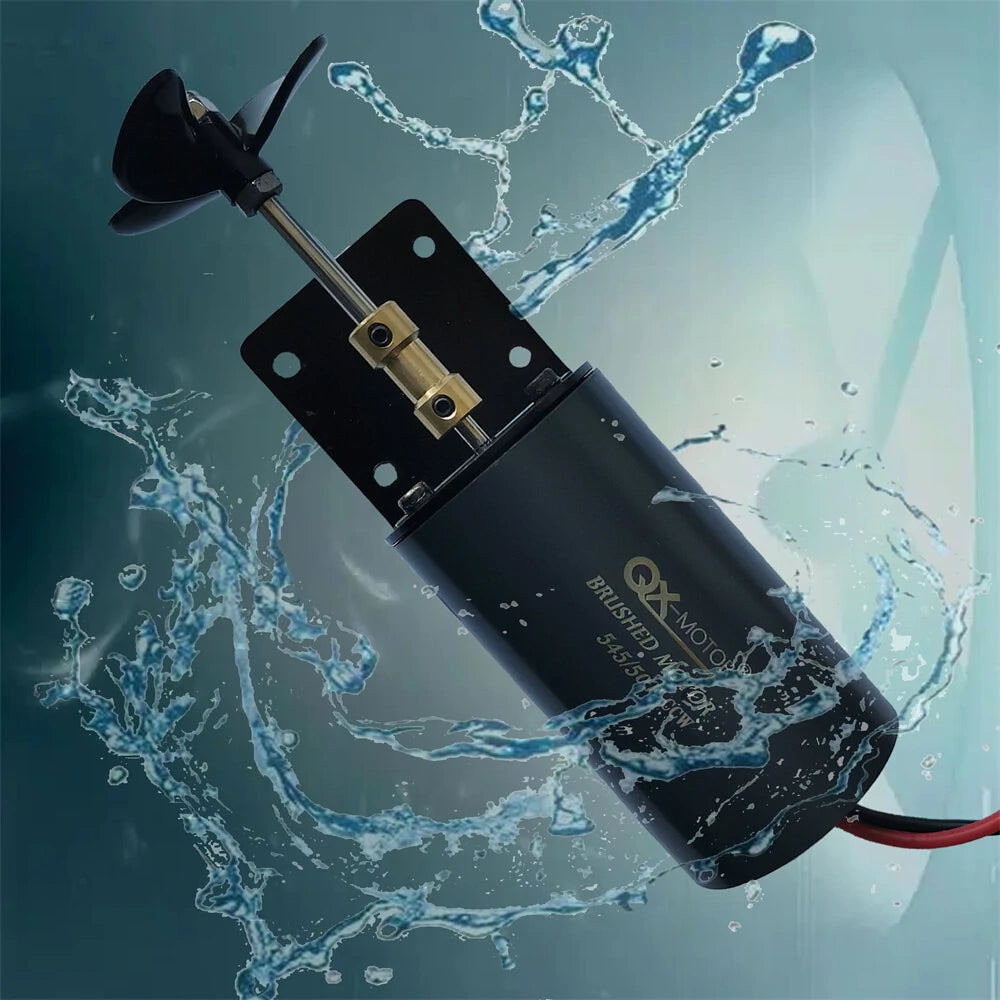

It is very suitable for nest boats, trawlers, unmanned boats, school model teams, DIY, waterproof grade ip68

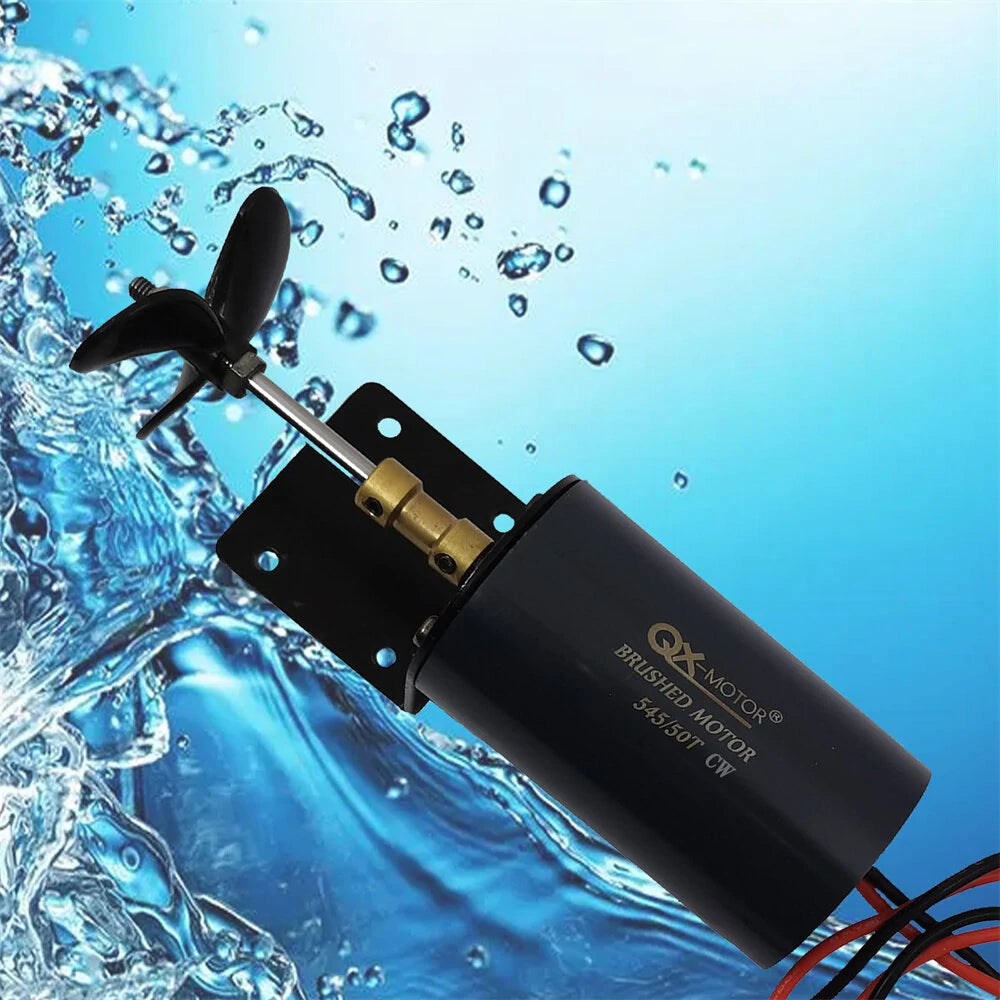

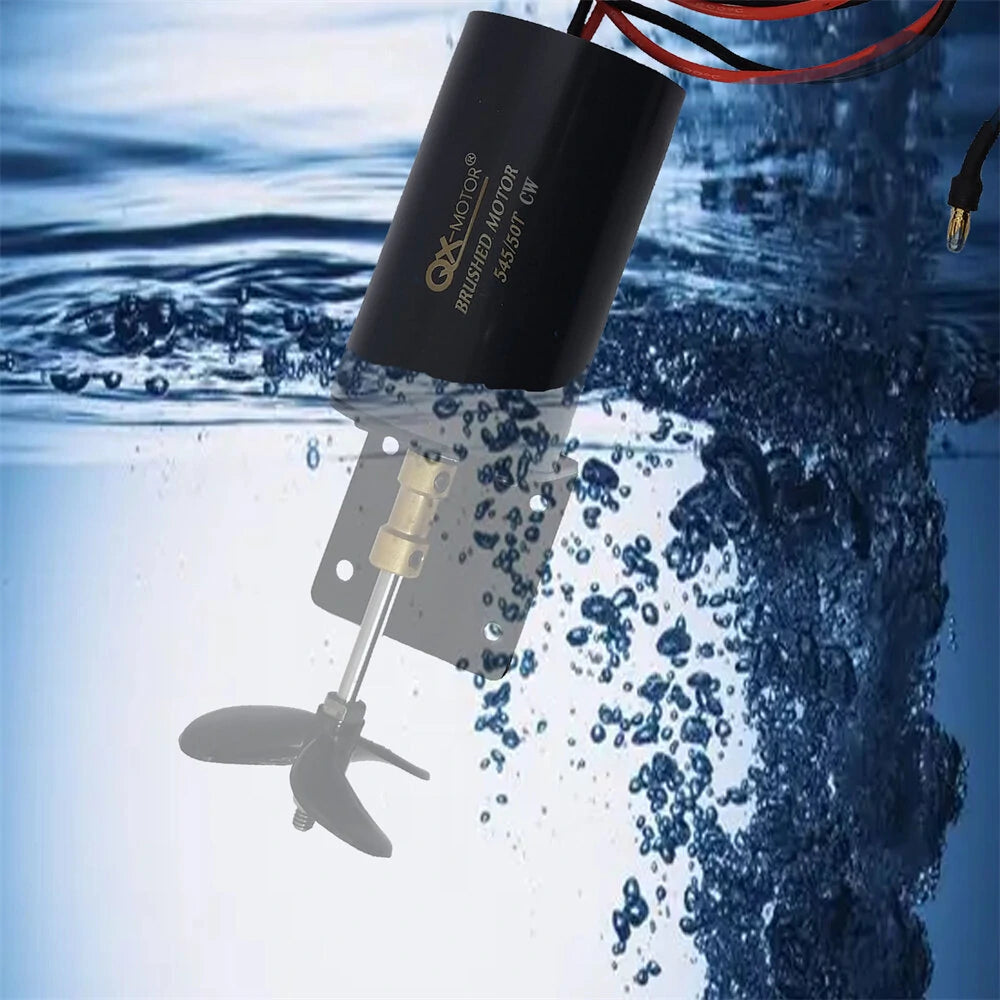

1) : the motor is fully sealed and filled with glue, and the waterproof depth can reach 50m;
2) : Motor size: diameter 40mm, length of motor part 68mm;
3) : the forward and reverse rotation control of the brush motor is very simple. After the two wires of the motor are adjusted, the rotation direction will change;
4) : working voltage of propeller motor (working voltage of propeller): 7.4v (2S) -14.8v (4S) (lithium battery is generally recommended)
Specification:
Model:Brushed motor 540/50T
No.f Cells:2-4S Lipo
Service Voltage:7.4V-14.8V
No Load RPM:10000rpm
Max Continuous Power/10S(W):160W
Max Continuous Current/10S(W):10A
Thrust:700-1000G
Length of Outgong Line:800mm
Plug:3.5mm banana head

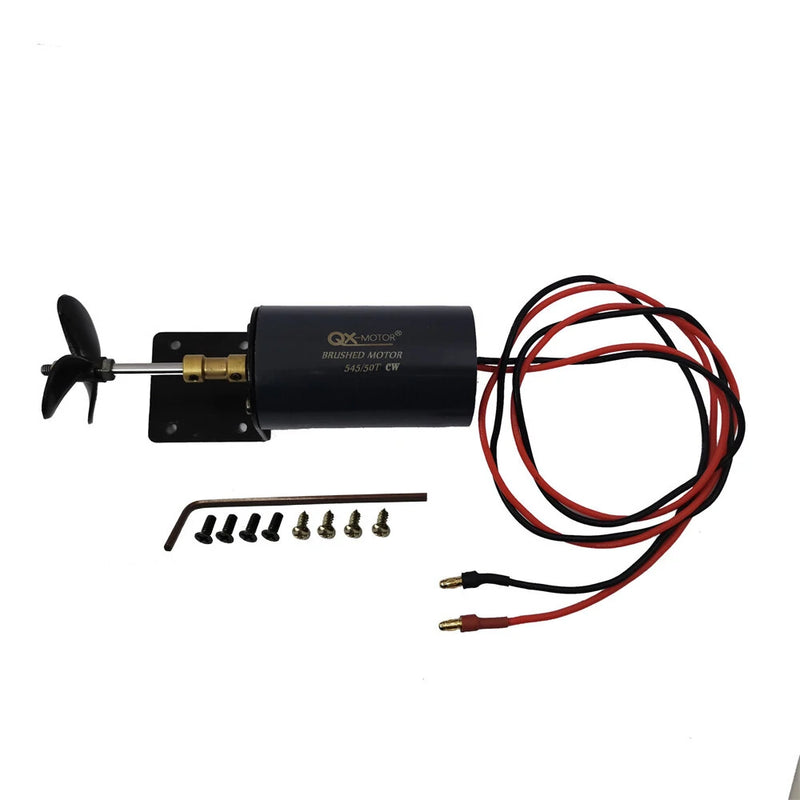

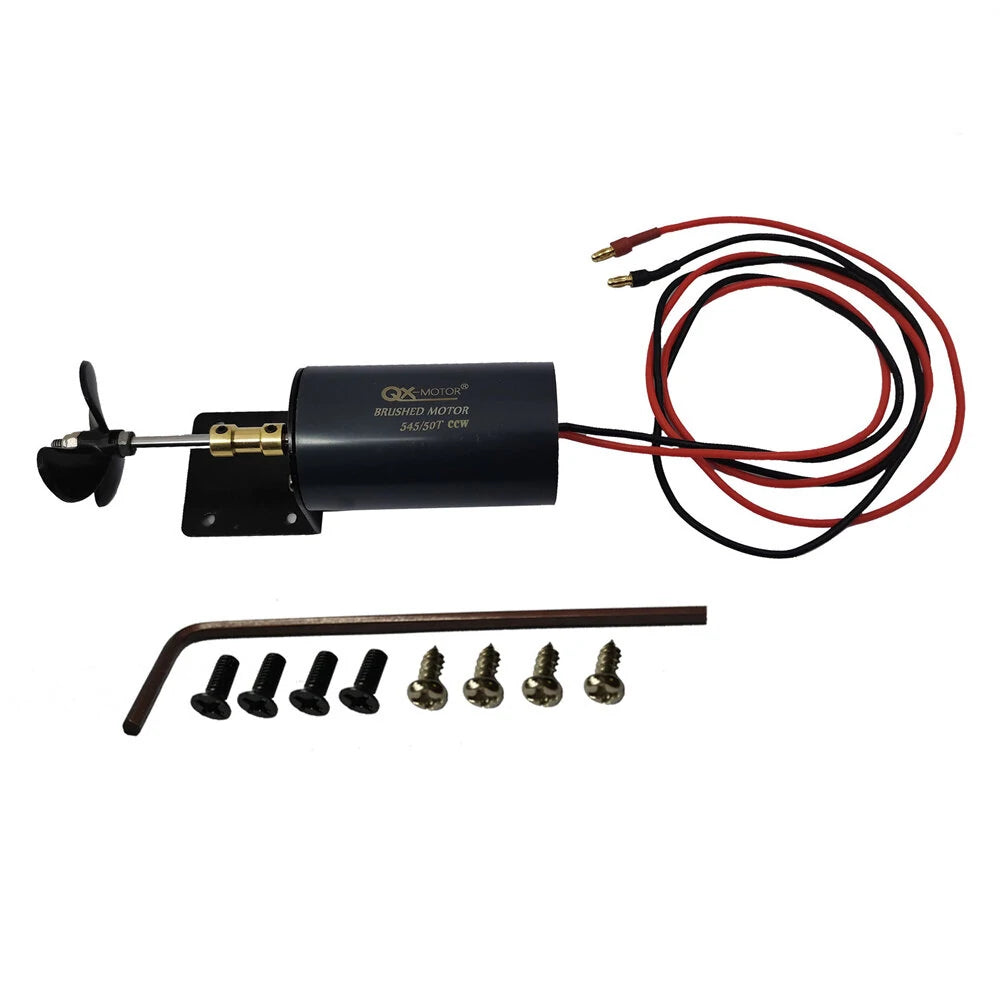

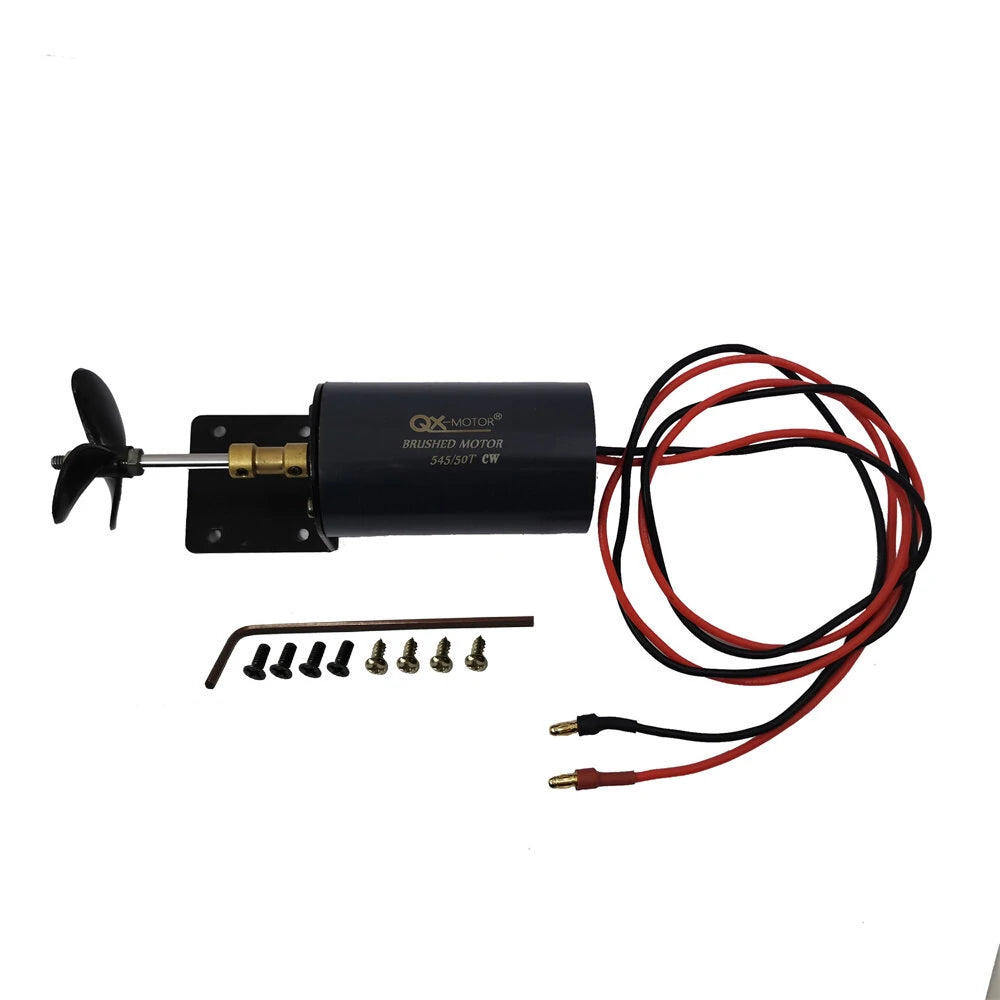

Package Included:
1X 540 Brushed Motor
