Description
Specifications:
Brand Name: QX-MOTOR

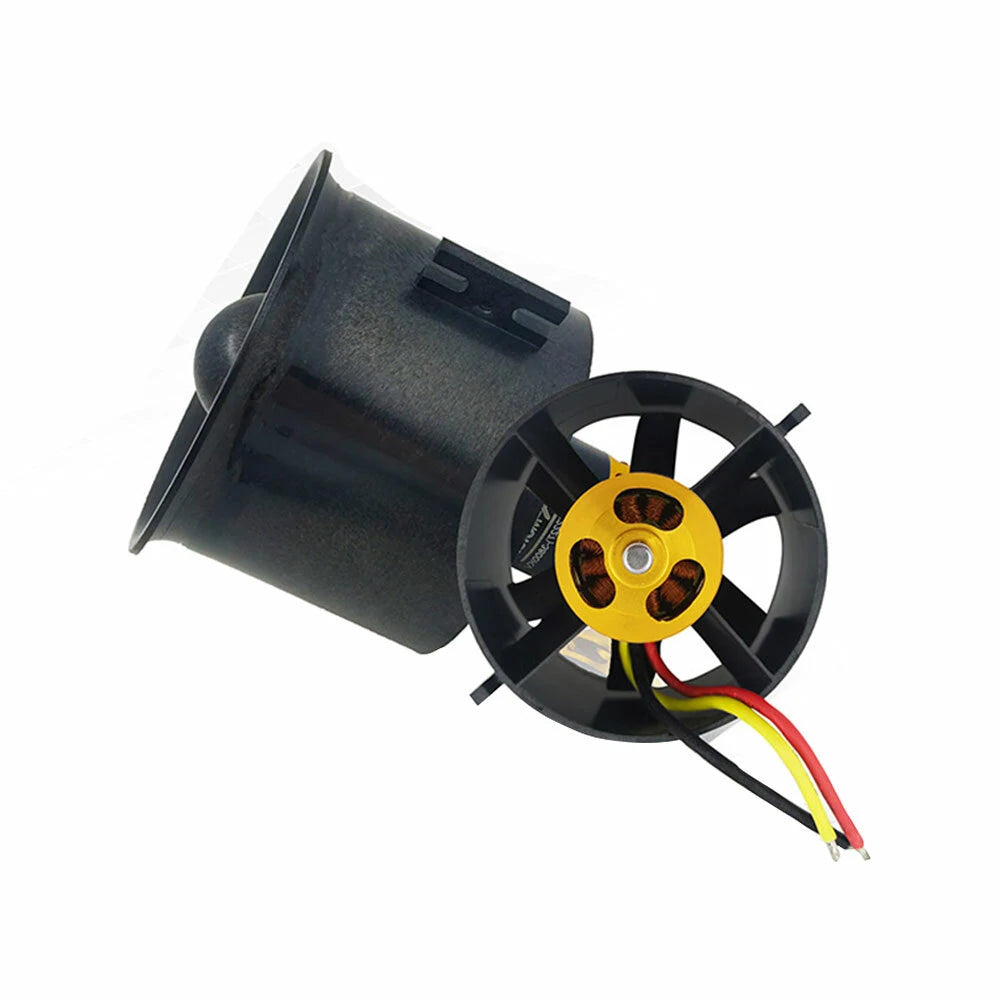

Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 6 blades
Brushless Motor: QF2827-3500KV
Color: Black
Configuration: 12N8P
Shaft Diameter: 4.0mm
Motor Diameter: 28mm

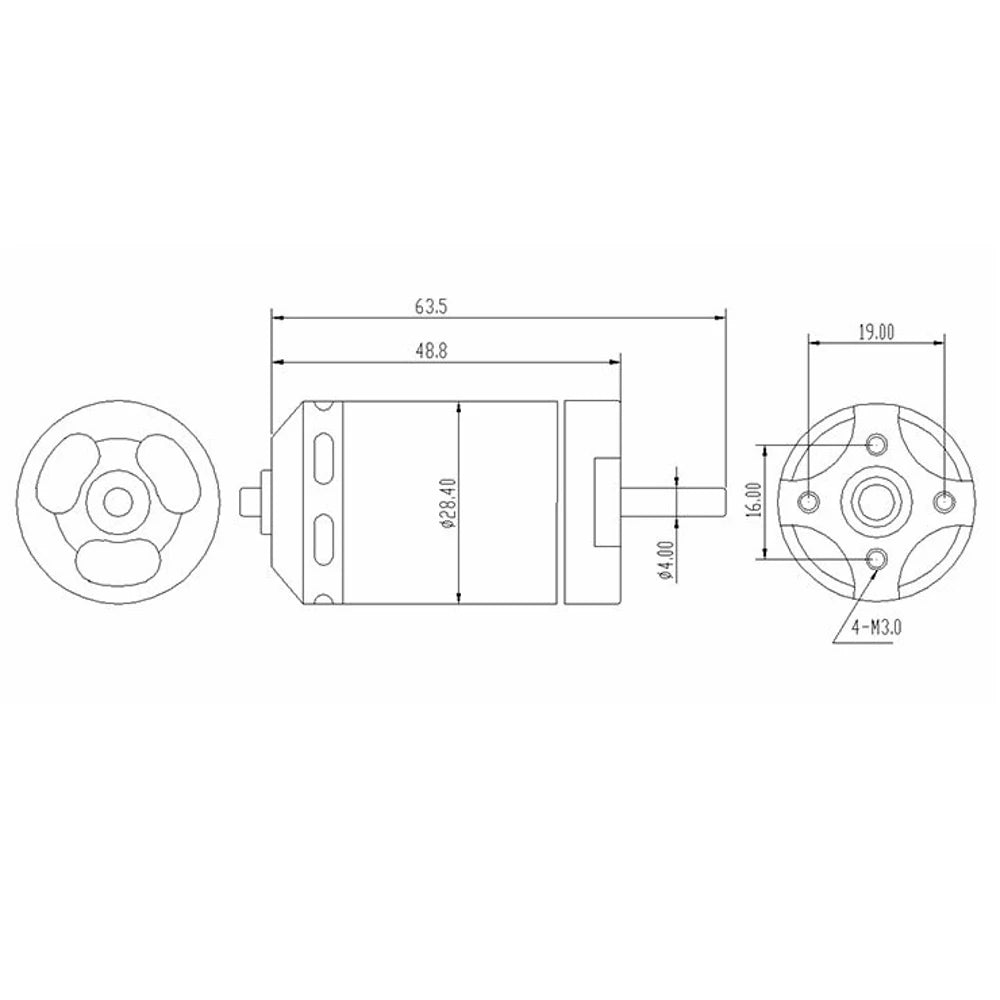

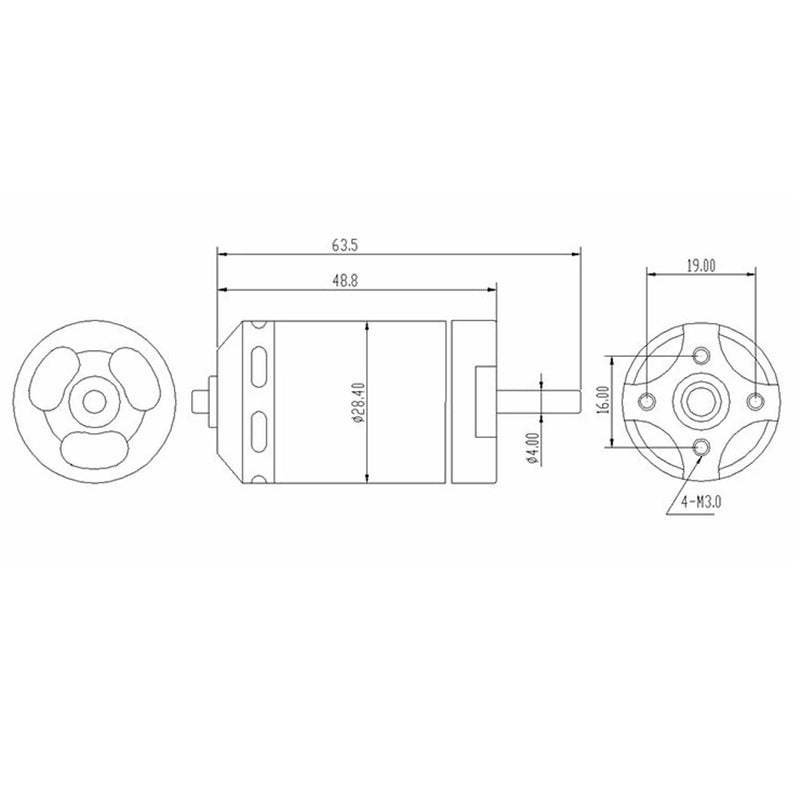

Motor Dimension(Diaxl): 28*48mm
Weight: 165g
Idle Current@10.0V: 2.0A
No.f Cells: 3-4S Lipo
Max. Continuous Power: 1000W
Max. Continuous Current: 75A
Application: Suitable for 1500g EDF Jet.
Test Data:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/W) | Efficiency(oz/W) |
ESC |
| 70Fan 6 Blade | 11.1 | 54 | 599.4 | 1300 | 45.86 | 2.17 | 0.08 | 80A |
| 70Fan 6 Blade |
14.8 | 63.5 | 939.8 | 1840 | 54.90 | 1.96 | 0.07 | 80A |
Features:
- Low vibration motor great for flying
- To make aircraft more stable
- Less operating noise
- More efficient
- Bearings long life
Package Included:
1x QX-Motor 70MM 6 Blades EDF Unit With QF2827 KV3500 Brushless Motor
