Description
Specification:
Brand Name: QX-Motor

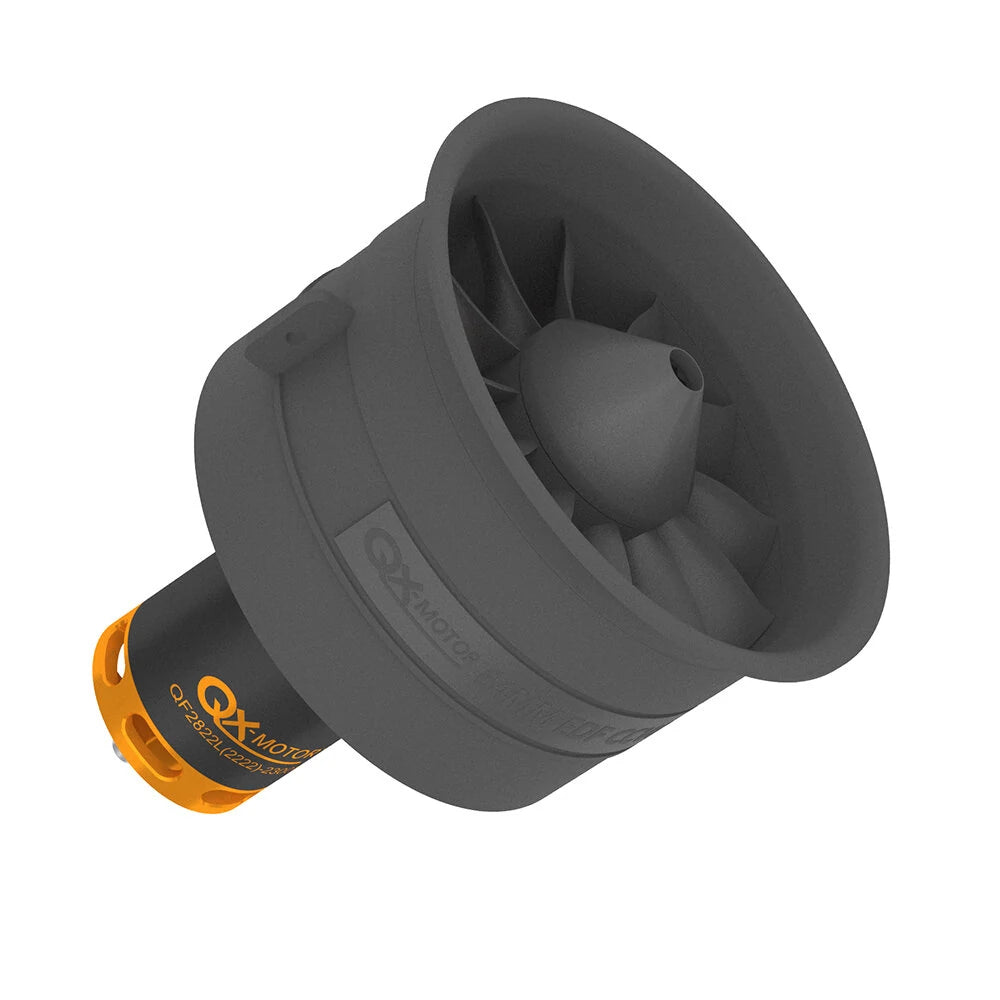

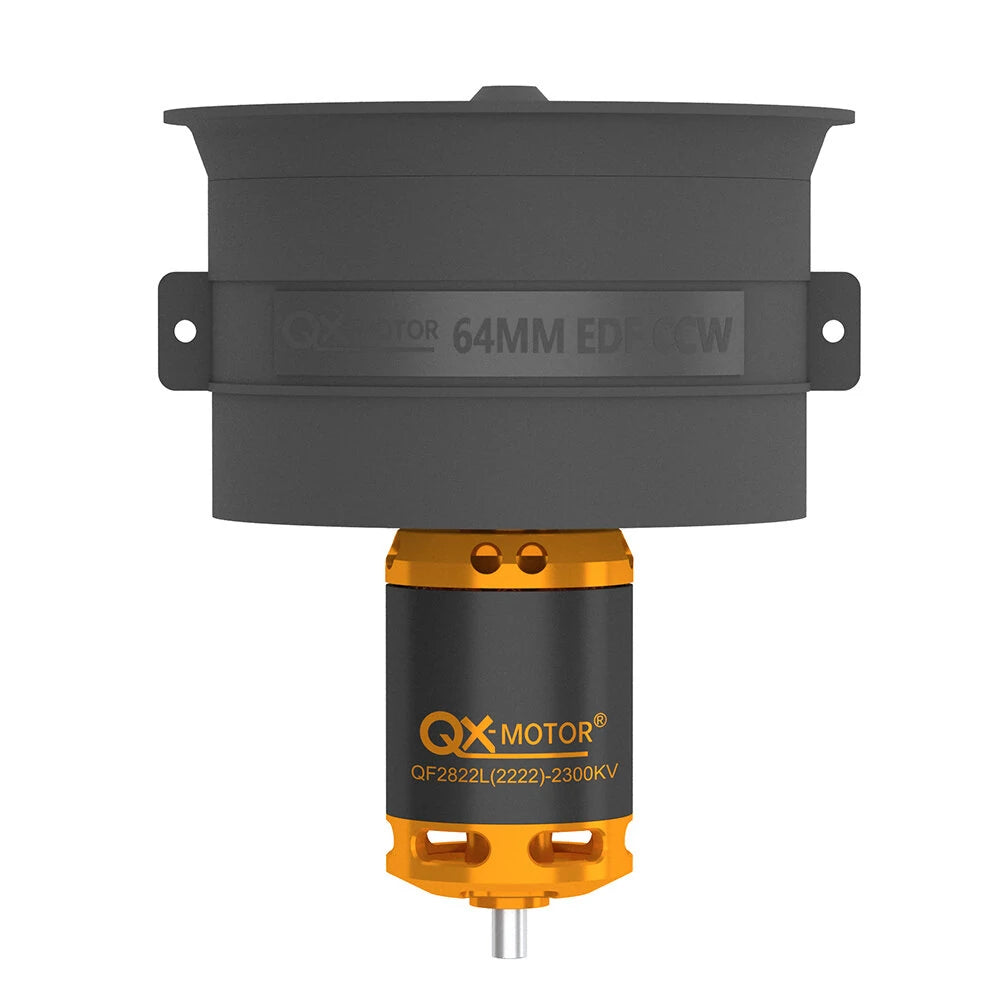

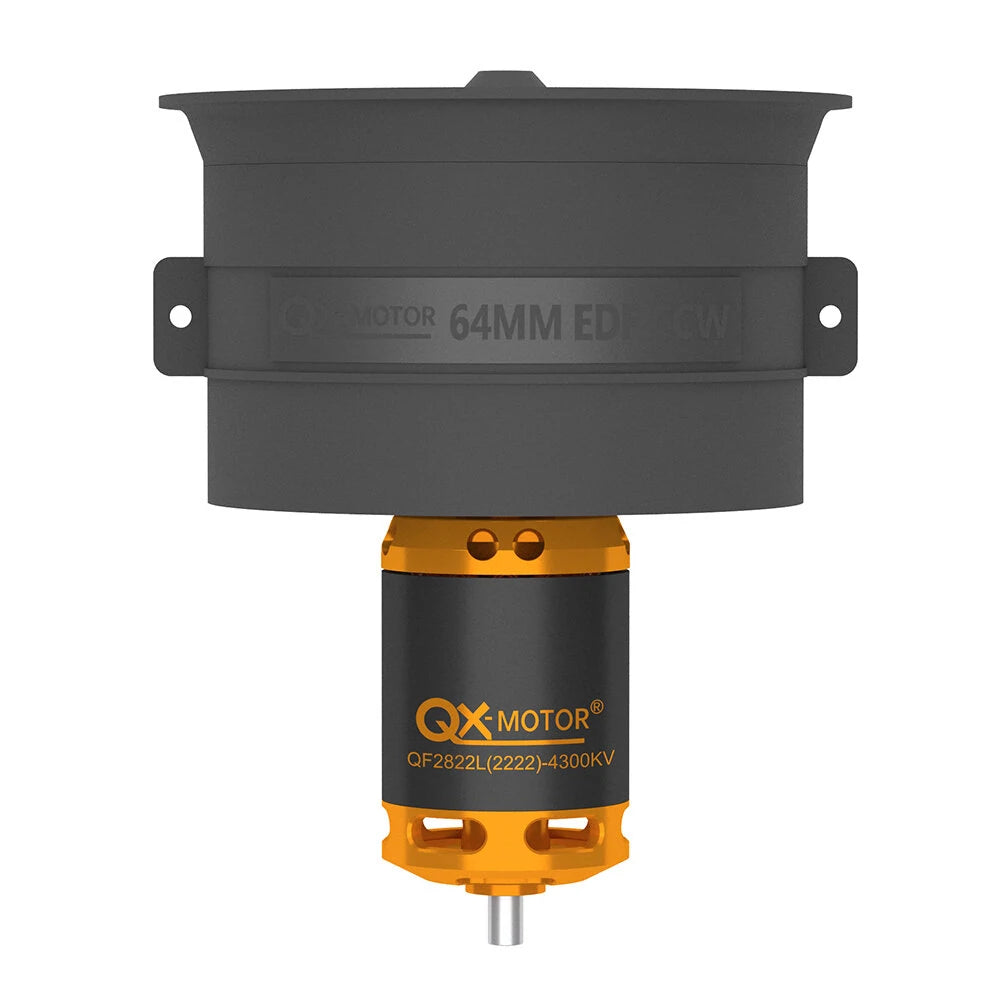

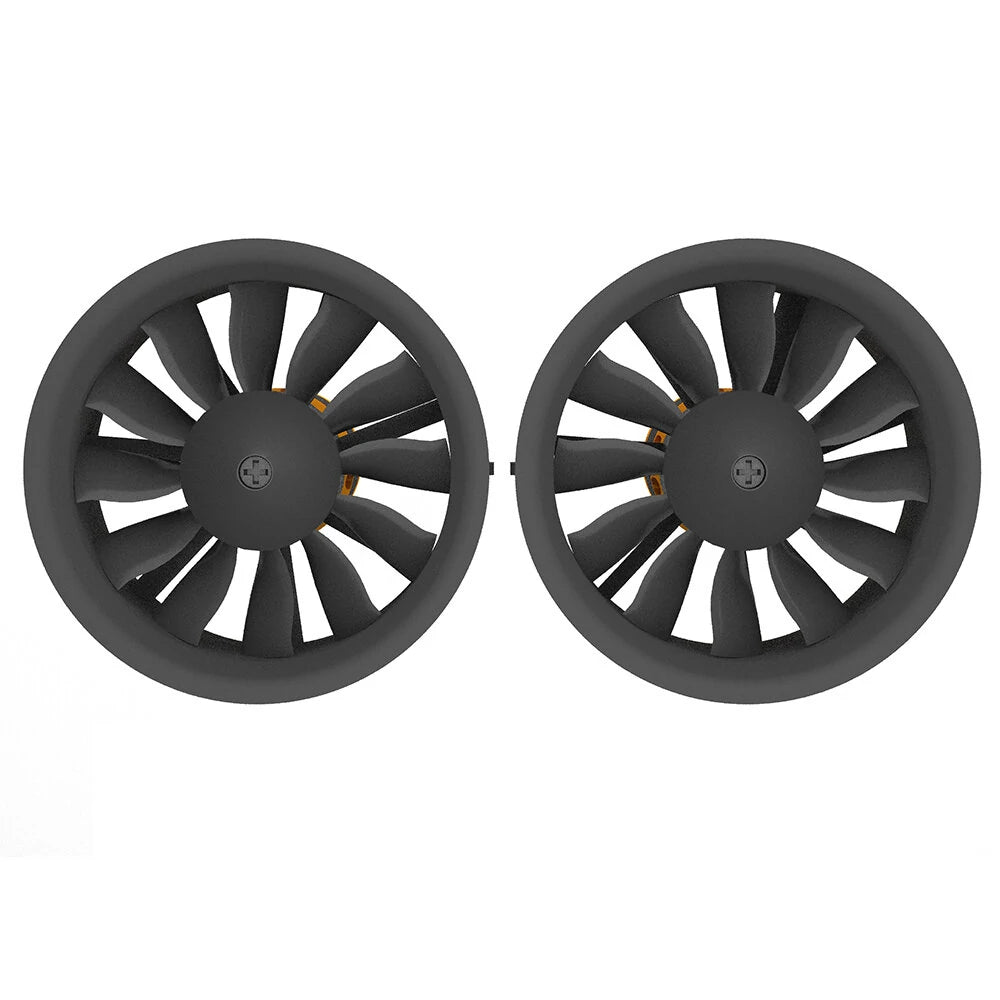

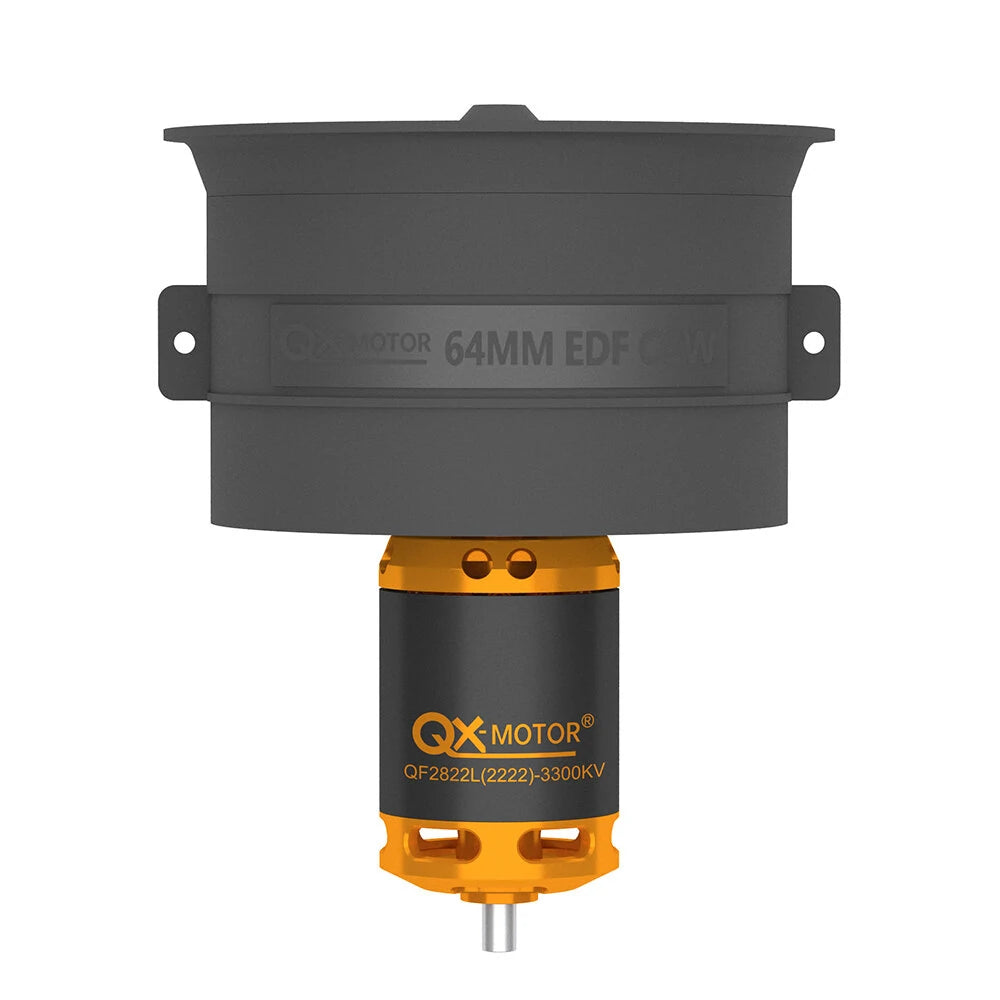

Item Name: 64mm 12-Blade Ducted Fan EDF Unit with QF2822 brushless motor
Version: CW, CCW (optional)
KV: 2100KV, 2300KV, 3300KV, 4300KV (optional)
Parameter:
| Model (KV) | QF2822 2100KV |
QF2822 2300KV |
QF2822 3300KV |
QF2822 4300KV |
| Configuration |
9N6P |
9N6P |
9N6P |
9N6P |
| Shaft Diameter |
3.0mm |
3.0mm |
3.0mm |
3.0mm |
| Motor Diameter |
28mm |
28mm |
28mm |
28mm |
| Weight |
140g |
140g |
140g |
140g |
| No.f Cells |
3-6S Lipo |
3-6S Lipo |
3-4S Lipo |
3S Lipo |
| Max Continuous Power/10S |
1200W | 1440W | 1120W | 1280W |
| Max Continuous Current/10S |
50A | 60A | 70A | 80A |
English Manual, Click Here
Package Included:

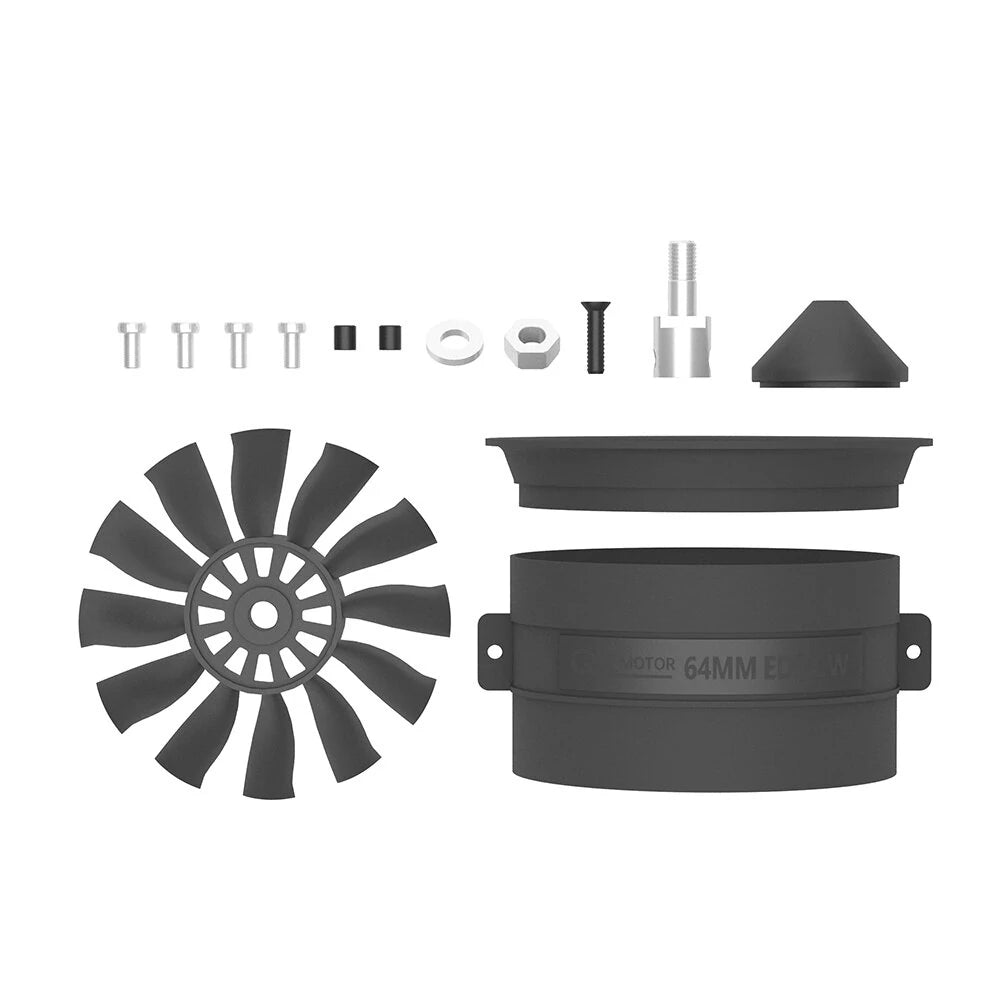

1x QX-Motor 64mm 12-Blade Ducted Fan EDF Unit With QF2822 Brushless Motor
