Description
Specifications:
Brand: Quansheng
Model: UV-K58(K6)
Signal Channels: 200
Audio Power: ≥0.5W
Number of Stored FM Radios: 20
Audio Distortion: ≤10%
Frequency Stability: ±1ppm
Dimensions: 115mm*60mm*37.5mm
Band: 144~146MHz 430W 440MHz
Weight: 234g
Transmit Power: 4W
Operating Temperature: -20℃ to +60℃
Transmit Current: ≤1.5A
Antenna Impedance: 50Ω
Maximum Frequency Deviation: ≤5KHz (25KHz), ≤2.5KHz (12.5KHz)
Modulation: FM: 11KOF3E (12.5KHz), 16K0F3E (25KHz)
Modulation Distortion: ≤5%
NOAA Channel Number: 10
Spurious Components: ≤7.5uW
Battery Capacity: 1600mAh
Front-end Power: 70dB (25KHz), 60dB (12.5KHz)
Relative Modulation: 40dB
Reference Sensitivity: FM (12dB SINAD) F1 (50~76) -121dBm F2 (108~135.9975) -121dBm F3 (136~173.9975) 123dBm F4 (174~349.9975) -123dBm F5 (350~399.9975) -23dBm F6 (400~469.9975) -133dBm F6 (470~599.9975) -212dBm WFM (20dB SINAD) WFM (76~108) -110dBm AM (10dB S/N) F2 (108~135.9975) -113dBm
Features:
1. NOAA Weather Reception
2. Quick Link
3. 10 Voice Encryption (Scrambling) Groups
4. Large Capacity Battery/Long Standby Time
5. Illumination Function
6. Inverter Operation Function
7. 8. Timeout Timer
9. Transmit 1750 signals
10. Frequency and Channel Mode Switching
11. 200 Channels
12. Voice Telegraph
13. Multi-segment Transmission and Reception
14. Automatic/Manual Emergency Alarm
15. Multiple Scans
16. Differential Frequency Direction Setting
17. Differential Frequency Setting
18. Wideband and Narrowband Options
19. Squelch Level Setting
20. Keypad Lock
21. Backlight Auto-Off Time Selection
22. Cross-Segment Intercom Function
23. Wireless Whole Unit Copying
24. DTMF Dialing
25. On-Site Programming
26. DTMF ANI
27. High, Medium, and Low Power Options
28. Separate Settings for Receive and Transmit Signals
29. Multi-Step Frequency
30. Initialization Settings
31. Channel Storage
32. Computer Programmable
33. Tone Switch
34. AM/FM air band reception
35. FM radio
36. Digital signal CTCSS/DCS
37. TYPE-C and installation
38. VOXvoice-activated transmission function
39. Automatic signal search
40. Multiple display modes for channel number, channel frequency, and channel name
41. Added channel scanning
42. Large screen dot matrix LCD display
43. Repeater forwarding confirmation function
44. Startup password protection
45. Frequency counter function
46. Instant call channel

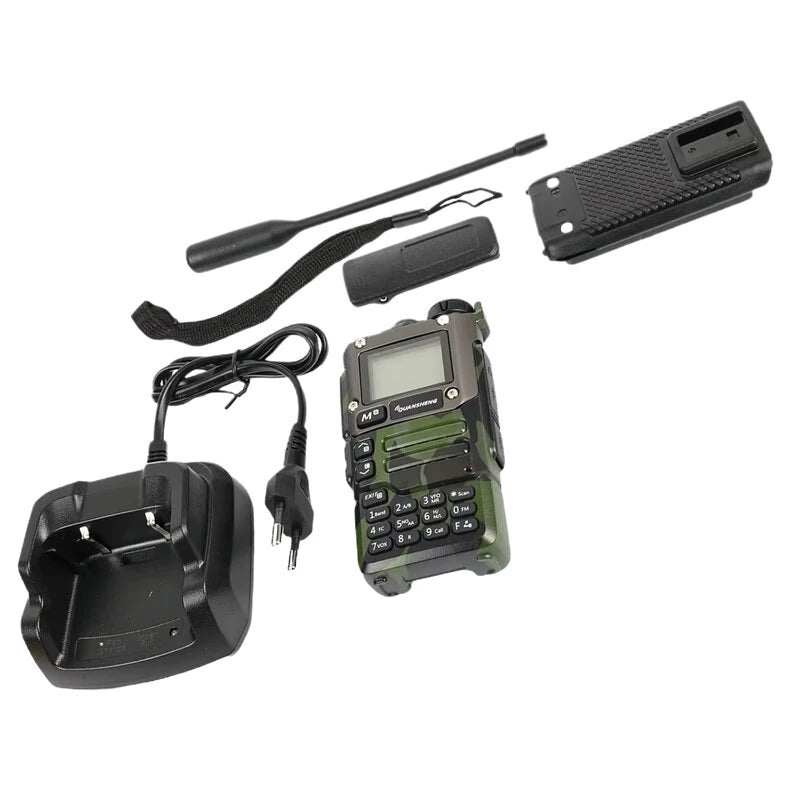

Package Includes:
1x UV-K6 Walkie Talkie
1x Antenna
1x Lithium-ion Battery
1x Belt Clip
1x Battery Charger(EU/US Optional)
1x User Manual
