Description
Specification:
Model:

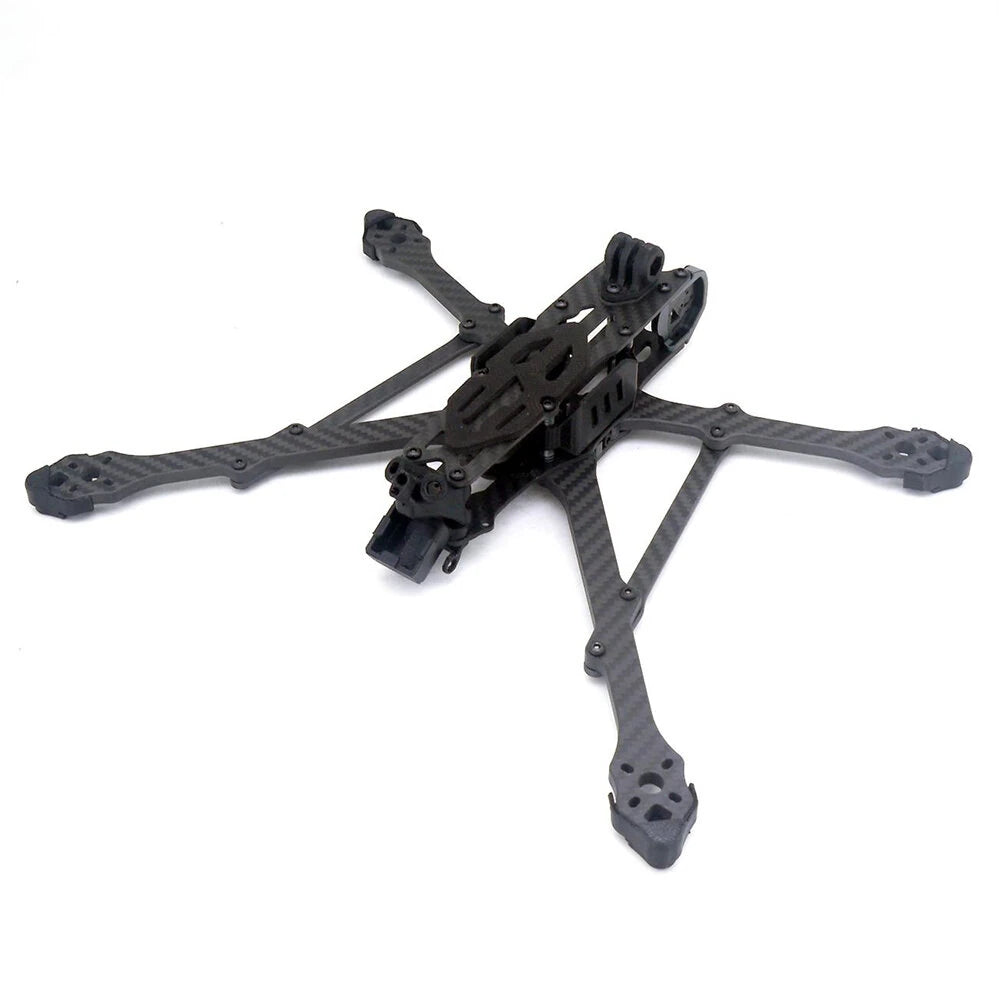

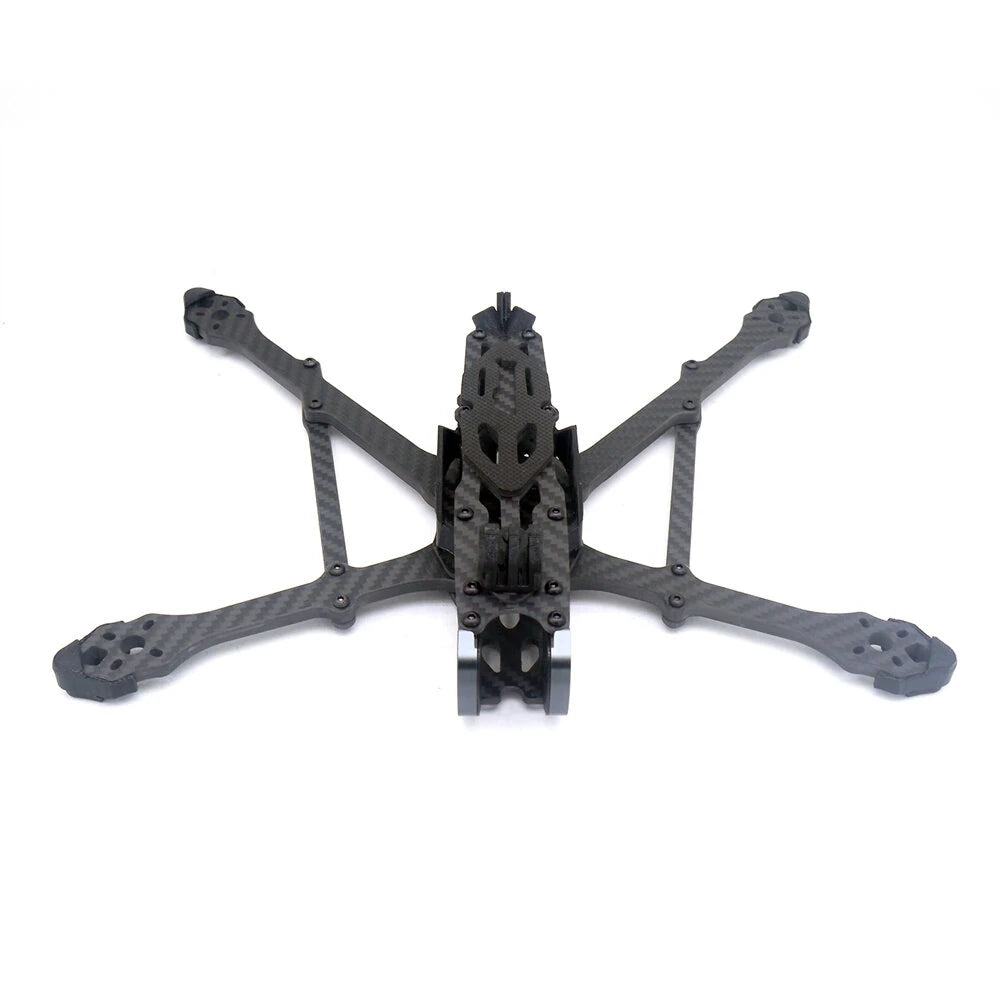

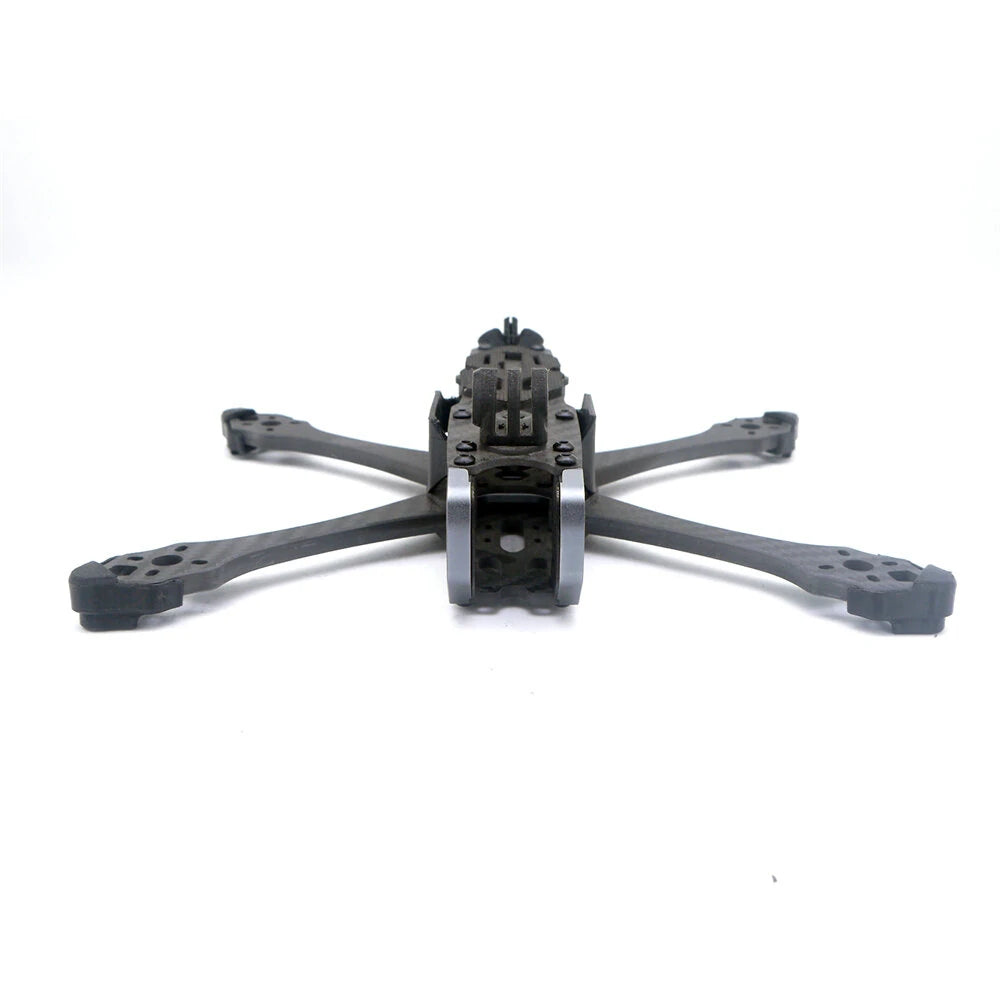

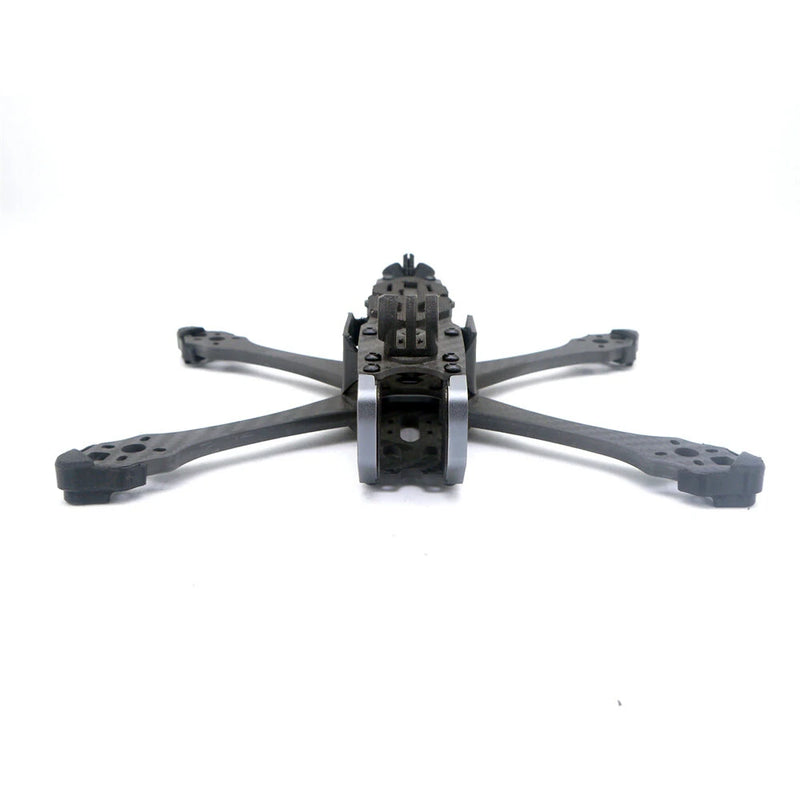

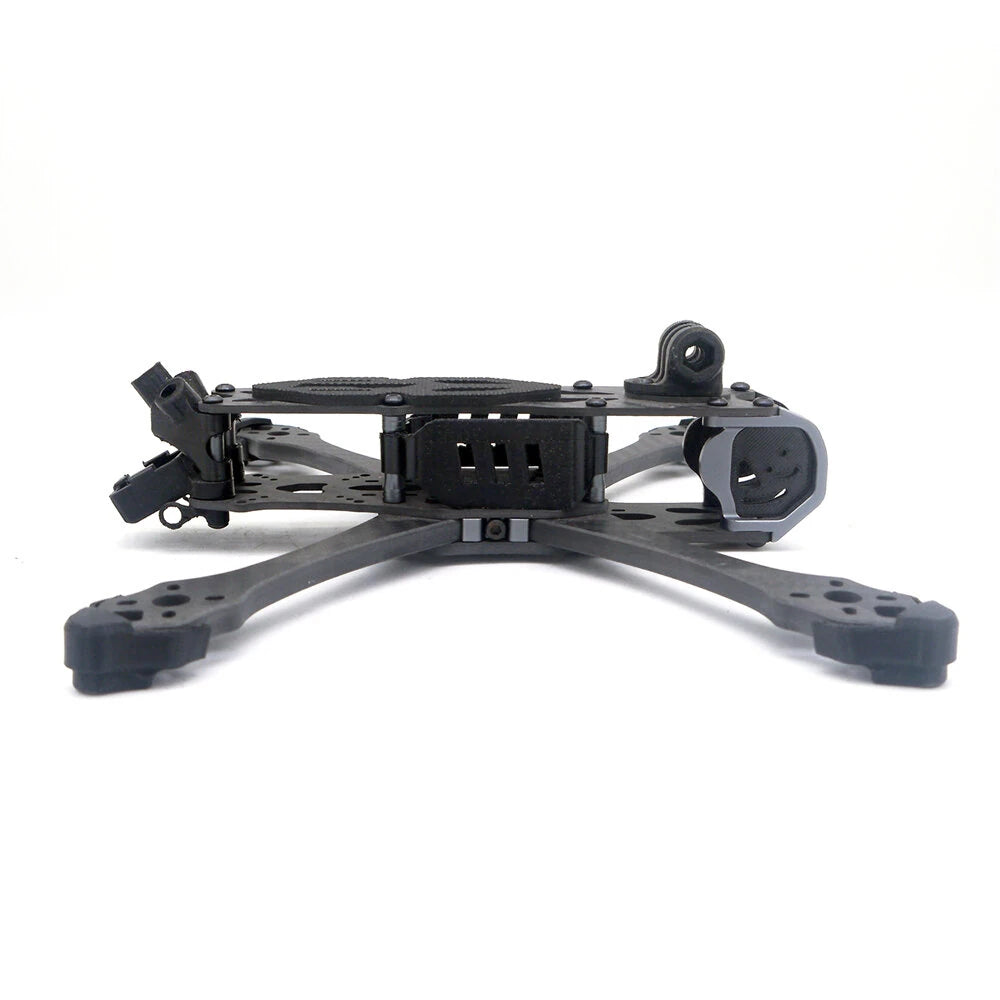

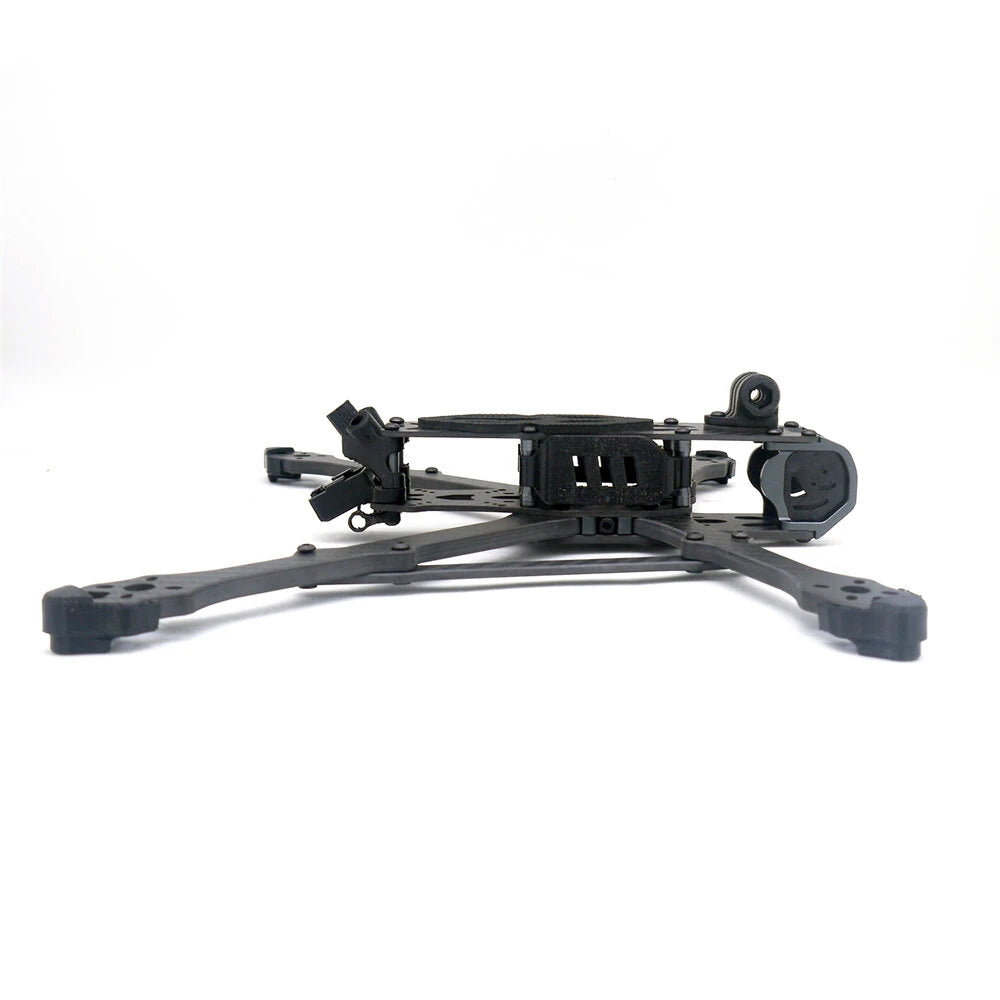

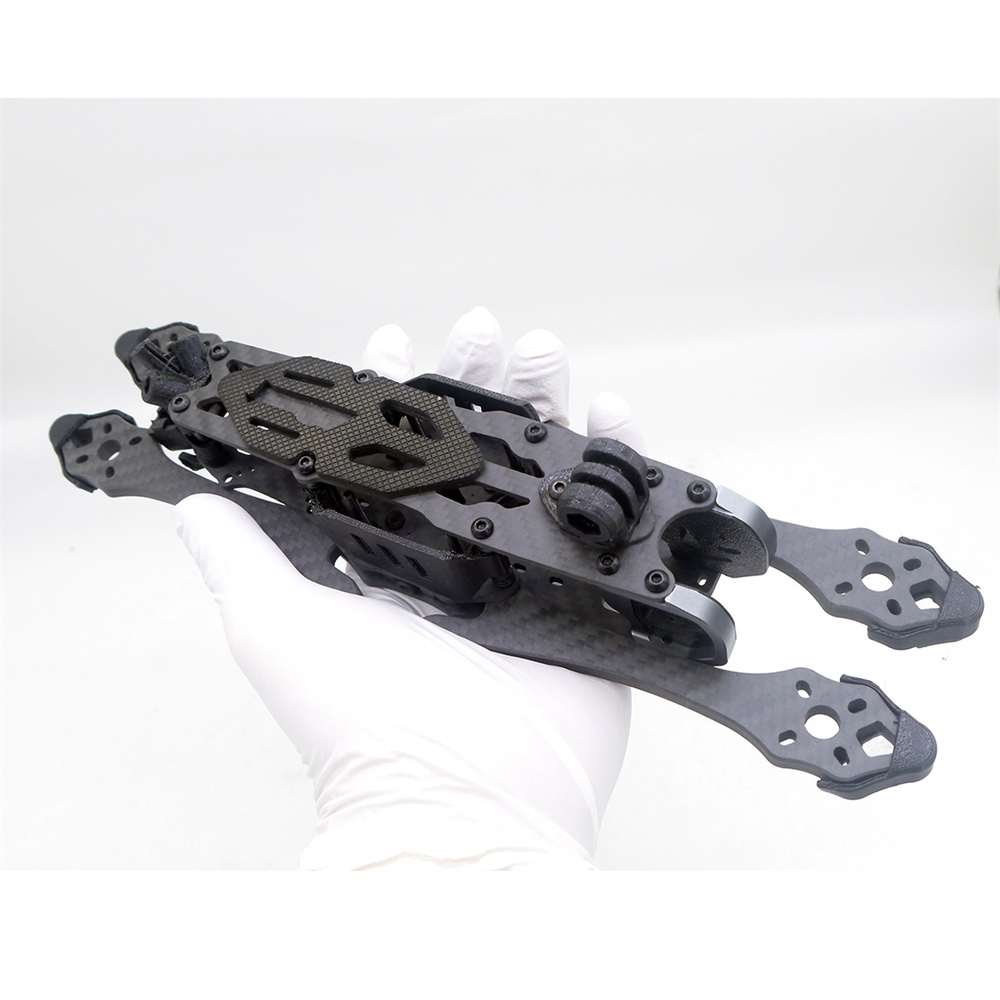

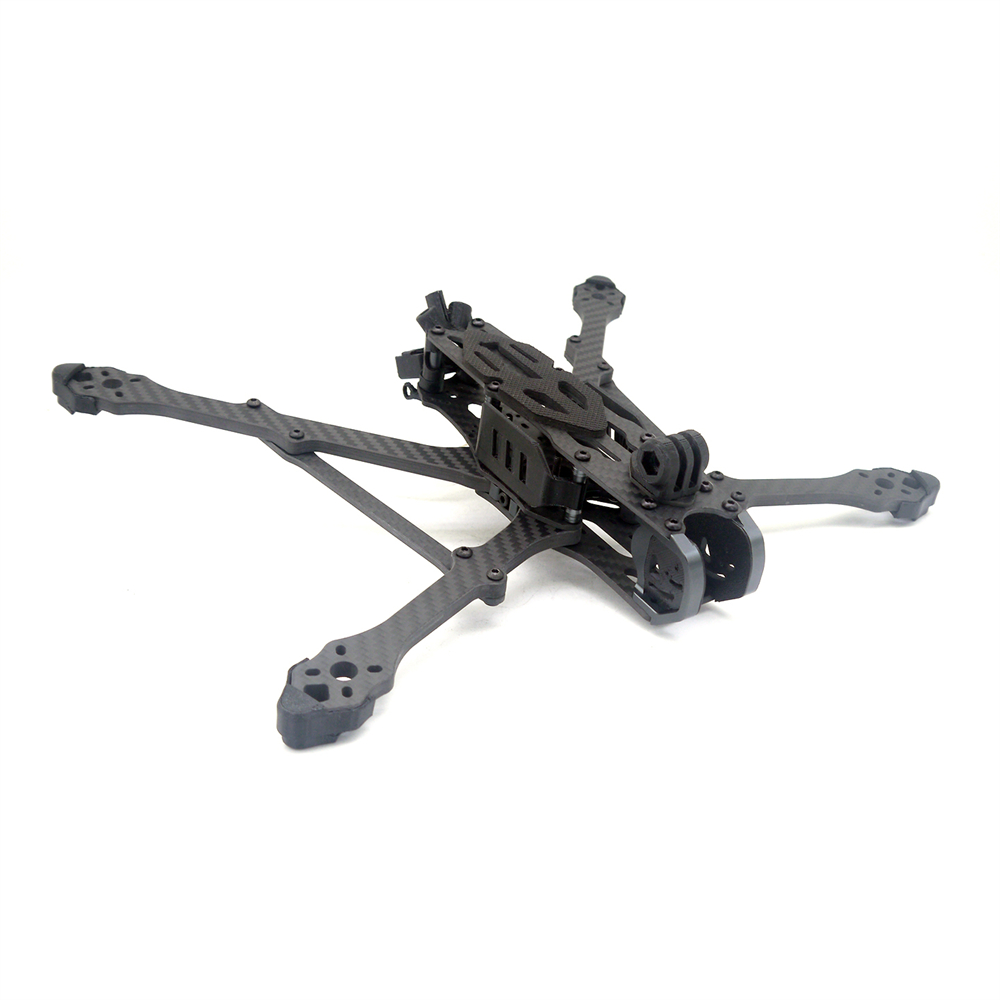

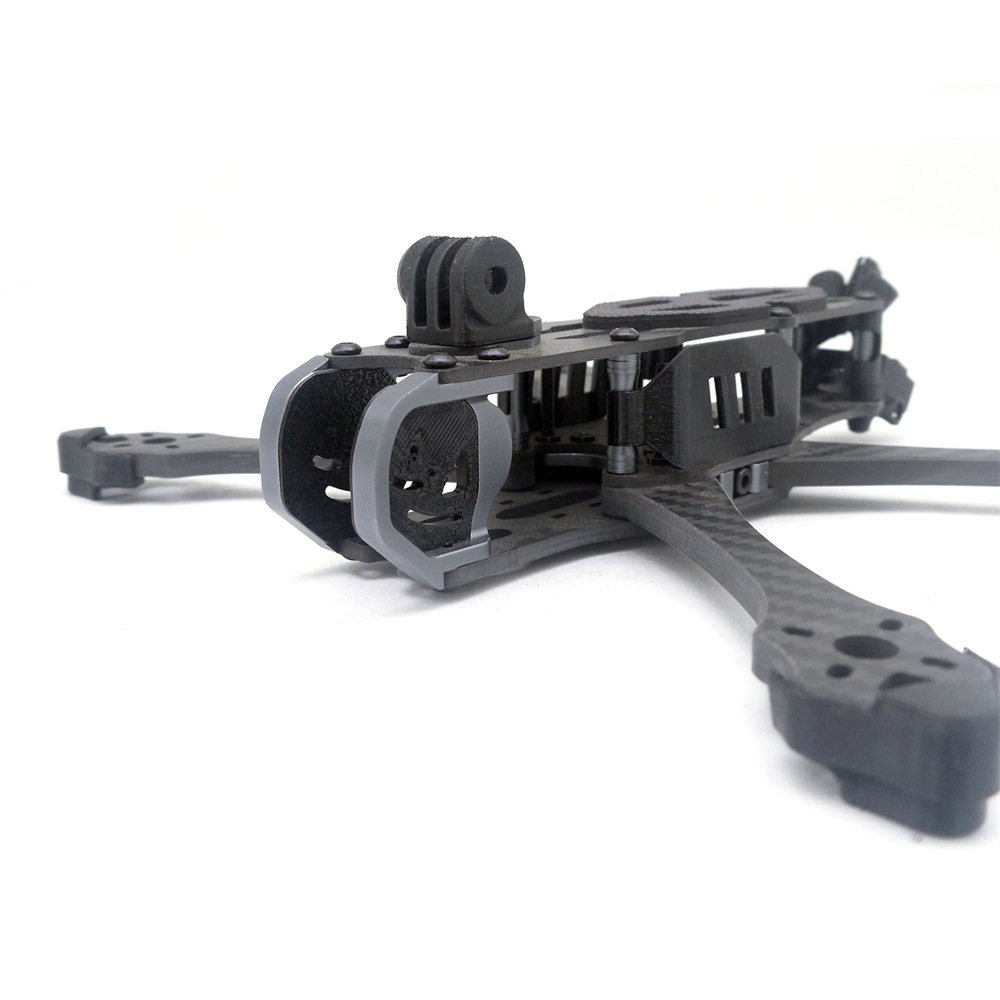

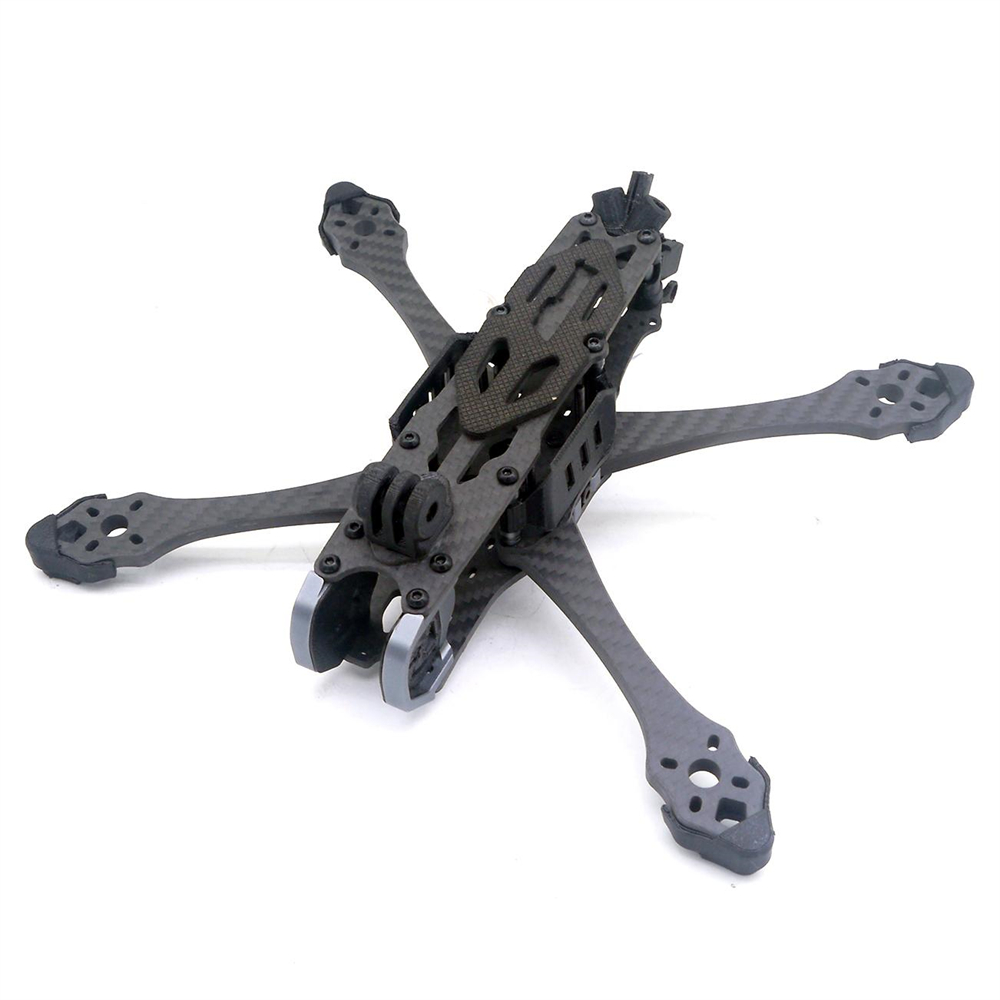

Item Name: 5 Inch / 7 Inch Frame Kit
Model |
Parameter |
5 Inch |
Model: QAVS3 5 Inch Frame Kit Wheelbase: 220mm Structure: X-shaped Weight: Approx.173g Thickness: Arm 6.0mm, Base Plate 3.0mm, Upper Plate 2.0mm, Clamp Plate 2.0mm Propellers: 5.0-inch Propellers FC Hole Spacing: 20*20mm (M3), 30.5*30.5mm (M3) Tail VTX Mounting Holes: 20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3) Camera Mounting Width: 19/20mm Motor Mounting Holes: 16*16mm (M3), 19*19mm (M3) Aluminum Column Height: M3*23mm Compatible VTX: DJI O4 PRO, DJI O3, Snail, Nebula, Aurora, Vista Sky System, etc. Compatible GPS: BZ181 Aluminum Material: 7075 Magnsium Alloy CNC Printed Parts List: Universal Action Camera Mount x1, BZ181 GPS Mount x1, Motor Protectors x4, ELRS915/2.4g Receiver Antenna Mount x1, Side Panel Lens Mount x2, Enclosure Guards x2, Universal Antenna Mount x1 (Adapts to Dual and Single Antennas) |
7 Inch |

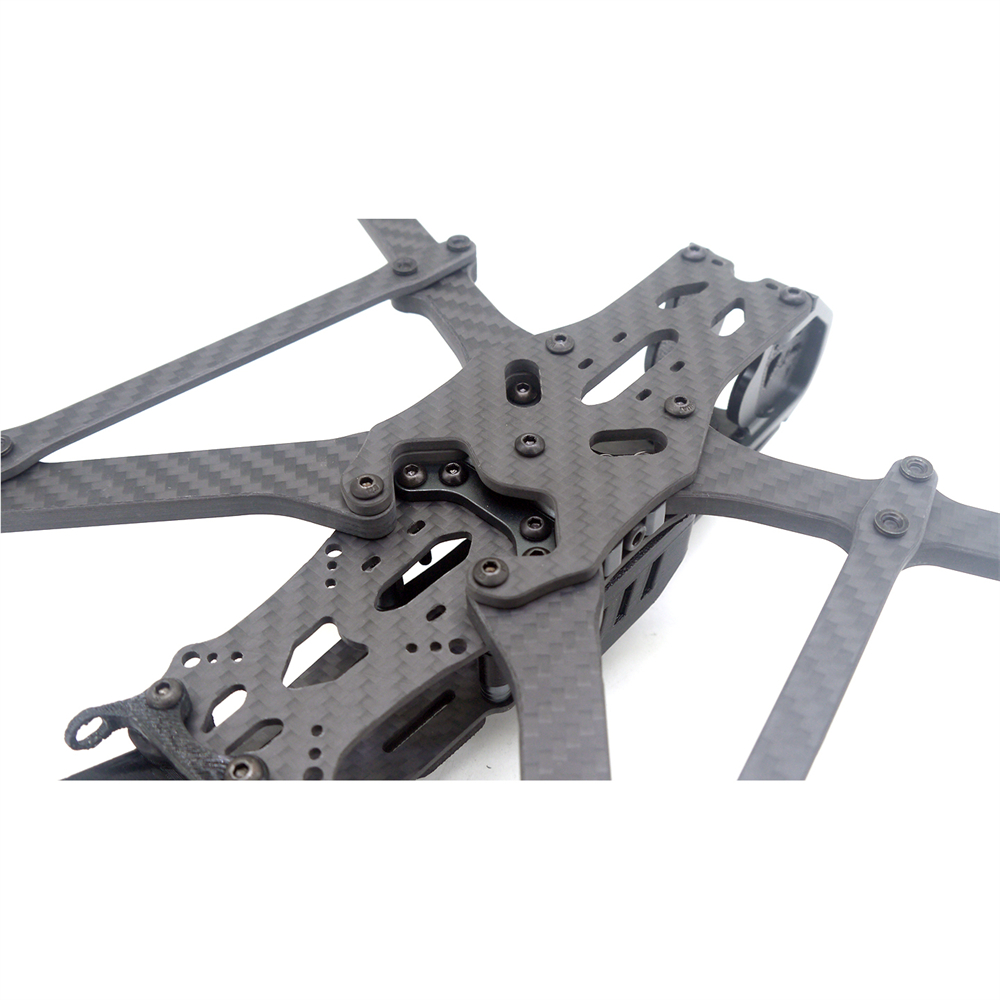

Model: QAVS3 7 Inch Frame Kit Wheelbase: 300mm Structure: DC-type Weight: Approx.210g Thickness: Arm 6.0mm, Base Plate 3.0mm, Upper Plate 2.0mm, Clamp Plate 2.0mm, Reinforcement Rod 3.0mm Propellers: 7.0-inch Propellers FC Hole Spacing: 20*20mm (M3), 30.5*30.5mm (M3) Tail VTX Mounting Holes: 20*20mm (M2), 25.5*25.5mm (M2), 30.5*30.5mm (M3) Camera Mounting Width: 19/20mm Motor Mounting Holes: 16*16mm (M3), 19*19mm (M3) Aluminum Column Height: M3*23mm Compatible with VTX: DJI O4 PRO, DJI O3, Snail, Nebula, Aurora, Vista Sky System, etc. Compatible with GPS: BZ181 Aluminum Material: 7075 Magnsium Alloy, CNC-machined Printed Parts List: Universal Action Camera Mount x1, BZ181 GPS Mount x1, Motor Protectors x4, ELRS915/2.4g Receiver Antenna Mount x1, Side Panel Lens Mount x2, Enclosure Guards x2, Universal Antenna Mount x1 (Adapts to Dual and Single Antennas) |
Recommended configuration: ( NOT Included)Brushless Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor / iFlight XING2 2306 1755KV 6S 2555KV 4S Brushless MotorFC&ESC: 20x20mm SpeedyBee F405 Mini 35A Stack / 30.5×30.5mm GEPRC TAKER F722 BT HD V3 65A StackPropeller: HQProp Freestyle Prop 5X4.3X3V2S 5043 5 Inch 3-Balde Propeller / 7040 3-Blade 5mm Shaft Black Fiberglass Nylon PropellerCamera & VTX: DJI O4 Air Unit PRO FPV 4K 60fps 120fps FPV Camera Digital Transmission System
Package included:
1 x Frame Kit
