Description
Specifications:
Gear Material: Stainless Steel Gear Case Material: CNC Case Operating Temperature: -15°C~+60°C Operating Travel: 180° (±10°) Refresh Rate: 333Hz Net Weight: 64.2g Pulse Width: 500 to 2500 μSec PCB: Digital Dead Band: 2 μp Neutral Position: 1500μS Size: 40*20*36.8mm Bearing: Double Ball Bearing Operating Voltage: 5V-8.4V Wire: JR 250MM Operating Current: 7.4V/150mA Programmable: Yes Operating Speed (5.0V): 0.204sec/60°Operating Speed (6.0V): 0.186sec/60° Operating Speed (7.4V): 0.161sec/60° Operating Speed (8.4V): 0.147sec/60° Stall Torque (5.0V): 26kg-cm Stall Torque (6.0V): 30kg-cm Stall Torque (7.4V): 35kg-cm Stall Torque (8.4V): 40kg-cm
Features:
1. High torque: This servo motor offers powerful performance, capable of handling weights up to 40kg.
2. Metal construction: Made from sturdy metal material, ensuring durability and reliability.
3. High voltage: Operates efficiently at 8.4 volts, providing a stable and consistent power supply.
4. Universal application: Suitable for a wide range of RC models, including airplanes, cars, jet engines, and helicopters.
5. Smooth operation: Offers smooth and precise movement, enhancing the overall performance of your models.
Package includes:

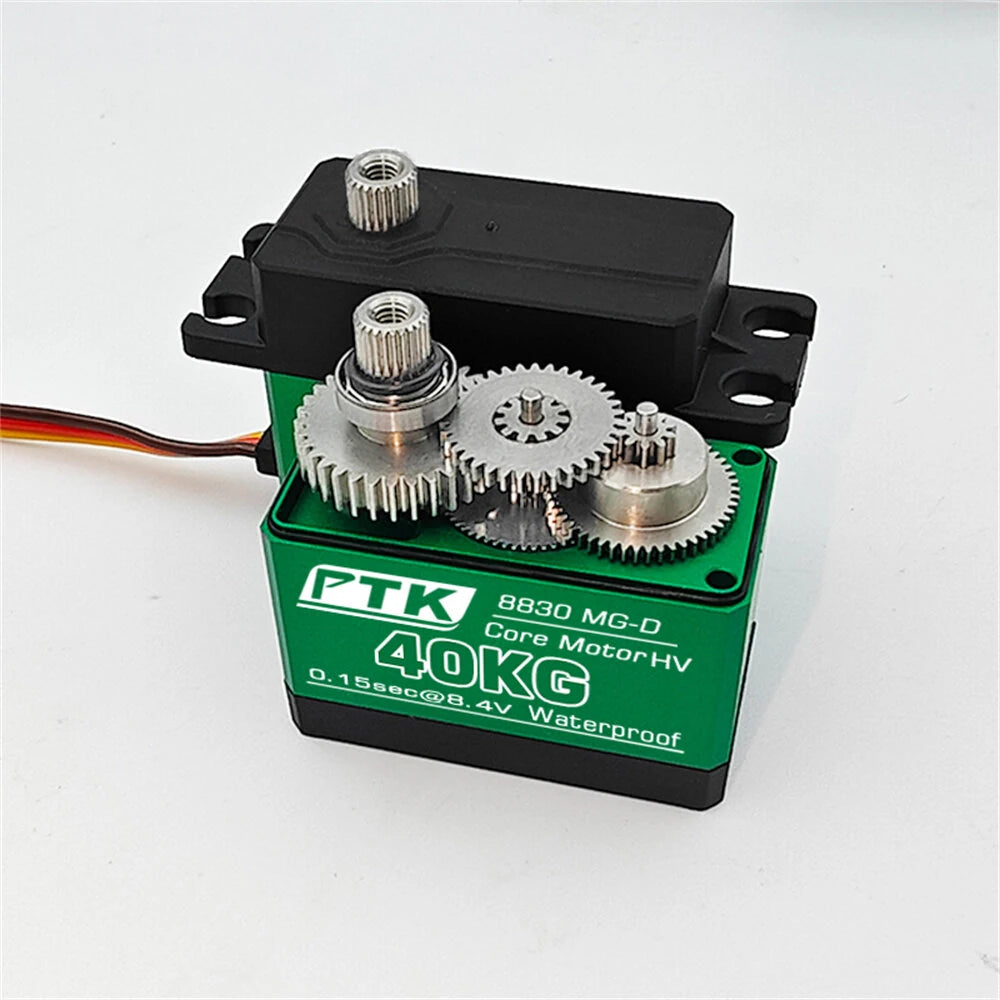

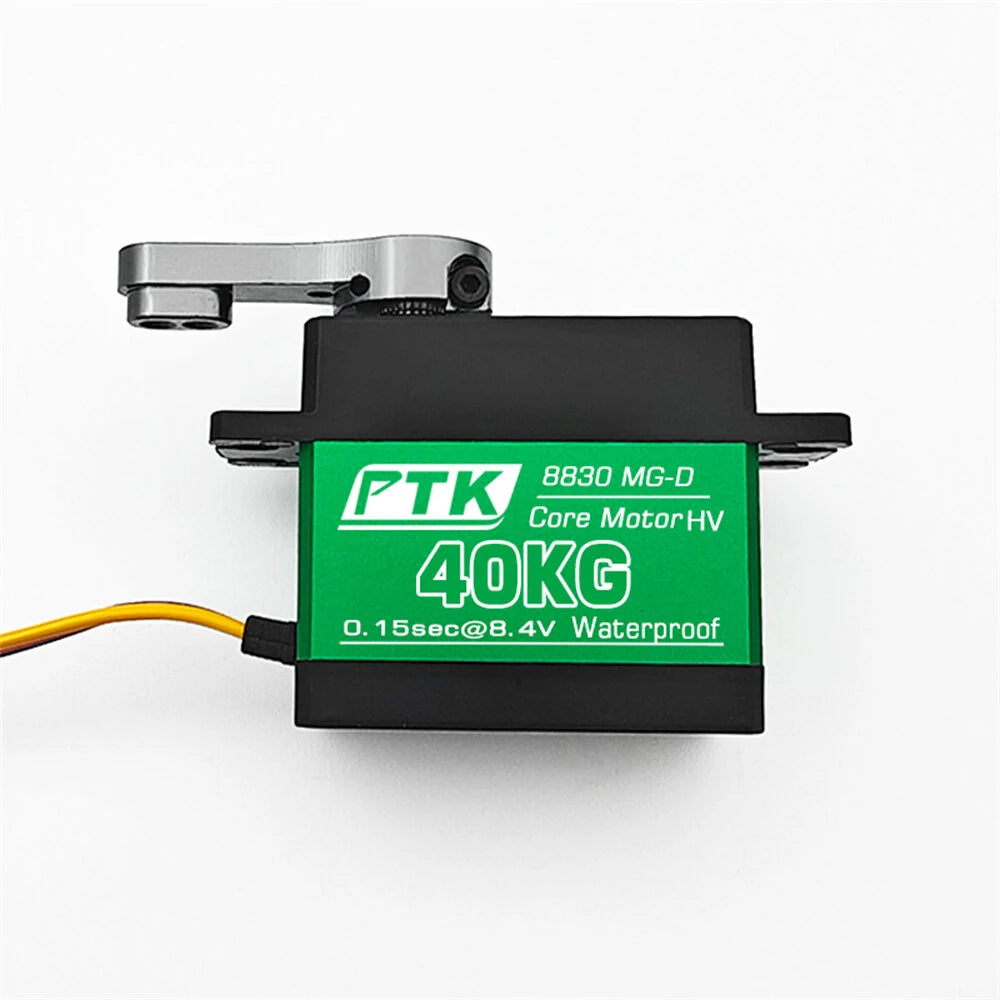

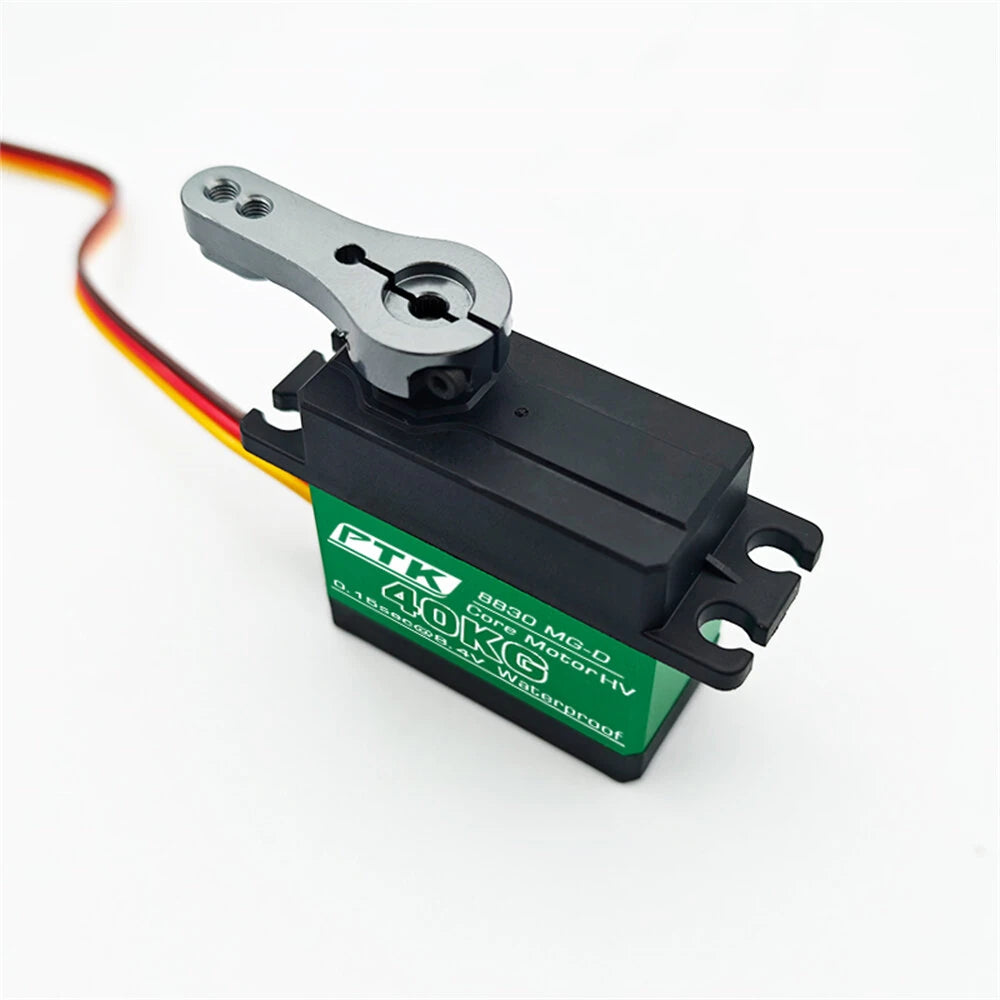

1x PTK8830 SSG-D 40kg Metal Digital Servo
