Description

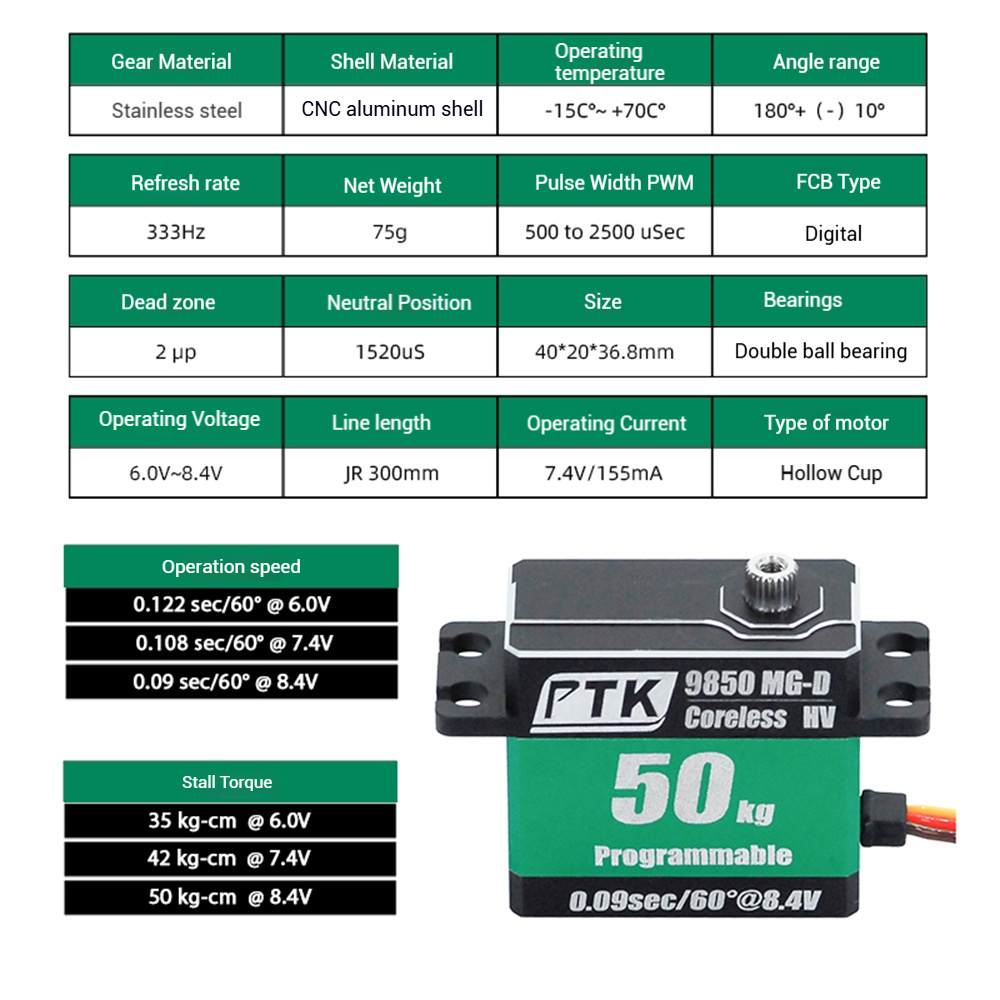

Specification:
Brand: PTK
Model: 9850 MG-D
Gear Material: Stainless Steel
Shell Material: CNC Aluminum
Operating Temperature: -15°C ~ +70°C
Angle Range: 180° ± 10°
Refresh Rate: 333Hz
Net Weight: 75g
Pulse Width PWM: 500 to 2500 µSec
Type: Digital
Dead Zone: 2 µS
Neutral Position: 1520 µS

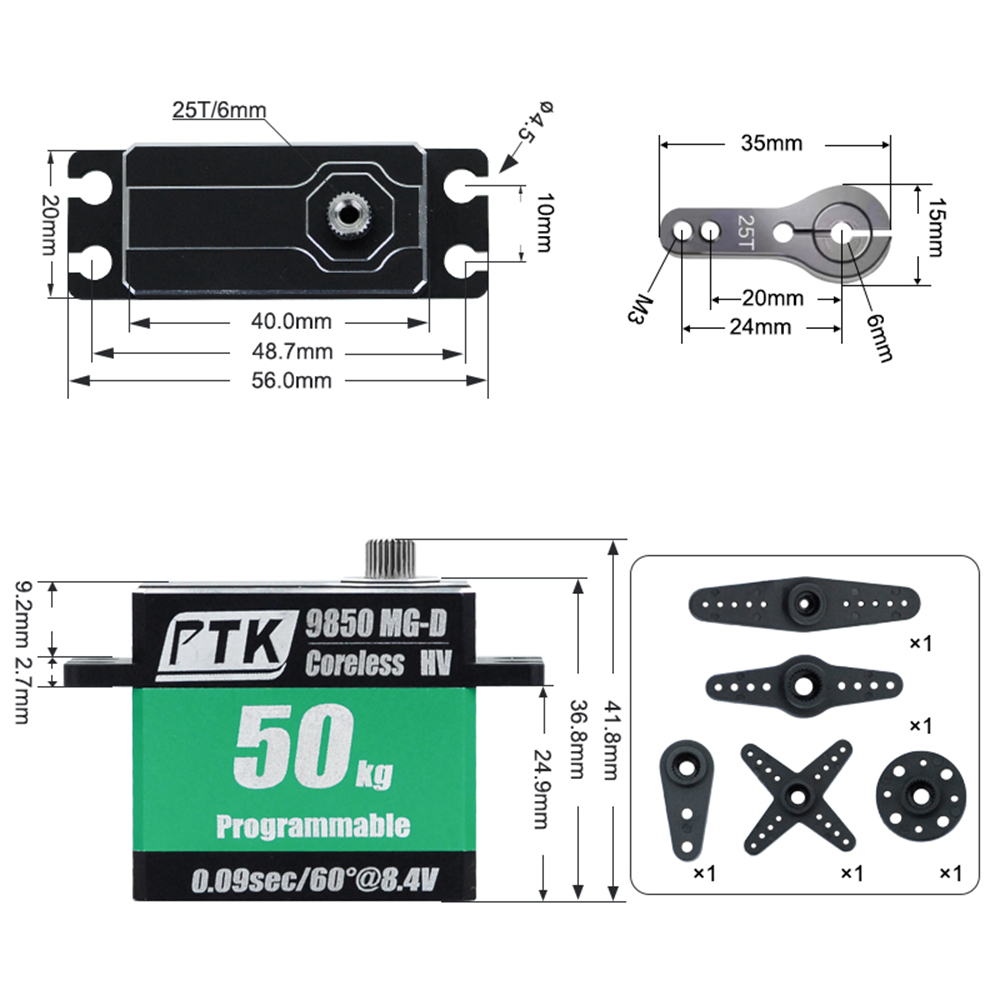

Dimensions: 40×20×36.8mm
Bearing: Dual Ball Bearing
Operating Voltage: 6.0V ~ 8.4V
Cable Length: JR 300mm
Operating Current: 7.4V / 155mA
Motor Type: Coreless
Operating Speed:
0.122 sec/60° @ 6.0V
0.108 sec/60° @ 7.4V
0.09 sec/60° @ 8.4V
Torque:
35 kg-cm @ 6.0V
42 kg-cm @ 7.4V
50 kg-cm @ 8.4V

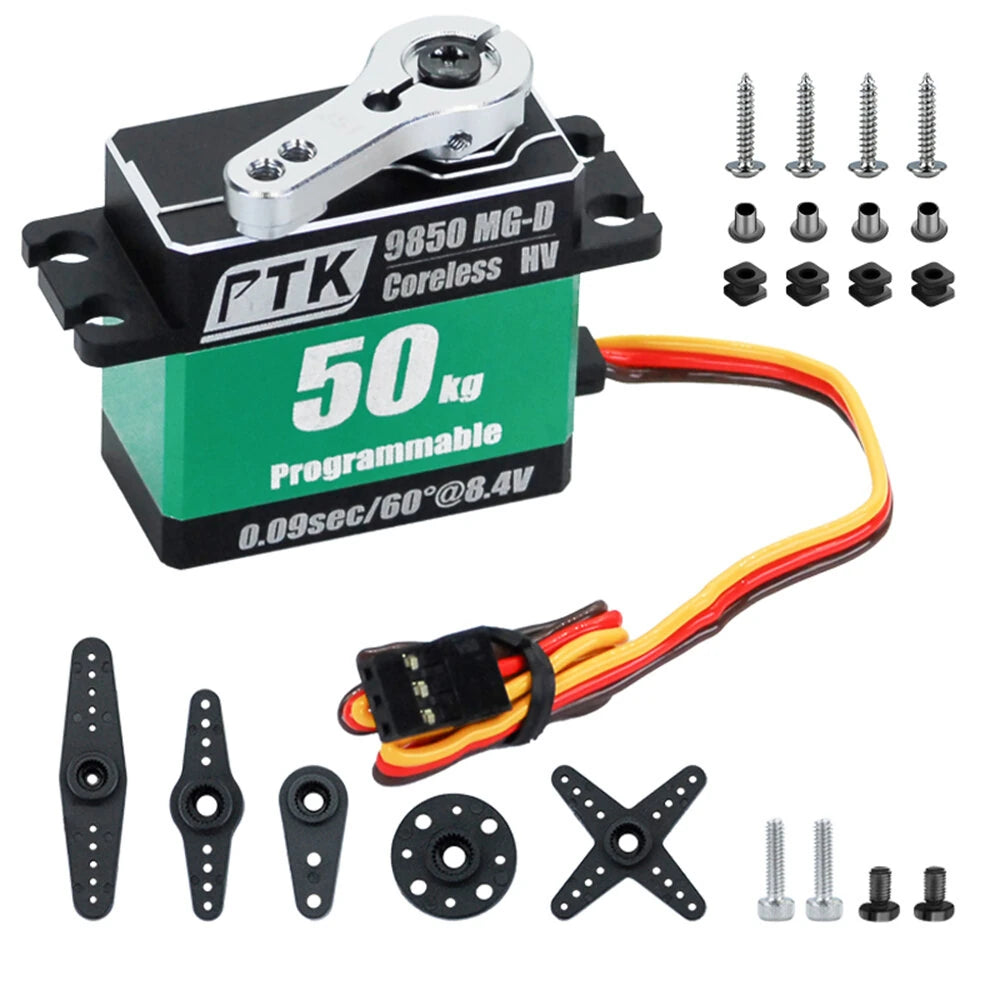

Package included:
1 x RC Servo
