PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
Roll over image to zoom in Click on image to zoom
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model
PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model

PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model

Isaiah 55:8-9 John 3:16 Philippians 4:19
Color: Green
Price:
R 699.70
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

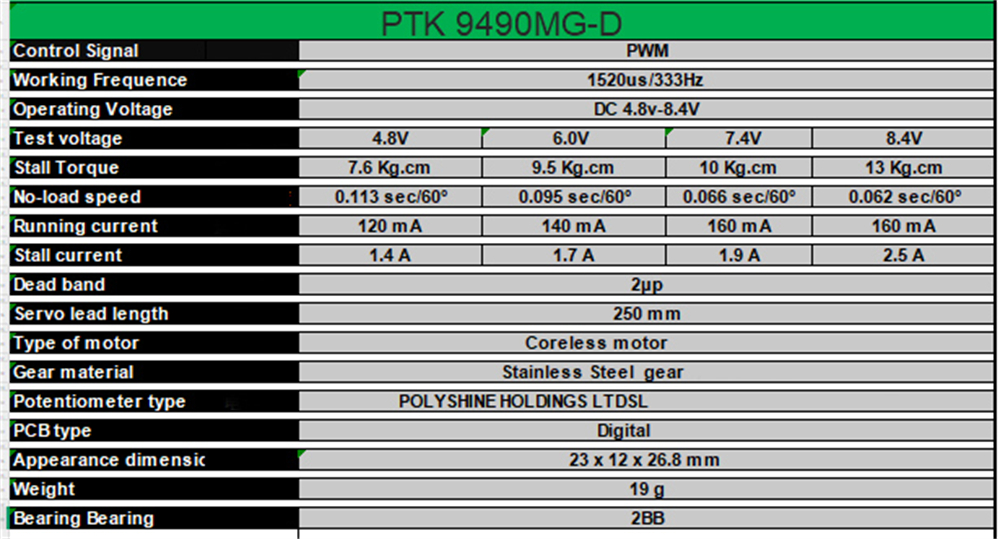

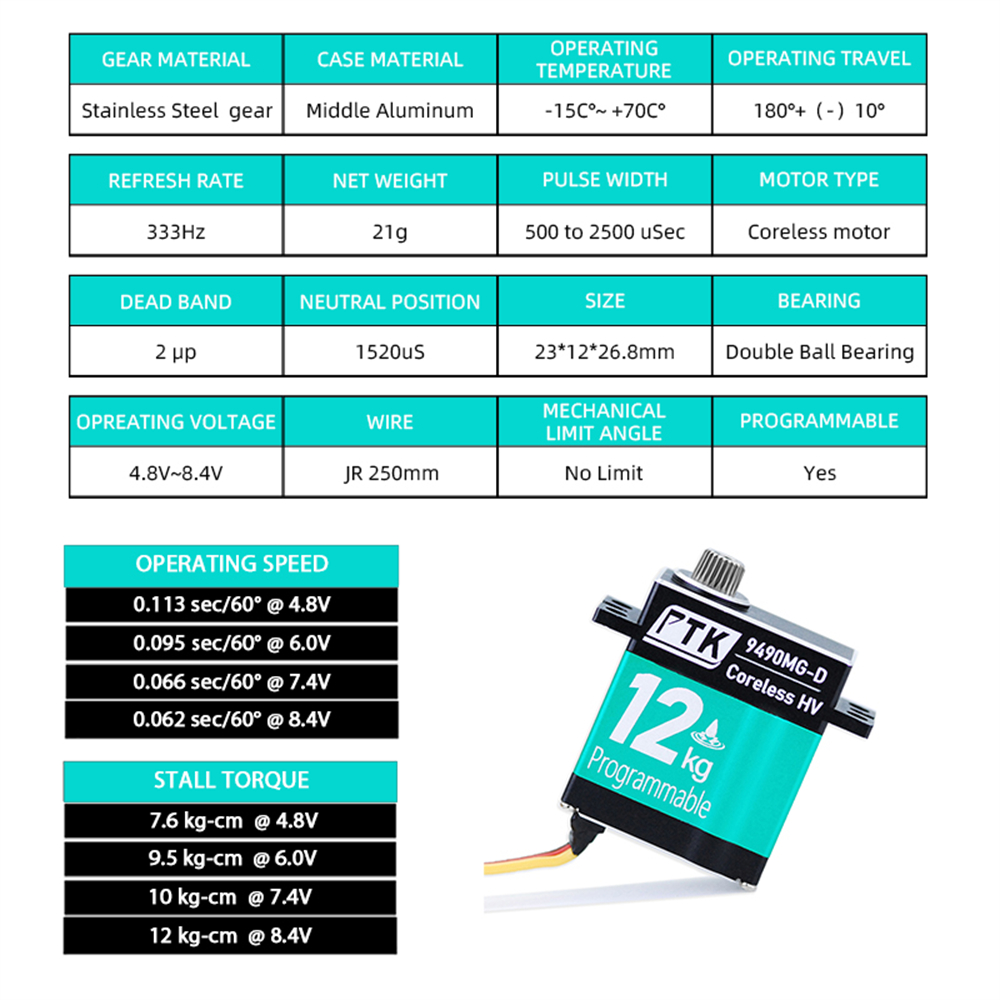

Specification:
Model: PTK 9490 MG-D 12KG RC Servo
Gear Material: Stainless Steel
Case Material: Middle Aluminum
Operating Temperature: -15°C~+70°C
Operating Travel: 180° ± 10°
Refresh Rate: 333Hz
Net Weight: 21g
Pulse Width: 500 To 2500 µSec
Motor Type: Coreless Motor
Dead Band: 2µ
Neutral Position: 1520µS
Size: 23*12*26.8mm
Bearing: Double Ball Bearing
Operating Voltage: 4.8V~8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed @4.8V: 0.113 Sec/60°
Operating Speed @6.0V: 0.095 Sec/60°
Operating Speed @7.4V: 0.066 Sec/60°
Operating Speed @8.4V: 0.062 Sec/60°
Stall Torque @4.8V: 7.6 Kg-Cm
Stall Torque @6.0V: 9.5 Kg-Cm
Stall Torque @7.4V: 10 Kg-Cm
Stall Torque @8.4V: 12 Kg-Cm

Package included:
1x RC Servo
