Description

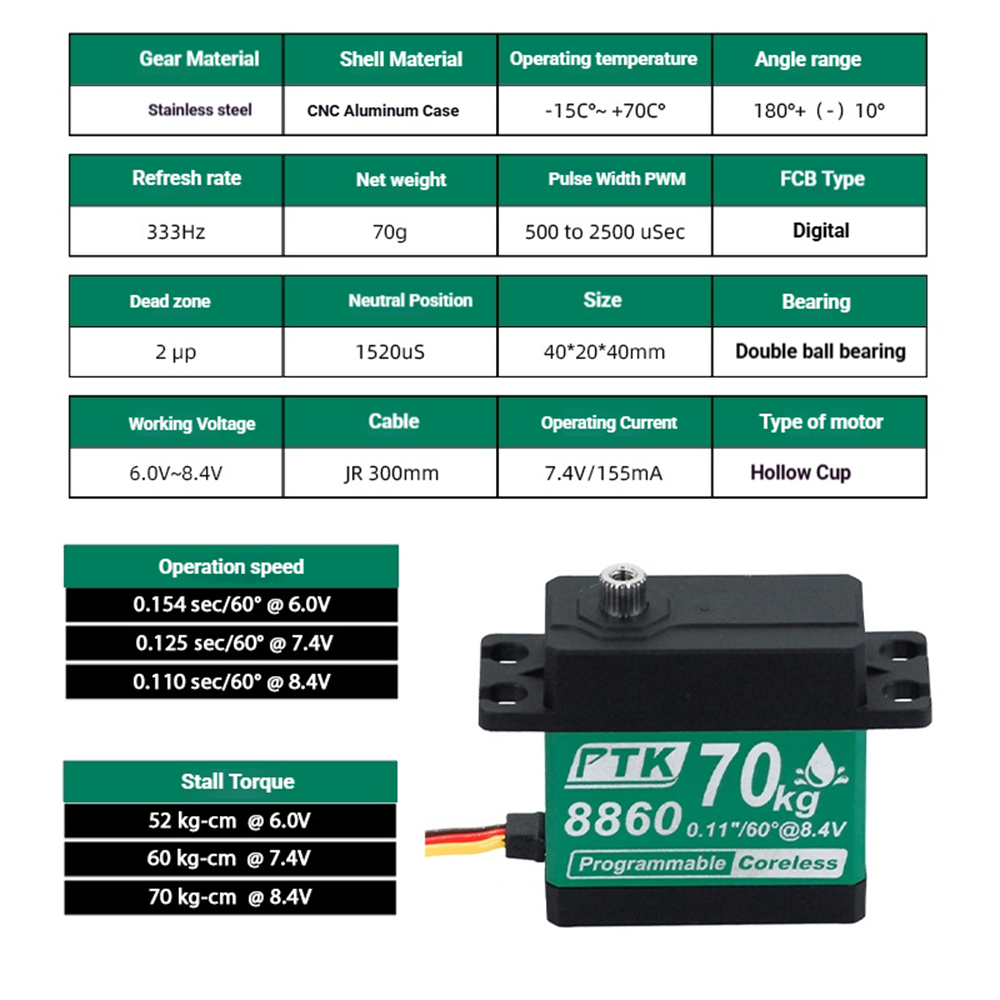

Specification:
Brand: PTK
Model: 8860

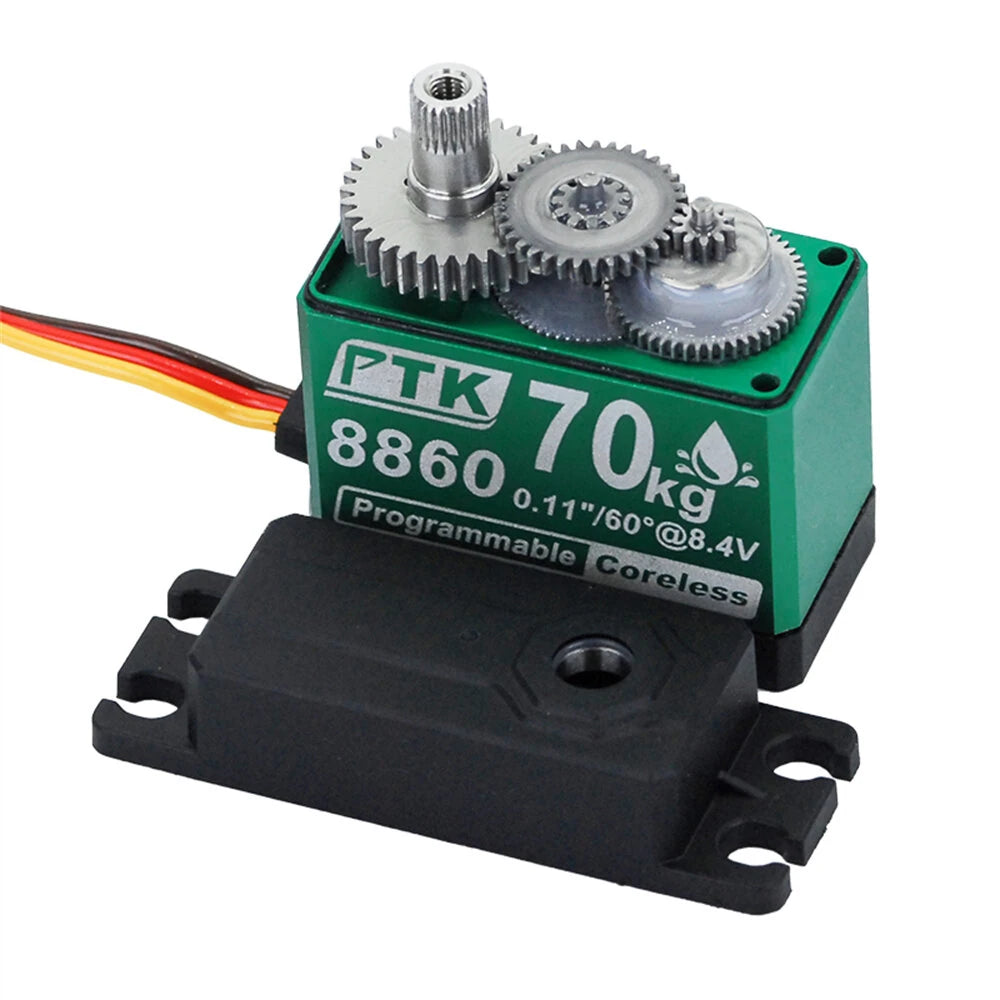

Gear Material: Stainless Steel
Case Material: CNC Aluminum
Operating Temperature: -15°C ~ +70°C
Angle Range: 180° (±10°)
Refresh Rate: 333 Hz
Net Weight: 70 g
PWM Pulse Width: 500 to 2500 μs
FCB Type: Digital
Deadband: 2 μs
Neutral Position: 1520 μs

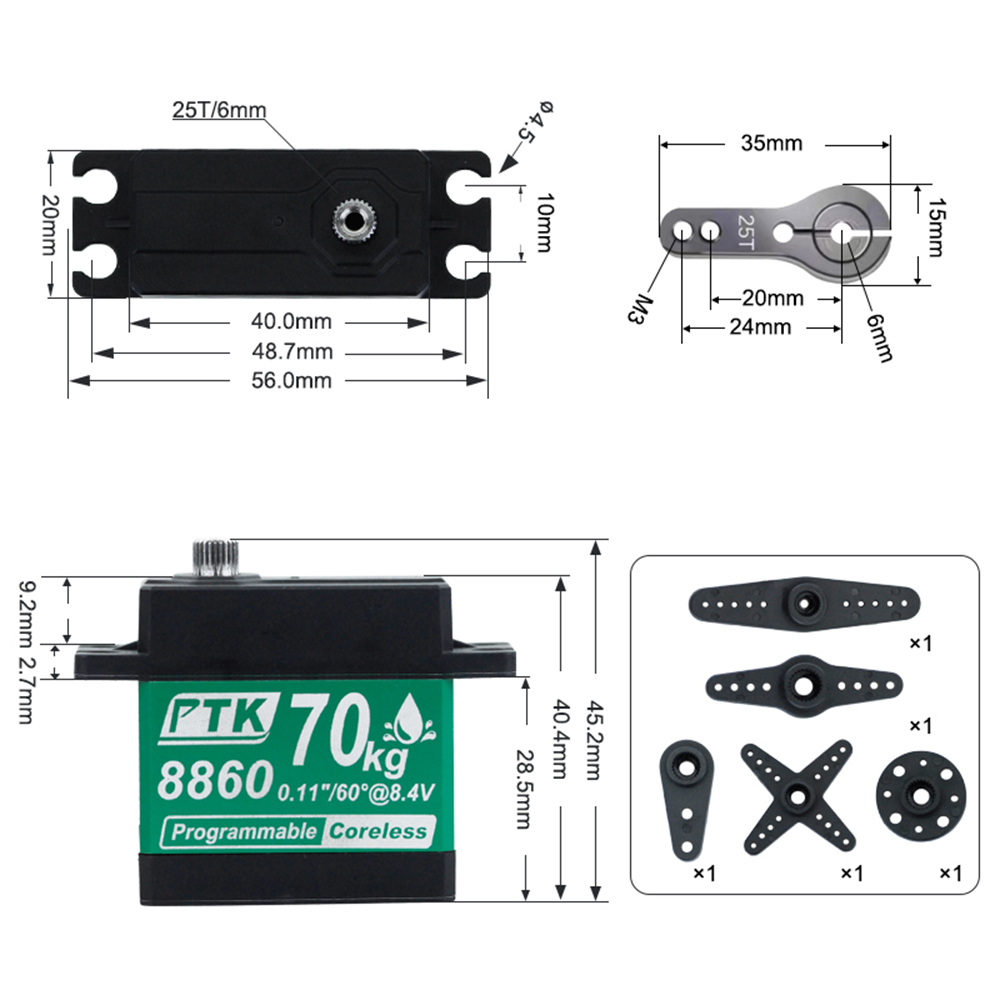

Dimensions: 40 × 20 × 40 mm
Bearing: Dual Ball Bearings
Operating Voltage: 6.0 V ~ 8.4 V
Lead Length: JR 300 mm
Running Current: 7.4 V / 155 mA
Motor Type: Coreless
Running Speed:
0.154 s/60° @ 6.0 V
0.125 s/60° @ 7.4 V
0.110 s/60° @ 8.4 V
Stall Torque:
52 kg·cm @ 6.0 V
60 kg·cm @ 7.4 V
70 kg·cm @ 8.4 V

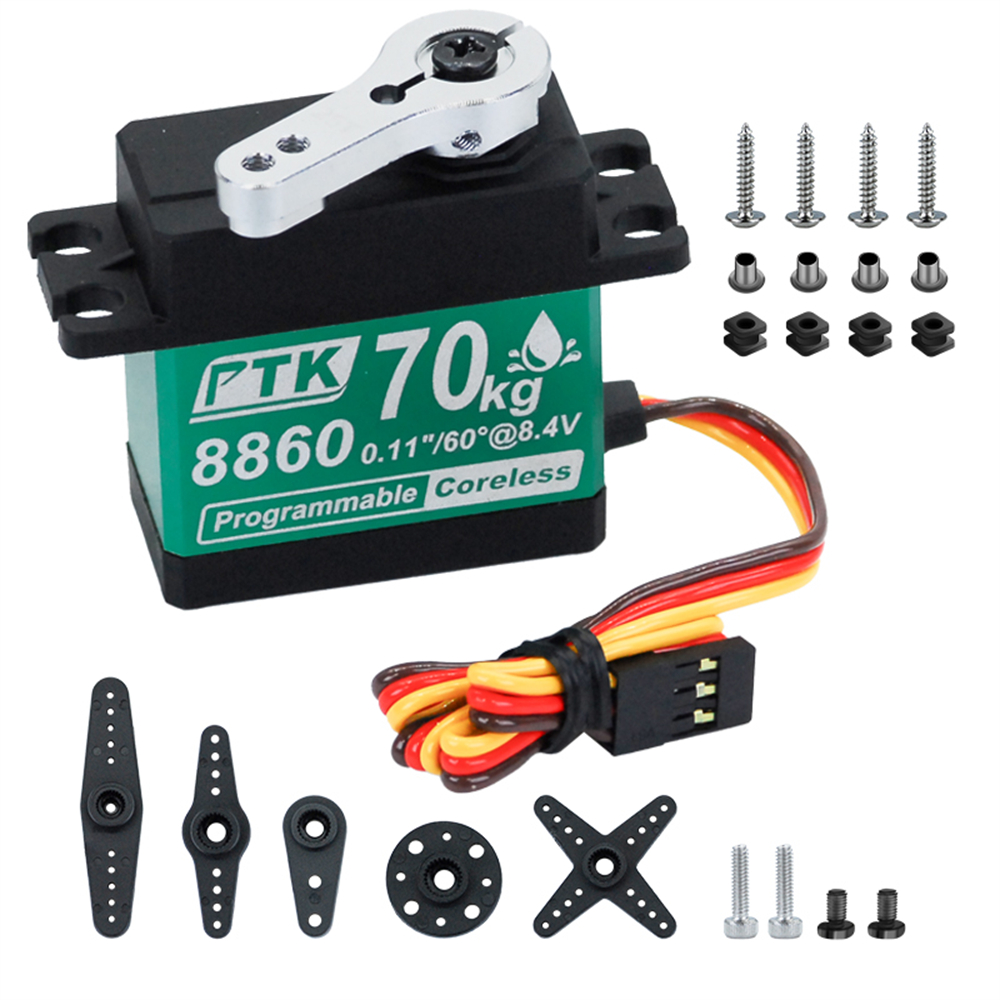

Package included:
1 x RC Servo
