Description

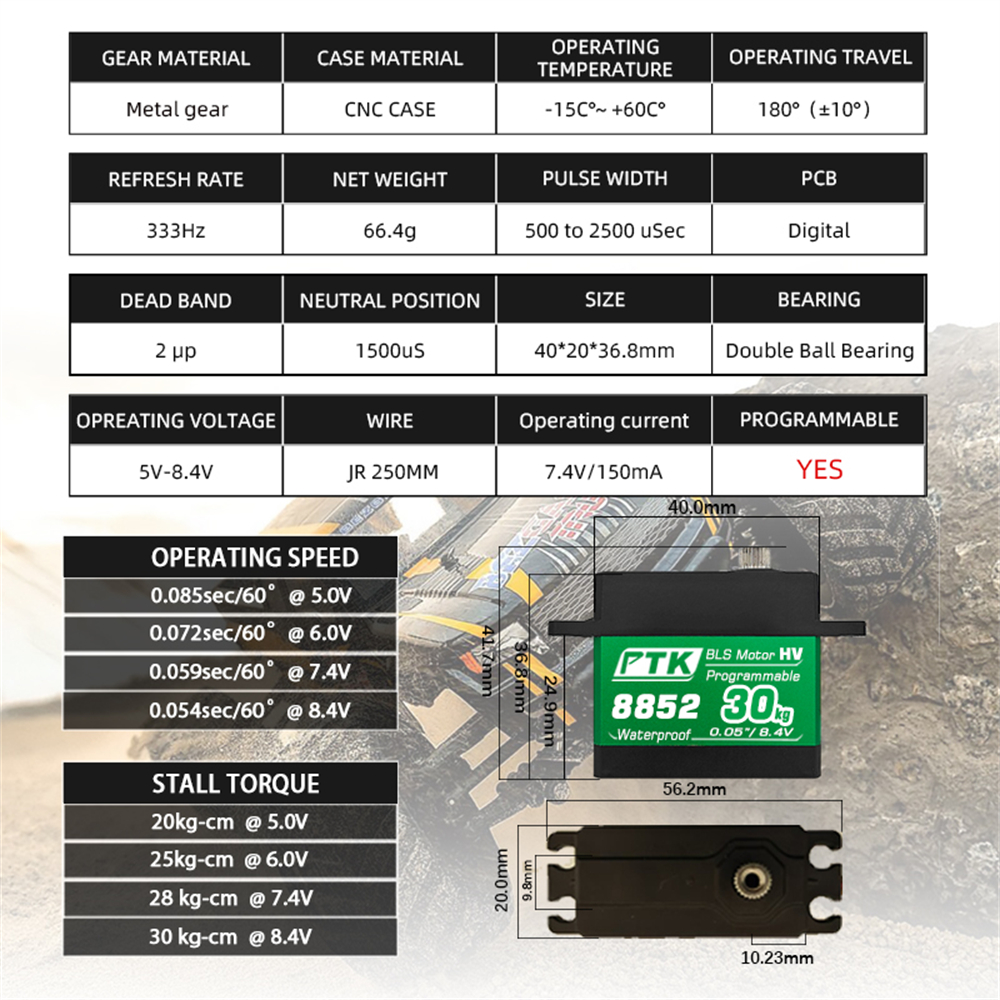

Specification:
Brand: PTK
Model: 8852 MG-D

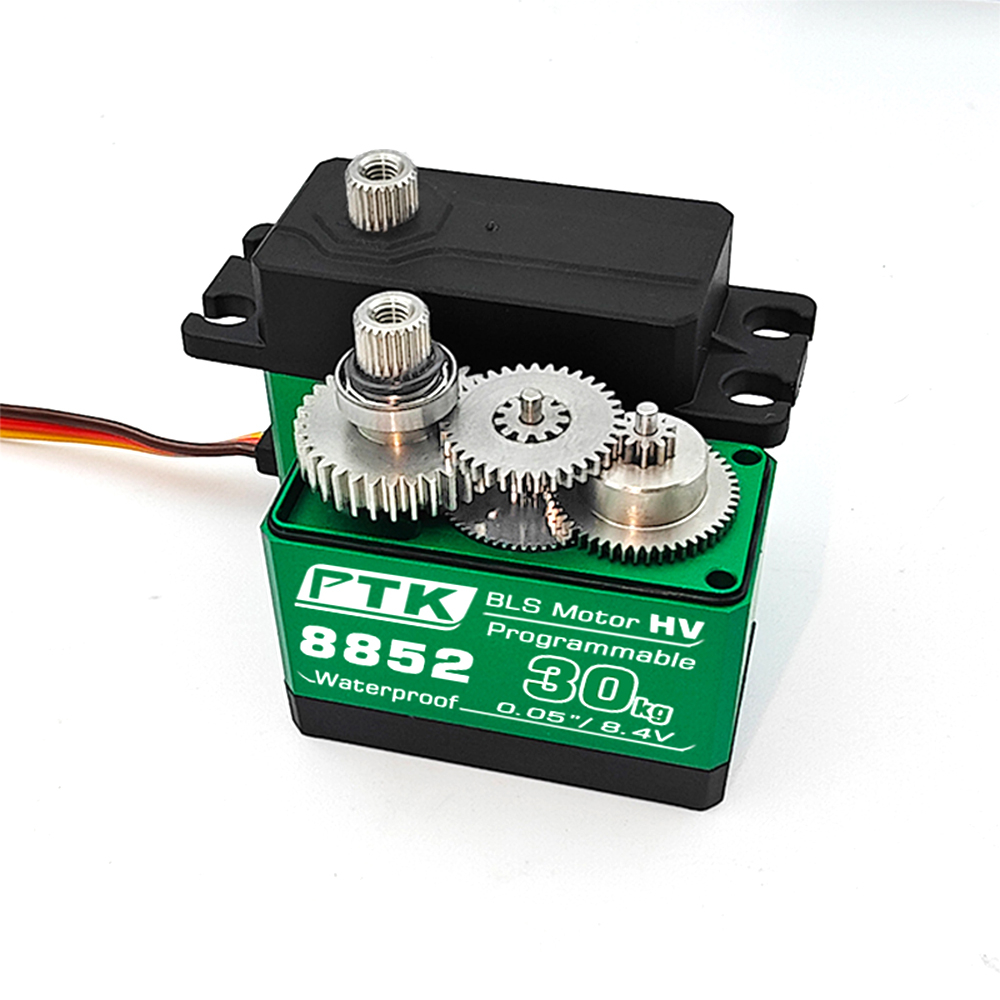

Gear Material: Metal Gear
Case Material: CNC Case
Operating Temperature: −15°C to +60°C
Operating Travel: 180° (±10°)
Refresh Rate: 333 Hz
Net Weight: 66.4 g
Pulse Width: 500 to 2500 μs
PCB: Digital
Dead Band: 2 μs
Neutral Position: 1500 μs
Size: 40 × 20 × 36.8 mm
Bearing: Double Ball Bearing
Operating Voltage: 5 V-8.4 V
Wire: JR 250 mm
Operating Current: 7.4 V / 150 mA
Programmable: Yes
Operating Speed:
0.085 s/60° @ 5.0 V
0.072 s/60° @ 6.0 V
0.059 s/60° @ 7.4 V
0.054 s/60° @ 8.4 V
Stall Torque:
20 kg·cm @ 5.0 V
25 kg·cm @ 6.0 V
28 kg·cm @ 7.4 V
30 kg·cm @ 8.4 V

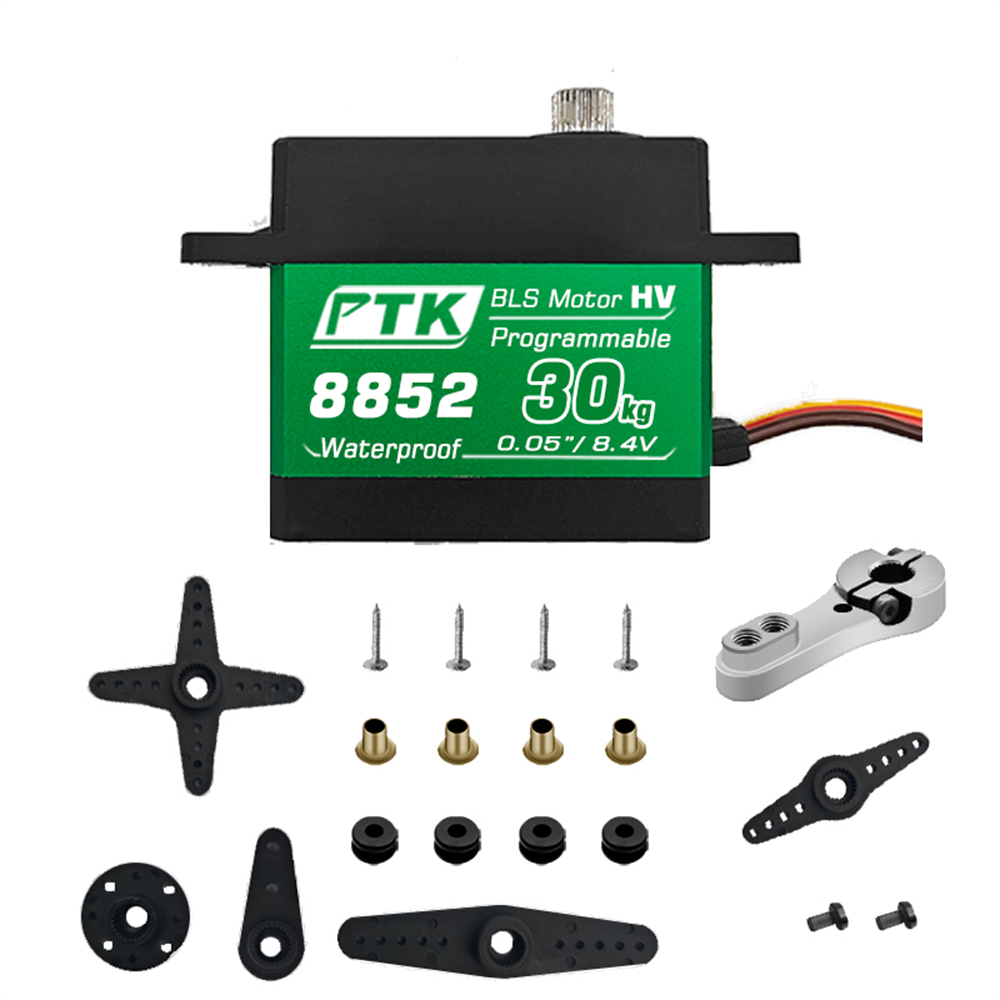

Package included:
1 x RC Servo
