PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
Roll over image to zoom in Click on image to zoom
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model
PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model

PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model

Save R 129.61
Isaiah 55:8-9 John 3:16 Philippians 4:19
Color: Black
Price:
R 398.70 R 528.31
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:
Control Signal: PWM
Working Frequence: 1520μs/333Hz
Default Travel Angle: 500μs/1500μs/2500μs (-90°/0°/+90°)
Operating Voltage: DC 4.8V-8.4V
Test Voltage: 5.0V / 6.0V / 7.4V / 8.4V
Stall Torque: 3.8 Kg.cm / 4.5 Kg.cm / 5.5 Kg.cm / 5.8 Kg.cm
No-load speed: 0.11 sec/60° / 0.092 sec/60° / 0.075 sec/60° / 0.07 sec/60°
No-load current: 46 mA / 53 mA / 56 mA / 63 mA
Stall current: 1 A / 1.15 A / 1.4 A / 1.6 A
Dead band: 2μs
Dead band: 25T Φ4.9
Servo lead length: 245mm (±5mm)，9.64 in
Type of motor: Coreless Motor

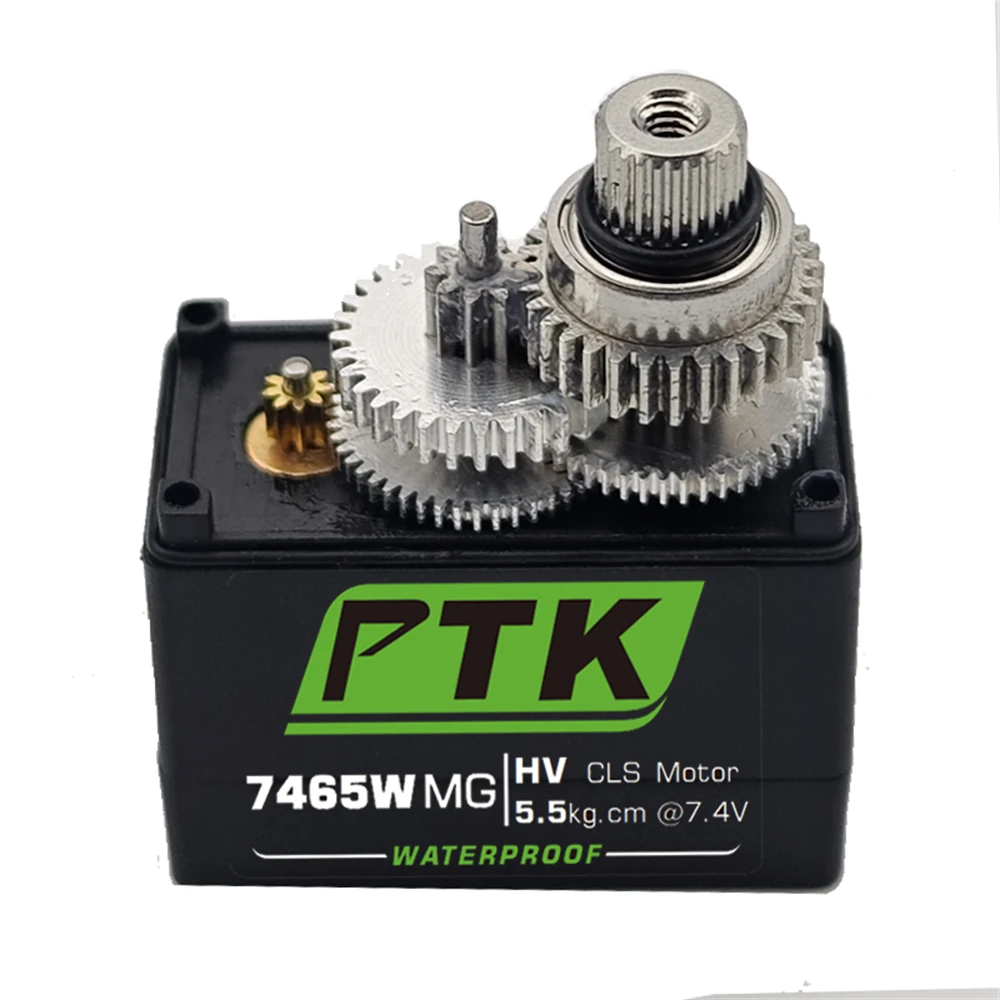

Gear material: Aluminum 7075
PCB type: Digital
Appearance dimension: 23.9*12*26.6 mm， 0.94*0.47*1.04 in
Weight: 12g (±0.5g)，0.42 oz
Bearing: 1BB

Package included:
1x 9g Digital Waterproof RC Servo
