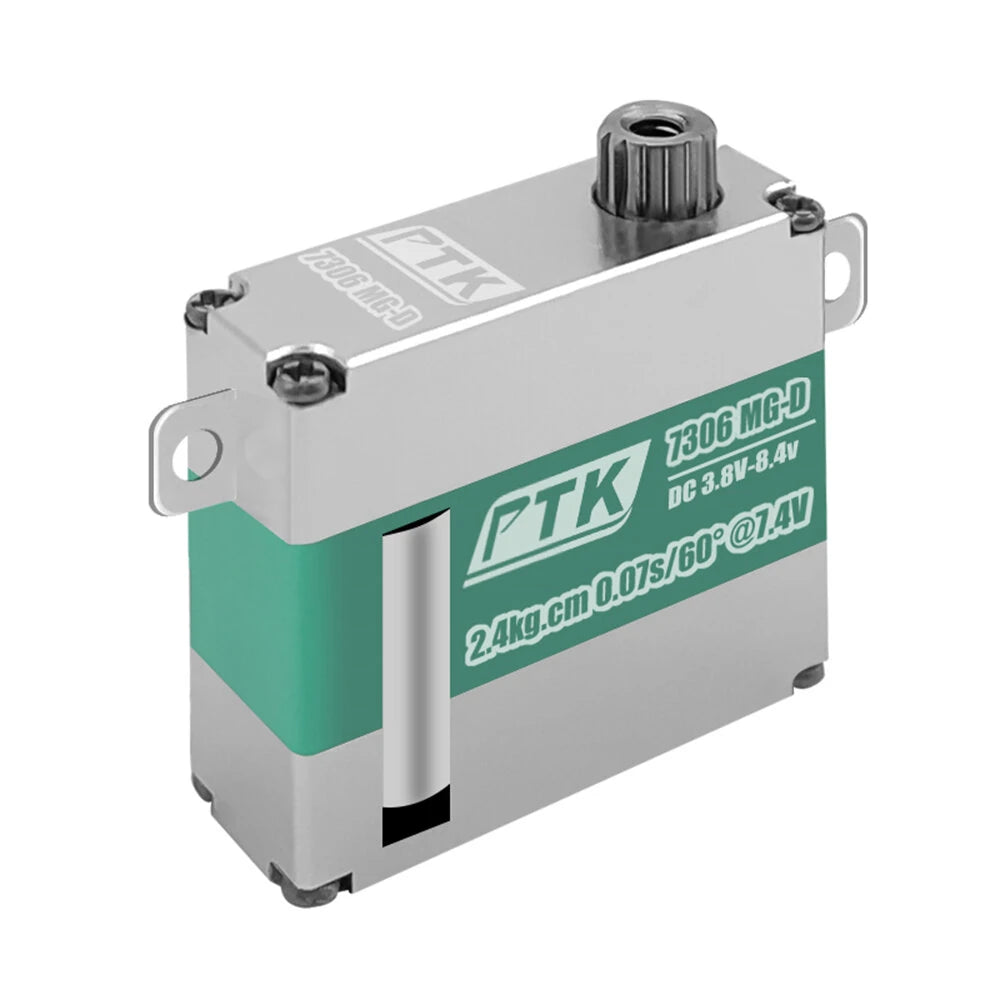

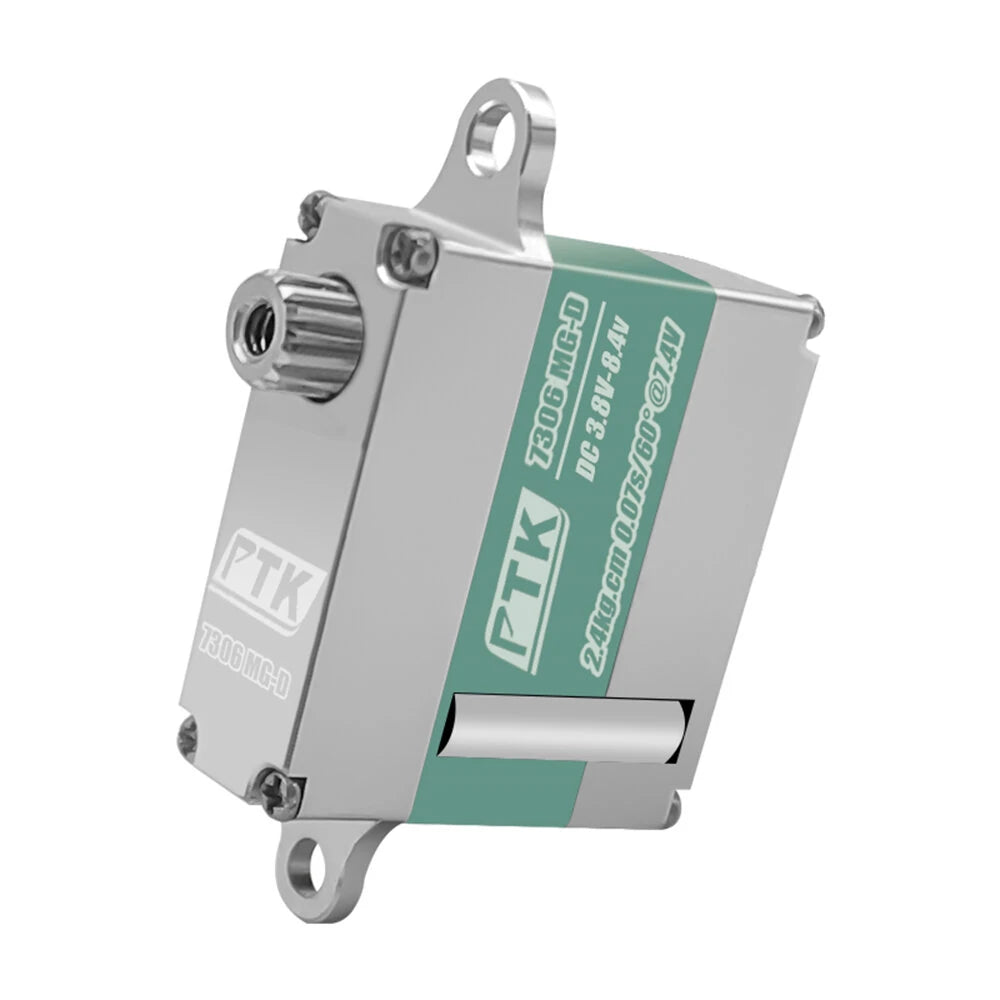

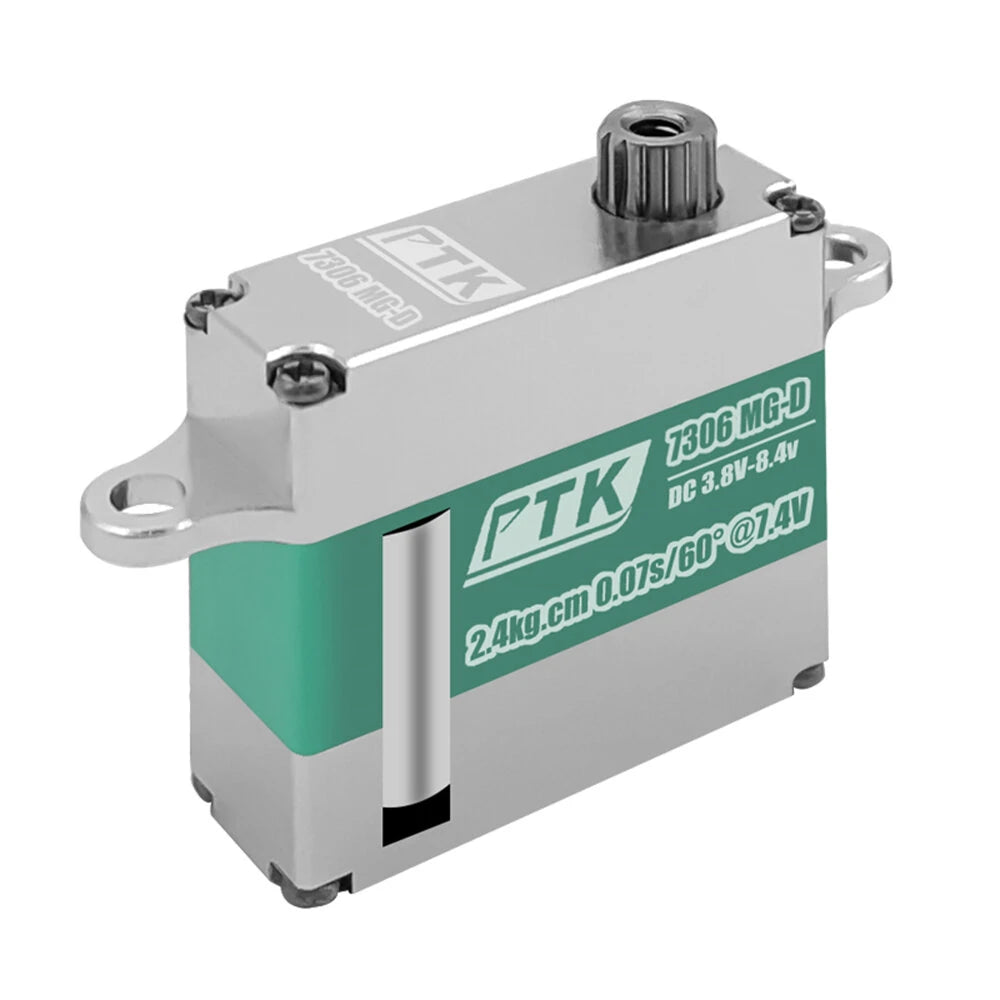

PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
Roll over image to zoom in Click on image to zoom
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model
PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model

PTK 7306 MG-D 7g Full Metal Digital RC Servo for Fixed Wing Airplane Model

Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: PTK 7306 MG-D
Price:
R 909.70 R 1,374.55
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

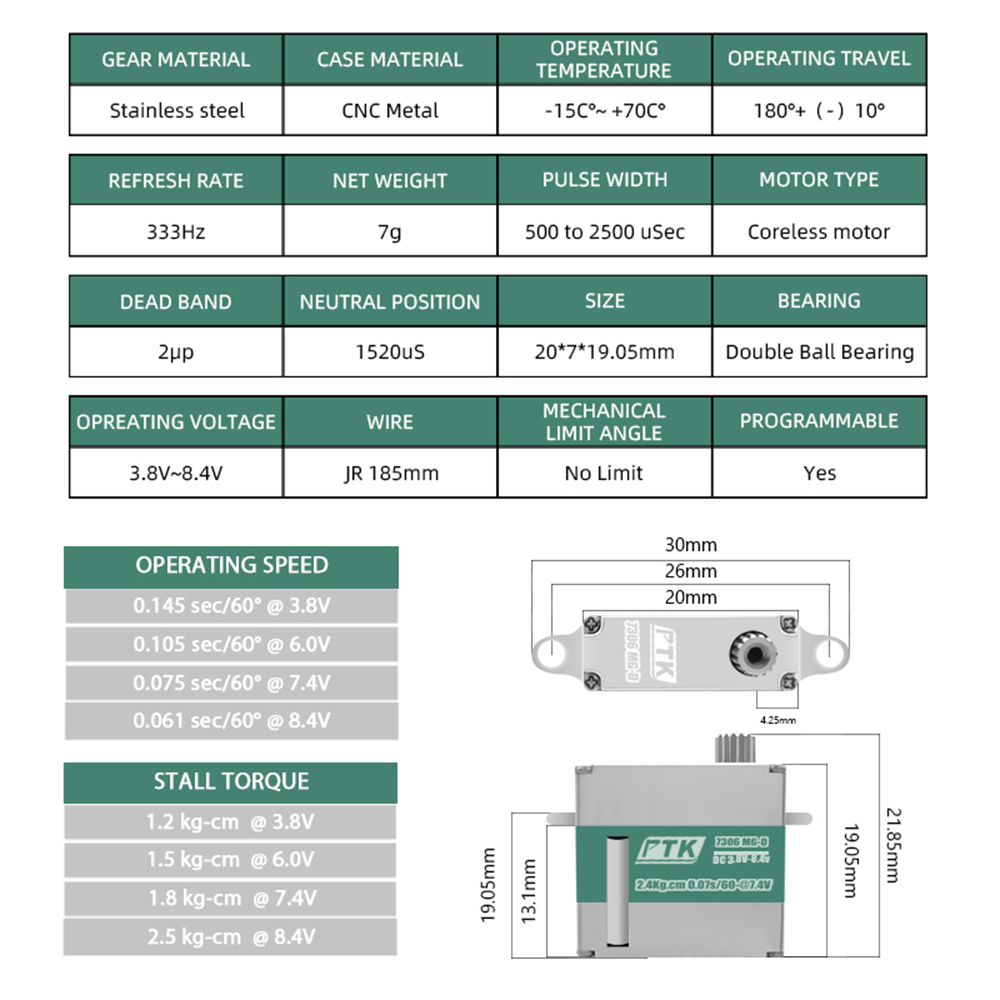

Specification:
Brand: PTK
Model: 7306 MG-D
Type: 7306 7306H 7306N
Gear Material: Stainless Steel
Case Material: CNC Metal
Operating Temperature: -15°C~+70°C
Operating Travel: 180° ± 10°
Refresh Rate: 333Hz
Net Weight: 7g
Pulse Width: 500 to 2500 μSec
Motor Type: Coreless Motor
Dead Band: 2μp
Neutral Position: 1520 μSec

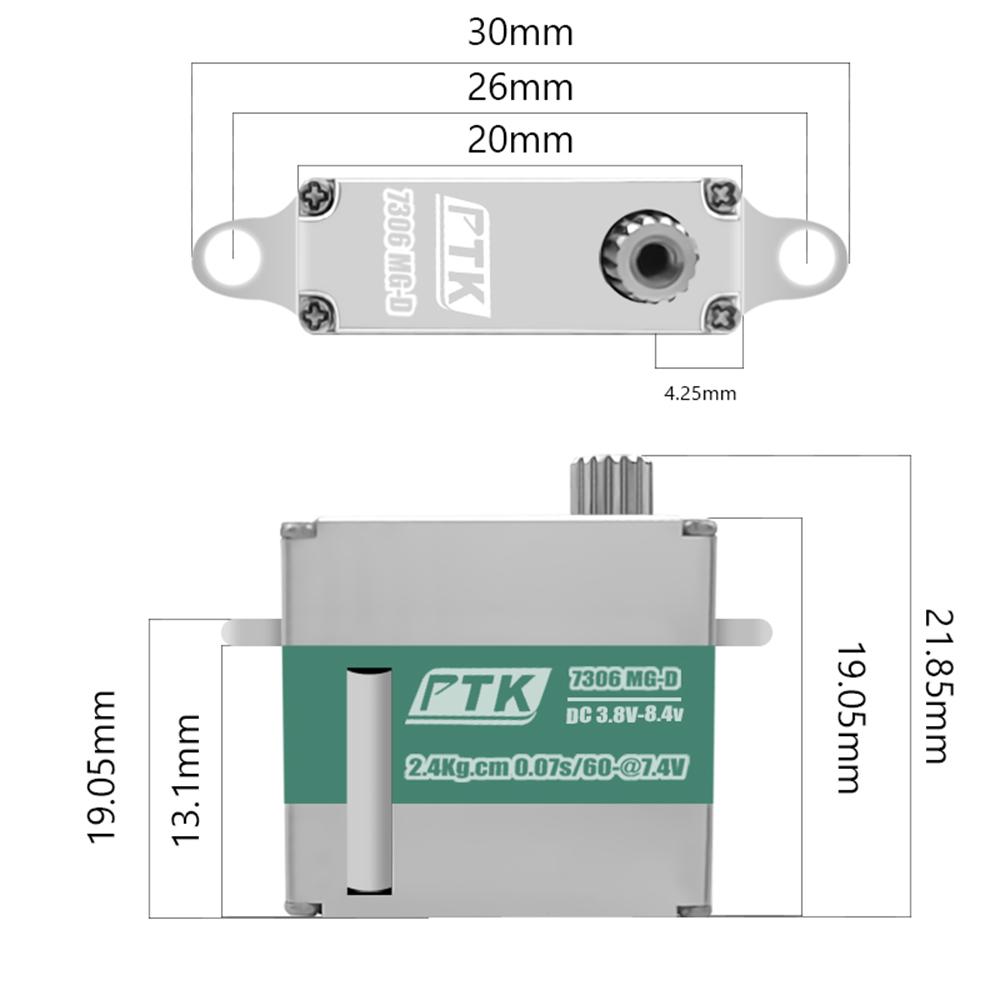

Size: 20x7x19.05mm
Bearing: Double Ball Bearing
Operating Voltage: 3.8V~8.4V
Wire: JR 185mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.145 sec/60° @ 3.8V
0.105 sec/60° @ 6.0V
0.075 sec/60° @ 7.4V
0.061 sec/60° @ 8.4V
Stall Torque:
1.2 kg-cm @ 3.8V
1.5 kg-cm @ 6.0V
1.8 kg-cm @ 7.4V
2.5 kg-cm @ 8.4V

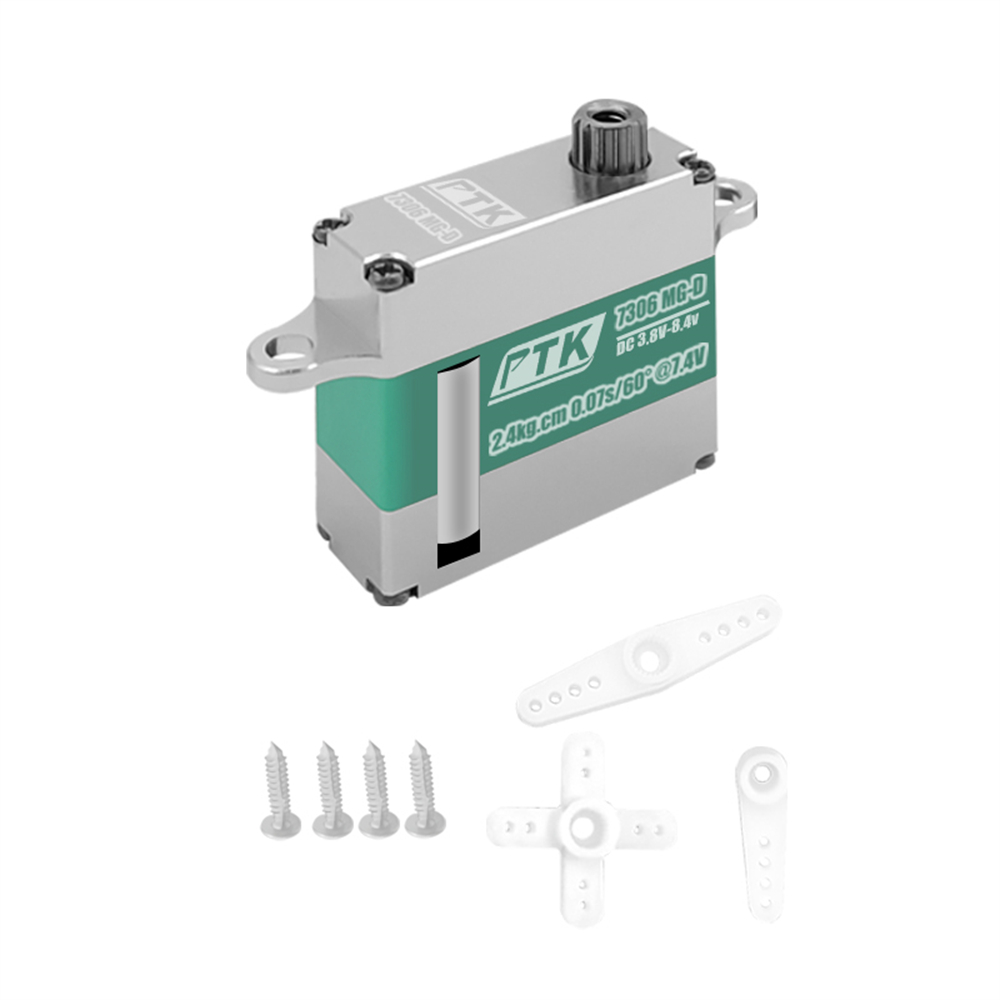

Package included:
1 x RC Servo
