Description
Specifications:

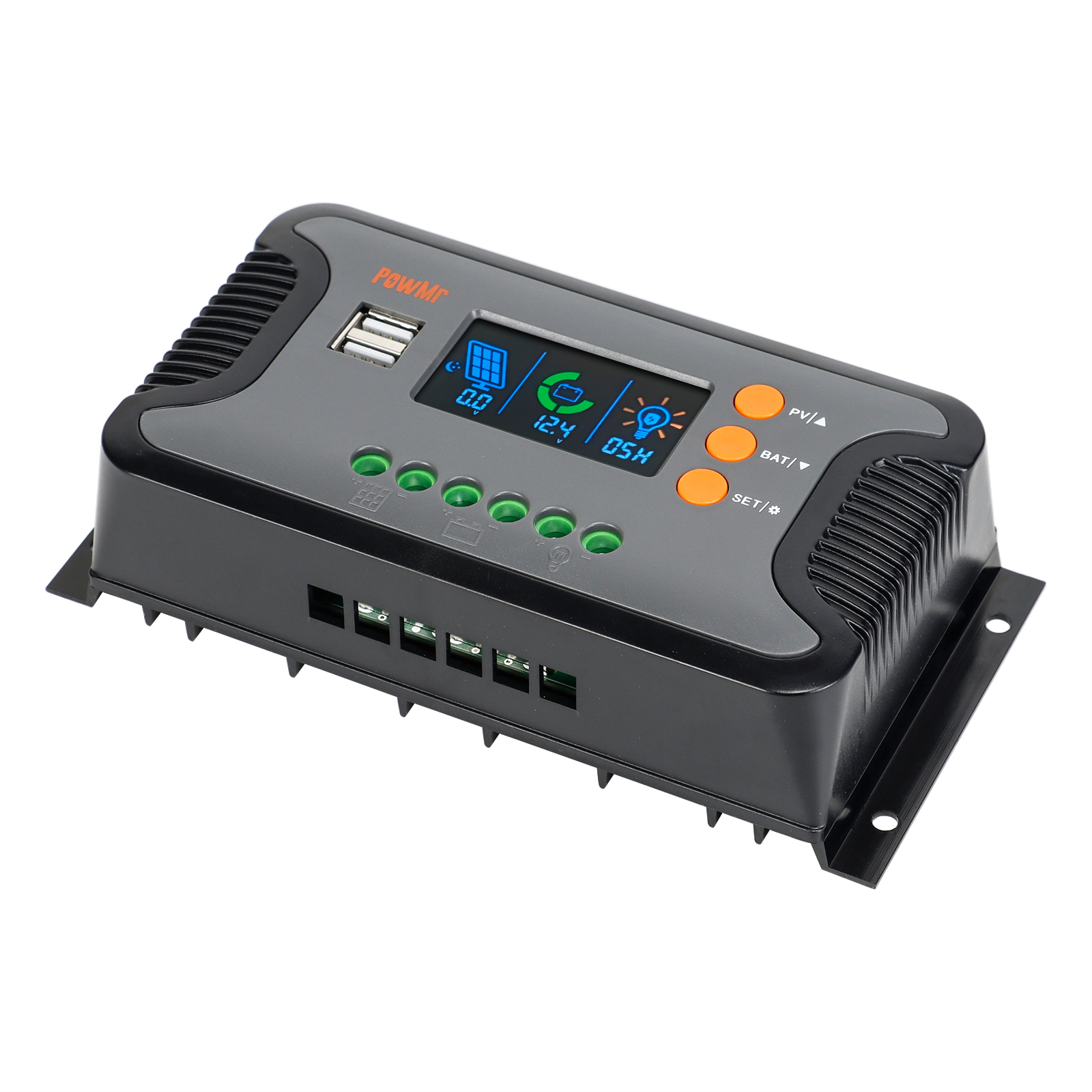

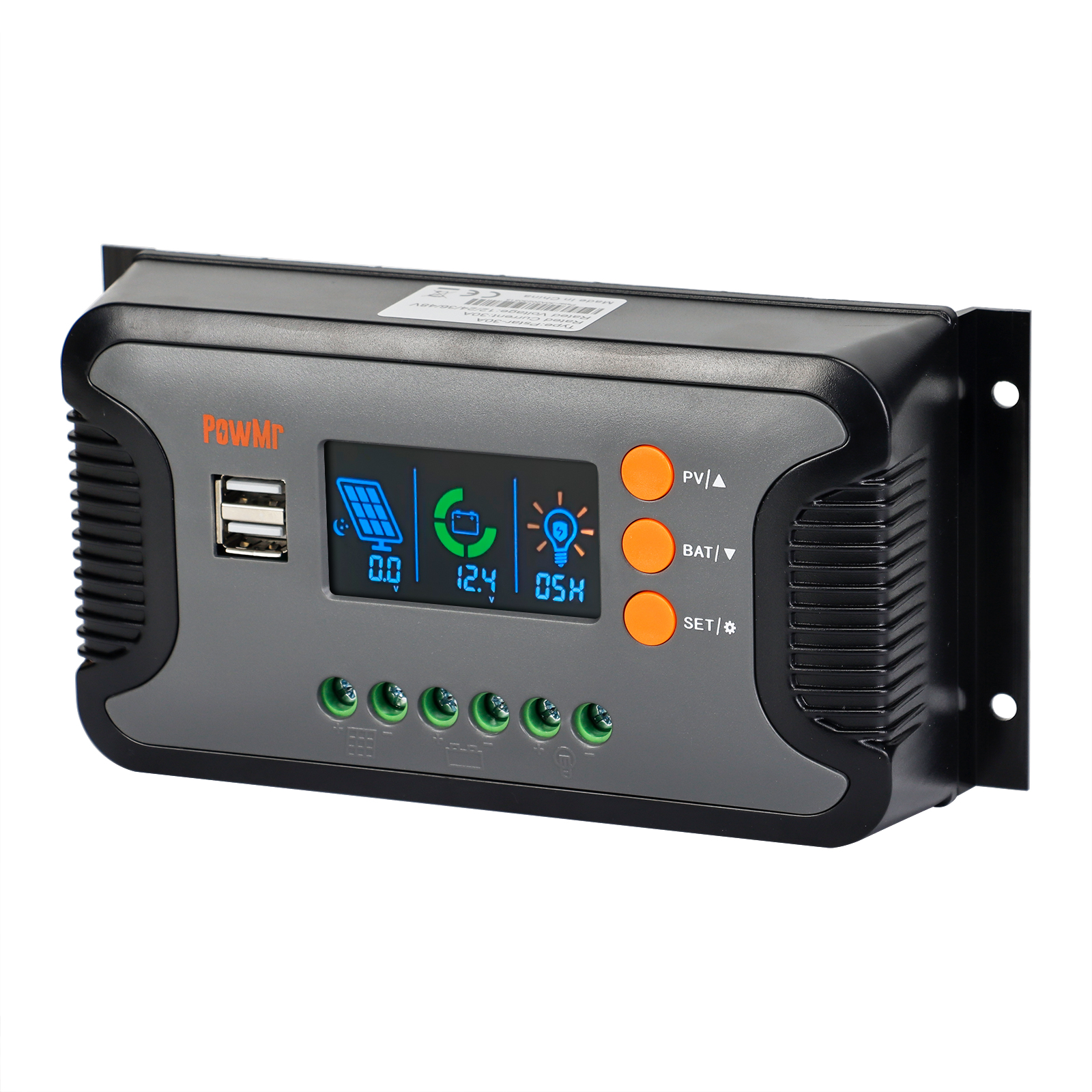

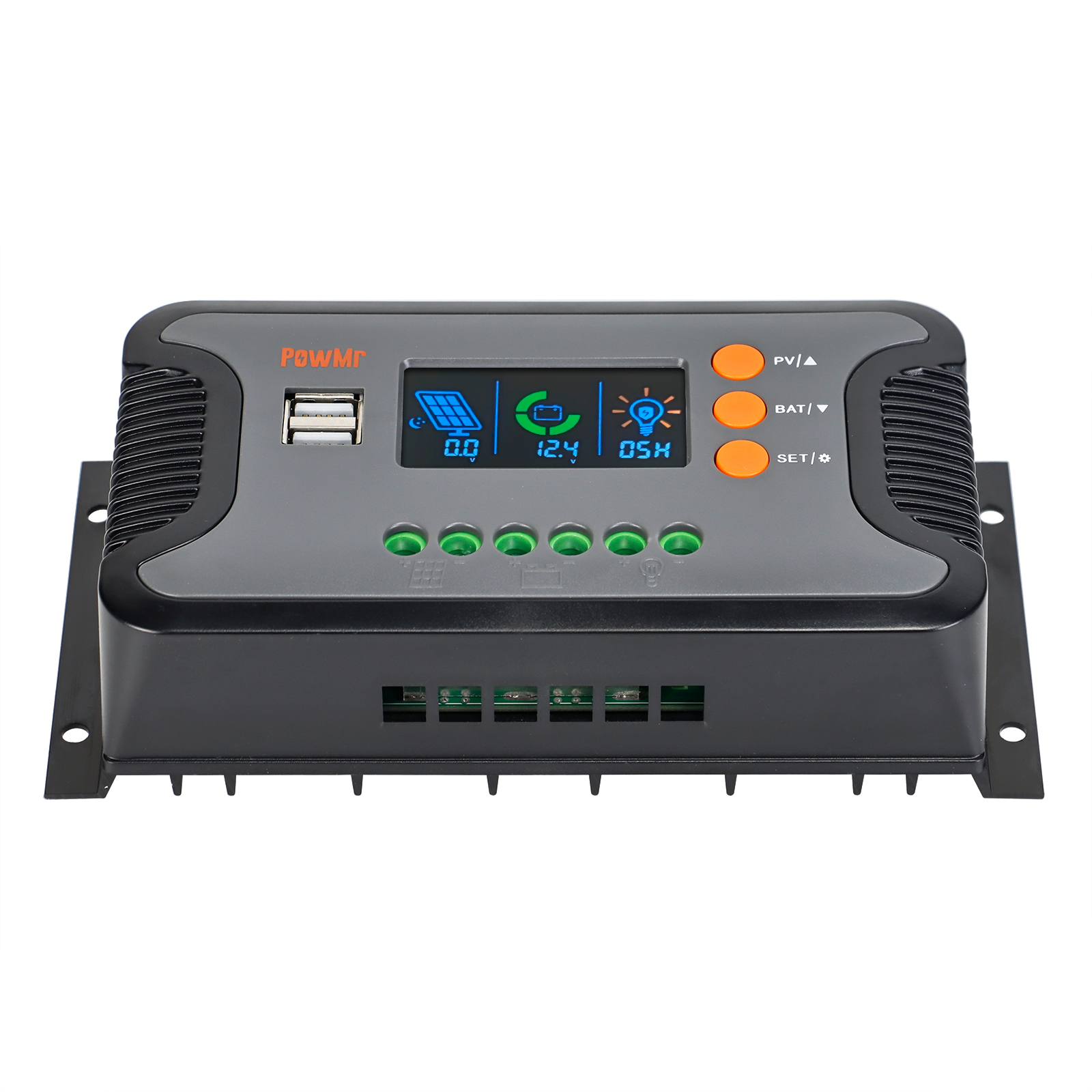

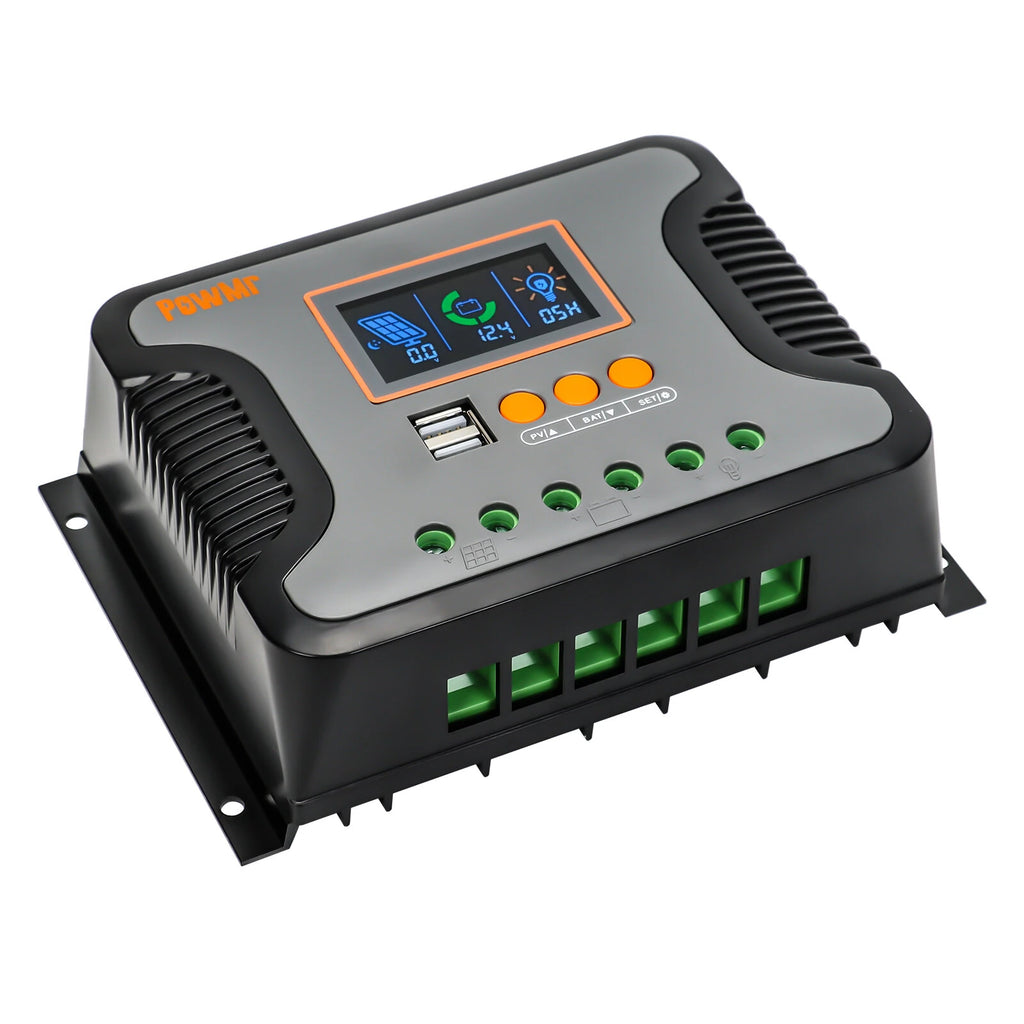

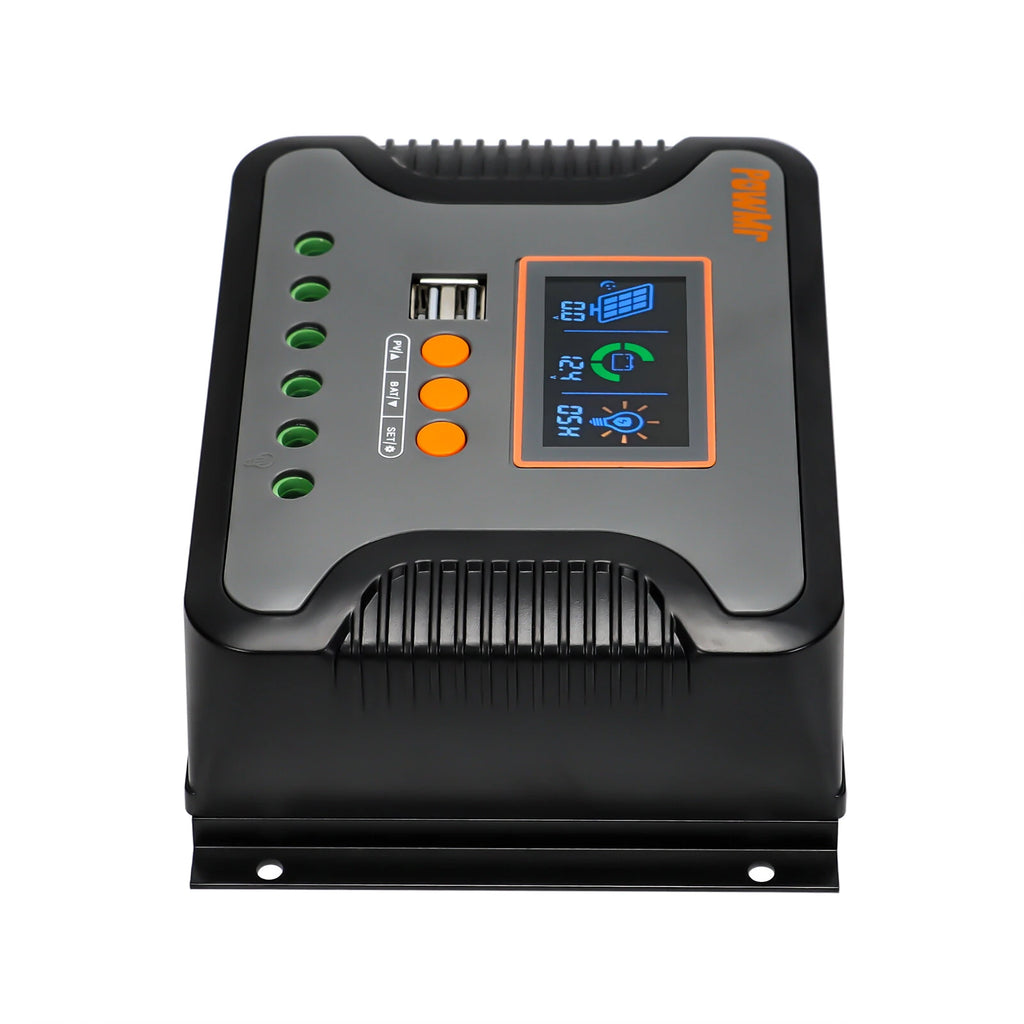

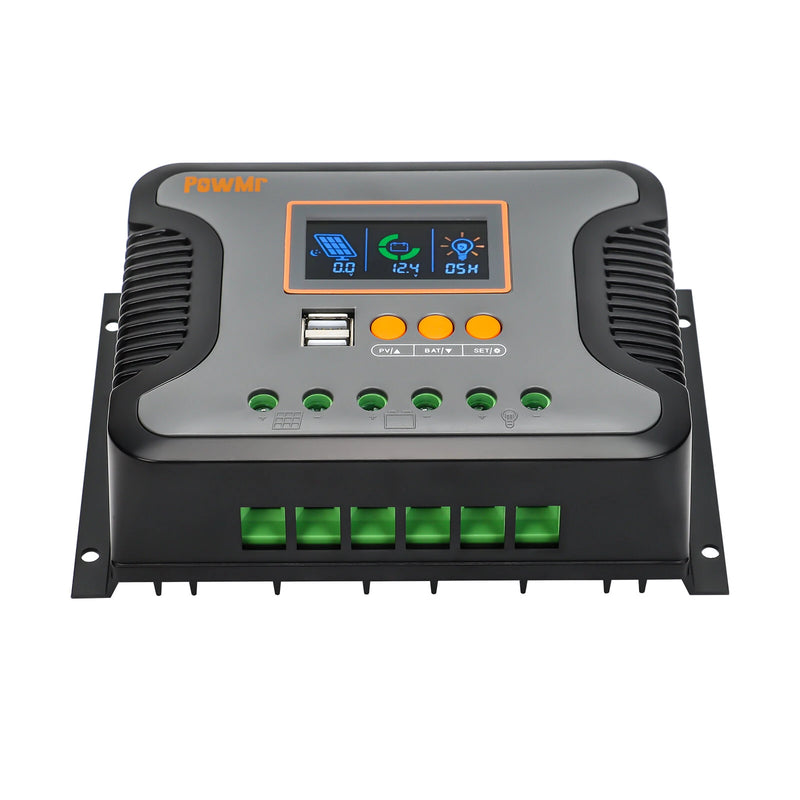

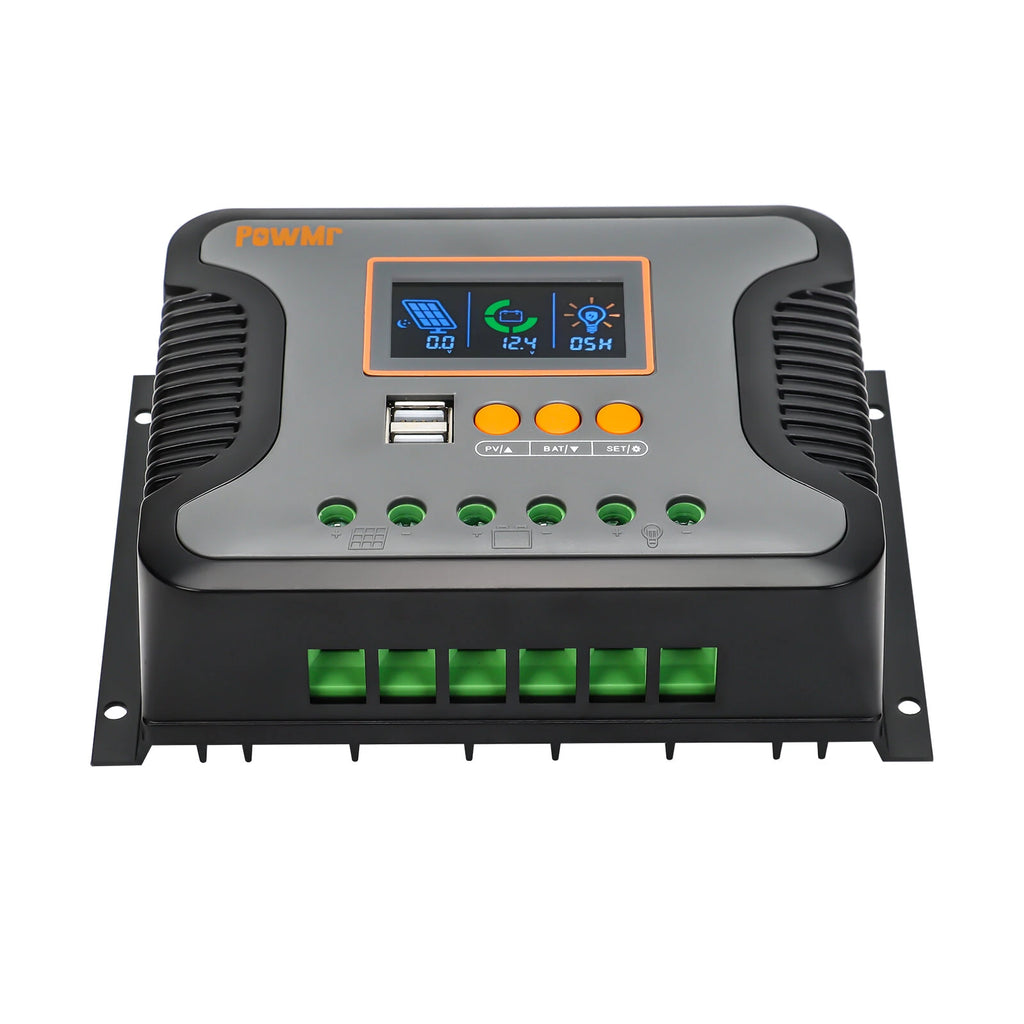

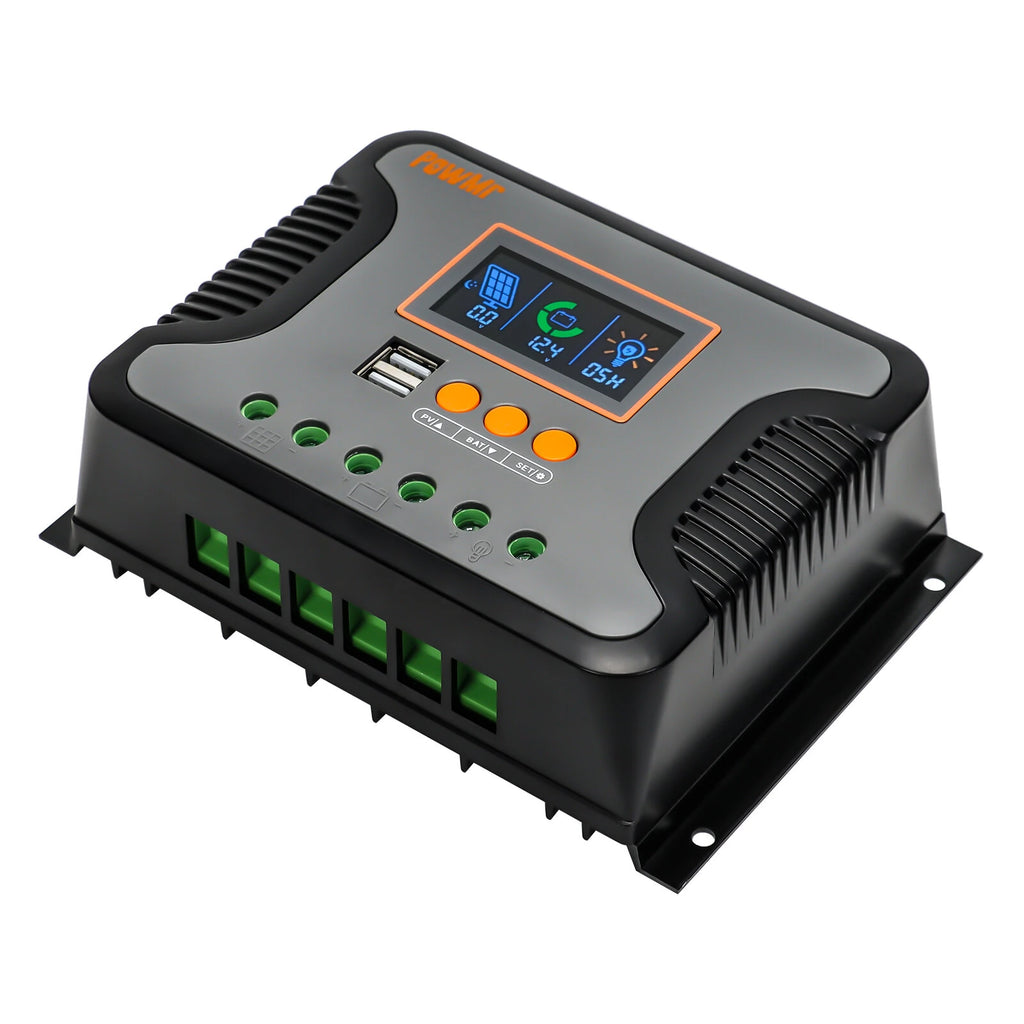

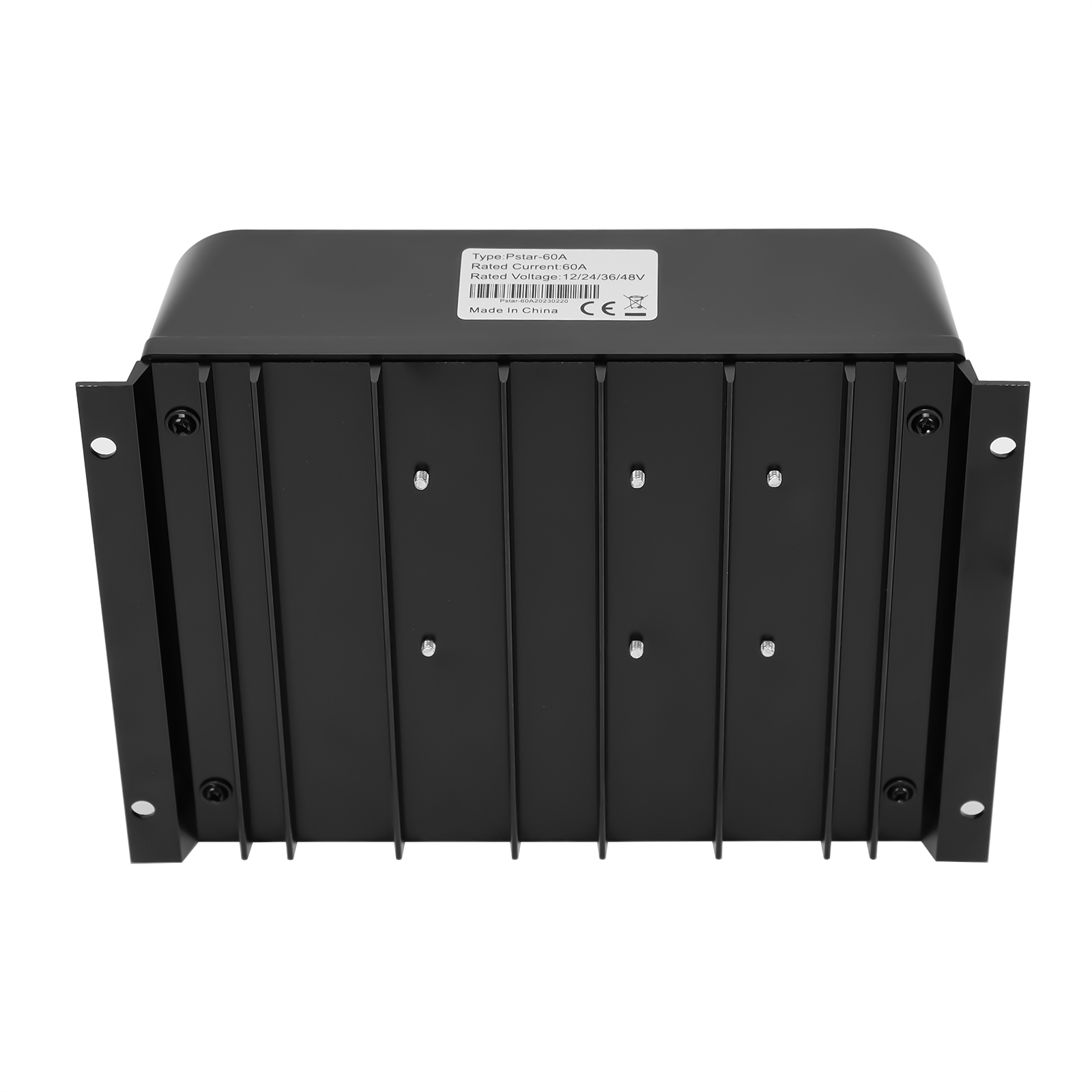

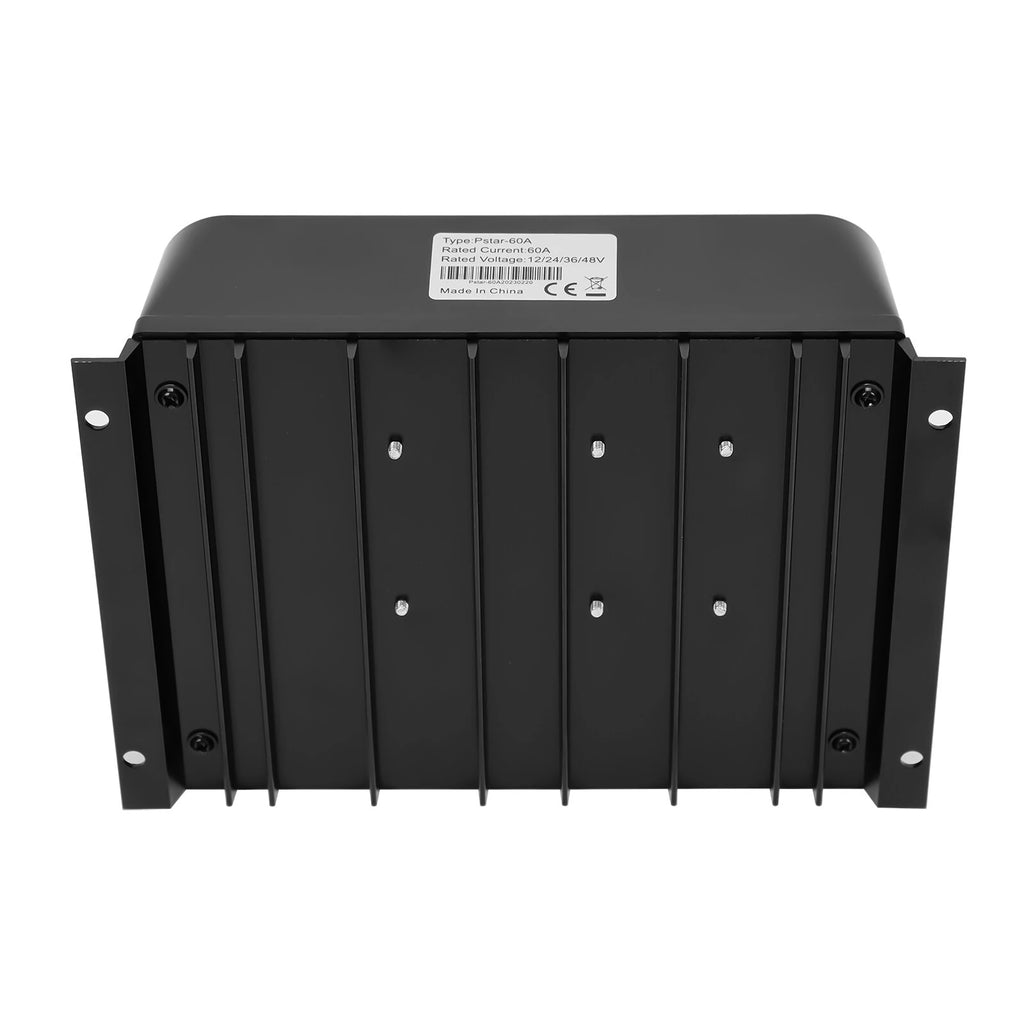

Model: Pstar-30A / Pstar-60A / Pstar-80A
Charge Type: PWM
Rated Charge Current: 30A / 60A / 80A
Rated Output Current: 20A / 35A / 55A
Battery Voltage: 12V/24V/36V/48V
Maximum Input Power:
Pstar-30A: 12V=360W, 24V=720W, 36V=1080W, 48V=1440W
Pstar-60A: 12V=720W, 24V=1440W, 36V=2160W, 48V=2880W
Pstar-80A: 12V=960W, 24V=1920W, 36V=2880W, 48V=3840W
Max Solar Panel Open Circuit Voltage: 100V
Battery Types Supported: Lead-acid / Lithium (14 types)
Lithium Battery Activation: Built-in activation function
Battery Voltage Calibration: Manual
USB Port: 5V/2A x 2
Protection Level: IP30

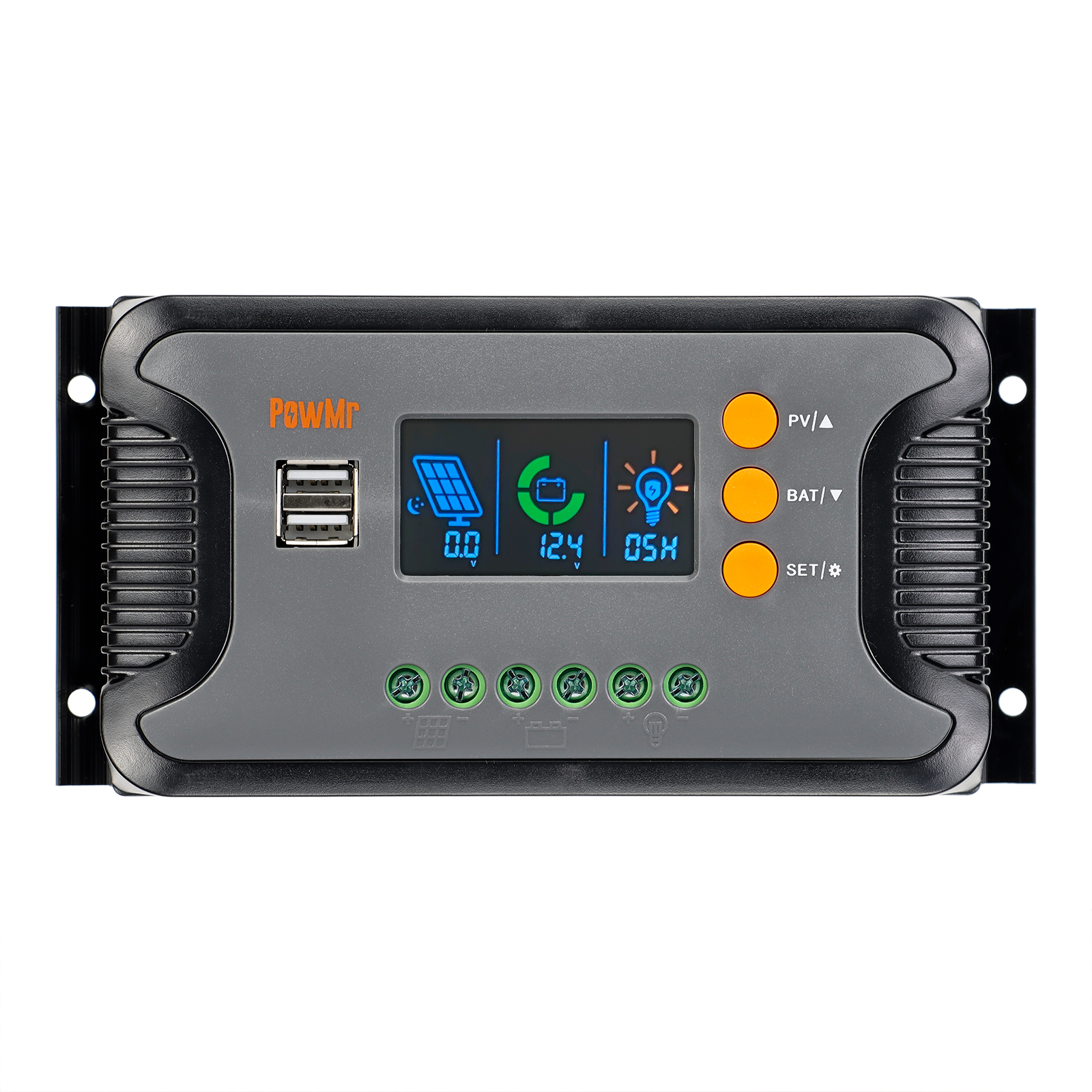

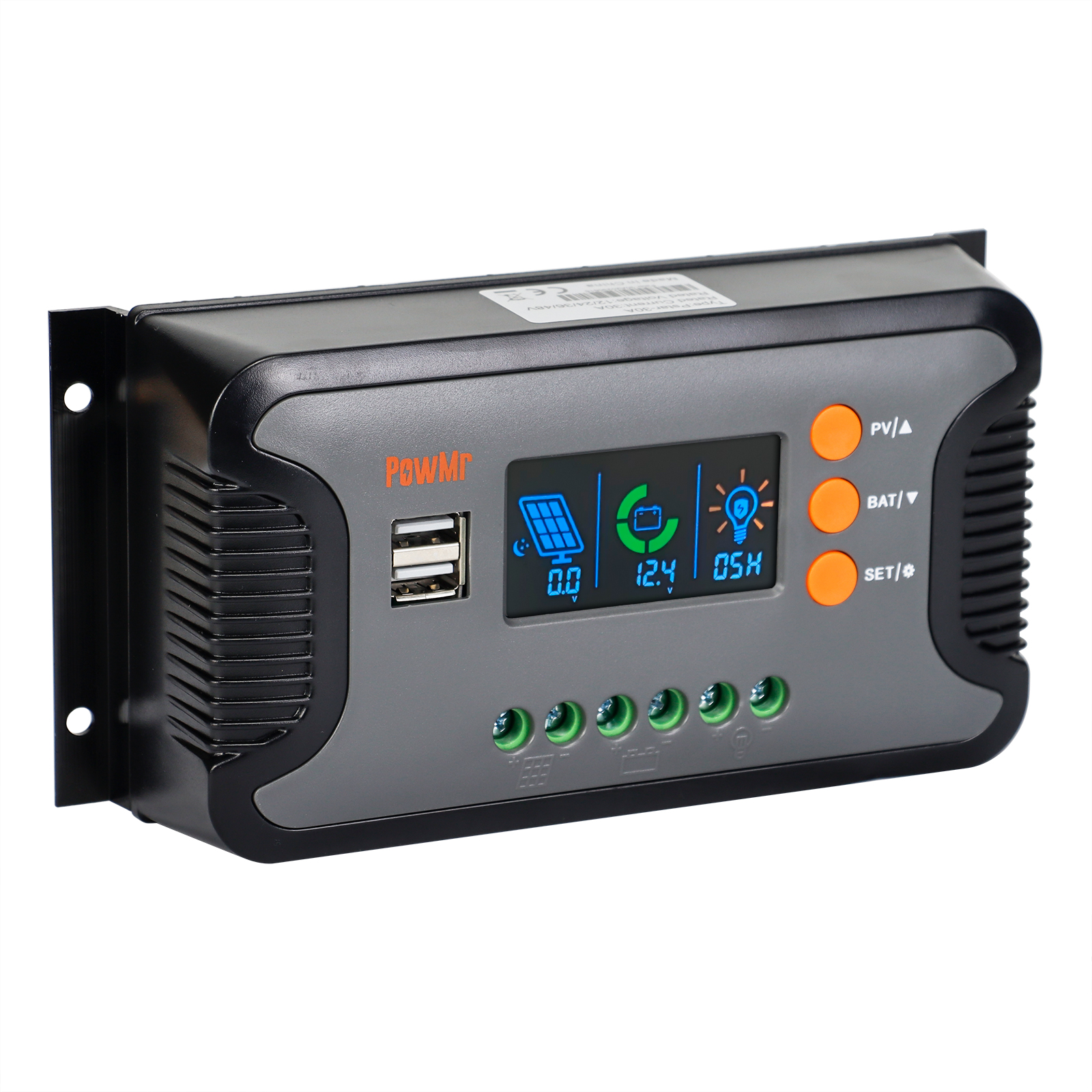

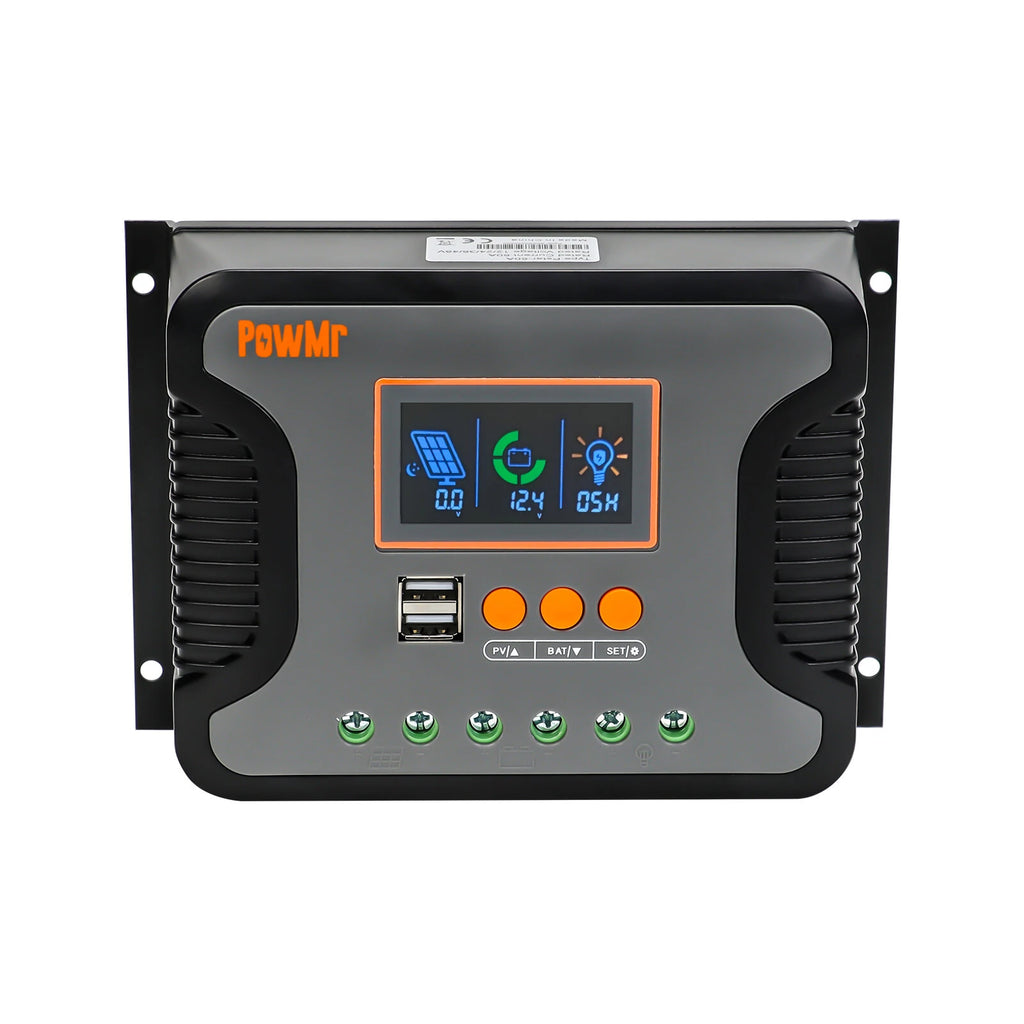

Screen Type: LCD with anti-glare backlight

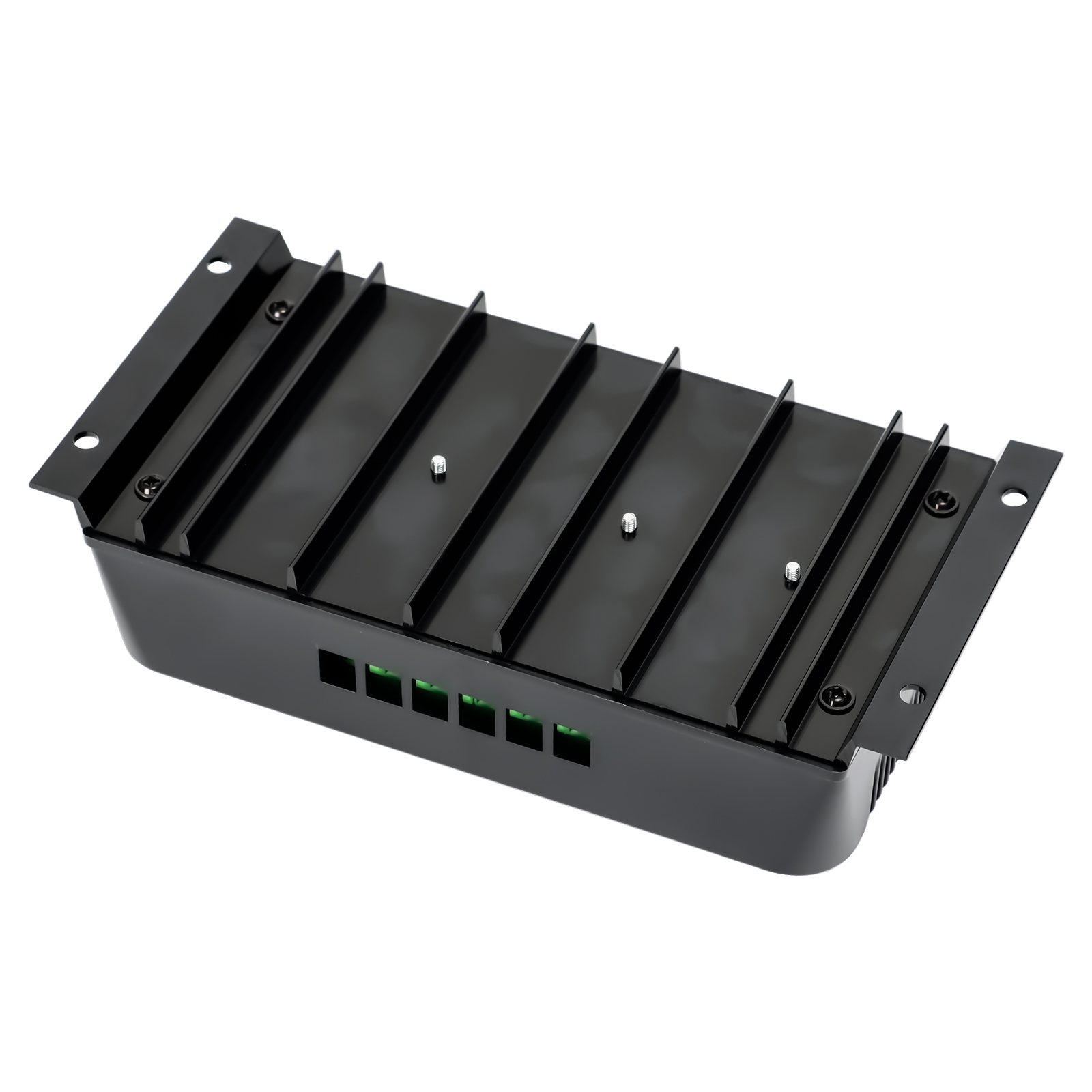

Cooling Method: Heat sink, self-cooling
Features:
Versatile Voltage Compatibility: Supports a wide range of battery voltages (12V, 24V, 36V, 48V) for various solar power setups.
High Current Handling: Models with a maximum rated charge current of up to 80A to meet diverse energy needs.
USB Charging Ports: Dual 5V/2A USB ports for convenient charging of mobile devices directly from the controller.
User-friendly Interface: Comes with a clear LCD screen that features an anti-glare backlight, making it easy to monitor system status.
Comprehensive Protection: Equipped with multiple protection features such as reverse polarity protection, over-charge, over-discharge, short circuit, and over-temperature protection.
Package Included:
Type A:
1 x PWM Solar Controller (30A)
Type B:
1 x PWM Solar Controller (60A)
Type C:
1 x PWM Solar Controller (80A)
mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
10 x Plugs
