Description

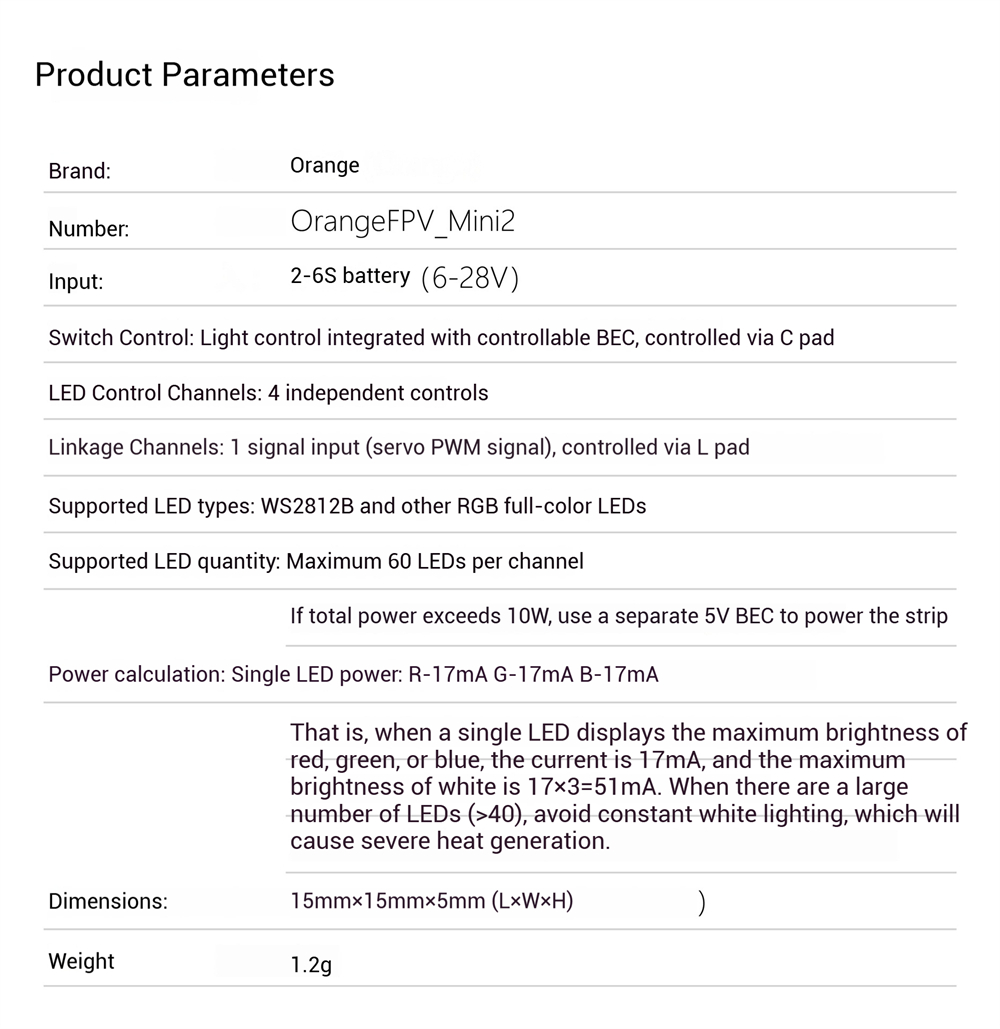

Specification:
Brand: OrangeFPV

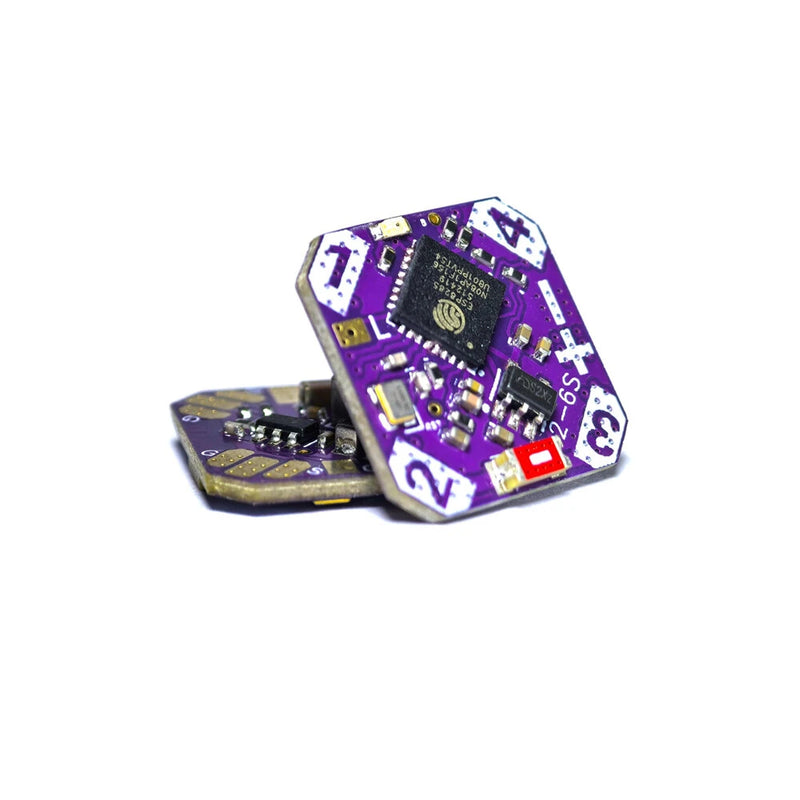

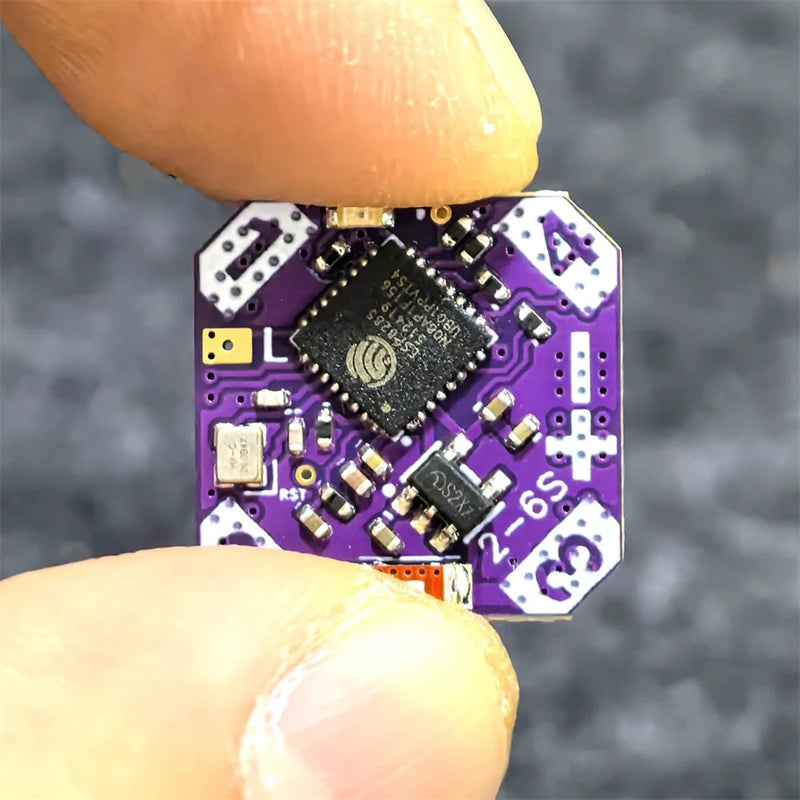

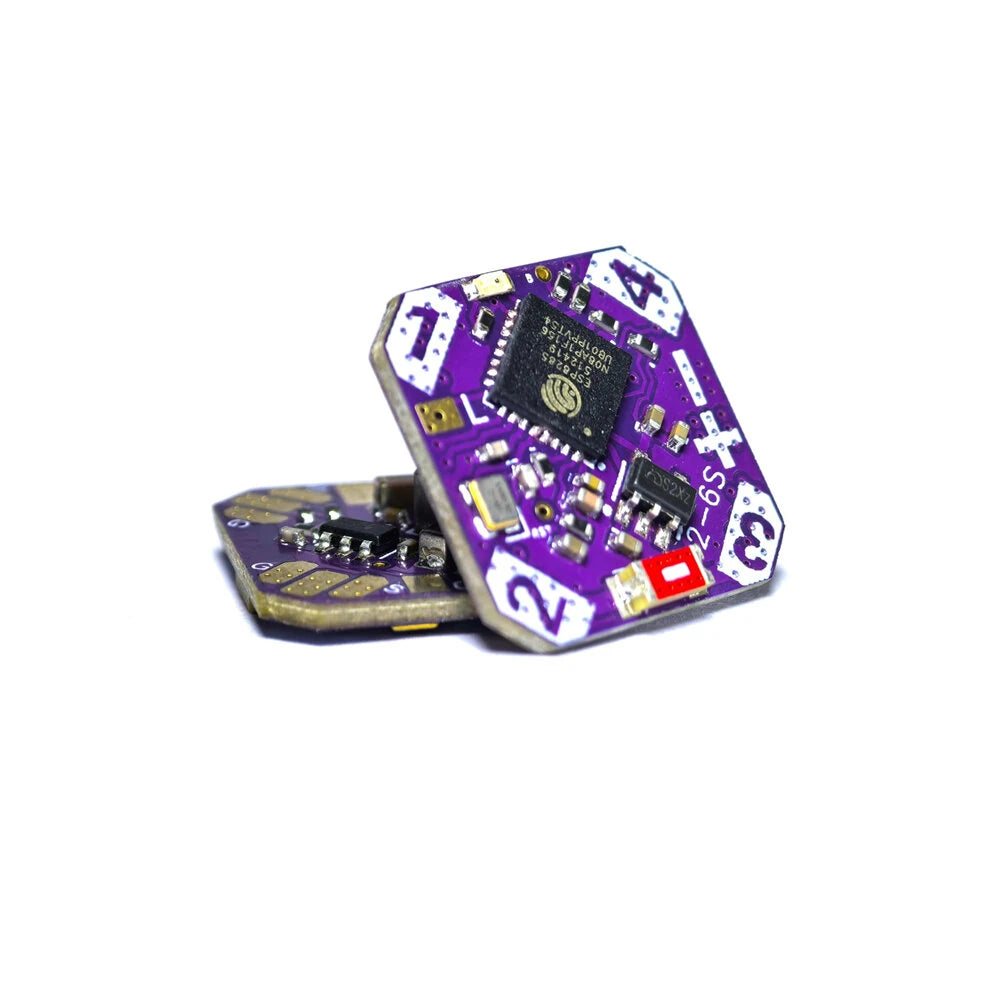

Model: Mini RGB LED Controller
Input: 2-6S Battery (6-28V)
Switch Control: Integrated Light Control BEC, Controlled Via C Circuit Board
LED Control Channels: 4 Independent Channels
Link Channels: 1 Signal Input (Drone PWM Signal), Controlled Via Circuit Board
Supported LED Bead Model: WS2812B RGB Full-Color LED Beads
Supported LED Bead Quantity: Up To 60 Beads Per Route
Power Calculation: Single LED Bead Power: R-17mA G-17mA B-17mA

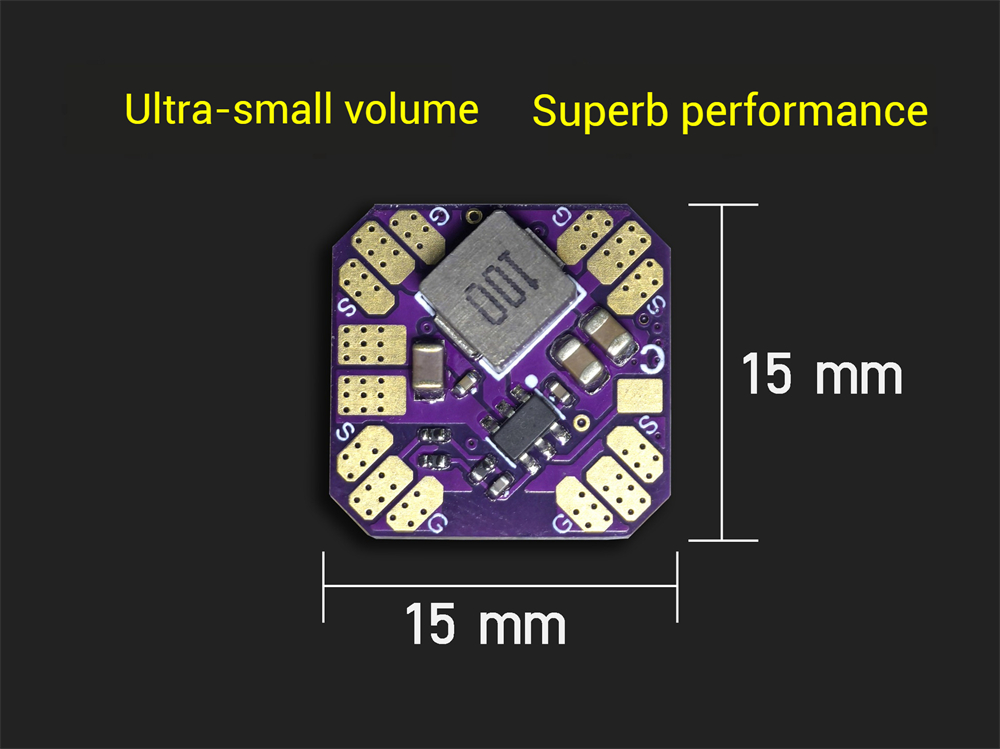

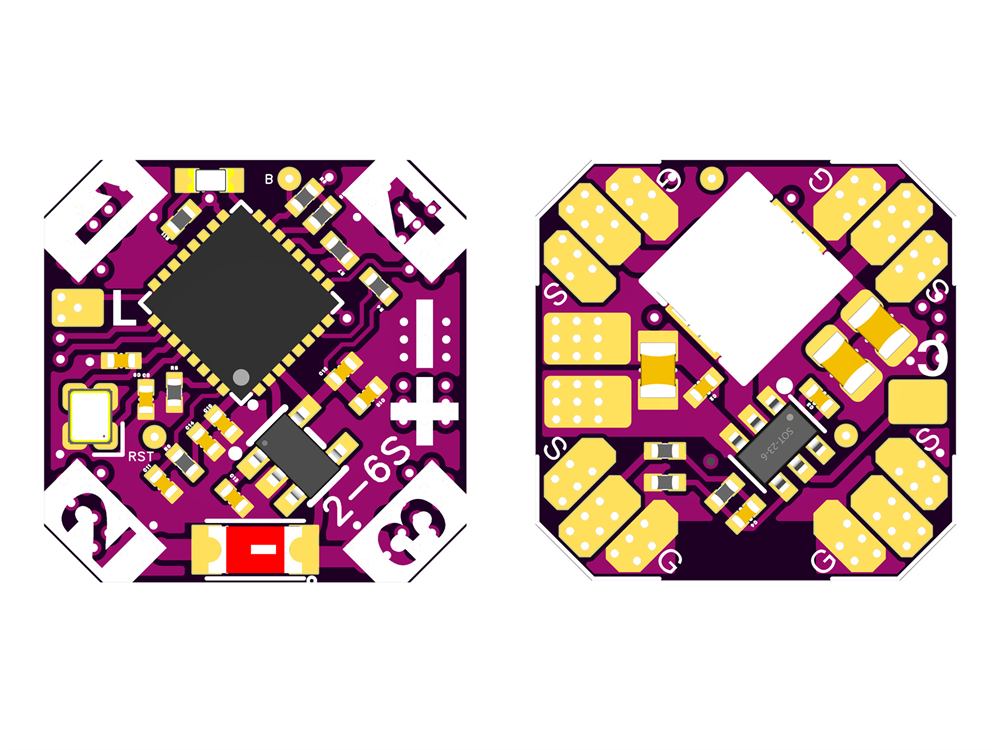

Dimensions: 15mm x 15mm x 5mm (Length x Width x Height)

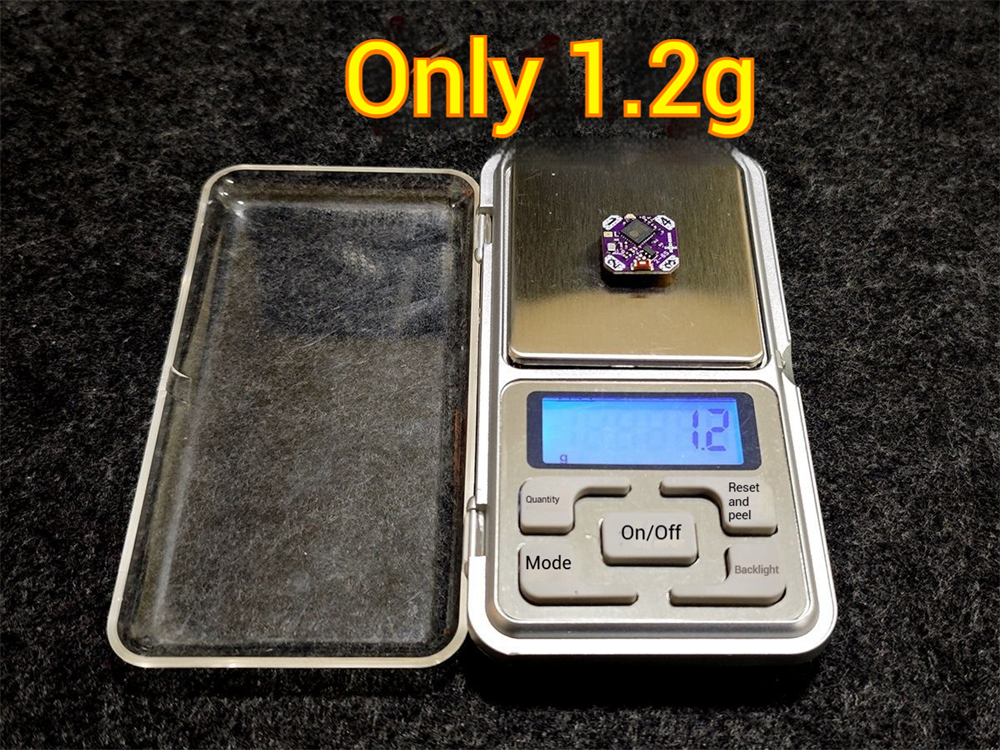

Weight: 1.2g

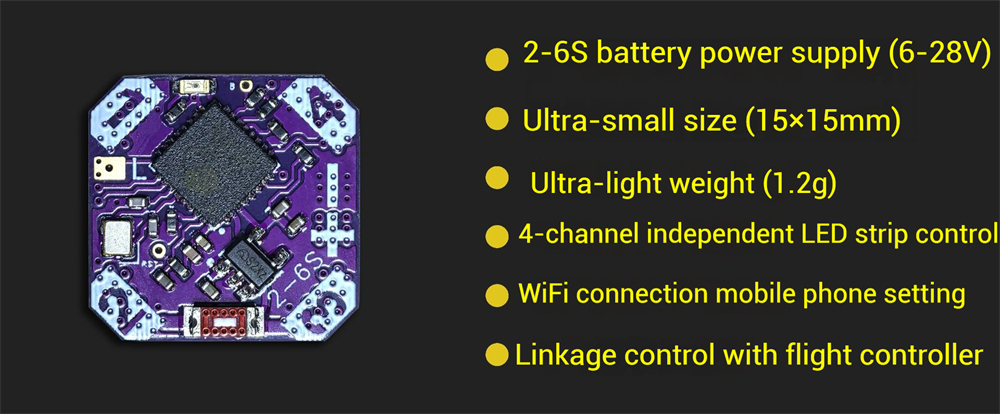

Feature:
- 2-6s Battery Powered (6-28V)
- Compact Size (15×15 mm)
- Light Weight (1.2 g)

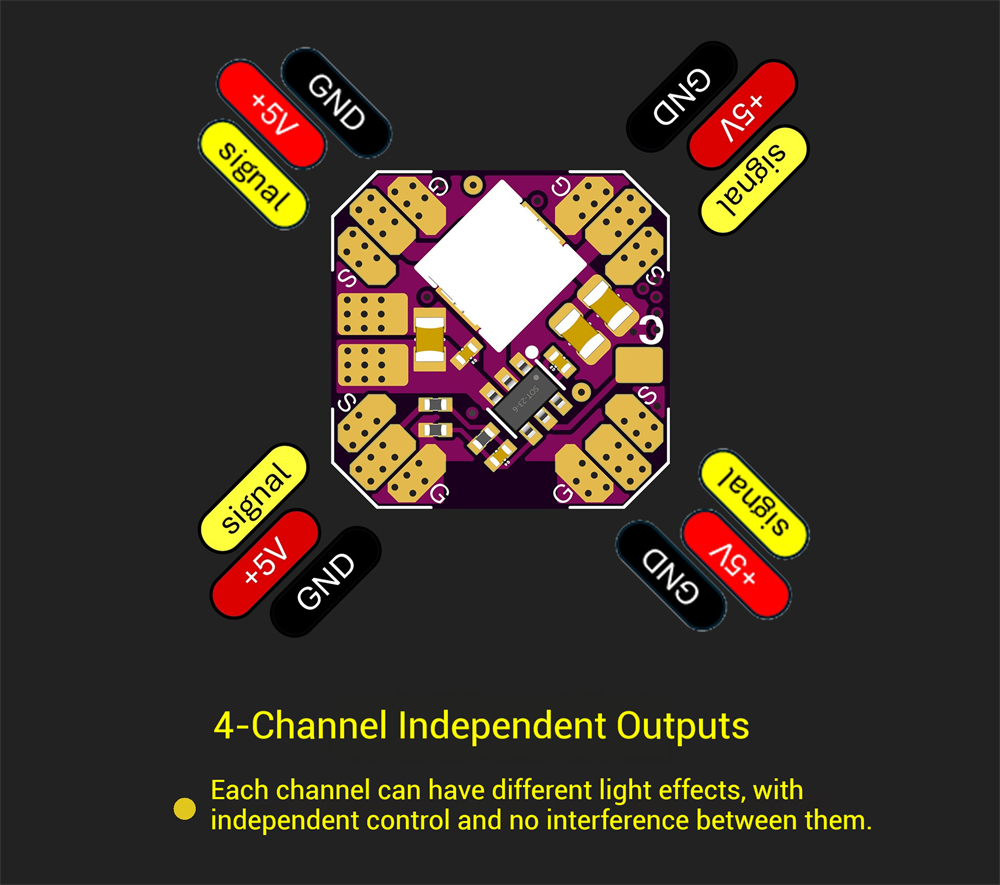

- 4 Independent Lighting Control Channels

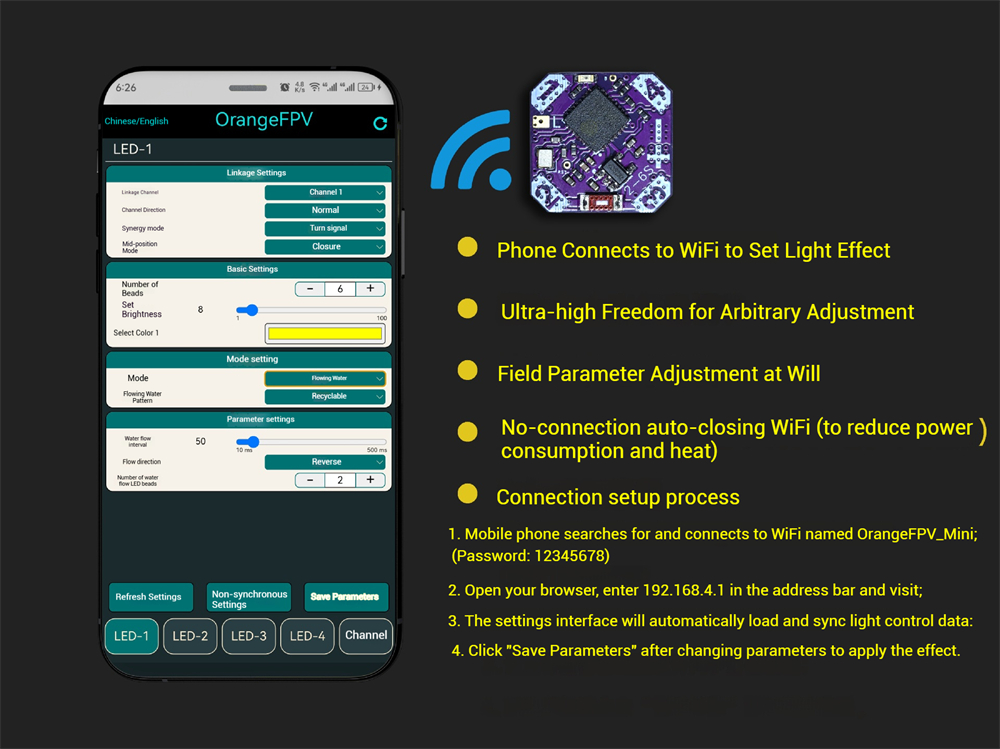

- WiFi Connection for Mobile Setup

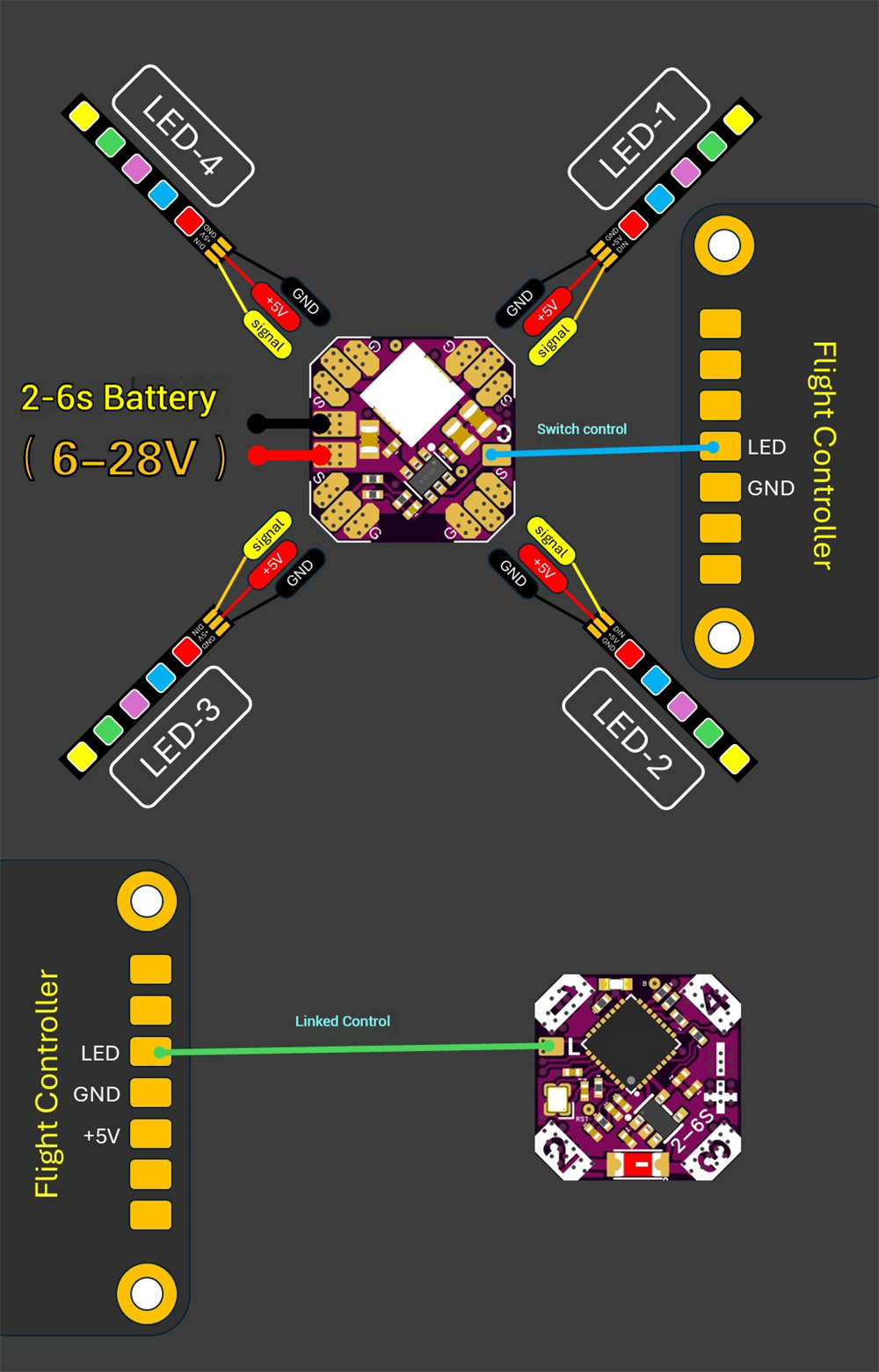

- Linked Control with Flight Controller
Package included:

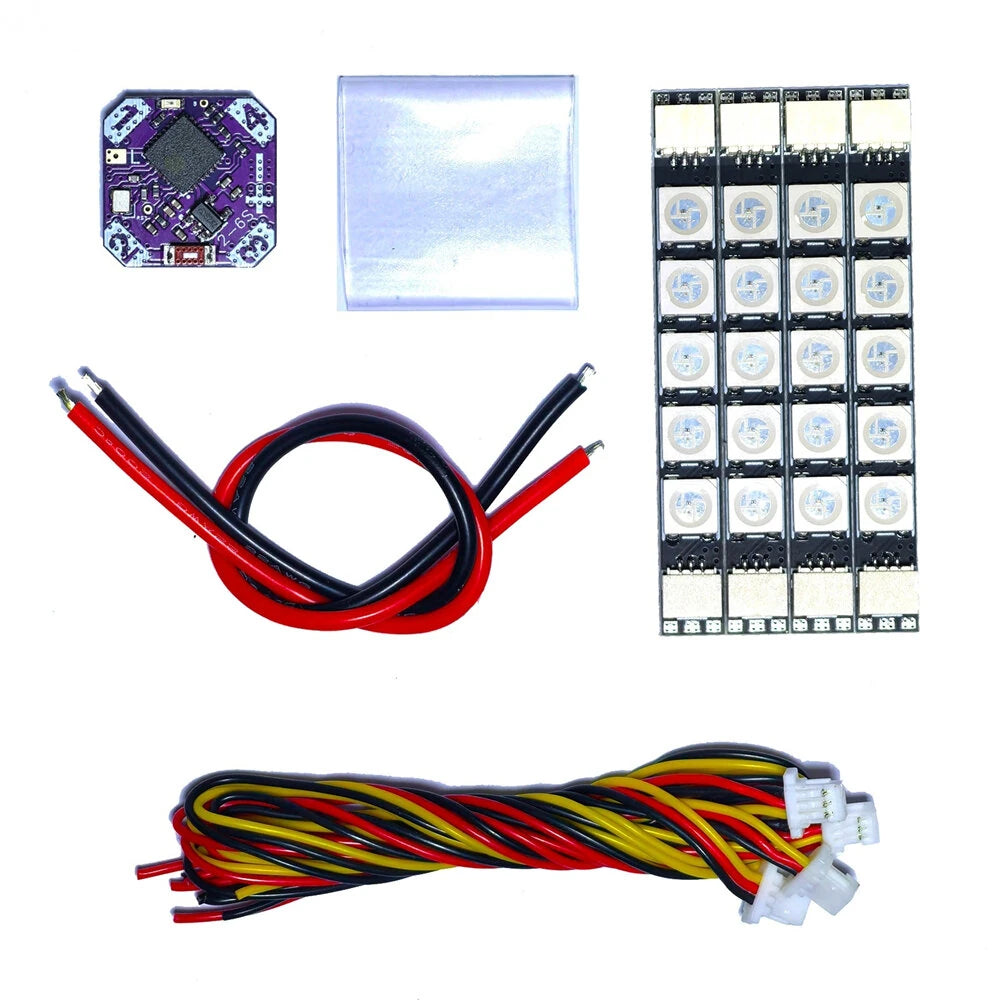

OrangeFPV Mini2 RGB LED Controller + 4LED Light Strip Set
1 x 4LED Light Strip
4 x 15cm Connecting Wires
1 x OrangeFPV Mini2 RGB LED Controller
1 x Power Cord
1 x Heat Shrink Tubing

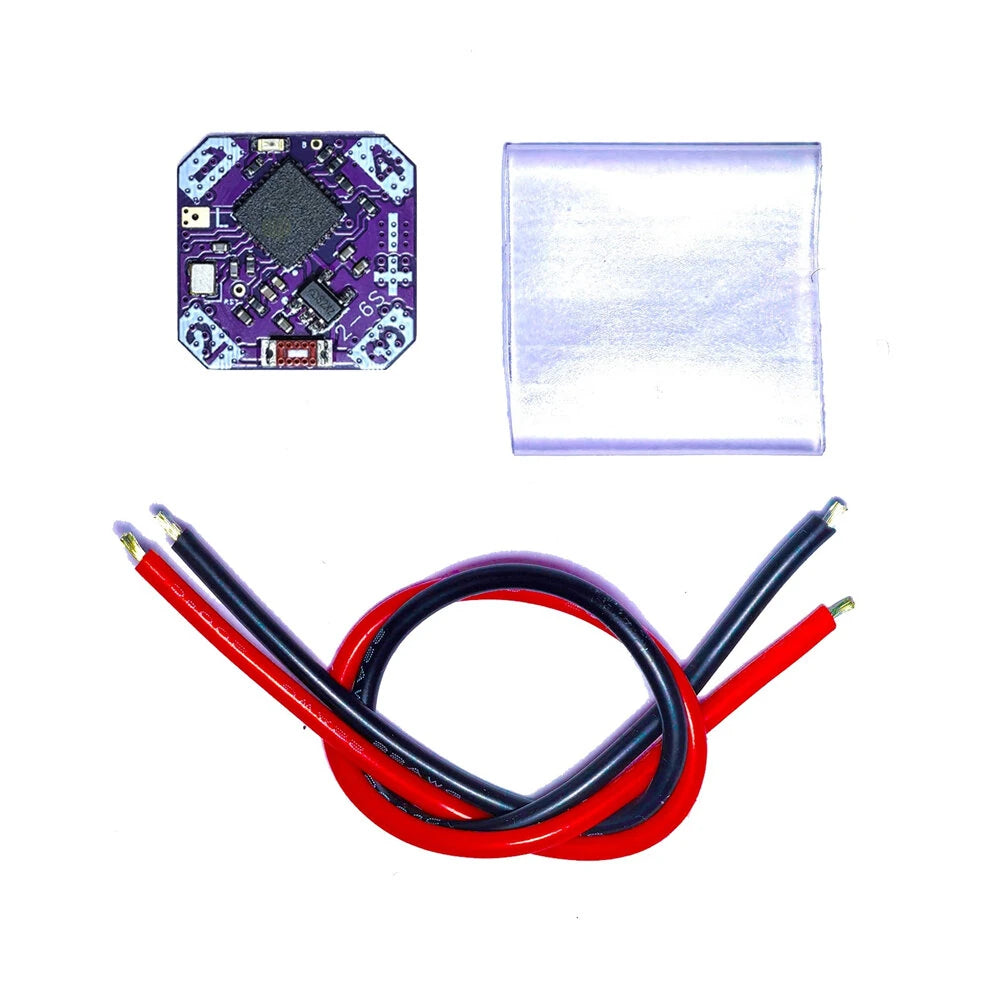

OrangeFPV Mini2 RGB LED Controller Set:
1 x OrangeFPV Mini2 RGB LED Controller
1 x Power Cord
1 x Heat Shrink Tubing
4LED Light Strip Set:
1 x 4LED Light Strip
4 x 15cm Connecting Wires
