Description
Description & Feature:

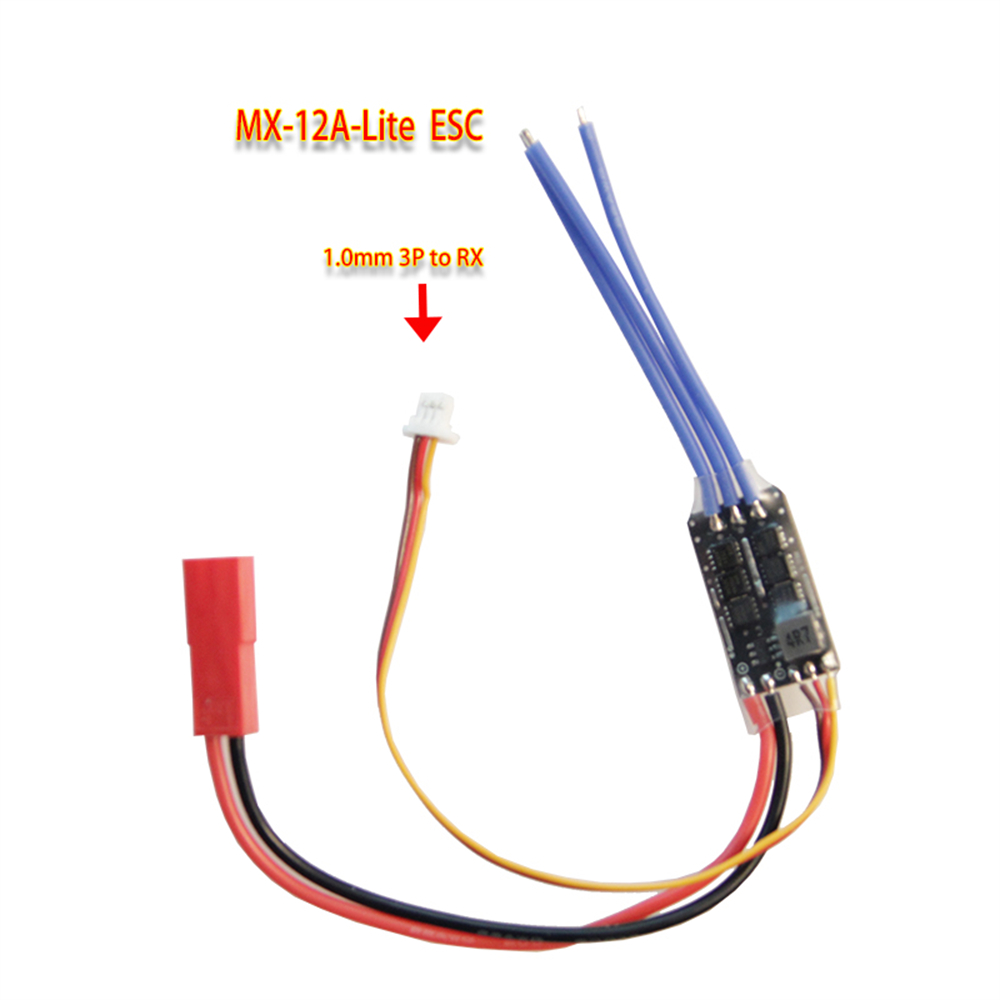

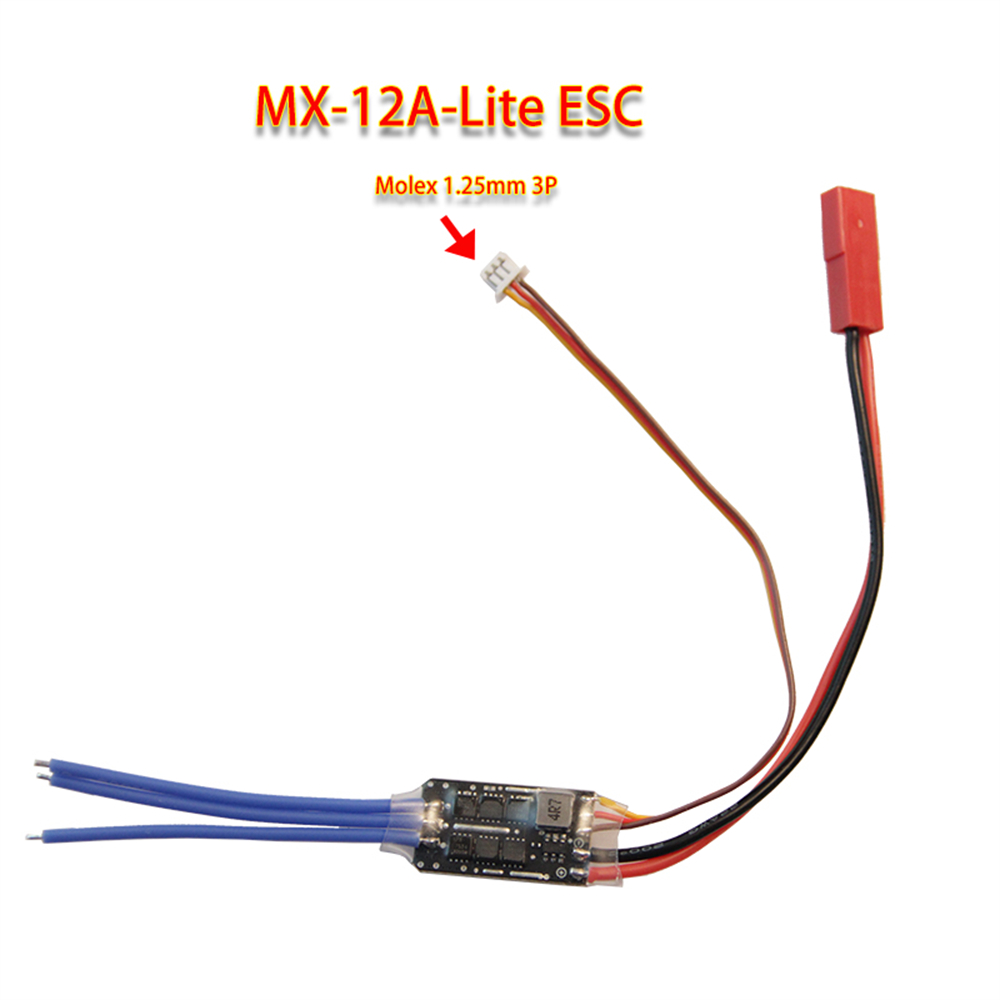

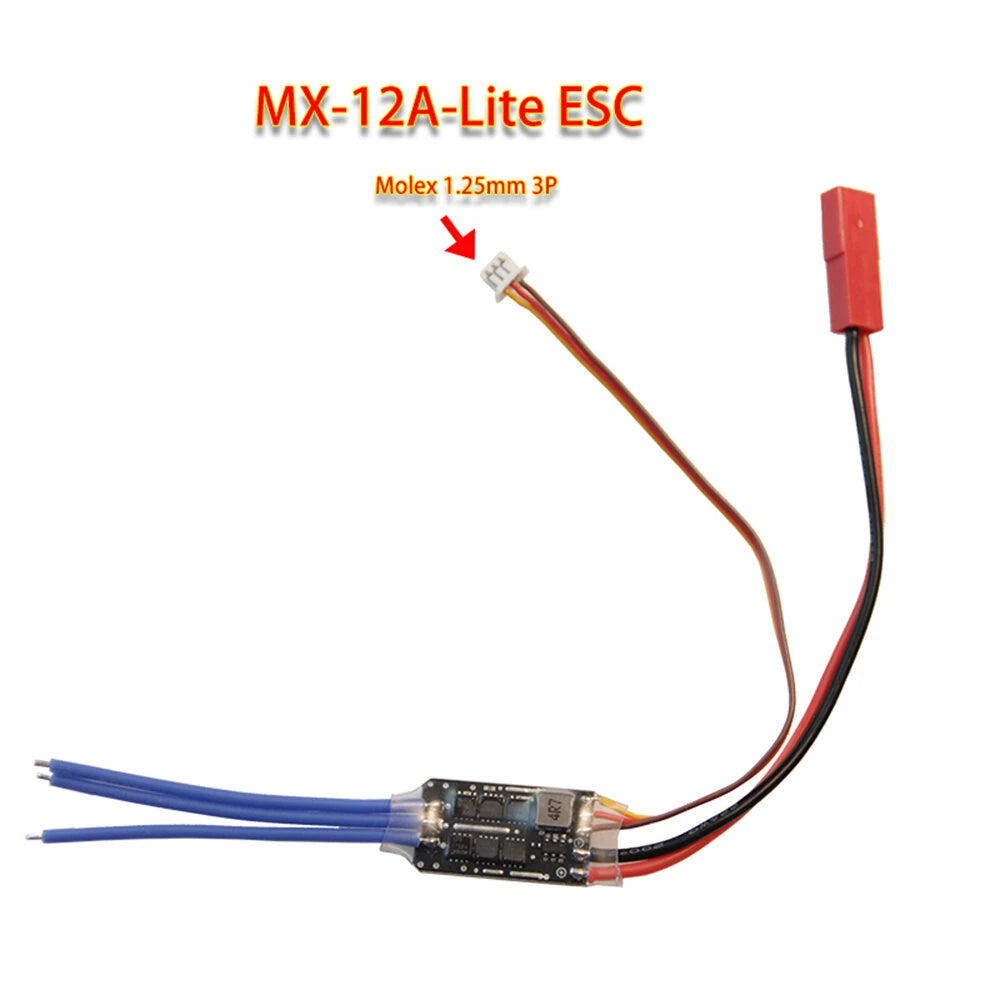

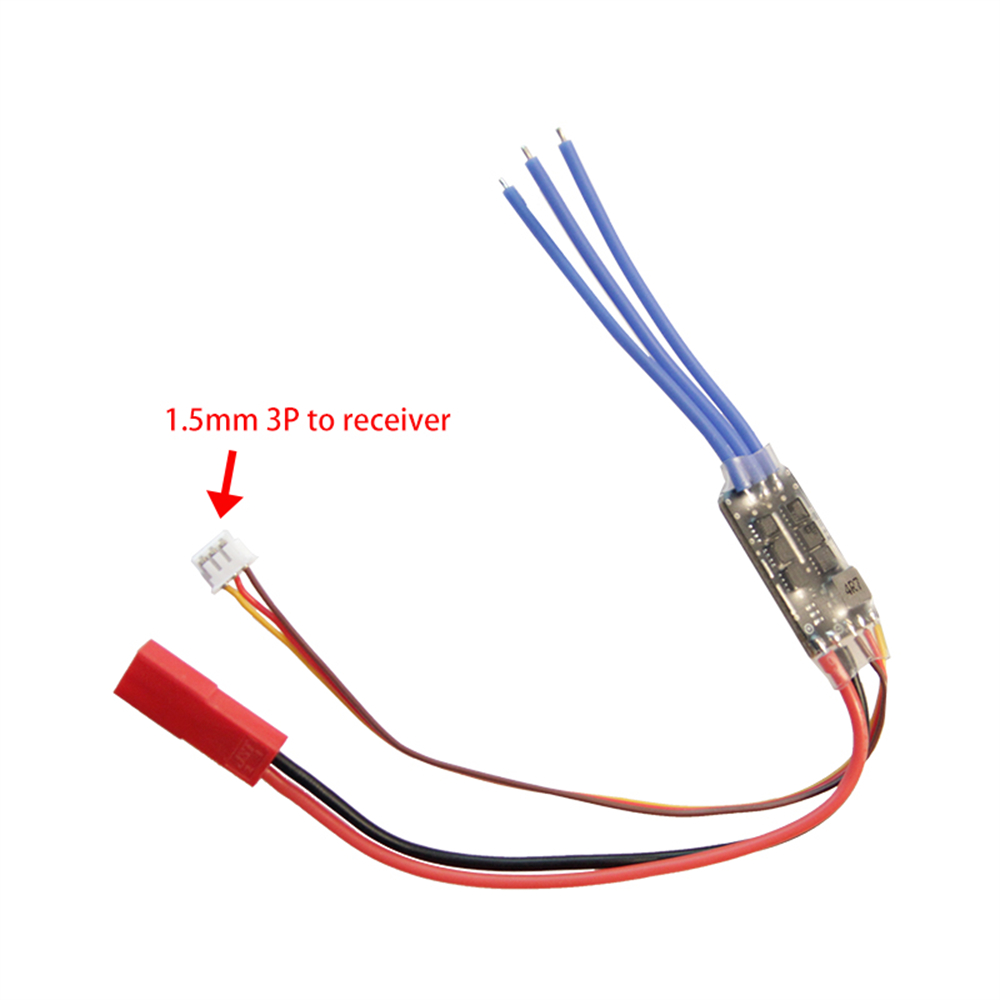

There are four options for the connector on the receiver side: MX1.25mm, SH1.0mm, ZH1.5mm, and JR-type plug.
The power end uses a red JST connector.
The firmware/protocol is BLS.
For usage, when powered by a 2S battery, the brushless motor's KV rating should preferably be 7500KV or lower.
When powered by a 3S battery, the brushless motor's KV rating should preferably be 5000KV or lower.
Of course, this also relates to the propeller size.
Specification:
Item Name: MX-12A-Lite Brushless ESC
Maximum Cntinuous Current: 12A
Operating Voltage Range: 2S-3S (7.4V~11.1V)
PCB Dimensions: 12mm (W) * 22mm (L) * 3.2mm (H)
Weight: 4.13g (with Leads/Wires)
Package Included:
1 x MX-12A-Lite Brushless ESC
