Description
Specifications:
Model: 25A, 35A, 45A
Maximum PV Open Circuit Voltage: 100V
Maximum Input Power:
300W (12V System), 600W (24V System) for 25A
420W (12V System), 840W (24V System) for 35A
540W (12V System), 1080W (24V System) for 45A
MPP Voltage Range:
<60V (12V System) / <80V (24V System) for 25A
<60V (12V System) / <100V (24V System) for 35A and 45A
Battery Voltage Range: 9~30V
Rated Charge Current: 25A, 35A, 45A
Conversion Efficiency: >98%
Maximum MPPT Efficiency: >99%
Operating Temperature Range: -35℃~+45℃
Humidity: <95%, Non-condensing
Altitude: <3000m
IP Level: IP32
Dimensions:
160x115x51mm (25A)
195x135x65mm (35A, 45A)
Net Weight:
500g (25A)
900g (35A)
1035g (45A)
Features:
Advanced MPPT Technology: Ensures maximum power extraction from your solar panels, optimizing energy conversion and efficiency.
Auto System Voltage Recognition: Automatically detects 12V/24V systems, making installation and monitoring easy and user-friendly.
High Conversion Efficiency: Achieves conversion efficiency of over 98%, guaranteeing superior performance in energy management.
Robust Operational Range: Capable of operating under extreme temperatures from -35°C to +45°C and at altitudes up to 3000 meters.
Smart Battery Management: Features a 3-stage charging algorithm, enhancing battery life and performance.
Package Included:
Type A:

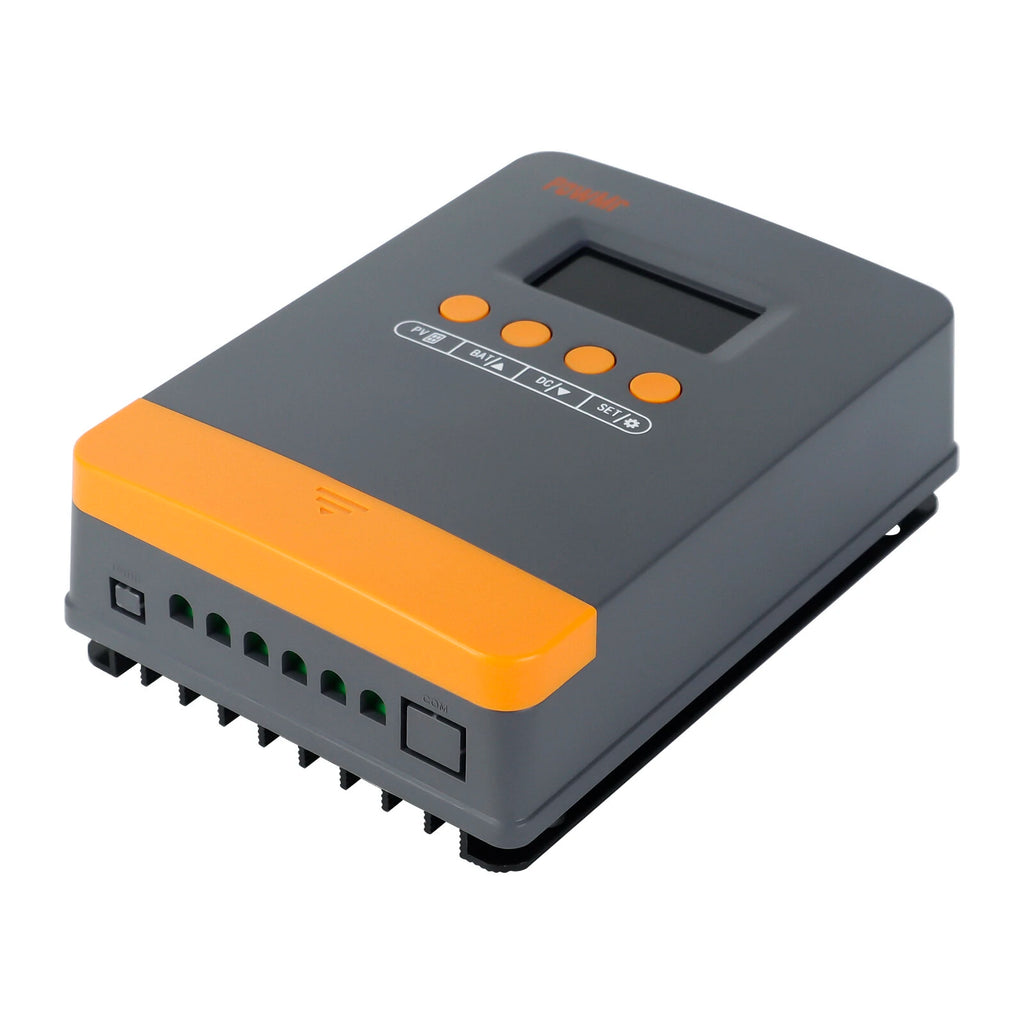

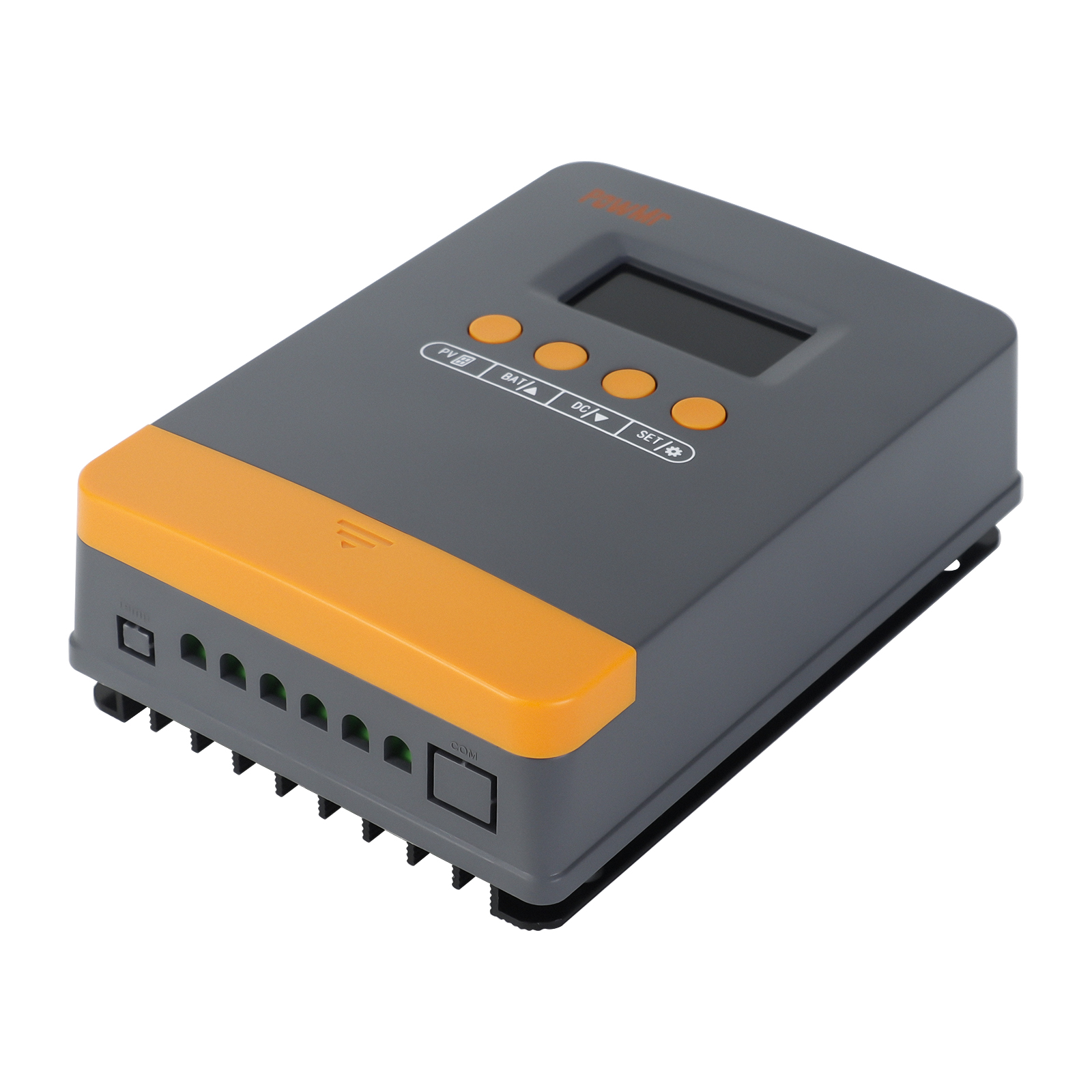

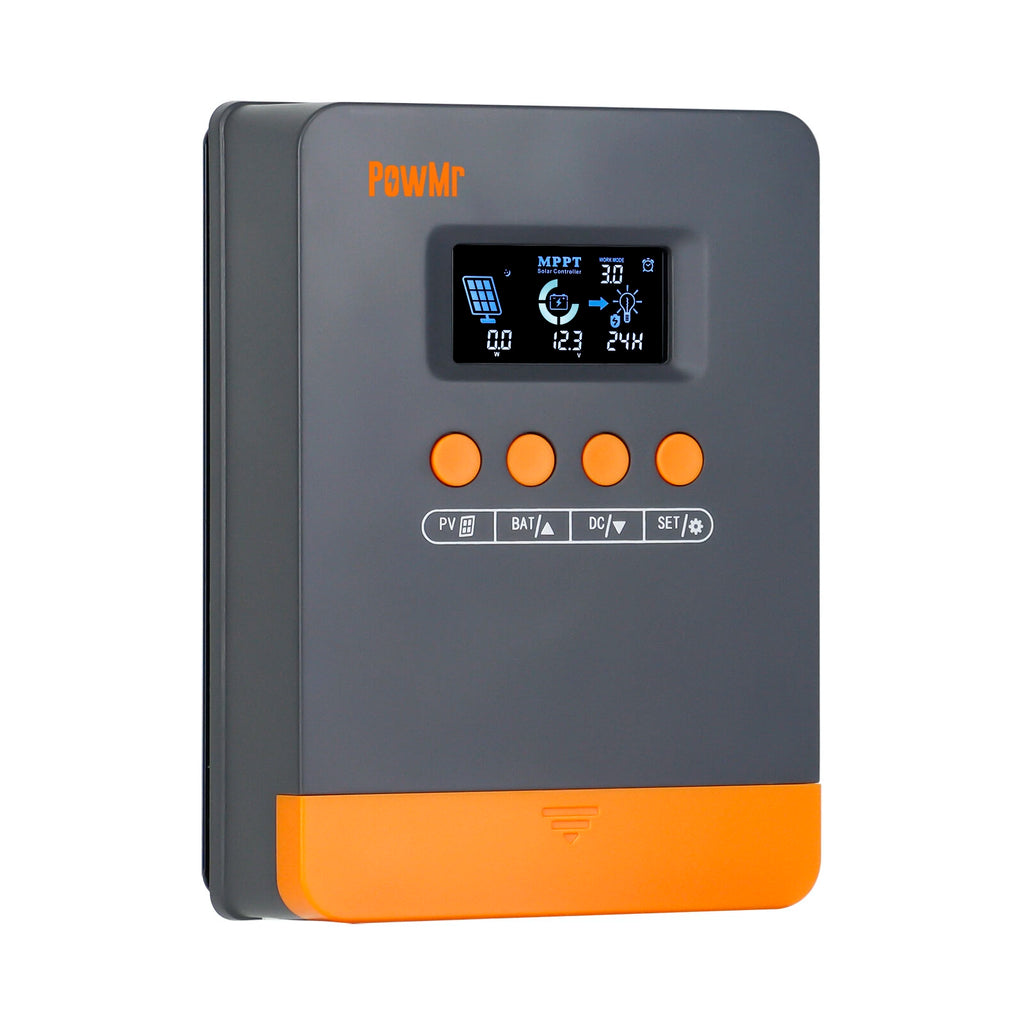

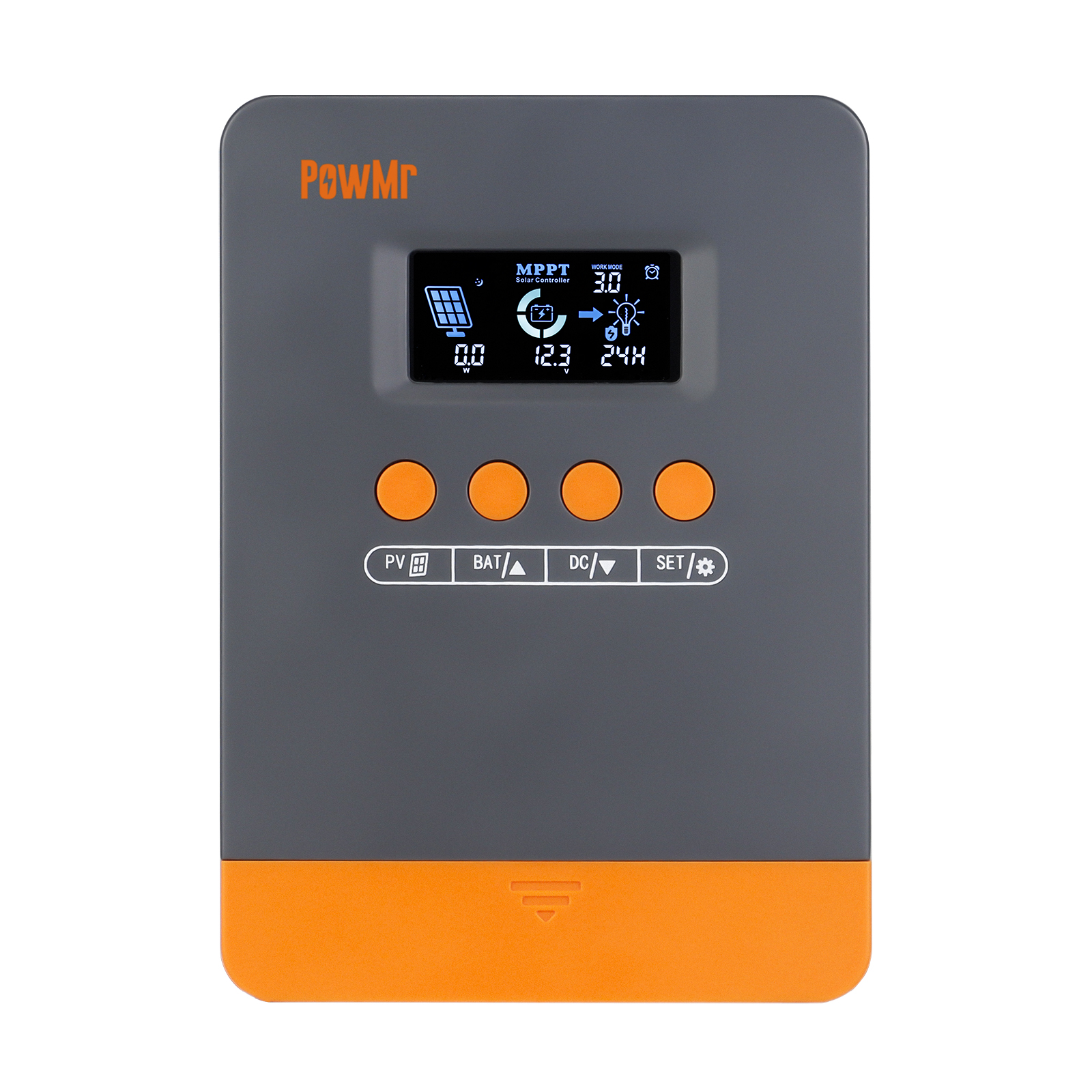

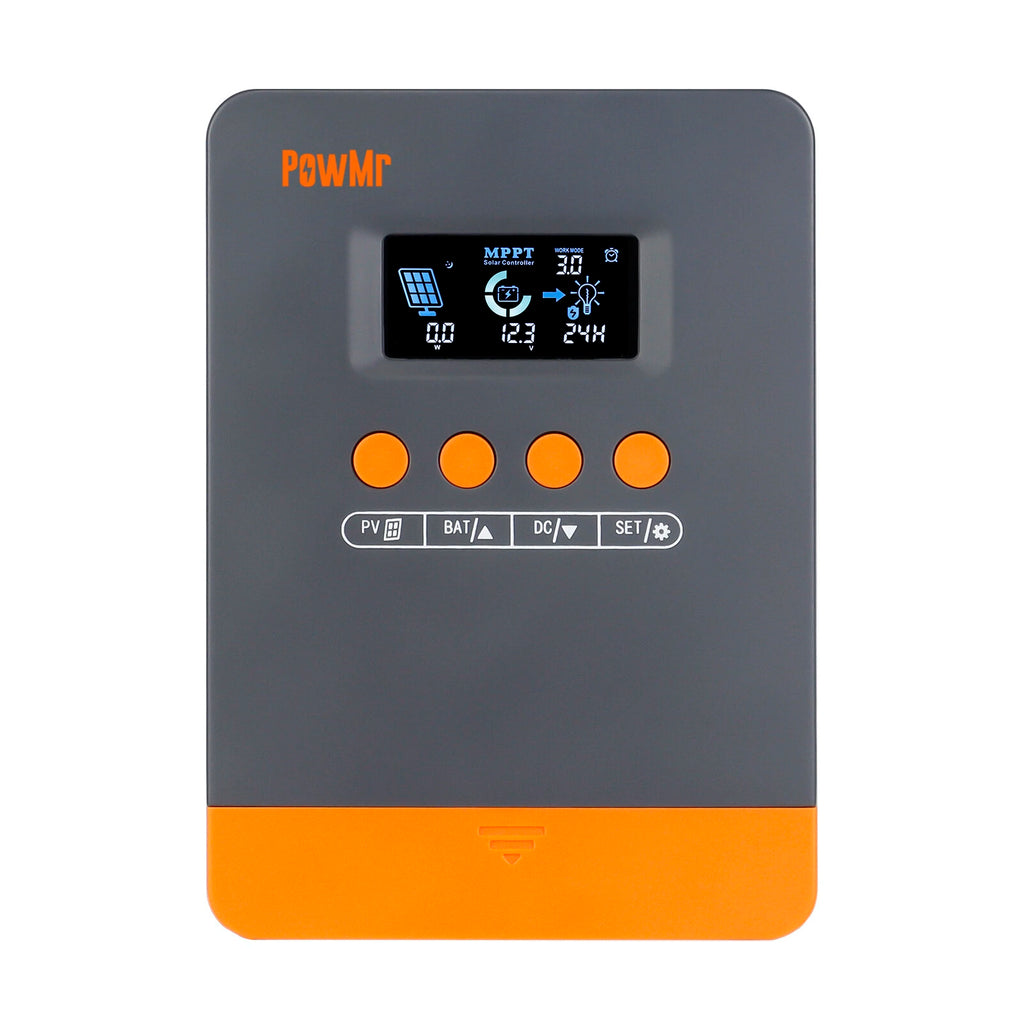

1 x Solar Controller (25A)
Type B:
1 x Solar Controller (35A)
Type C:
1 x Solar Controller (45A)
Type D:

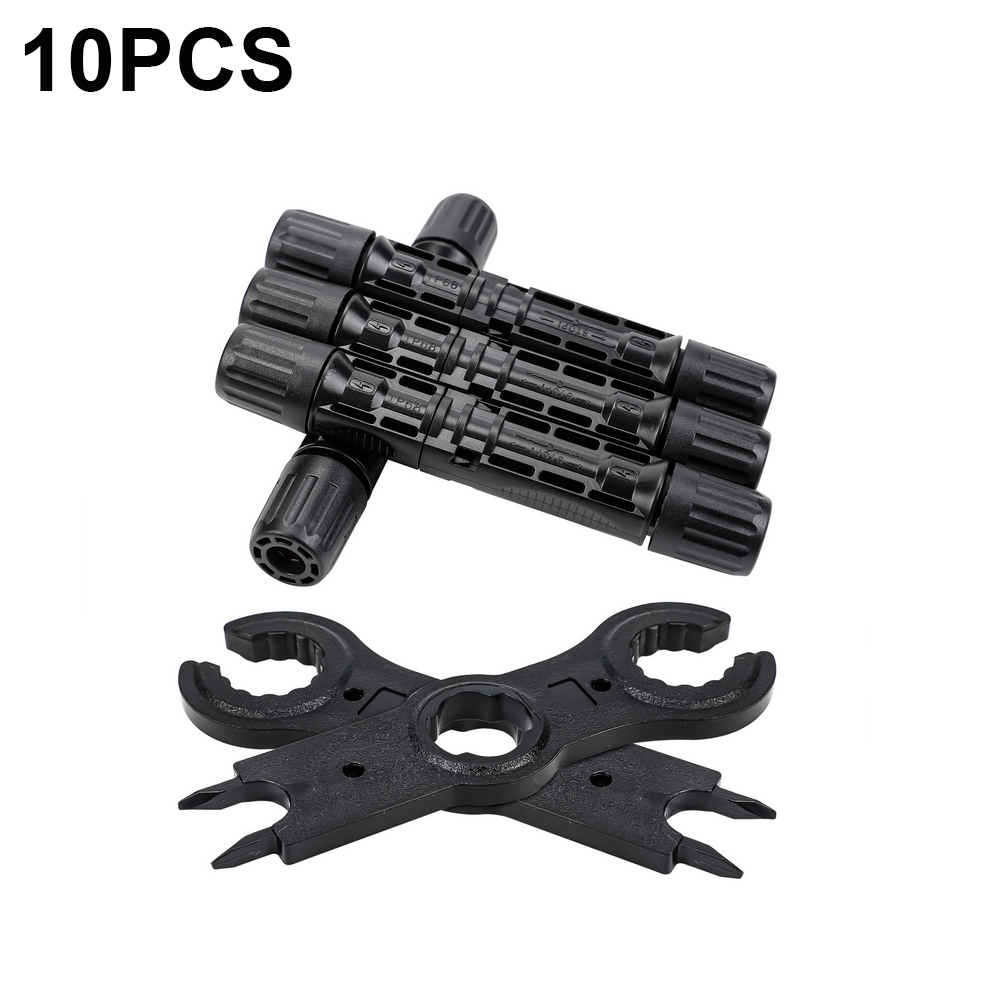

10 x Plugs
