Description
Description:

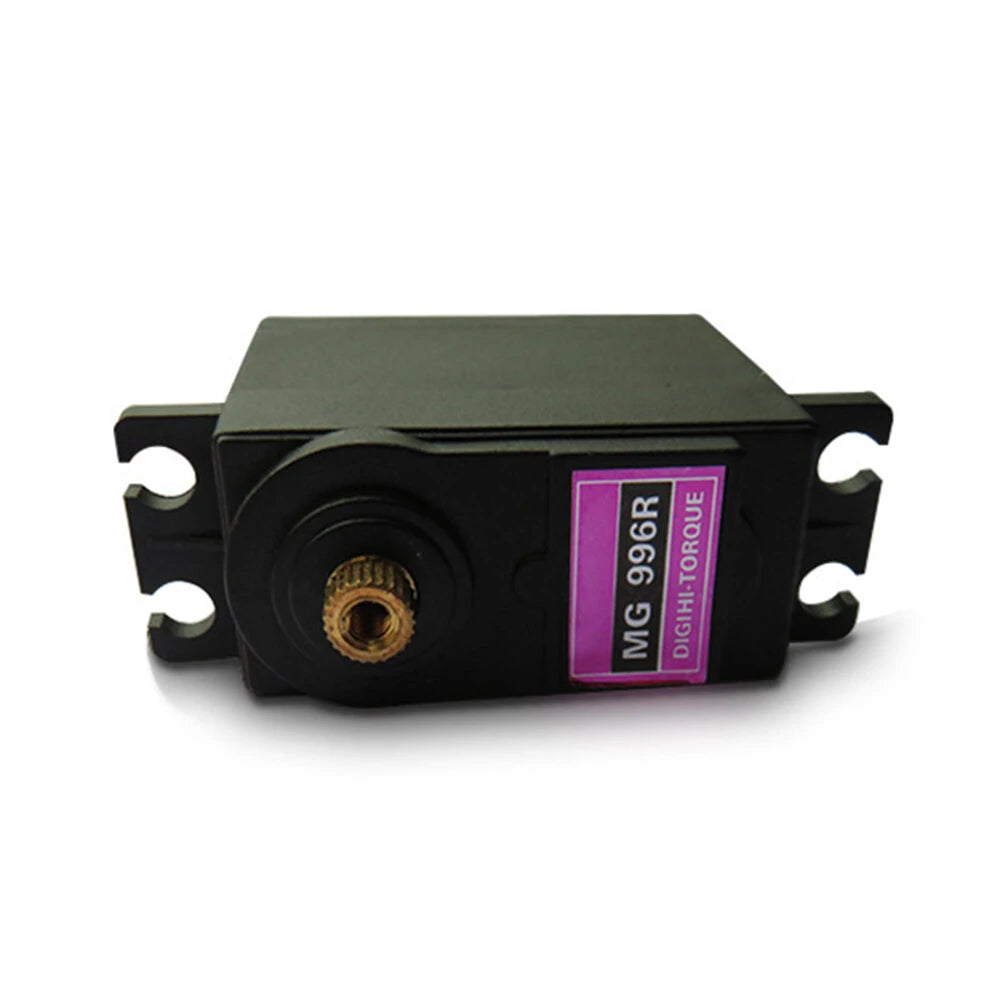

Model: MG996R
Dimensions: 40.5x20x41mm
Weight: 55g
Apply Enciromental Condition:
Storage Temperature range: -20°C-60°C
Operating Temperature range: -10°C-50°C
Operating Voltage range: 4.8V-6V
Electrical Specification:
Operating Speed(at no load): 0.12±0.01sec/60 (4.8v), 0.11±0.01sec/60 (6v)Running Curret(at no load): 220±20mA (4.8v), 250±20mA (6v)
Stall Torque(at locked): 11±0.1kg.cm (4.8v), 13±0.1kg.cm (6v)
Stall Current (at locked): 2000mA±30mA (4.8v), 2200mA±30mA (6v)
Idle Current (at stopped): 4±1mA (4.8v), 4±1mA (6v)
Control Specification:
Control System: Change the pulse width
Amplifier Type: Analog controller
Operating Travel: 90°±3°(1000-2000u sec)
Left and Right Travelling Angle Deviation: ≤3°
Centering Deviation: ≤1°
Neutral Position: 1500 μ sec
Dead Band Width: ≤5μsec
Rotating Direction: Counter clockwise(1500-1000μ sec)
Pulse Width Range: 800-2200μ sec
Maximum Travel: About 145°(800-2200μsec)
Package Included:

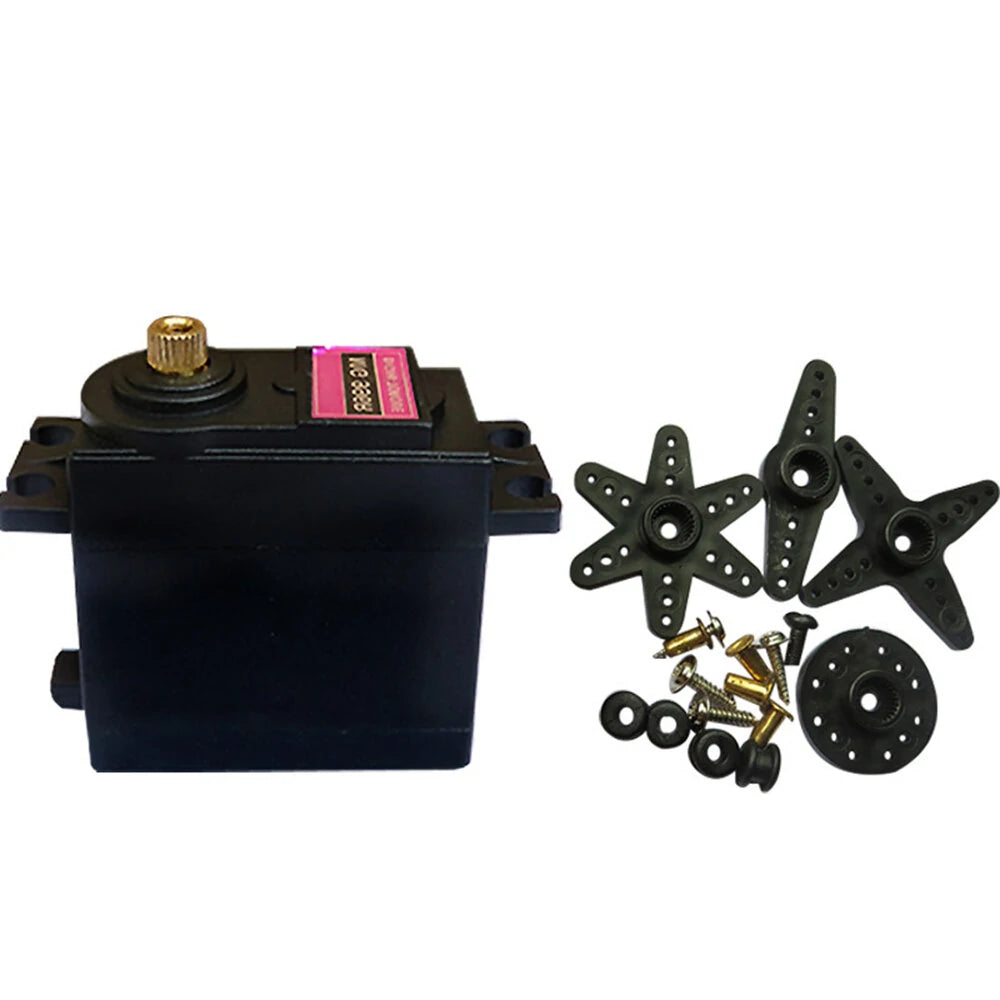

1x MG996R 55g Metal Gear Analog Servo
