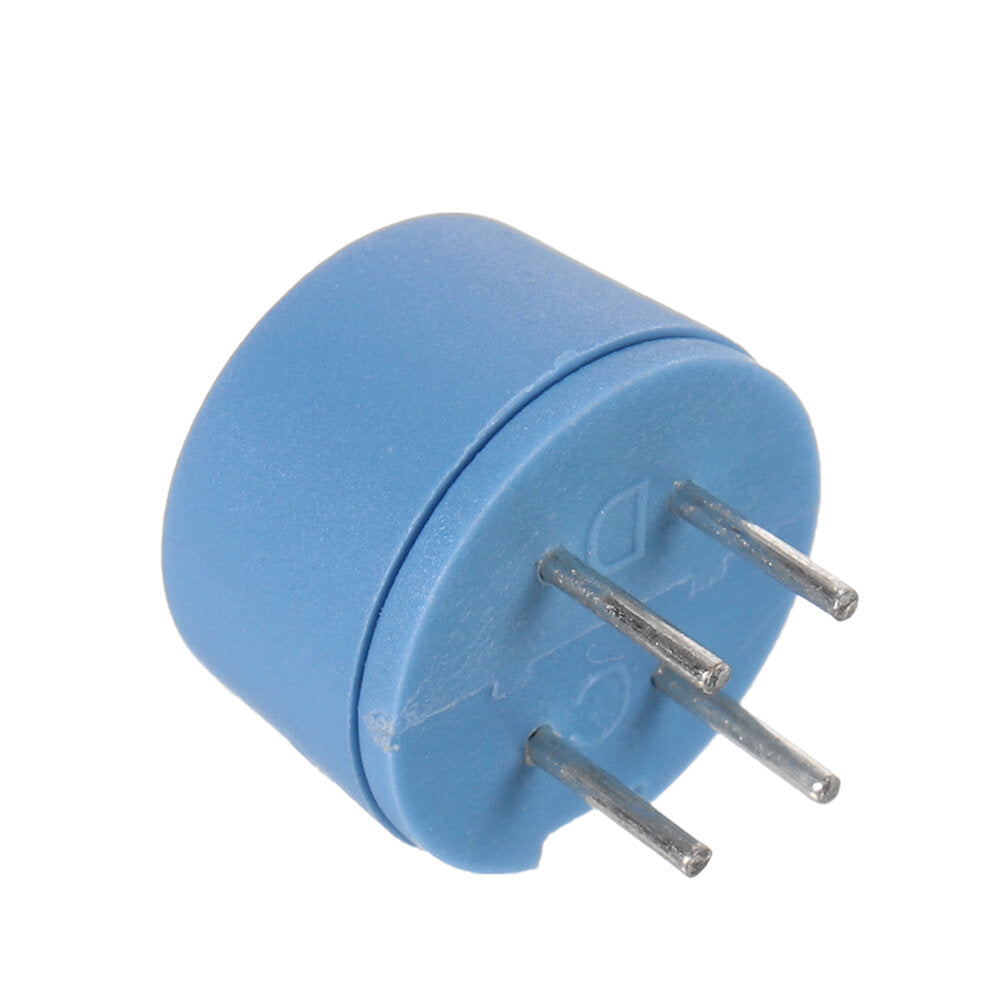

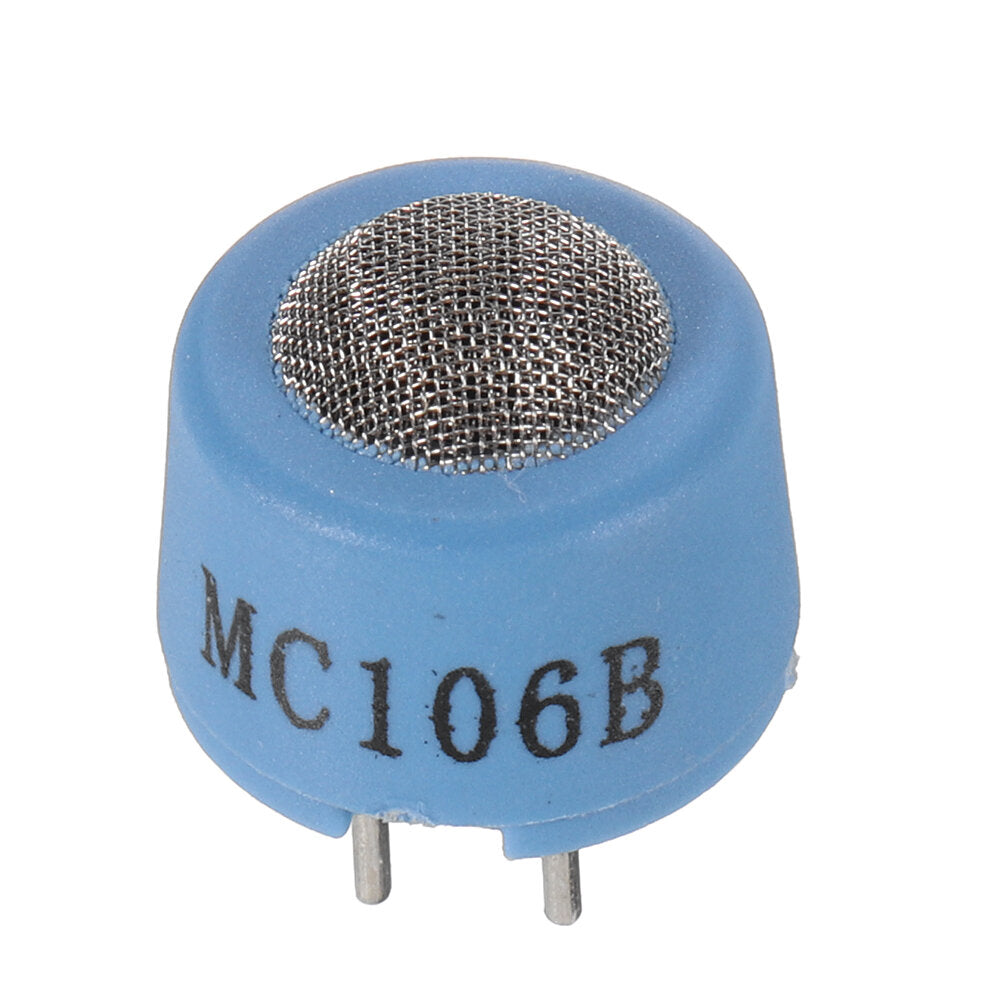

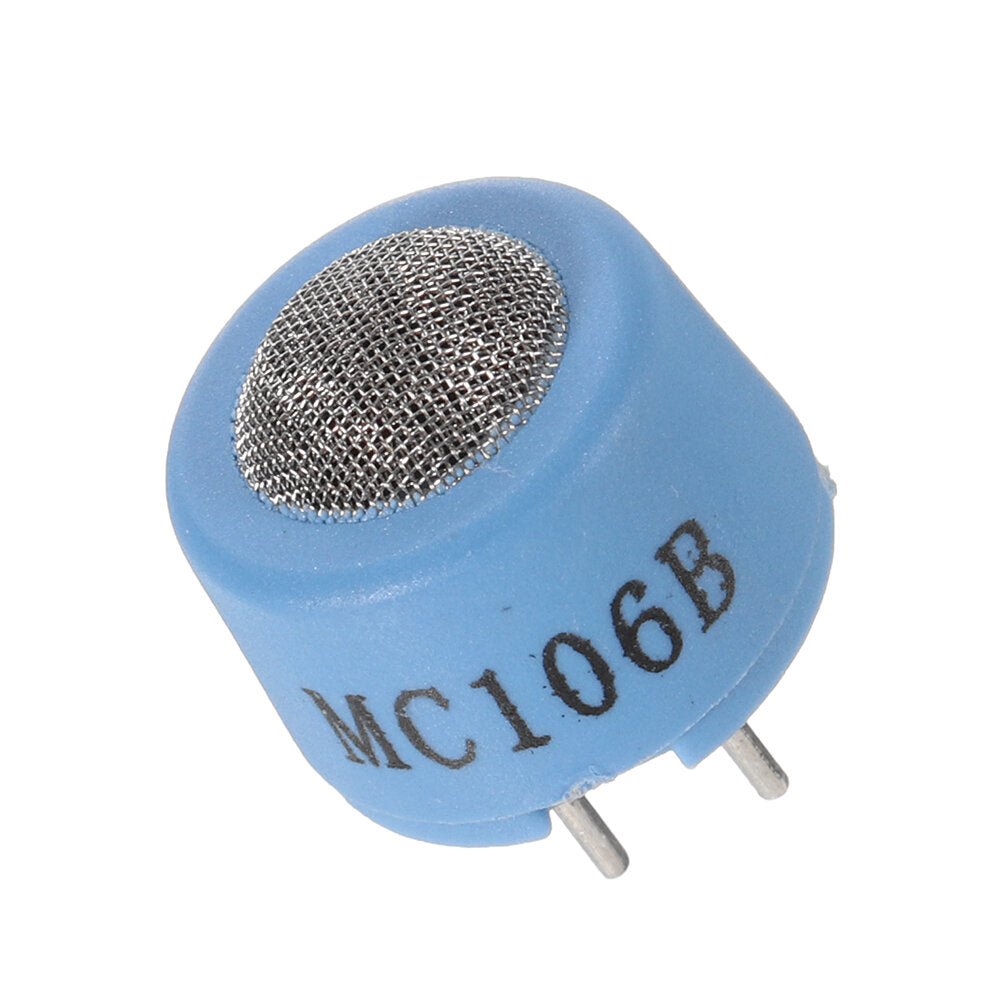

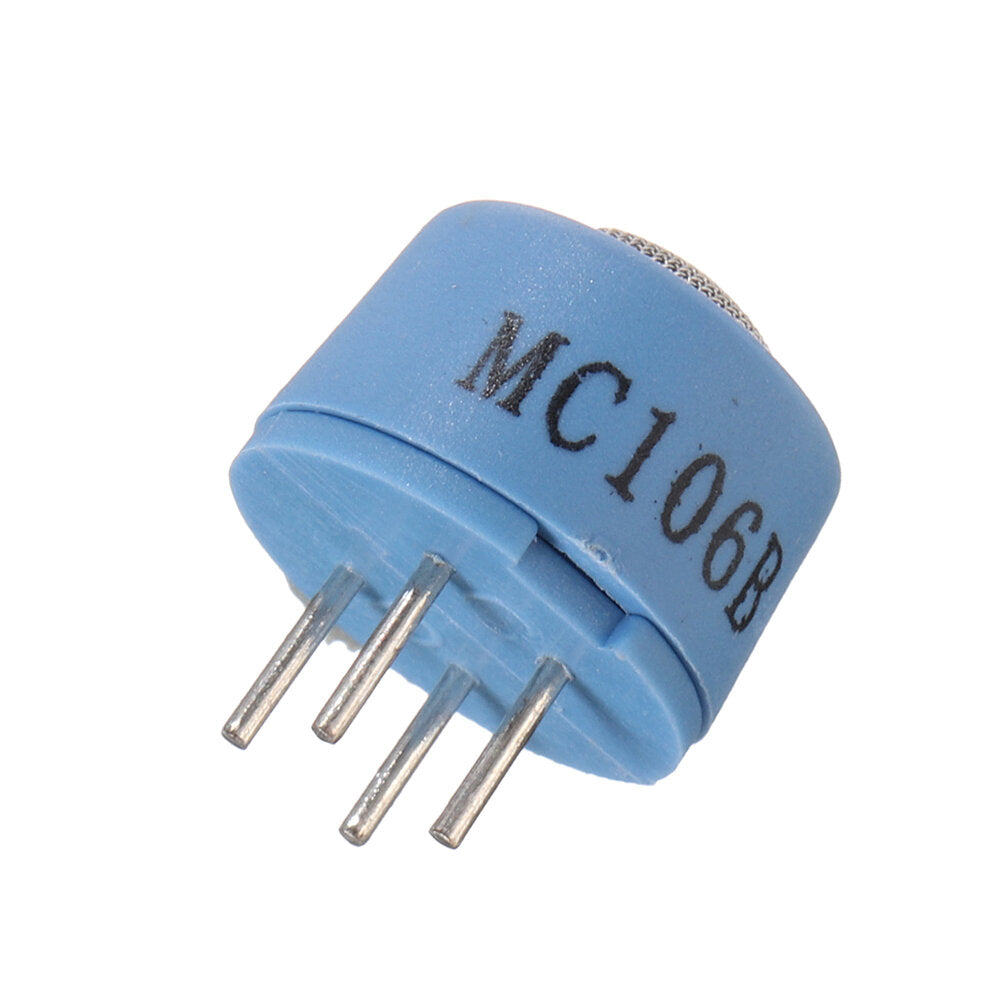

MC106B Catalytic Combustion Gas Sensor Module for Flammable Gas Leak Alarm Meter Gas Concentration Meter


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 195.00 Regular priceR 300.00
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Looking for a reliable and fast-responding gas sensor? Look no further than the MC106B catalytic combustion gas sensor!

This sensor uses the principle of catalytic combustion to quickly and accurately detect flammable gases in the air.

It's perfect for use in gas leak alarms, gas meters, and other applications where quick and reliable gas detection is needed.







More Information:



Principle Introduction:

The MC106B catalytic combustion gas sensor works according to the principle of catalytic combustion effect. The detection element and the compensation element are paired to form an arm of the bridge. When the flammable gas is encountered, the resistance of the detection element increases and the output voltage of the bridge changes. The gas concentration increases to a proportional increase, and the compensation element functions as a reference and temperature and humidity compensation.

Features:

The output voltage of the bridge is linear, the response speed is fast, it has good repeatability and selectivity, the component works stably and reliably, and it has good resistance to hydrogen sulfide and silicone interference.

Applications:

It can be used to detect the concentration of flammable gases such as natural gas, liquefied gas, coal gas and alkanes in industrial sites. It can also be applied to flammable gas leak alarms, flammable gas meters, and gas concentration meters.

Specifications:

Product model: MC106B
Product type: Catalytic combustion gas sensor
Working voltage (V): 2.5 ± 0.1
Working current (mA): 150 ± 10
Sensitivity (mV): 1% methane 15 ~ 45; 1% propane 25 ~ 65
Linearity: ≤5%
Measuring range (% LEL): 0 ~ 100
Response time (90%): ≤10s
Recovery time (90%): ≤30s
Operating environment: -40 ~ + 70 ℃, lower than 95% RH
Storage environment: -20 ~ + 70 ℃, lower than 95% RH

Package Included:

1 x MC106B Catalytic Combustion Gas Sensor Module
