Description
Mateksys MR24-30 mLRS (MAVLink long range system) firmware MAVLink 30dBm RF power 2.4GHz Receiver for FPV Drone
Specifications:
Stm32g431kb, mLRS Firmware
Lora sx1281 with tcxo
Pa/lna SKY68383-11
RF frequency: 2.4GHz ism
RF power: 13dbm (min) /20dbm/24dbm/27dbm/30dbm (1000mw)
Antenna connection: IPex-MHF-1
Tx1/rx1: bidirectional all serial Mavlink
Tx2: rc out (crsf or sbus)
A button for dfu mode and bind
Power supply: 4.5-13V DC @ 'V' Pad
Power loss: 360ma @ 5v in (50hz, 30dbm)

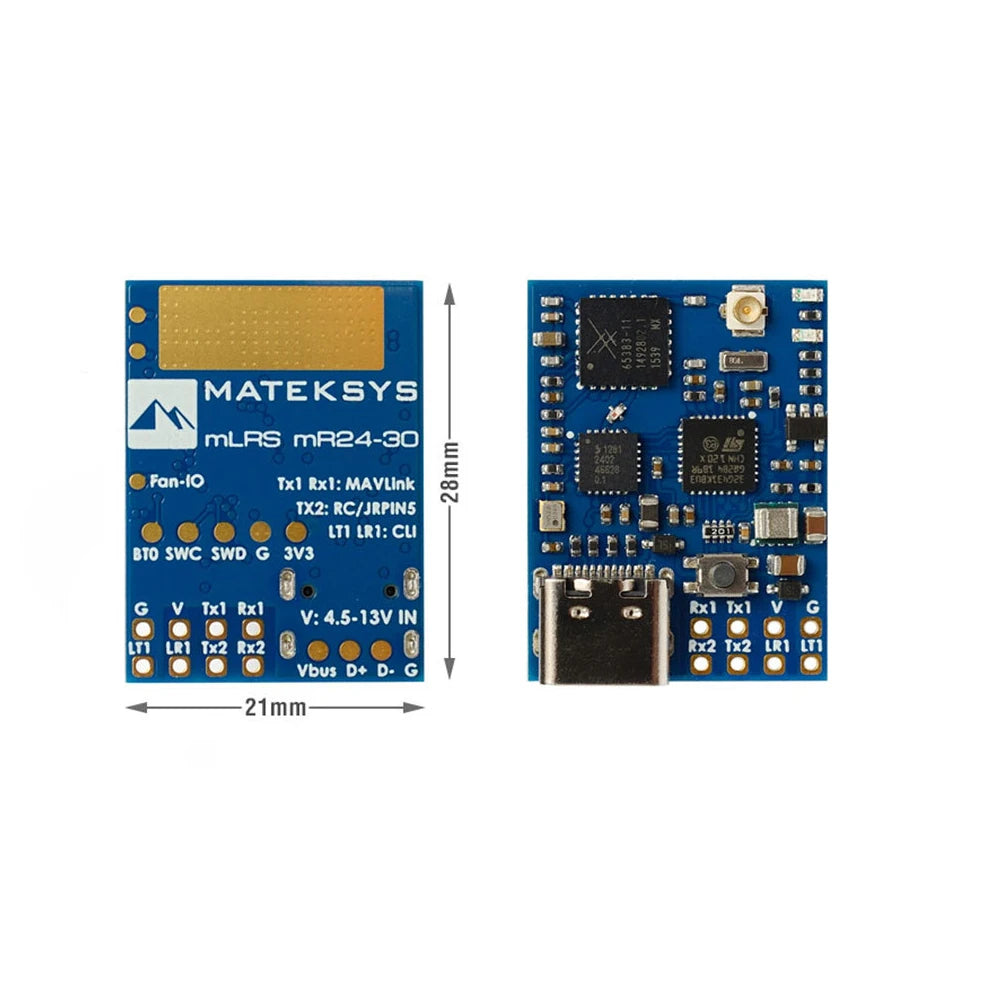

Circuit board size: 28x21mm
Weight: 4.5g w/antenna
Guided status:
[Red flashing 2hz], not connected to transmitter
[Green flashing 1hz], connected to transmitter
[Red and Green alternating], binding mode activated
Binding:
After switching on, press the bind button (for about 4 seconds) on the receiver. In binding mode, the green and red LEDs flash alternatively at approximately 2.5 Hz.
https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware:
Mlrs https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
Goals:
RX receiver: rx-matek-mr24-30-g431kb
Tx module mode: tx-matek-mr24-30-g431kb-default
Tx siktelem mode: tx-matek-mr24-30-g431kb-siktelem
Tips:
If you set the RF power >=500mw, it is recommended to attach the heatsink to the bottom of the circuit board. The gaps between the slats can be used for mounting with m3 screws
Package included:
1x mR24-30
1x 15cm Ipex Mhf1 Sleeve Dipole Antenna
1x 20*20*6mm Heatsink
