Description
Specification:

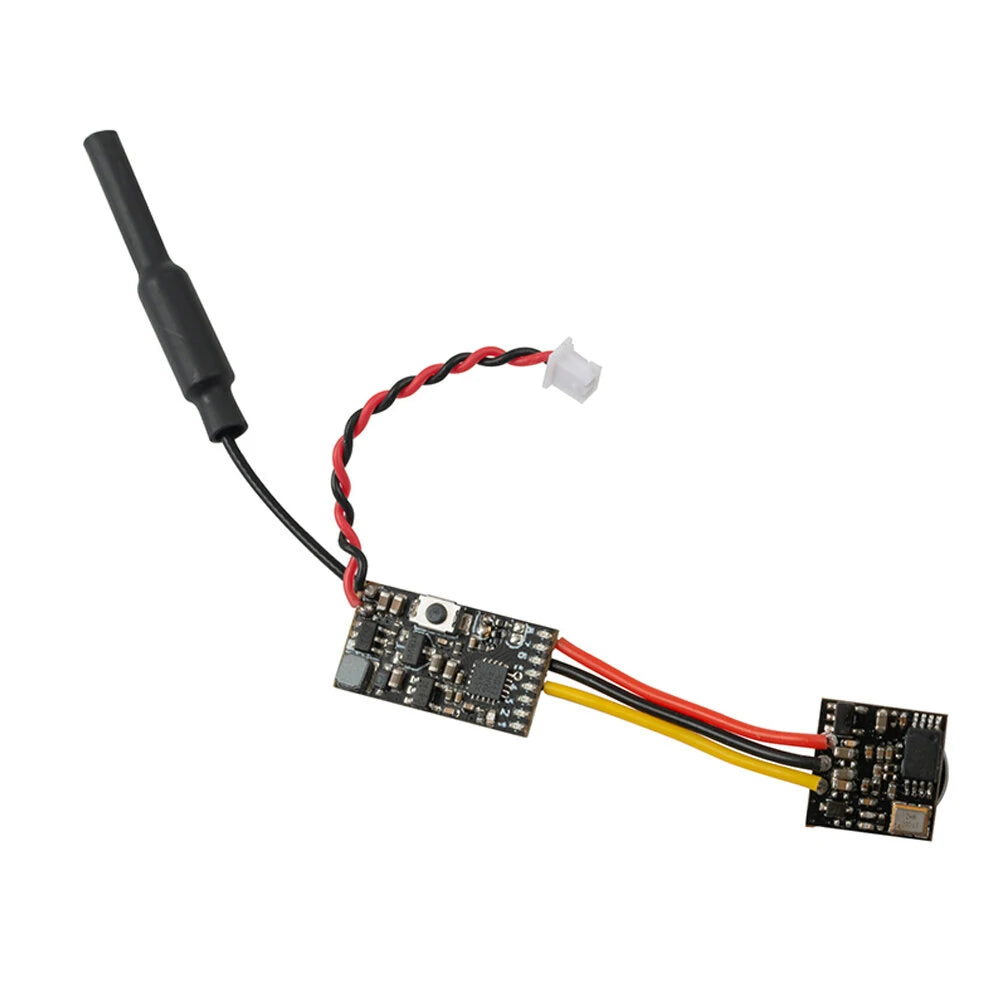

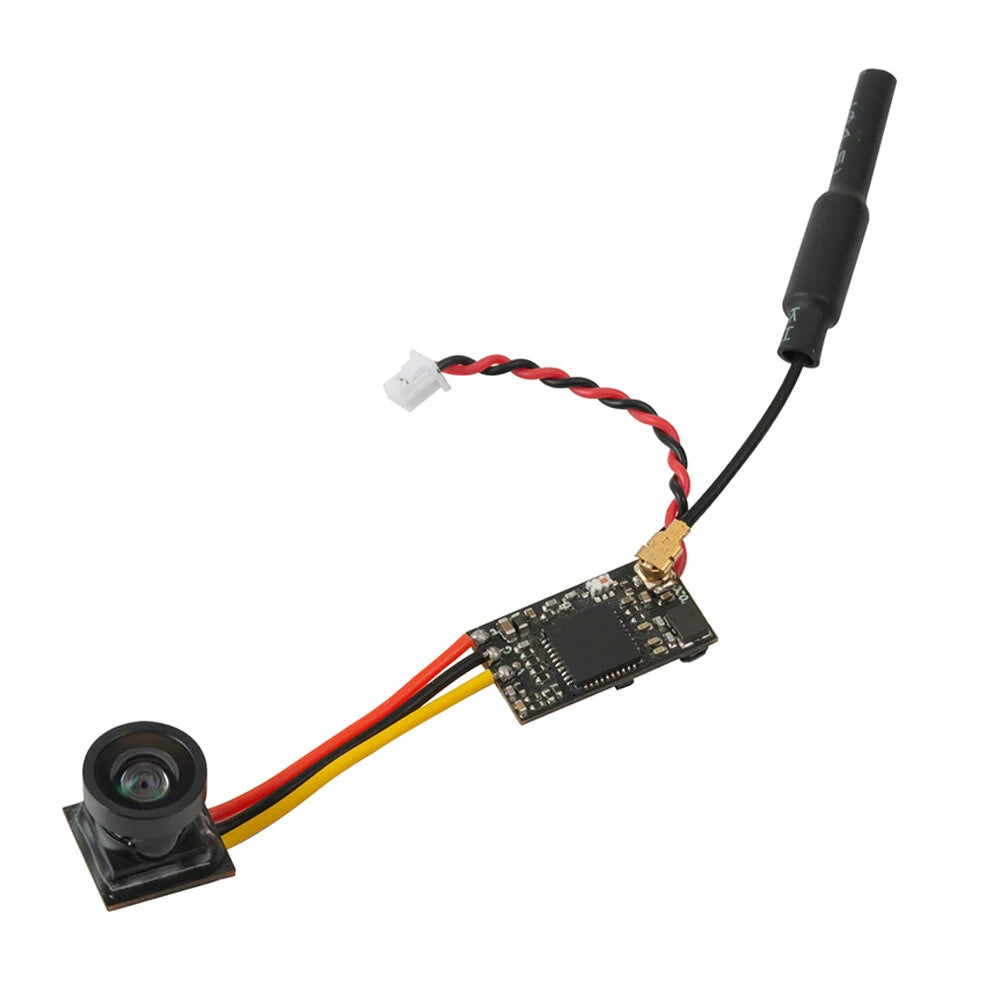

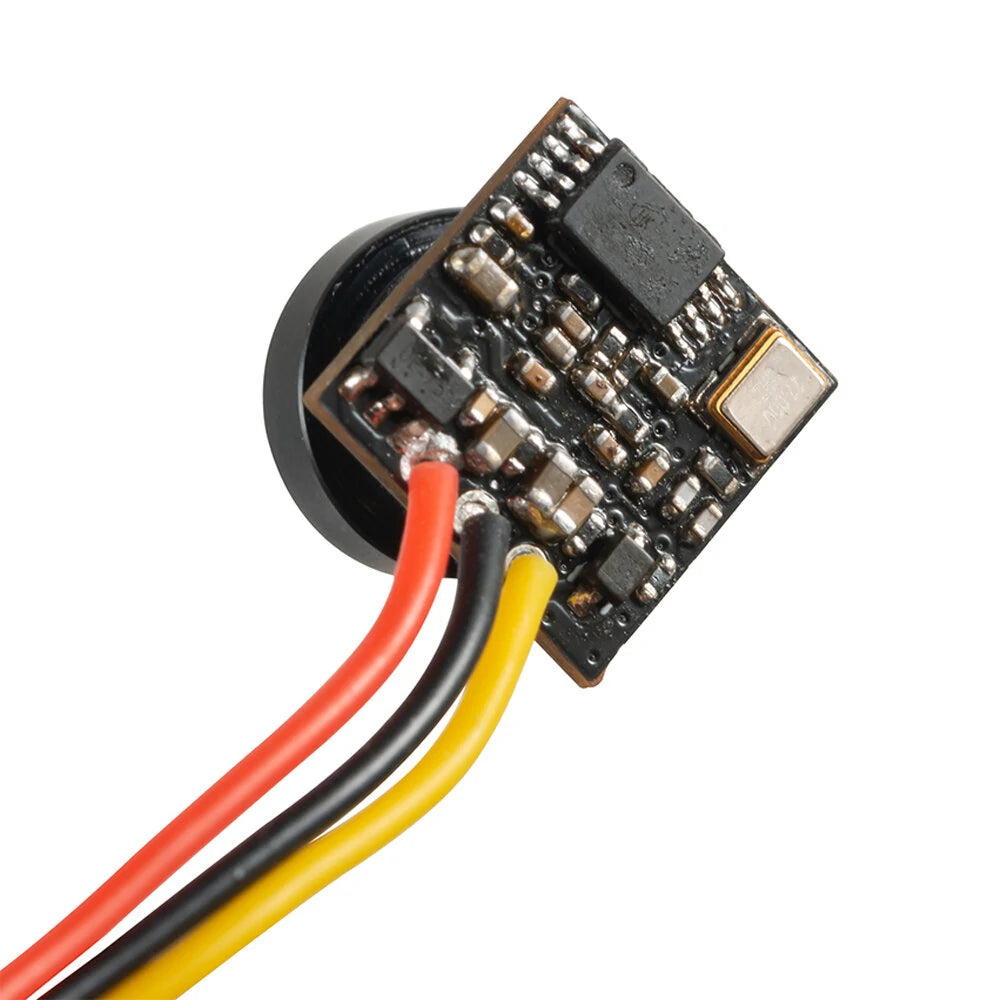

| Name: | LST-S4 FPV Image Transmission Transmitter All-In-1 Machine |
| Sensor: | 1/4' CMOS |

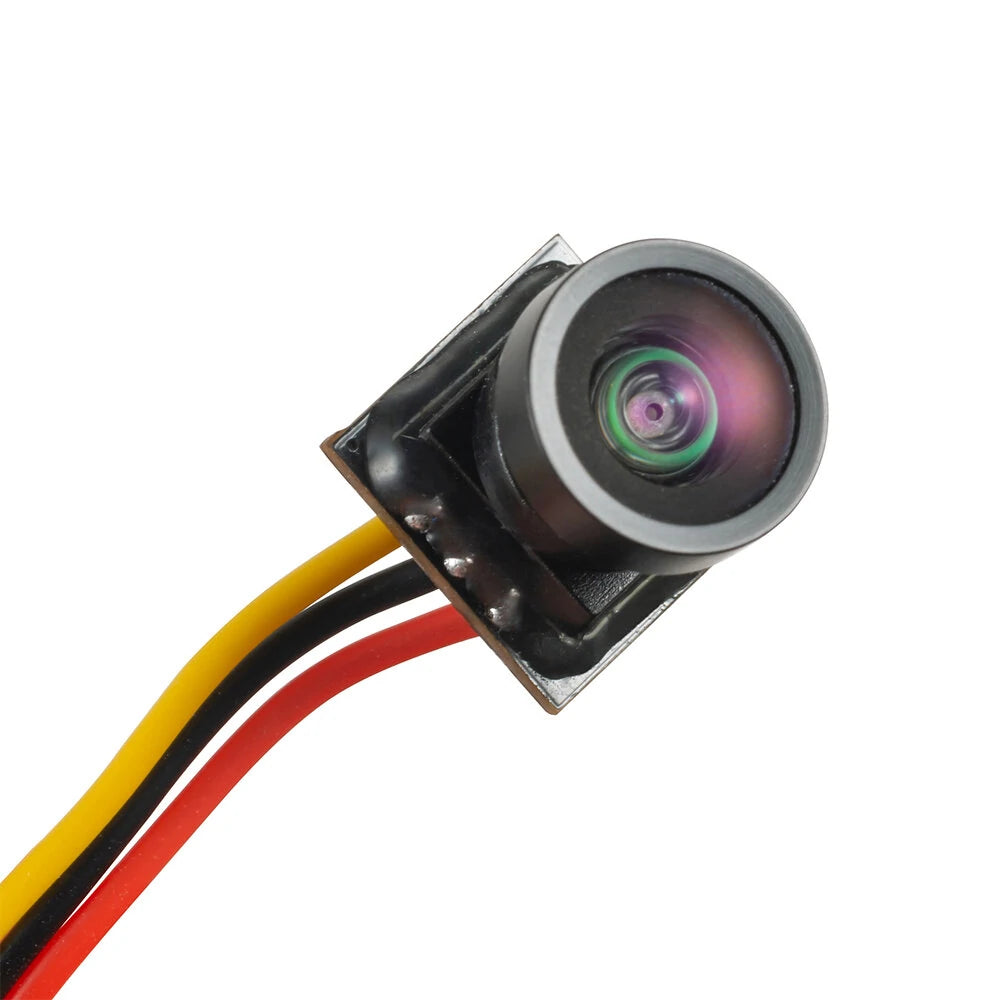

| Lens: | M7 Lens 700TVL lens |
| Angle: | horizontal viewing angle 120° |
| Format: | NTSC / PAL (switchable) |
| Power: | 220mA~400mA@ 3.0v~5.0v |
| Output Impedance: | 50 ohms |
| Output Signal Strength: | 13±1dbm |
| Wireless Channel: | 40ch |

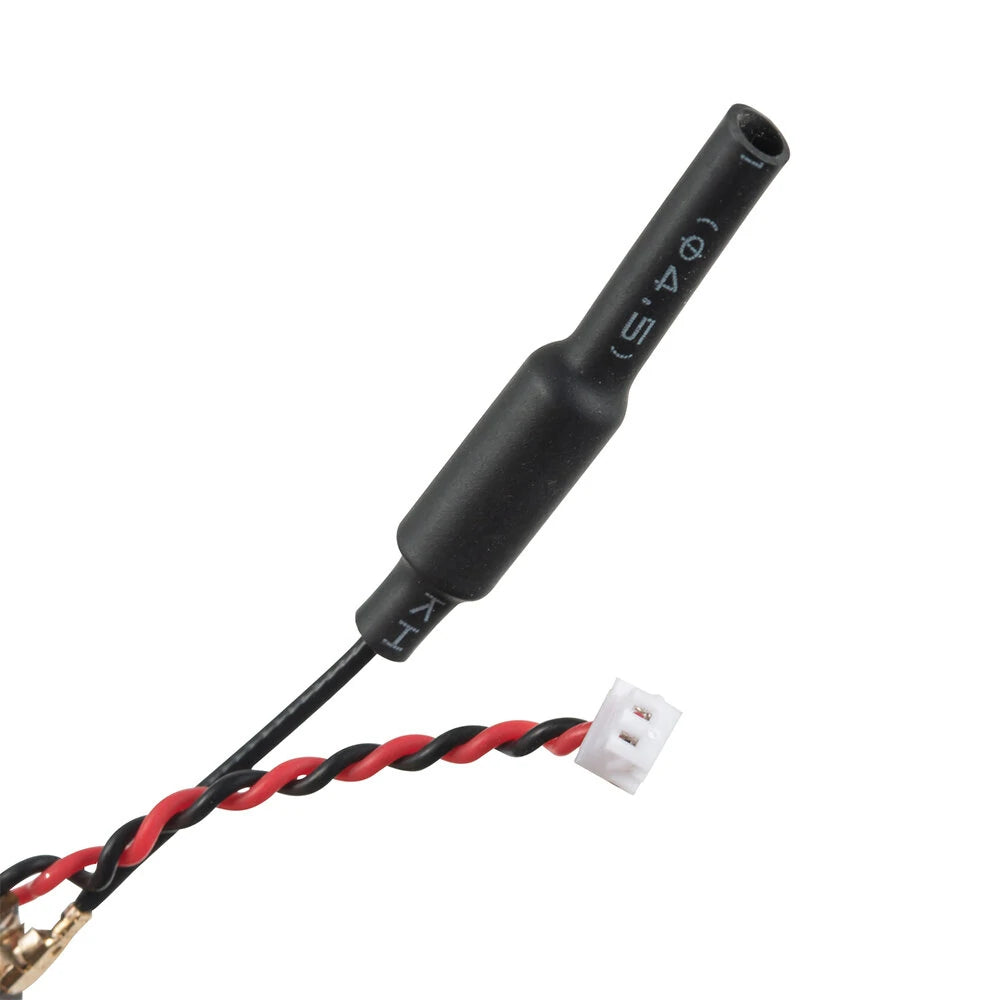

| Antenna: | 5.8g 3dBi |
| Power Supply: | DC 5V ±0.5V |
| Output Power: | Max.25mW |
| Camera Size: | 11*11*11mm |
| Weight: | ≤2.8g |
Features:
●Compact design, extreme size and weight;
●Unique split design;
●Wide voltag 2.5~5.5V input (3~5V recommended);
●Enter standby mode when not in use to save power;
●5-band 40 channels with Raceband;
●RF power output: 25mW;

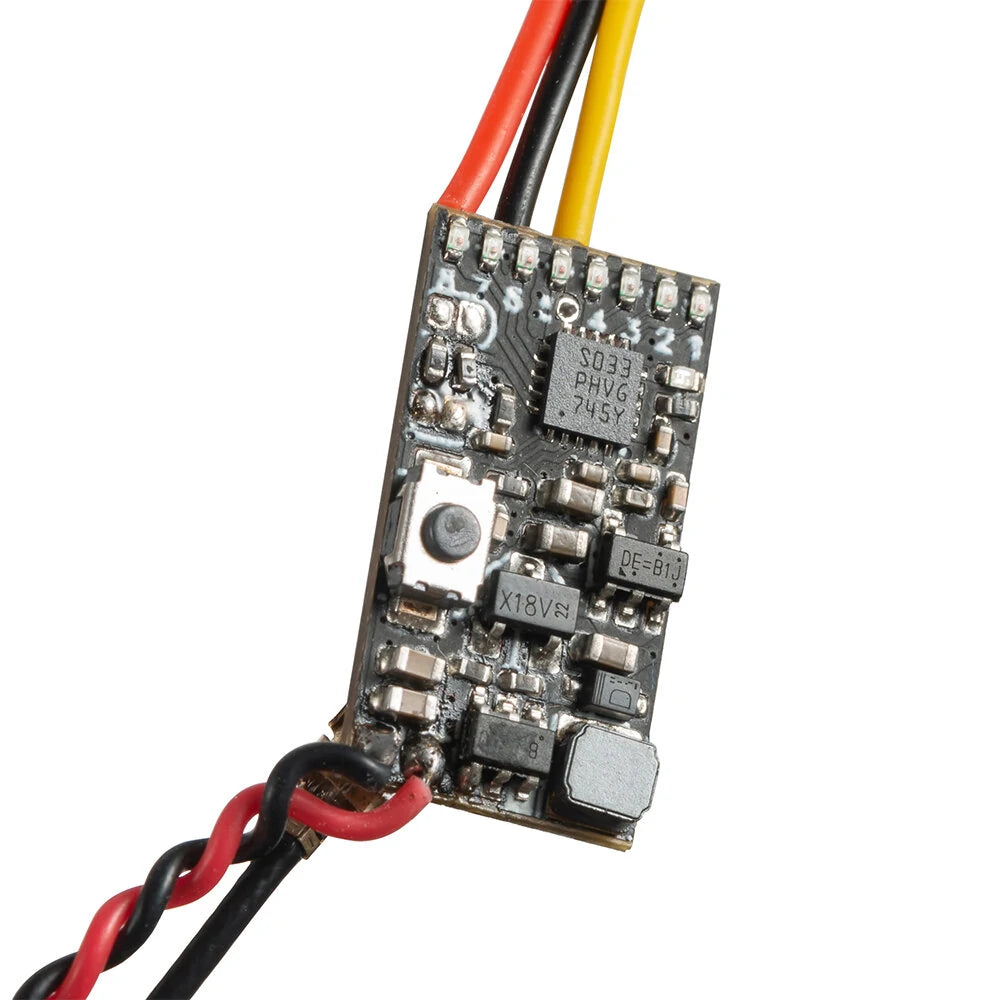

Button function:
Short press (about 1 second or less): change channels 1-8;
Long press (more than 1.5 seconds): change the band A-B-E-F-R;
Long press (more than 3 seconds): switch between normal mode/standby mode;
LED indicator light:
The blue LED is always on in normal mode and flashes in standby mode.

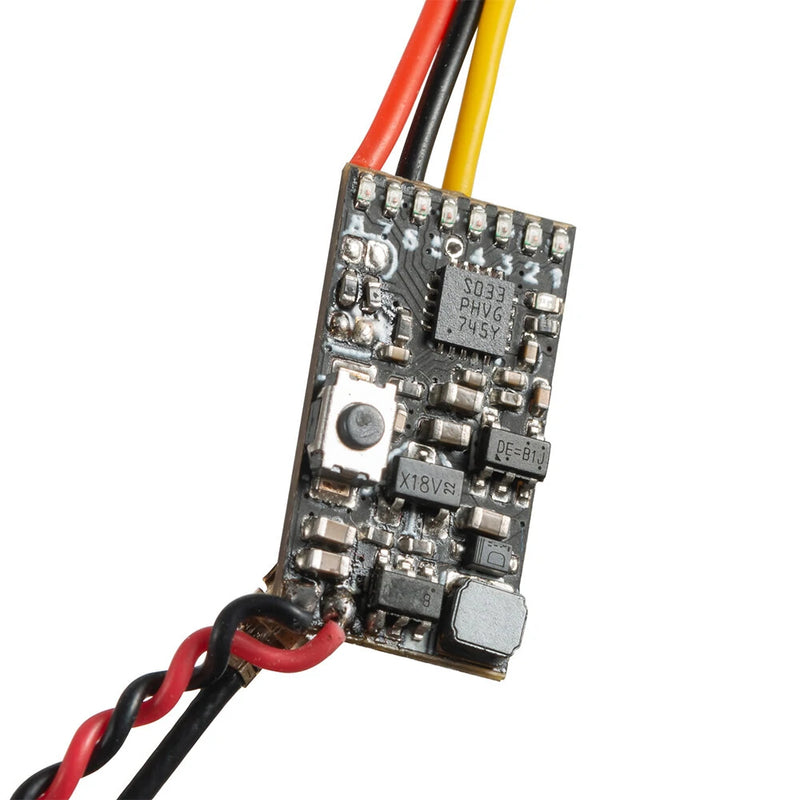

Red LEDs 1-8 are used to indicate frequency bands and channels.
*Display the band for 1 second→Display the channel for 1 second→Hide all for 1 second, cycle operation.
Packaging accessories:

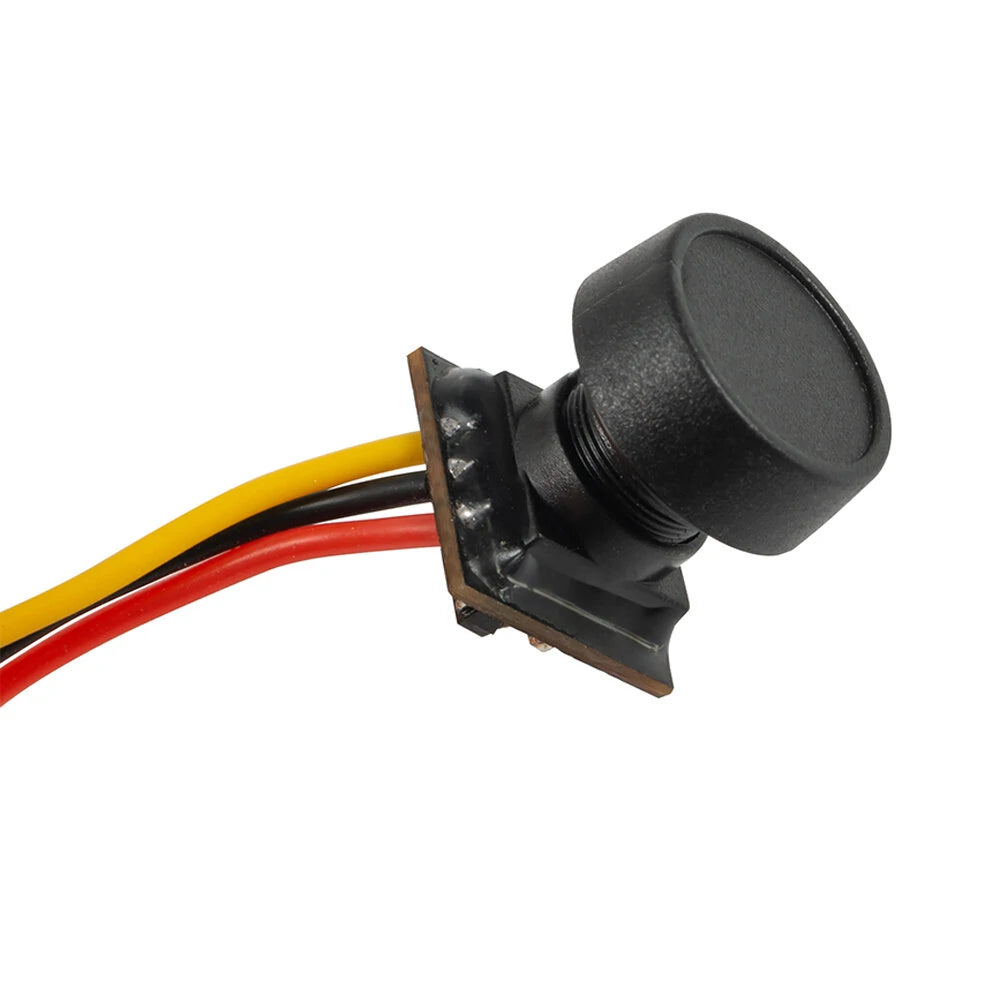

1 X LST-S4 FPV Camera
