Description
Specification:

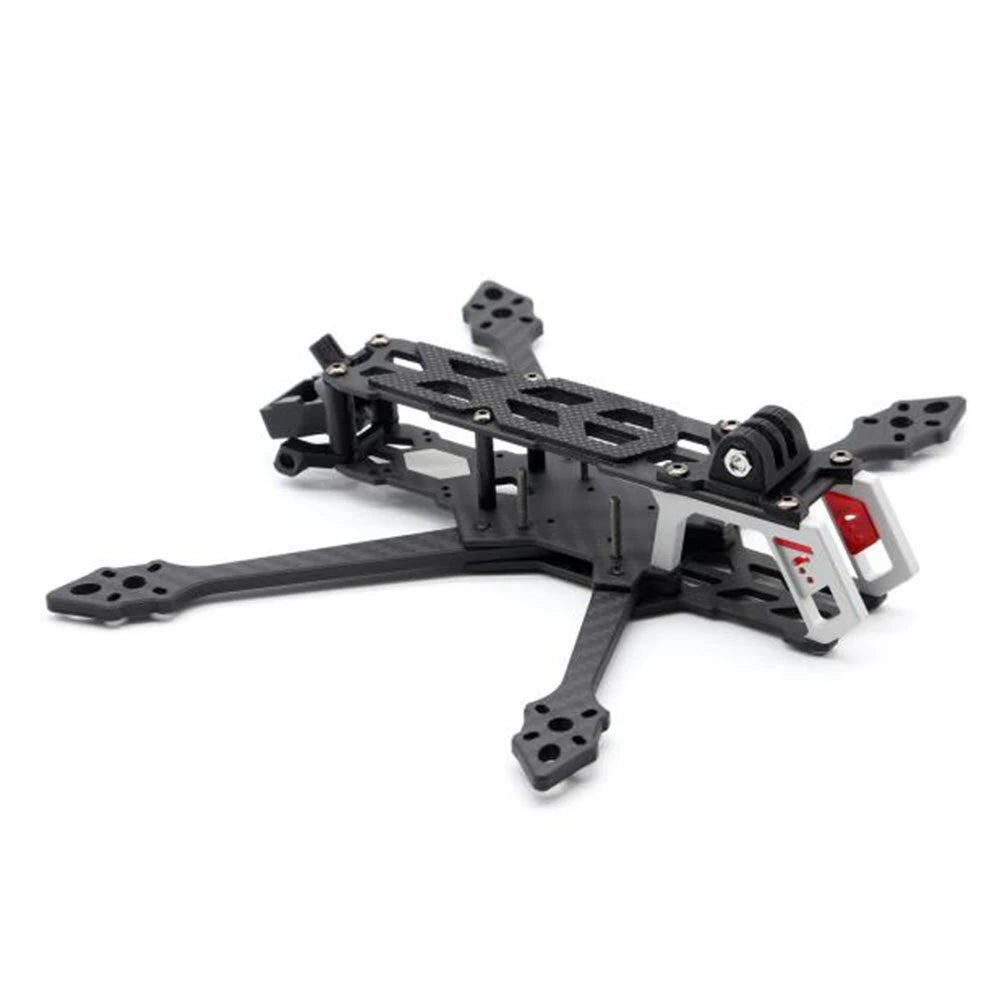

Model: CLOUD 225
Wheelbase size: 225mm
Top plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Arm thickness: 5mm
Flight control installation hole position: 20mm X 20mm /30.5mm x 30.5mm
Flight control installation height: 25mm
Video transmission installation hole position: 20mm X 20mm / 25.5mm x25.5mm
Motor mounting hole distance: 16mm X 16mm / 19mm X19mm
Camera installation size: 20mm X 20mm
Suitable blade size: 5 inch propeller blade
Dimensions: 275mm X 225mm X 40mm
Weight: 140g±5g (including 3D printing parts)
Features:
1.The wide X design of the arm makes the flying attitude stable and flexible, suitable for flexible flower flying shooting.
2.The quick-release design of the machine arm is convenient for replacement.
3.16mm x16mm and 19mm x 19mm motor holes can be installed.
4. With a camera mounting base, for installing GoPro Hero 8 Naked Camera and INSTA 360 GO 2 cameras.
5. Specially designed with CNC aluminum alloy heat sink for DJI O3 Air Unit
6. The 7075 aluminum alloy CNC side plate can be perfectly adapted to the new high-definition digital image transmission lens of DJI O3 air unit.
Recommended Parts (not included)
Brushless Motor: 2207 / 2306
Flight Controller: F4 / F7
Lipo Battery: 6S 1300mah/1500mah
Propeller: 5136 / 5226
The following Parts are Compatible: ( Not included)
FC ESC Stack: 20x20mm iFlight BLITZ Mini F7 FC & BLITZ Mini E55 4in1 ESC BL_32
MAMBASYS F405 MK2 Betaflight Flight Controller F40 40A 3-6S ESC
Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor
IFlight XING2 2306 1755KV 6S Brushless Motor
Propeller: Gemfan Freestyle4 5136 5.1x3.6x3 5.1 Inch 3-Blade Propeller
Gemfan Freestyle 5226 5.2x2.6 5.2 Inch 3-Blade Propeller
Lipo Battery: ZOP Power 22.2V 1300mAh 100C 6S LiPo Battery XT60 Plug
Product List:
1 x upper plate 2.5mm
1 x Front Bottom 2.5mm
1 x Back Plate 2.5mm
2 x Front arms 5.0mm
2 x rear arms 5.0mm
4 x Textured aluminum column M3x25
12 x round M3x6 screws
4x round head M3x9 screws
4x round head M3x11 screws
4 x Round Head M3x14 Screws
4 x round head M3x28 screws
4 x M1.6x8 screws (for dji O3 air unit mounting screws)
4 x Nylon Hex Nuts M3x3
8 x rivet nuts M3 (already pressed)
2 x CNC Front Aluminum Parts
1 x CNC aluminum video transmission heat sink
1 x camera vibration reduction 3D print left
1 x camera vibration reduction 3D print right
1 x Video Transmission Antenna Installation 3D Printing
1x GPS mount 3D print
1x receiver T-antenna mount 3D print
1 x 3D print camera Mounting Base
1 x battery rolling strip
1 x Anti-slip mat for battery
4x Arm EVA Foot Pads
1x Product Installation Manual
