Description
Specification:

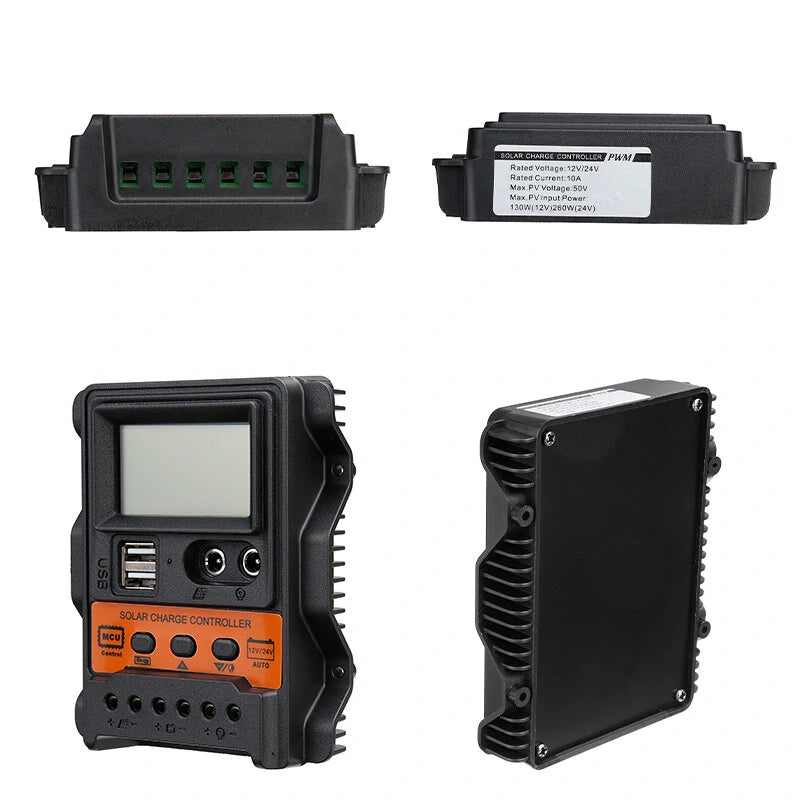

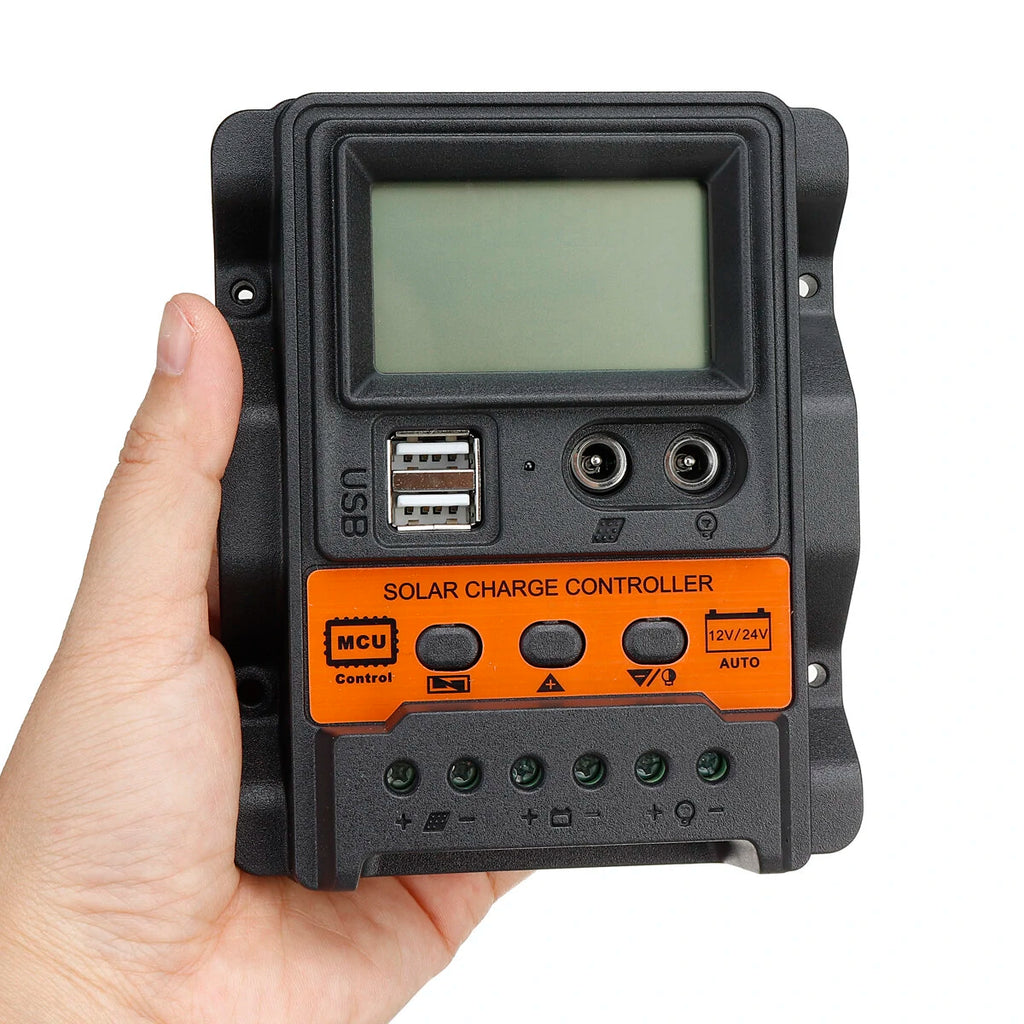

Solar Controller:

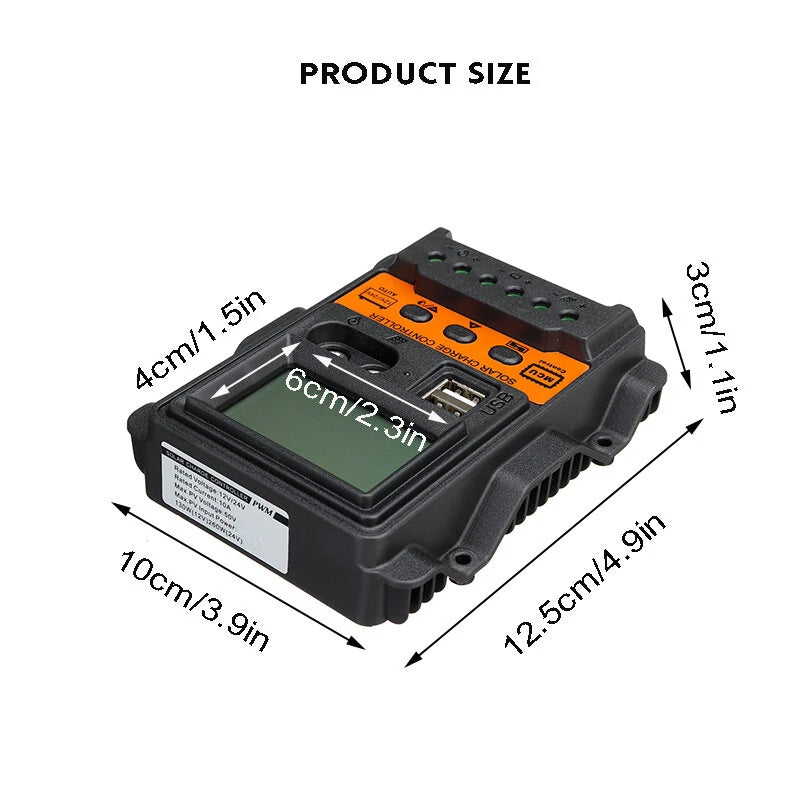

Size |
4.9x3.9x1.1in（12.5x10x3cm） |
| USB output |
5V/2.5A |
| Standby current |
<10mA |
| Rated Voltage |
12V/24V |
| Rated Current |
20A |
| Max.PV Voltage |
50V |
| Max.PV Input Power |
260W(12V)520W(24V) |
| Rated charging current |
10A/20A/30A |
| Rated discharge current |
10A/20A/30A |
| Working temperature |
-35 to +60 degrees |
| Ncrease charging voltag |
14.4V (sealed type) |
| Floating charge voltage |
13.7V (default, adjustable) |
| Discharge cut-off voltage |
10.7V (default, adjustable) |
| Discharge recovery voltage |
12.6V (default, adjustable) |

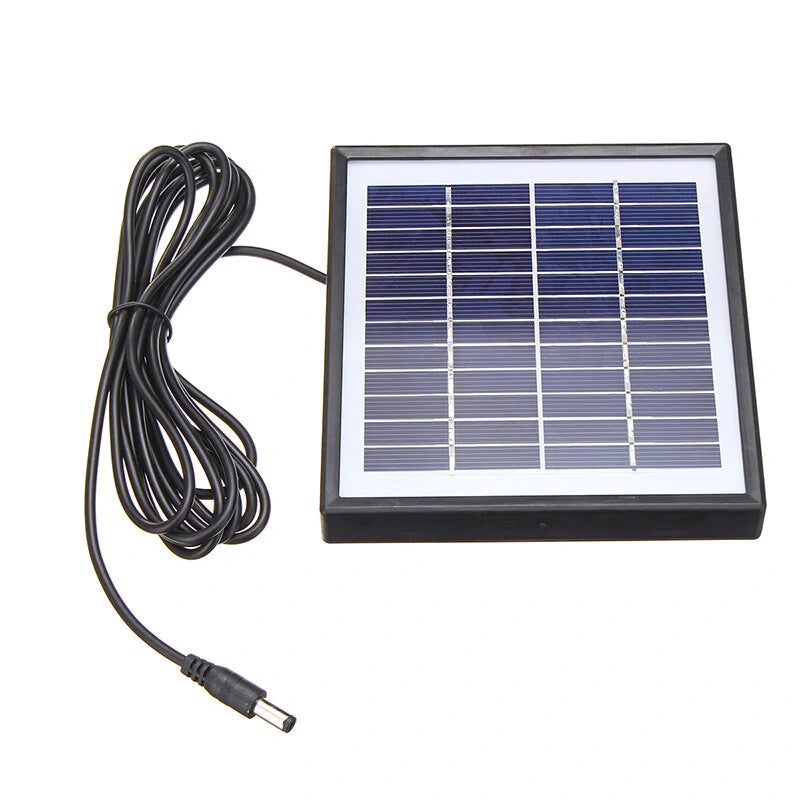

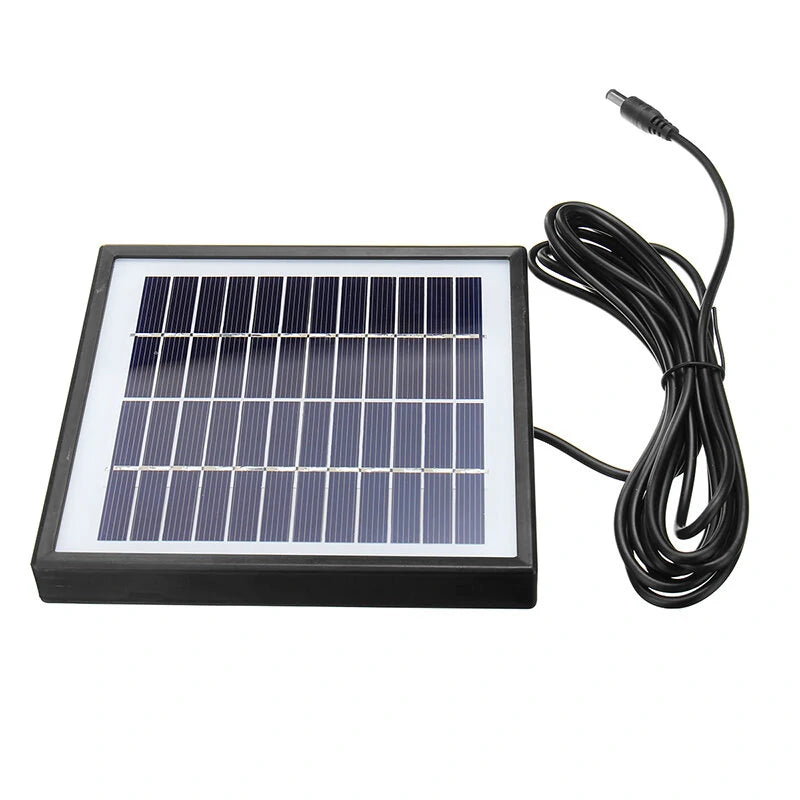

Solar Panel:
| Material |
Class A polysilicon solar panel |
| Power |
5W |
| Working current |
0-166MA |
| Short circuit current |
220MA |
| Working voltage |
12V |
| Open circuit voltage |
13.5V |
| Size |
140*130*18mm |
| DC interface |
5.5*2.1mm |
| Cable length |
3m approx. |
Features:
-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.
- Automatic focusing ，tracking charging, high charging efficiency, non-stop detection
During charging, bidirectional focusing tracking.

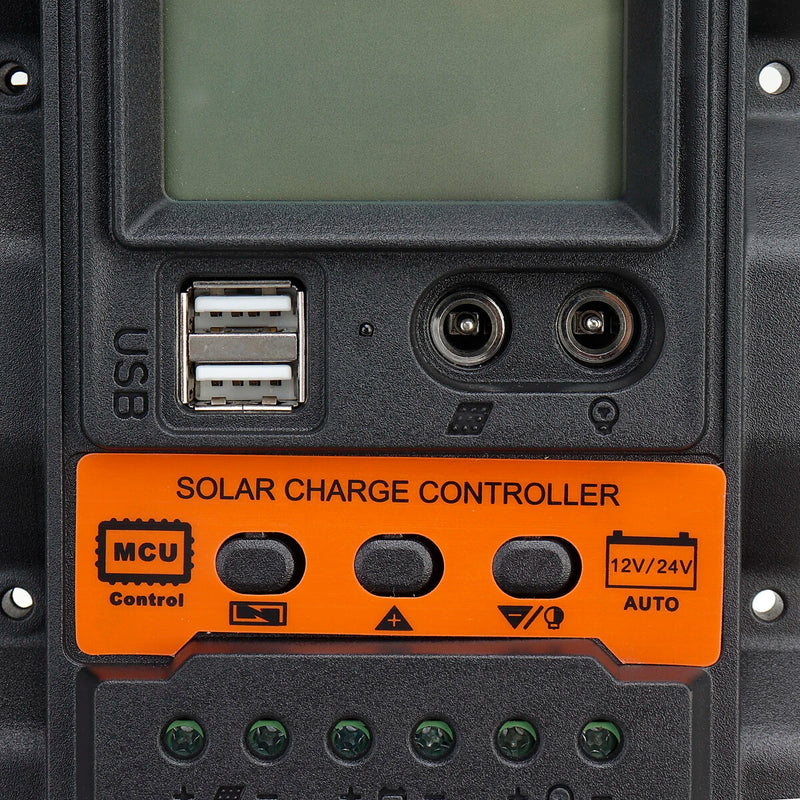

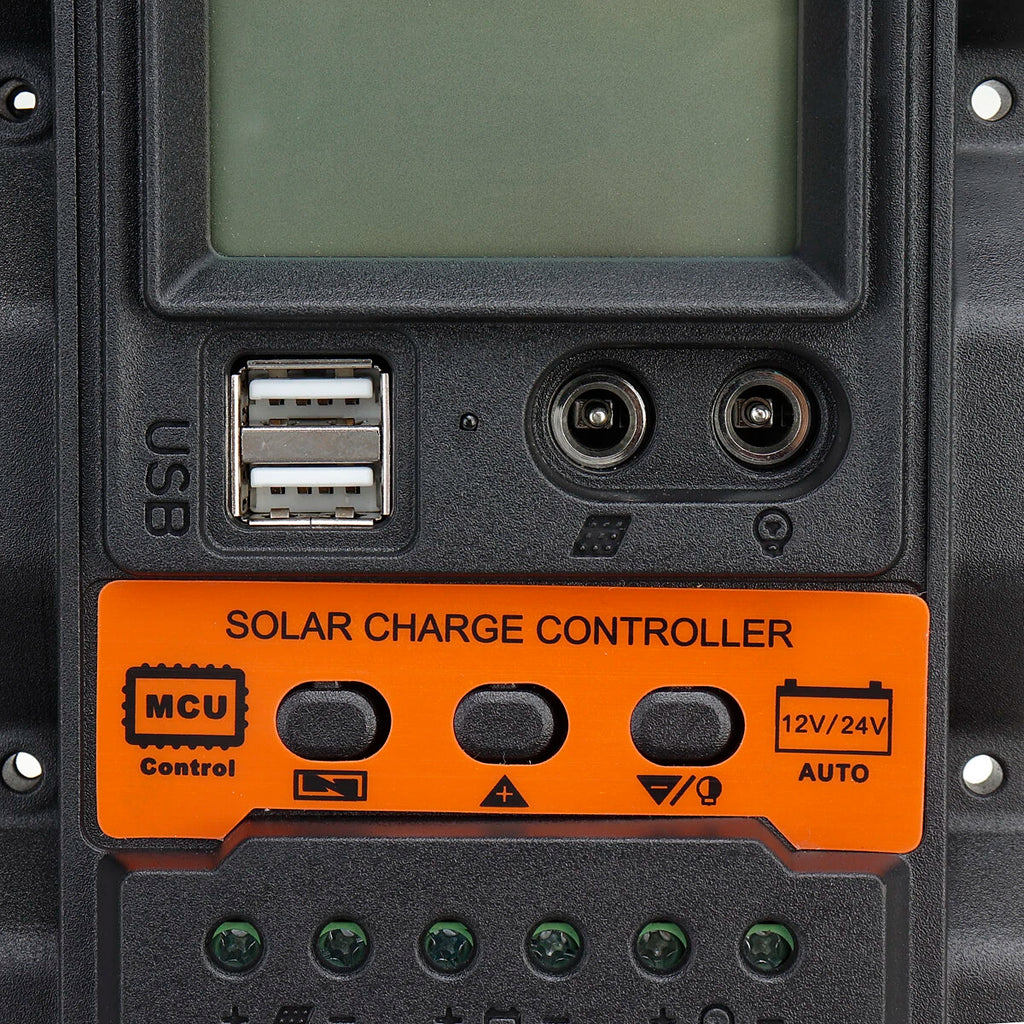

-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time.Can be adjusted, which is more convenient.
-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.
-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection.Protection,when the fault is eliminated, the controller automatically recovers, does not damage
The device.
-The Solar Panel is suitable for a variety of low-power appliances: emergency lights, advertising lights, traffic lights, household lights, electric fans, surveillance cameras, solar water pumps, solar street lights, small solar systems, etc.
Packing List:

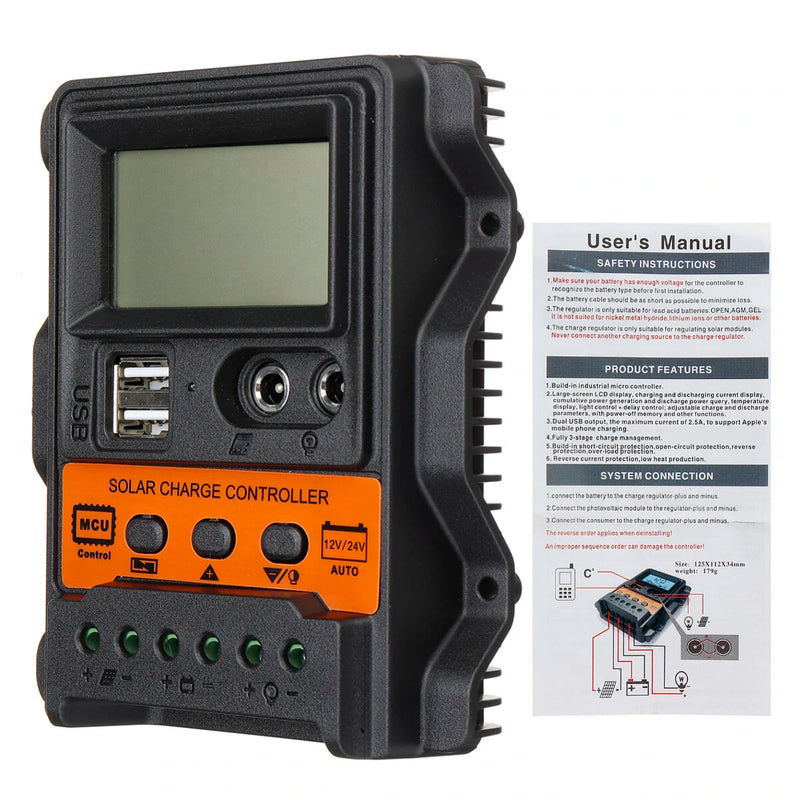

1 x Solar Panel Battery Regulator Charge Controller
1 x User Manual
or
1 x Solar Panel Battery Regulator Charge Controller
1 x User Manual
1 x Solar Panel
