Description:

Basic information	Brand:LC Racing Item No:BHC-1V2 Scale:1/14 Color:Transparent	Power System	Motor,ESC Not Included Servo:Batan D116F Digital High Speed Metal Gear Servo mso-bidi-font-family:'Times New Roman';font-size:11.0000pt;'>
Transmitter	Not Included	Battery	Not Included
Other	Material:PA+electronic parts Transmission Ratio:2.5:1 Chassis:2.0 mm anodized aluminum Ball bearings:Fully ball raced Body:Unpainted	Dimension	Car Size:300*190*110mm Wheelbase:203mm Box Size:335*190*122mm

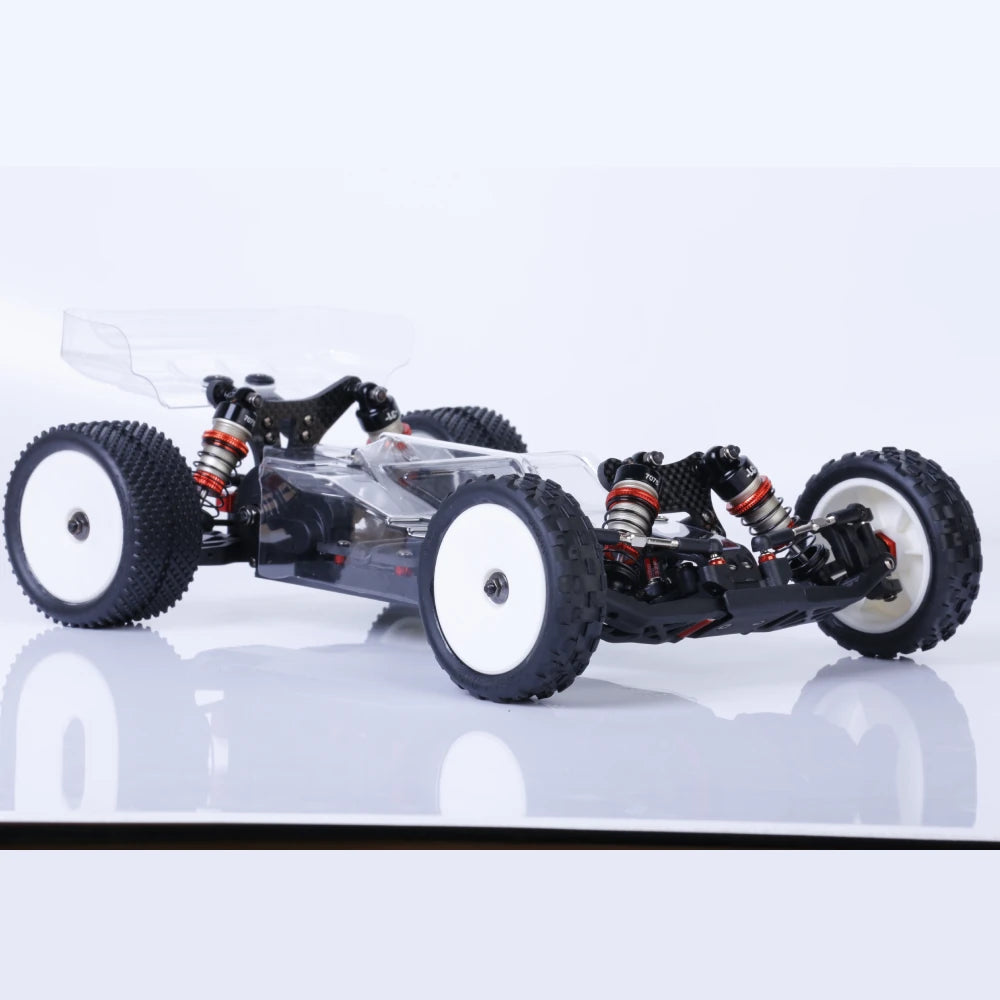

BHC-1V2

New

1. Emulsion Shock System - New 7075 Alum Shock Cap without the need for a shock diaphragm L6286

2. Shock Shaft O-rings with option to use one or two o-rings per shock body depending on track condition - New smoother 60° Silicone Shock Shaft O-rings L6287

3. Battery Holder - New Carbon Fiber Battery Holder L5089

4. Gear box - New V2 Gearbox, more rigid, better fit, better seal L5078

5.  Body Shell - Updated body shell design for better high speed grip and steering response L5090

6. Turnbuckles - Updated turnbuckles that accepts 4mm turnbuckle wrenches L5083 and L5084

7. Shock Towers - New Carbon Fiber Front Shock Towers Front L5081 and Rear L5082

8. Suspension Geometry - Revised Front L5087 and Rear L5088 Inner Chamber Link Mounts for a higher inner chamber link position

Includes:

1. LC Racing engineered carpet/astro turf tire set.

2. Alum Threaded Oil-filled Big-bore Shocks

3. Carbon Fiber Shock Towers

4. Rear Competition Grade Oil-filled Gear Differential with Metal-Gears

5. Steel Hinge-pins

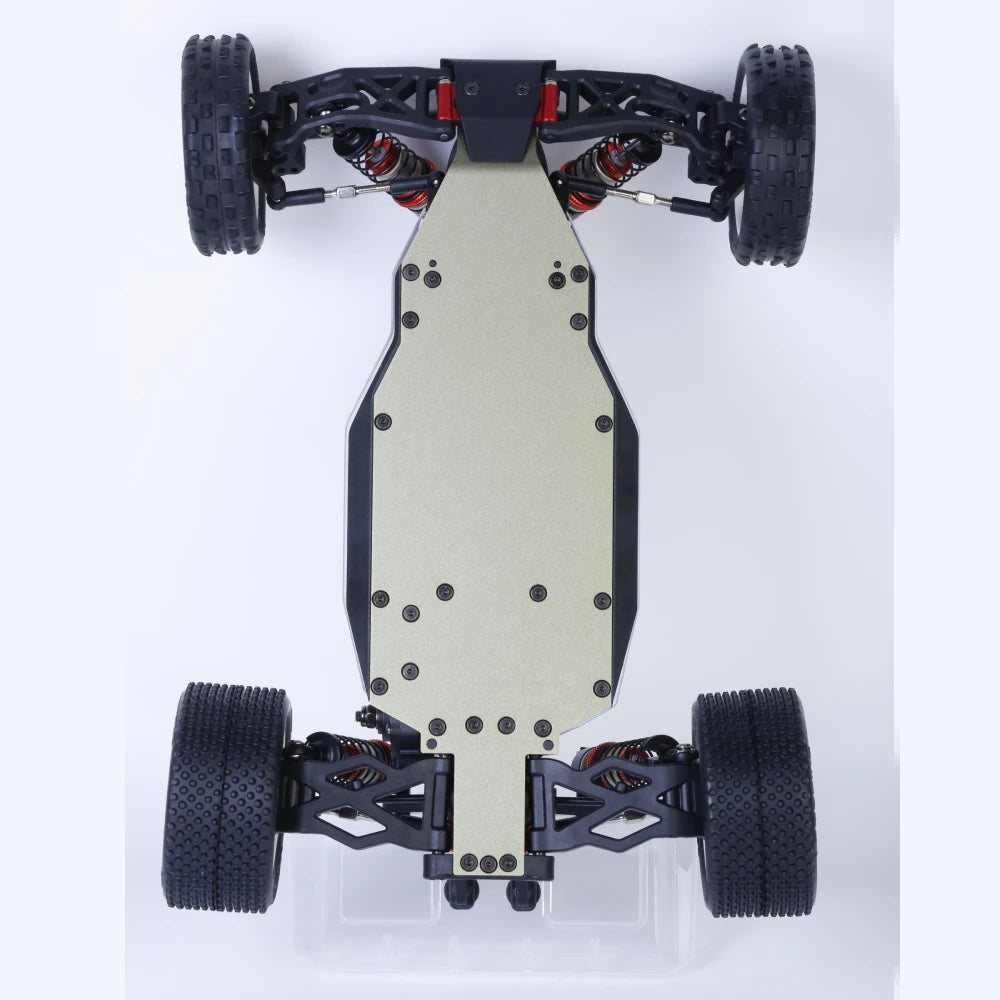

6. 2.0mm Anodized Aluminum Chassis with Front Kick-up and Side Guards

7. Anodized 7075 Aluminum Motor Mount

8. Alum 12mm Wheel Hexes (Width: 5.0mm)

9. Adjustable Slipper Clutch

10. Batan D116F Digital High Speed Metal Gear Servo

11. Clear polycarbonate race body

Speed Controller, Motor, Battery, Transmitter & Receiver NOT INCLUDED!!mso-bidi-font-family:'Times New Roman';font-size:11.0000pt;'>

Additional Requires Items:(not included,you need to prepare them by yourself)

mso-bidi-font-family:'Times New Roman';font-size:11.0000pt;'>

Transmitter and Receiver

ESC and Brushless Motor

Battery 70x36mm Lipo and Charger

Gear Differential Oil

Shock Oil

Assembly tools

Paint for lexan/polycarbonate body

Recommended Brushless Motors:

Sensorless LCE008, LCE009, LCE010, LCE011, LCE014,

Sensored LCE013, LCE015, LCE018, LCE019mso-bidi-font-family:'Times New Roman';font-size:11.0000pt;'>

Package Included:
1X RC Car KIT

1X Manual
