Description

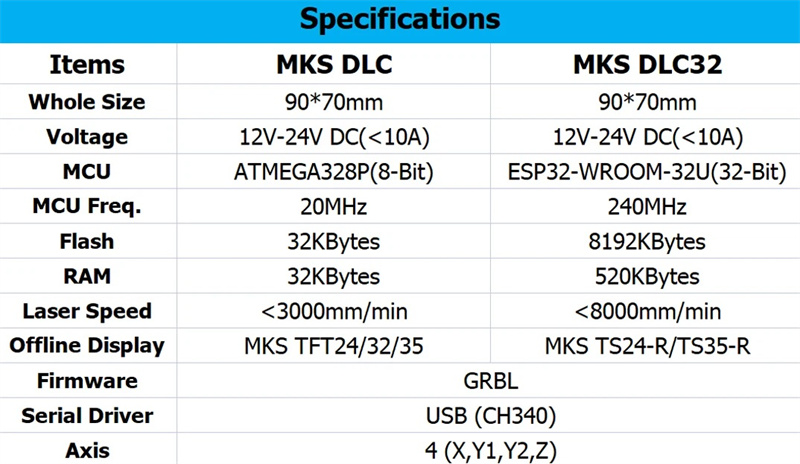

Specification:
Item Model: MKSDLC32
Dimensions: 90*70mm
Input Voltage: 12V-24V DC (<10A)
Microcontroller Unit: ESP32-WROOM-32U (32-Bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
RAM: 520KBytes
Max Laser Speed: <8000mm/min

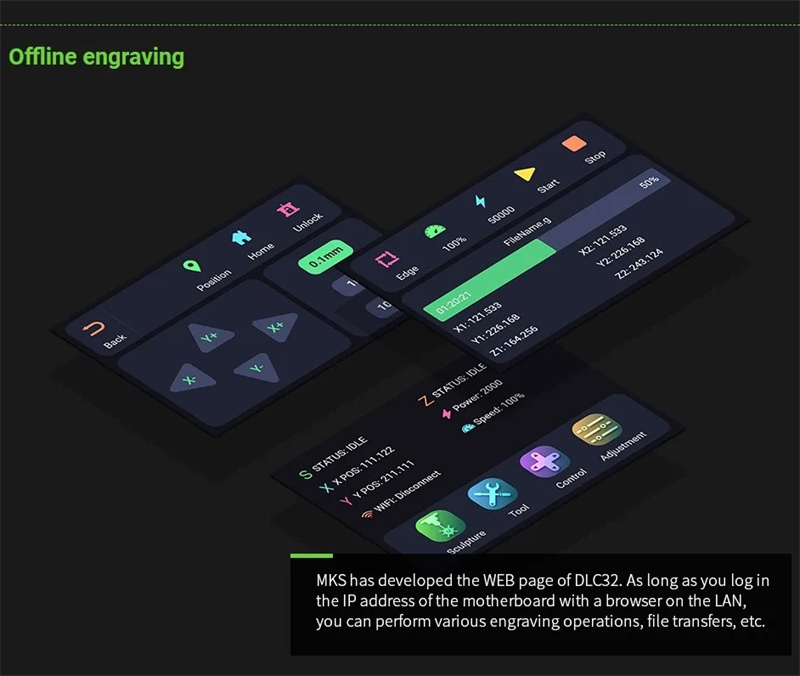

Offline Display: MKSTS24-R/TS35-R
Firmware: GRBL
USB Serial Driver: CH340
Axis Control: 4 (X, Y1, Y2, Z)

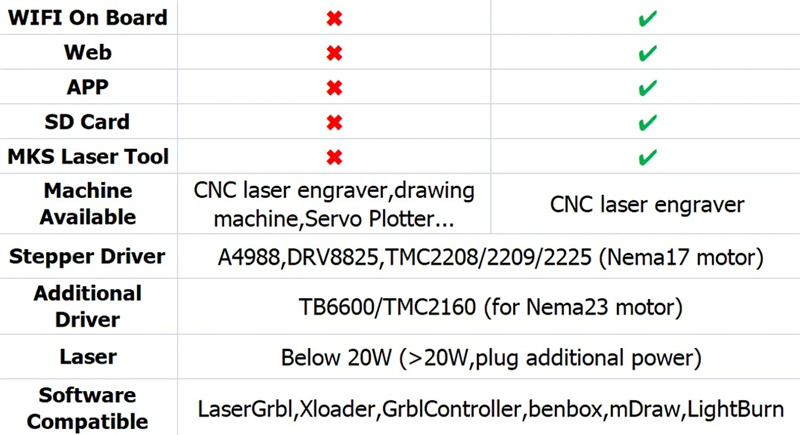

Built-in WiFi: Supported

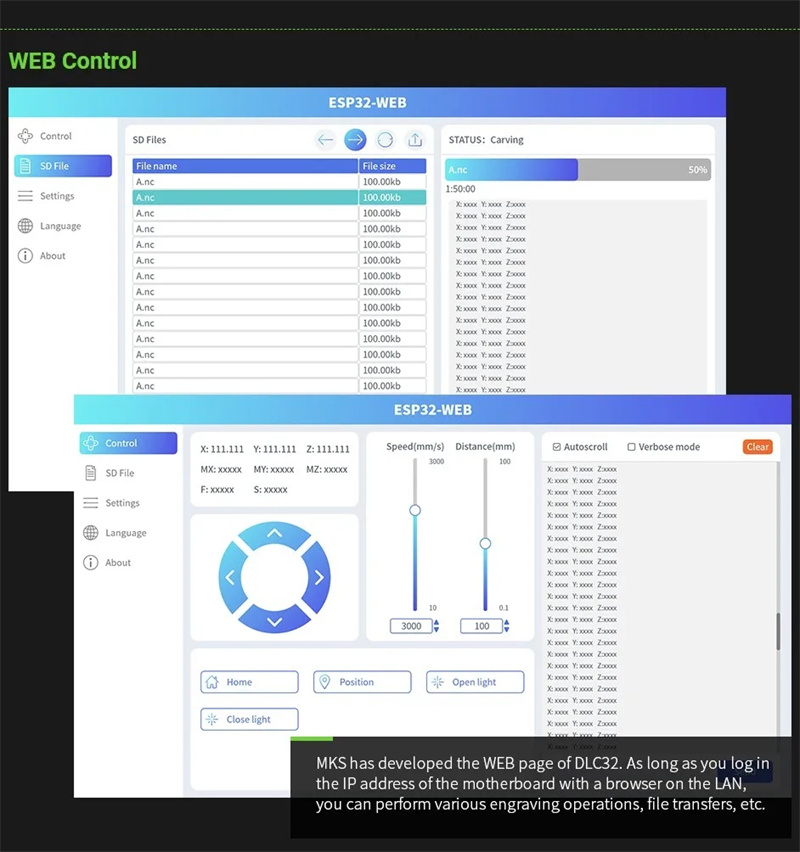

Web Interface: Supported

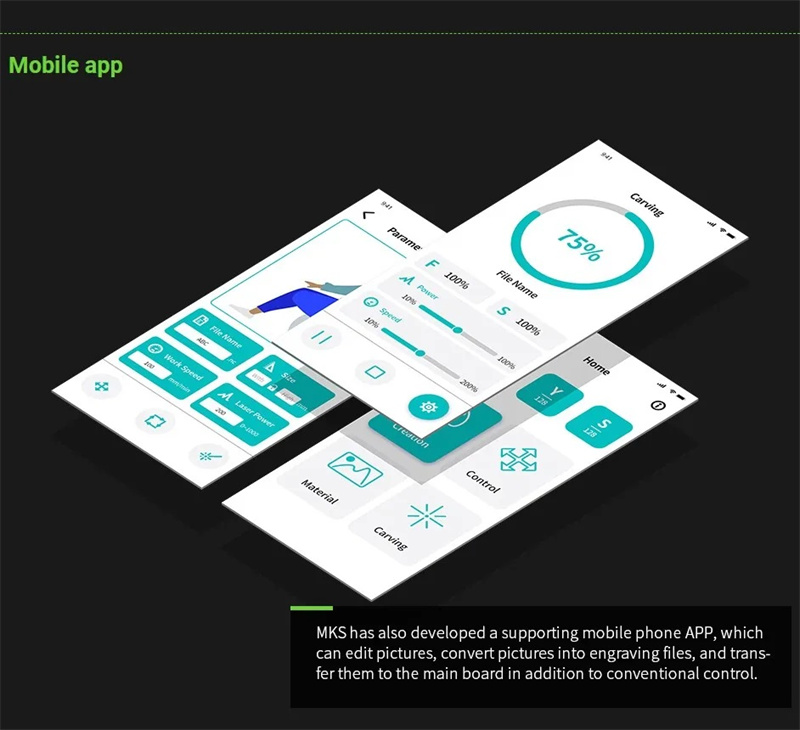

Mobile App: Supported
SD Card Slot: Supported
MKSLaser Tool: Supported
Compatible Machines: CNC Laser Engravers
Stepper Drivers: A4988, DRV8825, TMC2208/2209/2225 (for Nema17 motors)
Additional Driver Options: TB6600/TMC2160 (for Nema23 motors)
Laser Power: Below 20W (For > 20W, use additional power supply)

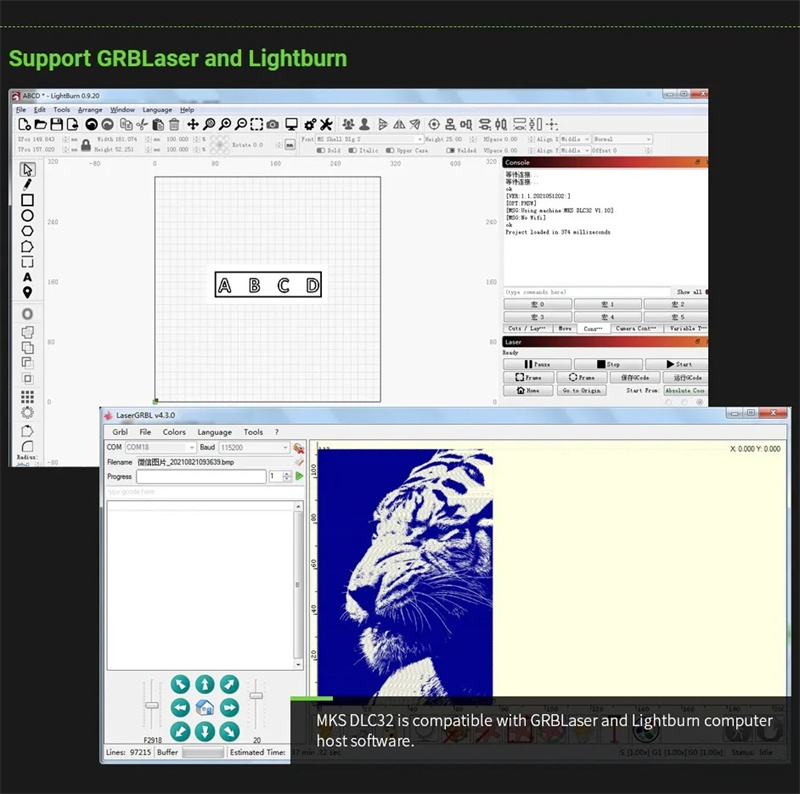

Compatible Software: LaserGrbl, Xloader, GrblController, Benbox, mDraw, LightBurn
Features:
1. High-Speed Performance: Capable of laser speeds of up to 8000mm/min, ensuring efficient and rapid engraving tasks.
2. Advanced Connectivity: Equipped with built-in WiFi, supporting web and app control for seamless remote operation.
3. Versatile Compatibility: Compatible with various stepper drivers (A4988, DRV8825, TMC2208/2209/2225) for Nema17 motors, with additional driver options (TB6600/TMC2160) for Nema23 motors.
4. Robust Construction: Engineered for long-lasting performance with top-grade materials and components.
5. Wide Software Support: Fully compatible with leading engraving software like LaserGrbl, Xloader, GrblController, Benbox, mDraw, and LightBurn, offering flexibility and ease of use.
Package Include:

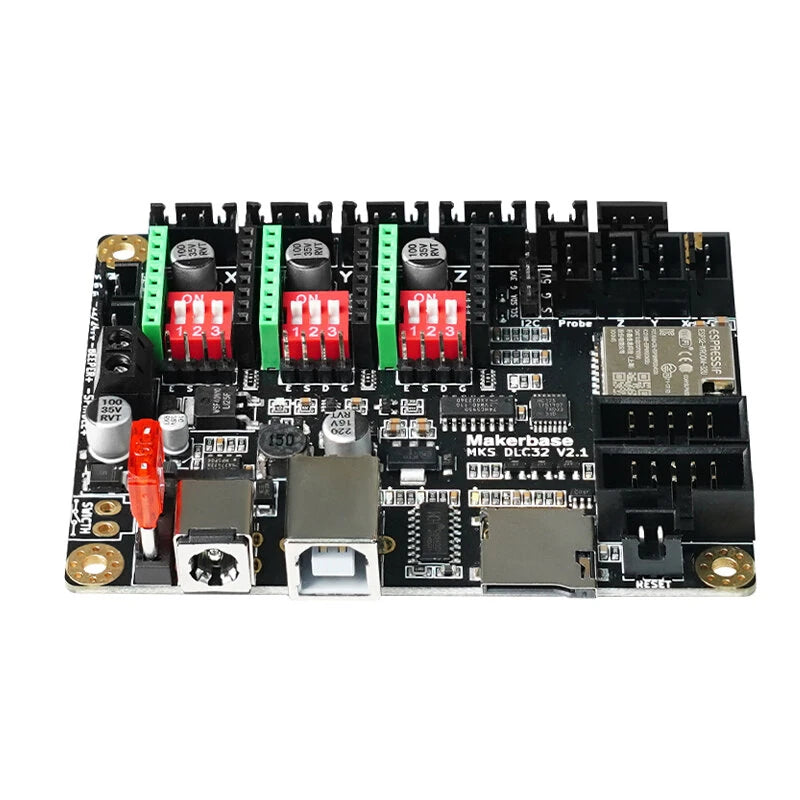

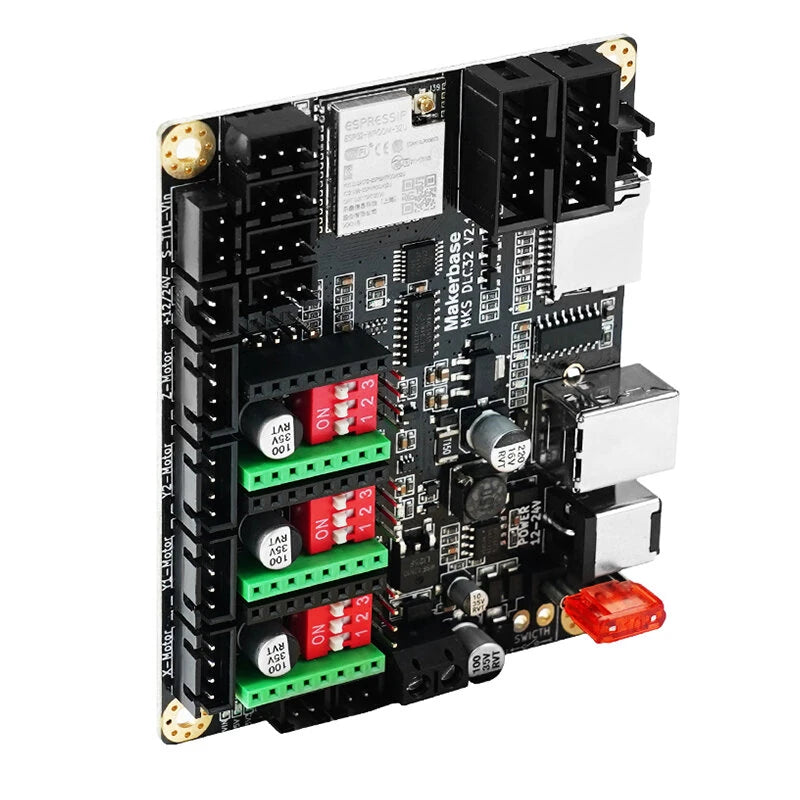

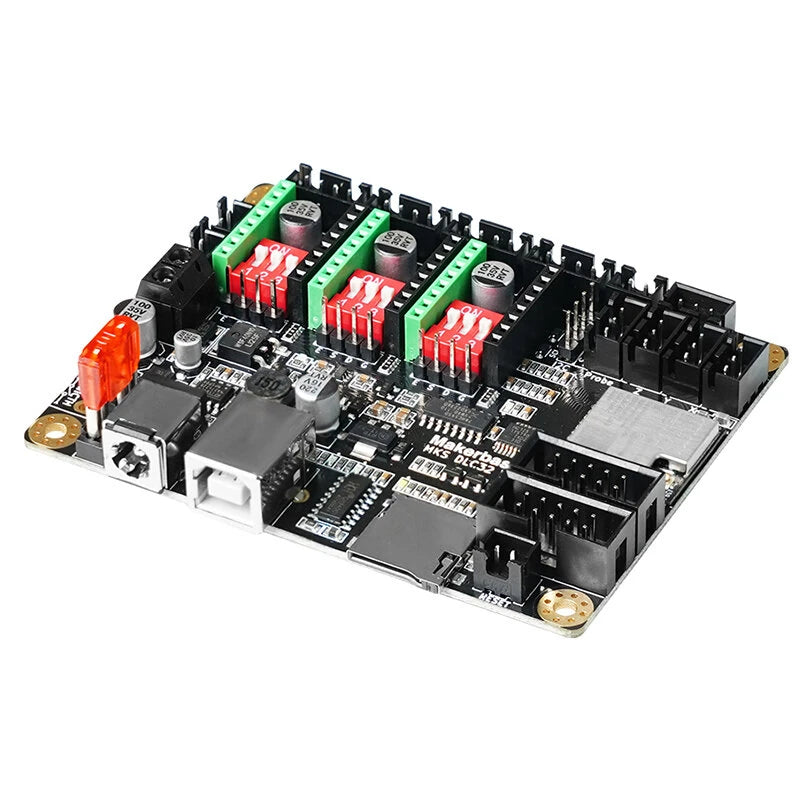

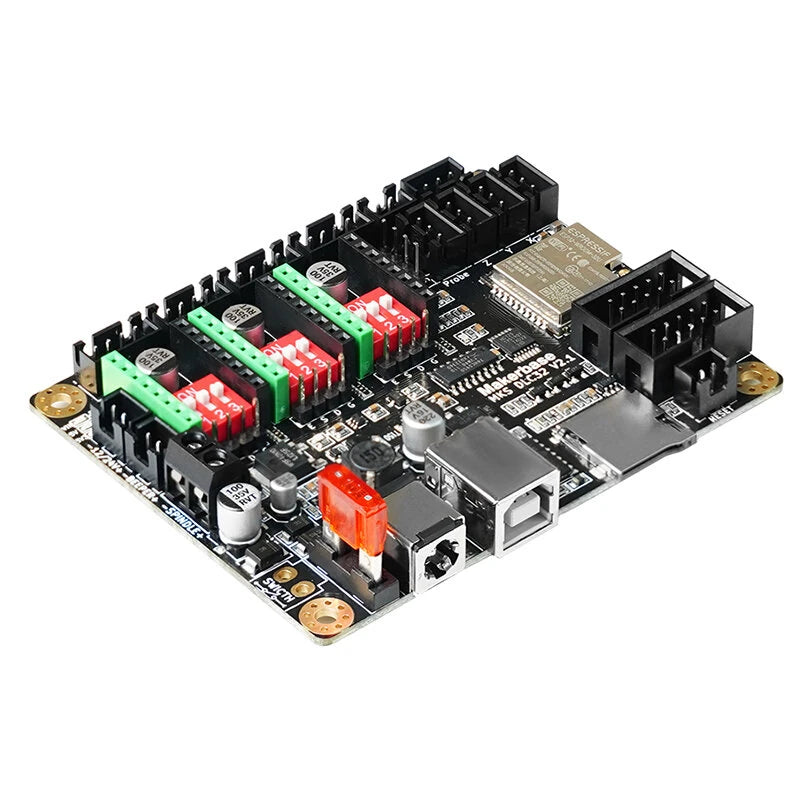

1 x MKSDLC32 Control Board
1 x Cable
