Description
Specifications:

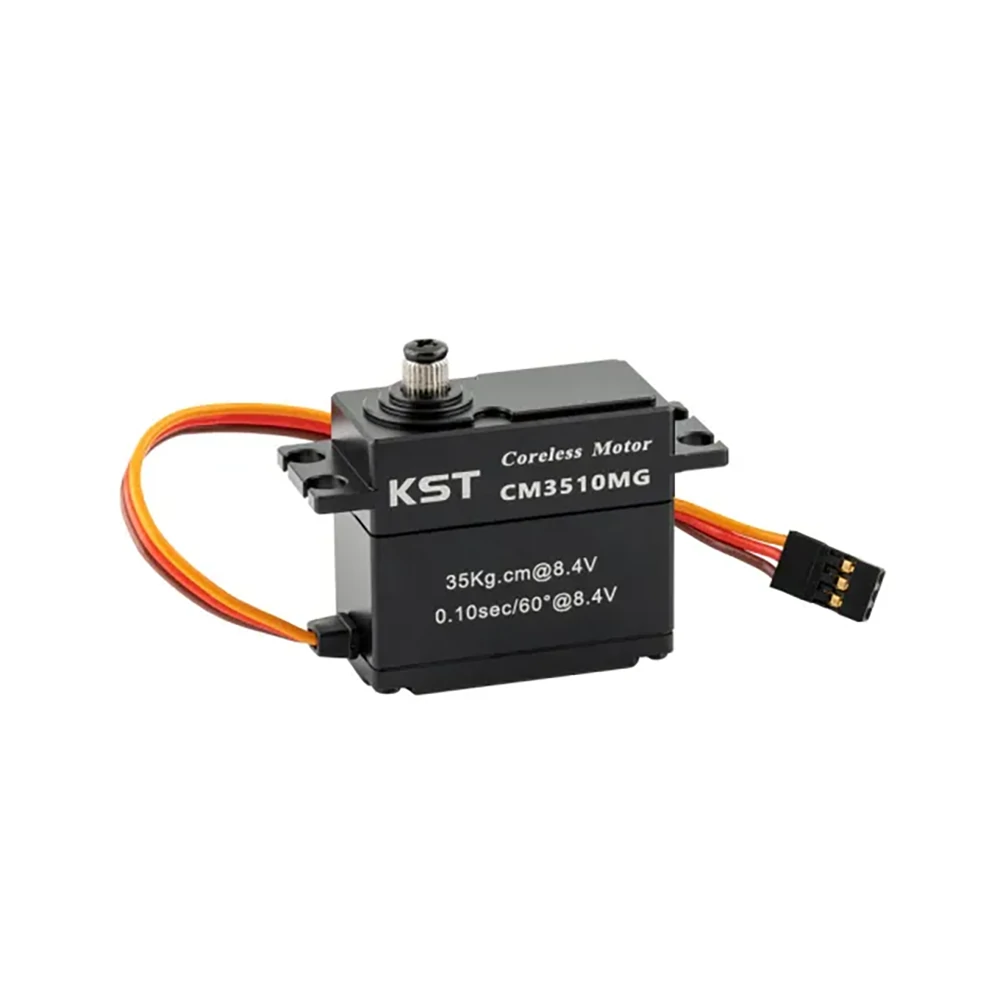

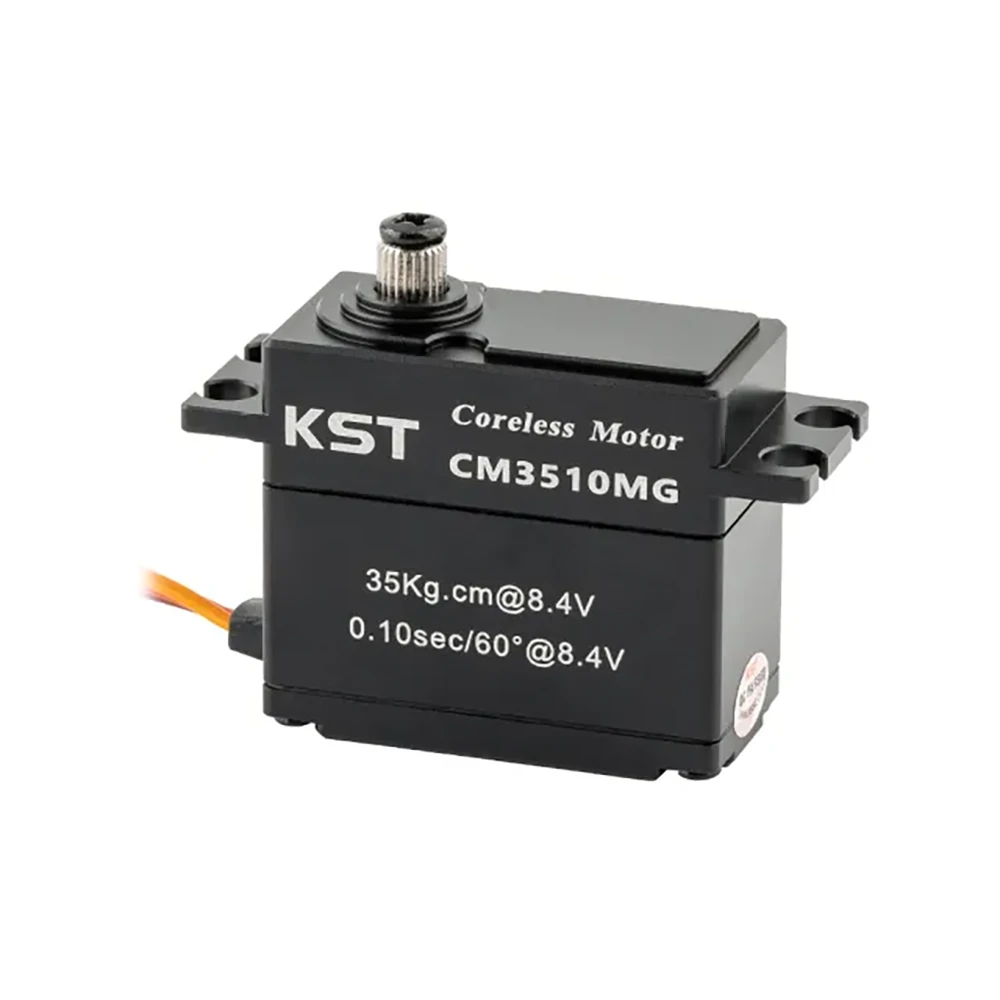

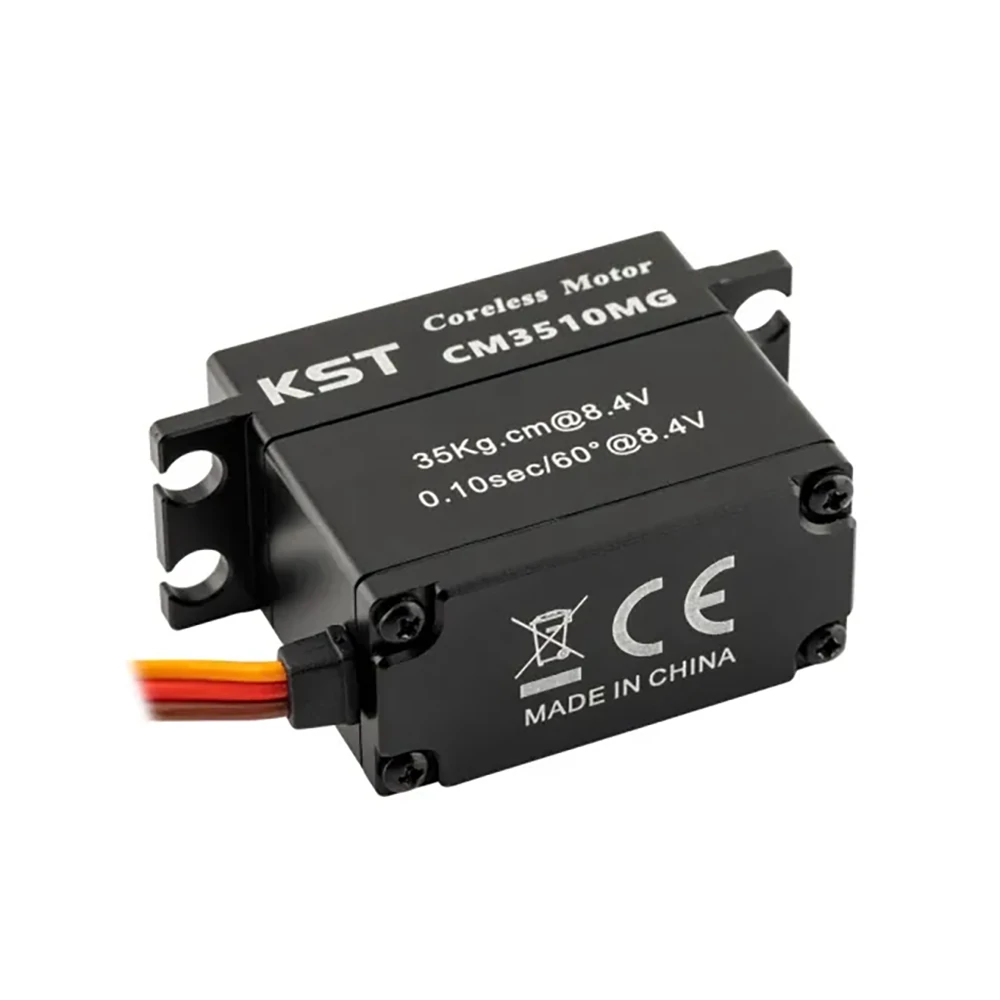

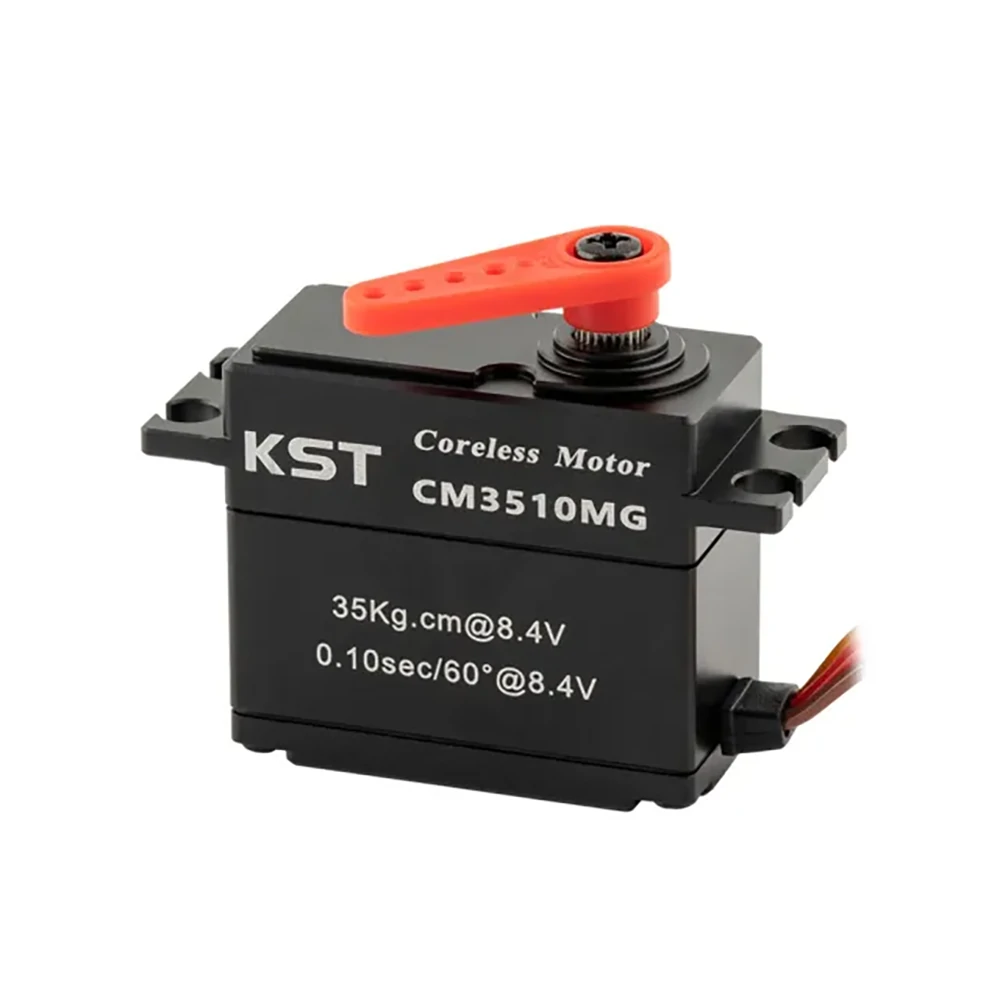

Item: CM3510MG Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
Speed: 0.20sec/60°@4.8V / 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.10sec/60°@8.4V
Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃……+65℃
Soft Start: Yes
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Metal gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
Features:
Boasts an ultra-high torque of up to 35Kgf.cm and a speedy 0.10sec/60° response time.
Certified with IP65 waterproofing, designed to thrive in challenging conditions.
Equipped with a high-performance coreless DC motor and durable metal gear set.
CNC Aluminium casing ensures enhanced durability and longevity.
Perfectly compatible with 1/10 Scale RC Rock Crawlers, 1/7th, and 1/8th Scale RC Monster Trucks & Buggies.

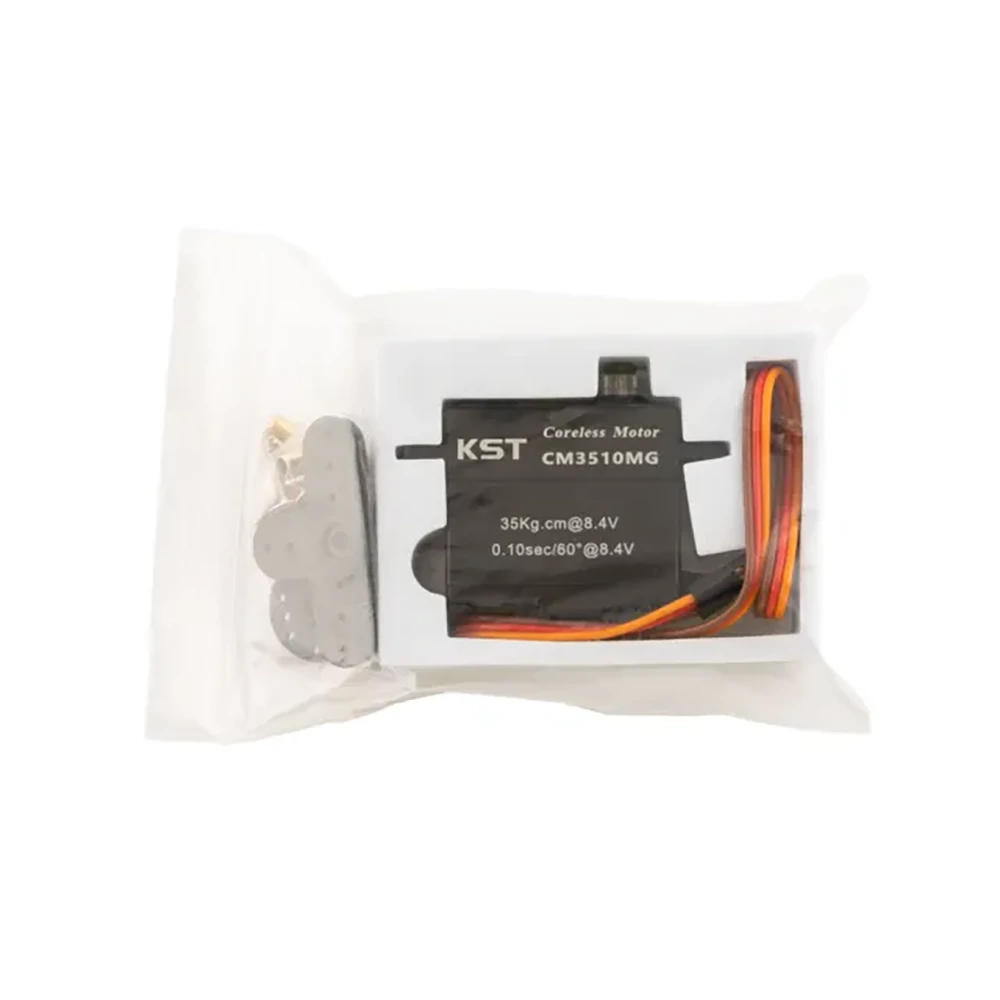

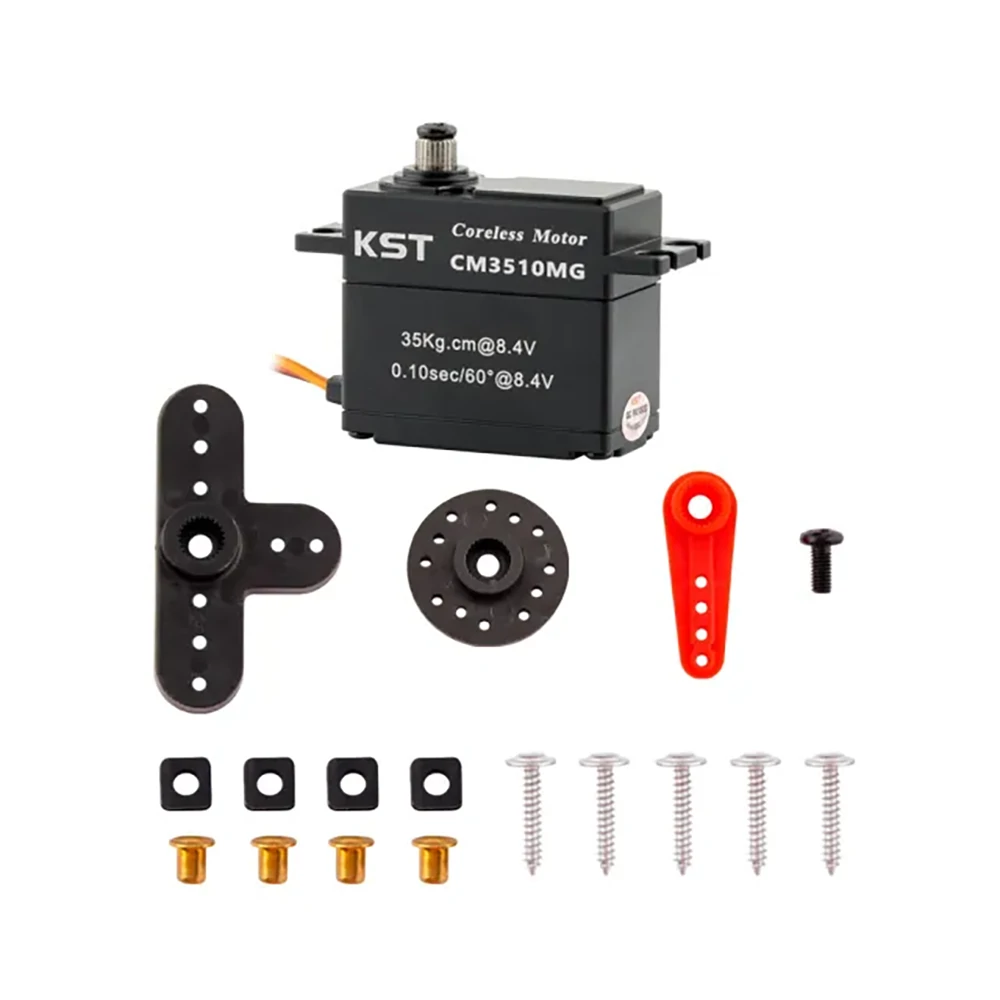

Package Included:
1 x CM3510MG Servo
3 x Plastic Servo Horn
1 x Servo Horn Screw
4 x Grommet
4 x Eeylet
5 x Mounting Screw
