Model: Flight Controller + USB Programmer
Price:
R 1,469.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description



Overview:

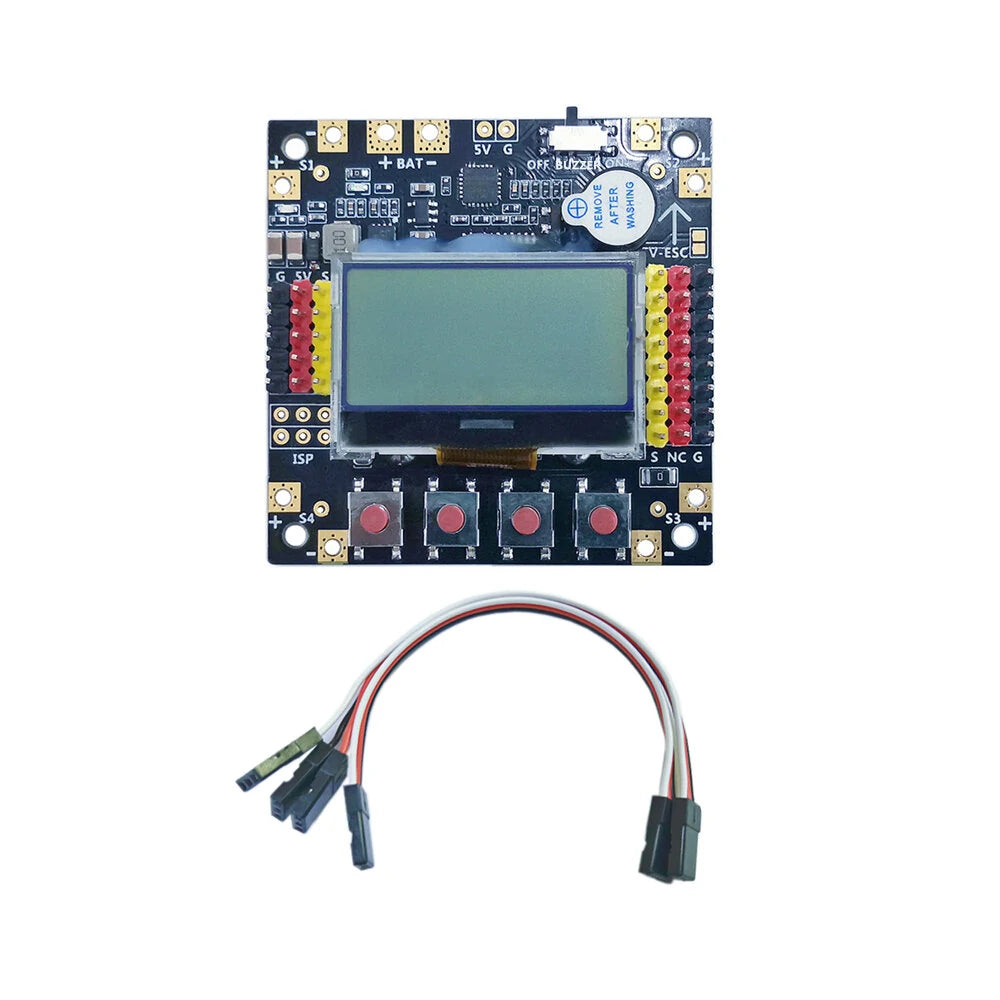

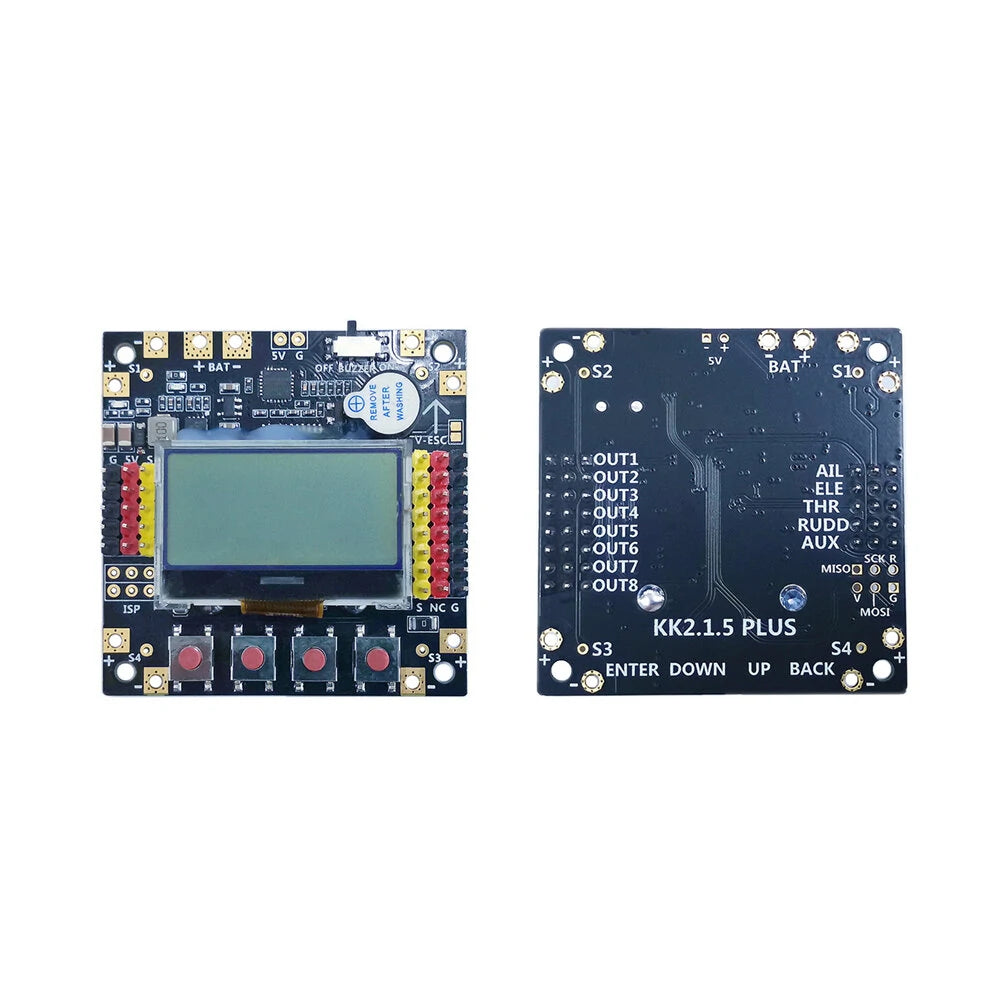

The KK2.1.5 PLUS Flight Controller is equipped with an integrated power distribution board (PDB), on-board switch, and buzzer for streamlined installation and convenience.


The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.


Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.

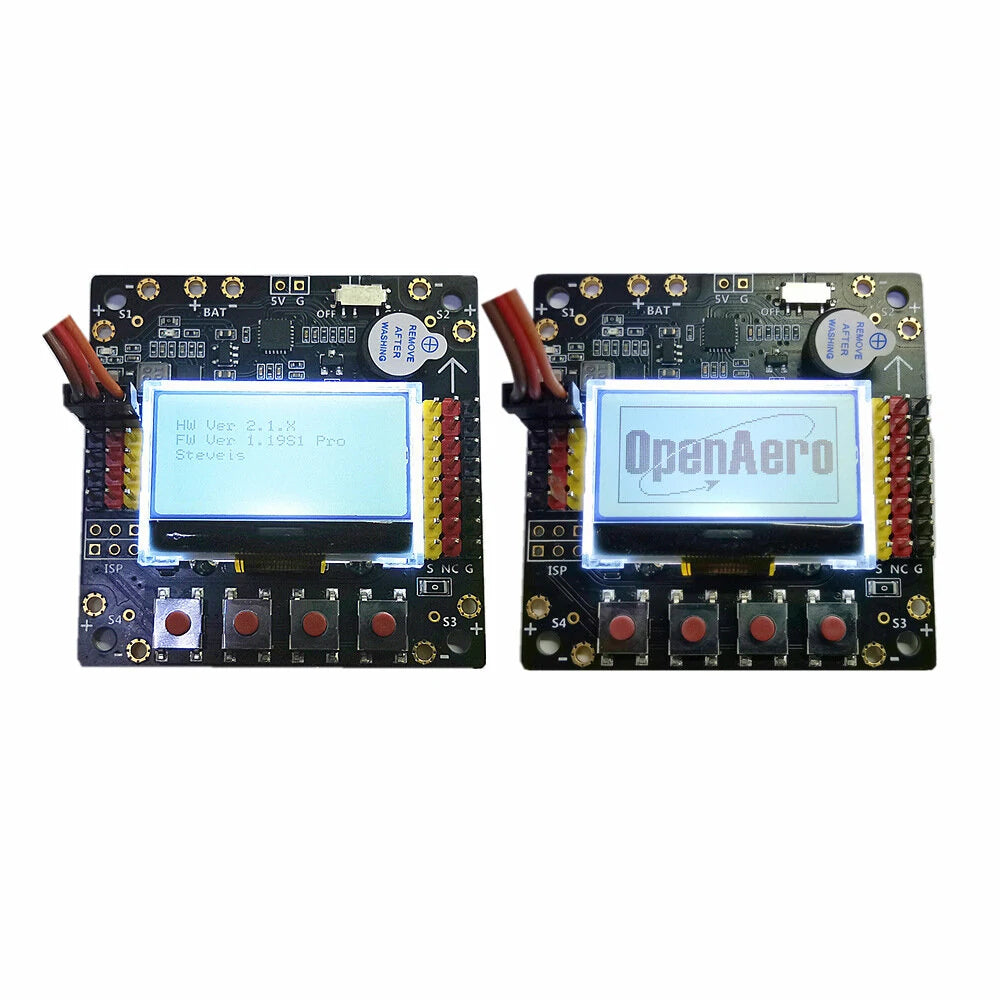

The flight controller accepts firmware updates, offering compatibility with V1.19S1PRO or OpenAeroVTOL 1.5/1.6  for enhanced performance and features.


All settings and adjustments can be made directly on the flight controller's built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.


Specifications:

Item Name: KK2.1.5 PLUS

Dimensions: 52mm x 52mm x 12mm

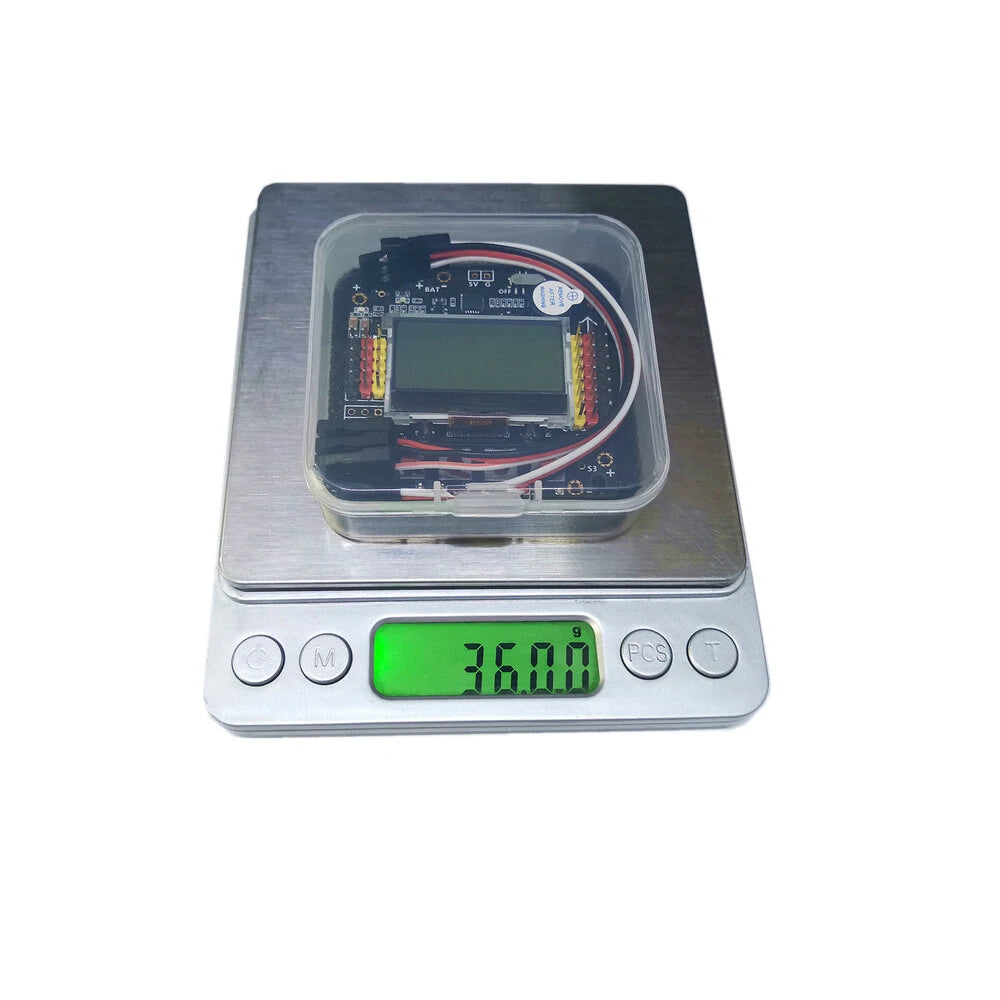

Weight: 19g

Integrated Module: Atmega

Gyroscope: InvenSense Inc.

Accelerometer: Anologue Devices Inc.

Self-Balancing Feature: Yes

Input Voltage: 2-6S lithium battery or ESC-BEC 5V, but it is not allowed to provide two power supplies to flight control at the same time

Output BEC: 5V 2A

Receiver Signal: 1520us (5 channels in total)

Signal to ESC (Servo): 1520us

Firmware: V1.19S1PRO or OpenAeroVTOL 1.5/1.6 (Flash via USB Programmer)

Default Firmware: V1.19S1PRO


Built-in Airplane Mode:

Twin-rotor Tri-rotor

Y6 four-axis + four-axis X

Six axis + Six axis X

Eight-axis + Eight-axis X

X8 +X8 X

H8 H6

V8V6

Aero 1S Aileron

Aero 2S Aileron

Flying wing

Single axis 2M 2S

Single axis 1M 4S

V-tail four-axis


English Manual, Click Here


Flight Controller Version Included:

1x KK2.1.5 PLUS Flight Control

1x Cable


Flight Controller + USB Programmer Version Included:

1x KK2.1.5 PLUS Flight Control

1x USB Programmer

1x Cable
