Description
Specifications:
Brand: JX
Item: PDI-HV5932MG
Dead band: 1μs 1520μs / 330hz
Max PW: 500-2500us
(Remote control: 90°-120°, 120 by the pwm 900-2100us
Control board: 180°, 180 by the pwm 500-2500us)
Actual Angle: 172±2°
Motor: Coreless motor
Operating Speed: (6.0V) 0.12 sec/60°
Operating Speed: (8.4V) 0.10 sec/60°
Stall Torque: (6.0V) 25.2 kg.cm (239.55oz/in)
Stall Torque: (8.4V) 32.3 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59 X0.80X1.43 in
Weight: 59.3g
Bearing: 2BB
Connector Wire Length: JR 265mm
Gear: 25T (Futabas universal)
Features:
High-Performance & Voltage: This is a high-performance, high-voltage digital servo, capable of handling a wide range of applications where power and precision are required.
Exceptional Speed & Torque: Boasts incredible operating speeds of 0.10 sec/60° at 8.4V and stall torques of up to 32.3 kg-cm, offering unmatched performance.
Quality Motor & Bearings: Equipped with a coreless motor and supported by dual ball bearings, the servo promises smooth, efficient operation.
High-Precision Metal Gear: Designed with high-precision metal gears that are robust and long-lasting, ensuring accurate positioning.
Durable Build: Comes with a CNC aluminous mesochite, reinforcing the servo for longevity and sustained high performance.
Package Included:

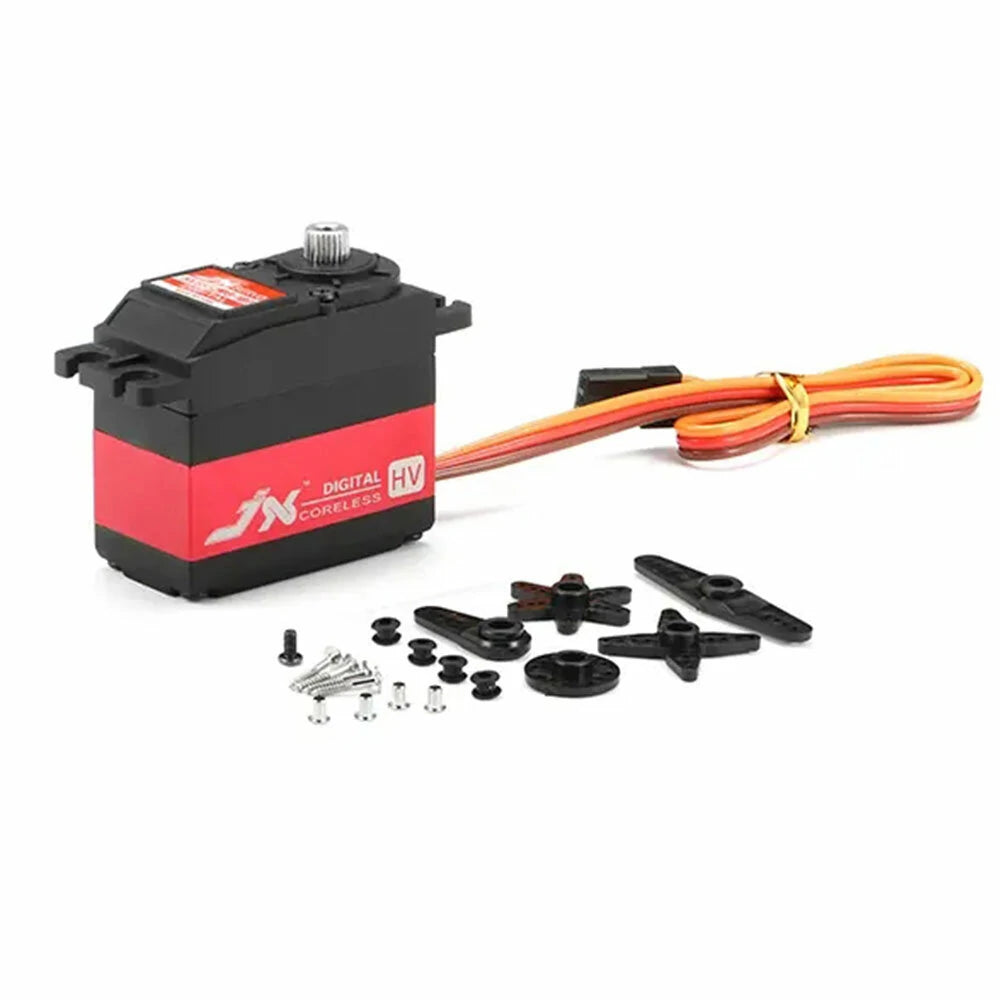

1 x JX Servo PDI-HV5932MG 180° 30KG Servo
1 x Accessories Bag
