Description
Specifications:
Working temperature: -20C°~ +60C°
Idle speed: 6V 0.1sec/60º; 8.4V 0.08sec/60º
Idle current: 6V 150mA; 8.4V 180mA
Control system:
PWM control 1500 u-sec is the central point PWM control 1500 u-sec is the central point
Max Angle:180°
Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 4μs 1520μs/330hz
Working voltage: 6V~8.4V
Torque: 6V 3.5Kg/cm; 8.4v 4.5Kg/cm
Load current: 6V 260mA; 8.4V 340mA
Dead band: 4usec
Lifetime: >15000 times without load
Moving angle: 60º±2°
Drive type: Mos drive
Motor type: Coreless motor
Potentiameter type: Direct drive
Signal booster type: Digital

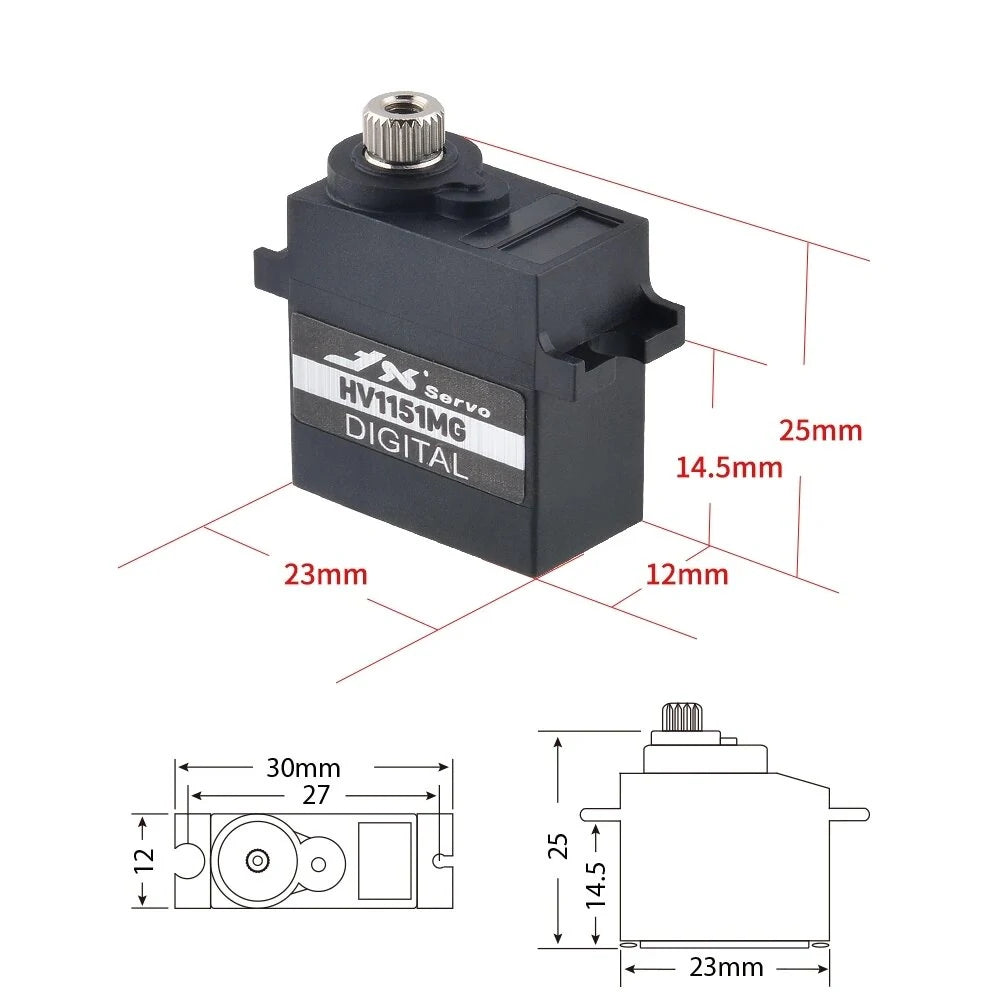

Size: 23.2x12.5x25.6mm
Weight: 15g
Gear material: Metal gear
Case material: PA66+fiber40%
Wire length:360mm
Wire gauge No and plus type: 26AWG, JR plug
Black: Negative Red: Positive White: Signal
FITS:
Fit for Traxxas TRX4
Fit for Boom Racing BRX01
Features:
High Voltage Servo: It can handle a higher voltage up to 8.4V, that provides a quick idle speed and a high torque up at 6V 3.5Kg/cm; 8.4v 4.5Kg/cm.
Waterproof Design: Fully waterproofed, making it perfect for Rc Car Traxxas TRX4 and Boom Racing BRX01 Crawler Parts.
Advanced Control System: Consist of a PWM control for precise control.
Reliability: Longer lifetime of over 15000 times without load, and metal gear material ensures durability.
Compatibility: It is compatible with any rig that requires a shift servo, perfect for power consumption remote control vehicles.
Package Included:
1 x Servo
1 x Set of Accessories
(included the servo Kit, servo plastic arm and screws)
