Description
Specifications:
Brand:JX
Item:PDI-1109MG
Dead band: 1μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 2.2kg.cm (30.8oz/in)
Stall Torque (6V): 2.5kg-cm (35.0oz/in)
Dimensions: 23.2x12.0x25.5mm
Weight: 10.0g (0.35oz)

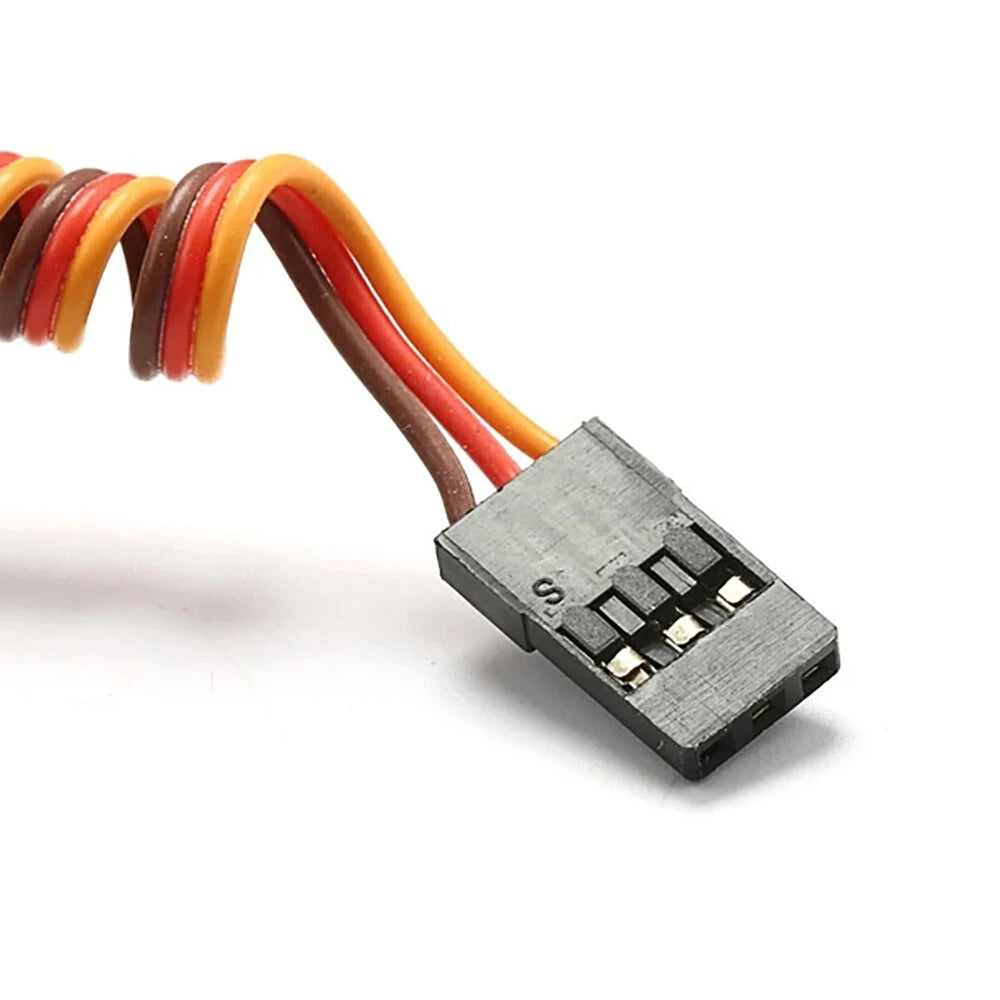

Connector Wire Length: JR 180 mm (7.08in)
Usage:for RC Models
Features:
Optimized for RC Models: Designed specifically for RC Models, the JX Servo PDI-1109MG offers a blend of power and precision.
High-Speed Operation: Achieve quicker responses with operating speeds of 0.10sec/60° at 6V, making your RC models more agile and responsive.
Strong Stall Torque: The servo provides robust stall torques of up to 2.5kg-cm at 6V, which is remarkable for a servo of this size.
Precision Metal Gearing: Features high-precision metal gears that are durable and designed for exact movements and positioning.
Miniature & Lightweight: With dimensions of 23.2x12.0x25.5mm and a weight of just 10.0g, this mini digital servo is ideal for applications where size and weight are factors.

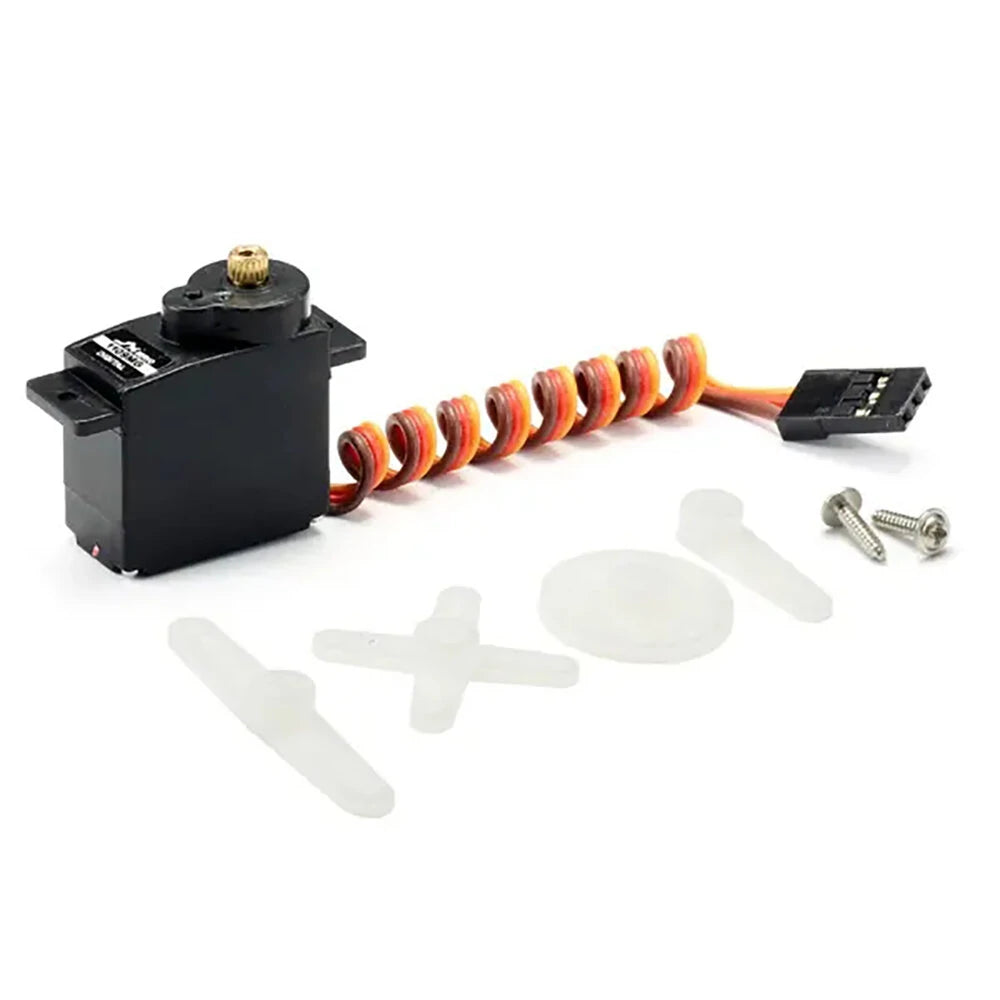

Package Included:

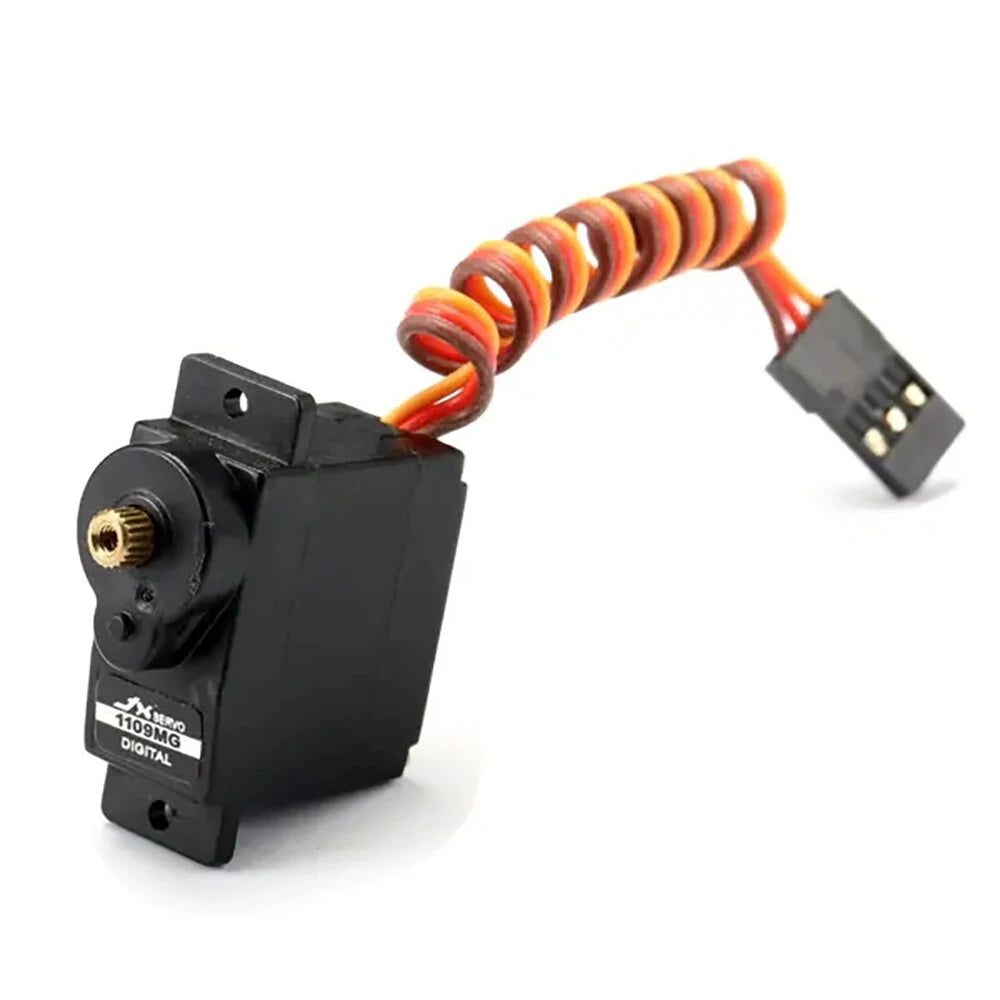

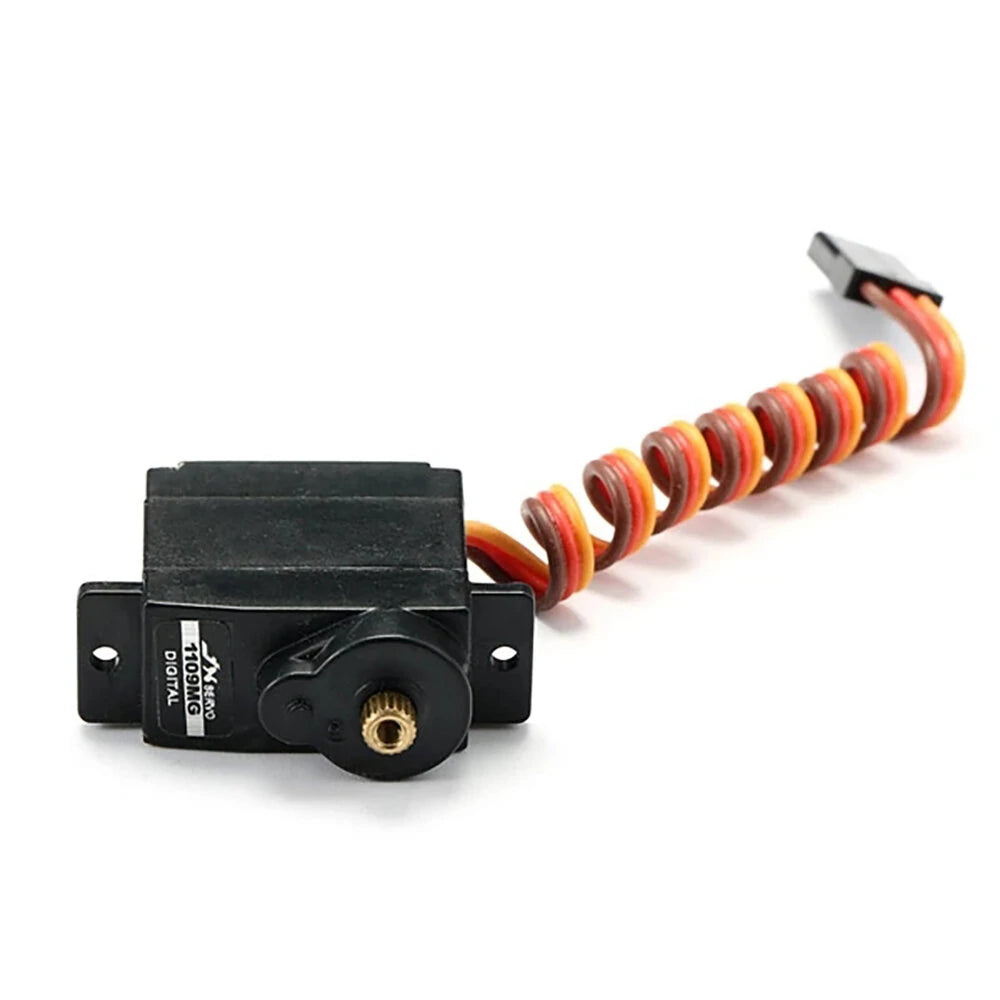

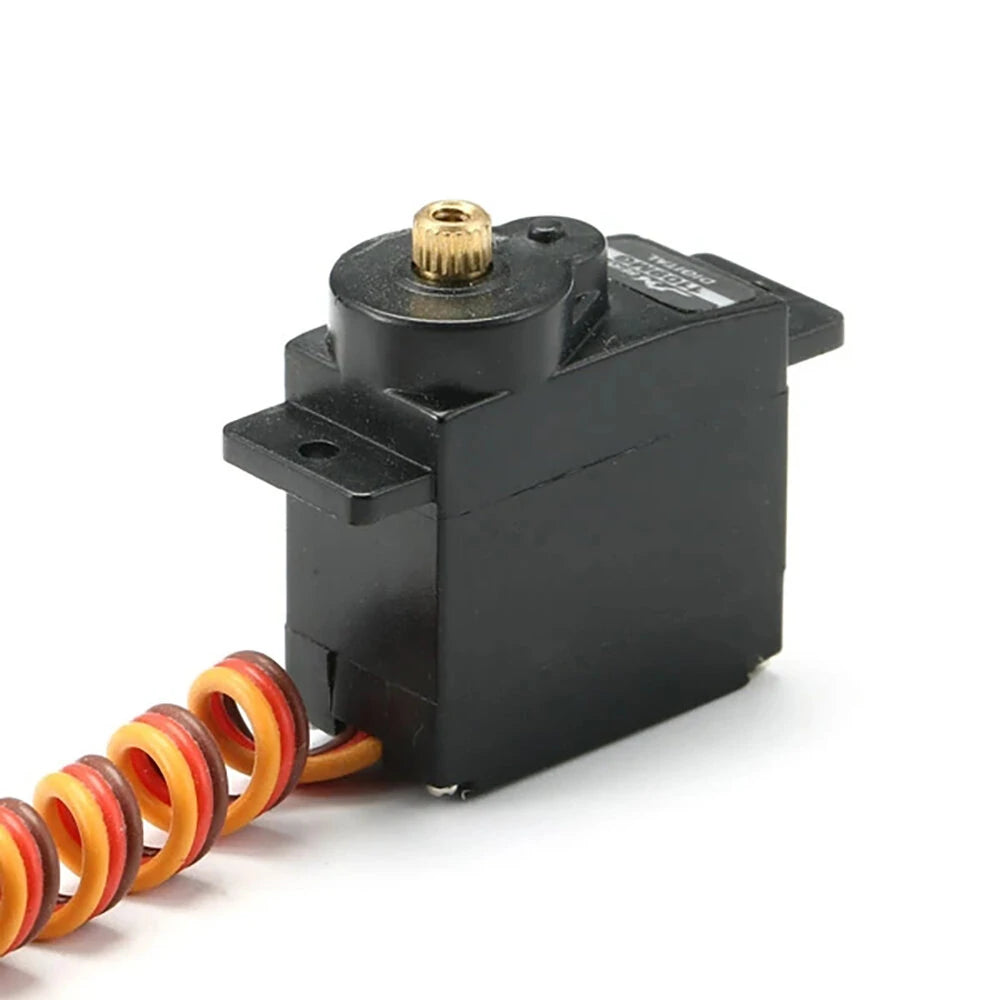

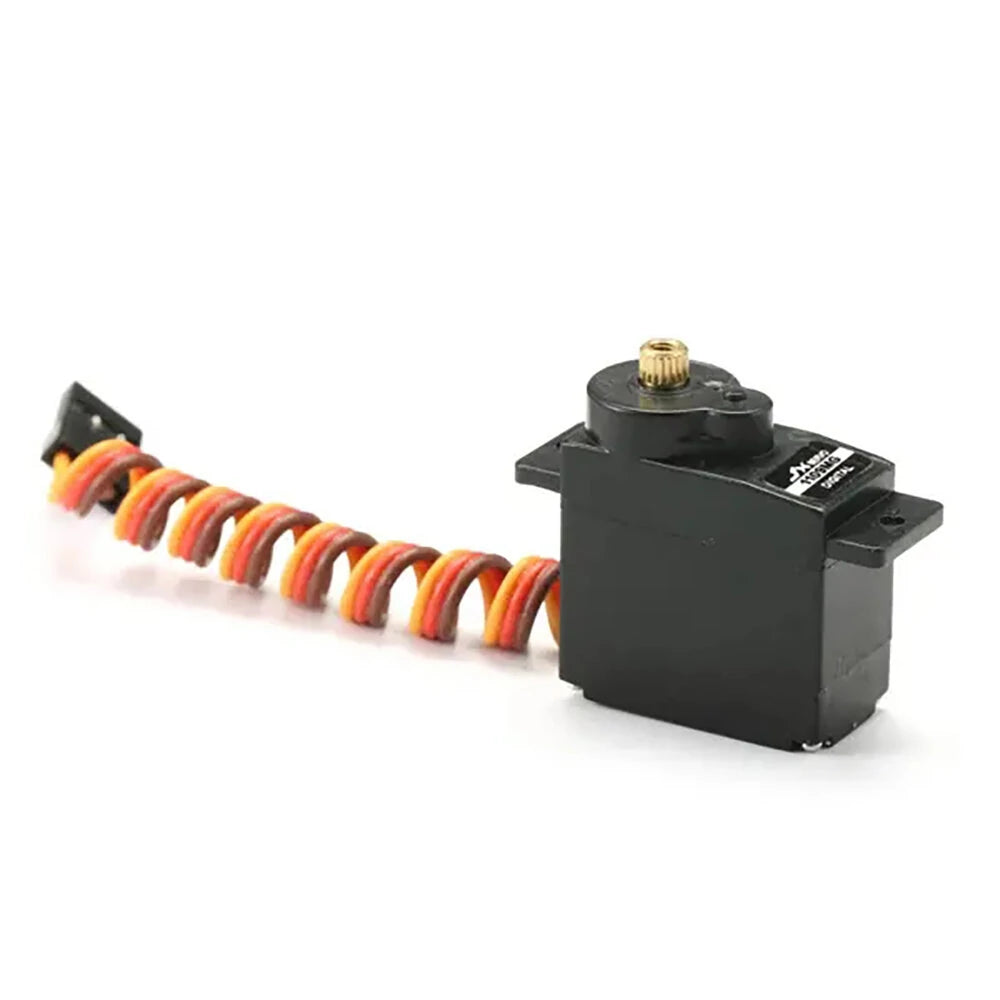

1 x JX Servo PDI-1109MG 9g Metal Core Motor Gear Digital Servo
1 x Accessories Bag
