Description:

JBL1001:

Basic information	Brand:JIABAILE Item No:JBL1001 Scale:1/10 Color:Red&black Designed Speed:70km/h(use 3s)	Power System	ESC:Hobbywing 10BL60A brushless esc Motor:Surpass hobby 3650 3800kv brushless motor  Servo:10kg metal gear steering servo
Transmitter	Dumborc X5P gyro system Frequency:2.4G Channel:3CH Remote Distance:About 350m Required Battery:4X 1.5V AA battery(not included)	Battery	Not Included Recommended Battery:2-3s Lipo battery(not included)
Other	Material:PA+metal+electronic parts Car Weight:About 1847g	Dimension	Car Size:42*25*15cm Box Size:49.5*27.5*15.5cm



JBL1002:

Basic information	Brand:JIABAILE Item No:JBL1002 Scale:1/10 Color:Red&black Designed Speed:90km/h(use 3s)	Power System	ESC:Hobbywing 10BL60A brushless esc Motor:Surpass hobby 3650 3800kv brushless motor  Servo:10kg metal gear steering servo
Transmitter	Dumborc X5P gyro system Frequency:2.4G Channel:3CH Remote Distance:≥300m Required Battery:4X 1.5V AA battery(not included)	Battery	Not Included Recommended Battery:2-3s Lipo battery(not included)
Other	Material:PA+metal+electronic parts Car Weight:About 2485g	Dimension	Car Size:42*31*16cm Box Size:52*33*16cm

JBL1003:

Basic information	Brand:JIABAILE Item No:JBL1003 Scale:1/10 Color:Red&black Designed Speed:80km/h(use 3s)	Power System	ESC:Hobbywing 10BL60A brushless esc Motor:Surpass hobby 3650 3800kv brushless motor  Servo:10kg metal gear steering servo
Transmitter	Dumborc X5P gyro system Frequency:2.4G Channel:3CH Remote Distance:≥300m Required Battery:4X 1.5V AA battery(not included)	Battery	Not Included Recommended Battery:2-3s Lipo battery(not included)
Other	Material:PA+metal+electronic parts Car Weight:About 2466g	Dimension	Car Size:42*27*18cm Box Size:53.5*28*20.5cm

JBL1004:

Basic information	Brand:JIABAILE Item No:JBL1004 Scale:1/10 Color:White&blue Designed Speed:70km/h(use 3s)	Power System	ESC:Hobbywing 10BL60A brushless esc Motor:Surpass hobby 3650 3800kv brushless motor  Servo:10kg metal gear steering servo
Transmitter	Dumborc X5P gyro system Frequency:2.4G Channel:3CH Remote Distance:≥300m Required Battery:4X 1.5V AA battery(not included)	Battery	Not Included Recommended Battery:2-3s Lipo battery(not included)
Other	Material:PA+metal+electronic parts Car Weight:About 2040g	Dimension	Car Size:48*25*20cm Box Size:60*31.5*21cm

Max Speed:2S Battery: JBL1001 - 50km/h, JBL1002 - 60km/h, JBL1003 - 55km/h, JBL1004 - 50km/h; 3S Battery: JBL1001 - 70km/h, JBL1002 - 90km/h, JBL1008 - 55km/h, JBL1004 - 70km/h

Unleash Power, Speed, and Precision

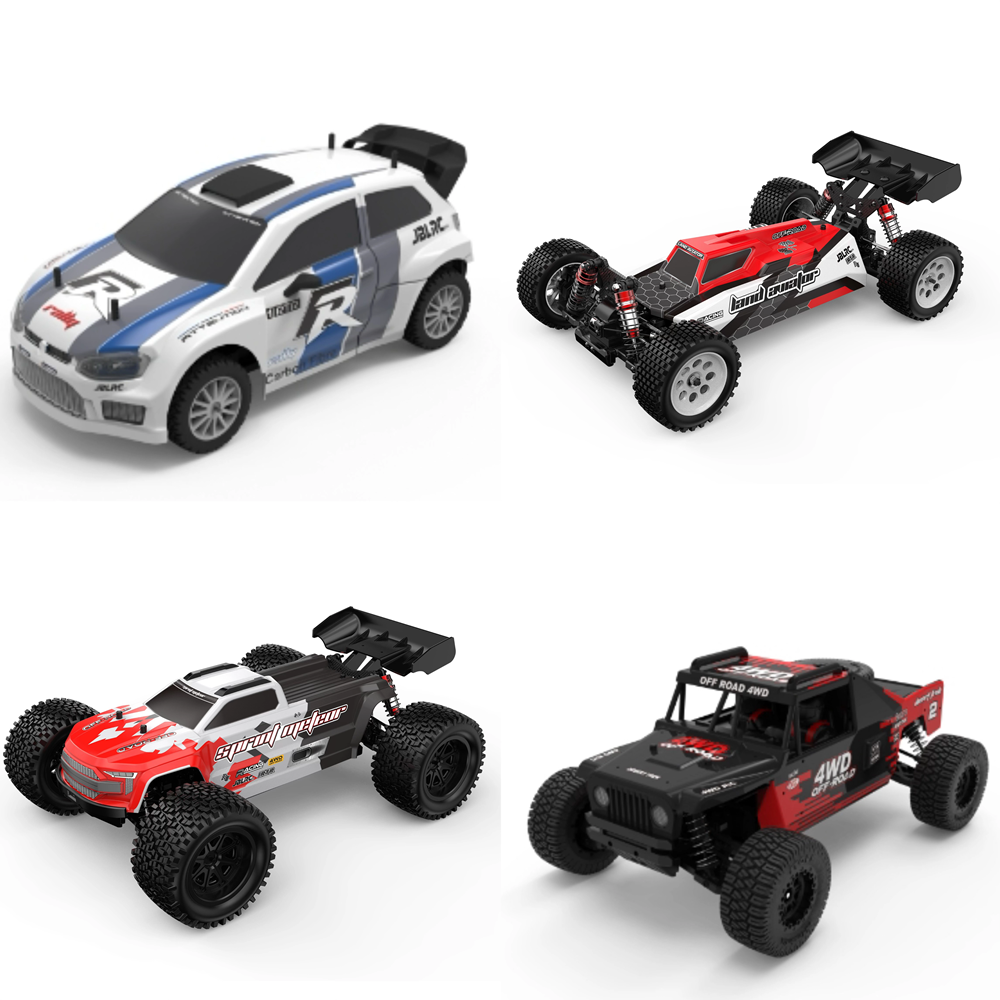

These Jiabaile 1/10 scale, 4WD brushless RC Cars are built for enthusiasts who demand uncompromising performance. Capable of reaching 70km/h on a 3S LiPo (battery not included), this truck is designed for aggressive off-road bashing, competitive racing, and all-terrain domination.

Features:

1. The RTR version is equipped with a Chaoyuewang 3650 3800kV motor, paired with a metal heatsink and a high-speed 3010 cooling fan. Even with heavy use, the motor remains operational.
2. Equipped with a Haoying 10bl60A brushless ESC, compatible with 2-3s lithium batteries. Adjustable motor operation mode, drag brake force, low-battery protection, start level, and maximum braking force are all adjustable.
3. The RTR version is equipped with a Dumbo X5P remote control with a built-in gyroscope. Multiple adjustable parameters allow for a maximum control range of 350 meters, excellent responsiveness, and strong anti-interference.
4. 10kg metal-gear servos with servo protection for collision resistance.
5. High-toughness nylon is used throughout the frame to ensure energy absorption during collisions.
6. A 3mm rear aluminum alloy chassis effectively protects the electronic components and resists scratches.
7. Huachang 12.9-grade high-strength screws are used throughout the vehicle, ensuring repeated assembly and disassembly without risk of thread breakage.
8. High-strength metal armrests with interchangeable armrest pods for toe adjustment.
9. High-precision oil filled shock absorbers for low drag and smooth ride. Double oil seal design eliminates oil leaks.
10. Adjustable linkages throughout the vehicle provide infinite adjustment of frame camber and toe angles.
11. Pre-set screw holes for frame geometry adjustment accommodate various driving styles.
12. Three differentials are equipped throughout the vehicle. The differential gears utilize high-hardness powder metallurgy gears and can withstand speeds of 120 km/h without snagging. The differential lock rate can be adjusted by changing the damping oil concentration, making it suitable for various road surfaces.
13. High-grip rubber tires are used throughout the vehicle series for higher vehicle limits. The large tooth profile offers exceptional wear resistance.
14. High-hardness metal adapters withstand aggressive maneuvers.
15. Front and rear carbon fiber racks,Extreme lightweight and crash resistance
16. The motor and reduction gears utilize a 32p large-module tooth profile, providing a large load-bearing surface and exceptional durability.
The motor mount is constructed of CNC-processed aluminum alloy with infinitely adjustable tooth pitch. The motor gears accommodate 15t-29t gears, meeting the needs of players seeking explosive and extreme speed tuning.

Package Included:
1X RC Car(do not have battery and charger)

1X Remote Controller

1X User Manual

1X Sticker Sheet

1X Spare Parts & Tools
