Description

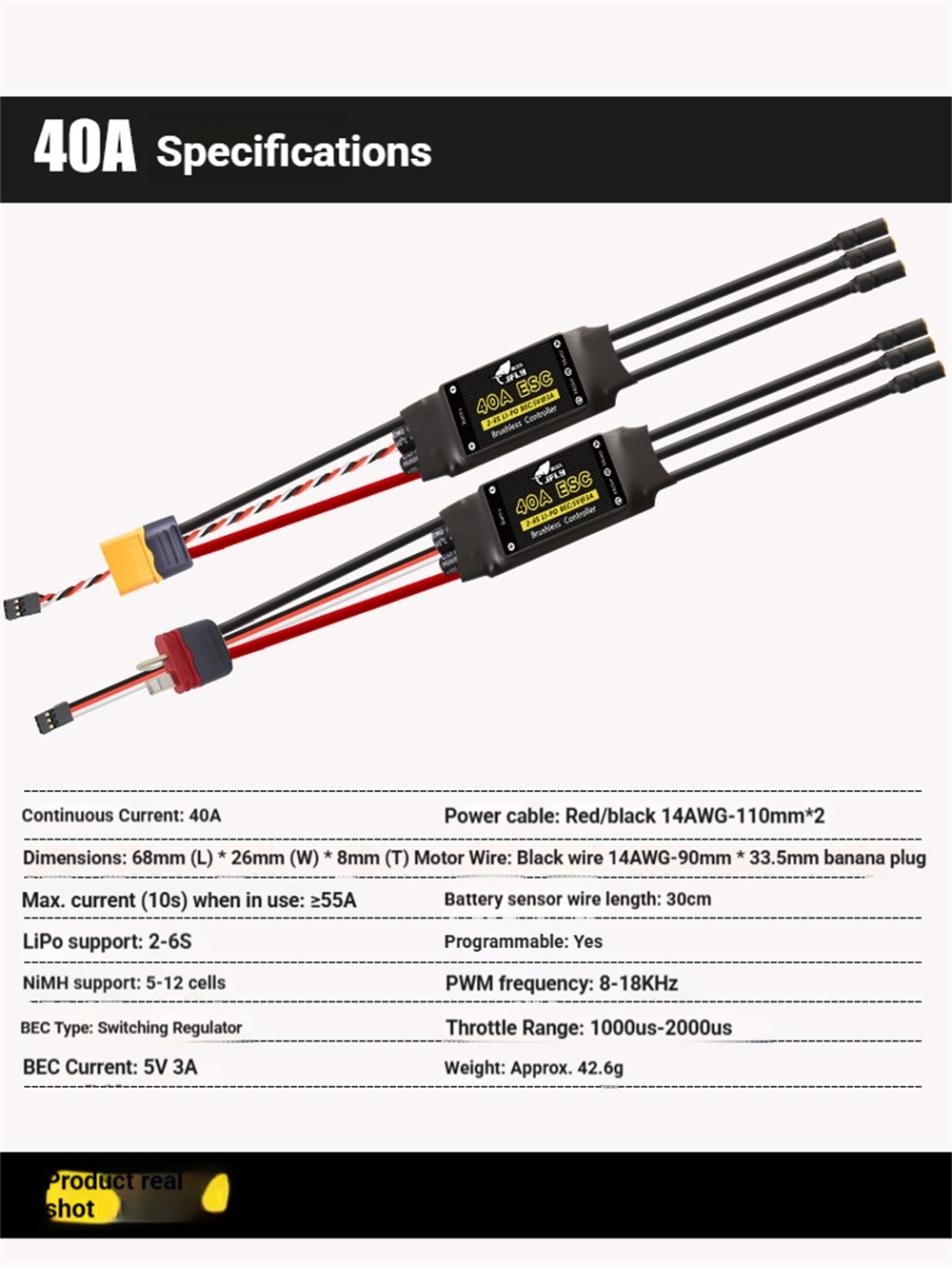

Specifications:
Brand Name: JFLY
Model: 40A ESC
Continuous Current: 40A
Dimensions: Length 68mm × Width 26mm × Thickness 8mm
Momentary Maximum Current (10s): ≥55A
Supported Battery Type: 2-6S (Lithium Polymer Battery Packs)
Supported NiMH Cells: 5-12 cells
BEC Type: Switching Mode
BEC Output: 5V 3A
Power Cables: Red/Black 14AWG-110mm × 2

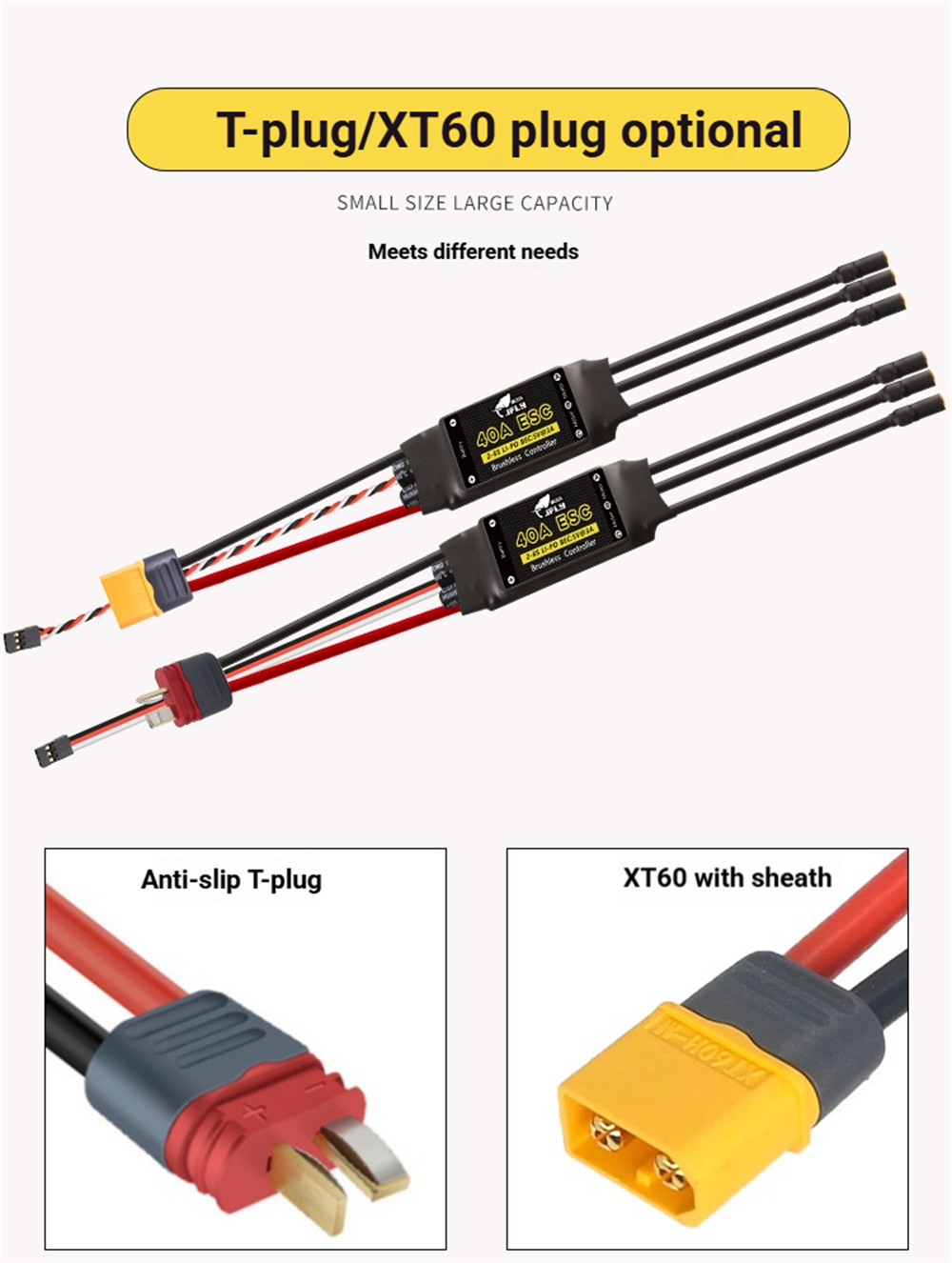

Battery Connector Type(Optional): XT60 Plug / T Plug
Motor Cables: Three black 14AWG-90mm × 3
Signal Cable Length: 30cm
Programmable: Yes
PWM Frequency: 8-18KHz
Throttle Range: 1000us-2000us

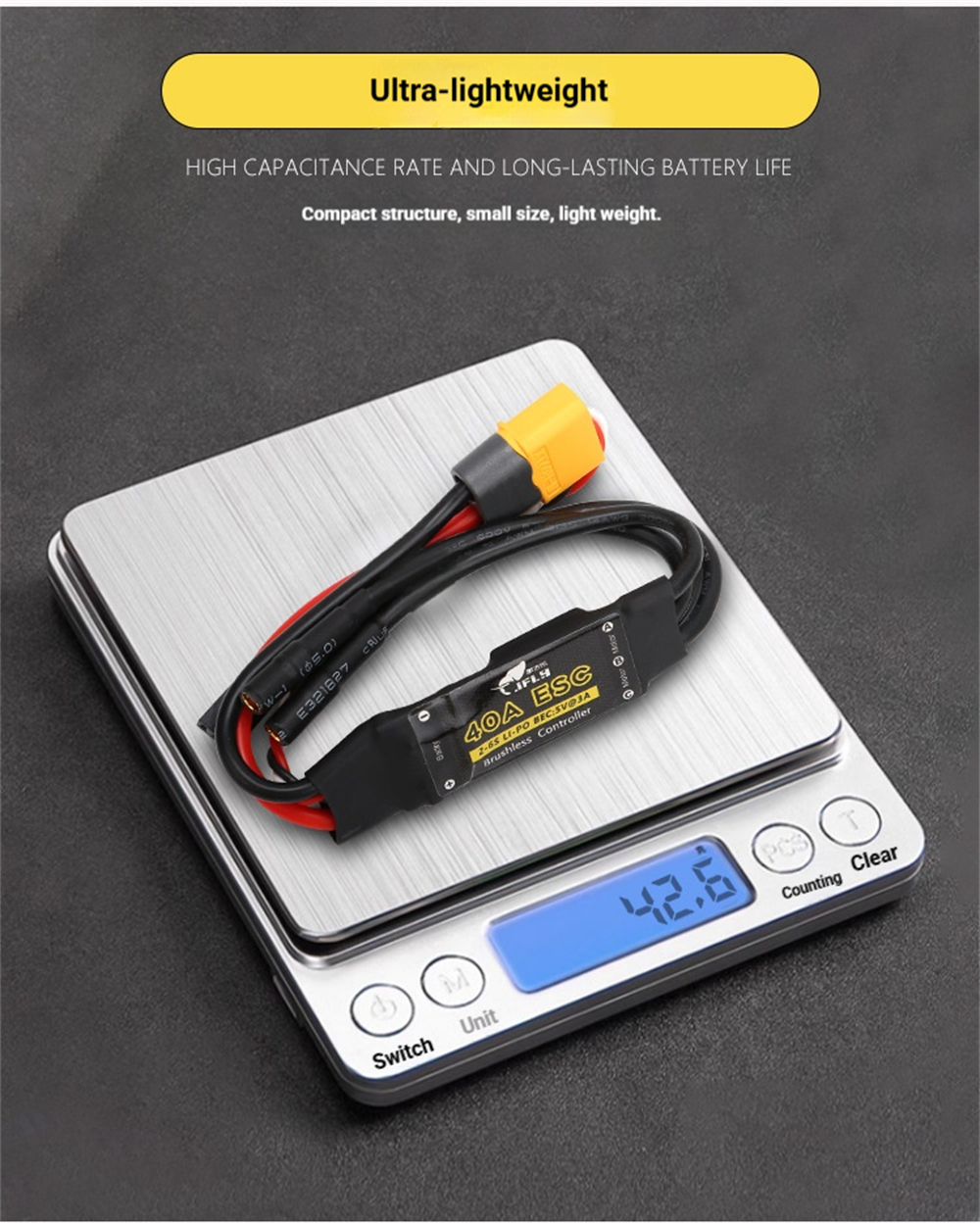

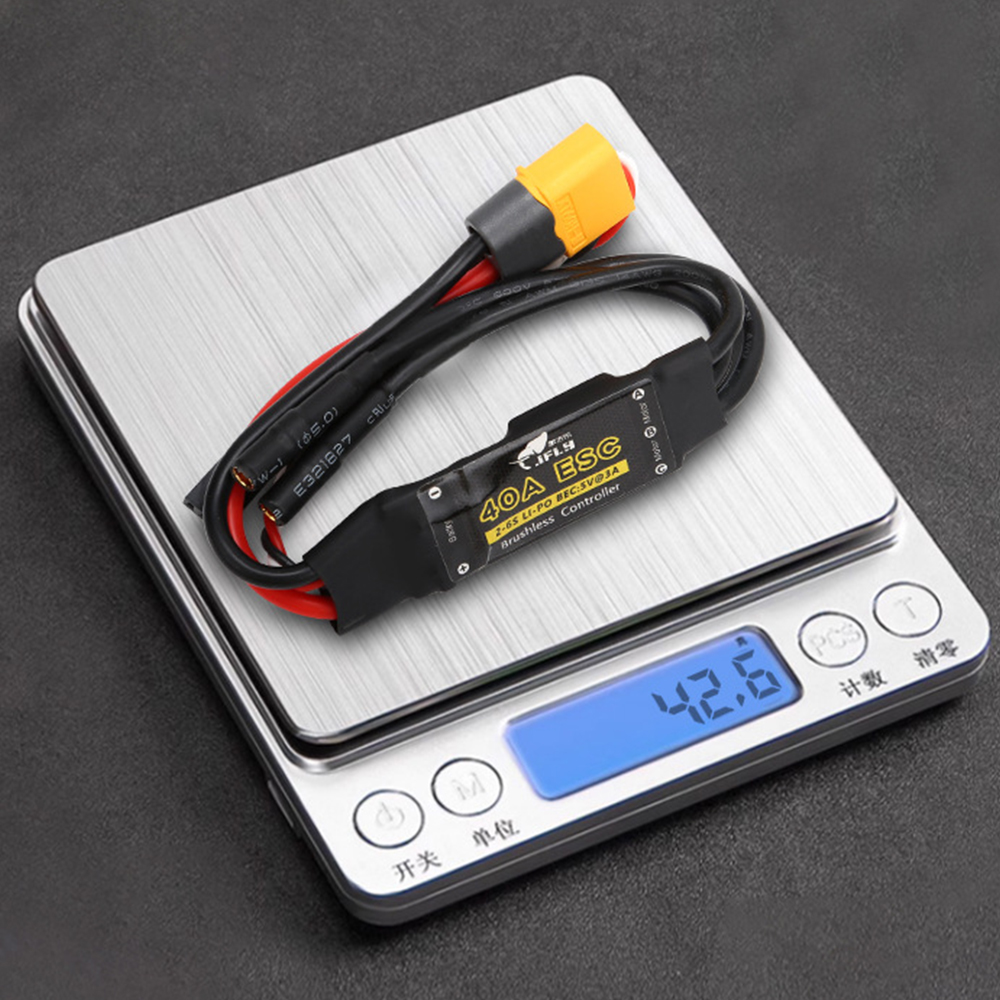

Weight: Approximately 42.6g

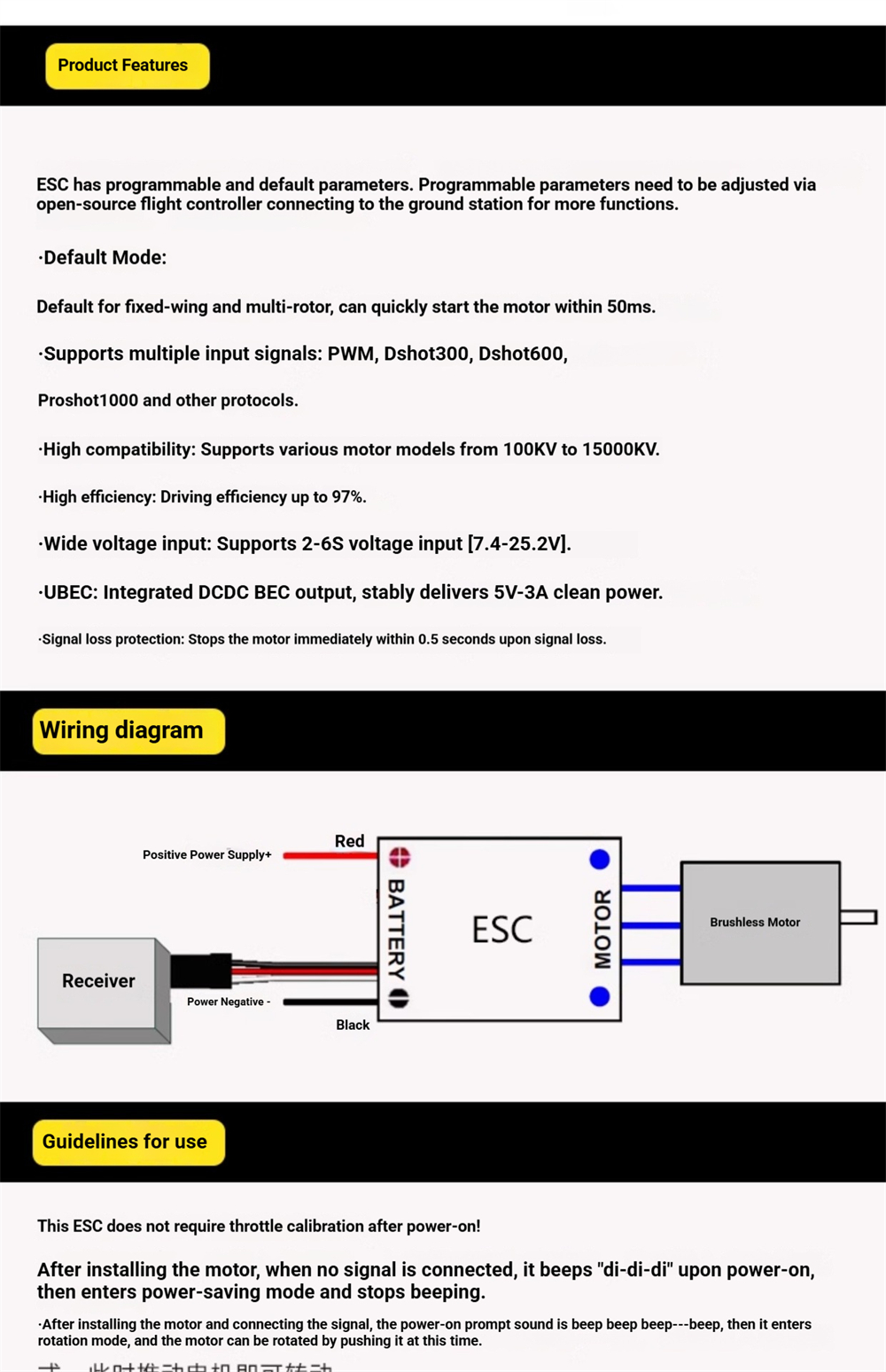

Features:

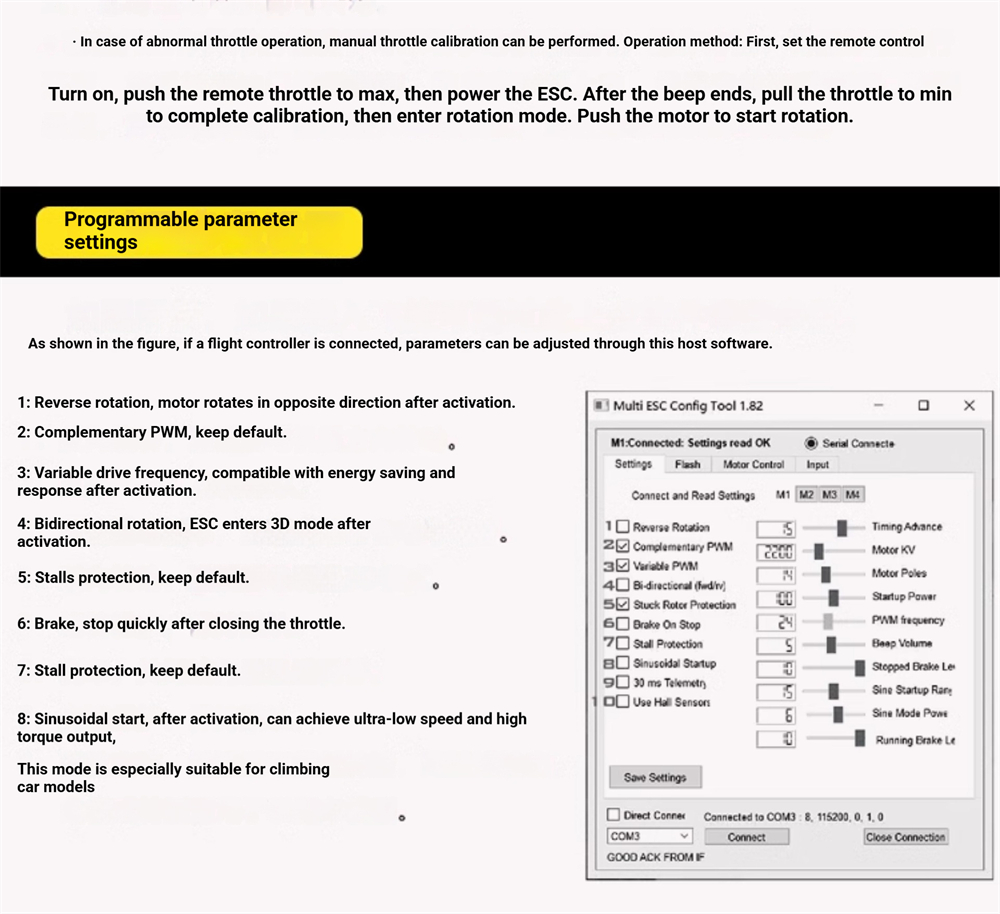

1. Programmable Parameters: Includes programmable and default parameters. Adjustable via ground control software to unlock additional functions.
2. Default Mode: Default parameters suitable for fixed-wing and multi-rotors, enabling motor startup within 50 milliseconds.

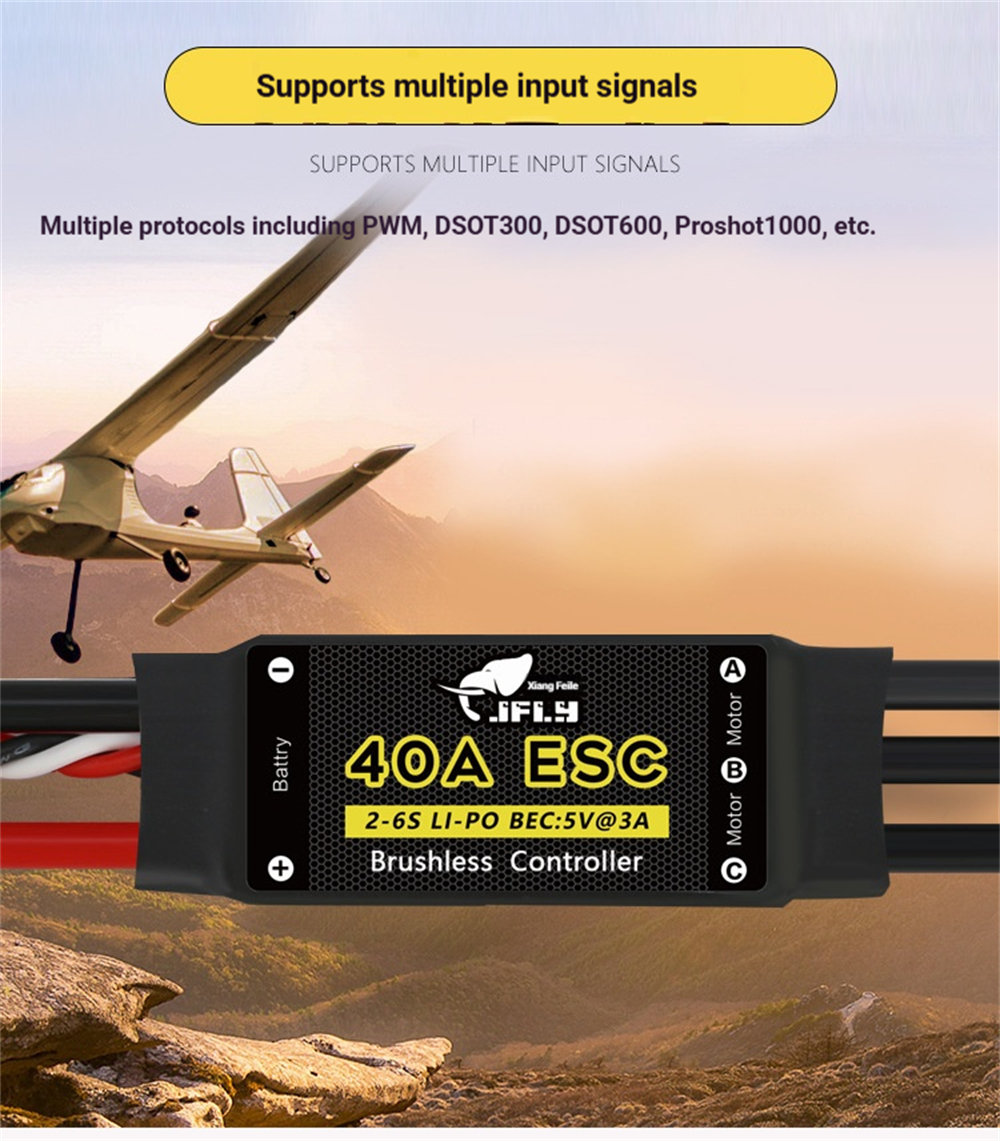

3. Supports Multiple Signal Inputs: Compatible with PWM, Dshot300, Dshot600, Proshot1000 protocols.
4. High Compatibility: Supports various motor models with KV ratings ranging from 100KV to 15000KV.
5. High Efficiency: Motor drive efficiency reaches up to 97%.
6. Wide Voltage Input: Supports 2-6S input voltage range [7.4V - 25.2V].
7. UBEC Integrated Output: Combines DC-DC BEC output for stable, clean power at 5V-3A.

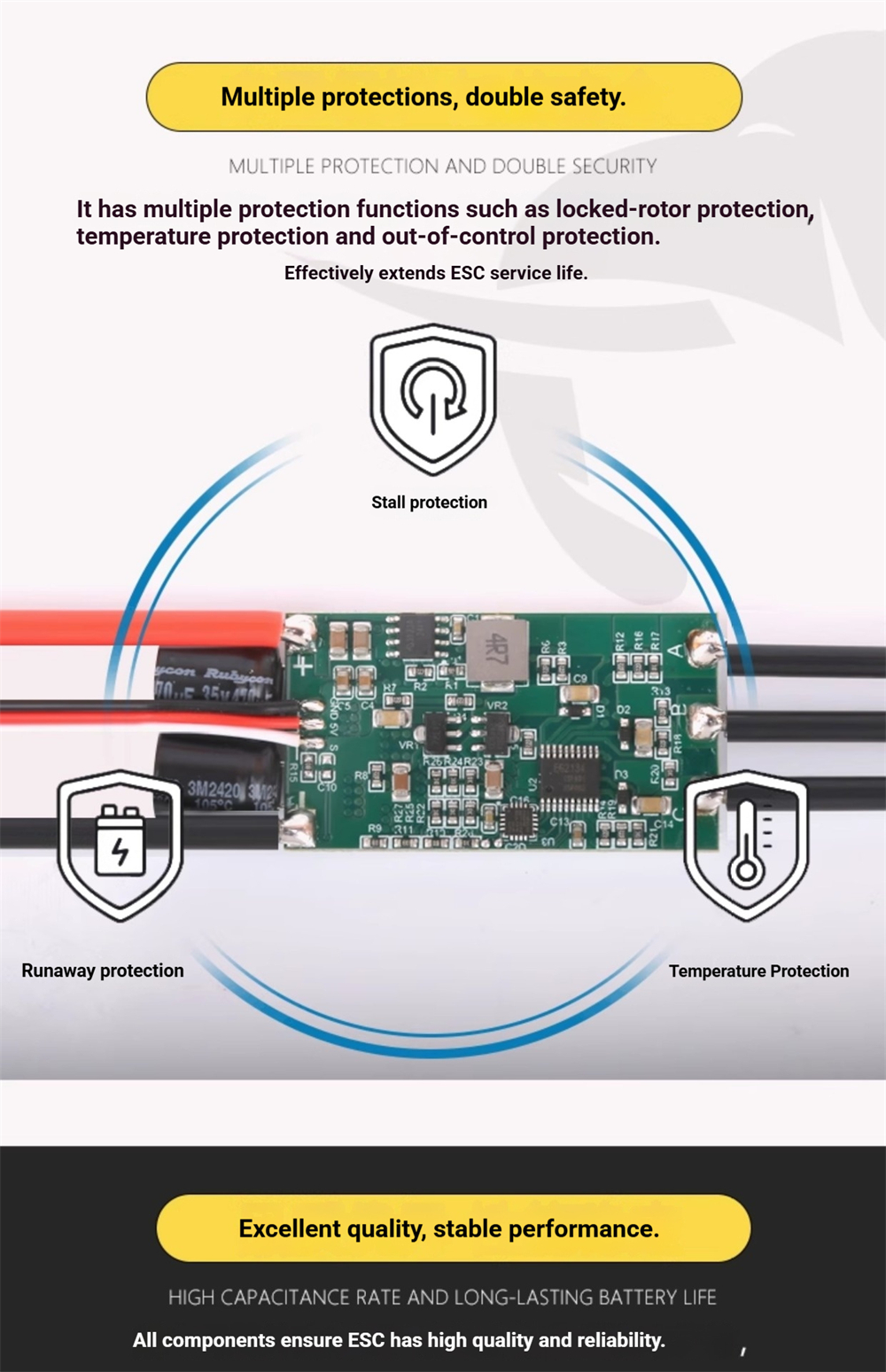

8. Fail-Safe Protection: Automatically stops the motor within 0.5 seconds of signal loss.

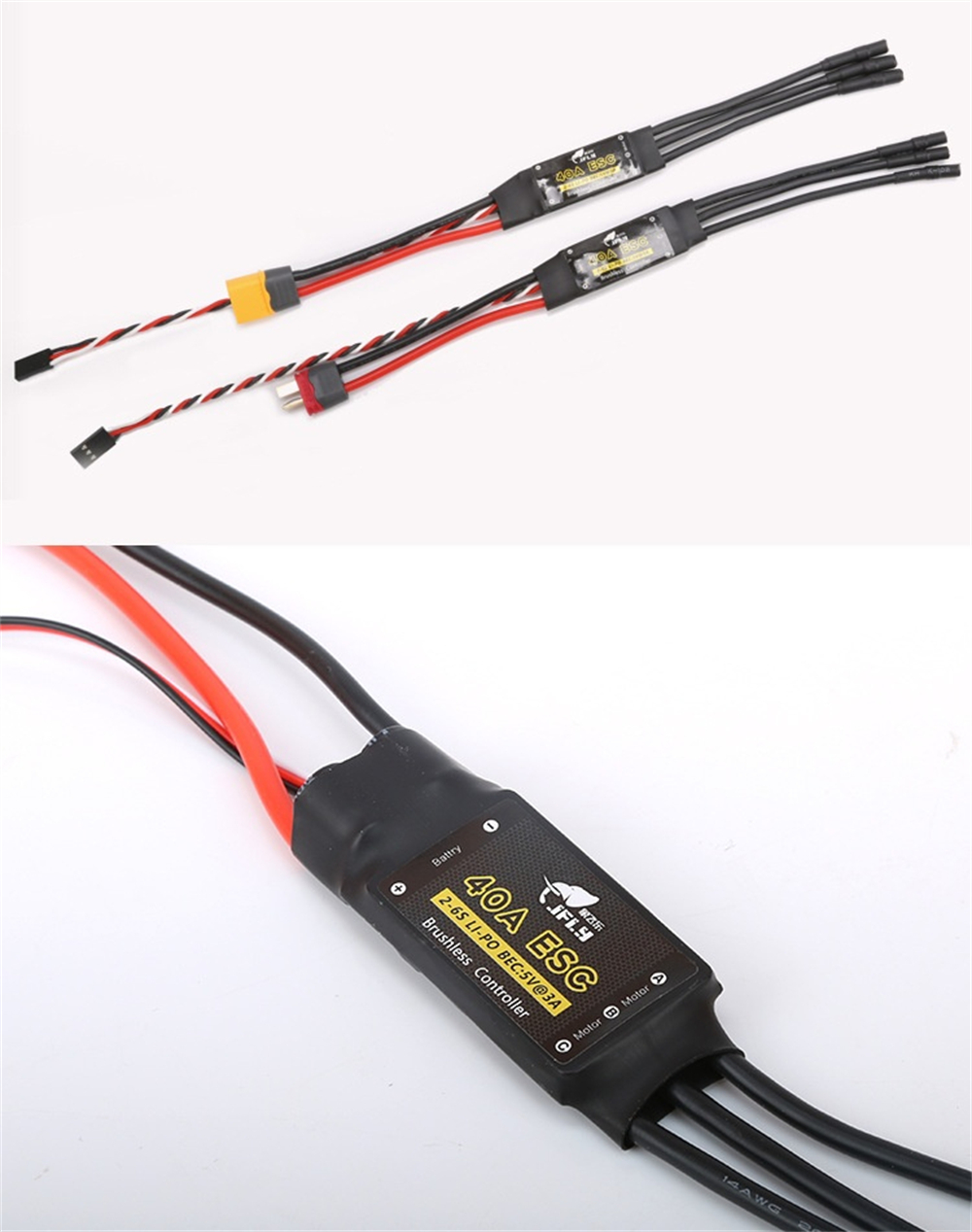

40A ESC T Plug Included:
1 x 40A ESC With T Plug
40A ESC XT60 Plug Included:
1 x 40A ESC With XT60 Plug
Program Card Included:
1 x ESC Parameter Tuners (Note: ESC is not included)
