Description
Specification:
| Brand: | JINJIEAN |
| Model: | B19 Pro Max |
| Sensor: | 1/2.8'' |
| Resolution: | 1800TVL |
| Lens: | 2.1mm |
| Video Format: | PAL/NTSC (Manually Adjustable) |
| Signal-To-Noise Ratio: | >60dB (AGC Off) |
| Electronic Shutter: |
PAL: 1/50-100,000SEC, NTSC: 1/60-100,000 |
| Video Output: | CVBS/AHD |
| Backlight Compensation (BLC): | Yes |
| Minimum Illumination: | 0.00001Lux |
| Wide Dynamic Range (WDR): | D-WDR (Ultra) |
| Digital Noise Reduction: | 3DNR |
| Day/Night Mode: | Color/Black & White/Auto |
| Power Supply: | DC 5V-30V |
| Weight: | 6.0g |
| Operating Temperature: | -20°C~70°C |
| Dimensions: | 19mm*19mm*22mm |
| OSD Parameters | |
| Aspect Ratio: | 4:3 / 16:9 |
| Image Adjustment: | Electronic Shutter/Auto Adjustment/Resolution/Brightness/Digital Wide Dynamic Range |
| Backlight Setting: | BLC/Anti-Intense Light |
| Color Adjustment: | Red Adjustments/Blue Adjustments/Mirror/Flip Image |
| Display Language: | Chinese/English/Fast Mode Switch |
| Exit Options: | OK |
Features:
* 1800TVL High Resolution: Captures crisp, clear visuals with outstanding detail, perfect for drone racing or monitoring applications.
* Wide-Angle 2.1mm Lens: Offers panoramic views with minimal distortion for enhanced coverage and visibility.
* Low Light Performance: 0.00001Lux sensitivity ensures usability even in dim environments, enabling night and indoor operations.
* Multi-Mode Video Output: Supports PAL/NTSC switchable formats with CVBS/AHD video outputs to match varied system requirements.
* Compact and Lightweight Design: Fits into tight spaces with dimensions 19mm*19mm*22mm and only 6.0g, ideal for lightweight drones and setups.

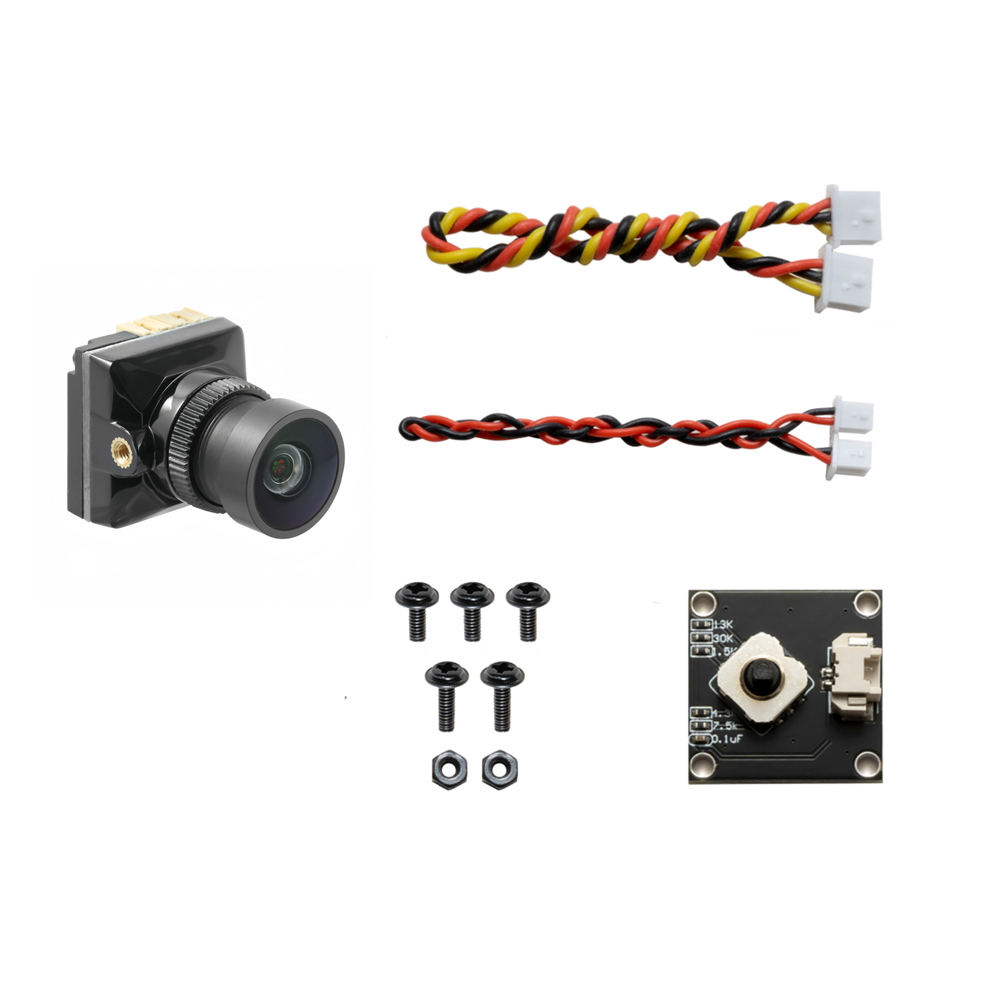

Package Included:
1 x B19 PRO MAX FPV Camera
