Note:
- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
- Comes unassembled. Need build by buyers.

Description:

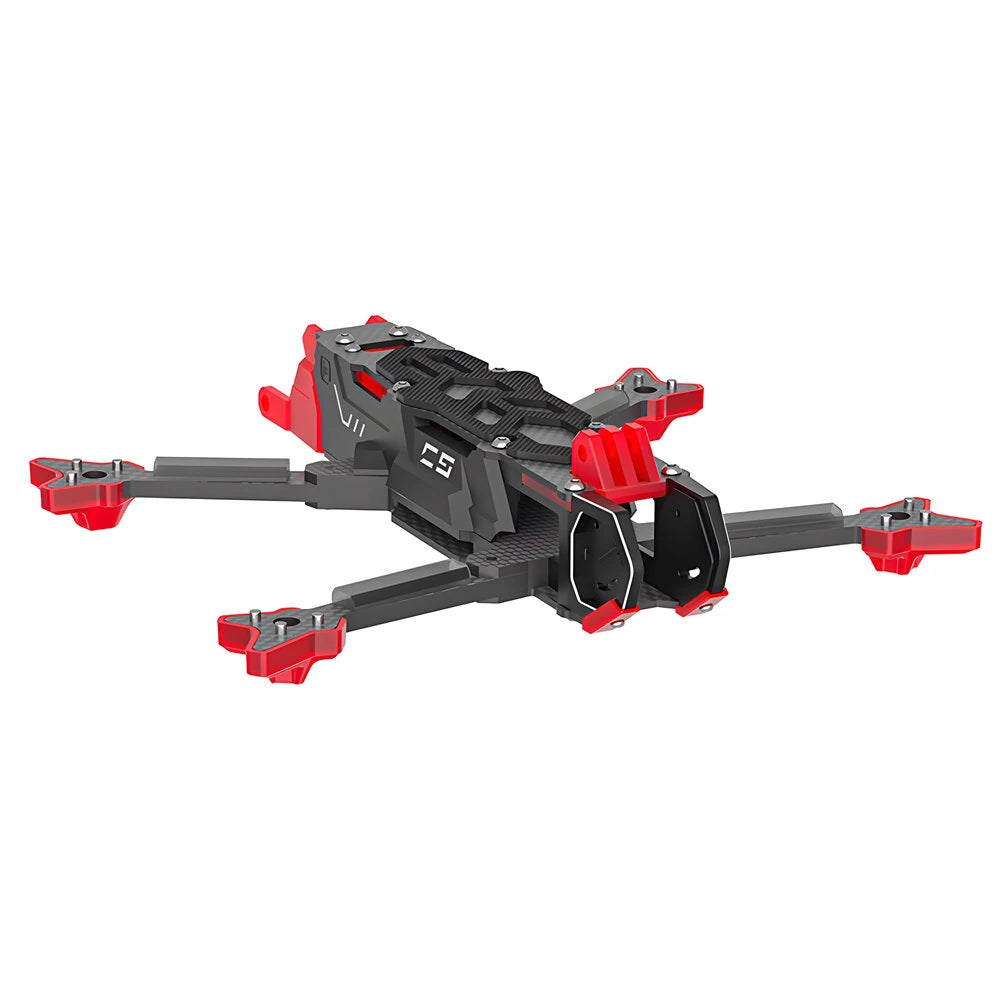

The SH CineFlow 5 Frame Kit offers limitless possibilities, unleashing lightning-fast speed and unparalleled performance. When combined with the advanced DJI O4 Air Unit for video transmission, it delivers ultra-high-definition resolution, allowing you to explore vast landscapes and waterways. The SH Series features an innovative frame design that eliminates propeller visibility, enhancing your aerial experience.

Features:
- Quick-release side panels
- Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
- Integrated Action Camera Base Mount
- Sleek and integrated design, redefine aesthetics.
- Rear-mounted Power Connector
- Optimized weight distribution for improved flight stability and precision.
- Reinforced Arm Base
- Strengthened the connection between the arm base and the drone to improve durability.

Specificaitons:
Brand: iFlight
Product Name: SH CineFlow 5 Frame Kit
Wheelbase: 222mm
Frame Dimension: L182*W133*H42 mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Mid-Lower Plate Thickness: 5mm
Maximum Flight Stack Height: 20mm
Maximum VTX Height: 22mm
Flight Stack Mounting: 20*20/Φ3mm
Motor Mounting: 16*16/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 220g±5g
Compatibility: DJI O4 Air Unit Pro

Recommend Parts: ( NOT Included)FC & ESC: 20x20mm iFlight BLITZ Mini F7 FC & BLITZ Mini E55 4in1 ESC VTX & Camera: DJI O4 PRO Air UnitBrushless Motor: XING2 2207 2050KV motorsPropeller: Nazgul F5 propellersBattery: iFlight 22.2V 1480mAh 150C 6S LiPo Battery

Package Included:
1 x SH CineFlow 5 Frame Kit
2x IPEX to RP-SMA Antenna Pigtails
1 x TPU Set
1 x GPro TPU Base Mount
1 x Screw Bag
2 x Anti-slip Battery Pad
2 x Battery Strap
