Description
Note:
- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
- Comes unassembled. Need build by buyers.
Description:

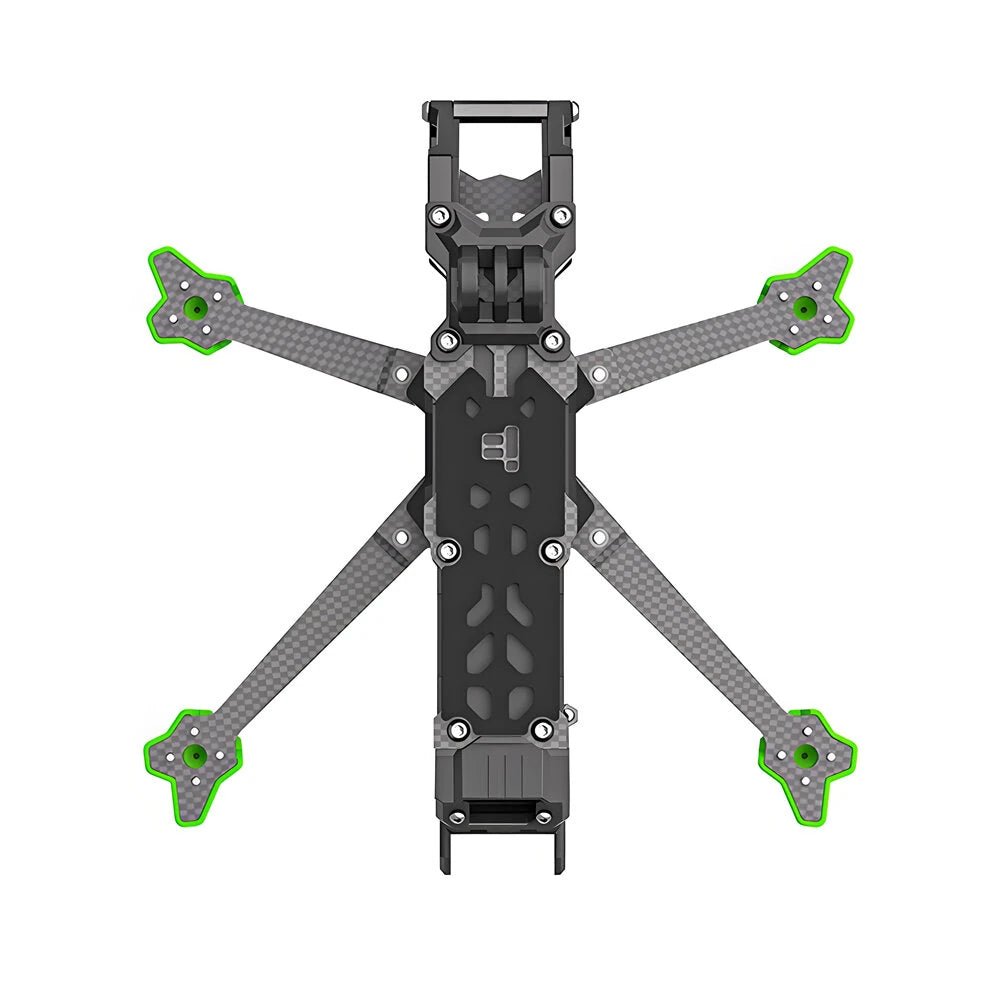

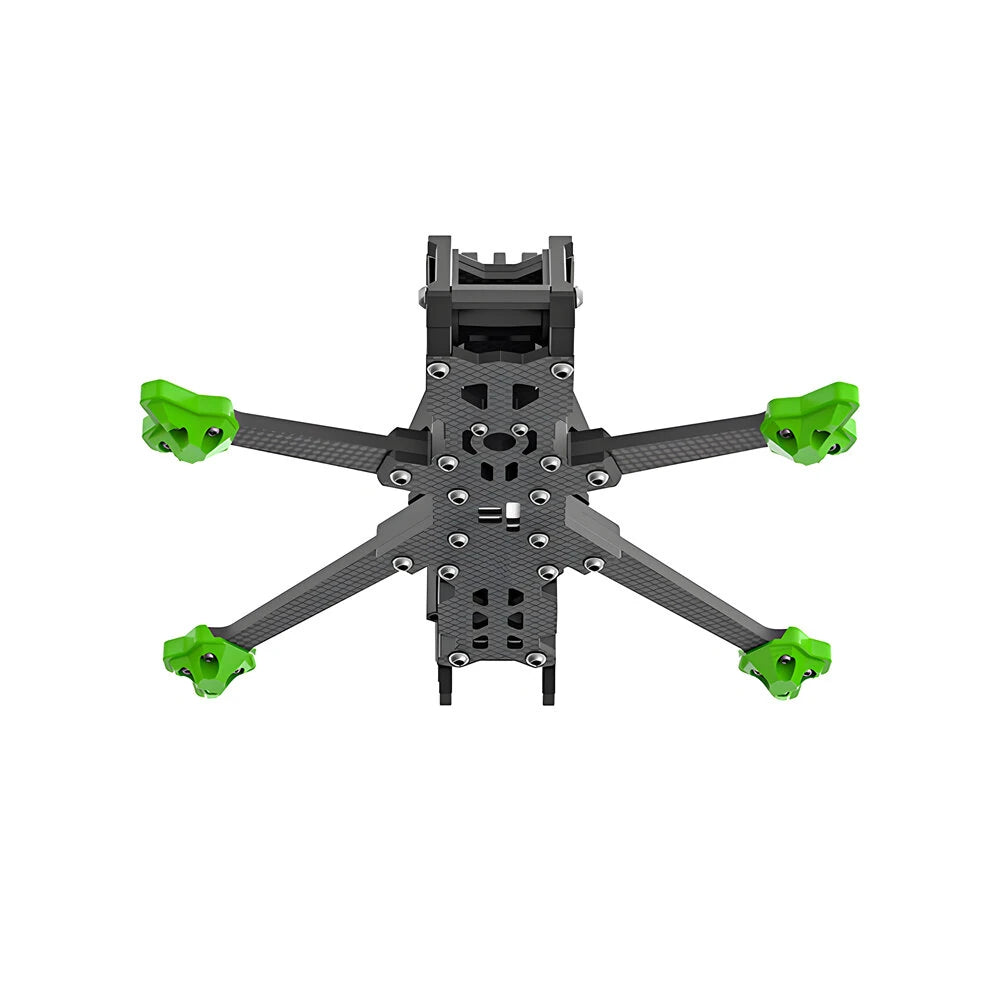

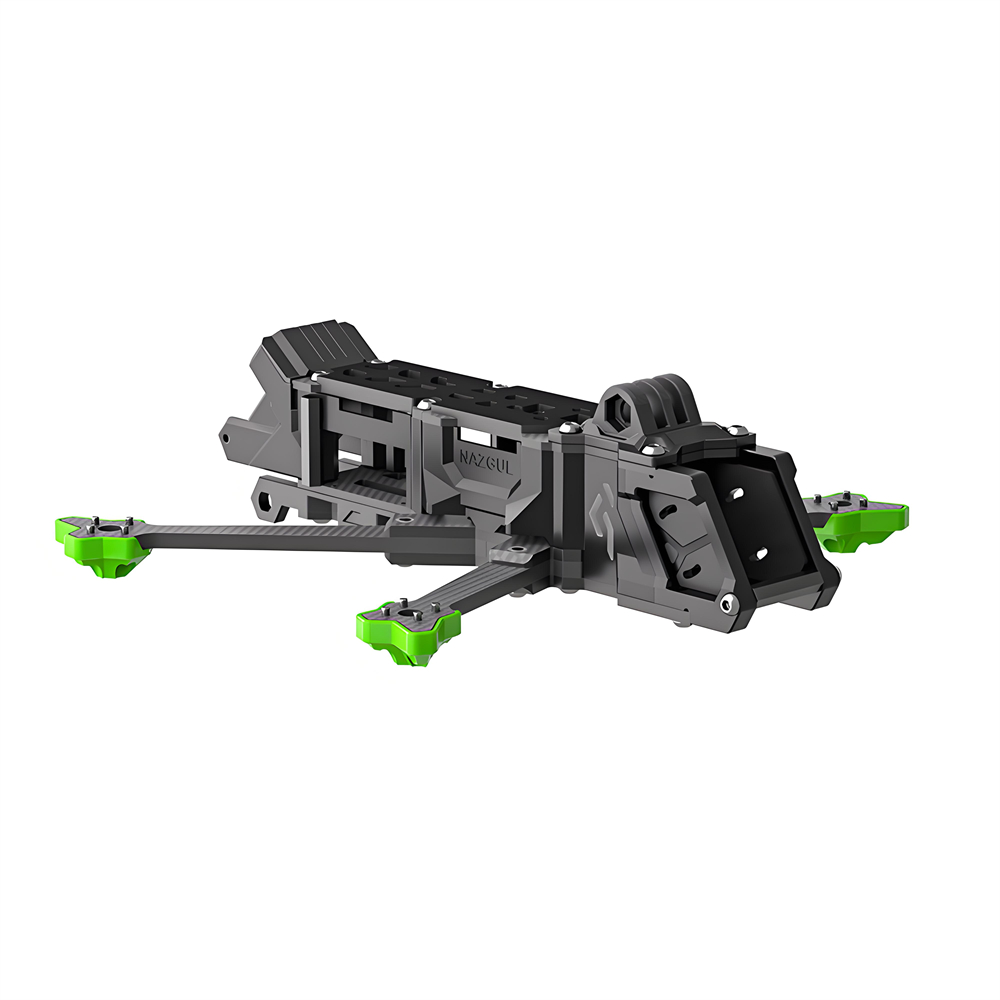

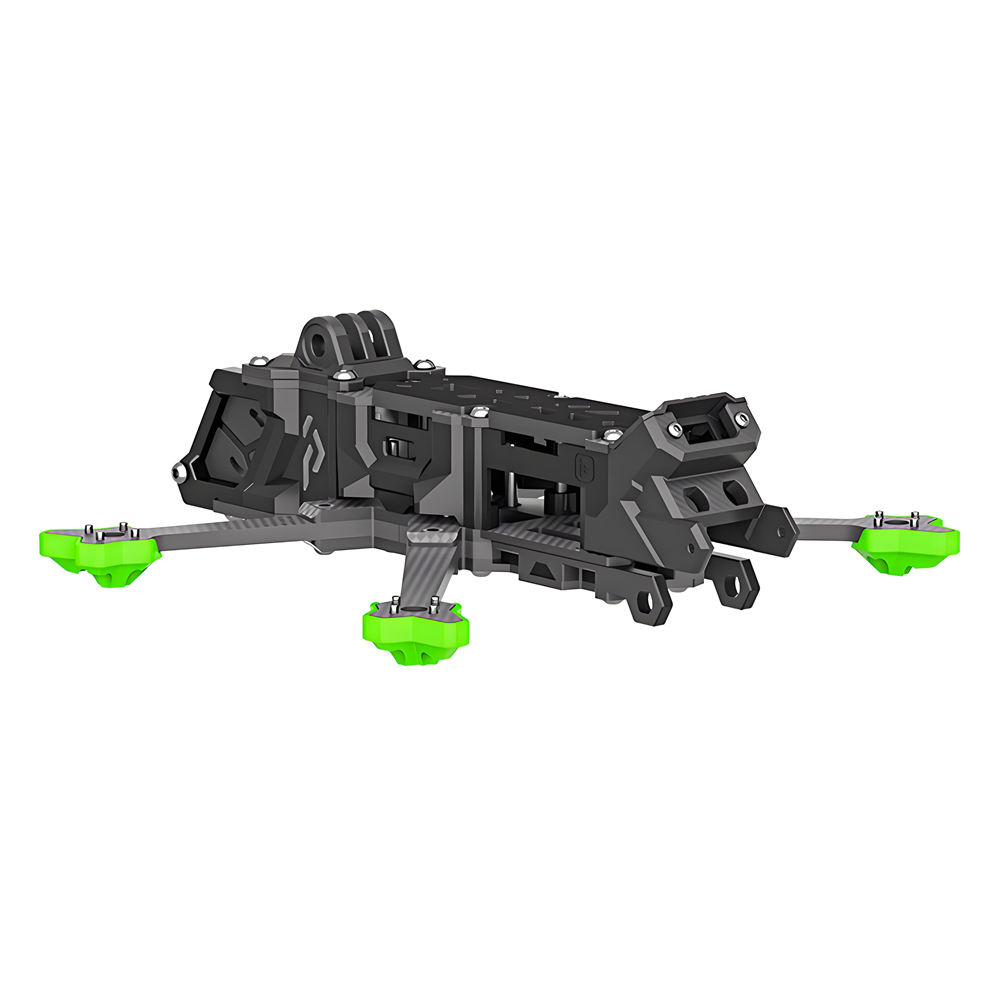

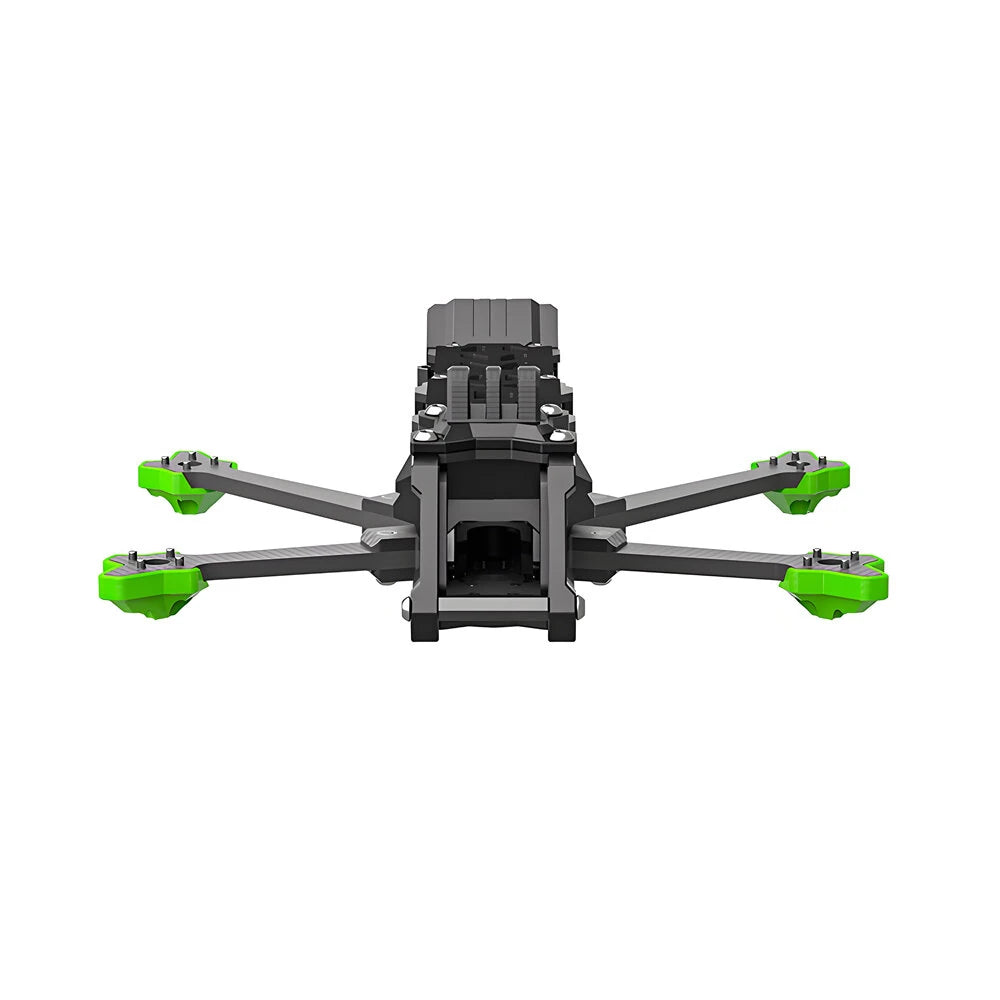

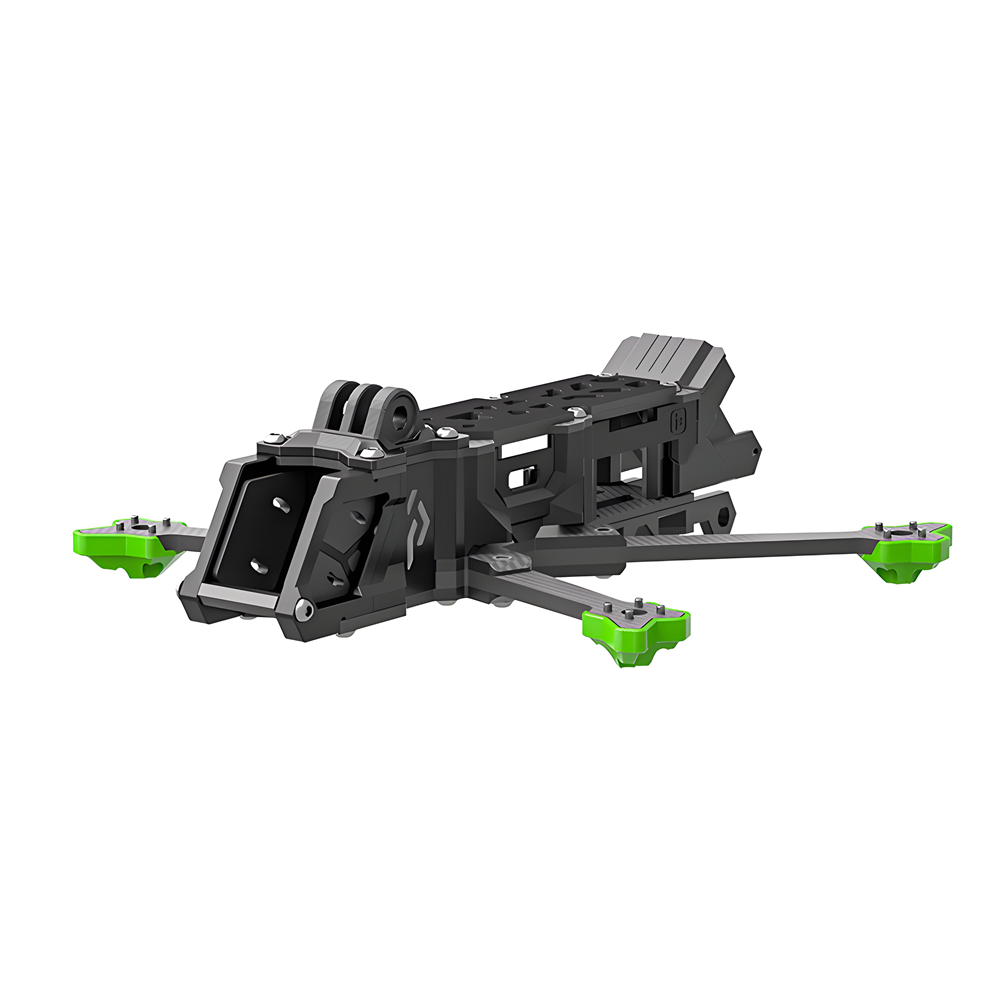

Gone are the days of dirty and grass-stained electronics after a crash. Nazgul Evoque F4 minimizes contamination on your flight controller and ESCs, warding off failures and short circuits. It's engineered with strategic airflow to maintain cool and clean components without compromising on weight or performance. Boasting superior performance, a lighter build, and a more compact design. Additionally, it now supports the DJI O4 Pro Air Unit for an enhanced visual experience.
Features:
- DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
- New Camera Mount for DJI O4 Pro Air Unit
- New Silicone side panels
- New Dual Antenna TPU for DJI O4 Pro Air Unit
- Different Screws
Specification:
Brand: iFlight
Model: Evoque F4DProduct Name: 4 Inch O4 Pro Freestyle Frame Kit
Geometry model: Deadcat
Frame wheelbase: 185 mm (DeadCat)
Frame Dimension: L149*W110*H36 mm (DeadCat)
Arm Thickness: 4mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 23mm
Maximum VTX Height: 23mm
Flight Stack Mounting: 20*20/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Motor Mounting: 12x12mm/φ2mm
Weight: 169g±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommanded parts:(Not Included):
FC&ESC: BLITZ Mini F722 E55 4-IN-1 2-6S 55A Stack
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING 2205 2450KV
Propeller: HQProp 4X3X3 4030 4 Inch 3-Balde Propeller
Battery: 1480mAh 6S LiPo Battery
Package Included：
1 x Evoque F4D O4 Frame Kit
1 x TPU Set
1 x GPro TPU Base Mount
1 x Screw Bag
1 x Anti-slip Battery Pad
2 x Battery Strap
