Description
Note:
- Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
- Comes unassembled. Need build by buyers.
Description:

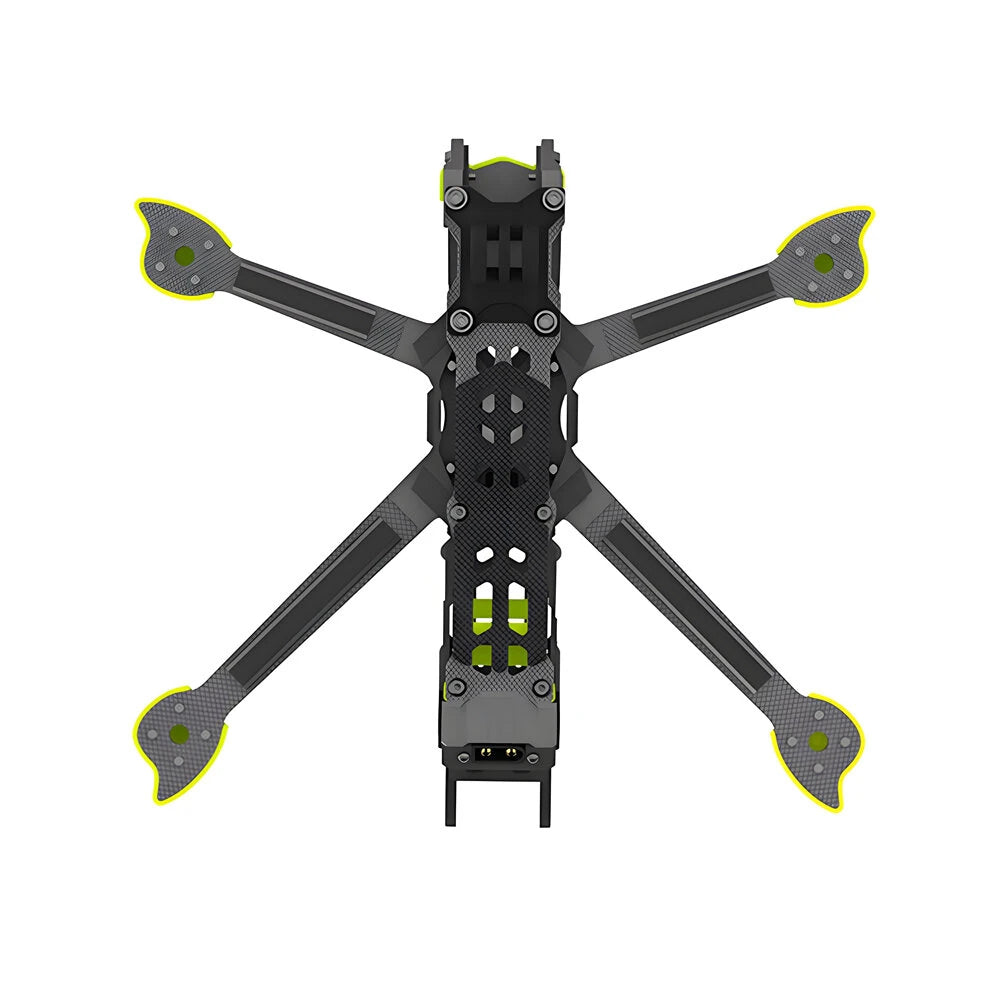

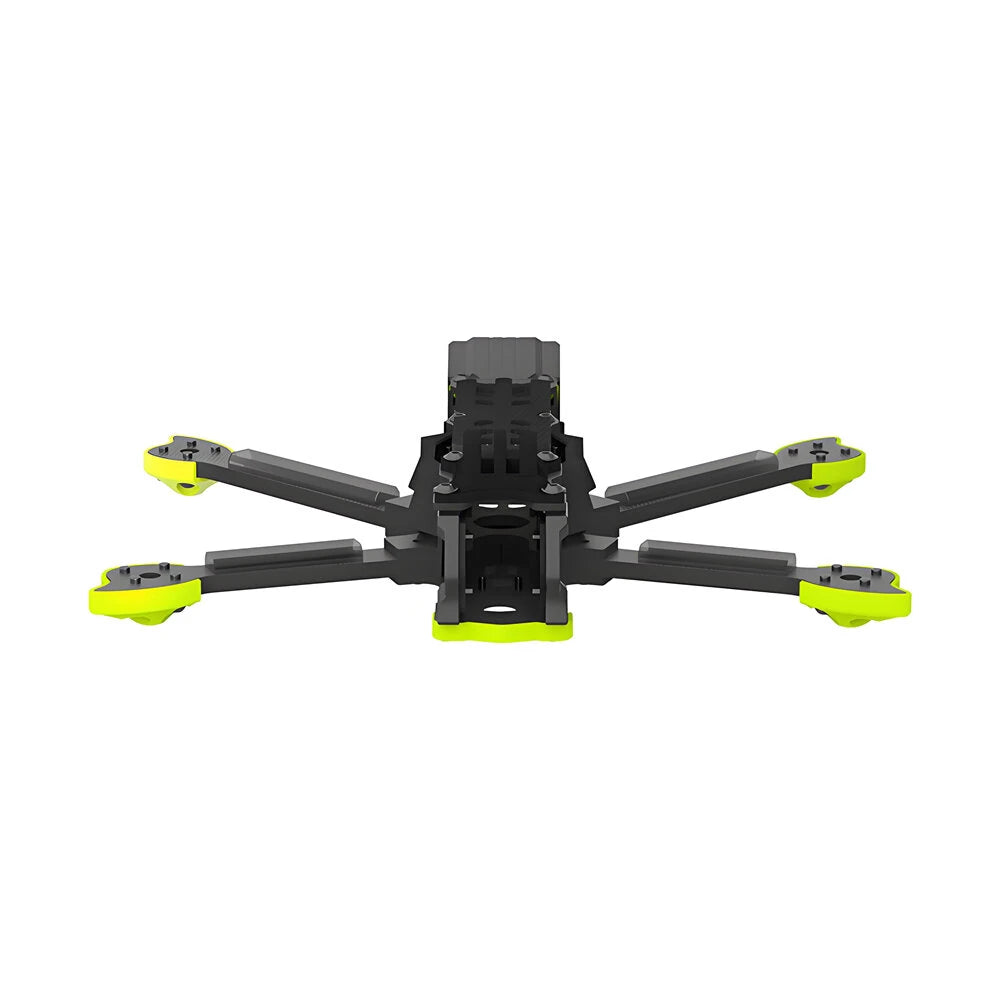

The iFlight Nazgul DC5 frame is a high-valu 5-inch freestyle drone frame designed for pilots seeking an optimal balance between performance and cost. Constructed from exceptionally rigid carbon fiber to minimize resonance, it ensures stable and precise flight characteristics. Notably, no props or frames are in view! during flight. Recently updated, the Nazgul DC5 now also supports the DJI O4 Pro Air Unit for enhanced compatibility with professional-grade equipment.
Features:
- DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit:
- New Camera Mount for DJI O4 Pro Air Unit
- New Silicone side panels
- Different Screws
Specificaitons:
Brand: iFlight
Model: Evoque DC5Product Name: 5 Inch O4 Pro Freestyle Frame Kit
Geometry: DC (DeadCat)
Wheelbase: 240mm
Frame Dimension: 193*144*34mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2.5mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 22mm
Maximum VTX Height: 29mm
FC Mounting: 20*20/Φ2mm 30*30/Φ3mm
Motor Mounting: 16*16/Φ3mm
VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ2mm
Weight: 239g±5g
Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX
Recommand Battery:
FC&ESC: BLITZ ATF435 Flight Controller & BLITZ E55S 4-IN-1 ESC
VTX&Camera: DJI O4 Pro Air Unit
Motor: XING-E Pro 2207 1800KV
Propeller: Nazgul F5 propellers
Battery: 1480mAh 6S LiPo Battery
Package Included:
1 x Nazgul DC5 V1.1 O4 Frame Kit
1 x TPU set (Inclu. GPro TPU Base Mount)
1 x Screw Bag
2 x Anti-slip Battery Pad
4 x Motor Wire Shield Tube
2 x Battery Strap
