Description
Notice:
1. From April 24, 2025, the product will be upgraded to V1.1 (carbon plate material upgraded to T700).
2. Comes unassembled. Need build by buyers.
Description:

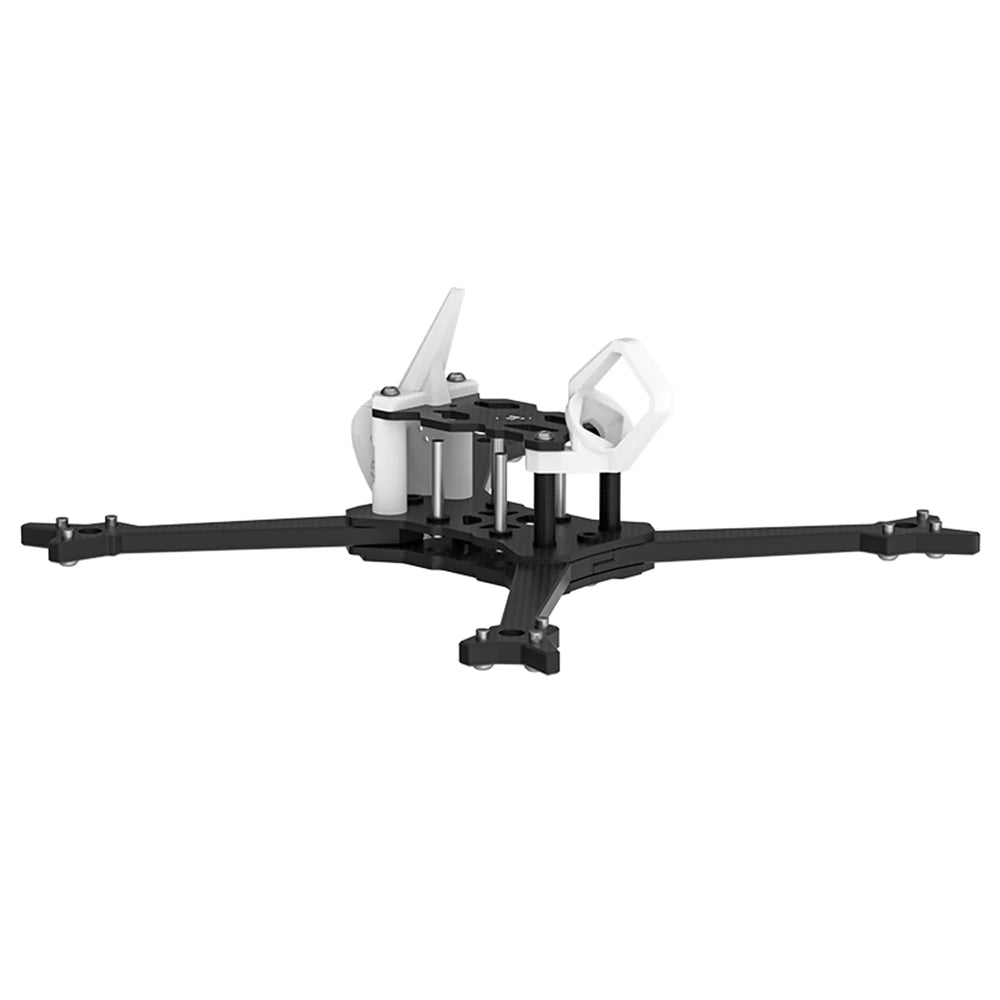

Compared with Mach R5 Sport, R5 Sport Ultra frame is lighter and has a wheelbase of only 190mm, which is more suitable for professional racing players.
Specification:
Brand: iFlight
Moedl: Mach R5
Product Name: Sport Ultra V1.1 Analog 5 Inch Frame KIt
Frame: X-type
Motor Diagonal Distance: 190mm (wheelbase)
Frame Size (L*W*H): 169*161*34mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm thickness: 5mm
Middle Plate Thickness: 2mm
Internal Space Height: 23mm
Motor Spring Hole Diameter: 6mm
Camera Side Plate Spacing: 14*14mm
Flying Tower Installation Height: 23mm
Image Transmission Installation Height: 23mm
Flight Control Installation Hole Spacing: 20*20/Φ3mm
Image Transmission Installation Hole Spacing: 20*20/Φ3mm
Motor Installation Hole Spacing: 16*16/Φ3mm/3-hole shape
Weight: 92g
Recommended parts(not included):
FC&ESC: 20x20mm iFlight BLITZ Mini F7 V1.1 FC 55A Stack
Burshless Motor: iFlight XING2 2207 1855KV motor
Propeller: 2 Pairs HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade Propeller
Lipo Battery: TATTU R-LINE 3.0 6S 22.2V 1400mAh 120C 6S1P LiPo Battery XT60
VTX: Analog BLITZ Mini Force 600mW VTX
Package Included:
1x Frame Kit
