Description
Note：It's just an external charger, it doesn't include a plug.
Specification:
Brand: iFlight

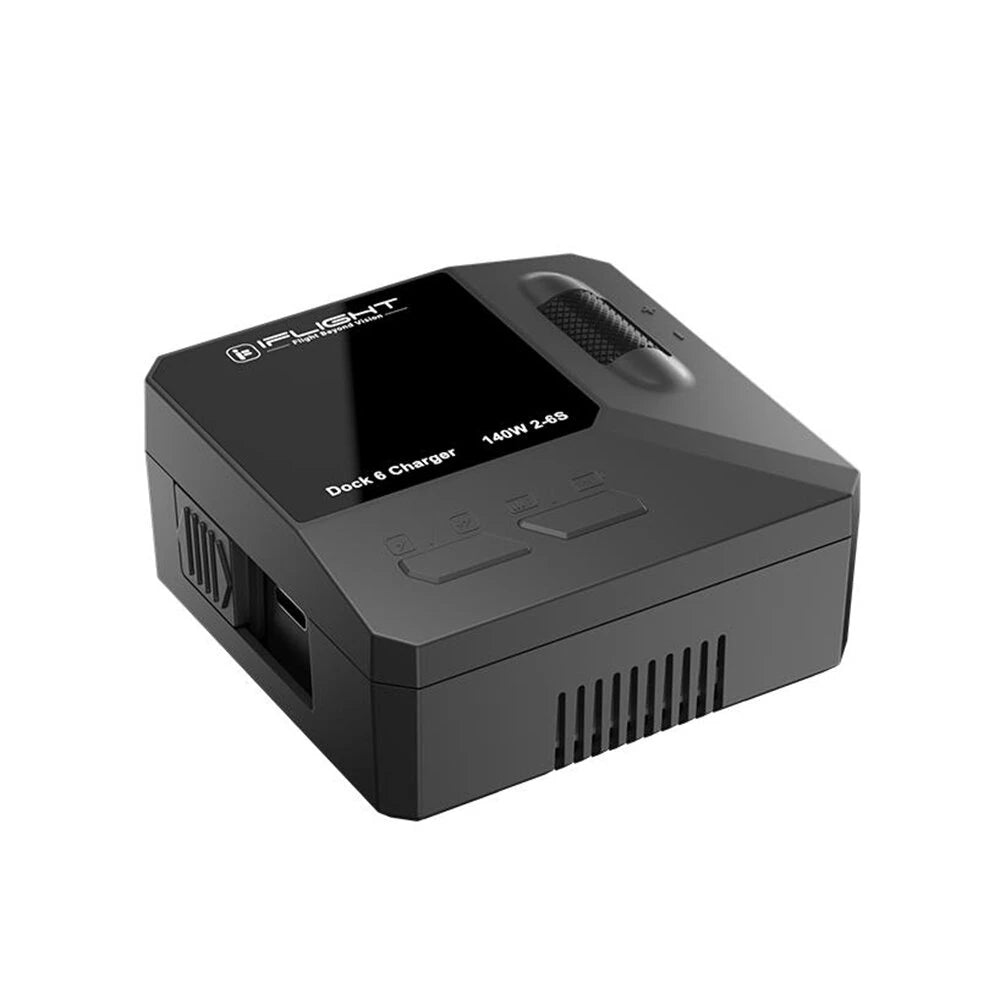

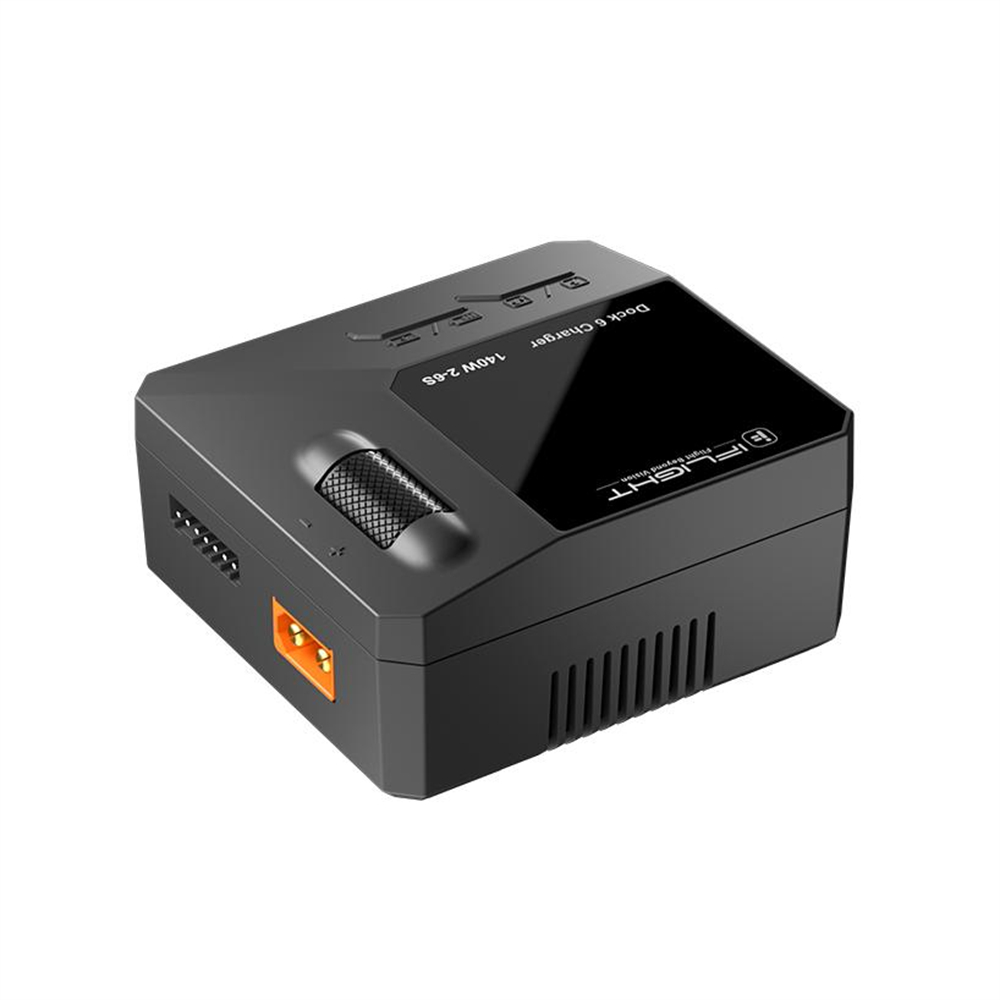

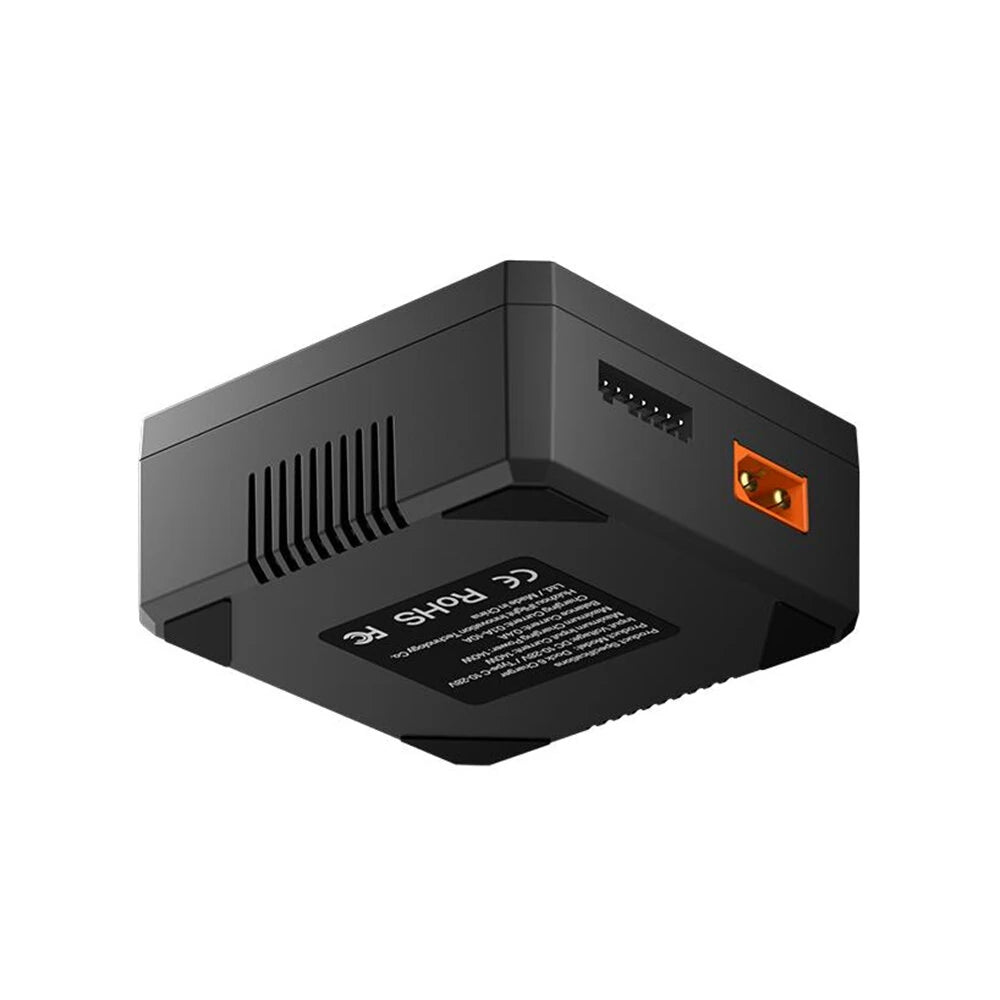

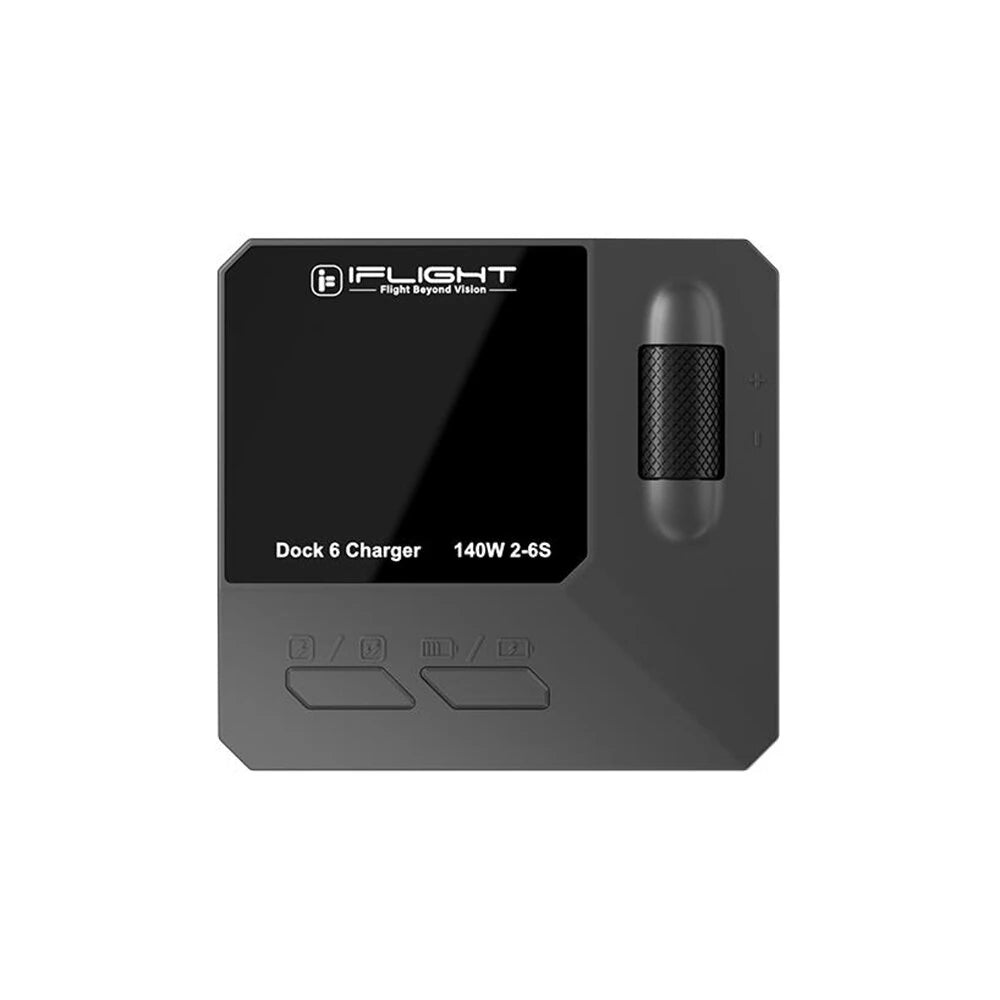

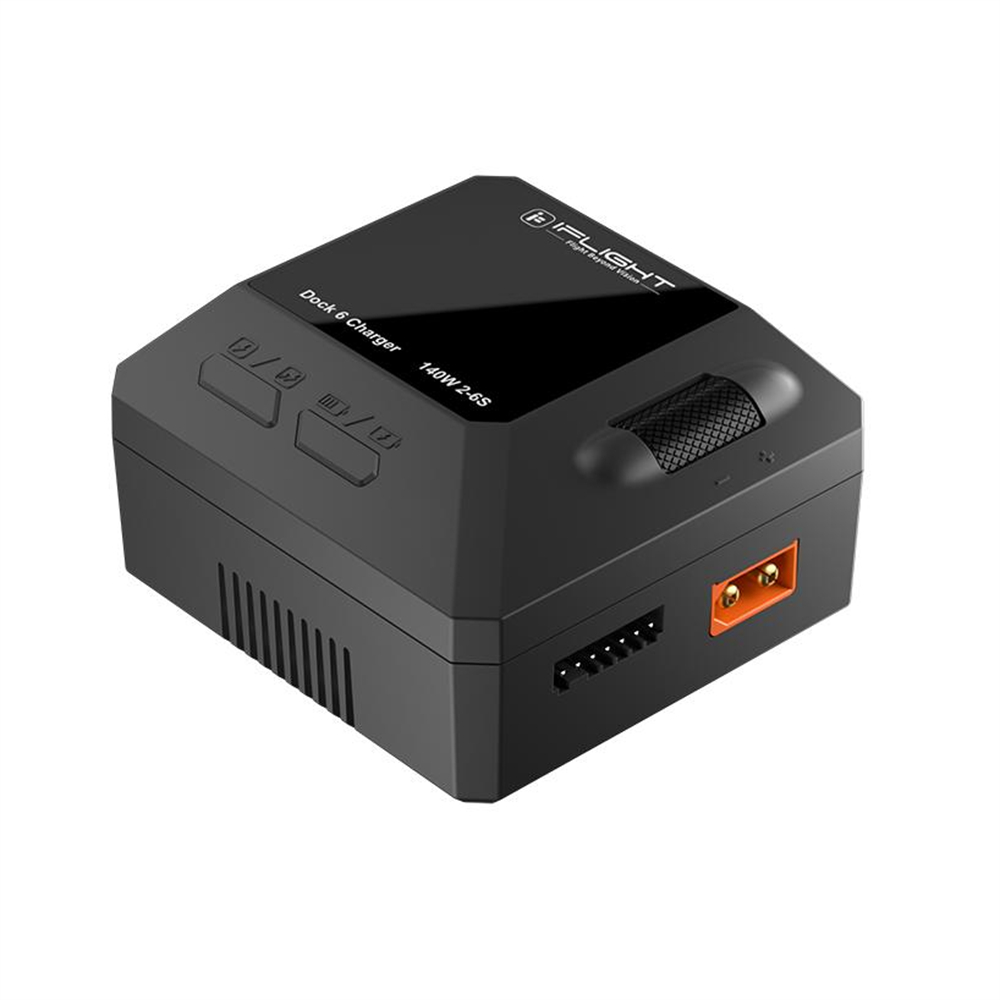

Item Name: Dock 6 Charger
Maximum Input Current: DC 10A / USB-C 5A
Input Voltage Range: DC 10–28V; Type-C 10–28V
Output Voltage Range: 6.0–26.1V
Charging Current: 0.1–10.0A
Maximum Charging Power: 140W
Maximum Reverse Discharge Power: Type-C 140W / 5A
Supported Battery Types: 2–6S LiPo, LiHv (4.2V–4.50V)
Battery Balancing Current: 0.4A / Cell (Max)
Operating Temperature: 0–40℃
Storage Temperature: –20–60℃
Battery Voltage Abnormality Alarm: Supported
Serial Number Setting Error Alarm: Supported
Dimensions: 77*73*32mm (±3mm)
Weight: 113±5g
Features:
Dual Power Input Options: Supports XT60 and Type-C PD3.1 for versatile charging, with Type-C providing up to 28V/5A efficiency.
High Power Output: Delivers precise DC output up to 140W/10A with stable control and compatibility for 2-6S LiPo and LiHv batteries.
Smart Battery Recognition: Automatically detects battery type and parameters for optimal charging settings, ensuring safe operations.
One-Button Switching: Easy selection between charge and storage mode or fast and slow charging, adapting to battery requirements instantly.
Compact Design: Lightweight and portable at 113g with a slim 77mmx73mmx37mm housing, ideal for on-the-go pilots.
Package included:
1 x iFlight Dock 6 Charger
