Features:
- Stable output power
- 4 power levels up to 1600 MW
- 40 channels (including bands)
- Fast frequency lock, no startup interference to other pilots
- Built-in output power self-check function
- Vtx uses IRC vagrant protocol for telemetry
- The maximum power of the image transmission is up to 1.6W, which is more resistant to interference and not afraid of long-distance voyages

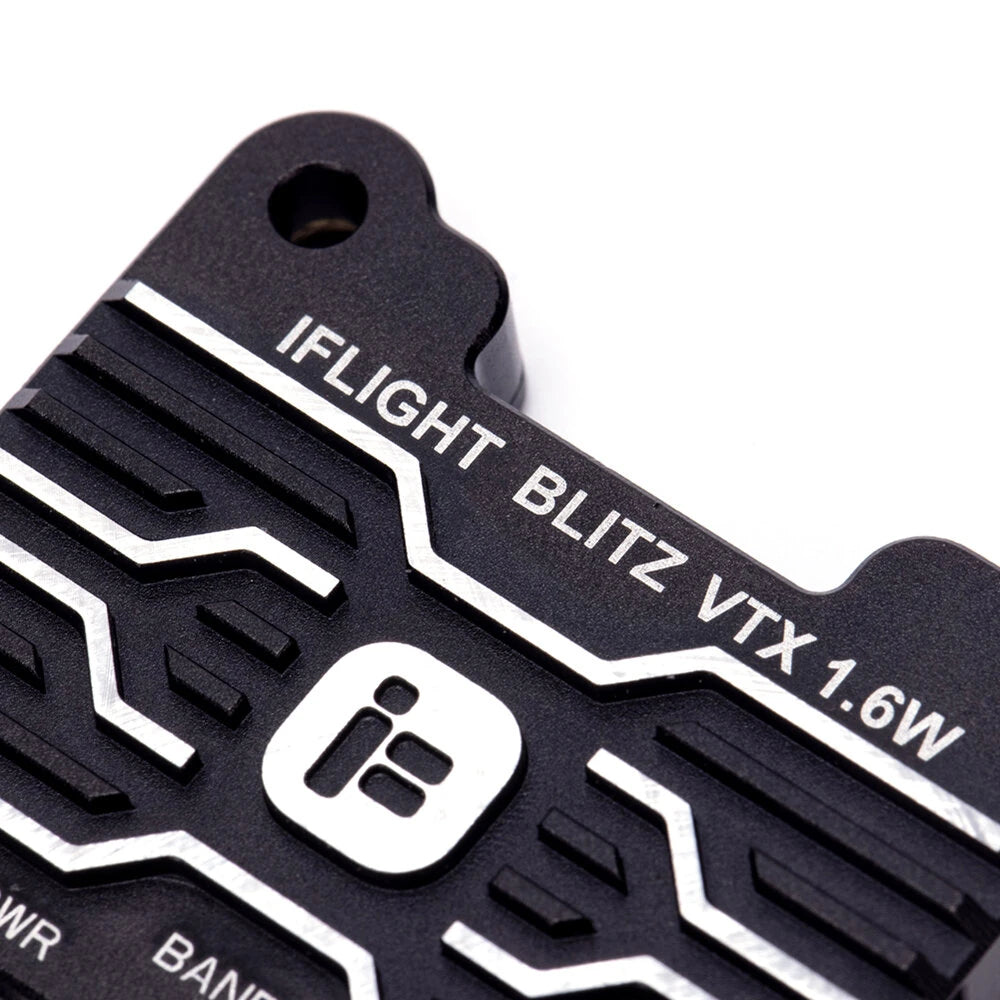

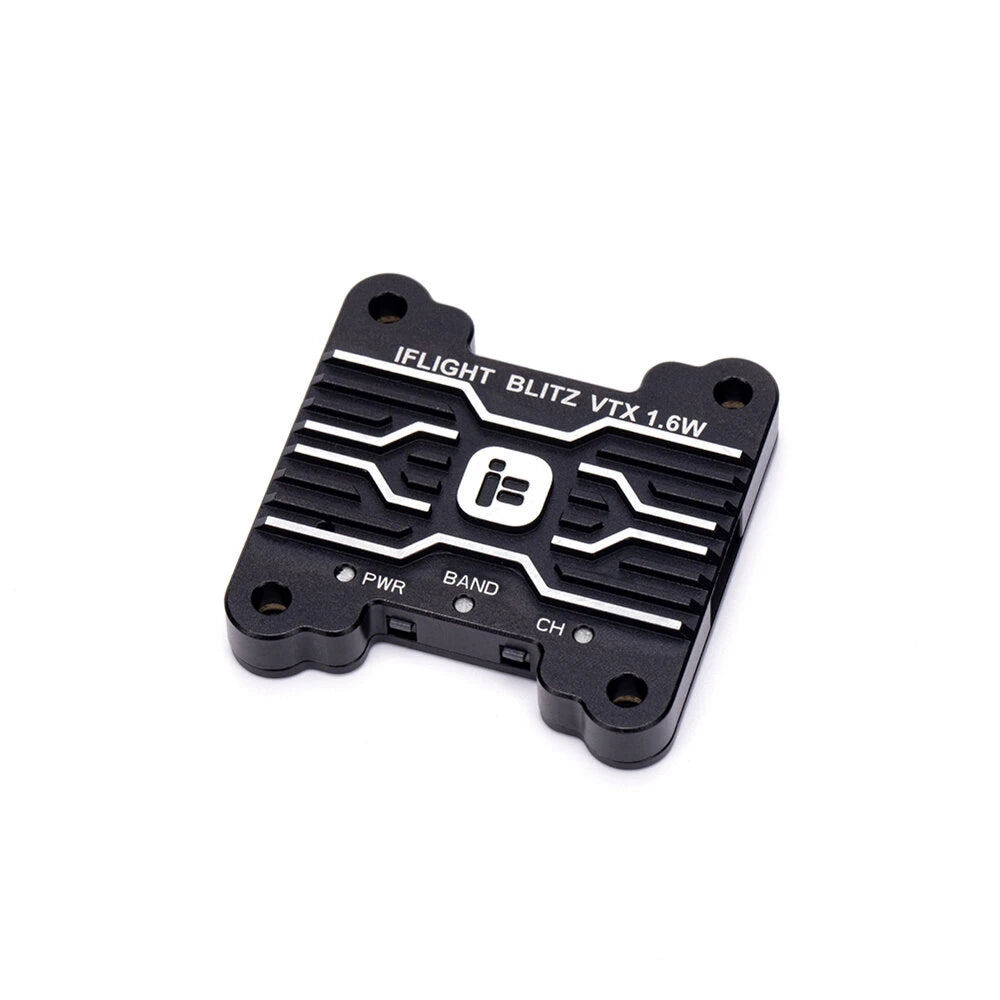

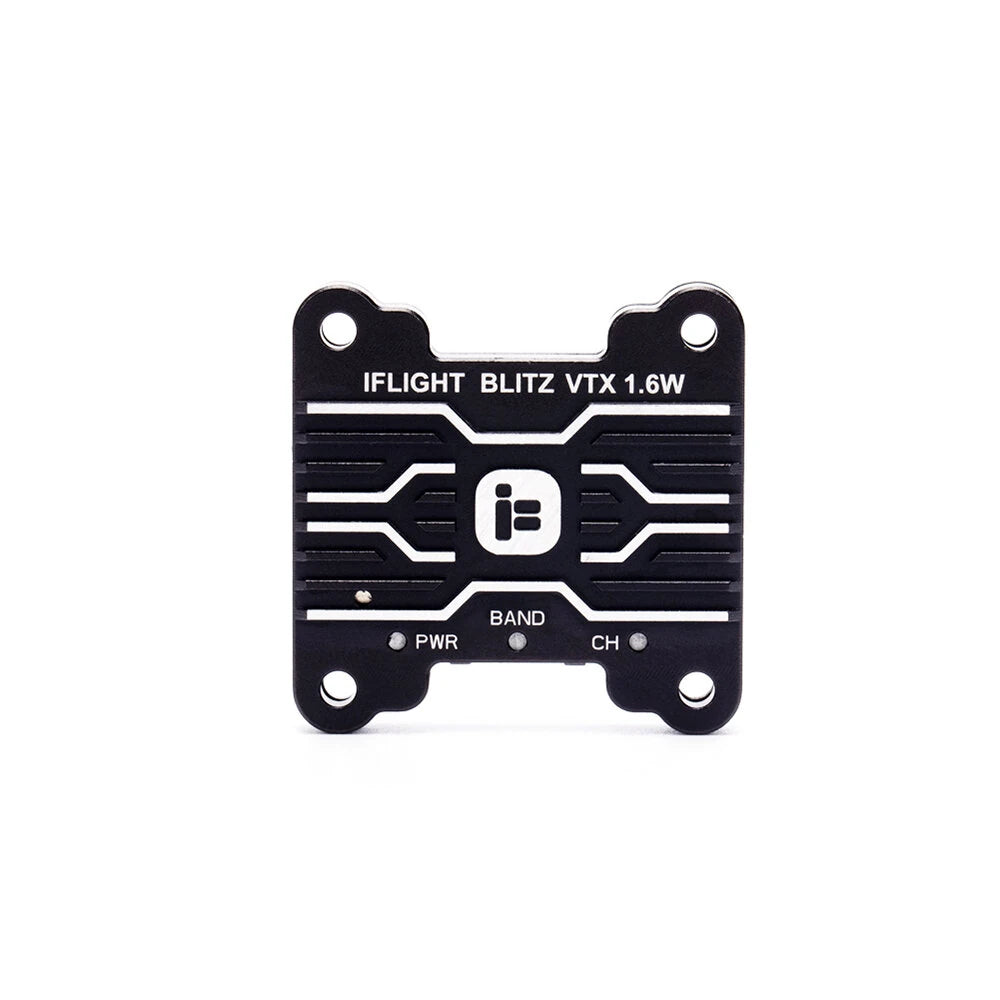

-Unique CNC aluminum alloy heat sink with built-in M3 screw fixing holes
-With LED indicator light to follow the power and frequency changes, the image transmission power and frequency are clear at a glance

Specification:
Brand: iFlight
Model: BLITZ
Item Name: FPV Drone VTX Transmitter
Image Transmission: 5.8G
Power: 1.6W
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (Including Belt)
Mounting Hole:25.5x25.5mm/Φ1.6,30.5x30.5mmΦ3
Input Voltage: DC7-34V, Supports 2-8S Battery Input
Output power: 25mW/400mW/800mW/1600mW

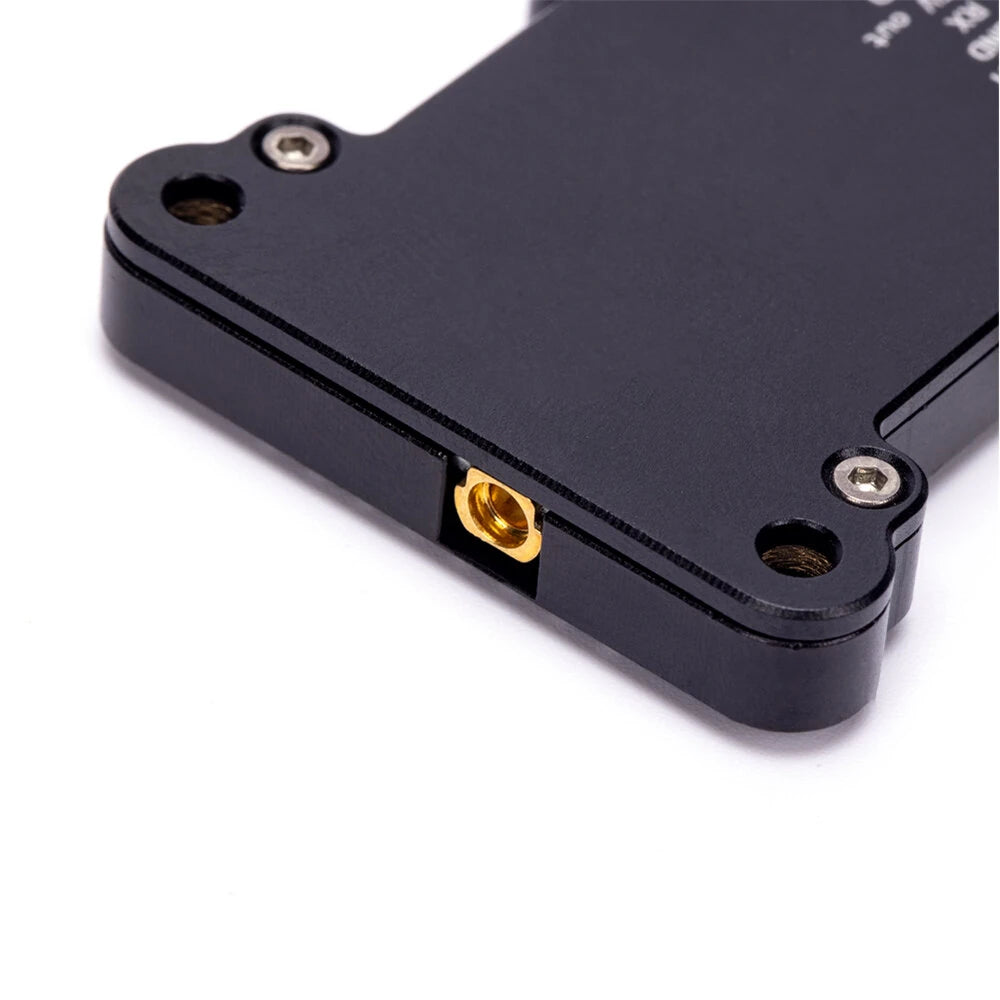

Antenna interface: MMCx
Input interface: SH1.06P
Image transmission protocol: IRCTramp

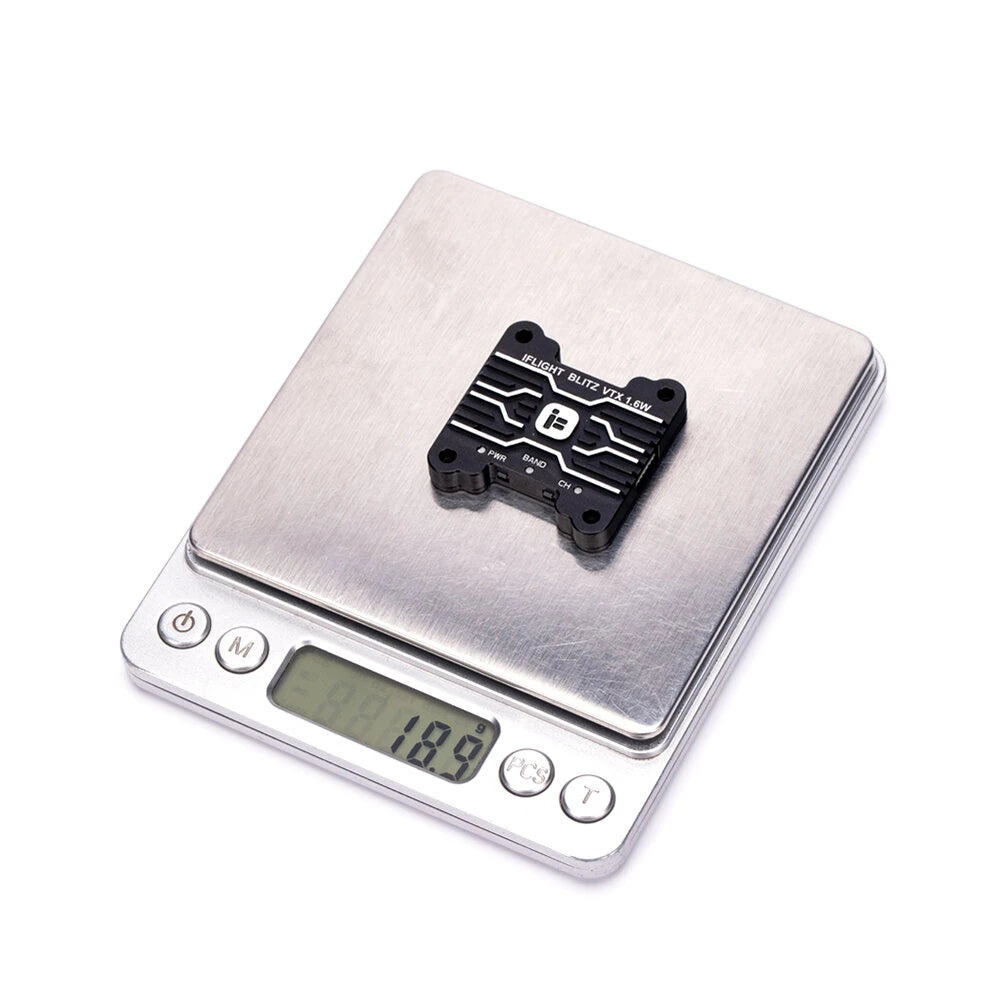

Weight: 18.9g(30.5x30.5mm) / 16.5g(25.5x25.5mm)

Fits:
25.5mmx25.5mm for Nazgul Evoque F5 F6 Chimera 7 XL10
30.5mmx30.5mm for Nazgul XL5 series

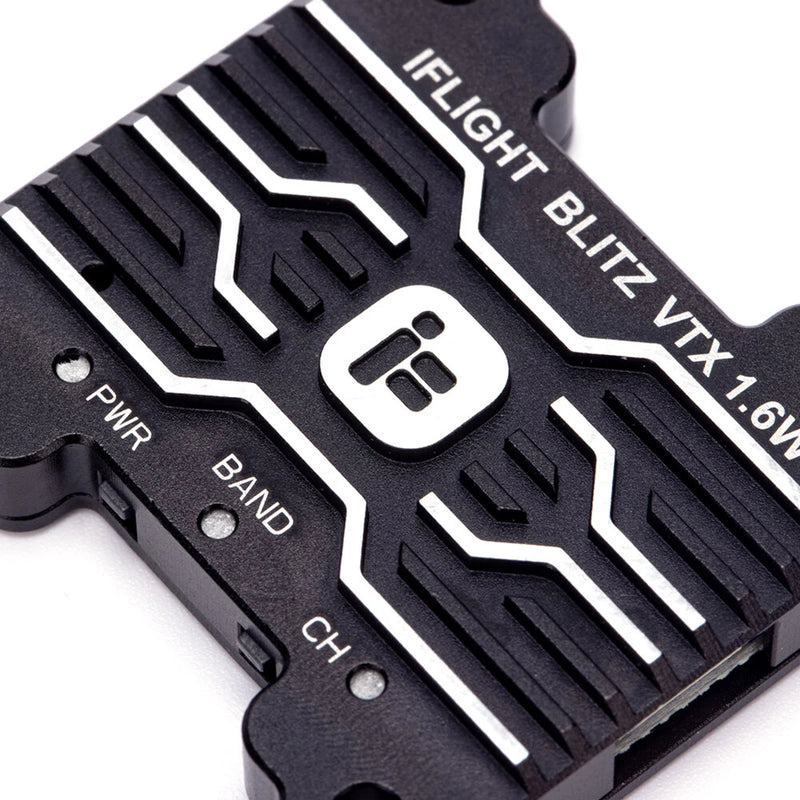

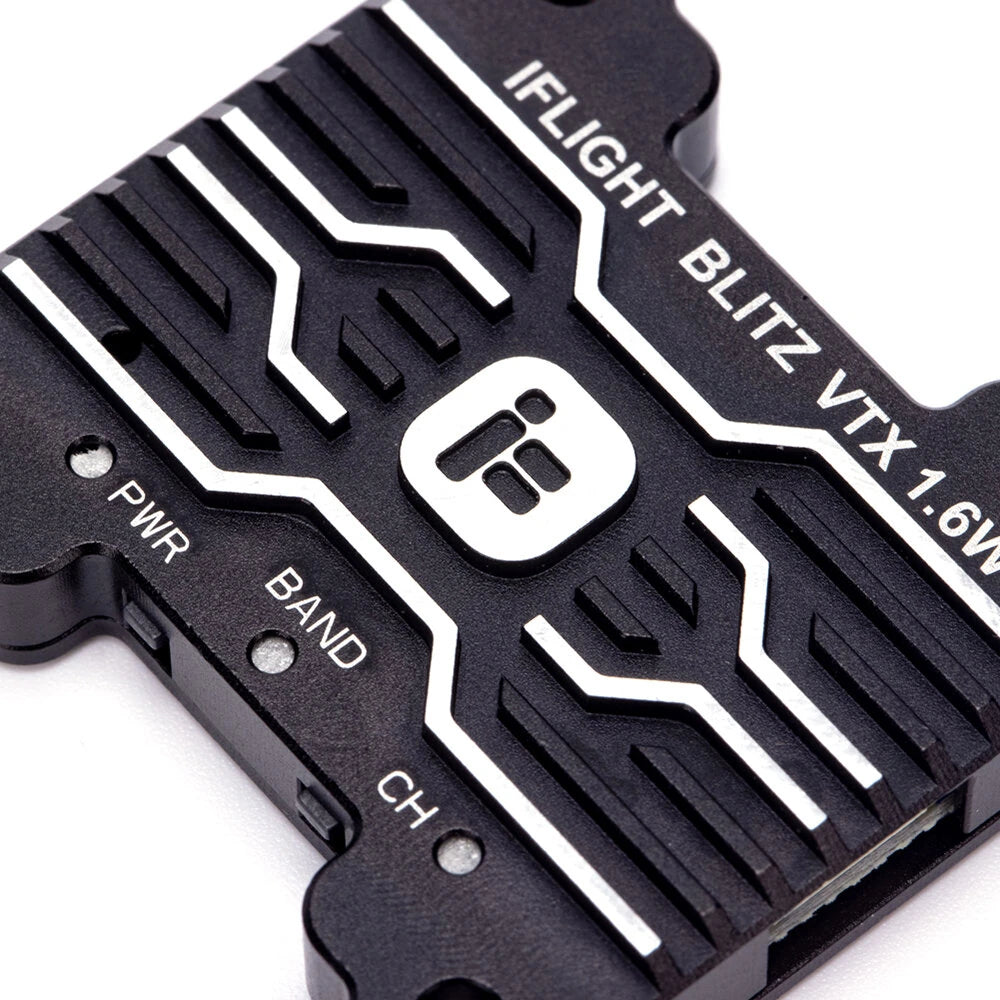

Indicator and function switching:
Channel and frequency button:
Press for 2 seconds - blue (BAND): LED flashes to indicate frequency band A to R, press for 2 seconds to switch frequency bands Short press - red (CH): LED flashes to indicate channels 1 to 8, short press to switch channels

Power button:
Press for 2 seconds - enter or exit PIT mode, green LED is always on to enter PIT mode
Short press - green (output power): LED flashes to indicate the output rate of the image transmission, short press to change the output power Flash 1 time = 25mW, flash 2 times = 400mW, flash 3 times = 800mw, flash 4 times = 1600mW

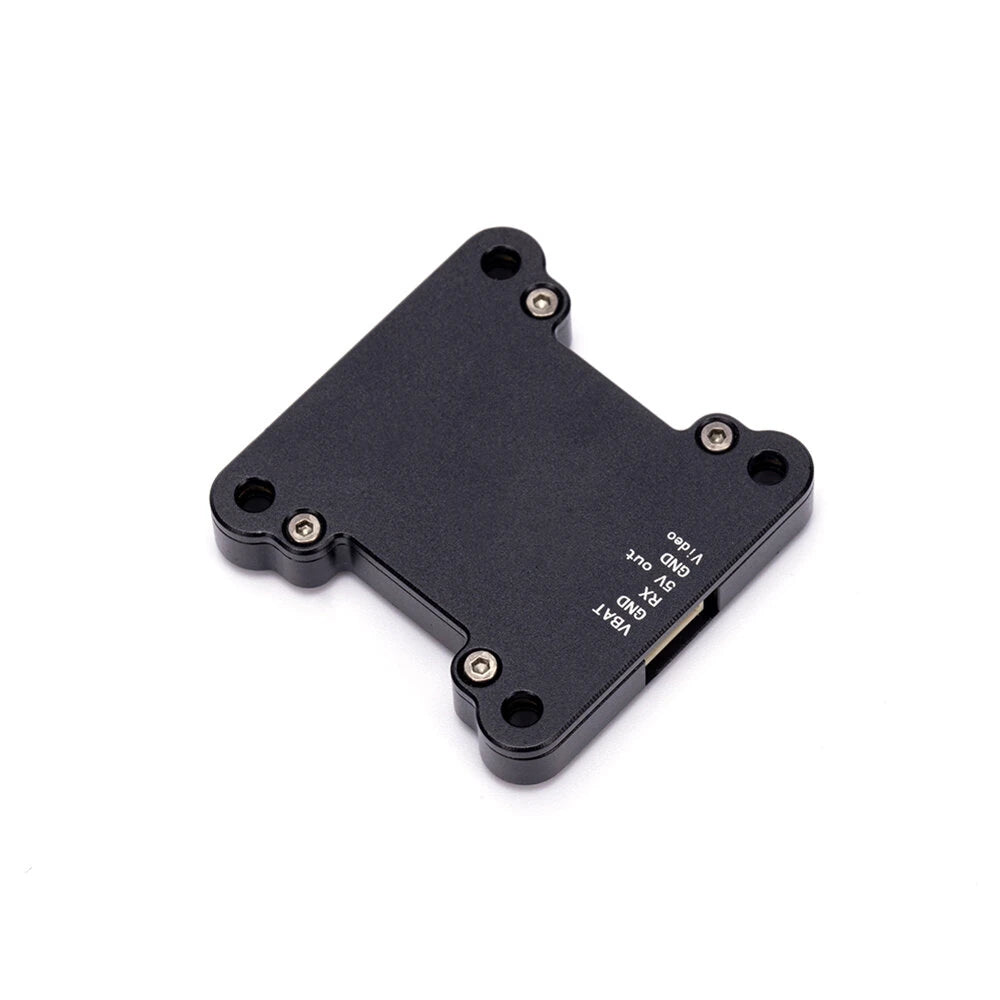

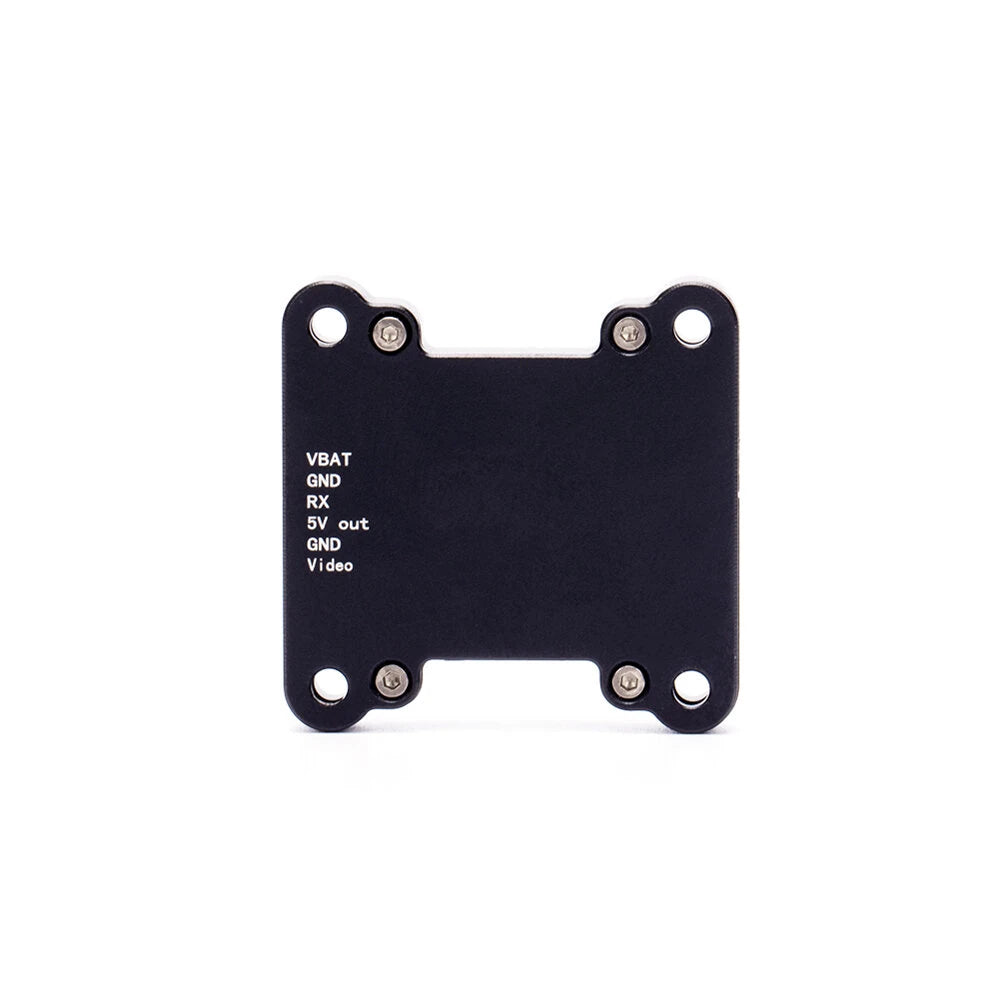

Port Description:
V B A T: 2-8S/7-34V DC positive input
GND: negative pole
5V OUT: 5V power supply output
GND: negative pole
RX: IRC Tramp signal input
VIDEO: video input port

Package Includes:
1 X iFlight VTX Transmitter
