Description
Specification:
Brand: iFlight

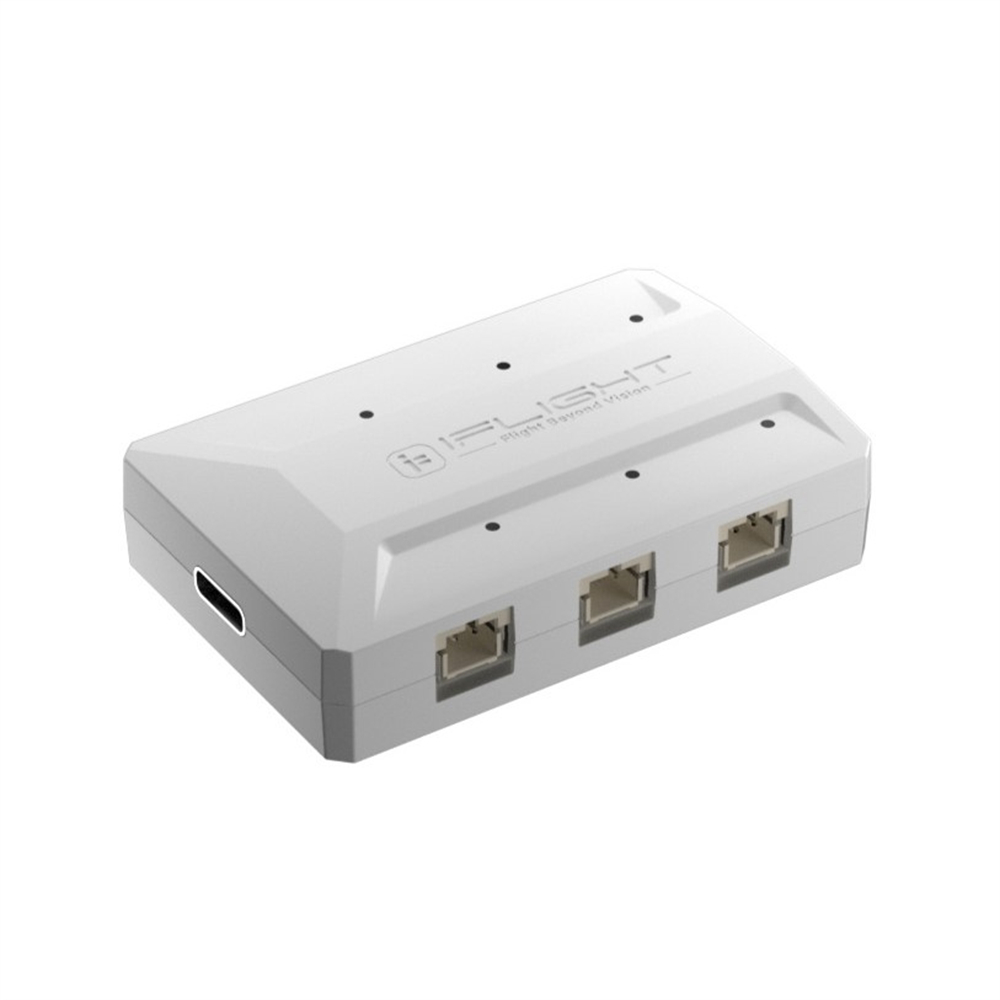

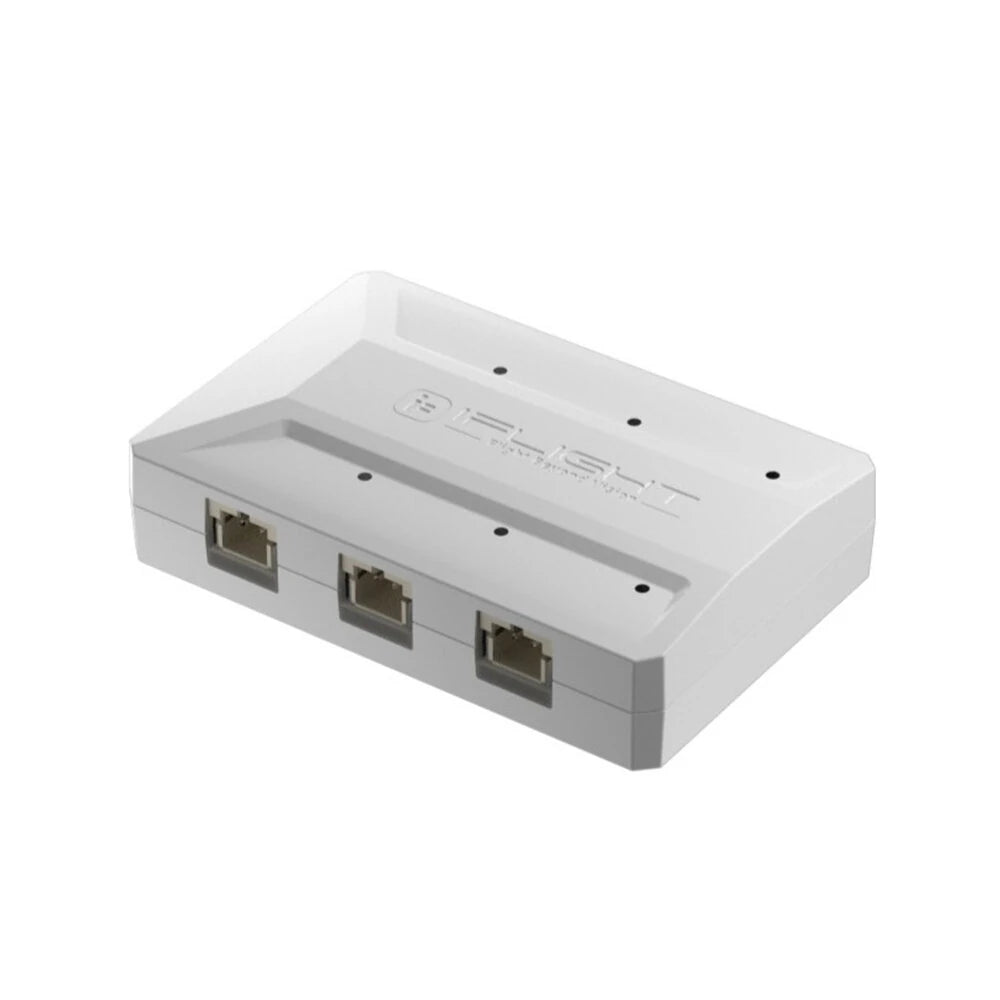

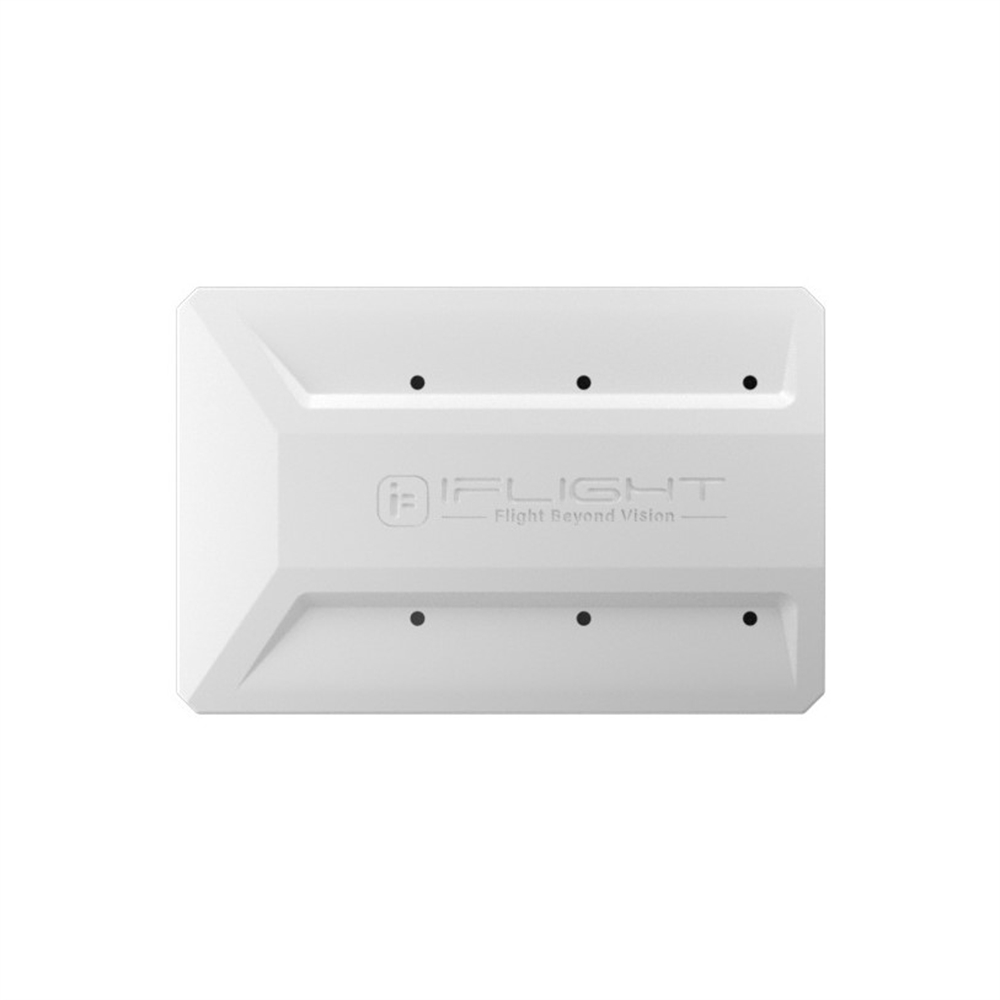

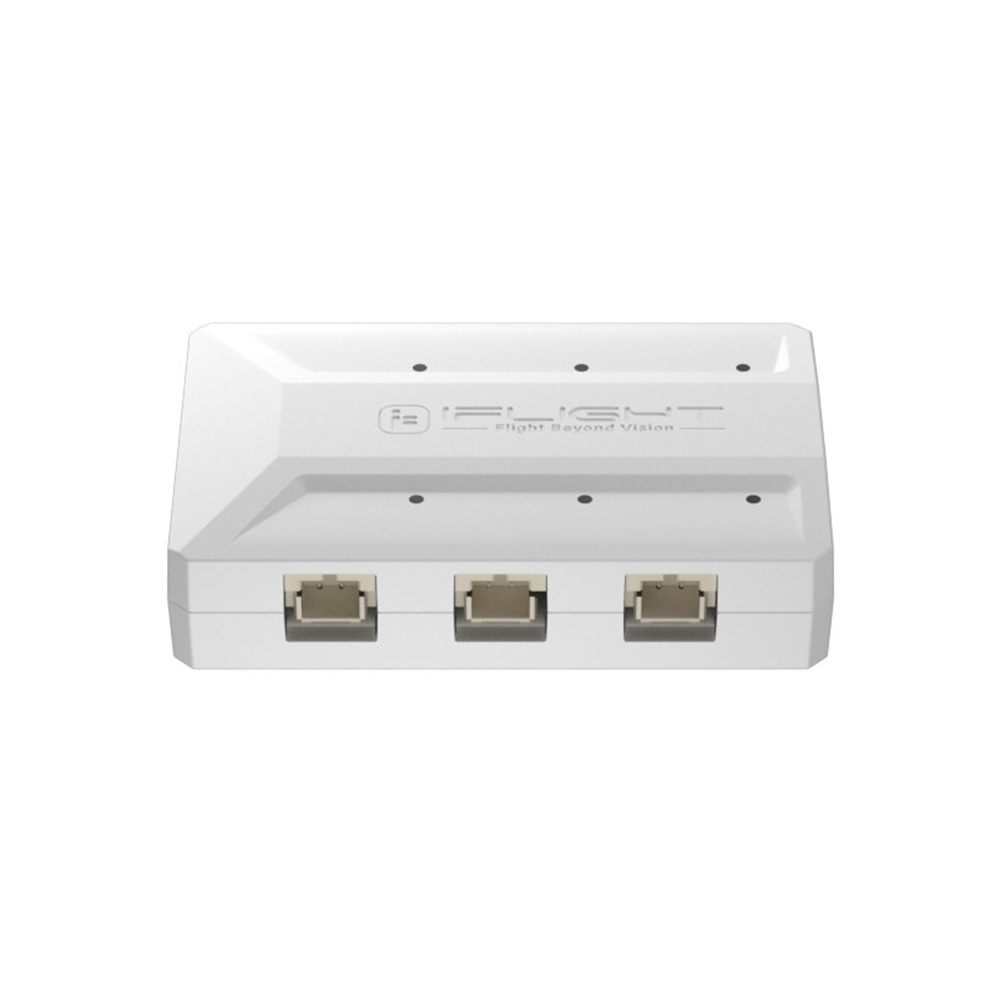

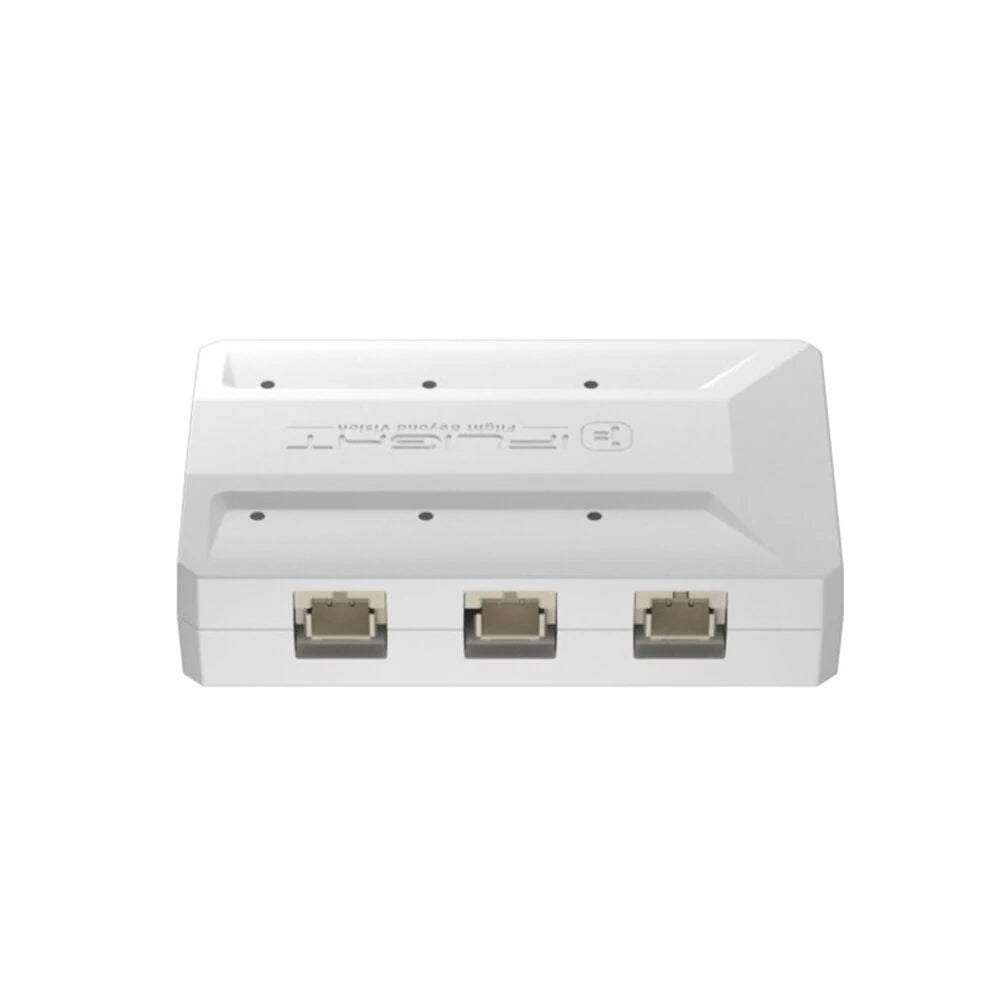

Item Name: 1S 6-port PH2.0 Charger
Color: White
Input Voltage: 5V-15V
Output Voltage: 4.35V
Output Current: 1000mA per port, 6A total for all six ports working simultaneously
Weight: 27g
Dimensions: 56*35*11.5mm
Applicable Batteries: 1S LIHV PH2.0 Plug
Charger Usage and Operation Instructions:
1. When using this charger, ensure the charger adapter output power is greater than 30W and the charger supports the PD3.0 protocol. Use a high-quality data cable for optimal performance.
2. This charger defaults to 1S LIHV 4.35V battery type, with a single-channel charging current of 1000mA. All six channels can work simultaneously. It takes approximately 21 minutes to fully charge six 1S 300mAh batteries from 3.5V to 4.35V.
3. Power on the charger first, then connect the battery to be charged. Do not connect the battery first and then power on the charger, otherwise the charger may not supply power.
4. After powering on the charger, connect the battery to begin charging. The LED will be red during charging and green when fully charged. Charging will automatically stop when fully charged.
5. Supports charging voltage adjustment: Supports single-channel adjustment to charge 4.2V LIPO lithium batteries. Shorting the jumper on the rear panel port is required.
Precautions:
1. It is recommended to use a PD 30W or higher charging adapter to achieve optimal charger operation.
2. Maintain good ventilation and keep away from flammable materials during charging.
3. Do not use batteries larger than 1S in series for charging, as this will cause a serious short circuit.
4. Only charge 1S LIHV 4.35V or LIPO 4.20V batteries (short-circuit the B pad). Do not charge other types or other battery configurations in series.
Package included:
1 x iFlight 1S 6-port PH2.0 Charger
