Description
Noitice:
It is empty frame kit comes unassmebled, need build by buyers. NOT Include fc, esc, motors, camera etc.
Specification:
Brand: HSKRC
Model: MAK5 ( Support DJI O3 Version)
Name: 225mm Wheelbase 5 Inch Frame Kit
flight controller position: 30.5x30.5mm
Material: 3K carbon fiber
Image transmission hole: 30.5x30.5mm / 20x20mm
Top plate Thickness: 2.5mm
Middle plate Thickness: 2.5mm
Base plate Thickness: 2.5mm
Arm Thickness: 5mm
Motor hole position: 16x16mm
Lens size: 20x20mm
Inner space height: 25mm (high)
Screw size: M2 & M3
Support blade: 5 inch propeller

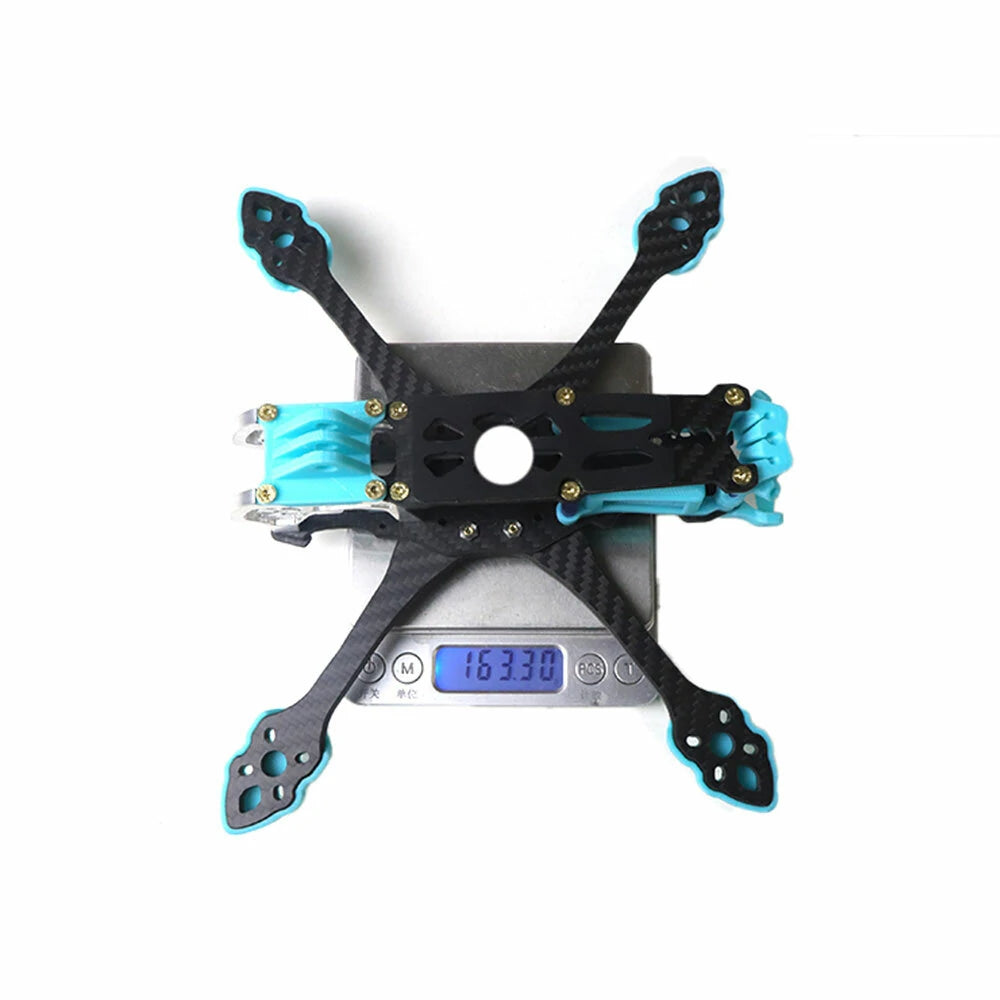

Weight: about 163g (including prints)
Print Parts color: Green/ Red/ Black/Blue ( Optional)
Features:
1. Full 3K carbon fiber body
cut along the grain, chamfered, lighter in weight and higher in strength.

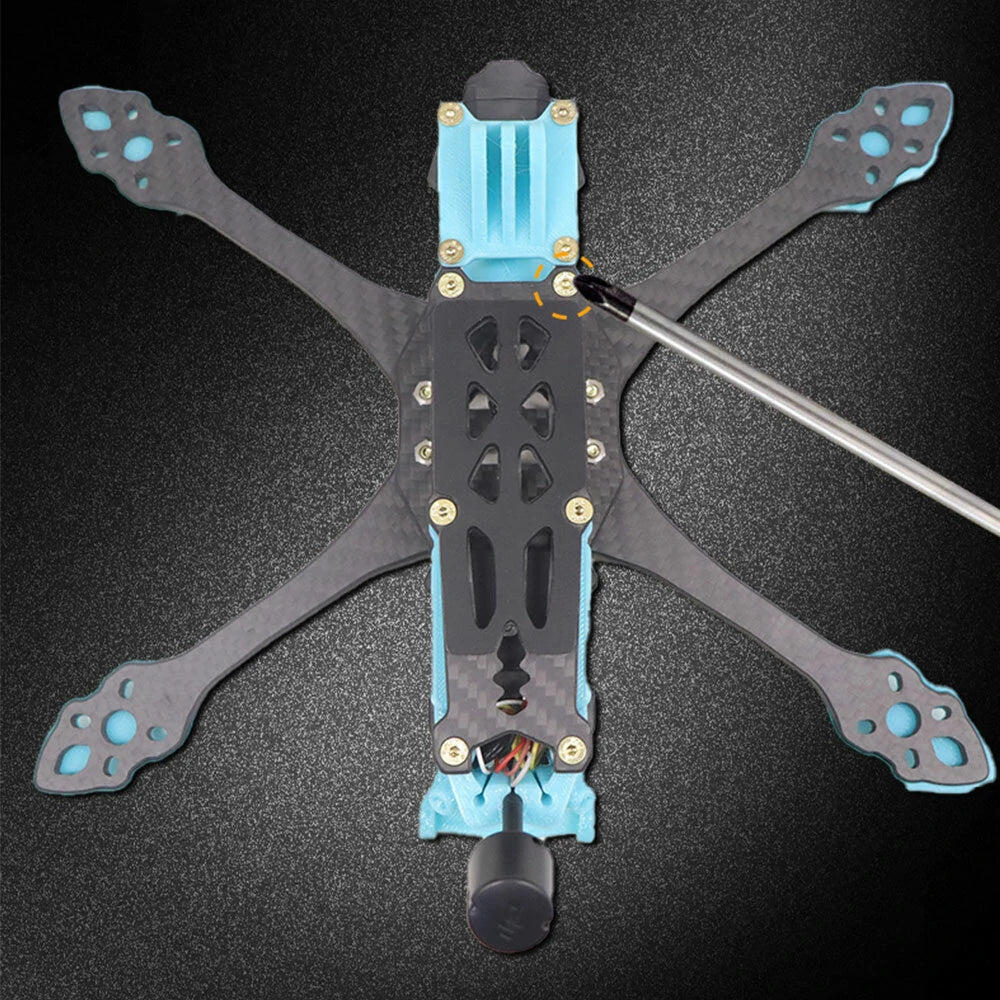

2. Quick-release arm design
the arm can be easily replaced by removing two screws.
3. Wide X arm design
stable and flexible flight attitude, quick release arm, convenient and quick field maintenance.
4. Newly designed high-strength aluminum parts
the frame is fully compatible with the DJI O3 AIR UNIT air end. The new lens aluminum parts provide all-round protection, and the carbon fiber body has higher strength.
Recommend Parts ( NOT Included):
FC & ESC: MAMBASYS F405 MK2 Betaflight FC F40 40A 3-6S DSHOT600 ESC Stack
Brushless Motor: iFlight XING-E Pro 2306 1700KV 3-6S Brushless Motor
Propeller: HQProp DP5X4.3X3V1S Durable 5043 5x4.3 5 Inch 3-Blade Propeller
VTX & Camera ( HD): DJI O3 Air Unit Digital System
Lipo Battery: iFlight Fullsend 22.2V 1400mAh 130C 6S LiPo Battery XT60 Plug
Package Included:

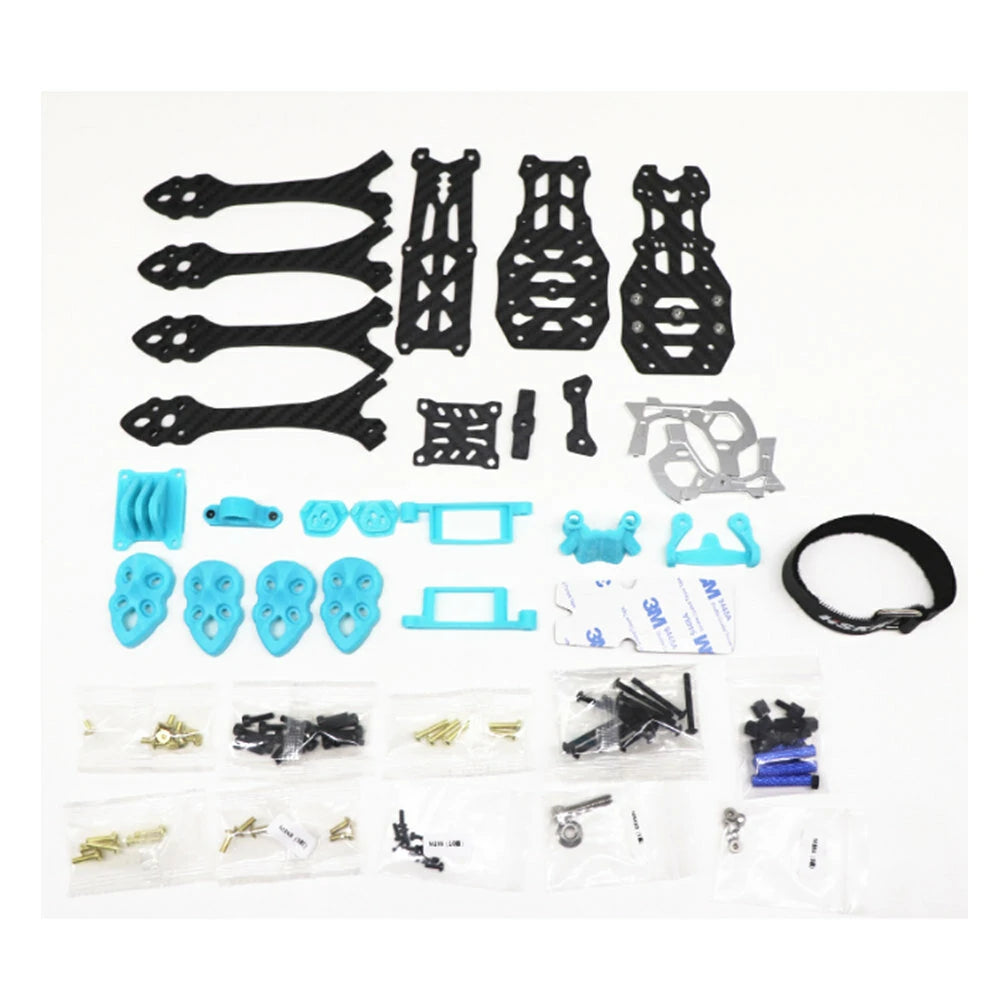

1x MAK5 Frame Kit
