Description
Features:
- 7075 Aluminum alloy Side Plate, more durable and Pretect FPV Camera more effectively
- X Frame Arm design, flying more stable and flexible
- Compatible with DJI / Vista HD digital System and Analog VTX
- 19-20mm Camera Mounting Width
- Support 16x16mm and 19x19mm Motor Mounting Hole
- With TPU Mounting Base for Gopro
Specification:
Brand: HSKRC
Model: MAK5
Item Name: 225mm Wheelbase 5 Inch Frame Kit
Wheelbase: 225mm
Material: 3K Carbon Fiber
Upper Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Plate Thickness: 5mm
Weight: 170g approxi. ( include 3D Printing Parts)
Flight Controller Mounting Hole: 30.5x30.5mm
VTX Mounting Hole: 30.5x30.5mm, 20x20mm
Motor Mounting Hole: 16x16mm, 19x19mm
Camera Mounting Hole: 19-20mm
Inner Height: 25mm
Screw Size: M2 and M3
Recommend Parts: ( NOT Included)
Package Included:

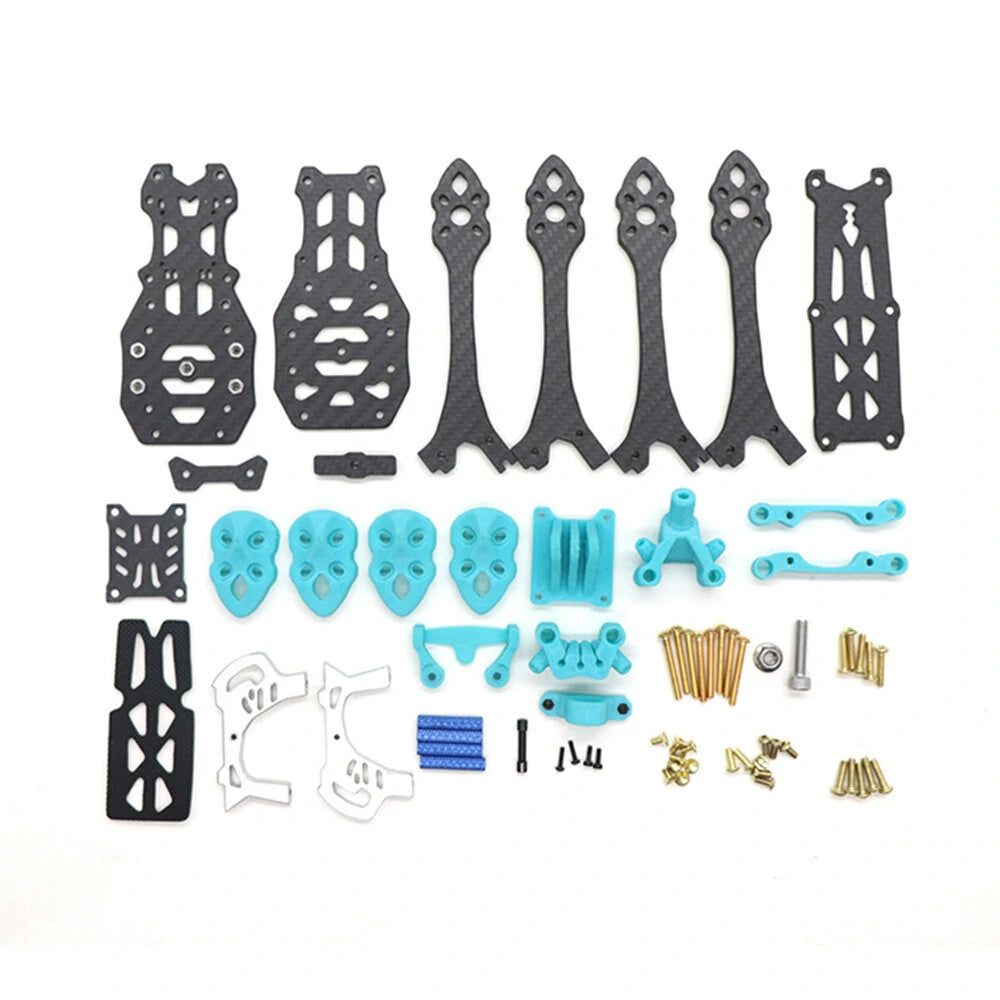

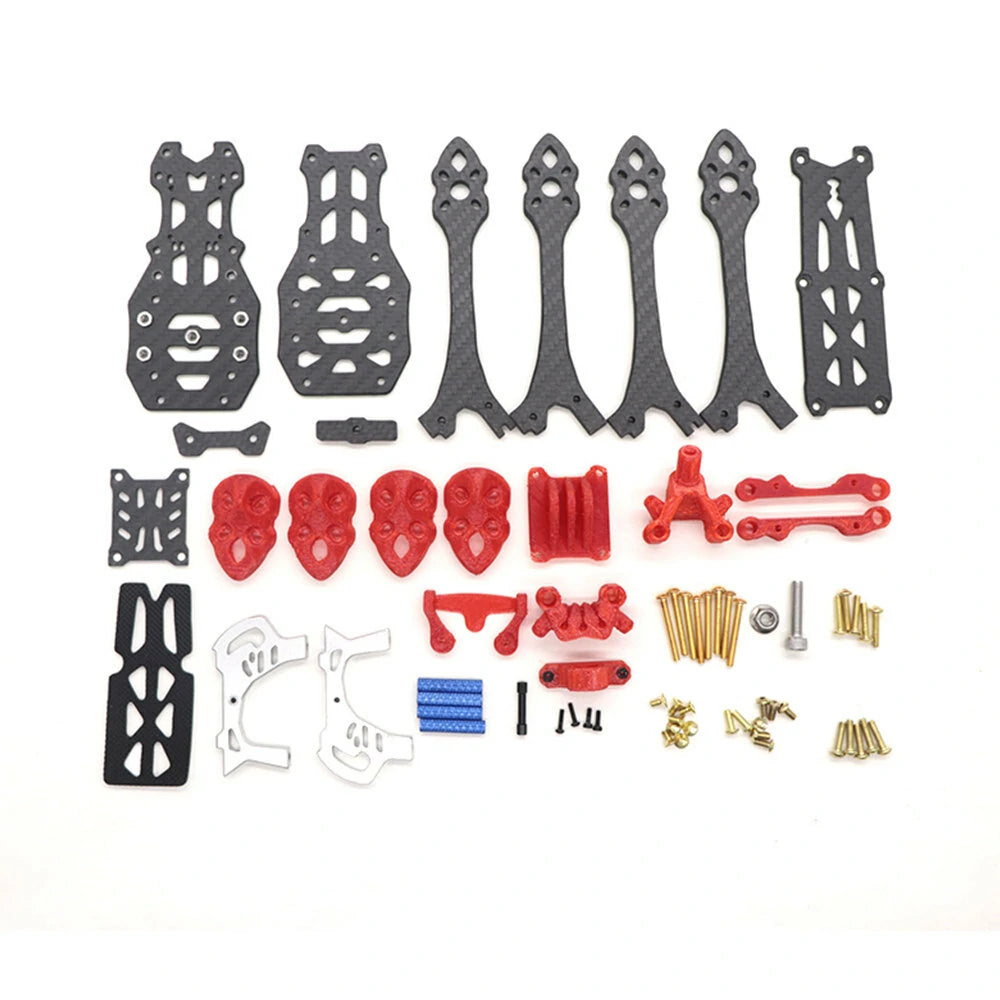

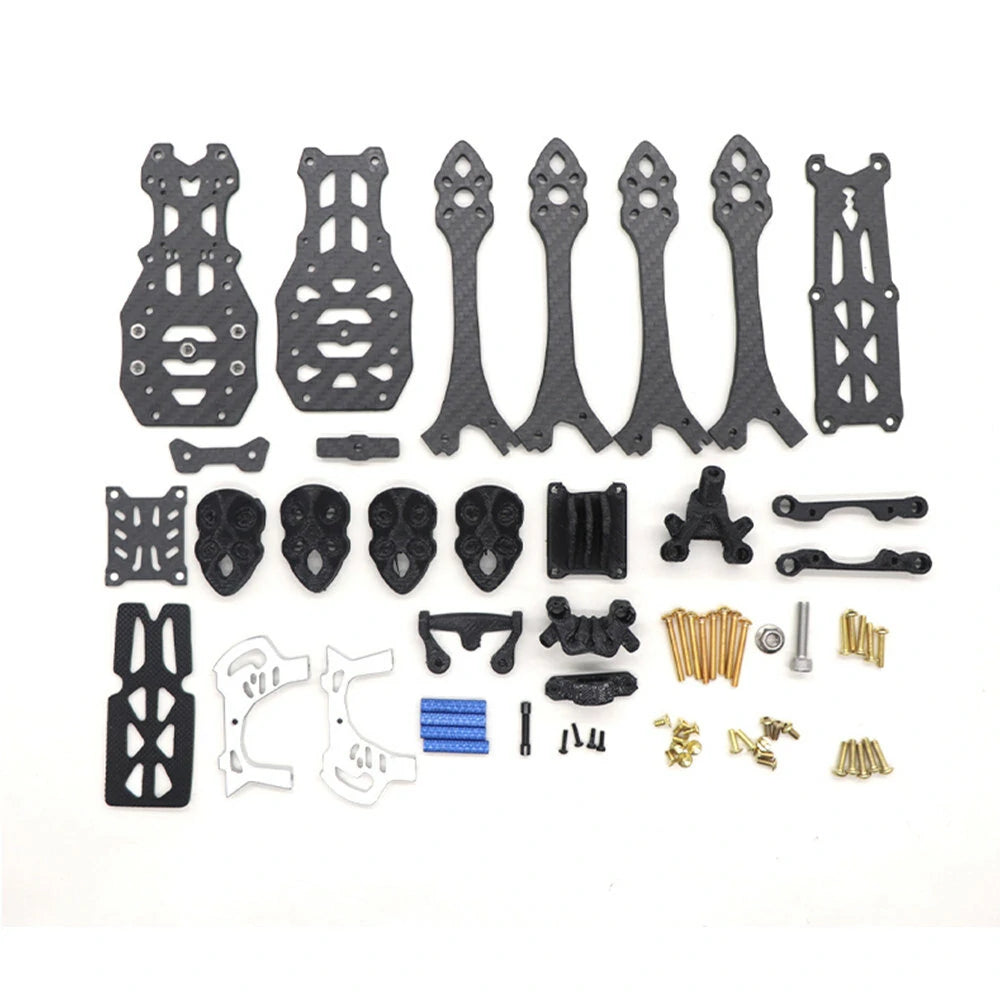

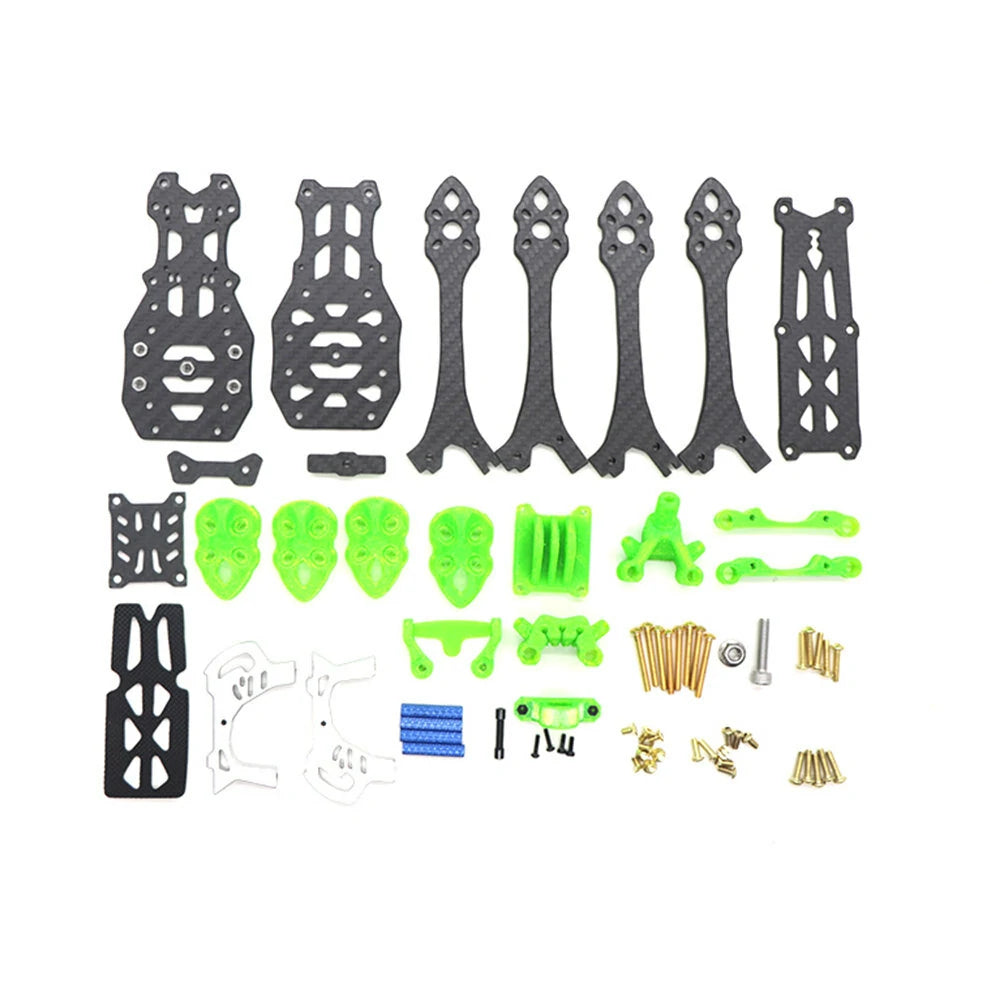

1x HSKRC MAK5 Frame Kit
